Key Benefits of Our Industrial Robots
✓
Cost Efficiency: Extremely economical solutions that save significant operational costs.
✓
Labor Savings: A single robotic arm can effectively replace 2-4 human workers.
✓
Fast ROI: Initial investment costs are typically recovered within 3-6 months.
✓
Enhanced Safety: Capable of operating in harsh and severe environments to reduce human risk.
✓
Precision Tasks: Competent for difficult tasks such as corner welding and deep pipeline welding.
✓
Heavy Handling: Designed to handle very heavy workpieces with ease and stability.
✓
24/7 Productivity: Capable of continuous 24-hour operation for repetitive and demanding work.
✓
Customizable Design: Beautiful aesthetic with customizable colors including white, yellow, and more.
Technical Specifications
| Parameter Category |
Specifications |
| Vertical Reach |
To mounting face |
885mm |
| To wrist center |
820mm |
| Axis Rotation |
J1 / J2 / J3 |
±175° / +64°/-142° / +165°/-73° |
| J4 / J5 / J6 |
±178° / ±132° / ±720° |
| Max Horizontal Reach |
1722mm |
| Allowed Torque |
J4 / J5 |
42 N*m |
| J6 |
20 N*m |
| Allowed Inertia |
J4 / J5 |
1.18 kg . m |
| J6 |
0.5 kg . m |
| Environment |
Temperature / Humidity |
0-45ºC / 20~80% RH (no condensation) |
| Protection Guidelines |
Keep away from flammable/corrosive gases, solvents, water, oil, and electric noise. |
| Total Weight |
200-250 kg |
| Safety Ratings (Arm / Cabinet) |
IP65 / IP43 |

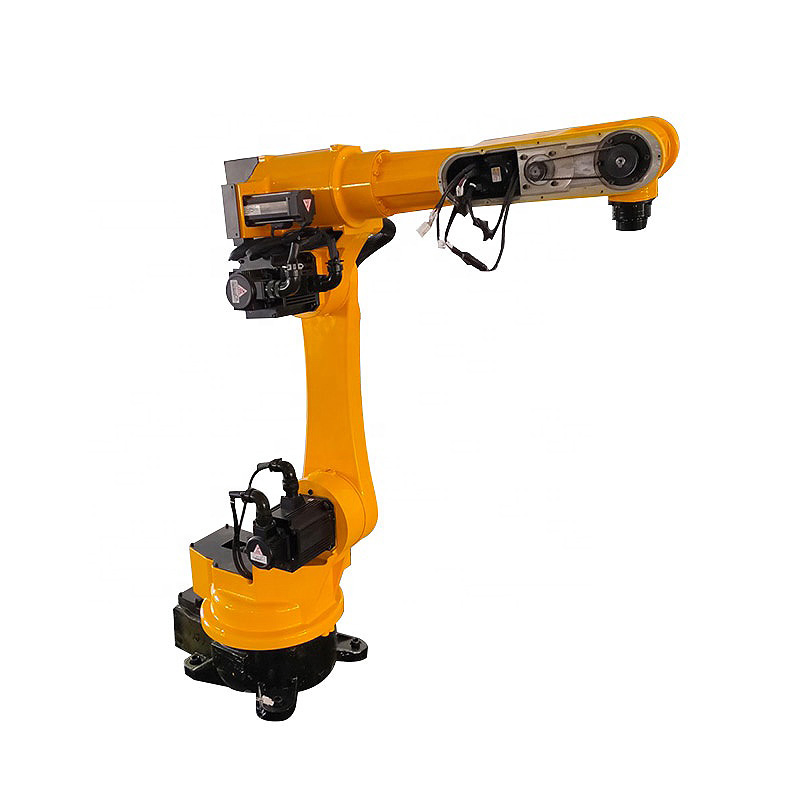

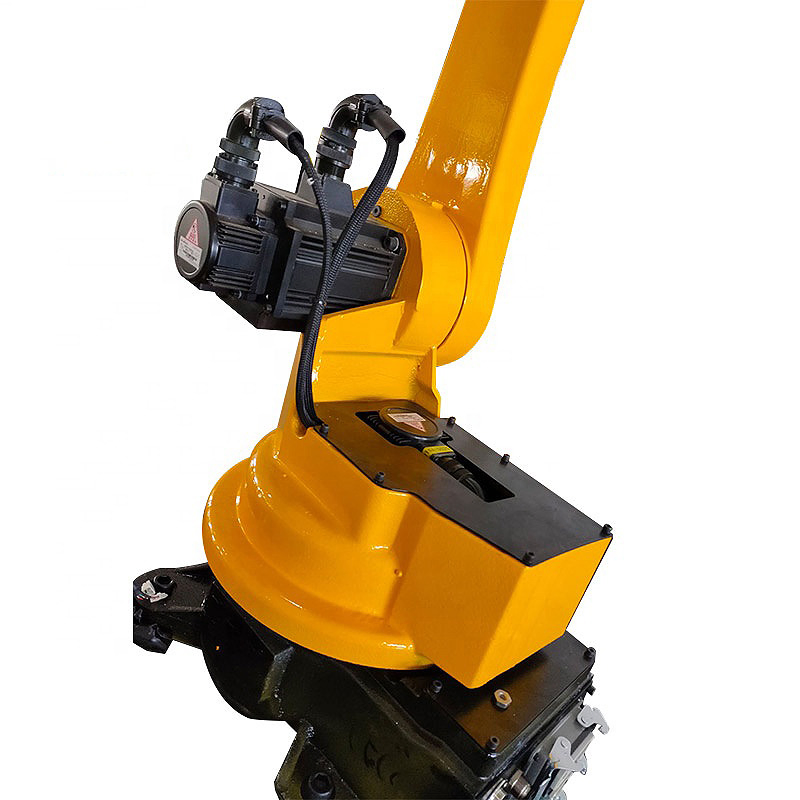

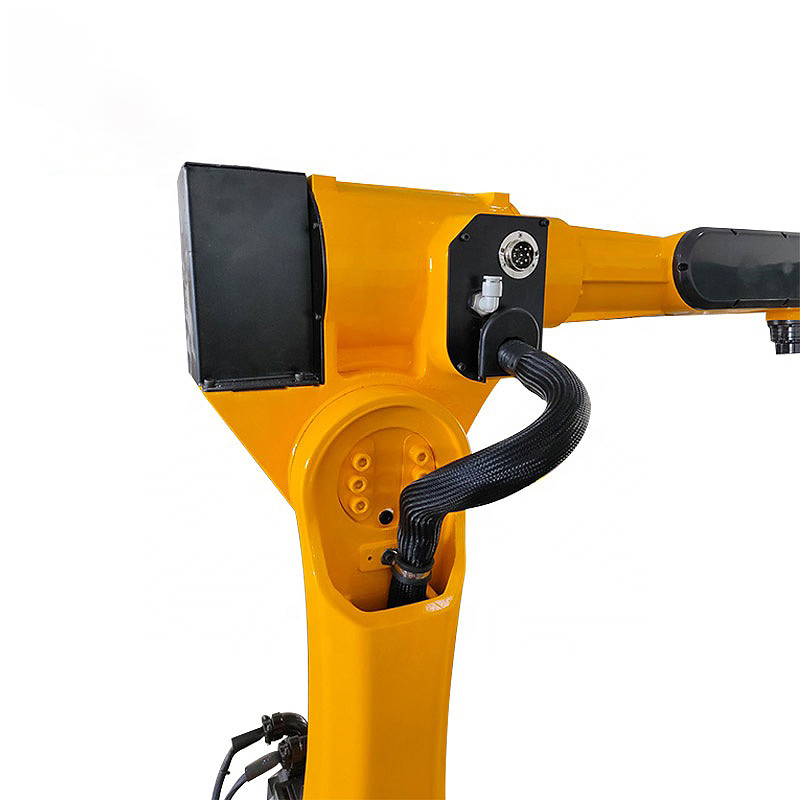

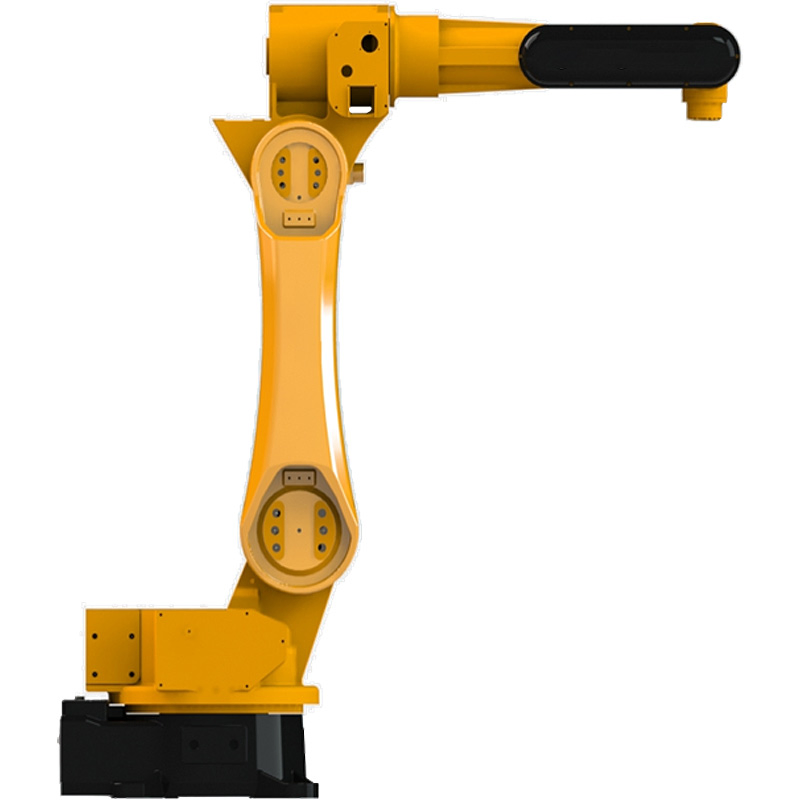

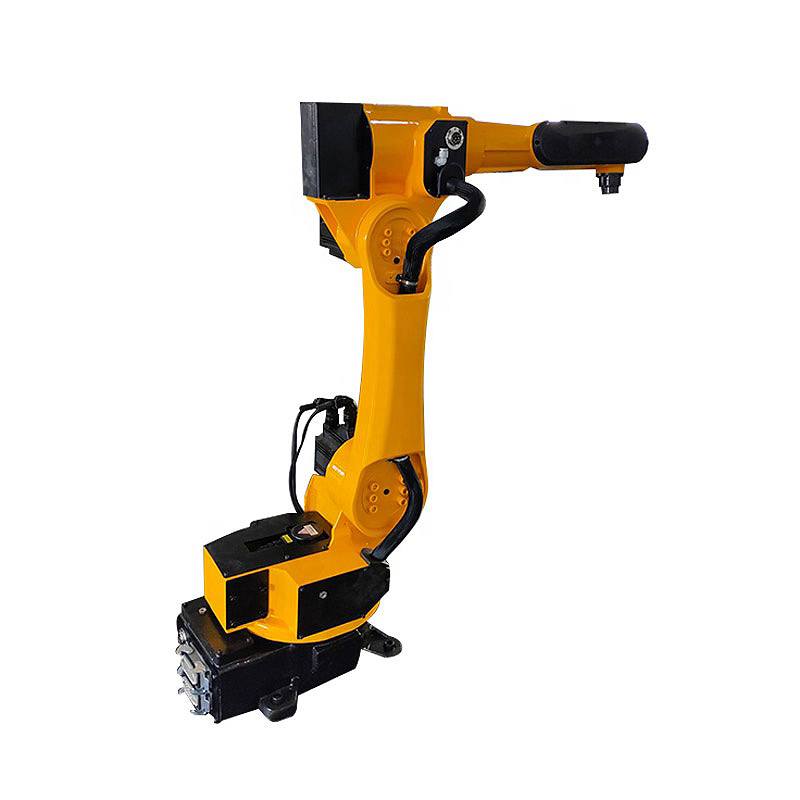

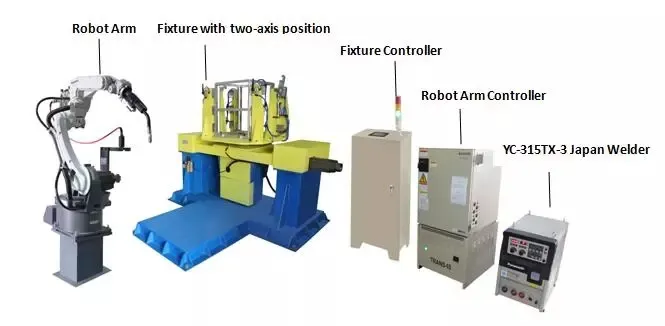

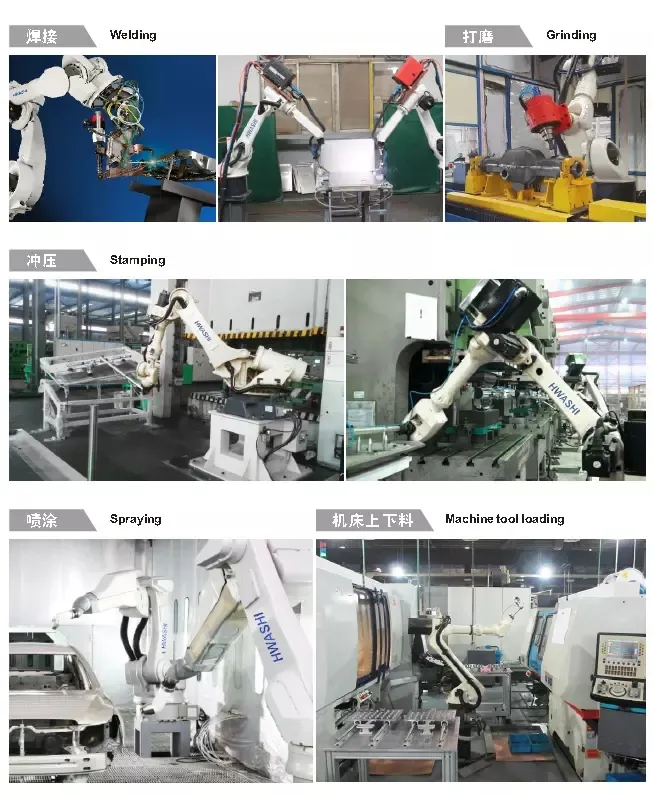

Applications & Visual Overview
Frequently Asked Questions
Are you a trading company or a manufacturer?
We are a professional factory and direct manufacturer specializing in industrial robotic arms.
What is the typical delivery time for an order?
Generally, it is 5–10 days if the goods are in stock. For non-stock items, the lead time is approximately 45 days, depending on the order quantity.
What are your standard payment terms?
For orders under $1000, 100% in advance. For orders over $1000, 50% T/T in advance and the balance before shipment. We also accept Irrevocable LC at sight.
What industries can benefit from these robots?
Our robots are ideal for manufacturing, automotive welding, precision handling, heavy-duty logistics, and any environment that requires 24/7 continuous operation.
Are the robot colors customizable for branding?
Yes, our robots feature an aesthetic design with various standard colors (like white and yellow) and can be customized to meet your specific color requirements.
How well do the robots perform in harsh conditions?
The robotic arm features an IP65 rating, making it highly resistant to dust and water, and is designed to operate safely in temperatures ranging from 0-45ºC.
