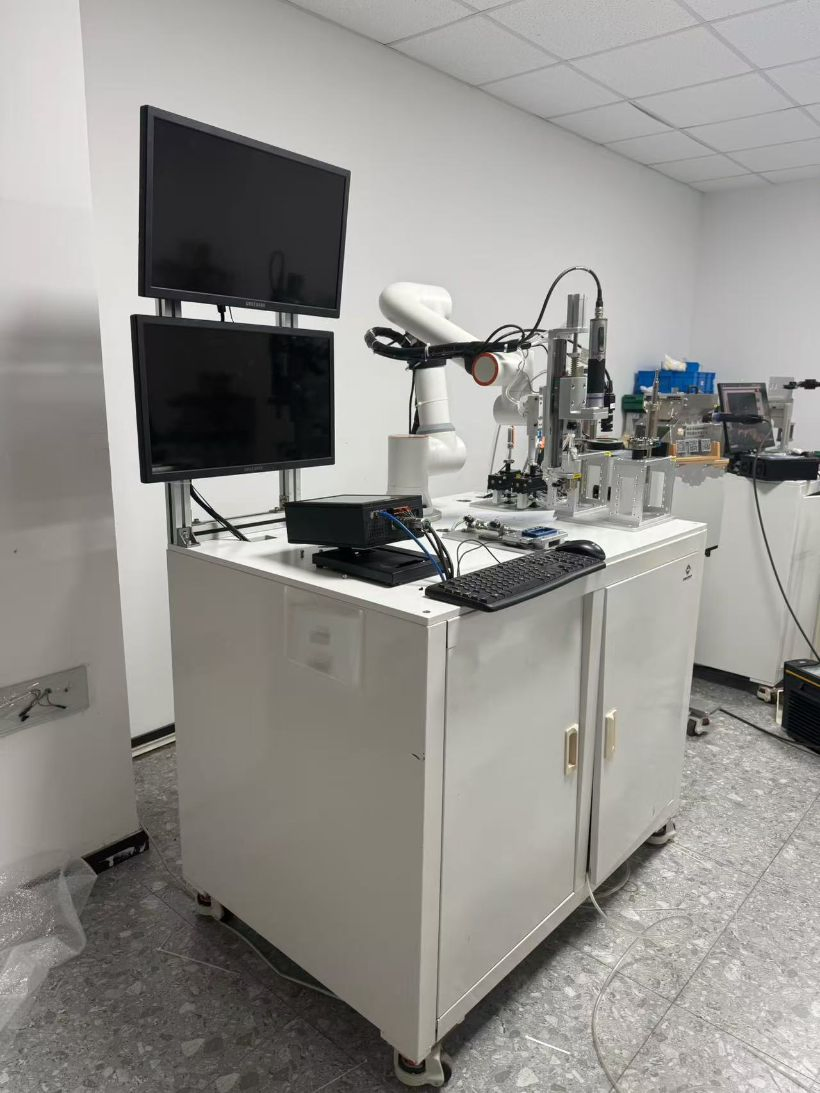

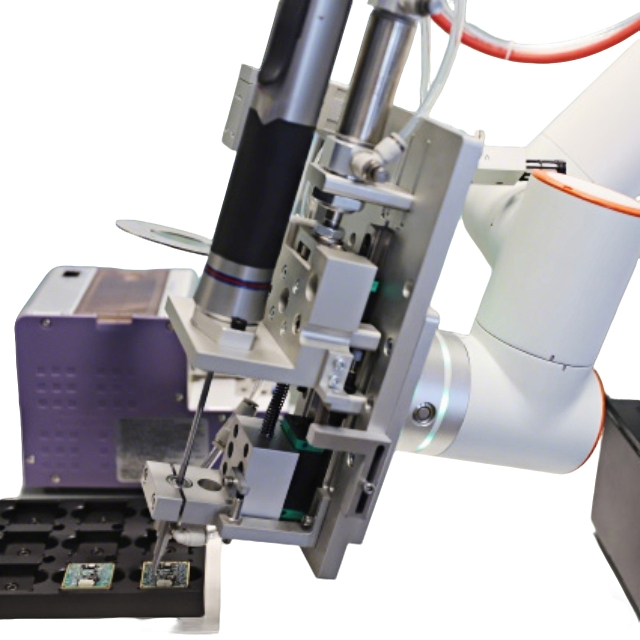

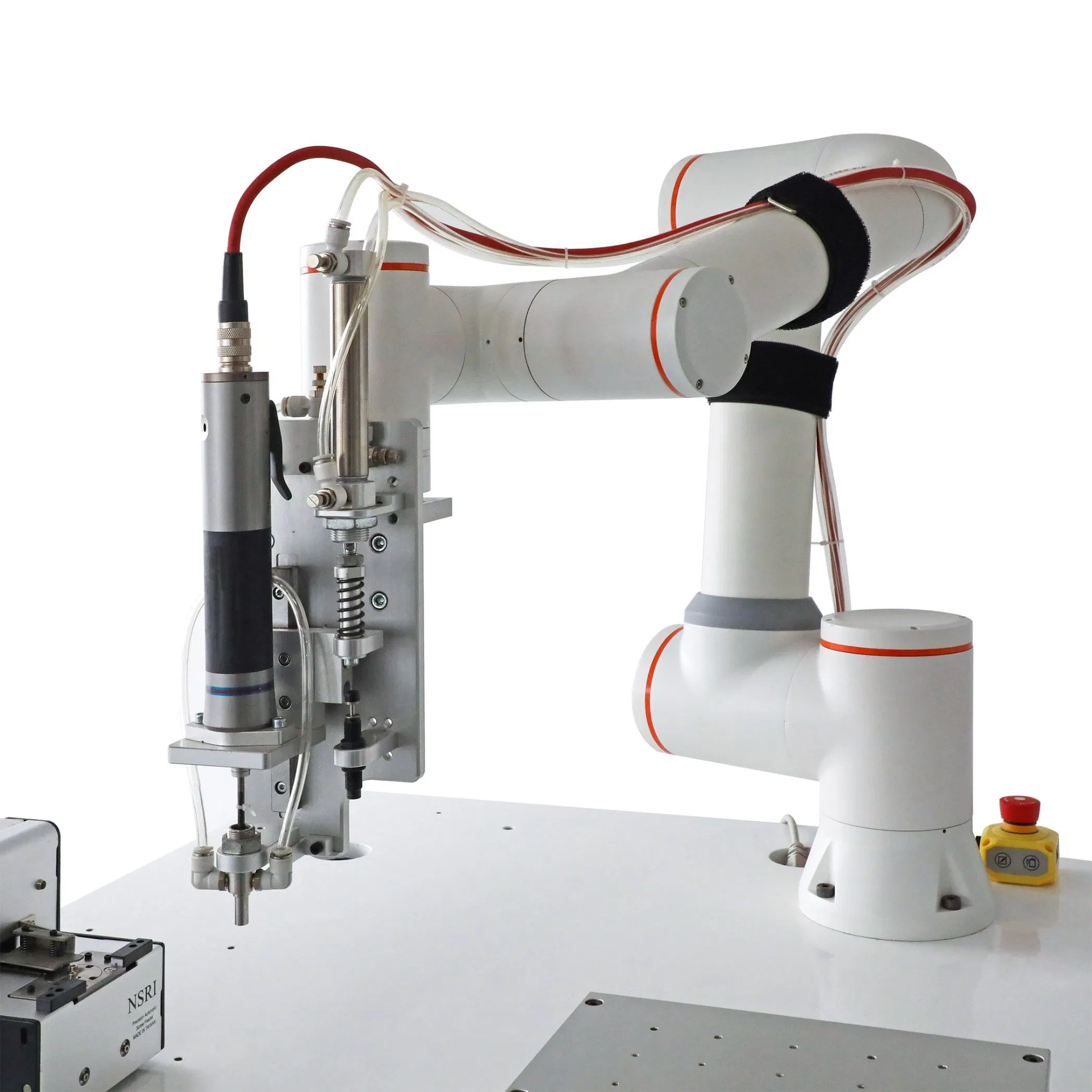

Collaborative Robot Arm with Screwdriver Machine, Automatic Screw Driving Robotic Arm Solution

📋 Basic Information

Payload Capacity

5 kg

Model No.

Fr5

Product Name

6 Axis Robot Arm

Robot Type

6 Axis Articulated Robot

Warranty

1 Year

Weight (Kg)

22

Power(W)

261W

Materials

Aluminium, Steel

Operating Temp

0-45 ºC

Origin

China

⚙ Product Parameters

Feature	Specifications
Model number	FR5
Payload	5kg
Reach	922mm
Degrees of freedom	6 rotating joints
HMI	10.1 inch teach pendant or Web App

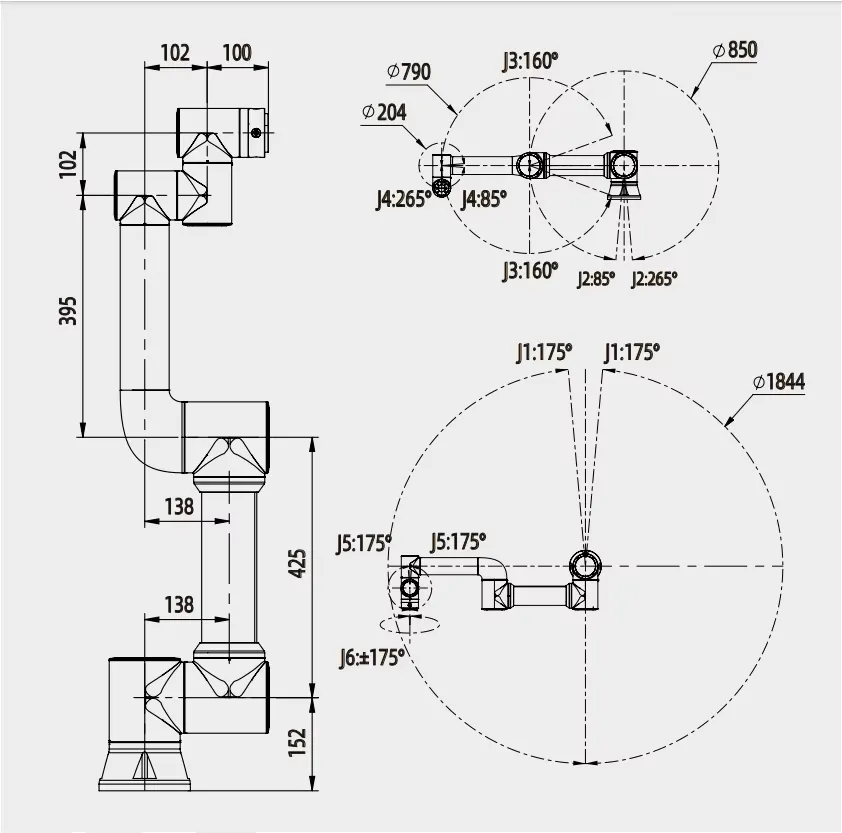

Axis Movement	Range	Max Speed
1 Axis	±175°	±180°/s
2 Axis	+85°/ -265°	±180°/s
3 Axis	±160°	±180°/s
4 Axis	+85°/ -265°	±180°/s
5 Axis	±175°	±180°/s
6 Axis	±175°	±180°/s
IP classification	IP54
Communication	I/O, TCP/IP, Modbus_TCP/RTU, Profinet
Development Environment	C#/C++/Python/java/ROS

📷 Product Display

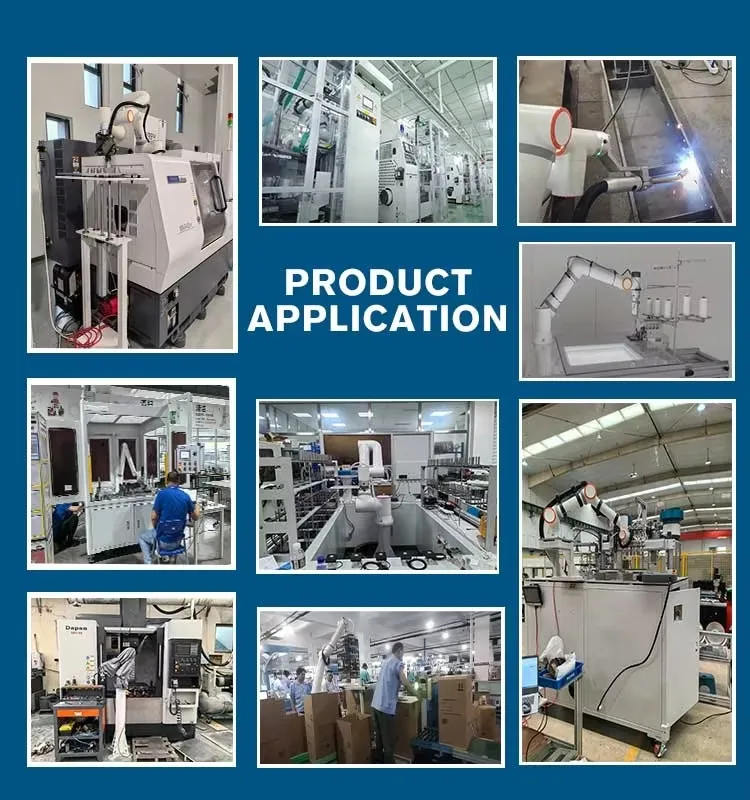

🚀 Product Application

📜 Certifications

📦 Packaging & Shipping

❓ Frequently Asked Questions

What types of core components are used in the robots?

We prioritize independent research and development of all core components to ensure high performance and reliability across our domestic market.

What is the standard warranty period for the robot arm?

The product comes with a 12-month standard warranty. Core components also feature a 1-year warranty for your peace of mind.

How do you ensure the quality of the robots before delivery?

We maintain strict quality control through pre-production samples before mass production and a final video outgoing-inspection before every shipment.

Which development environments are supported for programming?

Our systems support a wide range of development environments including C#, C++, Python, Java, and ROS, making it highly flexible for different applications.

What are the accepted payment and delivery terms?

We accept FOB and EXW delivery terms. Payments can be made in USD via T/T or Western Union.

What industries can benefit from this 6-axis robot arm?

This robot is ideal for automatic screw driving, assembly, pick and place, and other precision tasks in electronics, automotive, and general manufacturing.
