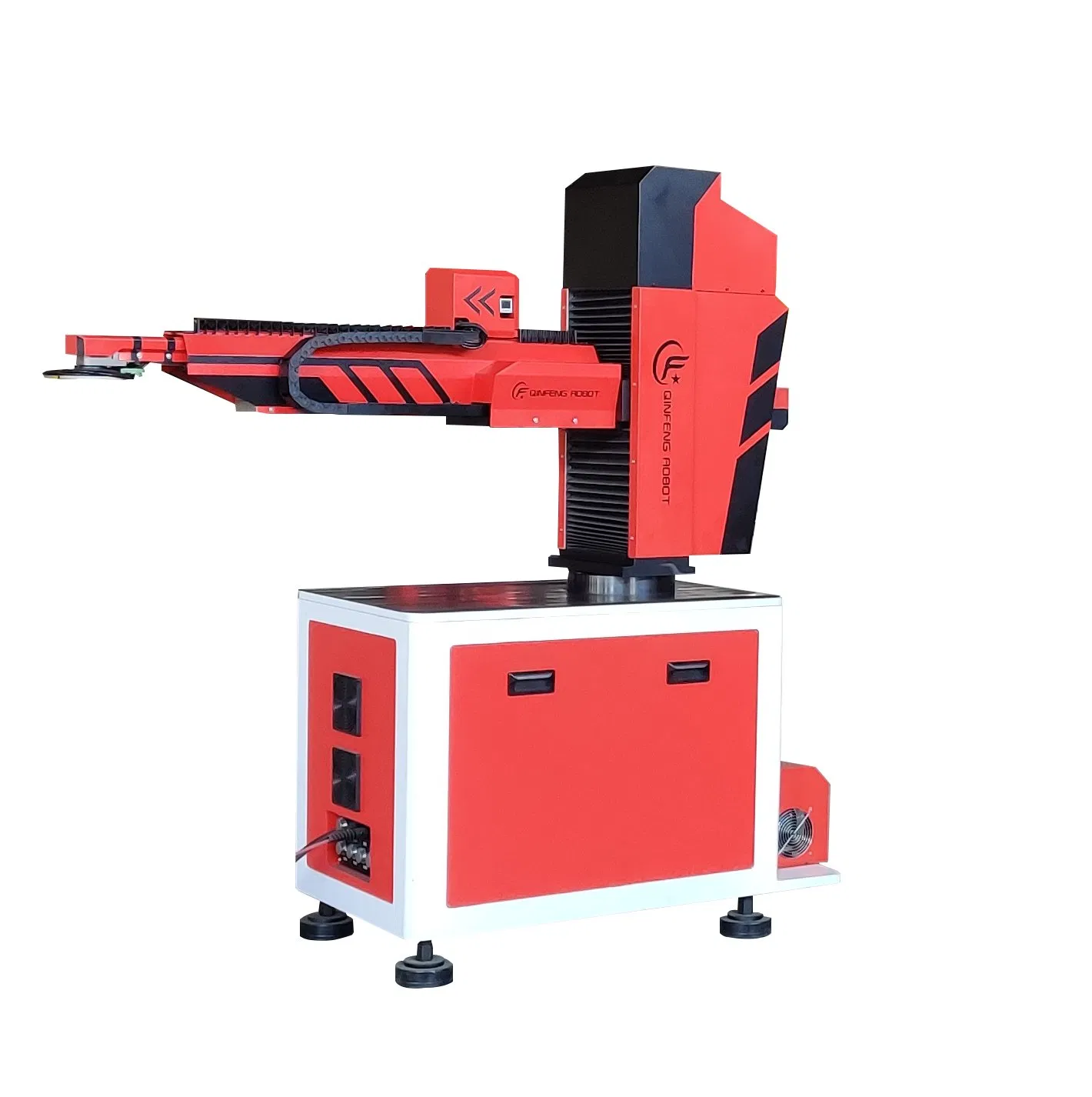

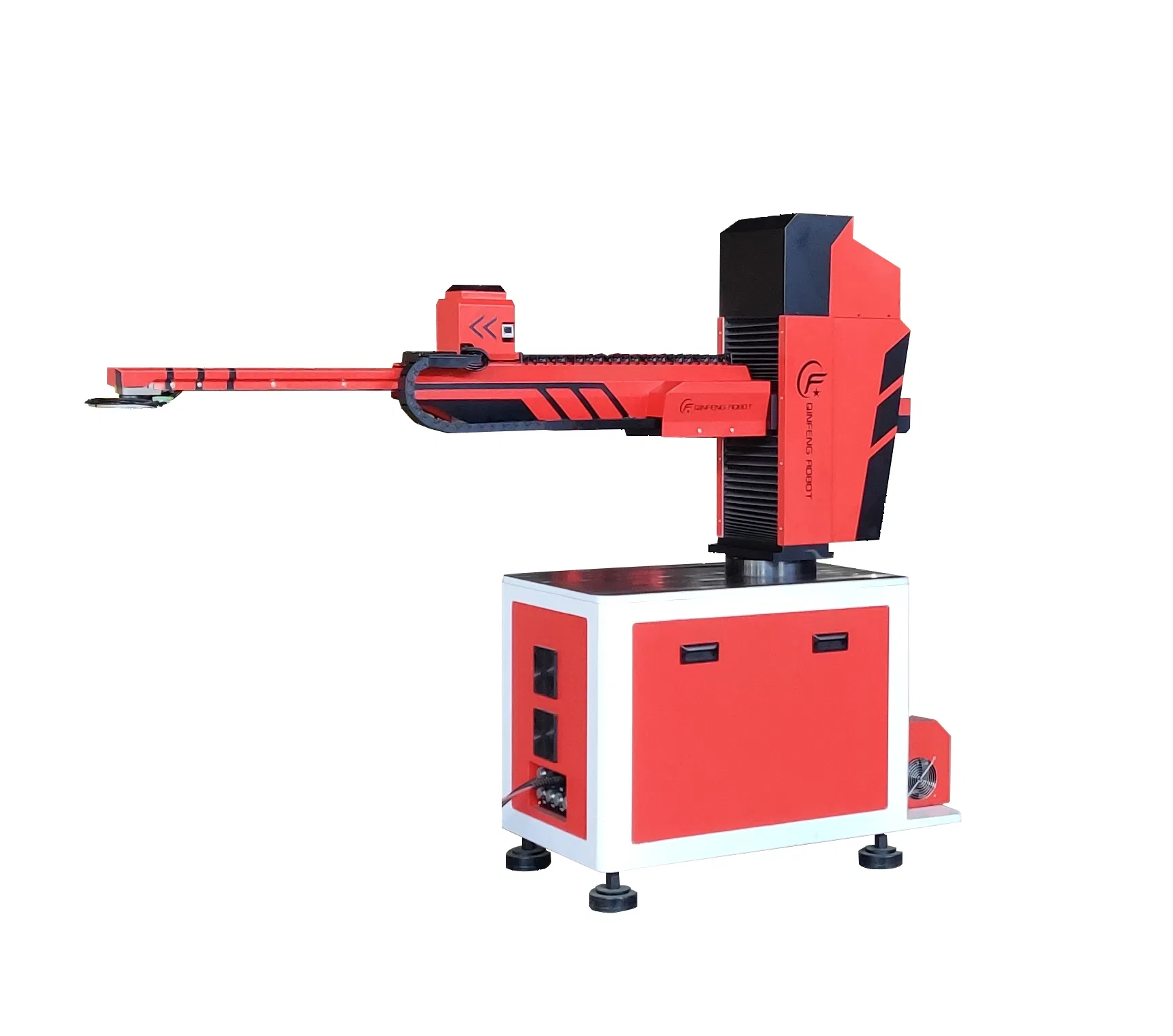

Factory Price Precise Positioning Swing Robots Automatic Arm for Mechanical Production
Factory Price Precise Positioning Swing Robots Automatic Arm for Mechanical Production
Factory Price Precise Positioning Swing Robots Automatic Arm for Mechanical Production
Factory Price Precise Positioning Swing Robots Automatic Arm for Mechanical Production
Factory Price Precise Positioning Swing Robots Automatic Arm for Mechanical Production
1 / 5
Factory Price Precise Positioning Swing Robots Automatic Arm for Mechanical Production
Factory Price Precise Positioning Swing Robots Automatic Arm for Mechanical Production
Factory Price Precise Positioning Swing Robots Automatic Arm for Mechanical Production
Factory Price Precise Positioning Swing Robots Automatic Arm for Mechanical Production
Factory Price Precise Positioning Swing Robots Automatic Arm for Mechanical Production

Factory Price Precise Positioning Swing Robots Automatic Arm for Mechanical Production

Customization: Available
After-sales Service: Available
Type: Punch Loading and Unloading
Send Inquiry

Product Description

Basic Specifications

Model NO.
QF-5043-S3-3
Forging Method
Mold Forging
Power Source
Electric
Feature
Automation
Certification
ISO9001, CE
Warranty
12 Months
Max. Working Radius
1650mm
Voltage
Single Phase 220V
Power
3.5kw
Repeated Accurancy
±0.1mm
Shaft
Four-Axis
Payload
≤5kg
Precise Positioning Swing Robot
Automatic Arm Mechanical Production
Positioning Swing Robot details

Product Description & Highlights

✓
High Efficiency: Adopt self-developed robot control algorithm to generate optimal motion tracks. Efficiency reaches 10-20 times per minute.
✓
Patent Technology: Features unique invention patent for large-scale workpiece stamping and utility model patent for arm structure.
✓
High Flexibility: Supports multi-angle actions including flipping, scrapping, side hanging, oblique placing, and stacking.
✓
Stable Performance: Positioning error controlled at ±0.1mm. Failure rate lower than 1‰ with a service life of over 10 years.

Universal Compatibility: Suitable for all types of stamping equipment: gear punch press, pneumatic punch press, and hydraulic press. Regardless of machine height or tonnage, it realizes free combination and connection.

Absolute Servo System: Each axis adopts a high-performance absolute servo system with power-off position memory, eliminating the need to return to origin.

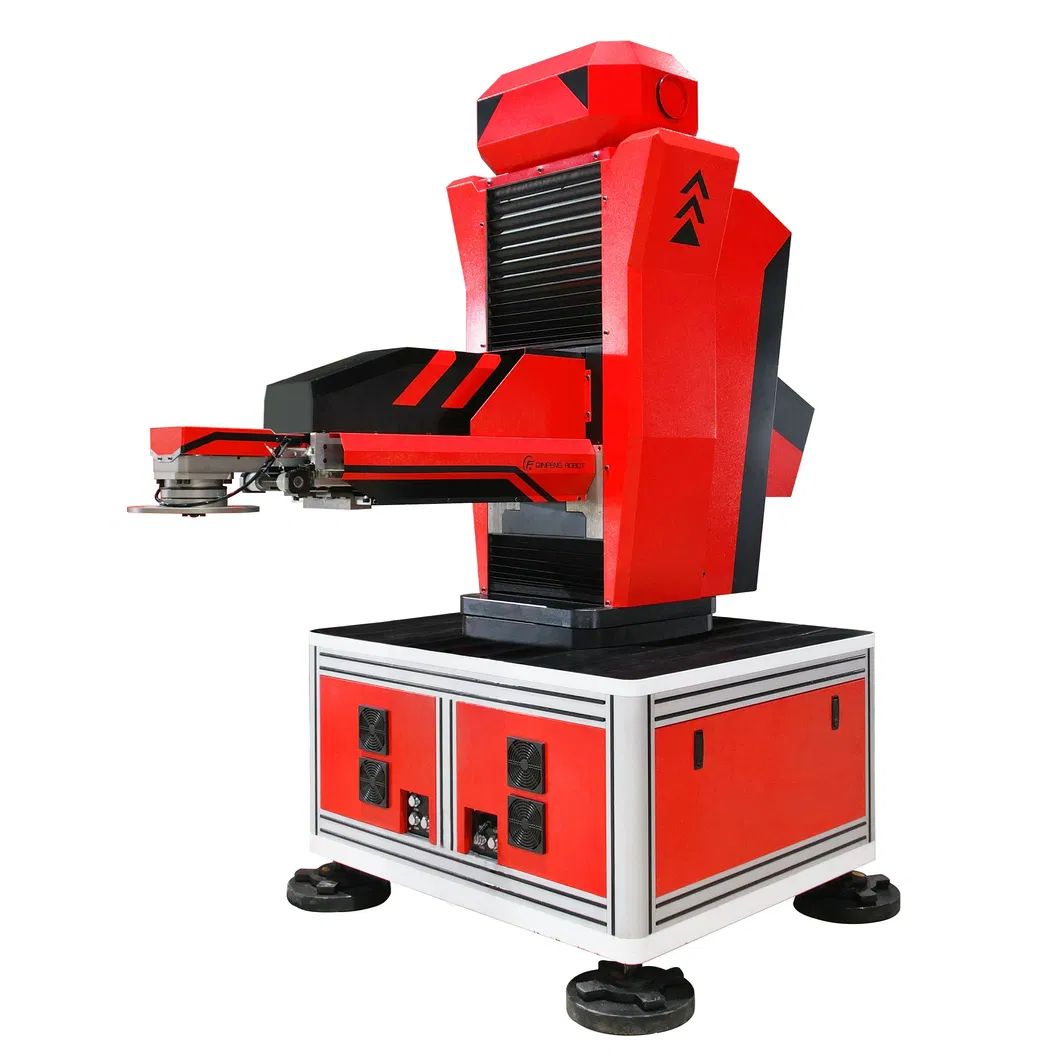

Stamping Manipulator Application

Technical Parameters (QF-5045-S3-3)

Parameter Unit Index
VoltageV220±10%
PowerKW3.5
Working TemperatureºC-20 ~ 45
Swing AxisDegree±170
Up and Down Axismm0 ~ 340
Front and Rear Axismm1120 ~ 1650
Payloadkg≤3
ProductivityPcs/h800 ~ 1000
Feeder Accuracymm±0.2
Robot Weightkg≈350

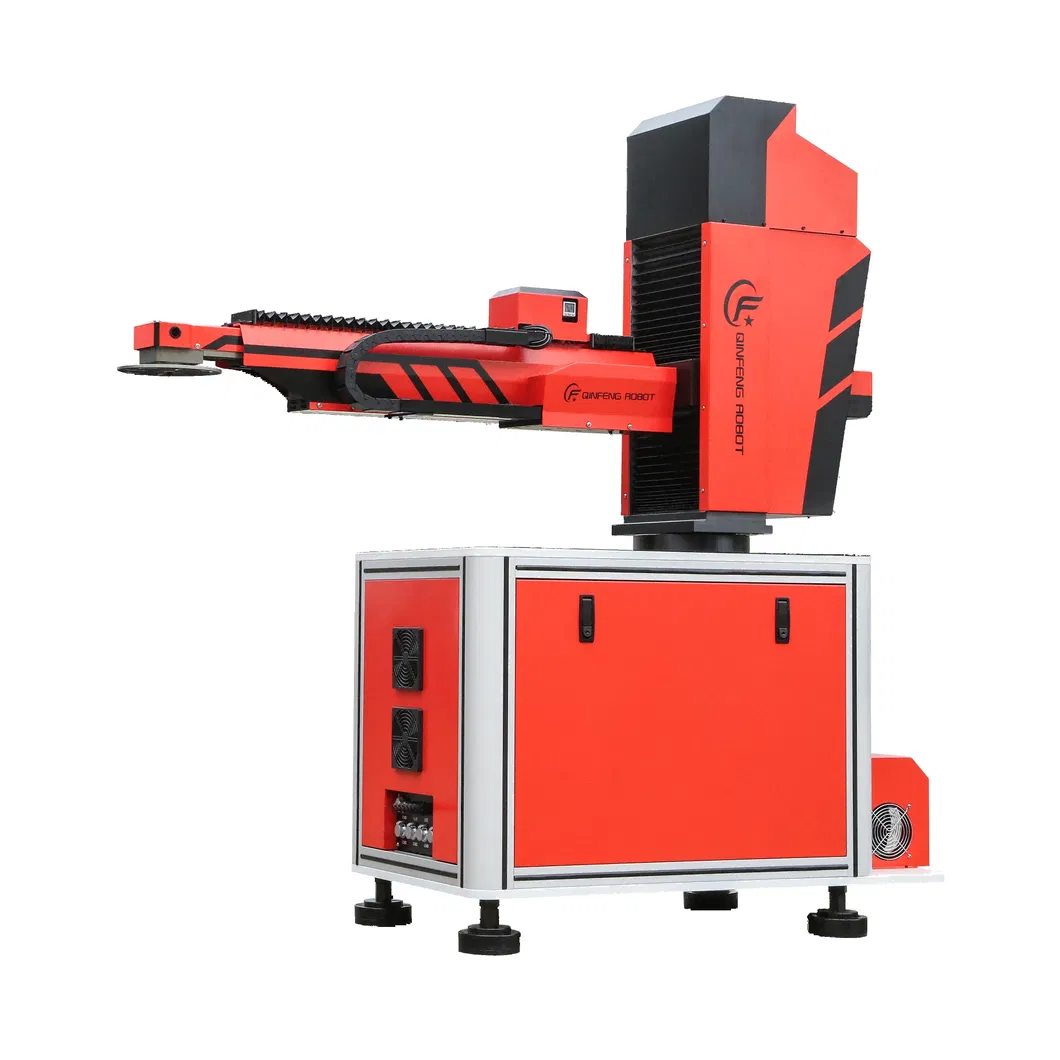

Robot Arm Structure

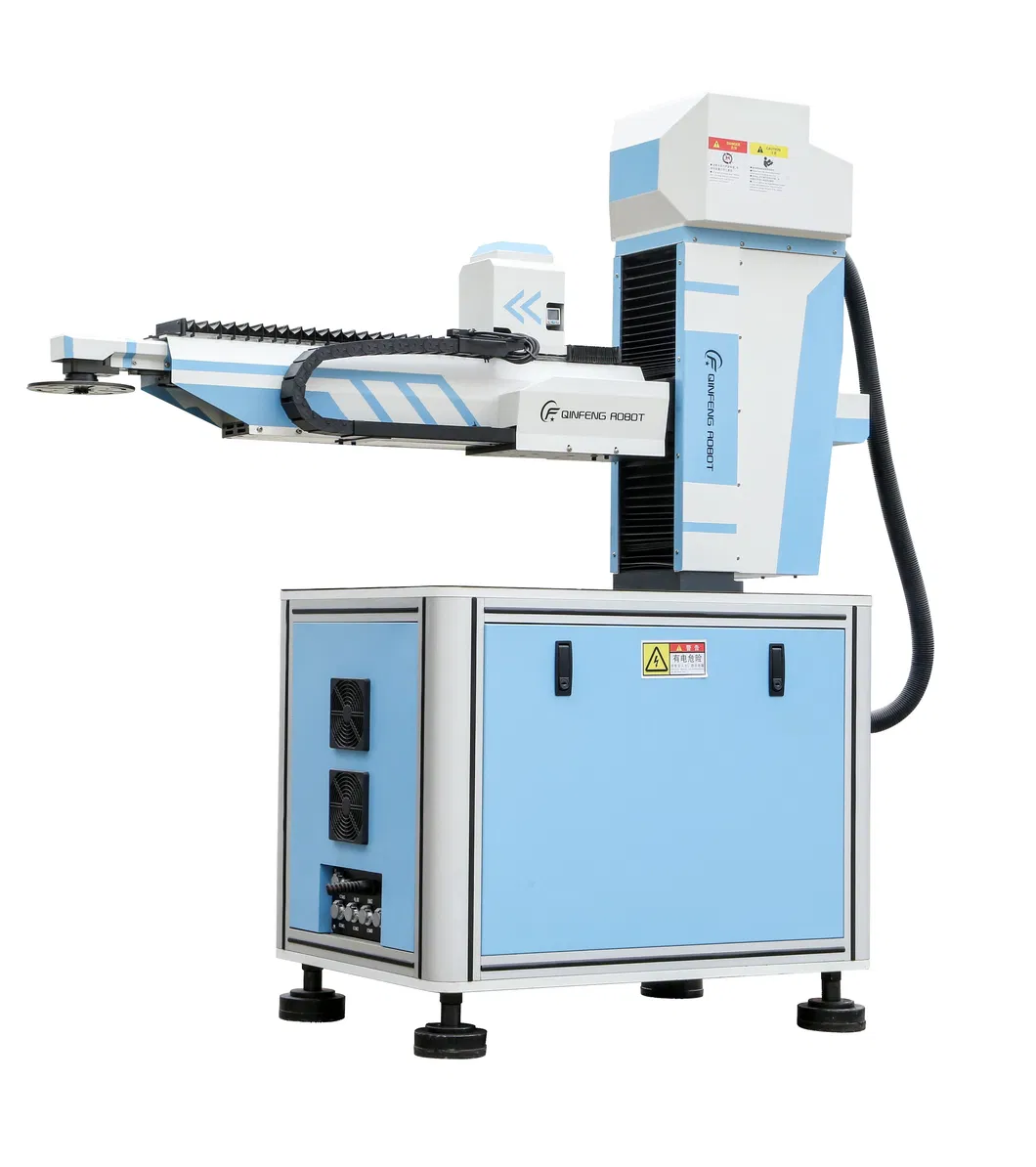

Programmable Technology
Stamping Equipment Connection

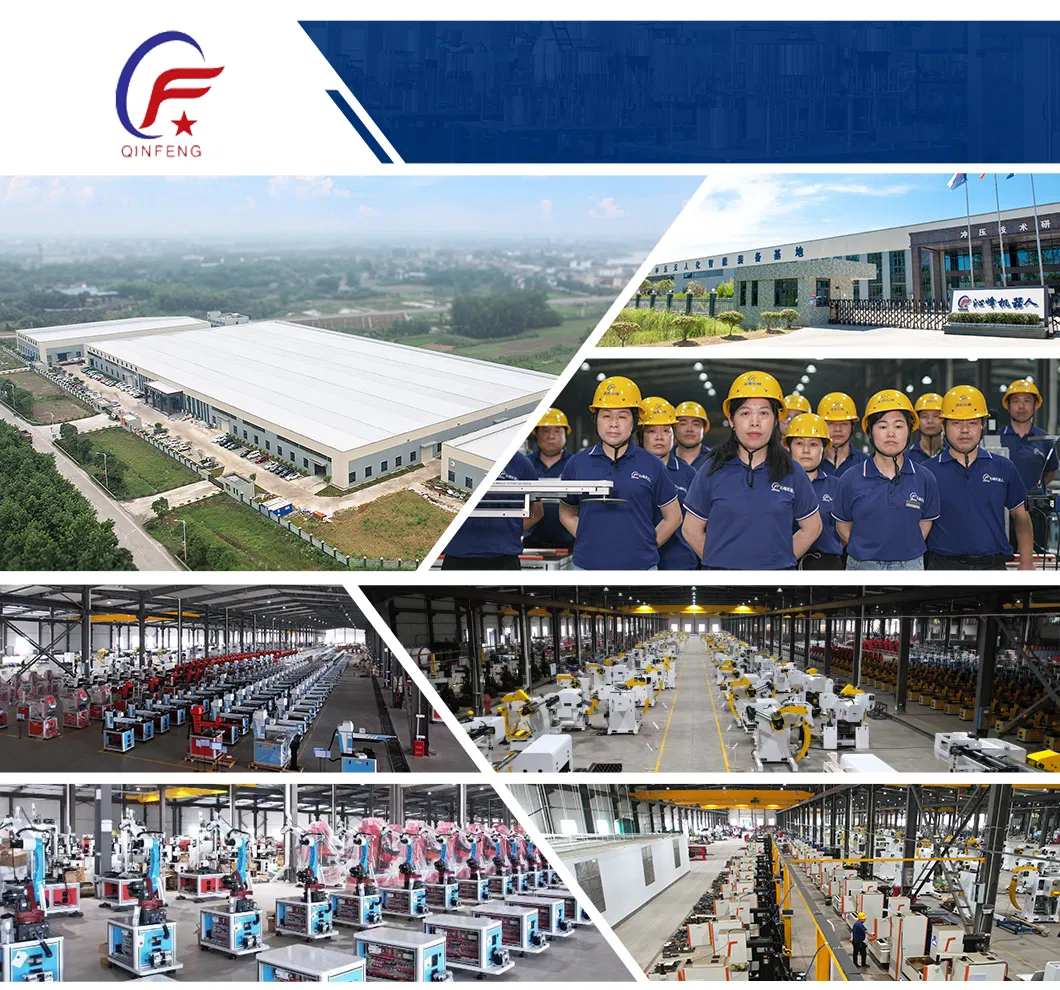

Factory Overview

Frequently Asked Questions

Q1: What stamping automation solutions do you offer?
We provide a one-stop solution including stamping manipulators, robots, 3-in-1 decoiler straightener feeders, destackers, transfer manipulators, and customized tooling solutions.
Q2: Are your machines standard models or can they be customized?
Both. Most of our machinery consists of standard models, but we can customize equipment to meet specific personal production needs if the standard models are not applicable.
Q3: How do you ensure the quality of the machinery?
Quality is our priority. We rigorously check all machine components before installation and conduct thorough testing on every machine before shipment.
Q4: What is the expected service life and warranty?
The warranty is one year. With proper maintenance, our machines are designed to have a service life of more than 10 years.
Q5: Is after-sales support available for international customers?
Yes, we have overseas service partners for on-site support. In regions without a local team, we provide technical support via email, video calls, and other digital means.
Q6: How long does it take to set up for production?
Our products are highly standardized. Once delivered, they can typically be installed and ready for mass production within three days.
