Basic Information
Type
General Punching Machine
Slider Movement
Single Action
Certification
CE, ISO 9001

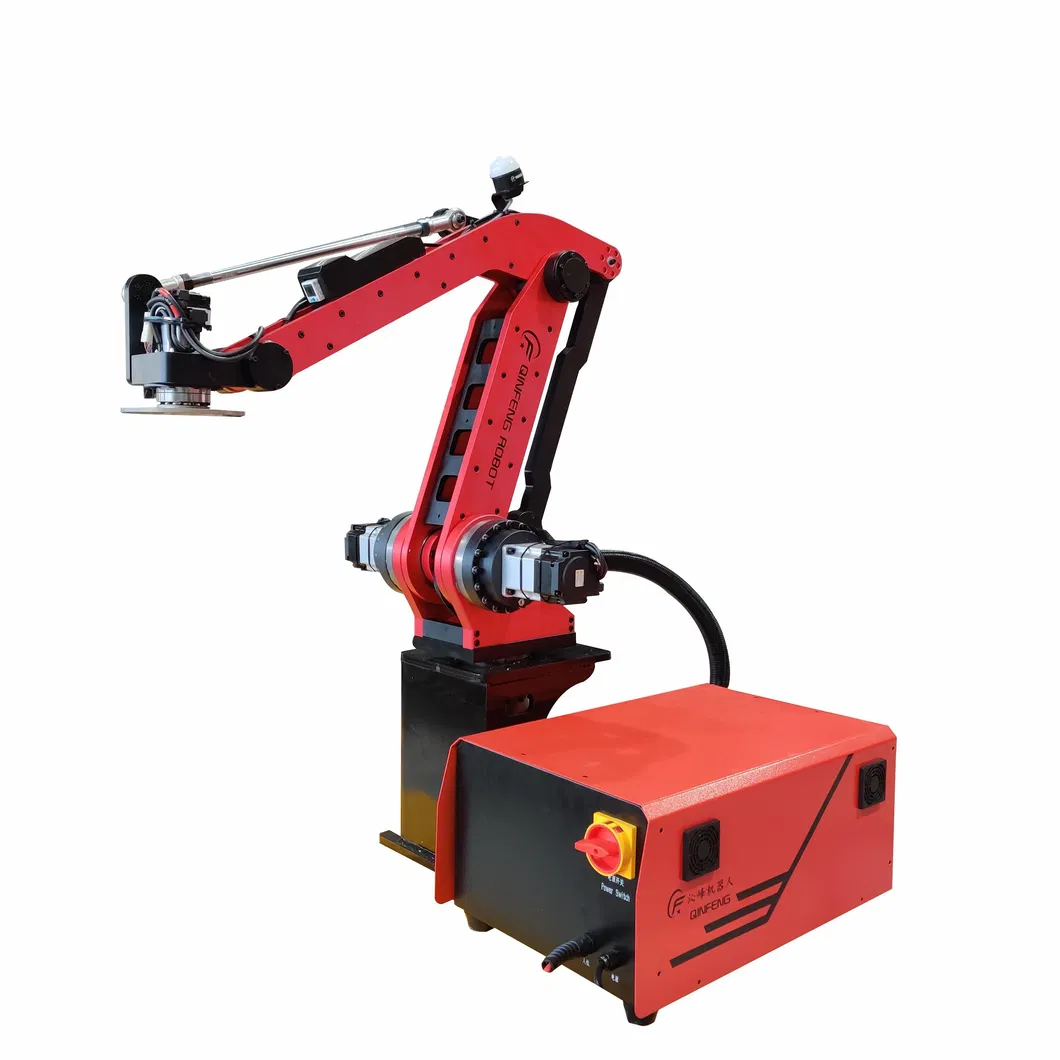

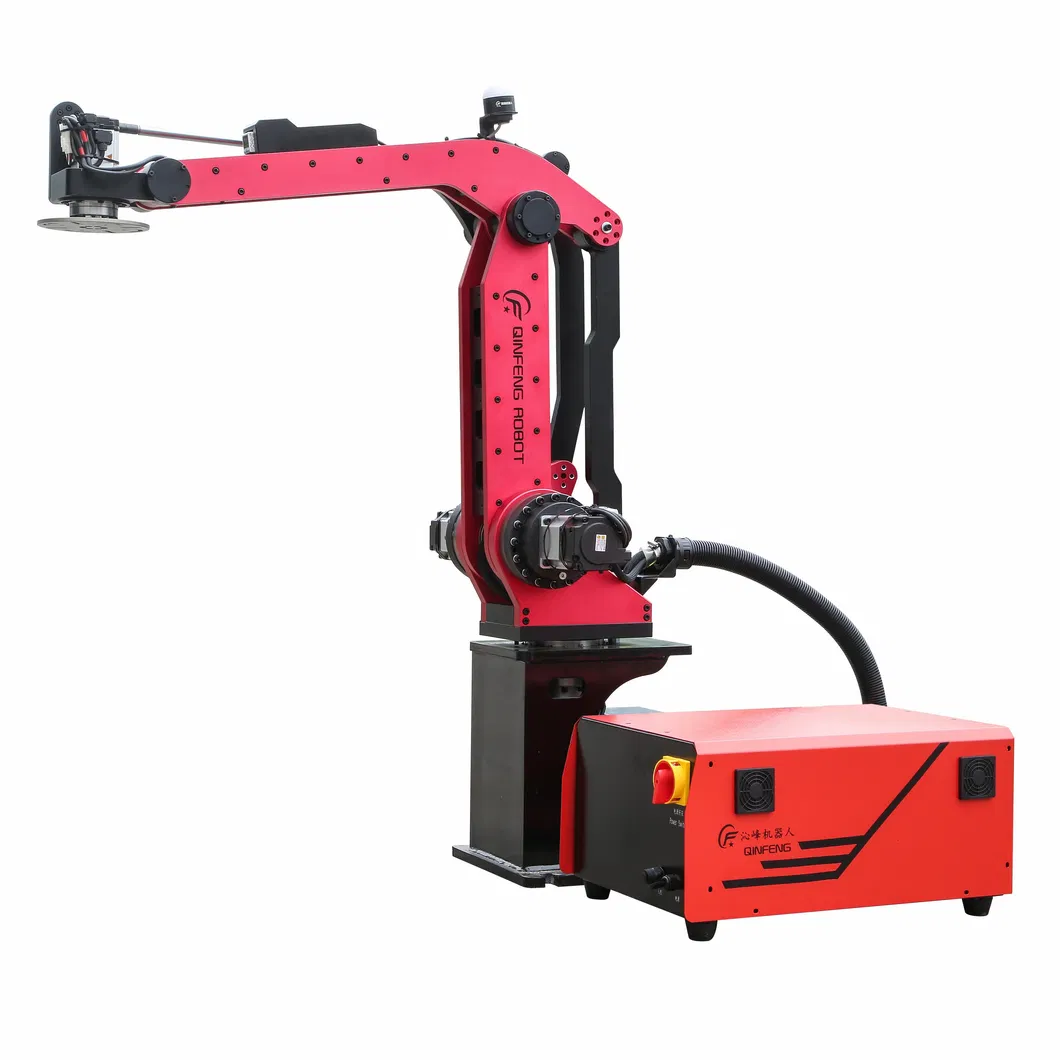

Product Overview

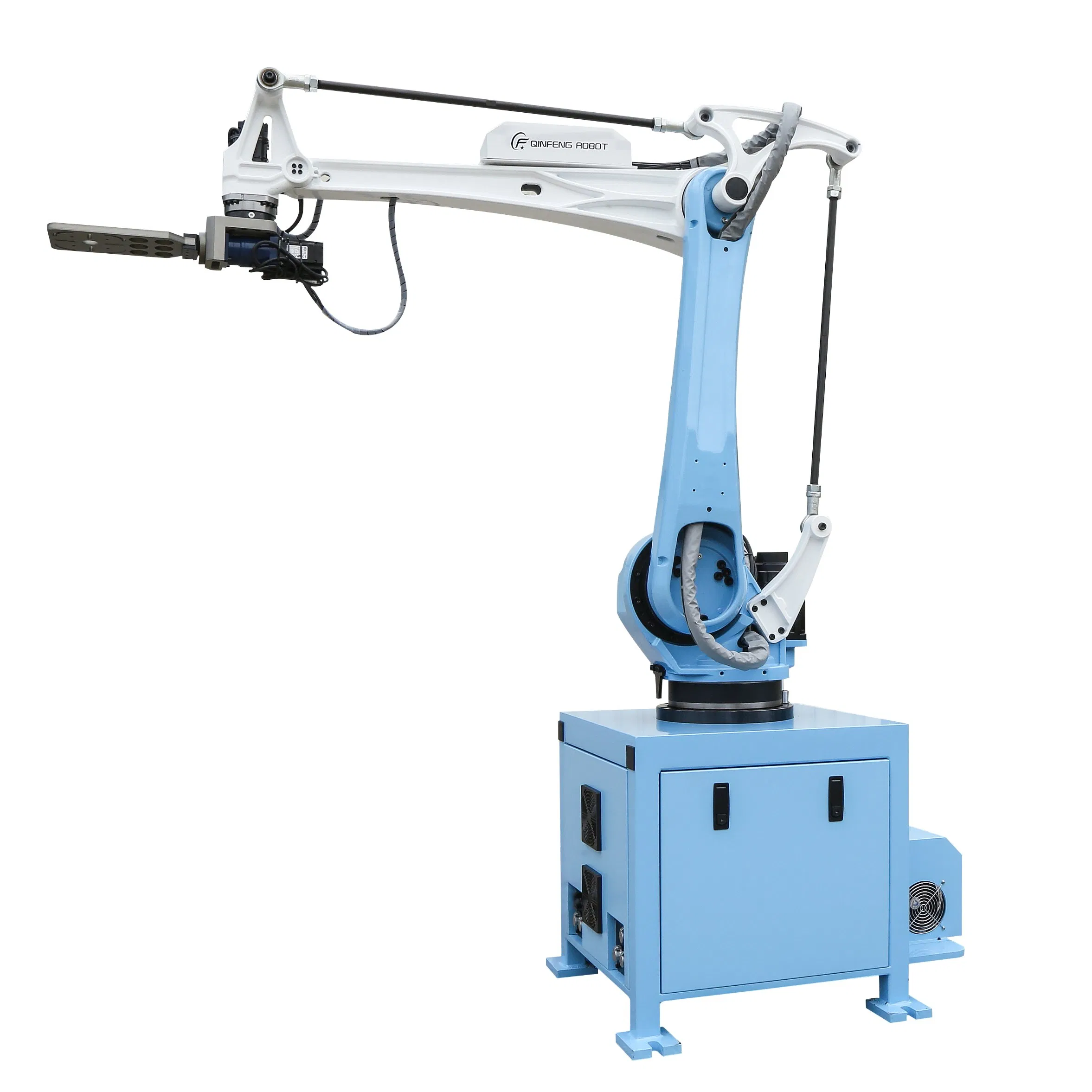

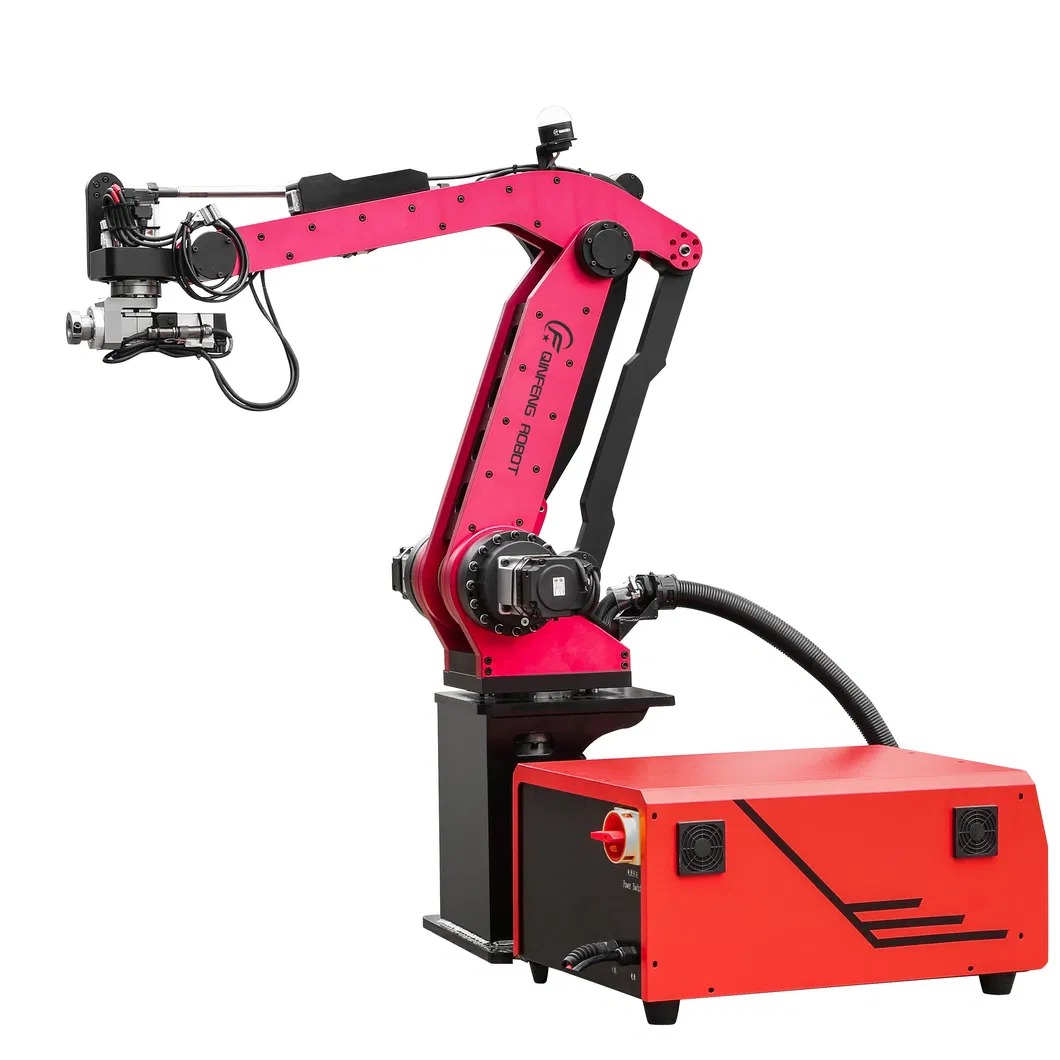

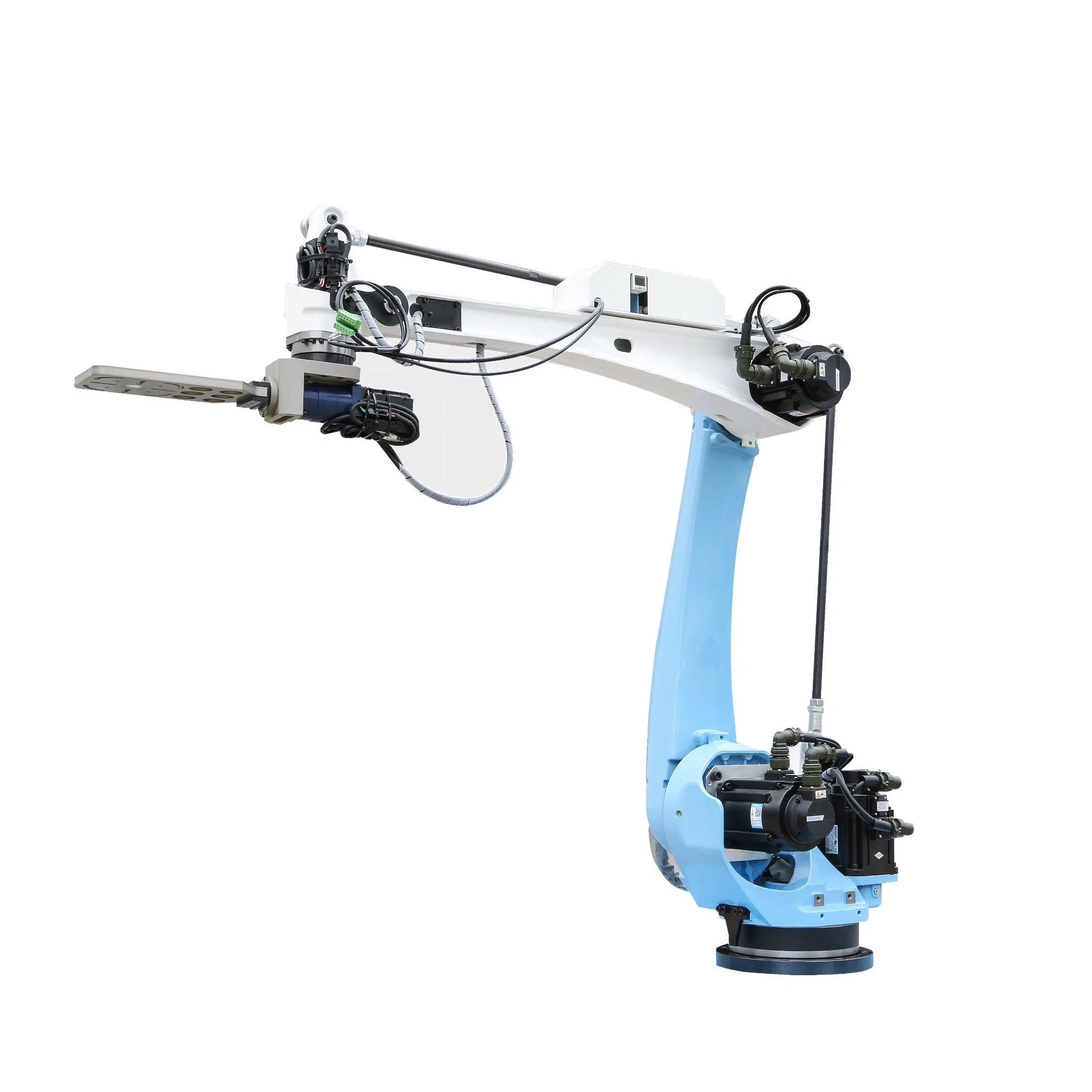

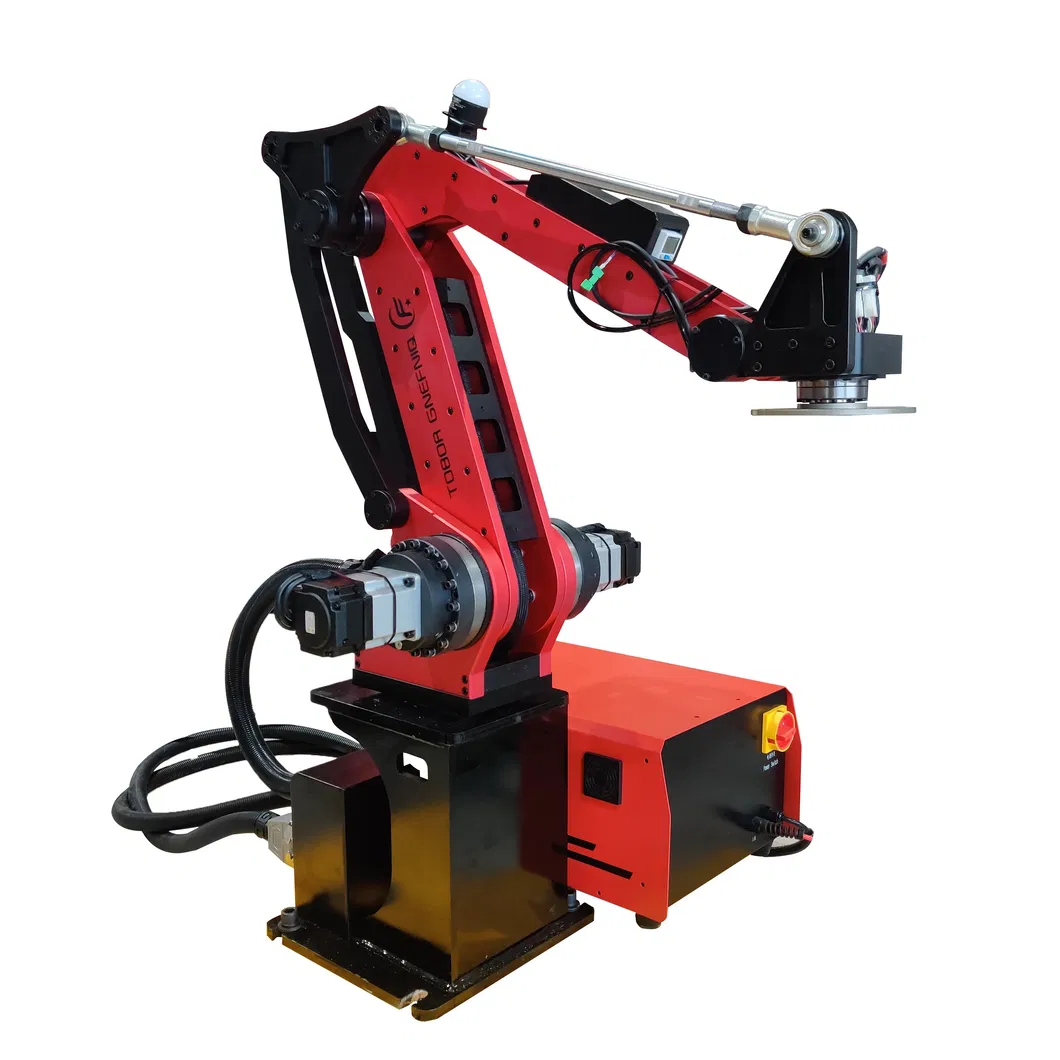

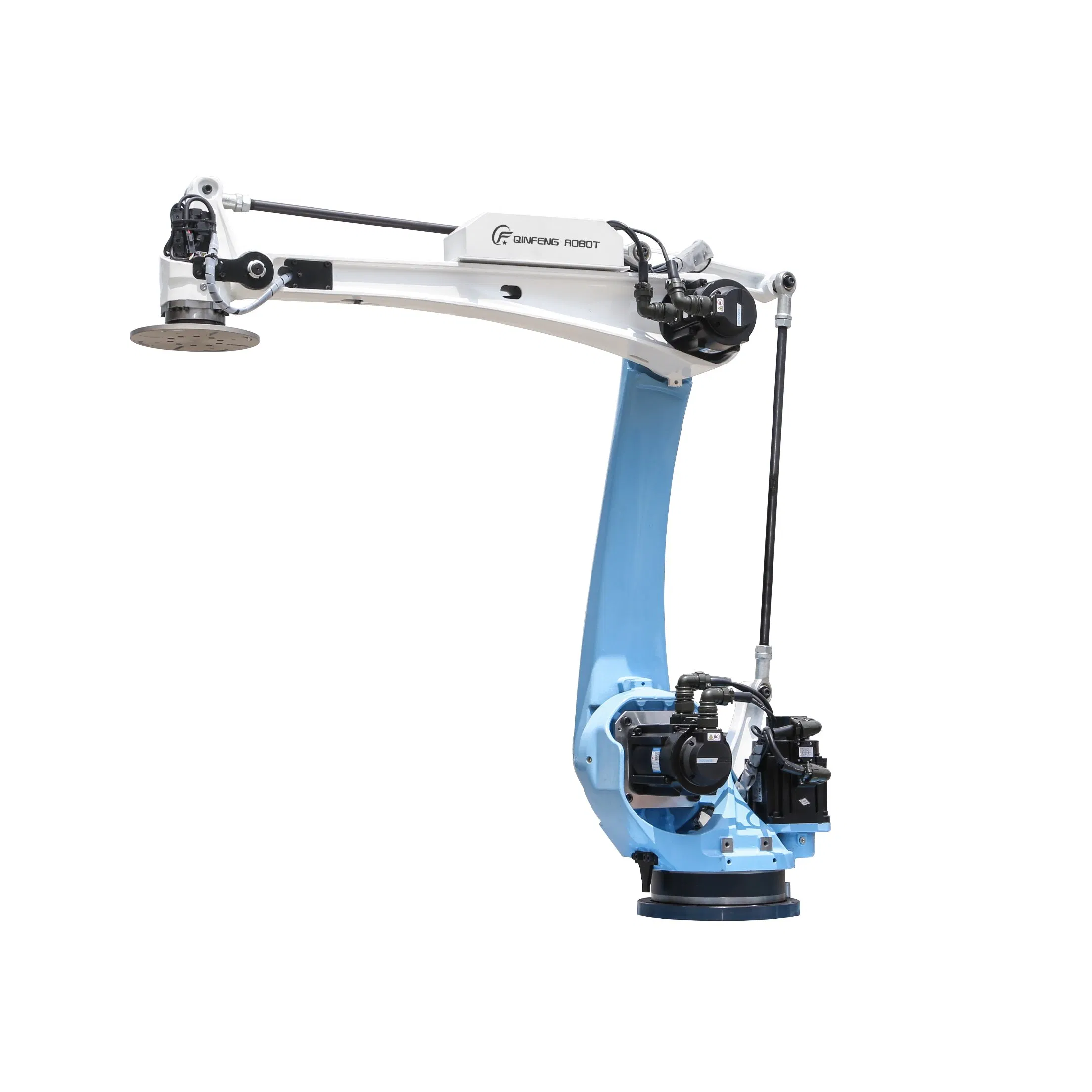

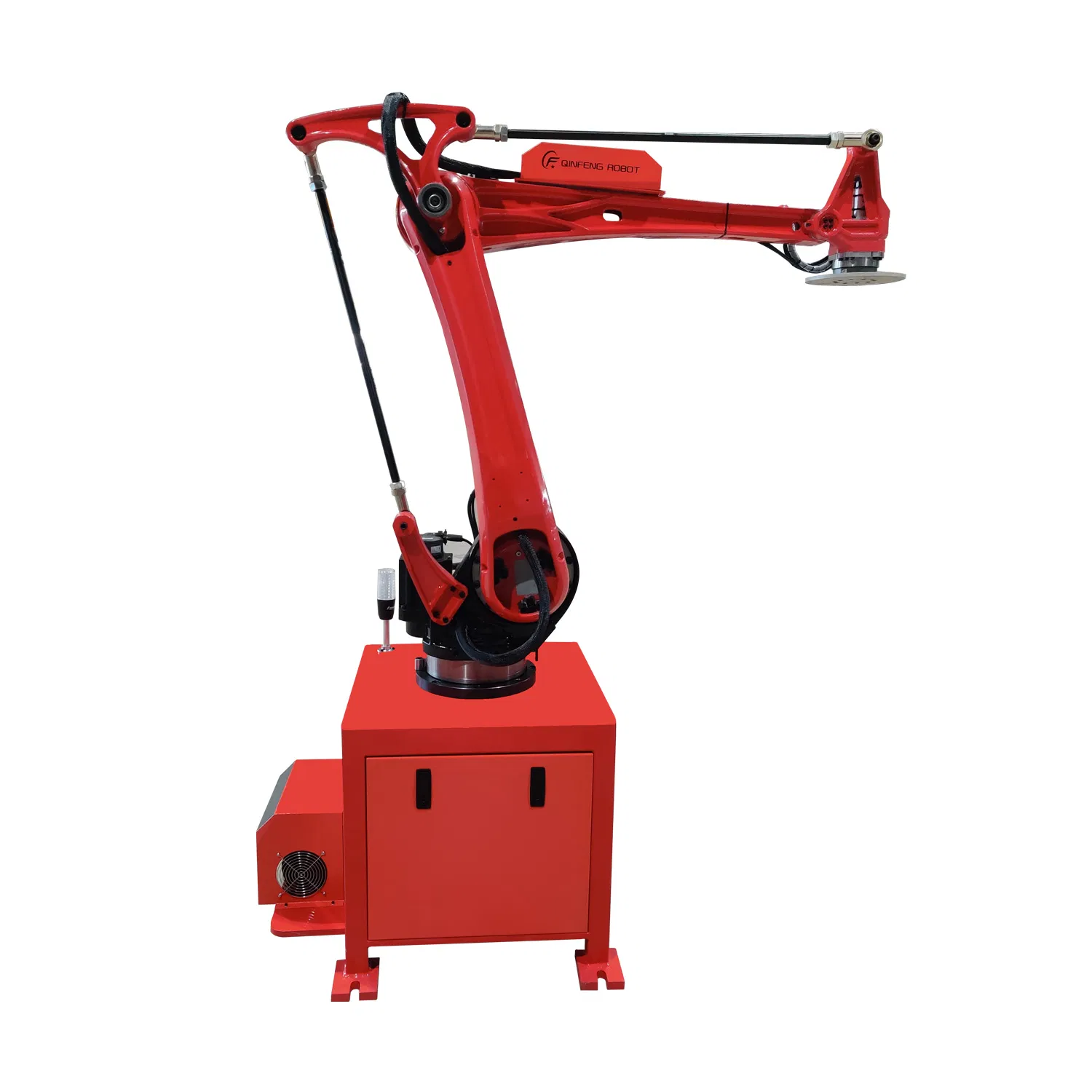

Effectively solve the picking and placing of materials within 100KG, the arm span can reach 3.1m, and the efficiency can reach 8-20 times/min (depending on the equipment style and site conditions). With path programs such as material palletizing and depalletizing, it is suitable for the stacking, depalletizing and handling of common materials.
Key Features:
- High flexibility, all-round, multi-angle realization of various stamping actions: turnover, side mount, slanted or stacked.
- All axes adopt high-performance absolute servo system with power-off position memory.
- Open programmable technology supporting motion track editing and multiple product information storage.
- Compatible with hydraulic presses, gear presses, and pneumatic punches regardless of tonnage.
- High-precision core accessories with a failure rate less than 1‰ and service life up to 8-10 years.
Technical Parameters
| Parameter |
Unit |
Index (QF-MD-1800) |
| Voltage | V | AC 380 |
| Power Frequency | Hz | 50/60 |
| Power | KW | 7 |
| Working Temperature | ºC | -20 ~ 45 |
| Max. Working Radius | mm | 1800 |
| Max. Precision Repeatability | mm | ±0.1 |
| Payload | kg | ≤25 |
| Robot Weight | kg | ≈390 |
Automation Solutions
Comprehensive solutions for stamping automation including:
- Stamping Manipulators and Robots
- 3-in-1 Decoiler-Straightener-Feeders
- Destackers for sheet separation
- 3D Independent and One-bar Transfer Manipulators
- Progressive Dies and Single Molds
Frequently Asked Questions
Are you a factory or trading company?
We are a specialized manufacturing factory providing one-stop solutions for stamping automation.
What products and services do you provide?
We manufacture stamping manipulators, robots, 3-in-1 decoiler straightener feeders, destackers, and transfer manipulators, along with progressive dies and molds.
Is your machinery standard or customized?
Both. While we offer many standard models, we can fully customize equipment to meet your specific production requirements.
How do you ensure machine quality?
Quality is our priority. We inspect all parts before installation, and every machine undergoes rigorous testing before shipment.
What is the typical lifespan and warranty of the machines?
The standard warranty is one year. With proper maintenance, our machines are designed to operate for more than 10 years.
Do you offer after-sales support?
Yes, we provide support through various channels including overseas service partners for on-site assistance, as well as remote support via video and email.
