Sandai Robot
1 / 5

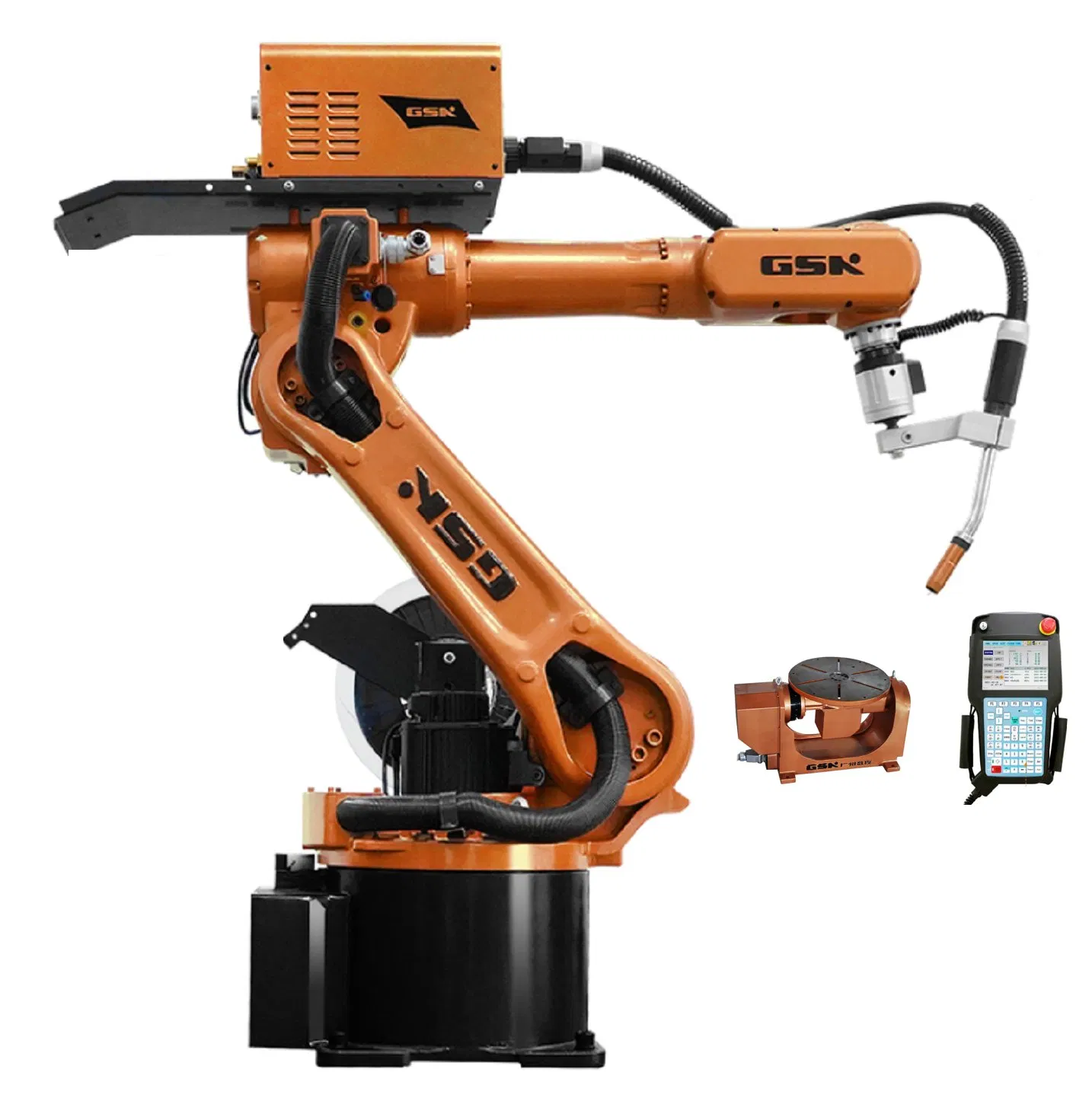

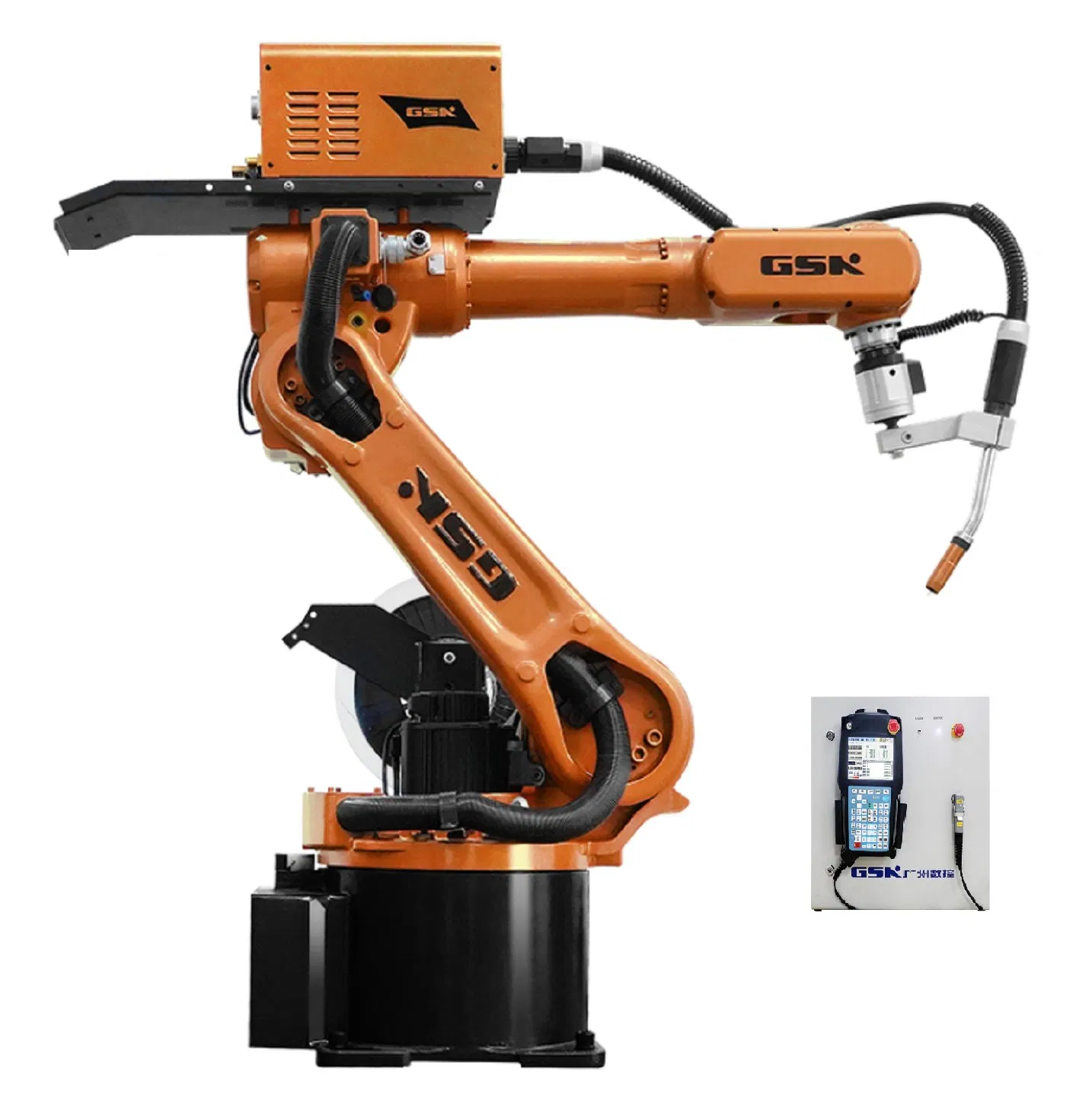

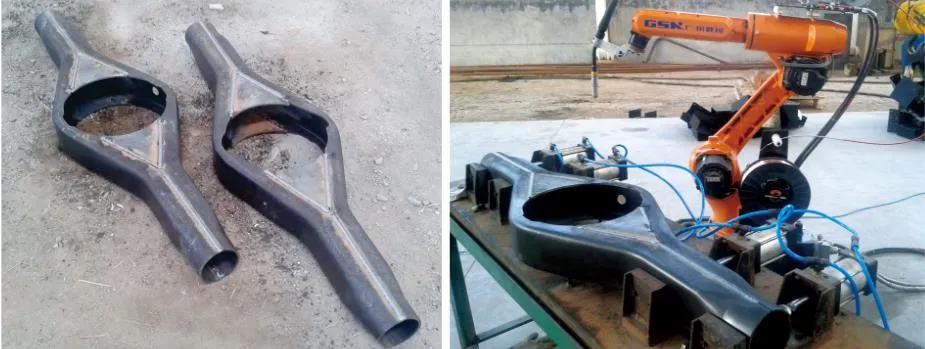

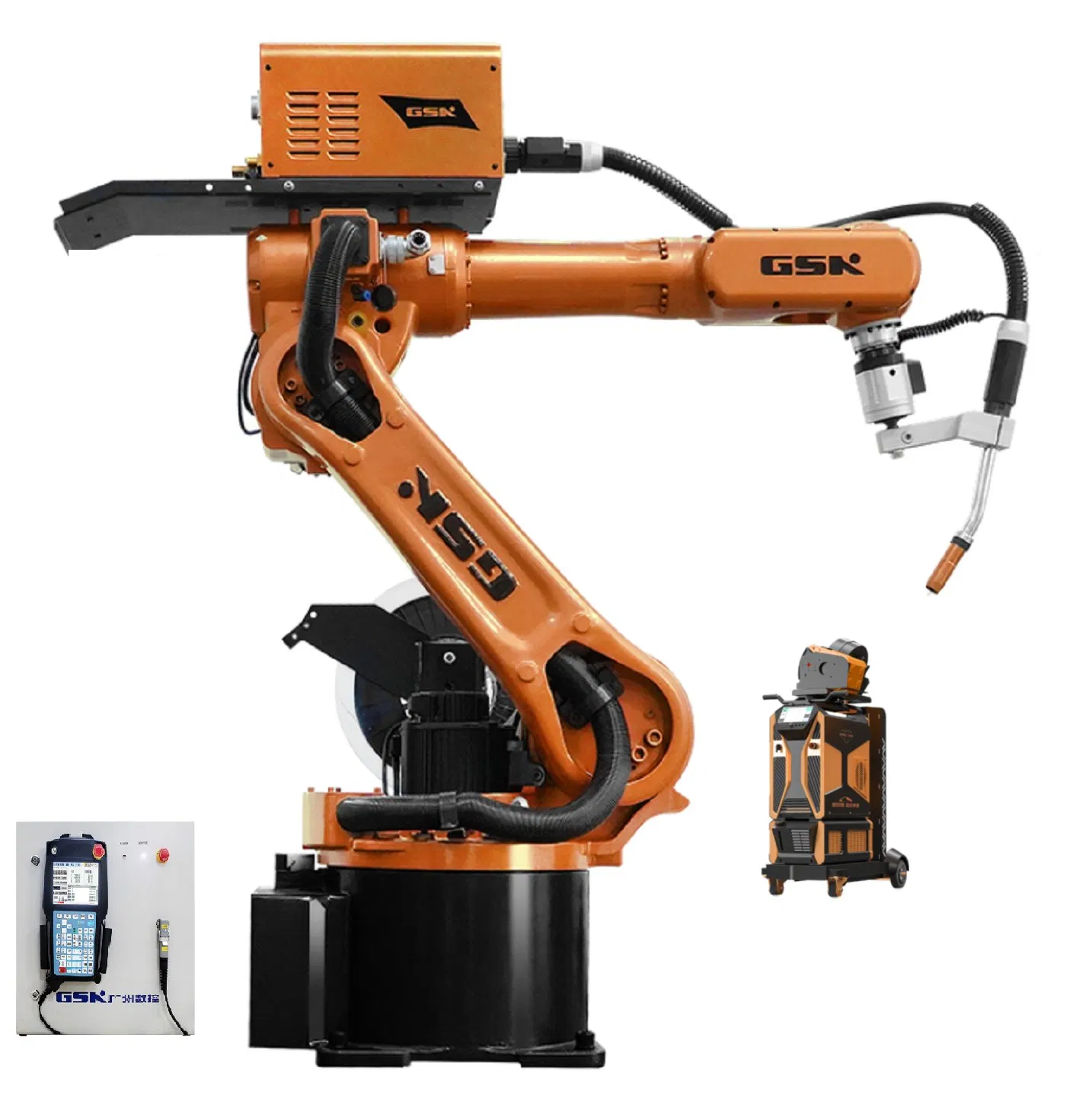

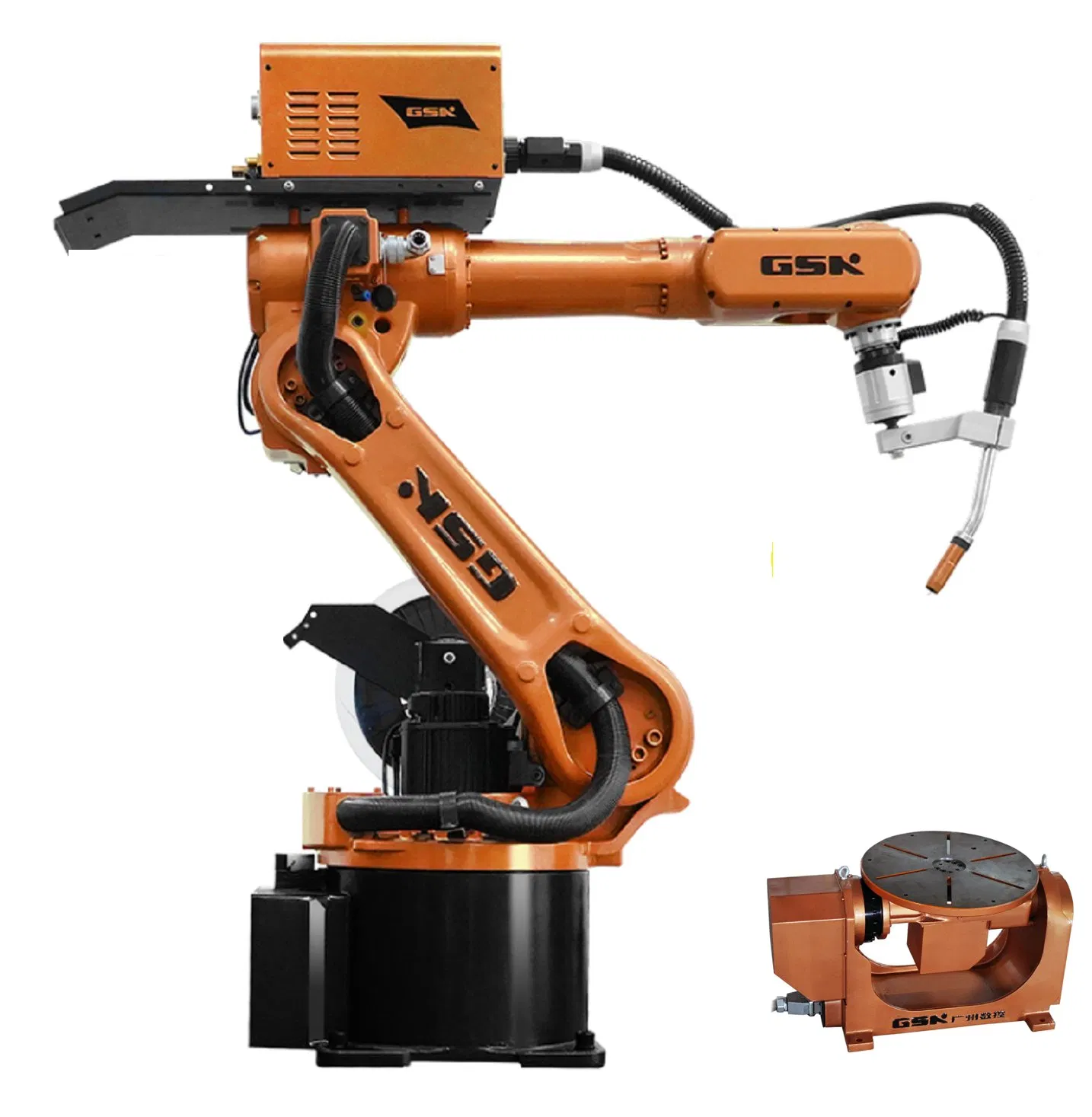

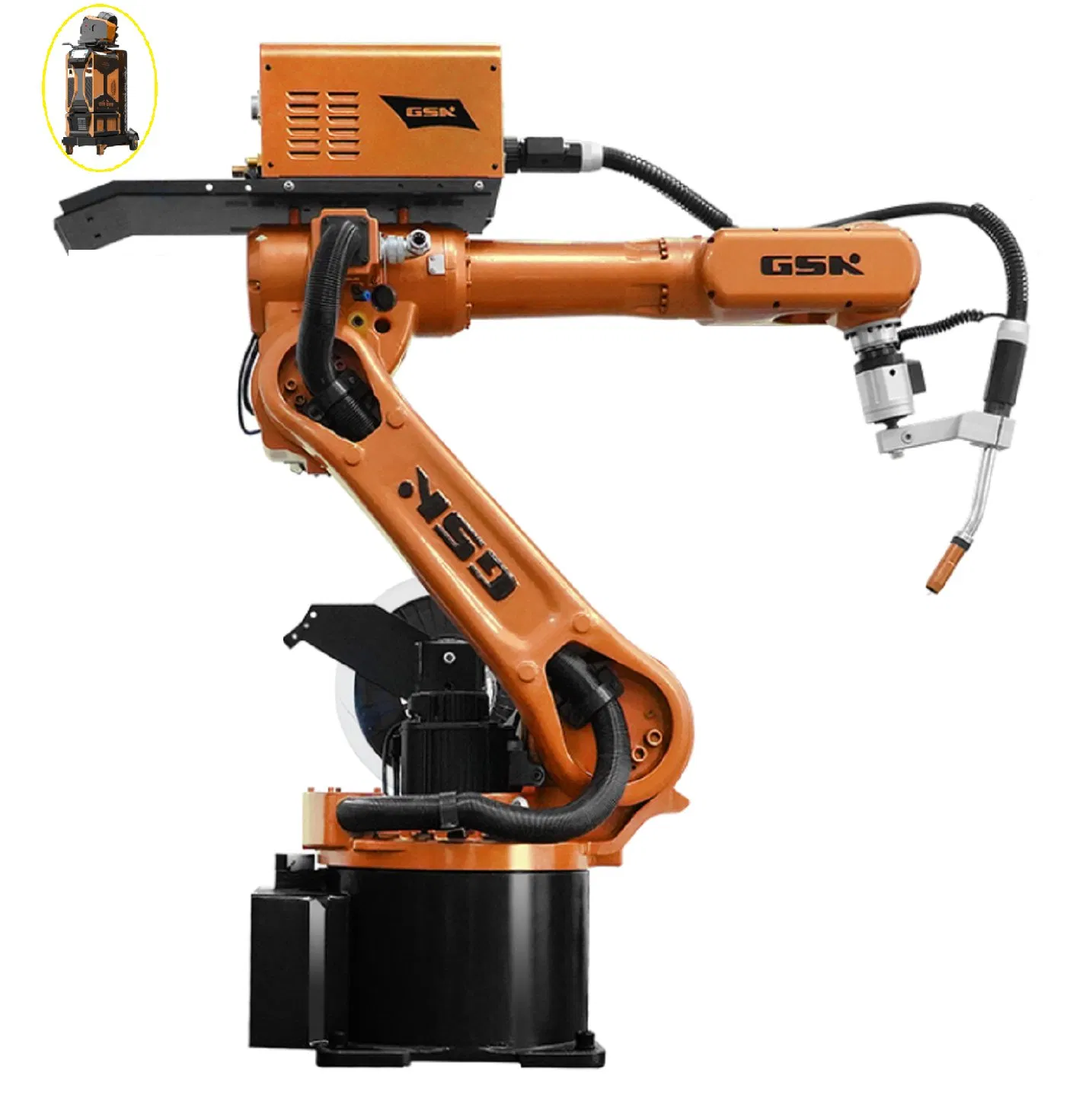

This high-precision industrial robot is widely utilized in the manufacturing of automobiles, motorcycles, agricultural machinery, and various hardware welding fields. It is designed for stability and high efficiency in complex production environments.

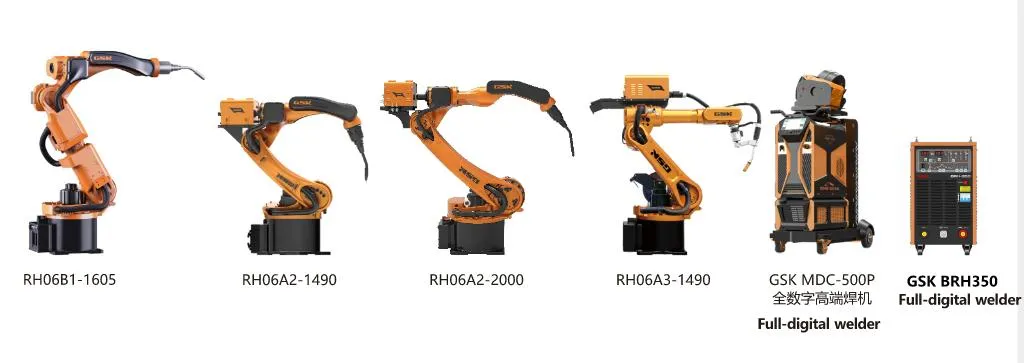

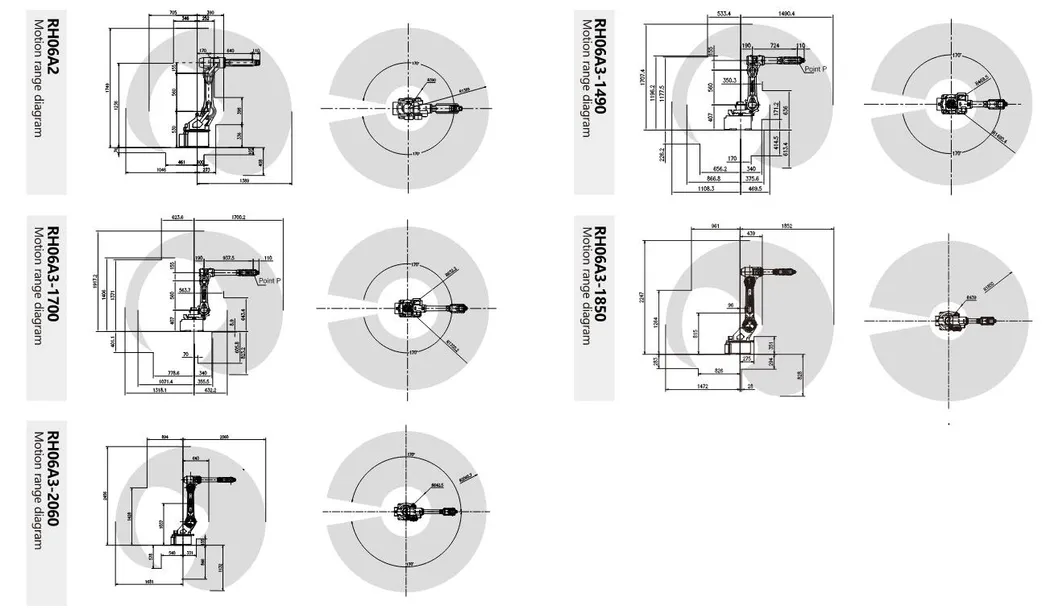

| Type | DOF | Payload (kg) | Repeatability | J1 Range | J2 Range | J3 Range | J4 Range | J5 Range | J6 Range | Radius (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| RH06A2-1490 | 6 | 6 | ±0.05 | ±170° | +115~-80° | +80~-150° | ±180° | ±135° | ±360° | 1490 | 190 |
| RH06A2-2000 | 6 | 6 | ±0.05 | ±170° | +140~-70° | +75~-140° | ±180° | ±135° | ±360° | 2000 | 265 |
| RH06A3-1490 | 6 | 6 | ±0.05 | ±170° | +120~-85° | +83~-150° | ±180° | ±135° | ±360° | 1490 | 185 |
Note: Avoid contact with flammable, explosive, or corrosive gases. Protect from water, oil, and electrical noise sources like plasma.

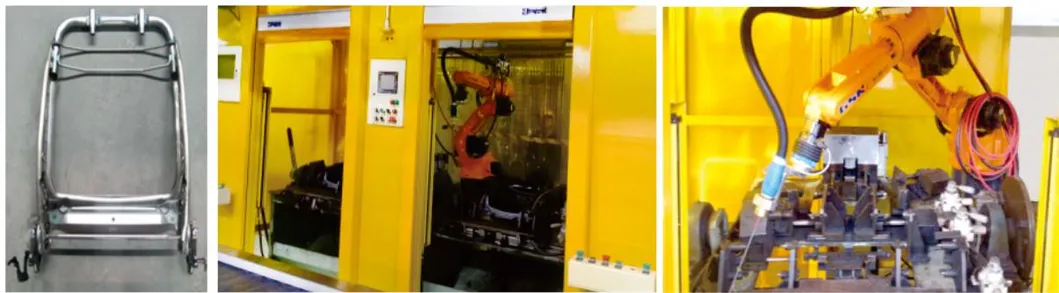

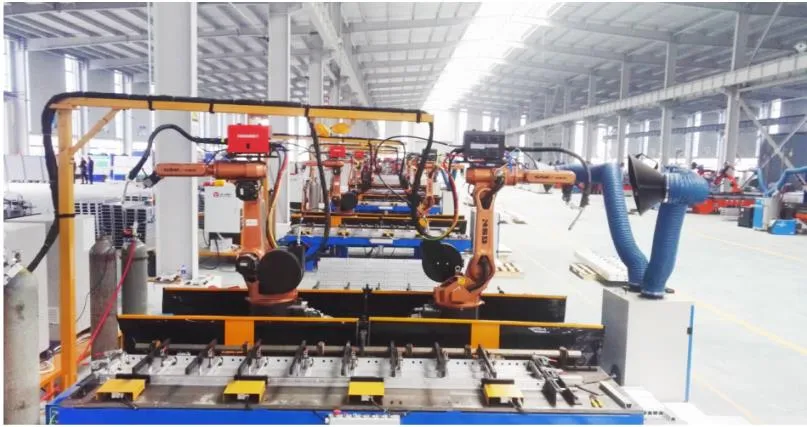

Replaces manual labor with double-position alternative welding. Robots complete welding according to preset programs while operators handle loading/unloading.

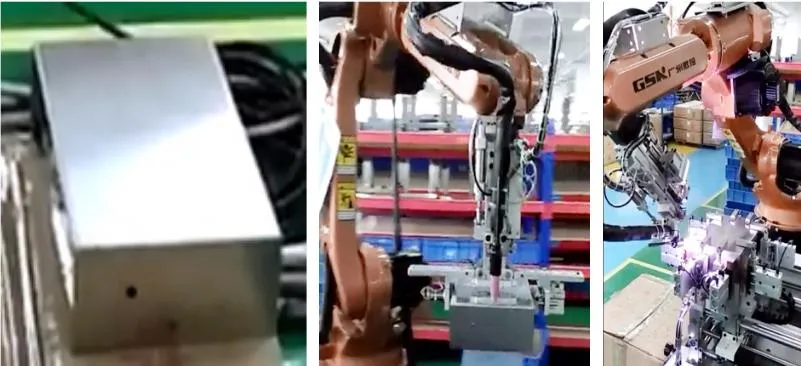

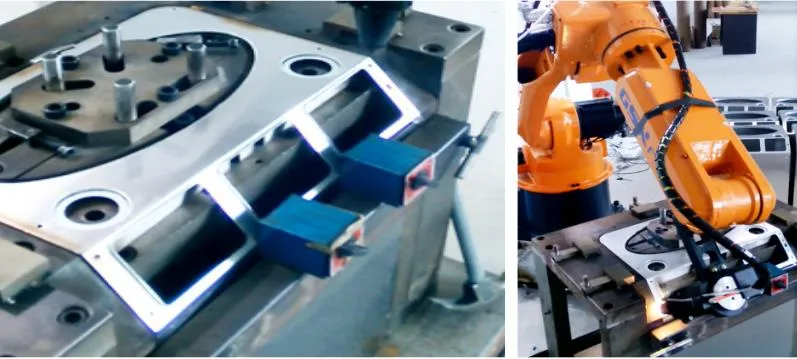

Specialized for stainless steel sheets (0.6mm). Offers high-speed continuous welding with minimal deformation compared to traditional argon arc welding.
Achieves full-automatic welding for stainless steel products. Tools are flexible, adjusting length and width automatically based on the selected procedure.
Ensures full-length welding without distortion. Eliminates common faults like insufficient welding, undercut, and air vents.

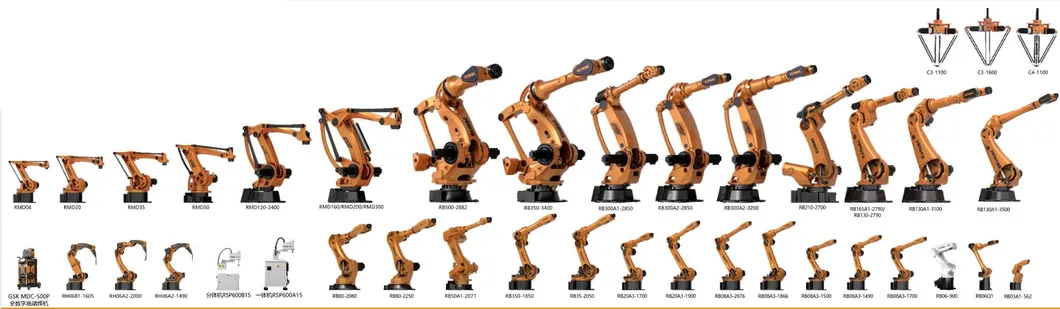

With over 30 years of R&D experience, our industrial robots include independent intellectual property rights for controllers, servo motors, and drivers. Our lineup covers transportation, welding, polishing, painting, stacking, and paralleling across 30+ product types.
