High-Precision Electrical Robot / CNC Manipulator with Continuous Path Control

Customization:	Available
Application:	Assembly, Machine Tending, Packaging, Painting, Picking and Placing, Welding, Lathe Turning
Control Mode:	PLC

Send Inquiry

Product Description

Basic Information

Degrees of Freedom

3 Axis Gantry System

Drive Mode

Servo Drive

Payload Capacity

2kg

Functions

Auto Picking Placing for Turning Drilling Grinding

Reposition Accuracy

±0.02mm

Auto Detection

Visual Inspection/Air Leak/Gauging

Input Voltage

Single Phase 220V

Tray Size

500*430mm*2

Protocol

Ethernet, Modbus-RTU/TCP, Profinet

User IO

16/16

End of Tools

2~3 Point Pneumatic Gripper

Certification

Product Description

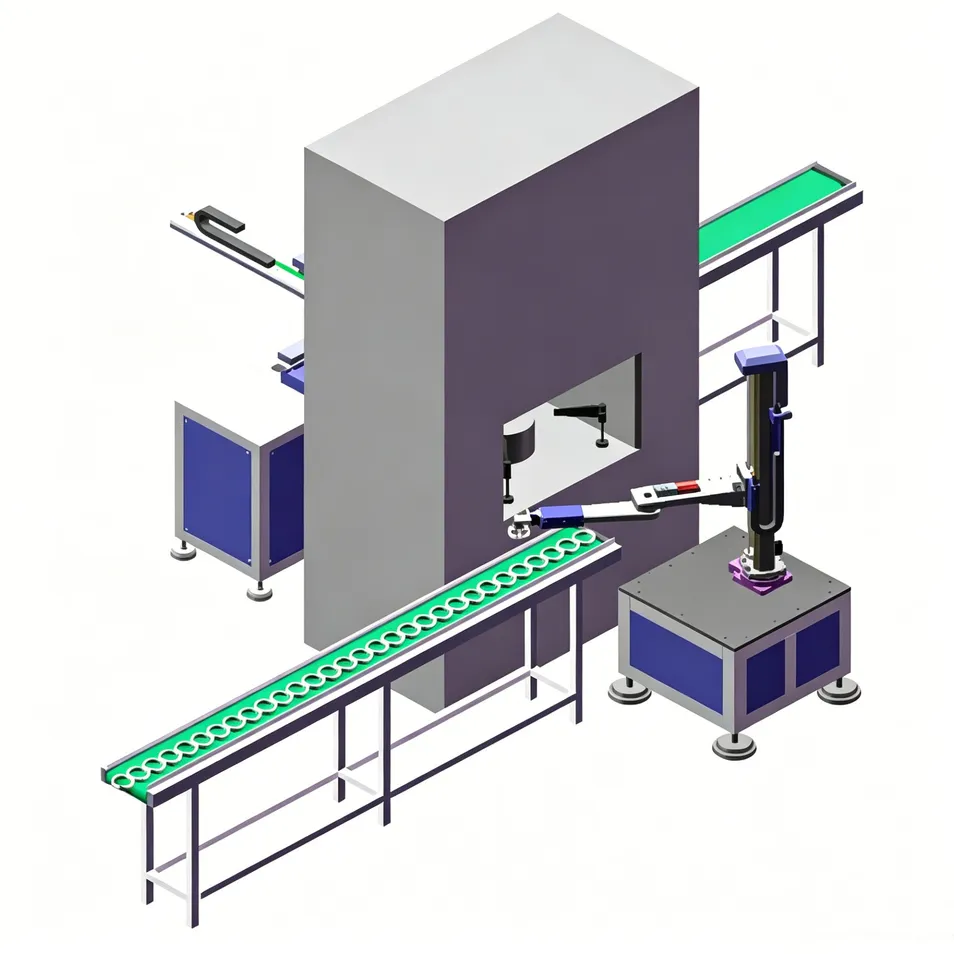

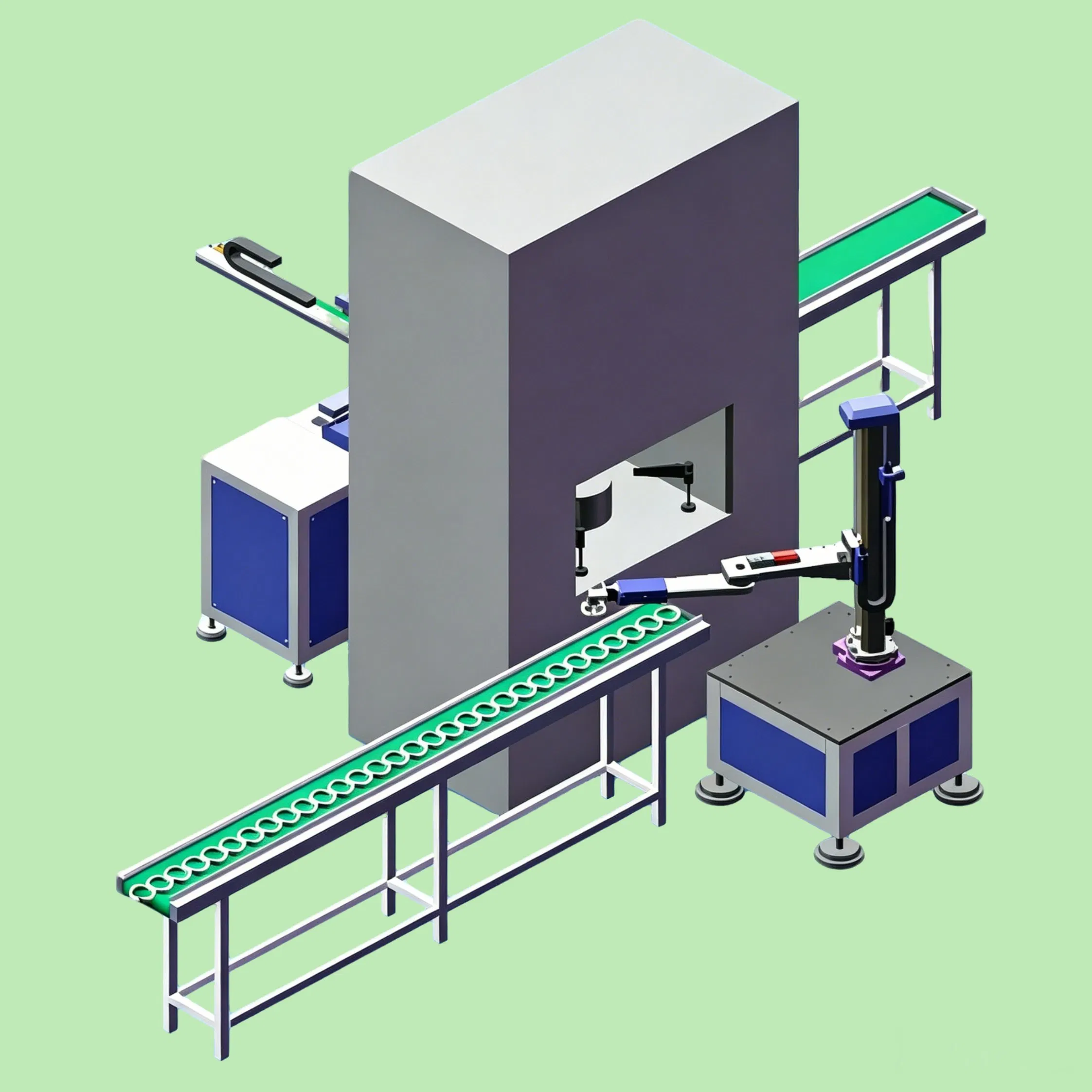

Automation Gantry System for CNC Machine Tending

The Robotic Arm Gantry System is a compact solution ideally suited for high-volume, large-scale production, especially for linear machine layouts. We offer TURN-KEY CNC Machine Tending Solutions to make your production faster, more efficient, and safer.

✓Floor space saving design

✓More economical than 6 Axis Robots

✓High Rigidity (2kg to 800kg capacity)

✓No programming knowledge required

✓High Precision: ±0.02mm repeatability

✓Easy to integrate with existing machines

Technical Specifications

Performance & Specs
Repeatability	±0.2mm
Power Consumption	200watt ~ 750watt
Payload Range	5kg, 10kg, 20kg, 40kg, 100kg, 200kg, 600kg
Number of Axis	2 ~ 7
Motor Type	Servo with absolute encoder

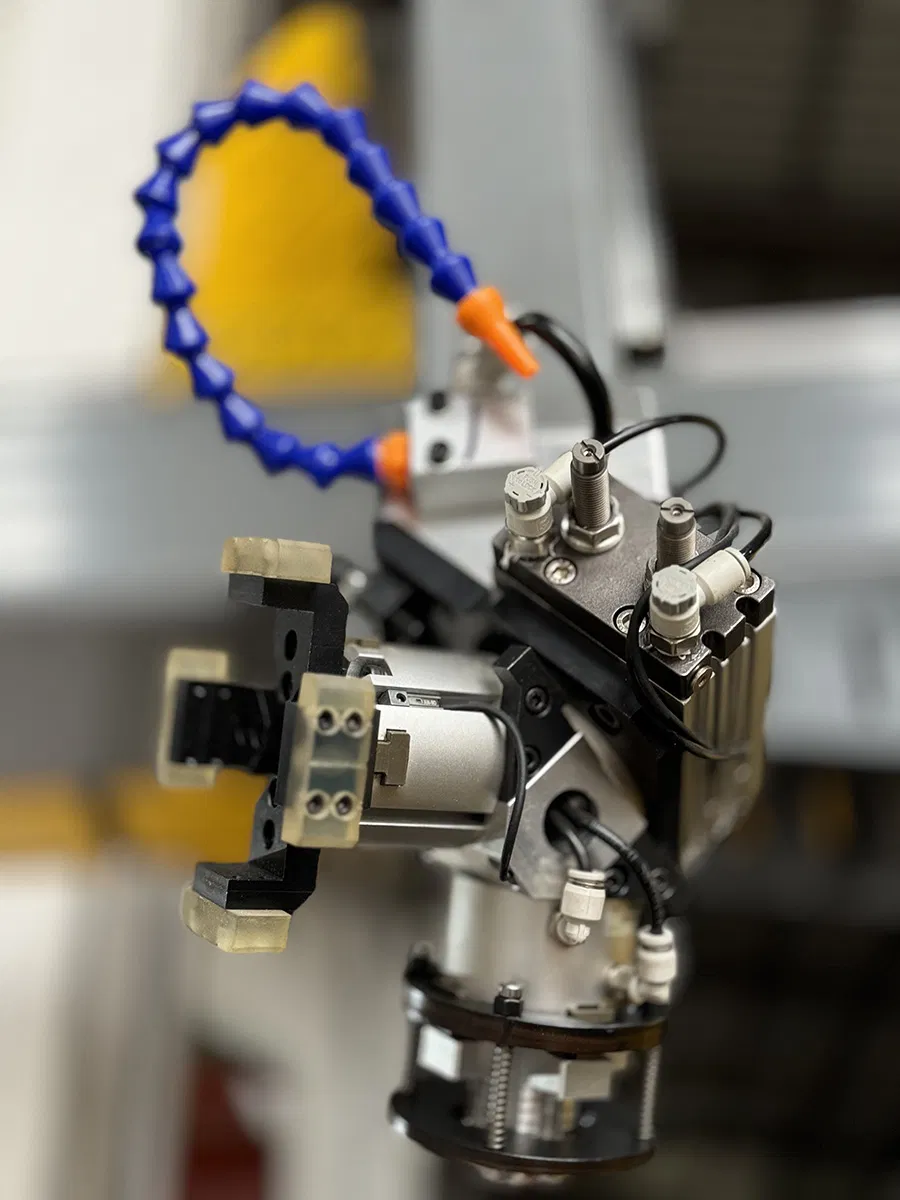

Gripper	3-2 Point Pneumatic or Servo controlled
Linear Motion	Guide rail with Rack and Pinion transmission
Control System	PLC Motion Control
X-Axis Range/Speed	2000 - 12000mm \| 1300mm/s
Y-Axis Range/Speed	500 - 1500mm \| 1000mm/s
Z-Axis Range/Speed	1000 - 1200mm \| 1000mm/s

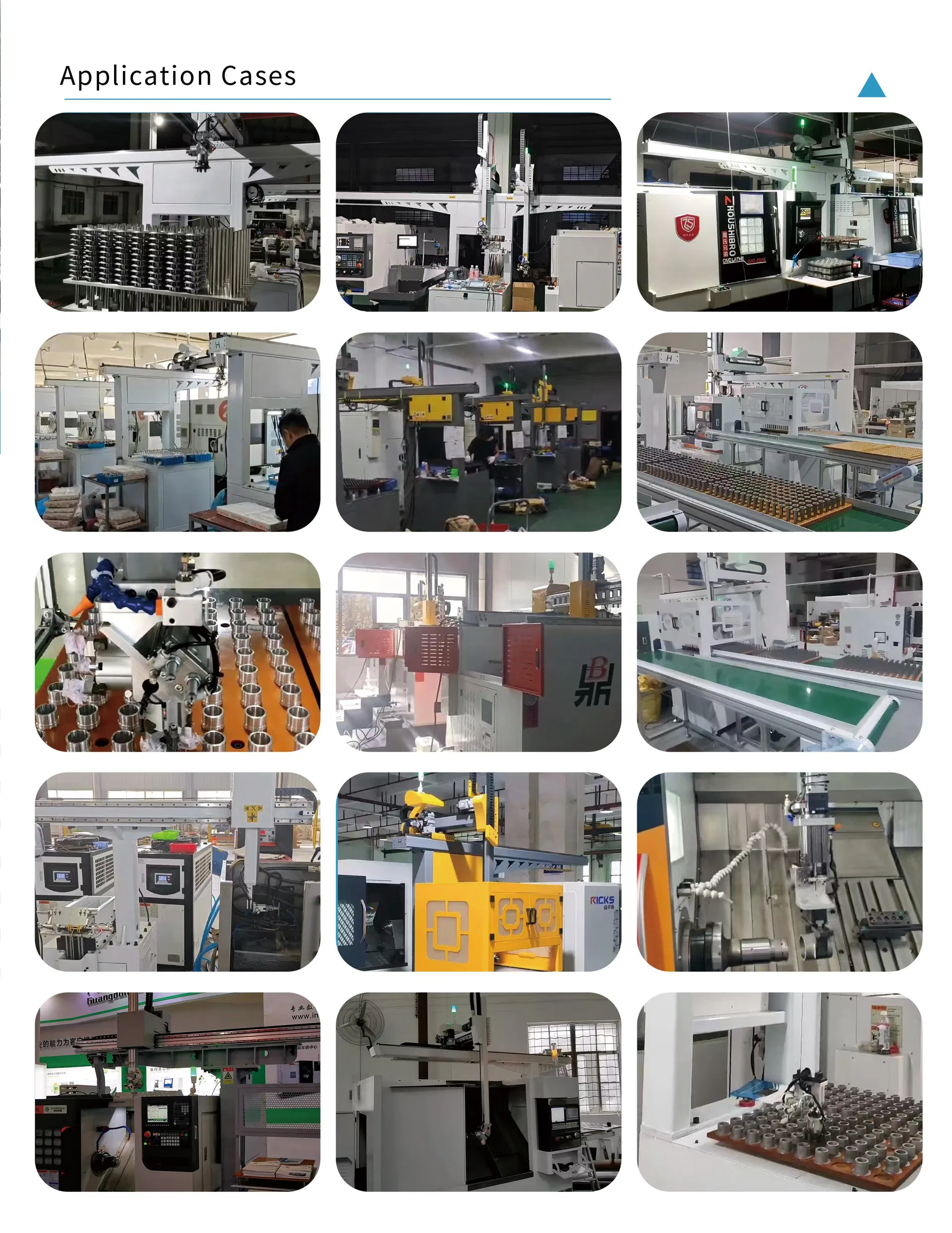

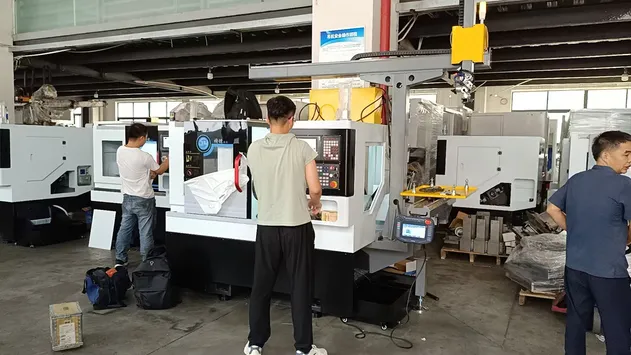

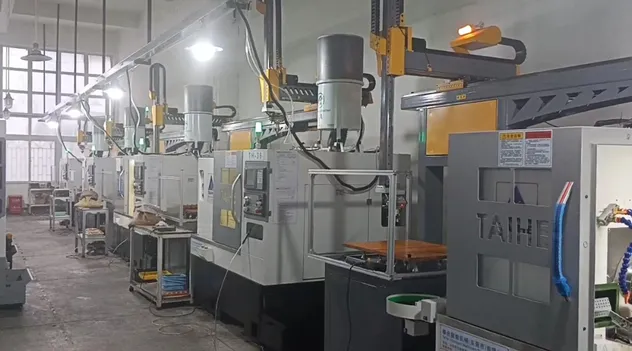

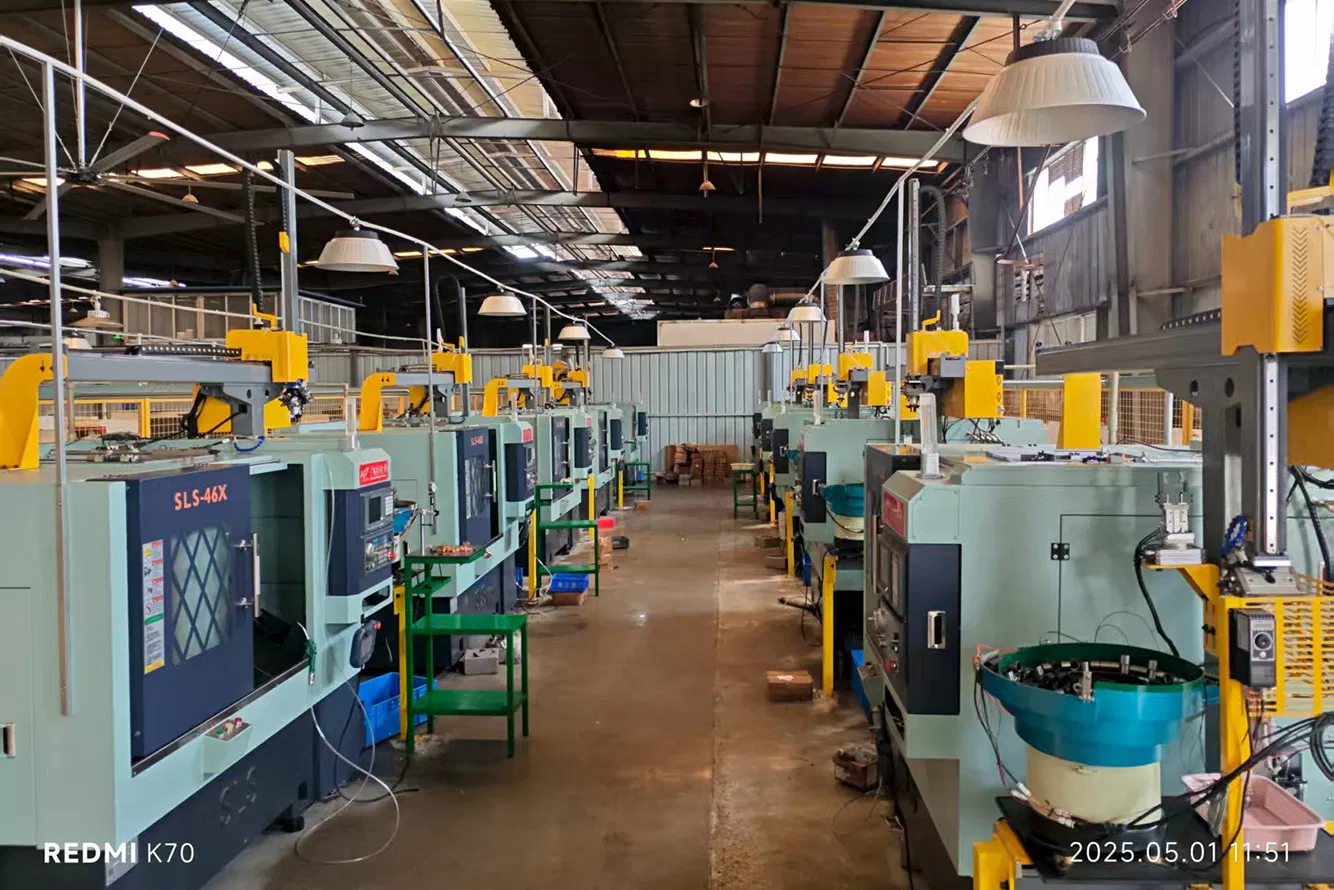

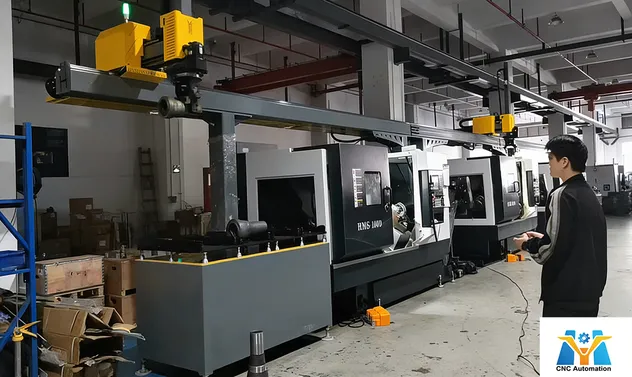

Application & Integration

Service & Quality

We are a leading industrial automation provider and CNC tending gantry robot manufacturer. With a track record of delivering over 10,000 automation systems, we focus on providing automated systems that achieve stable operation and improved productivity.

1OEM/ODM capabilities

2Safety and Trust in Production

3Turnkey automation solutions

4Over 2,000 systems track record

Frequently Asked Questions

Q: What specific equipment can I purchase for automation?

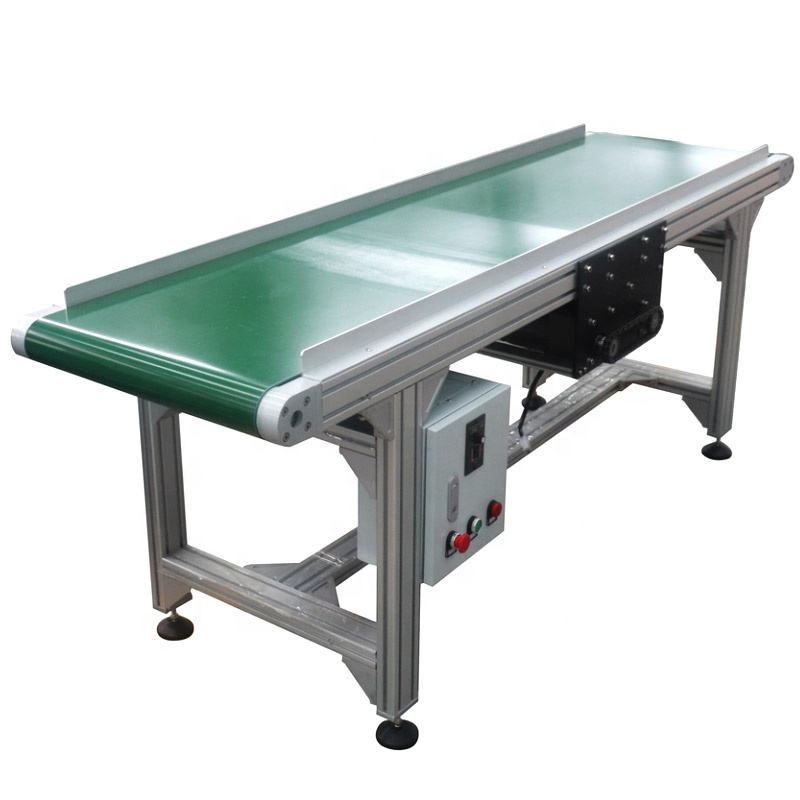

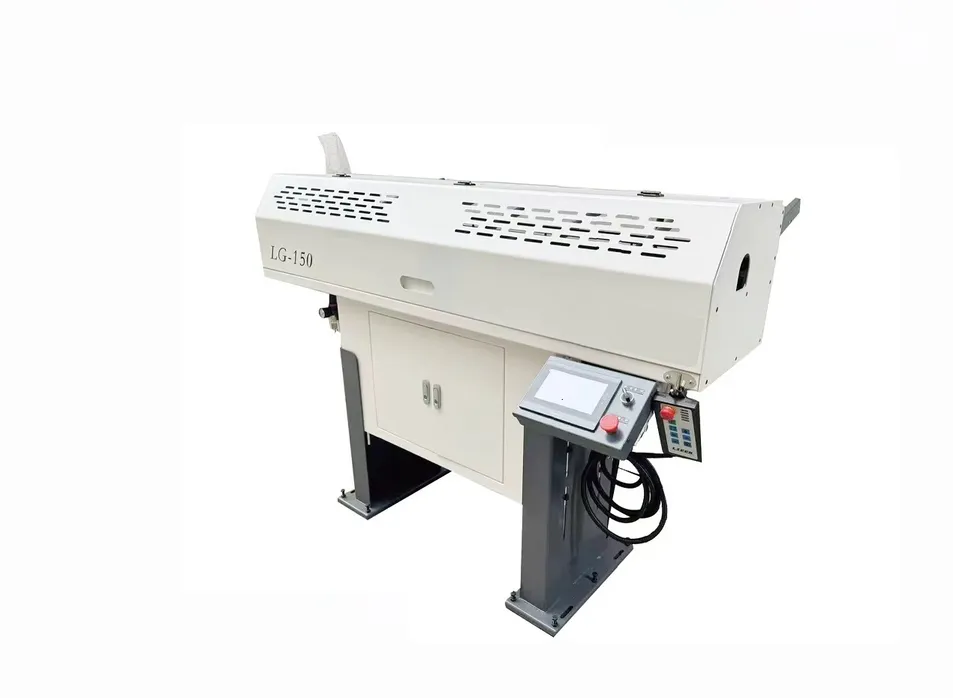

A: You can acquire a complete set of automated machine tool loading and unloading equipment, including Industrial Robots (3-Axis/6-Axis), Gantry Loaders, Bar Feeders, and Conveyors.

Q: What is the typical lead time for an order?

A: Standard models typically ship within 20–30 days, while customized automation units require approximately 30–45 days.

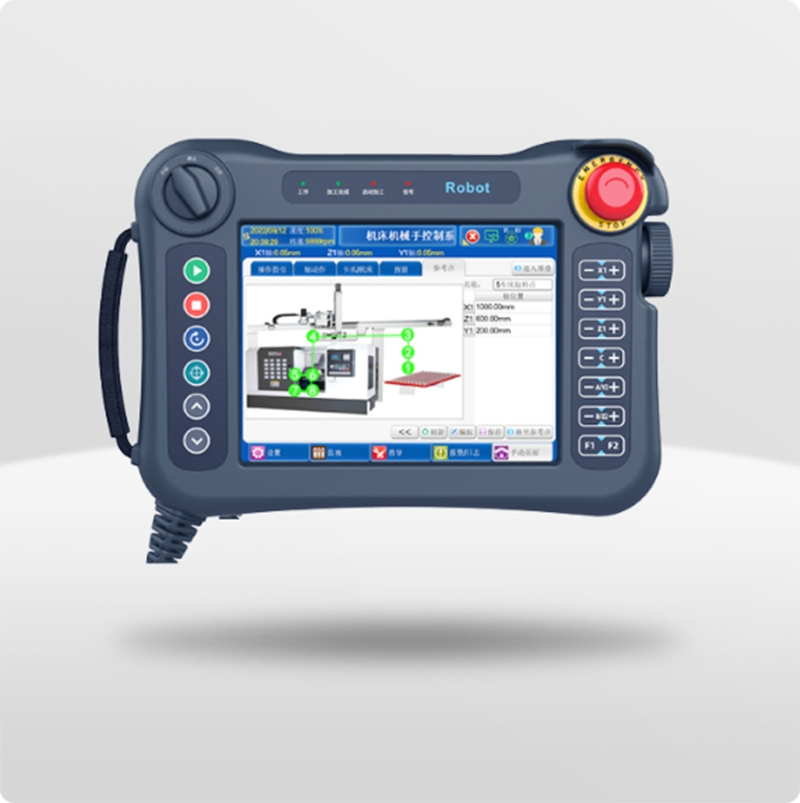

Q: Do I need programming skills to operate the Gantry Robot?

A: No, the system is designed for ease of use. Operators can manage the equipment without PLC programming skills through a simple start-up process.

Q: How do you handle international installation?

A: We provide free remote technical guidance for the entire life cycle. Additionally, technicians can be dispatched for on-site installation and guidance if required.

Q: Can the gantry system be integrated with my existing CNC machines?

A: Yes, our solutions are highly flexible and designed to integrate seamlessly with both new and existing machine layouts.

Q: What is the process for overseas buyers?

A: The process includes Data Gathering → Quotation → Order Confirmation → Production & Testing → Quality Confirmation → Delivery → Remote/On-site Installation.
