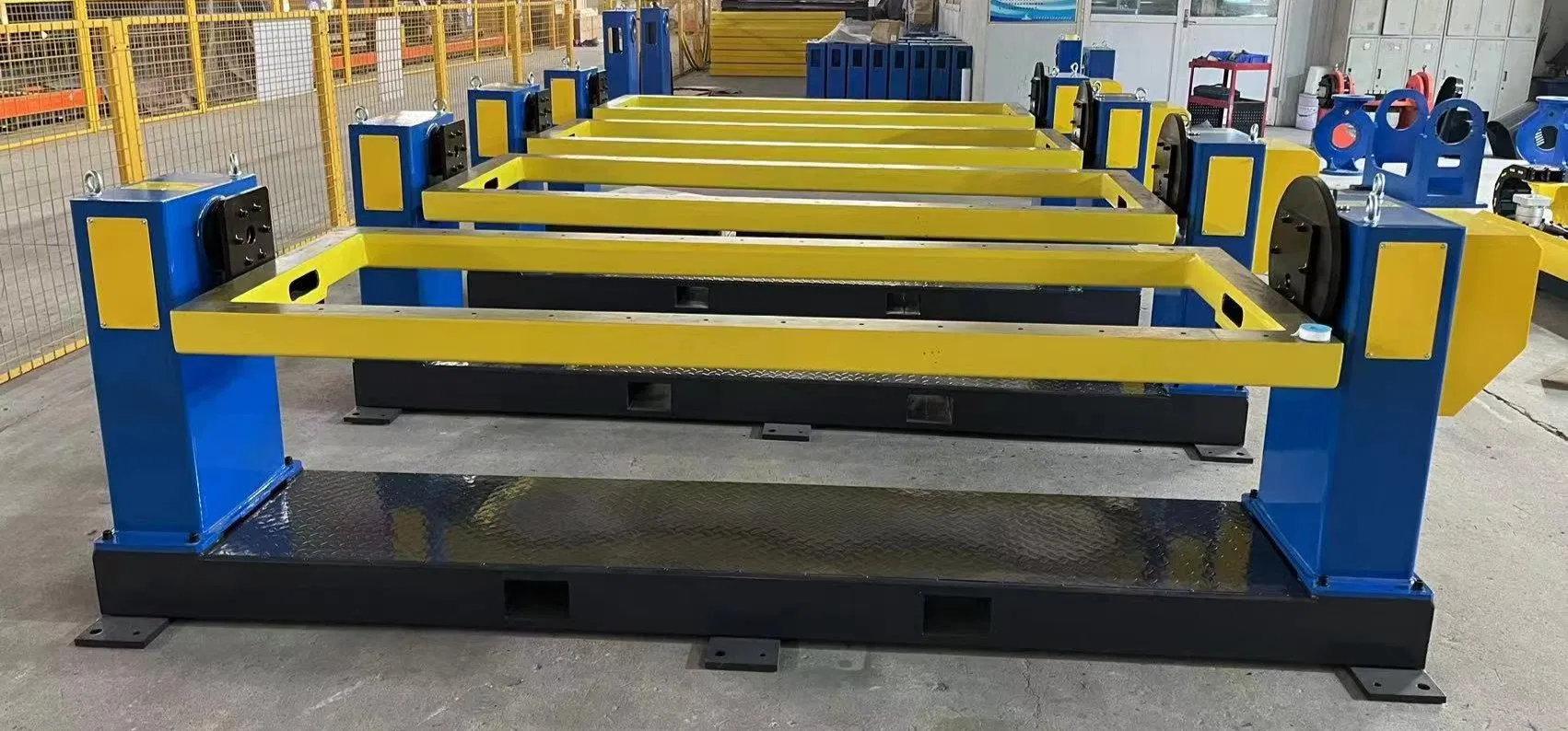

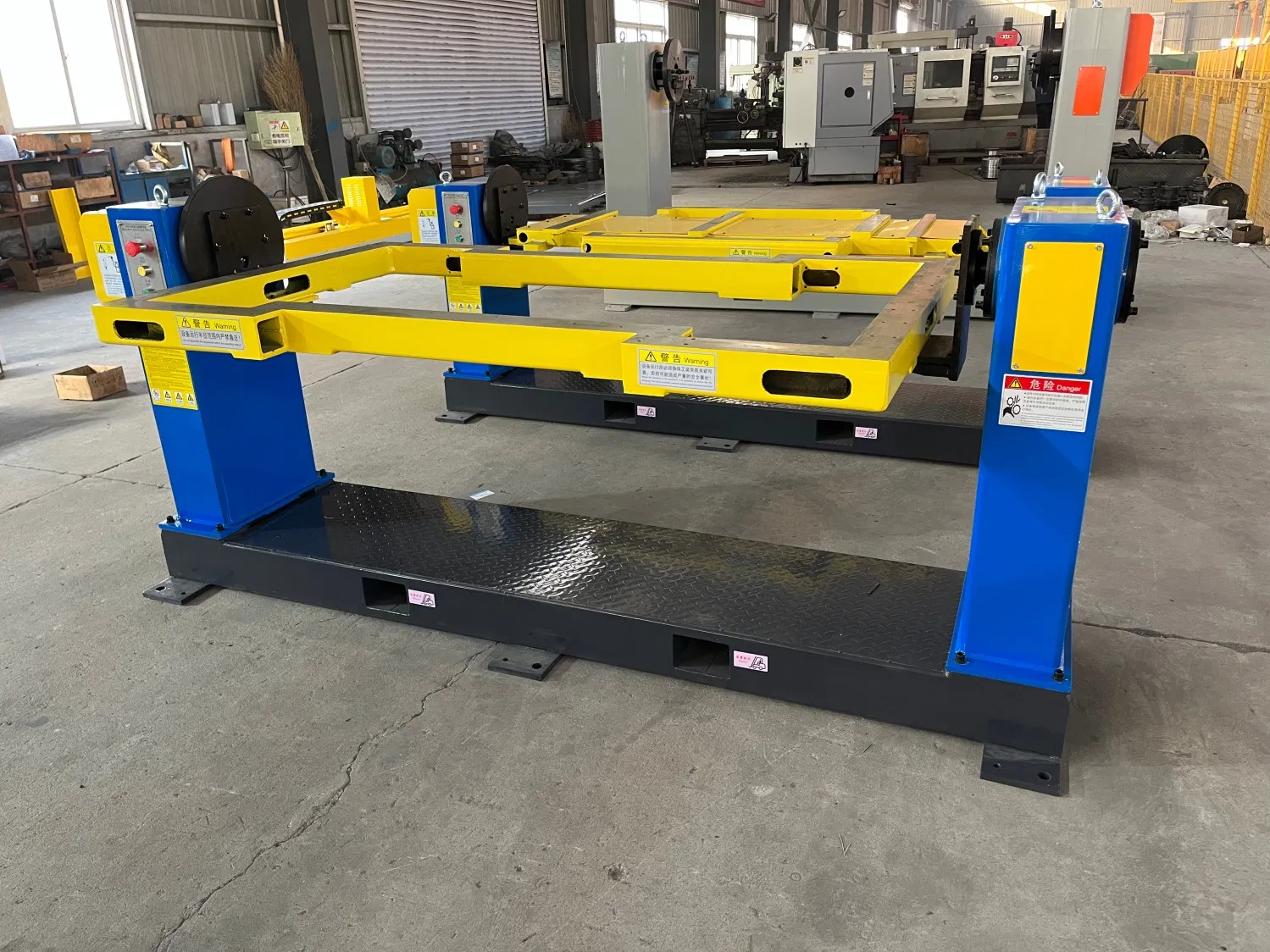

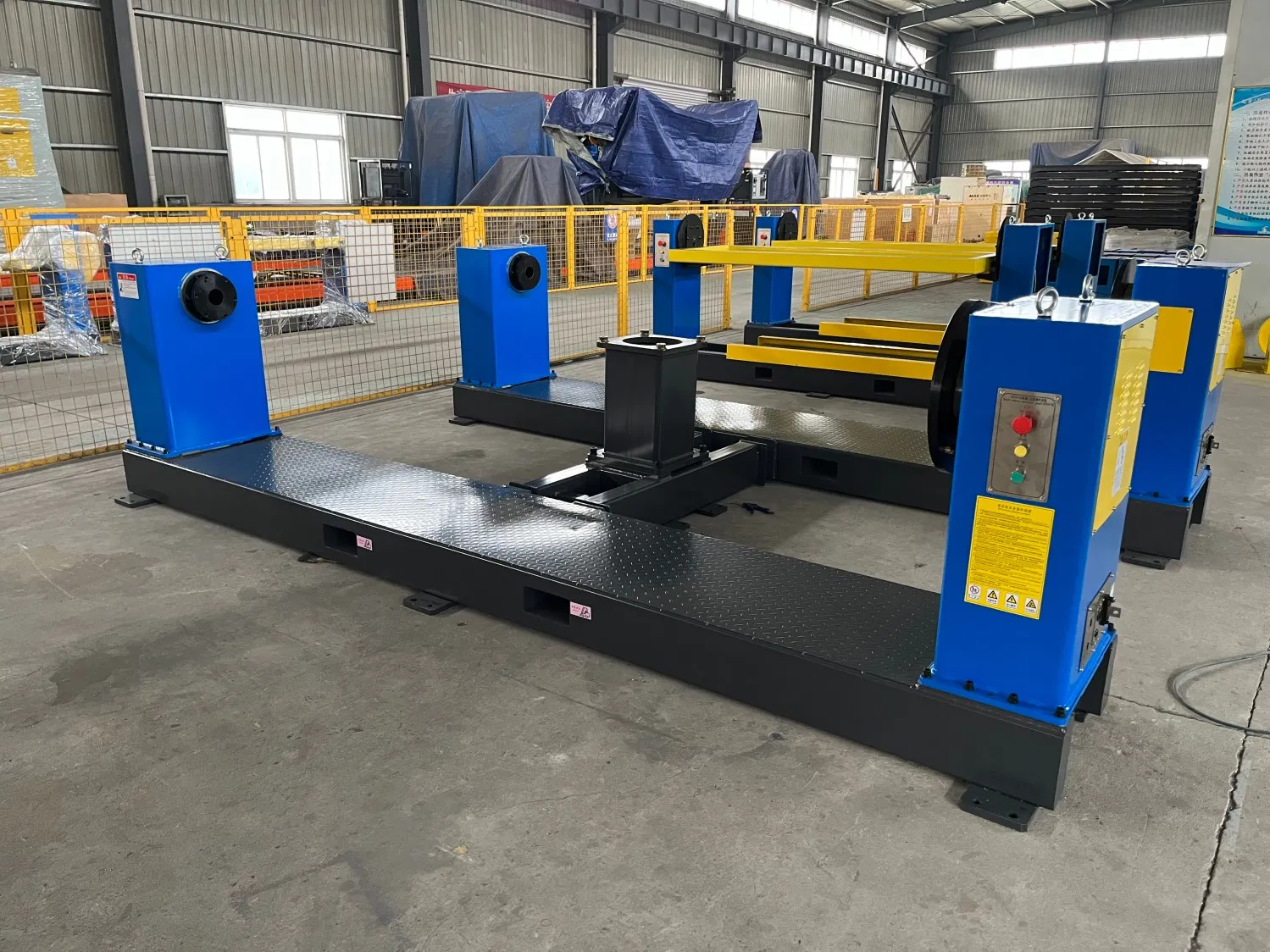

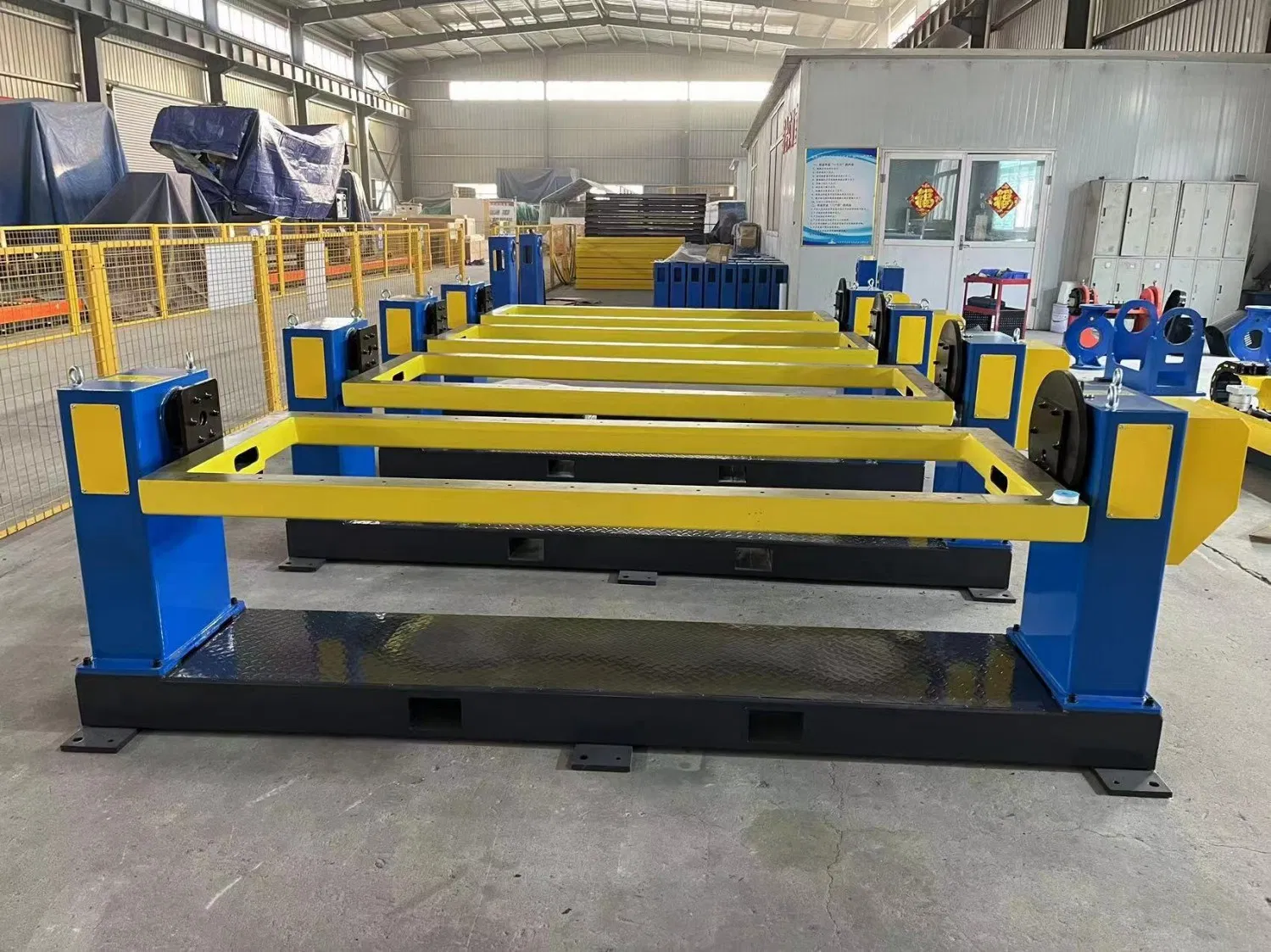

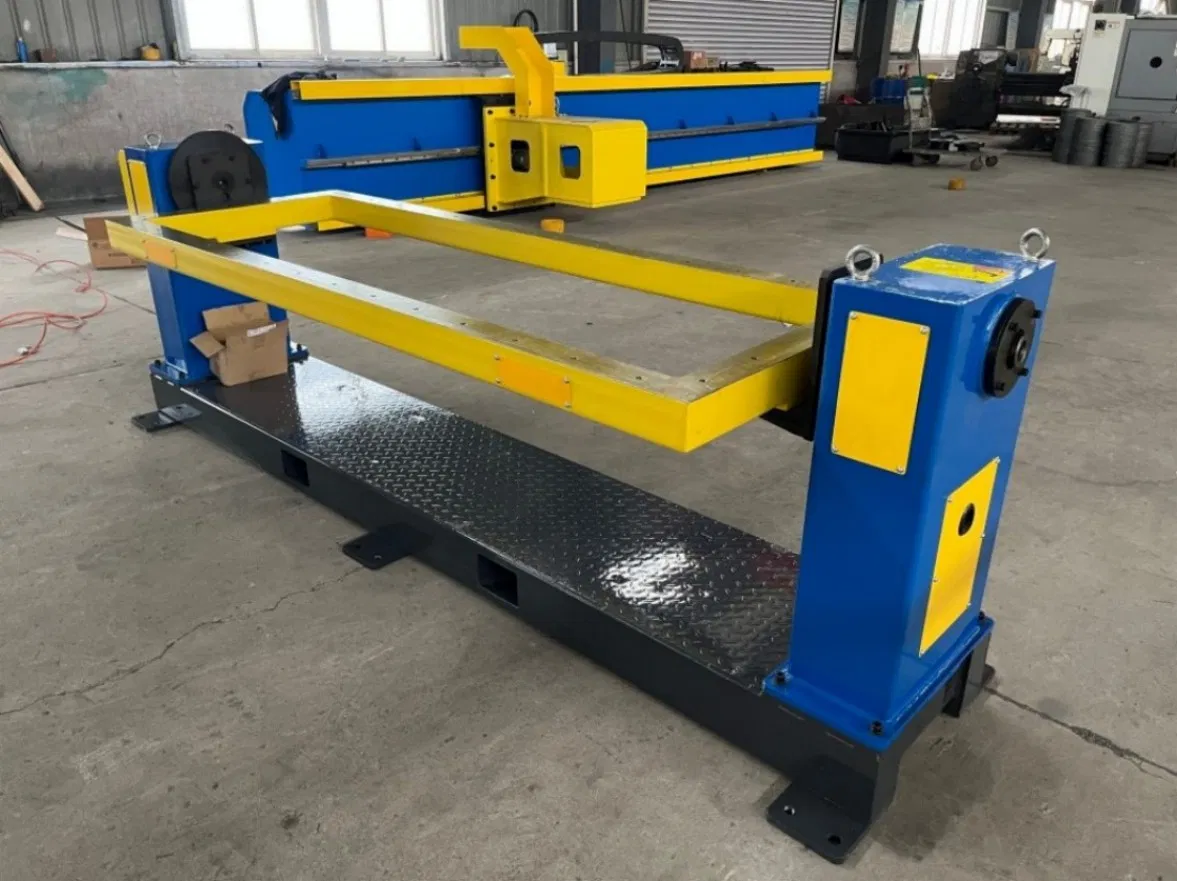

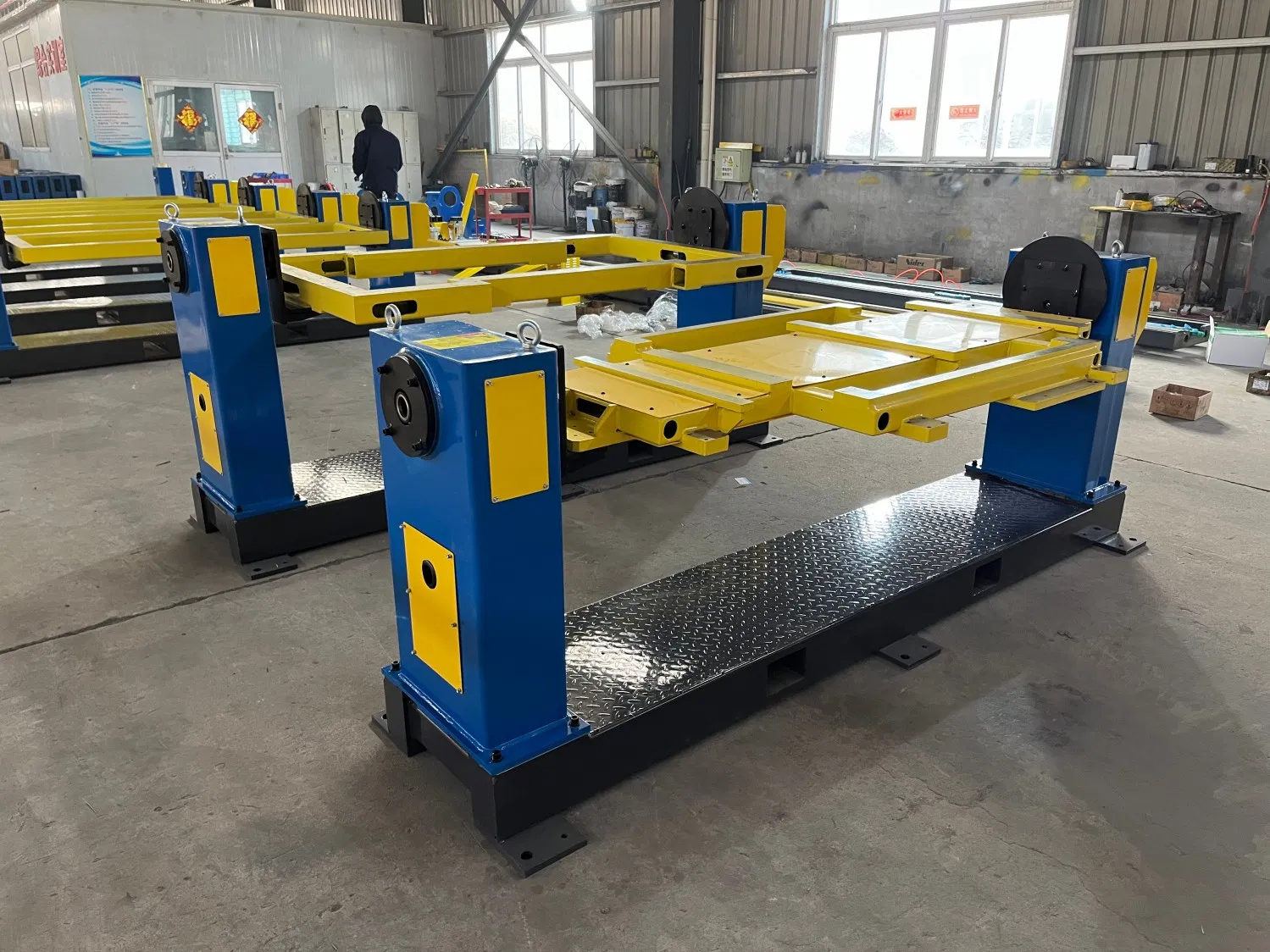

In the realm of industrial automated welding, the harmonious collaboration between the welding robot and positioner is pivotal. As an extension of the welding robot's motion capabilities, the positioner performs dynamic operations such as rotating, flipping, and repositioning the workpiece with precision. This is achieved through advanced motor drives and mechanical transmissions, utilizing components like servo motors, reducers, and ball screws.
The positioner ensures the weld is consistently positioned for optimal welding. This synchronized control is made possible by a unified system, allowing for remote operation with a handheld teach pendant. The positioner adeptly maneuvers the weldment, while the robot executes automated welding in perfect harmony, resulting in a streamlined and efficient operation.
| Model | AUT-SWP-ZW-500 | AUT-SWP-ZW-800 | AUT-SWP-ZW-1000 |
|---|---|---|---|
| Rated payload | 500kg(Axis radius≤R400mm) | 800kg(Axis radius≤R500mm) | 1000kg(Axis radius≤R500mm) |
| Standard radius of gyration | R650mm | R650mm | R650mm |
| Maximum load eccentricity | ≤150mm | ≤100mm | ≤150mm |
| The height of clamping | ≤400mm | ≤300mm | ≤300mm |
| Maximum angle of gyration | ±360° | ±360° | ±360° |
| Rated speed of gyration | 50°/S | 50°/S | 50°/S |
| Repeat positioning accuracy | ±0.08mm | ±0.10mm | ±0.10mm |
| Positioner dimension(L*W*H) | 2900x700x1050mm | 3300x700x1050mm | 4400x800x1250mm |
| Equipment net weight | ~500kg | ~650kg | ~850kg |
| Model | AUT-SWP-ZW-2000 | AUT-SWP-ZW-5000 |
|---|---|---|
| Rated payload | 2000kg(Axis radius≤R1000mm) | 5000kg(Axis radius≤R1500mm) |
| Standard radius of gyration | R1000mm | R1600mm |
| Maximum load eccentricity | ≤200mm | ≤400mm |
| Height of gyration center | 1250mm | 1850mm |
| Rated speed of gyration | 50°/S | 18°/S |
| Repeat positioning accuracy | ±0.15mm | ±0.15mm |
| Equipment net weight | ~1400kg | ~3200kg |

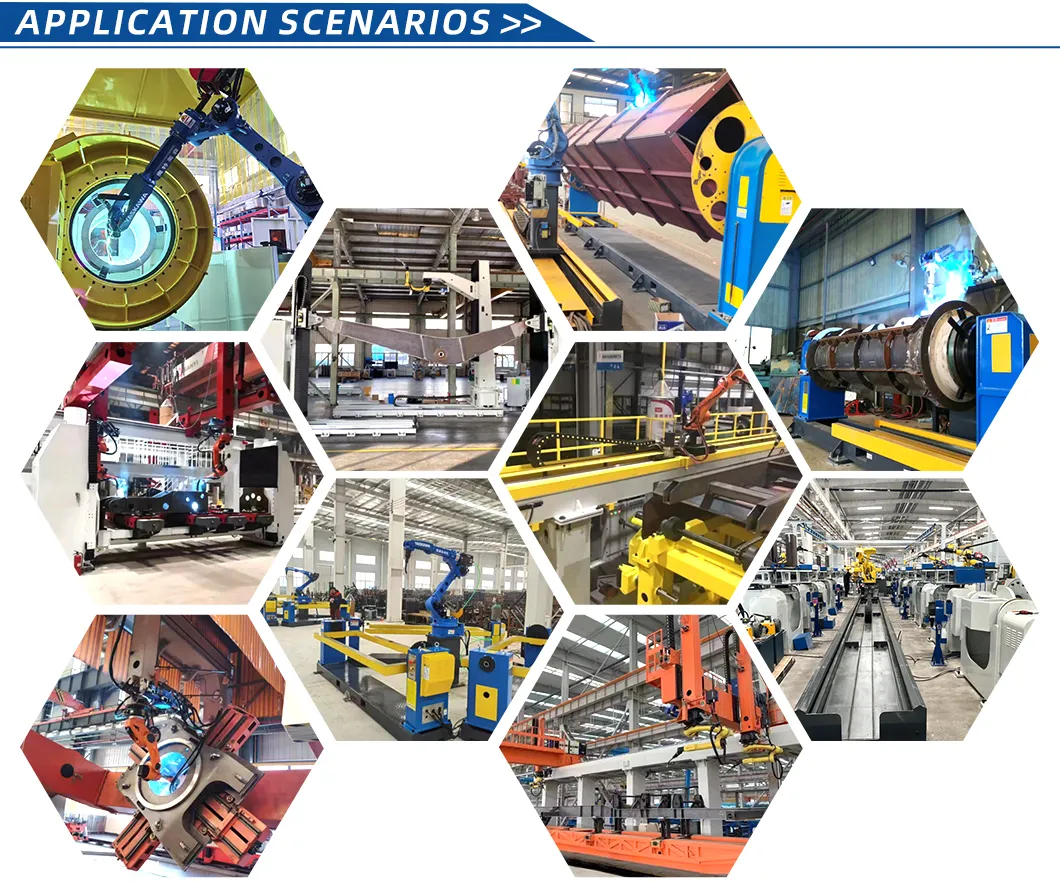

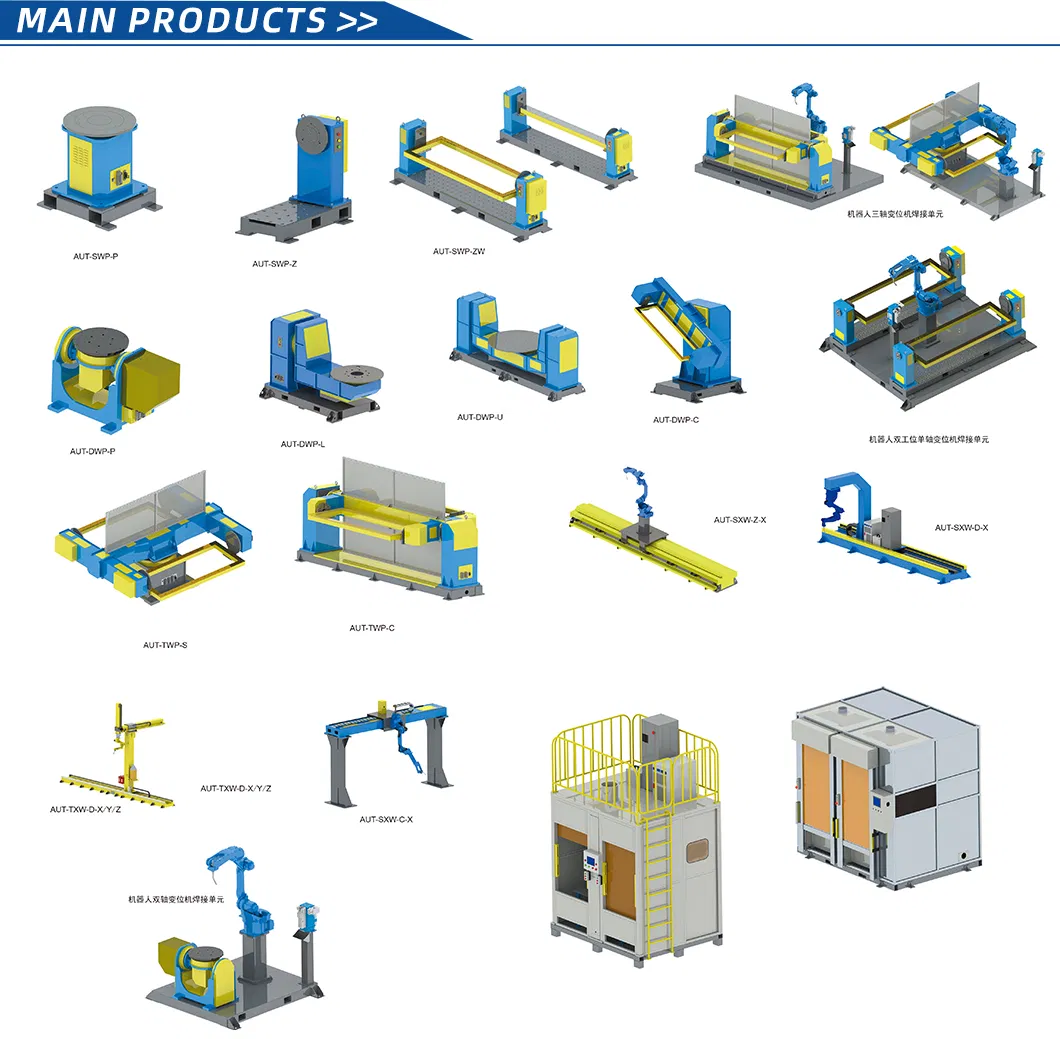

We focus on creating professional industrial peripheral equipment and customized automation equipment. Our main products include industrial robot arms, positioners, robot tracks, robot gantry workstations, and customized production lines. Our products have a wide range of applications, covering numerous industries such as construction machinery, automobile manufacturing, shipbuilding, power engineering, and heavy machinery.
