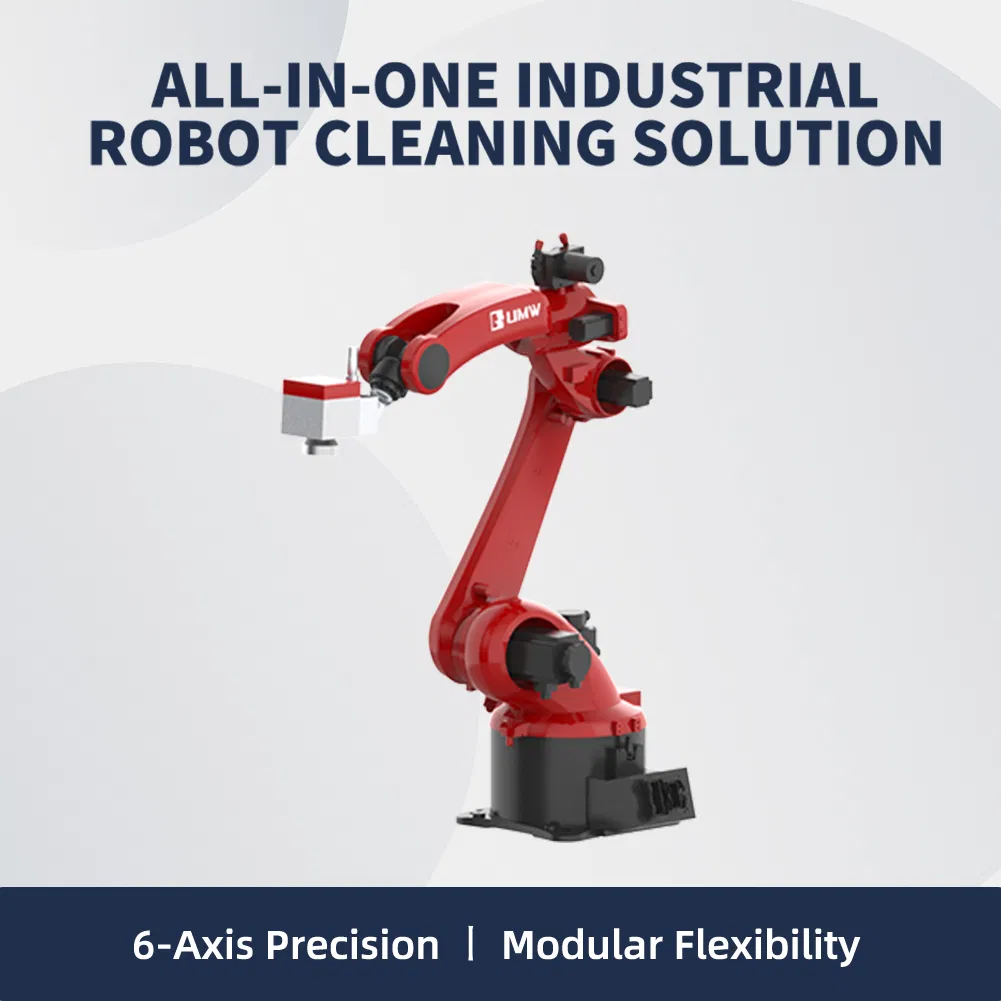

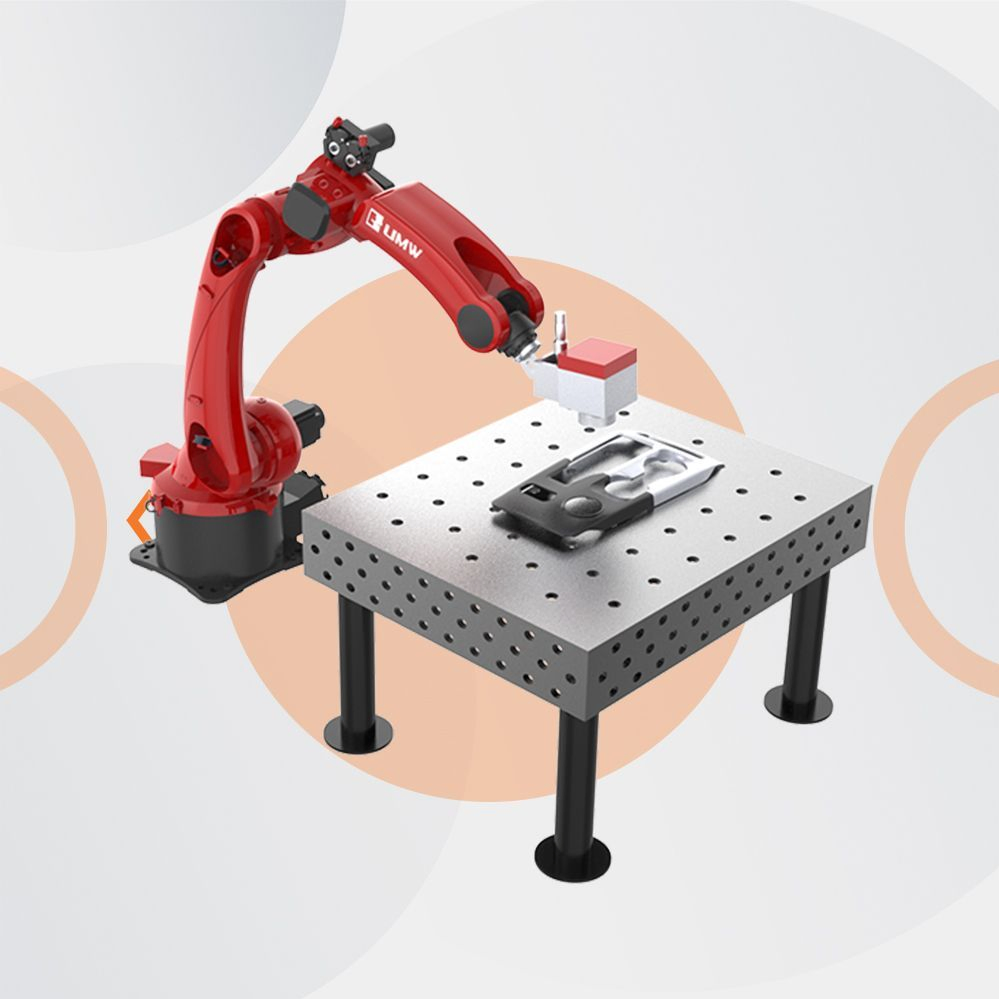

Advanced High-Precision Laser Robotic Arm for Metal Surface Cleaning

1 / 5

Advanced High-Precision Laser Robotic Arm for Metal Surface Cleaning

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Specifications

Model NO.	UA-AC
Degrees of Freedom	6-axis
Drive Mode	Electric
Type	Articulated Robot
Payload	25-50kg (Configurable)
Reach	1803-2158mm
Power Supply	380V AC, 50/60Hz
HS Code	8479509090
Production Capacity	100 sets/Month

★

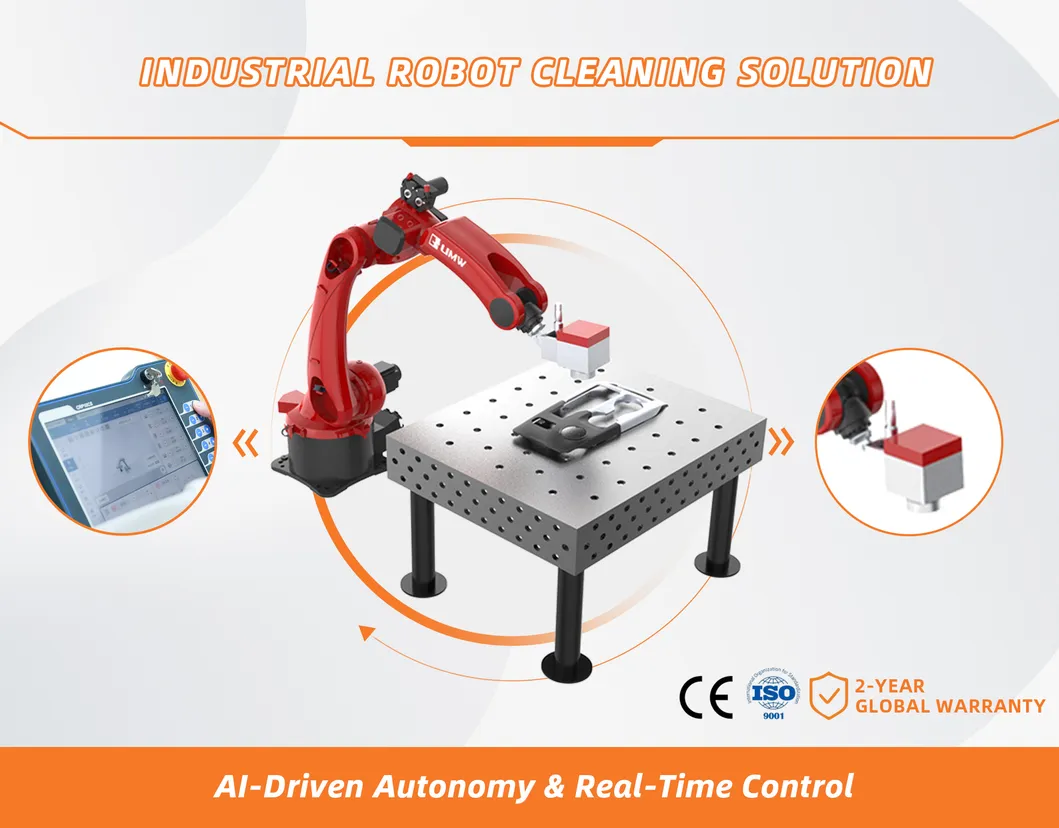

Automated Robot Laser Cleaning Solutions

Break through traditional limitations with the Robot Laser Cleaning Workstation, a 100% customizable, automated solution designed for high-efficiency industrial cleaning. Featuring modular design, AI-powered precision, and industry-leading adaptability, this 6-axis robotic system integrates seamlessly into factory lines, delivering unmatched speed, safety, and cost savings. Ideal for large-scale production, complex geometries, and sensitive environments.

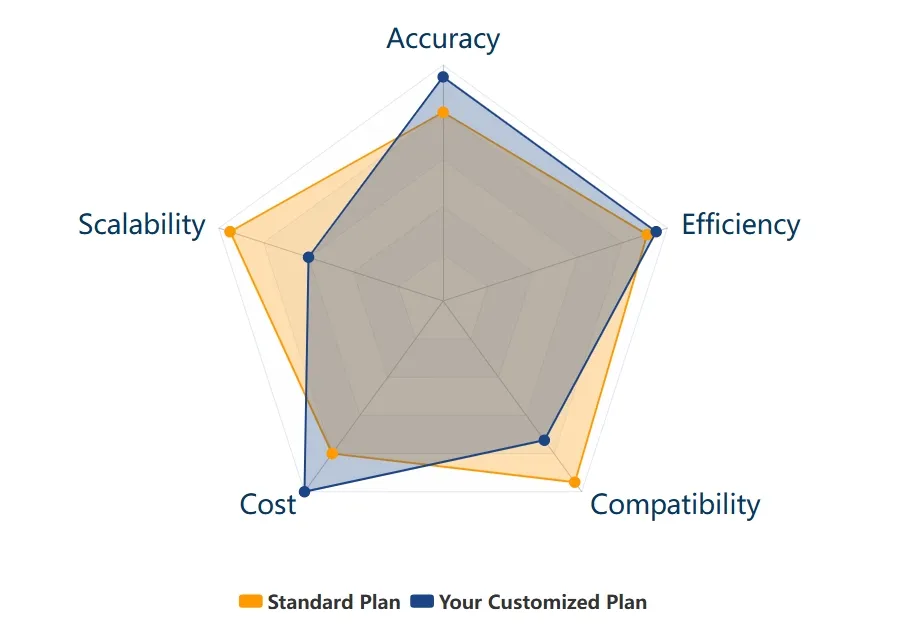

Core Advantages

Accurate adaptation for all industrial scenarios

Free control of technological sovereignty

Double breakthrough in cost efficiency

Zero-risk service commitment

Global agile delivery

⚡

Handheld vs. Robotic Cleaning

Category	Handheld Laser	Robotic Laser
Power Range	100W-500W	300W-1000W
Precision	±0.1mm (Manual)	±0.02mm (Auto)
Mobility	Portable 3-axis	6-axis + Rail system
Best For	Small parts / Field work	Mass production / Factory lines
Workpiece Size	<1m³	>1m³ (Frames/Metal sheets)
Automation	Manual operation	CAD/PLC programming
Energy Use	1.5kW/h (AC power)	8kW/h (Industrial circuit)

✔

Key Features & Technical Specs

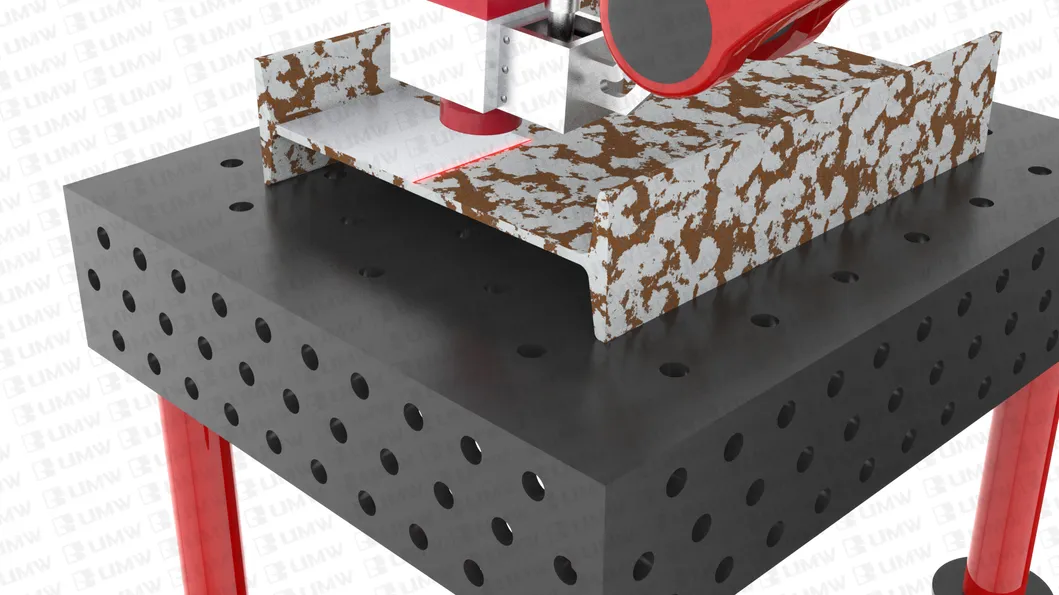

Substrate-Safe Precision
Non-contact micron-level accuracy control.

Unmatched Efficiency
3x faster cleaning; 24/7 autonomous operation.

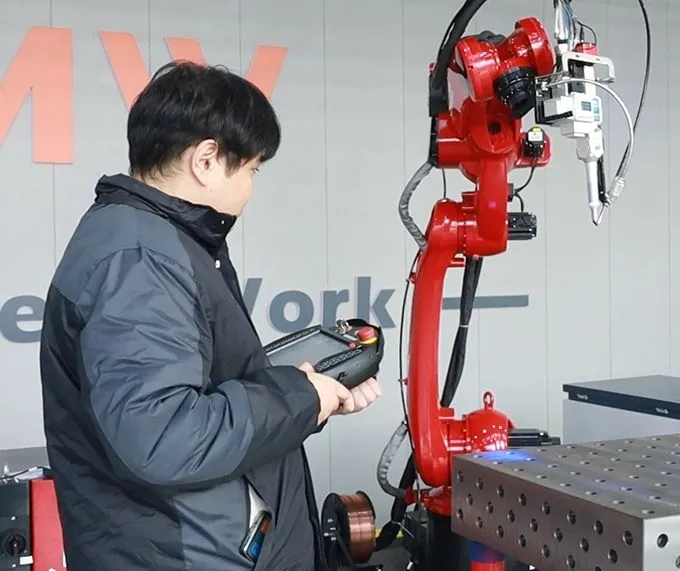

Smart Autonomy
AI-driven path optimization and remote monitoring.

Max Working Range	1803-2158mm
Repeat Accuracy	±0.05mm
IPS Rating	IP65

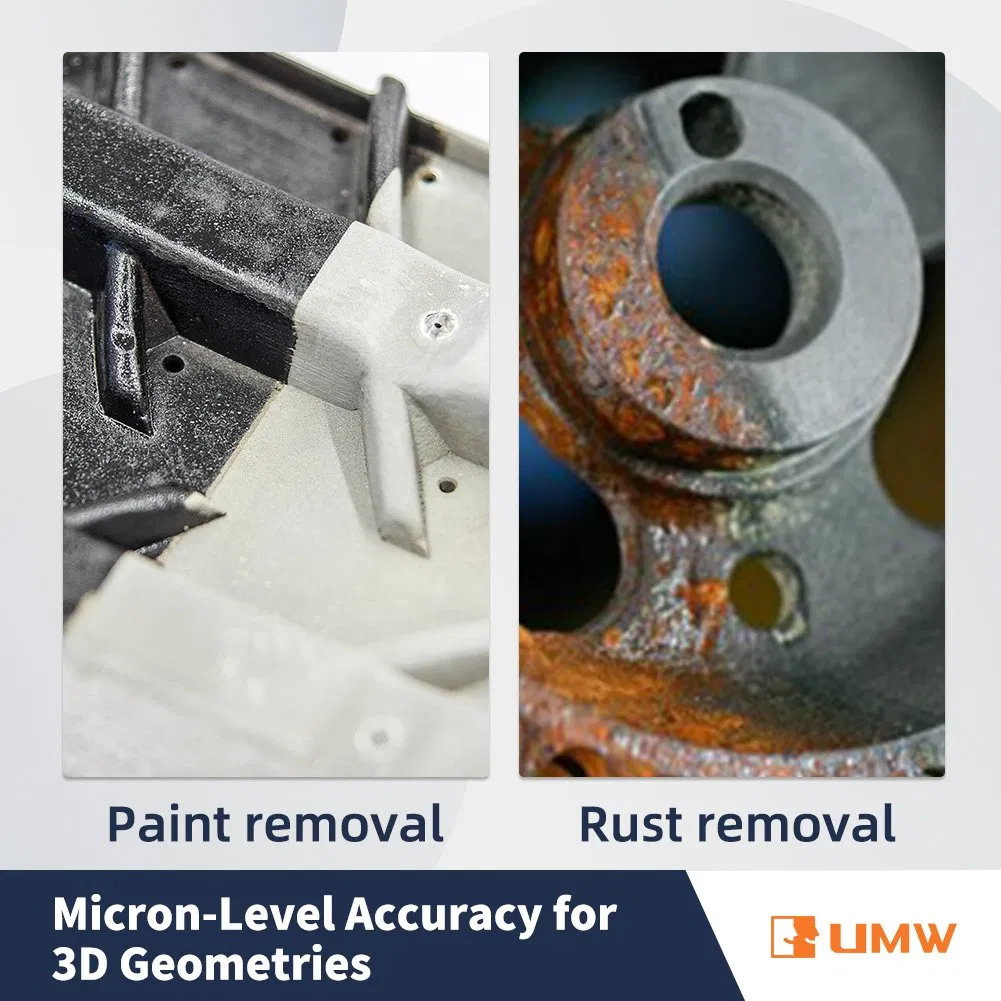

Cleaning Applications	Rust, oil, paint removal for steel, aluminum, etc.

⚙

Industry Application Cases

1. High-Speed Rail Gearbox System

Full 3D coverage with a gantry system and 6-axis robotic arm. Features dual-laser tech (2000W CW + 500W pulsed) for zero-pollution cleaning that exceeds ISO standards.

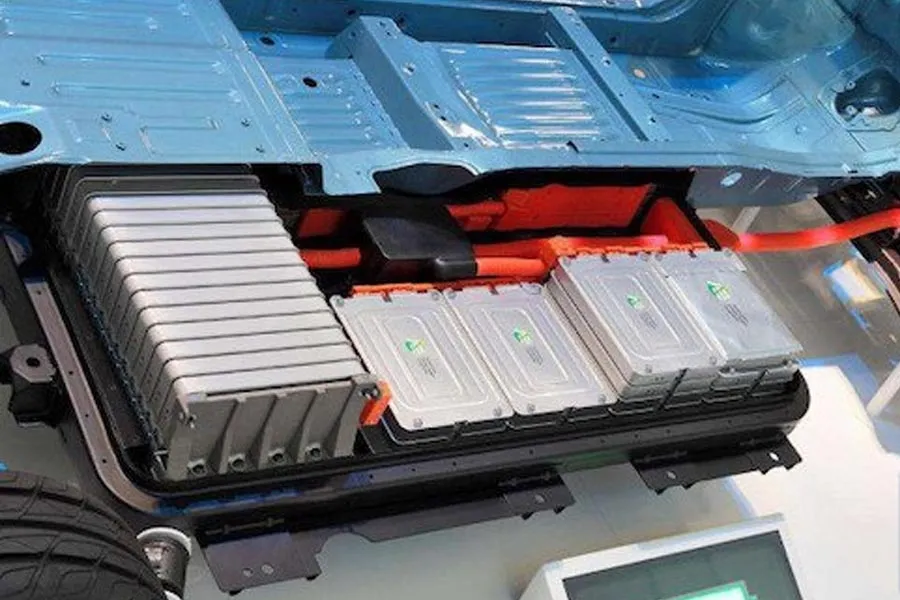

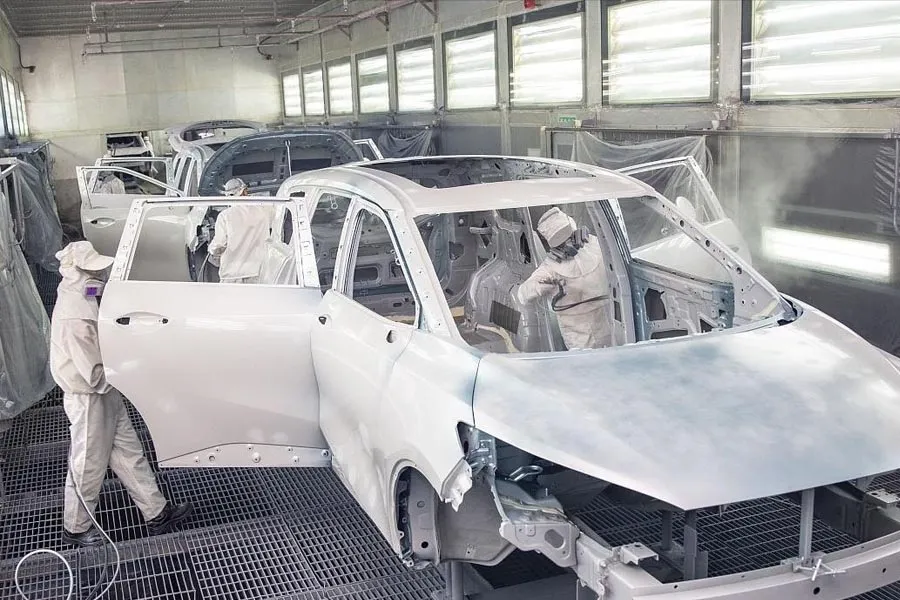

2. EV Battery Cover Cleaning

Achieves 0.02mm precision using robotic galvanometer positioning. Removes coatings without damaging zinc layers, ensuring RoHS compliance.

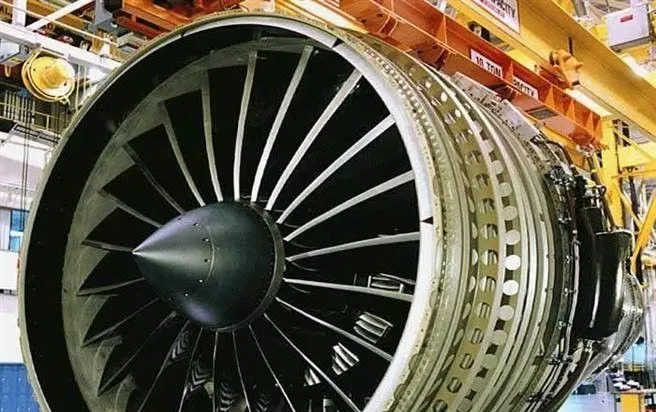

3. Tire Mold Laser System

A mobile robot solution that cleans molds while they are hot. AI vision scans mold shapes to create automatic cleaning paths, eliminating chemical use.

✈

Logistics & Service

Shipment: Sea, Land, Air, and International Express options available. Packed in international standard wooden cases.
Note: Air freight requires emptying the water cooler gas before shipment.

Frequently Asked Questions

What is the Minimum Order Quantity (MOQ)?

The minimum order is 1 unit. For custom logos, the MOQ remains 1 unit. For custom exterior colors, the MOQ is 5 units.

How can I confirm the most suitable model for my needs?

We provide 1-to-1 VIP service. Please confirm your material type, maximum thickness, local voltage, and required trade terms before contacting us for a professional recommendation.

Can the robot be customized for specific cleaning processes?

Yes! We offer tailored end-effectors, specific software settings, and integration support for unique industrial requirements.

What training and after-sales support do you provide?

We offer comprehensive training covering operation, programming, and maintenance. Our global after-sales service ensures equipment stability and production efficiency.

What payment and trade terms are accepted?

We accept credit/debit cards, bank transfers, and L/C. Available trade terms include EXW, FOB, CFR, CIF, DAP, and DDP.

Do you offer sample testing services?

Yes. We offer free testing for stock materials with photo/video results. For physical sample returns or special material testing, shipping or material costs may apply.
