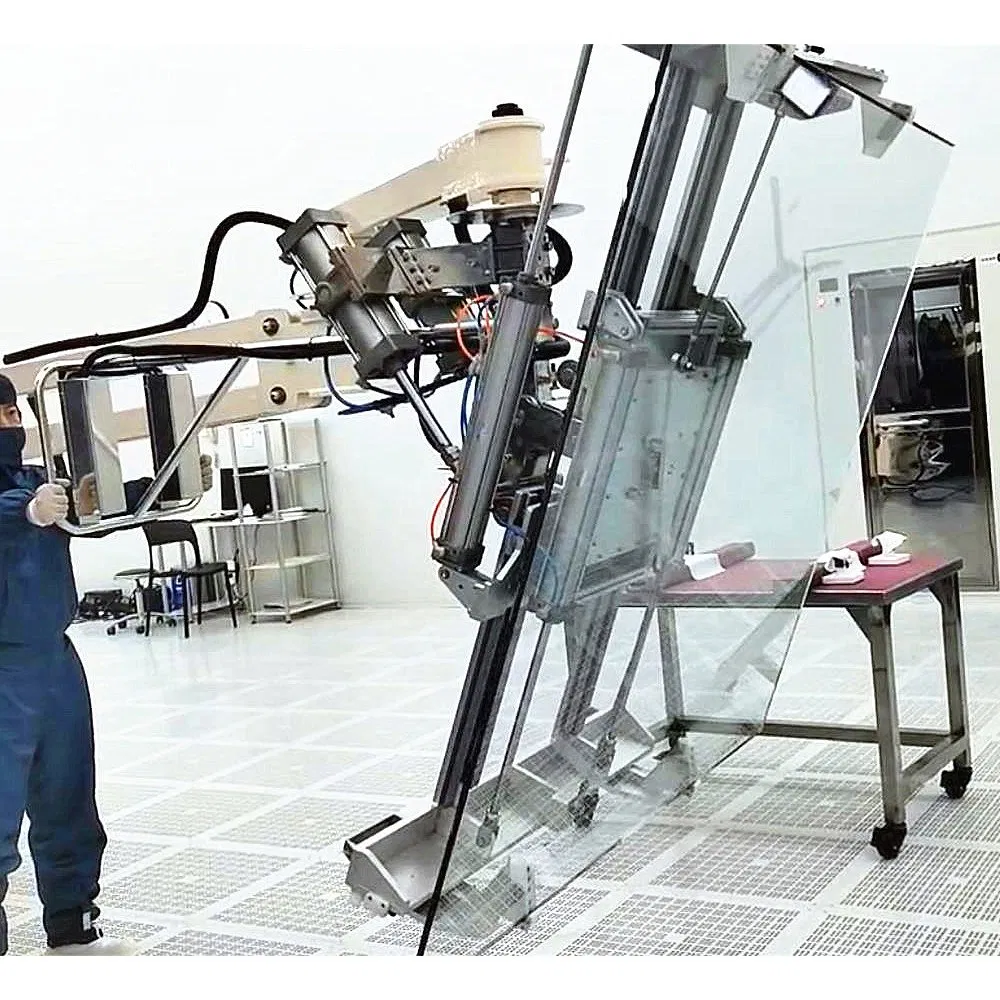

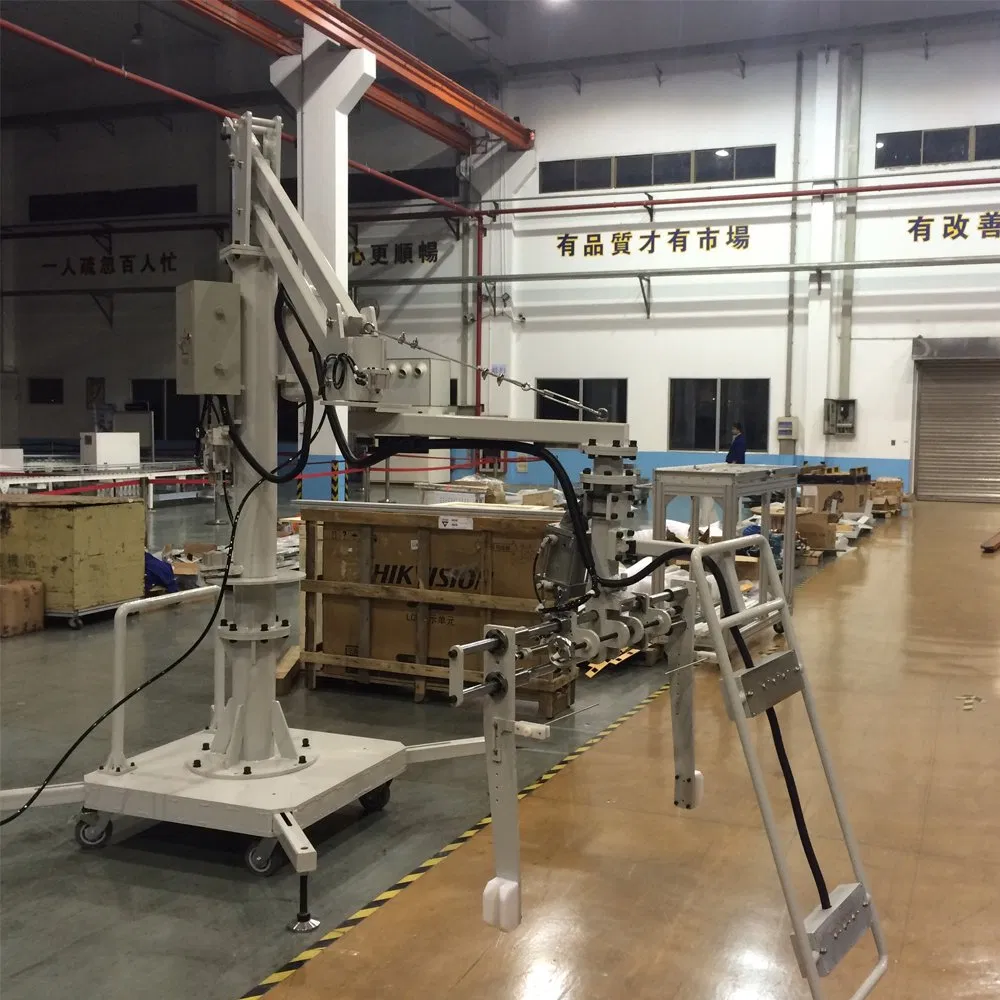

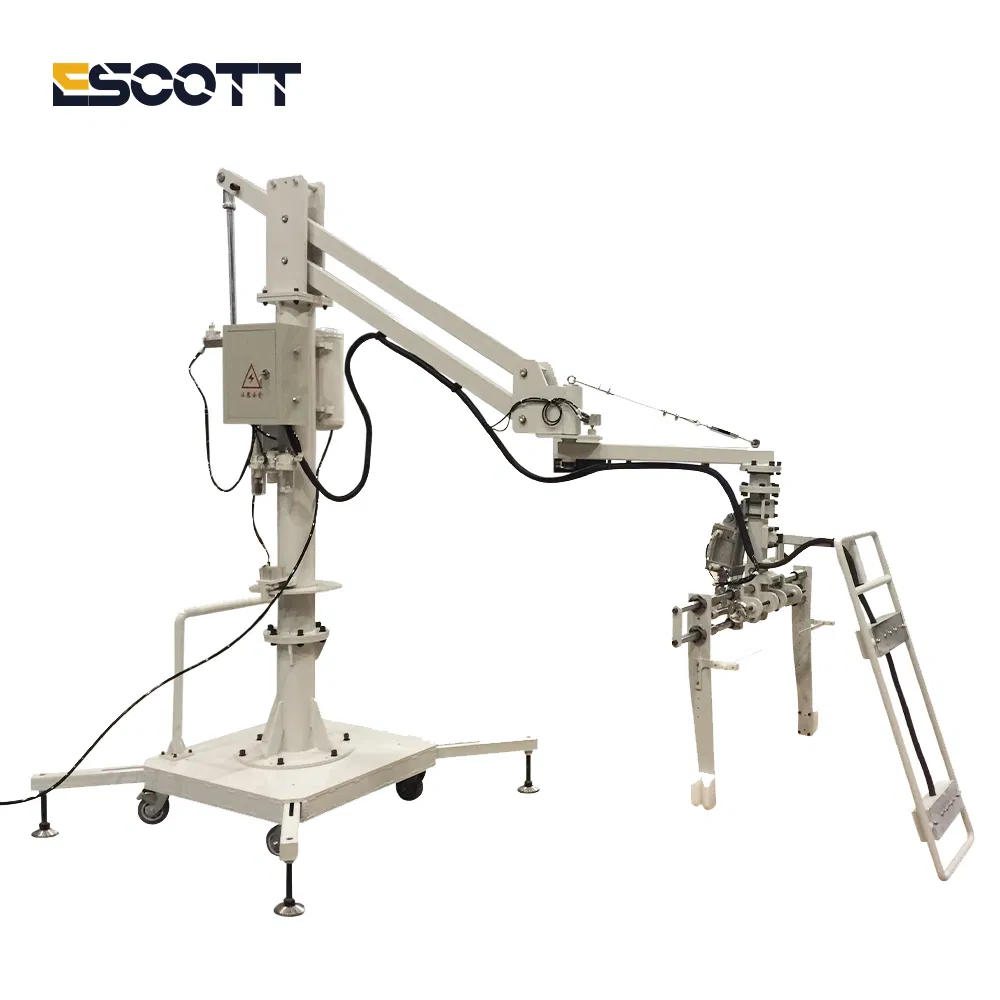

High Precision Pneumatic Manipulator Robot Arm for Screen Handling Air Balancer

Basic Information

Model NO.Handling Manipulator

Reach2 meters

UsageAssembly Line, Machining, Material Handling, Packaging, Welding

Capacity100kg, Customized

Up/Down Stroke0-1600mm, Customized

Working Radius2500-3000mm, Customized

Max Height3500mm, Customized

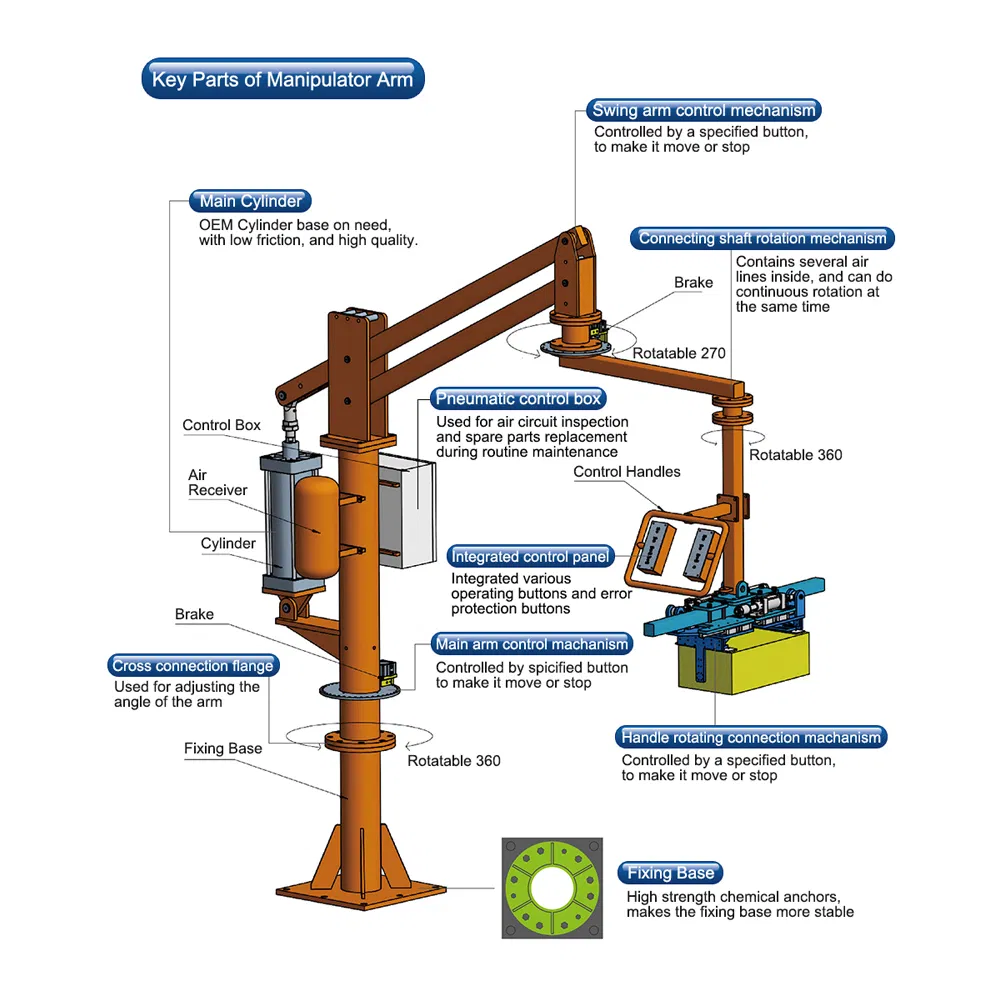

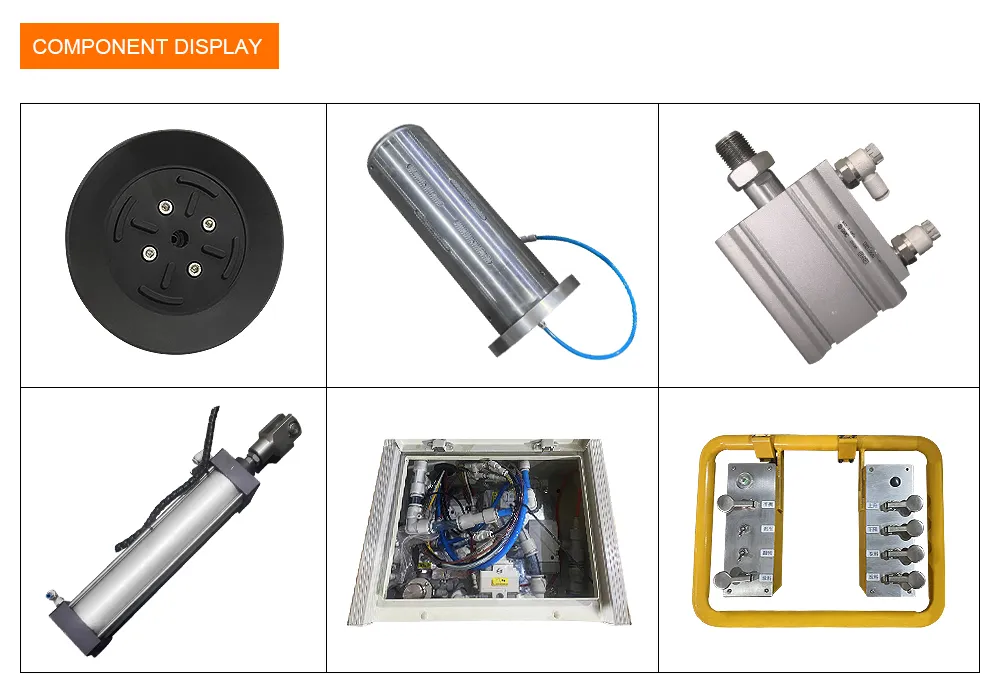

Main ComponentPower Arm, Fixture, Control System, Security System

Drive ModePneumatic

InstallationGround Installation, Customized

Package Size300.00cm * 200.00cm * 150.00cm

Gross Weight500.000kg

Product Description

!

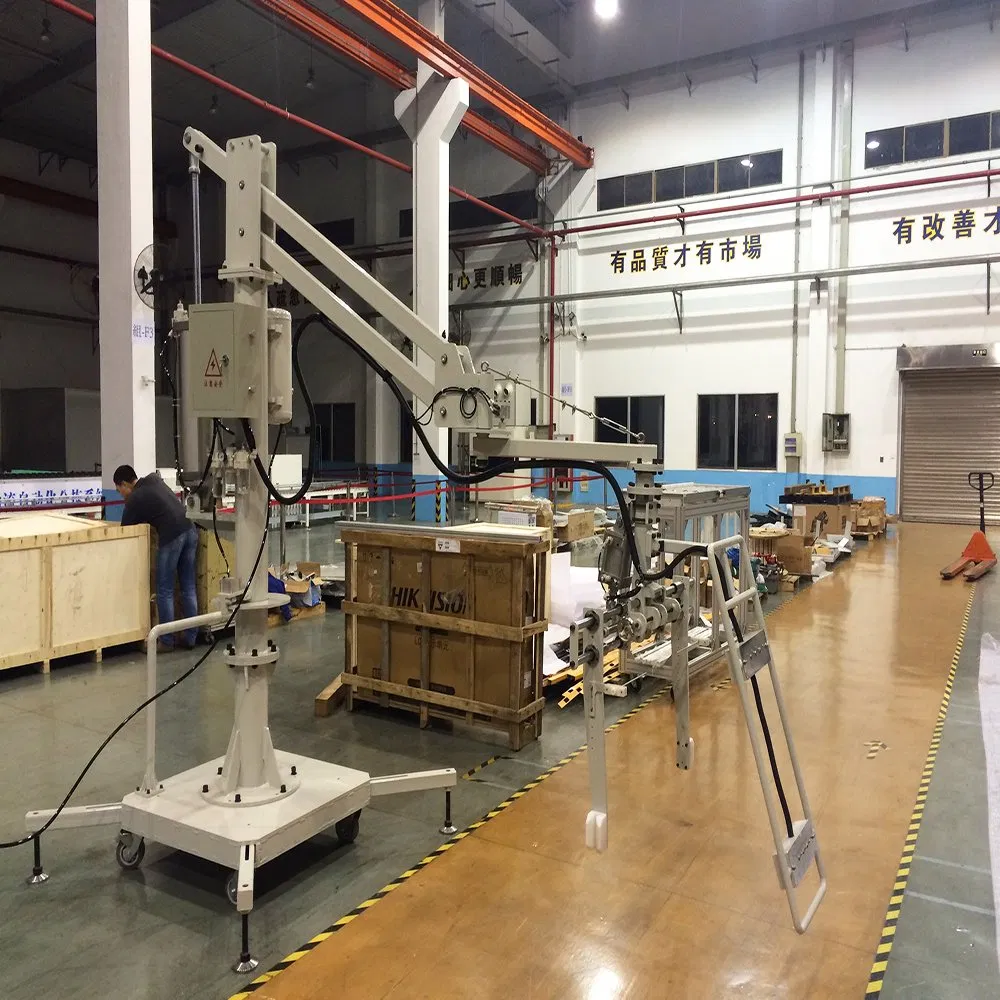

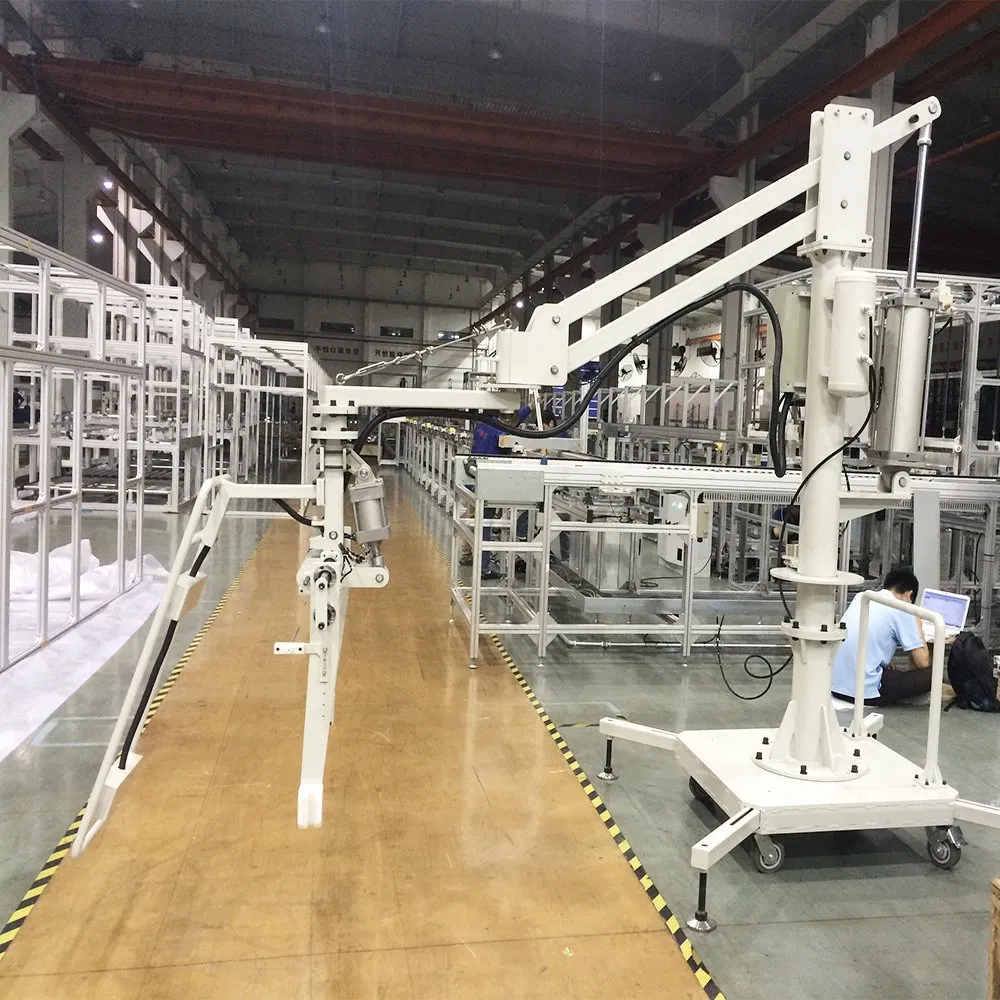

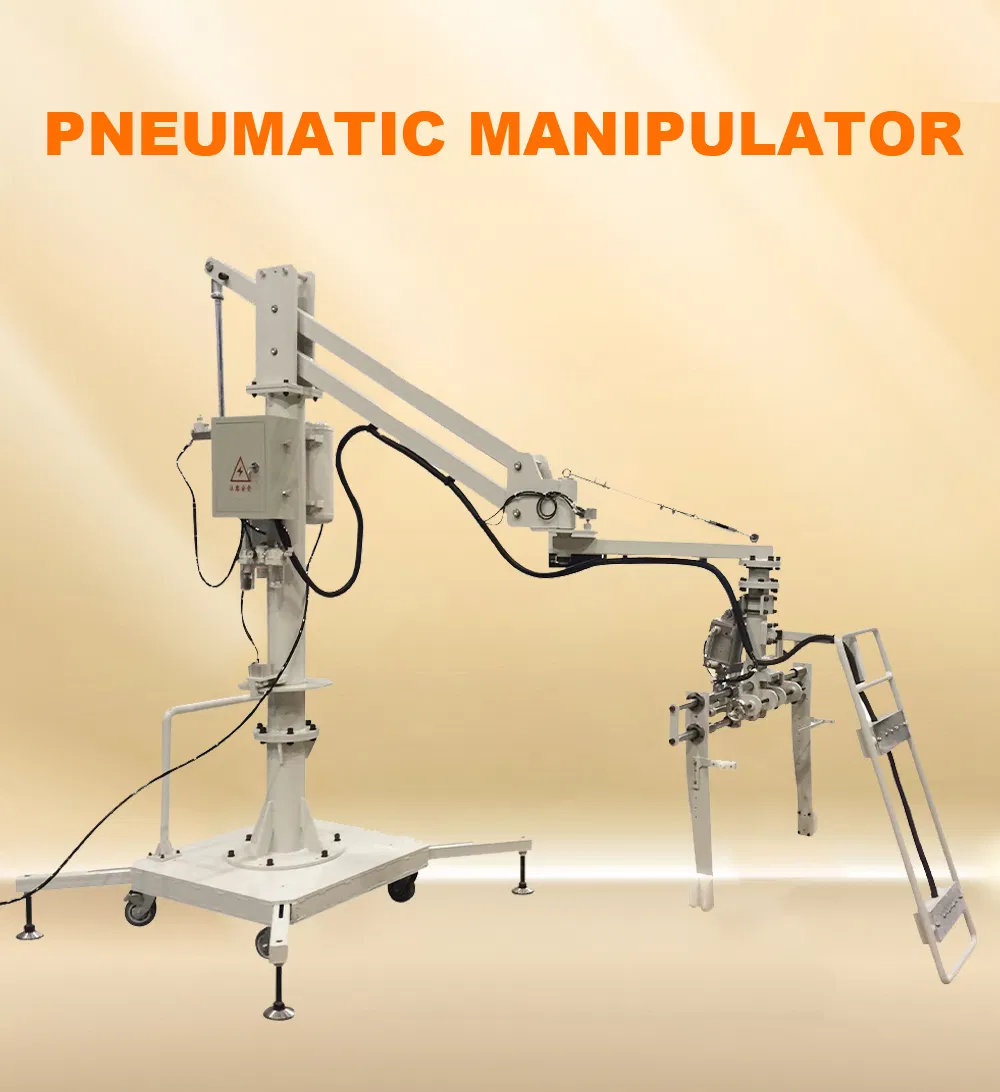

High Precision Pneumatic Manipulator Robot Arm
The manipulator is a mechanical device designed for grasping, handling, and assembly. It offers multiple degrees of freedom to flexibly complete complex tasks, particularly in scenarios requiring precision and repetitive operations.

Key Features

Pneumatic Operation: Powered by compressed air for smooth, precise lifting without electrical hazards.
Hard Arm Design: Ensures stability and rigidity when maneuvering bulky materials like steel beams and pipes.
Motor Pump Integration: Enhanced lifting capability and consistent performance in tough conditions.
High-Quality Bearings: Integrated structure to reduce friction and ensure smooth rotational movements.
Load Balancing Mechanism: Automatically adjusts to maintain stability for uneven or shifting loads.
Ergonomic Controls: Minimizes operator strain and fatigue during long shifts with multi-directional maneuverability.
Heavy Load Capacity: Designed for substantial weights, ranging from several hundred kilograms to tons.
Rugged Durability: Corrosion-resistant materials built to withstand dust, dirt, and extreme weather.

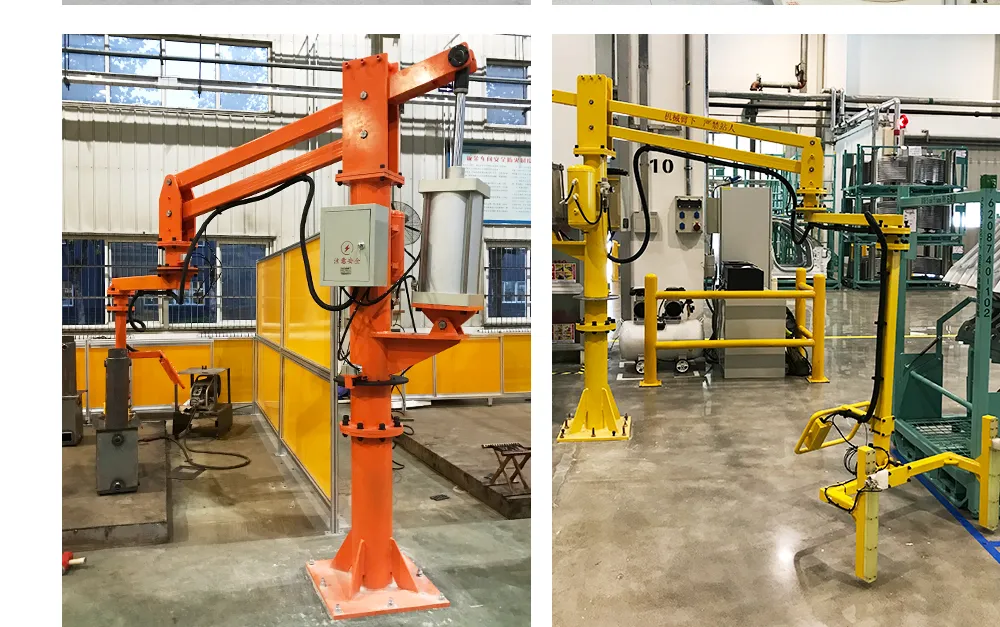

Working Scenarios & Applications

Main Application Areas:

Handling and stacking parts and finished products.

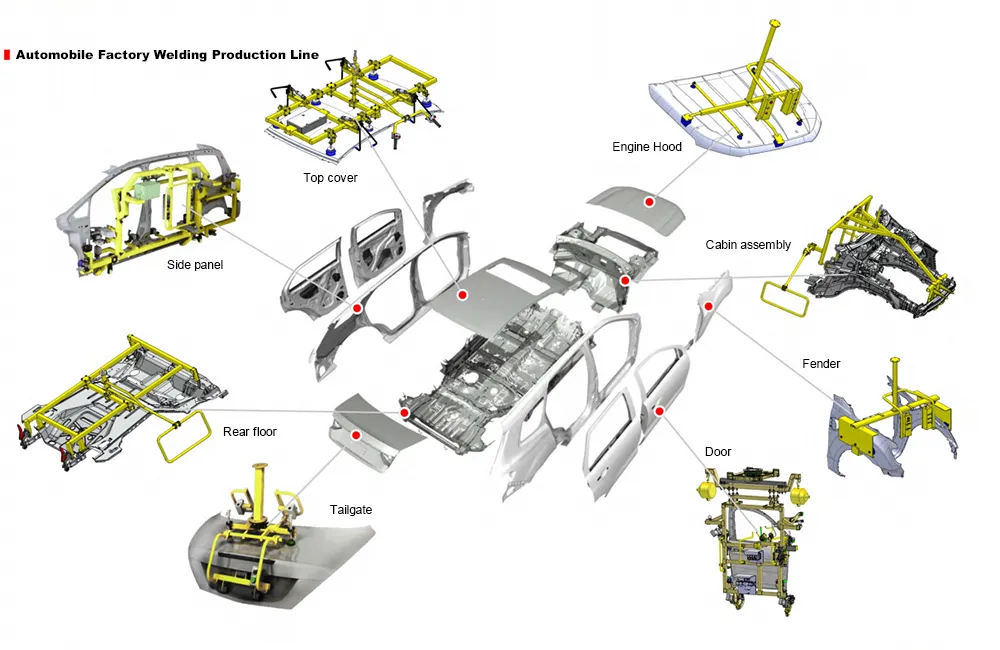

Automobile assembly (engines, body panels, welding).
Food production for lifting heavy raw materials and packaging.
Medical device manufacturing for high-precision assembly.
Chemical industries for pouring raw materials from large barrels.
Electronics for high-speed precision component handling.

Models for Reference

Model No	Design Structure	Lifting Height	Radius	Capacity	Fixing Method
ES-50RS-QH	With Soft Cable	2500mm	2500mm	50KG	Fixed Column
ES-60YB-QD	Rigid Arm	2800mm	3000mm	60KG	Movable Column
ES-100RS-TS	Folded Arm Soft Cable	3000mm	3000mm	100KG	Fixed Column
ES-200KG-YB	Rigid Arm Suction Pad	3400mm	3500mm	200KG	Fixed Overhead
ES-300KG-MYB	Rigid Arm	3000mm	2500mm	300KG	Movable Overhead

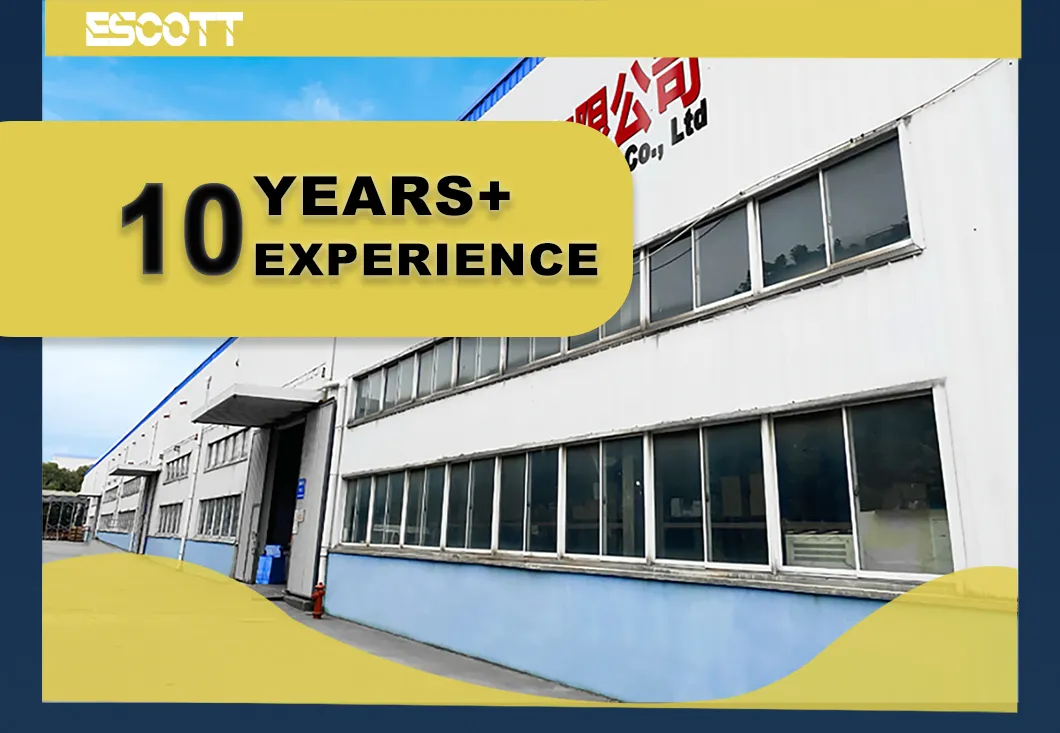

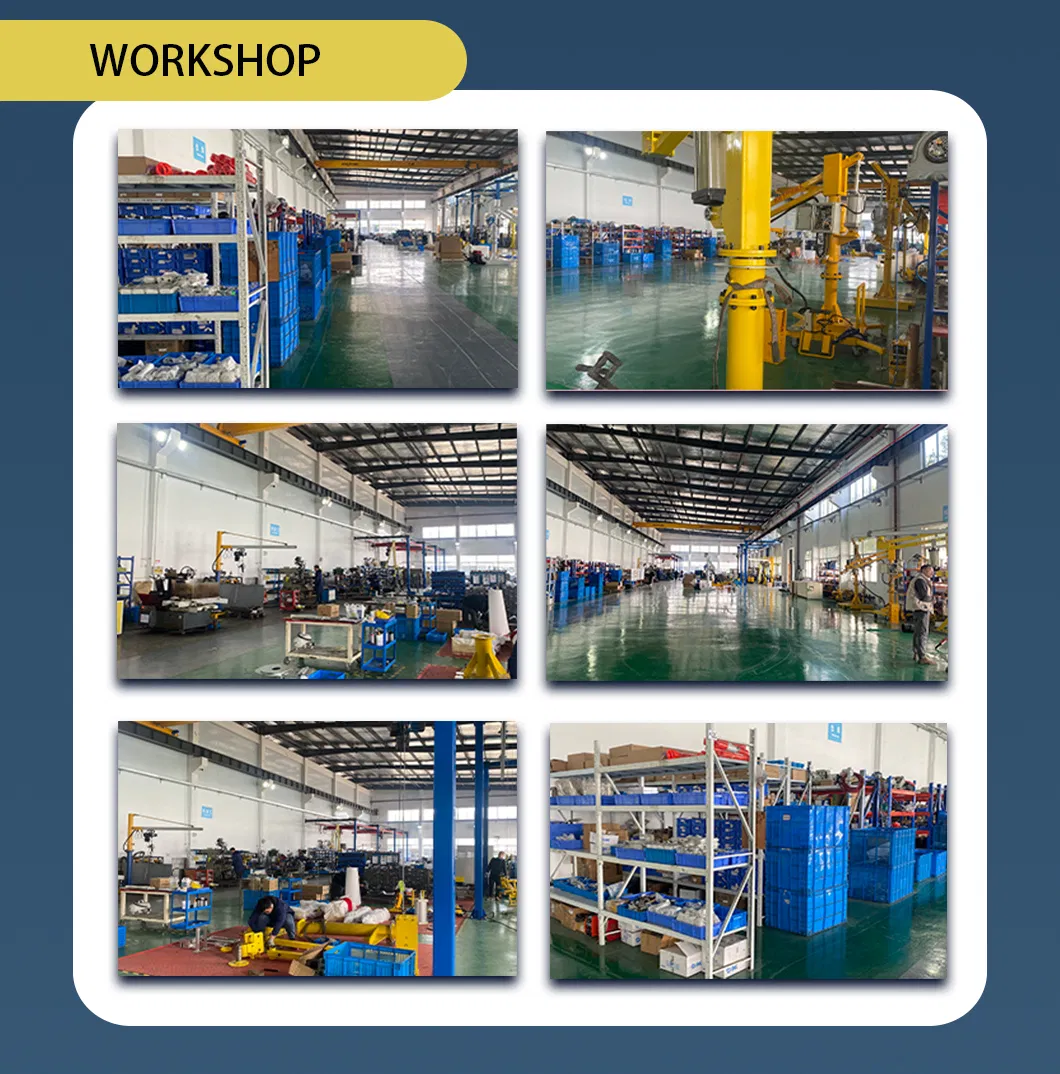

Factory Display

Frequently Asked Questions

Are you a manufacturer or a trading company?

We are a professional manufacturer with more than ten years of production experience in handling equipment.

How long is the typical delivery time?

Delivery usually takes approximately 20 days after the technical specifications and drawings are confirmed.

What kind of after-sales service do you provide?

We provide replacement parts within one year and offer lifelong technical guidance for all our equipment.

Can the machines be customized for specific needs?

Yes, all our machines are brand new and can be fully customized to meet your specific load, reach, and stroke requirements.

What industrial problems can this manipulator solve?

It replaces human labor for dangerous or heavy operations, improves production efficiency and quality, and significantly reduces long-term labor costs.

What transportation modes are available?

We offer various shipping options including sea, air, and rail transportation under terms such as FOB, CIF, CFR, and EXW.
