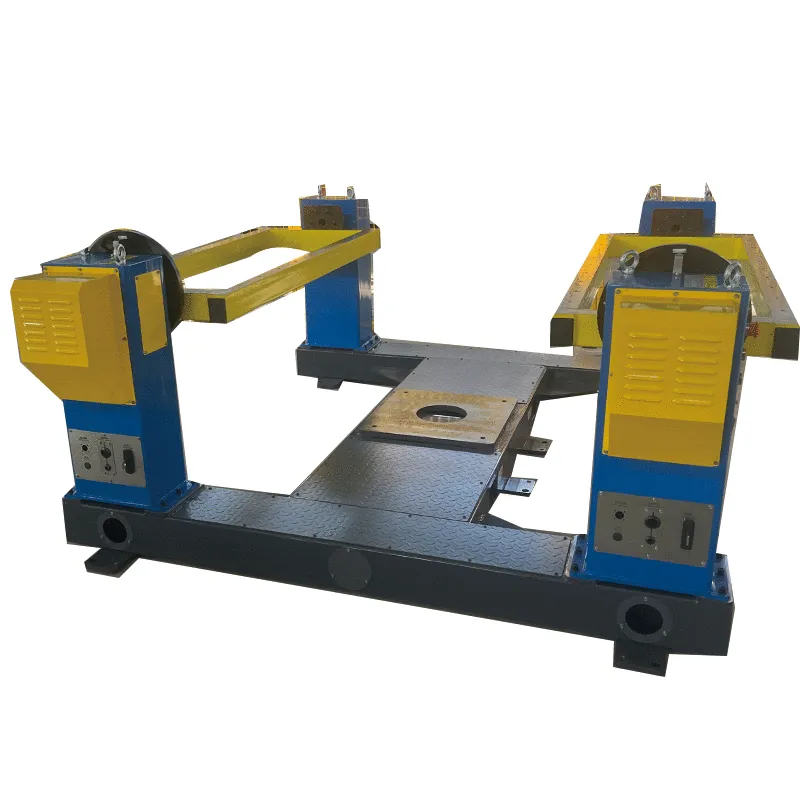

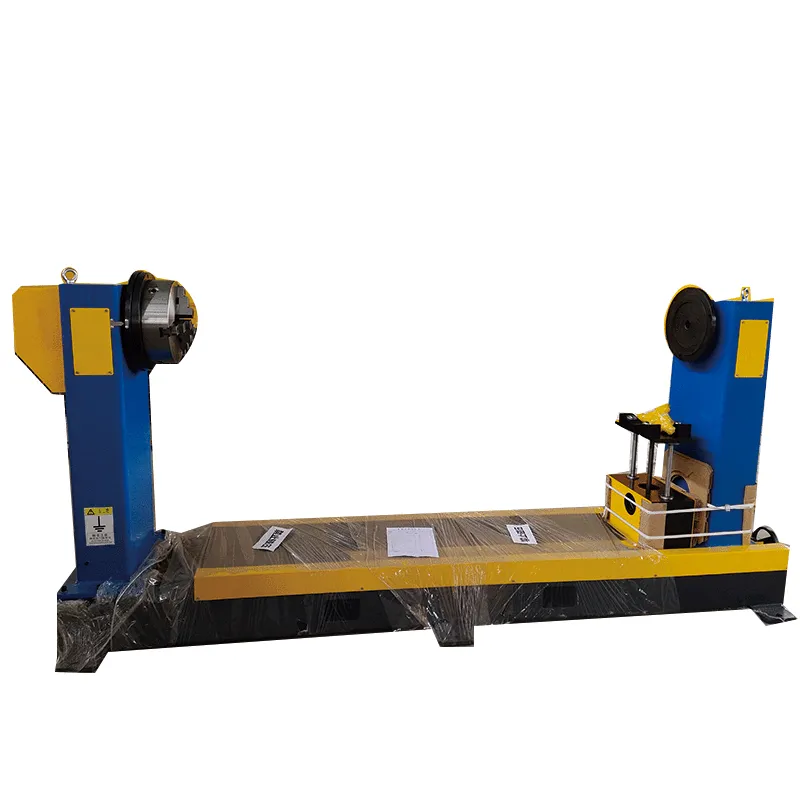

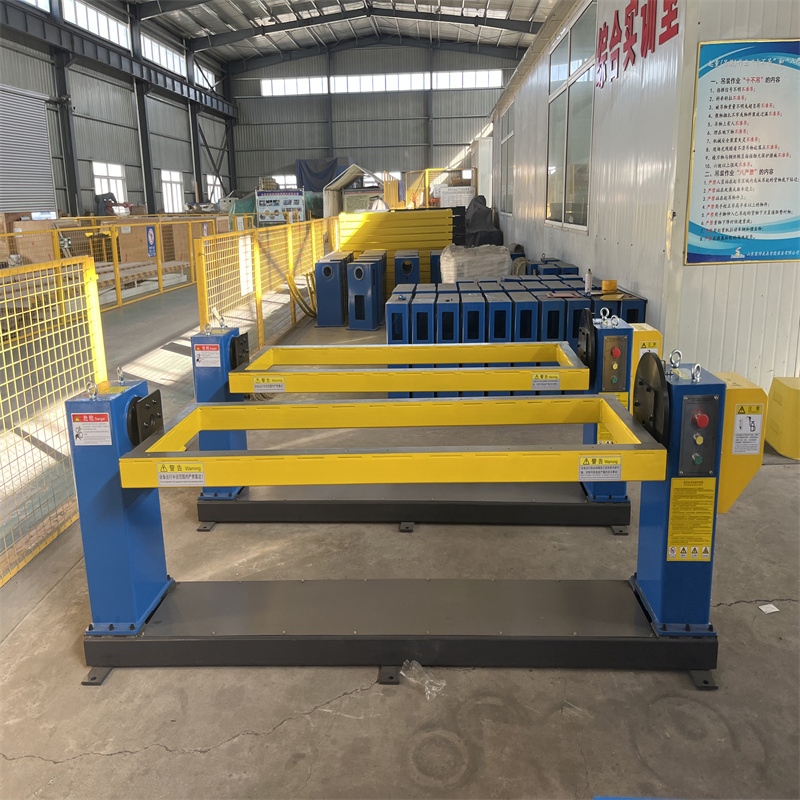

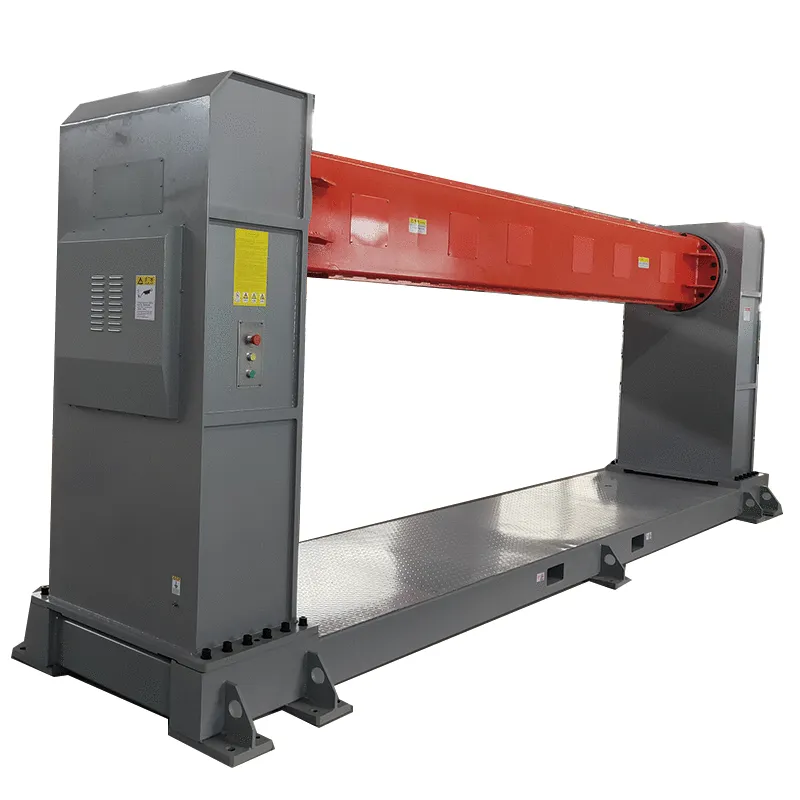

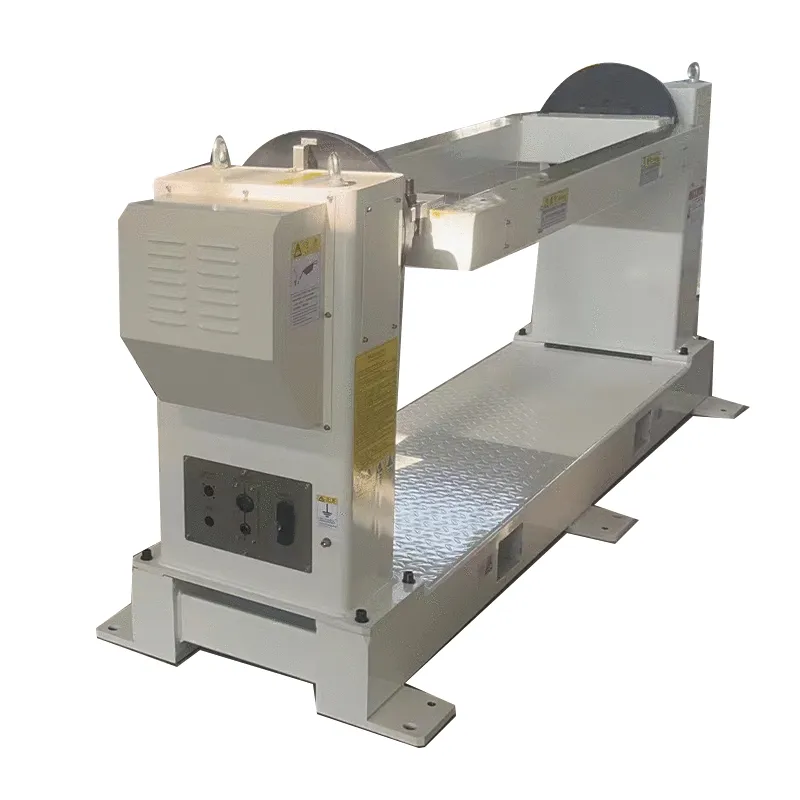

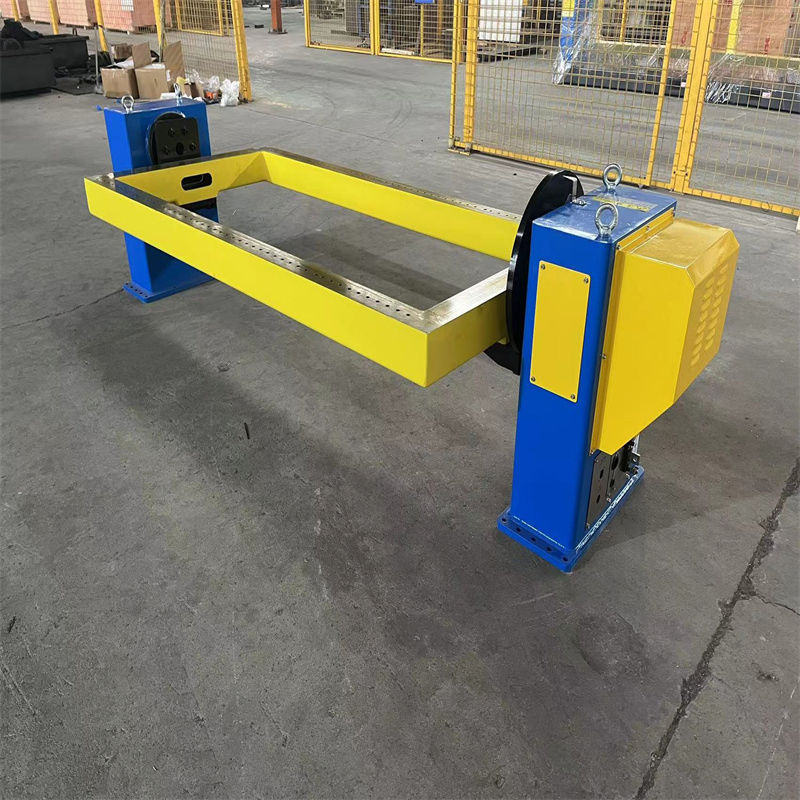

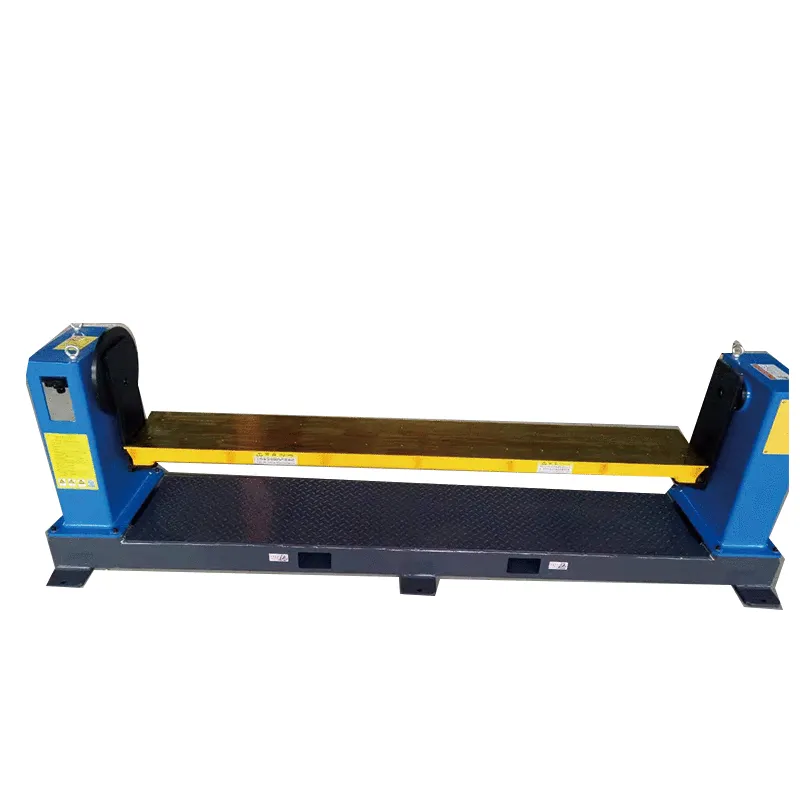

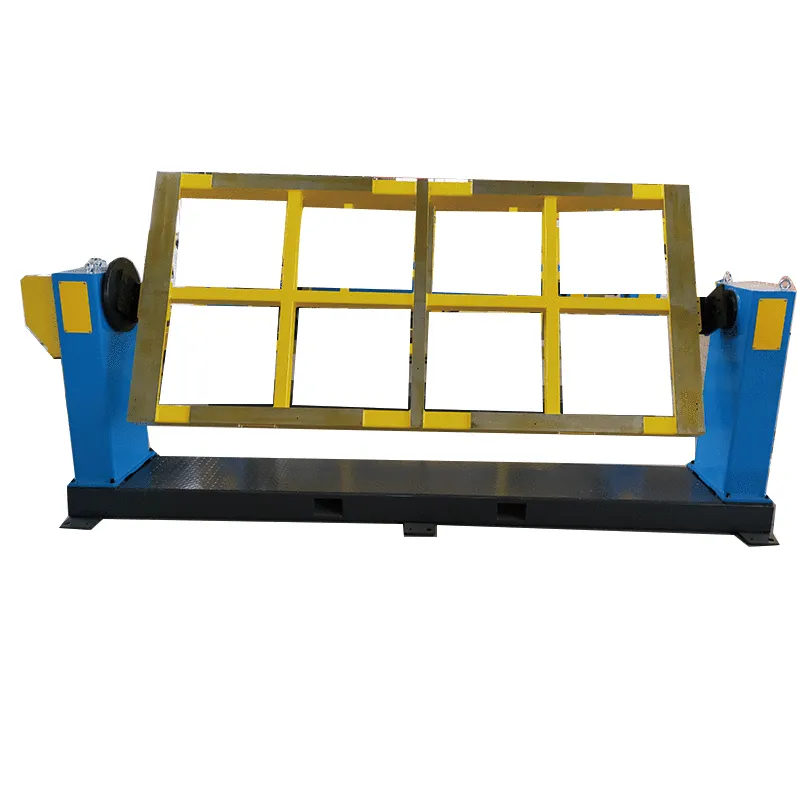

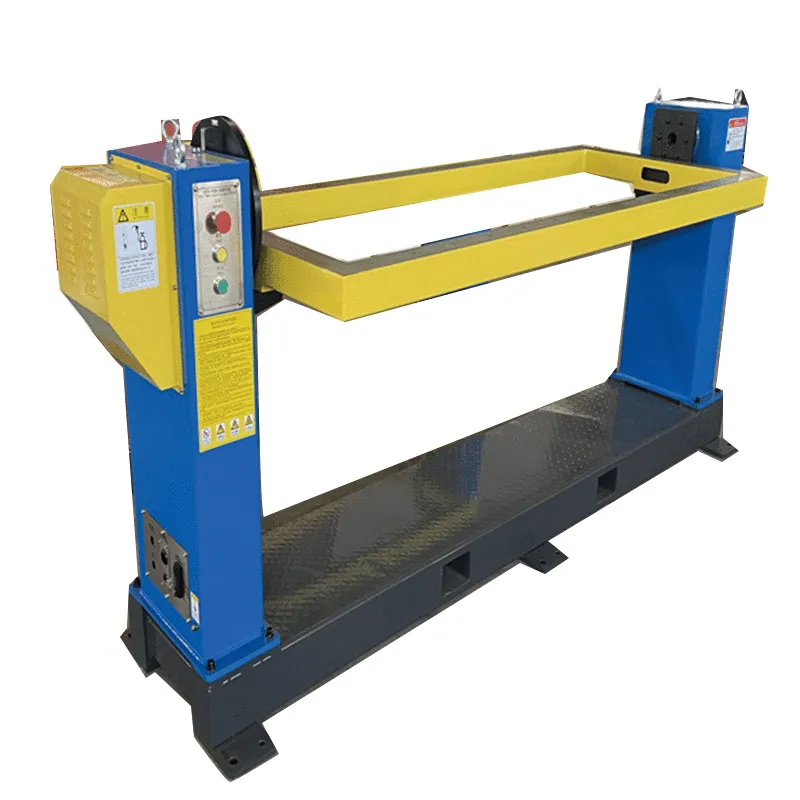

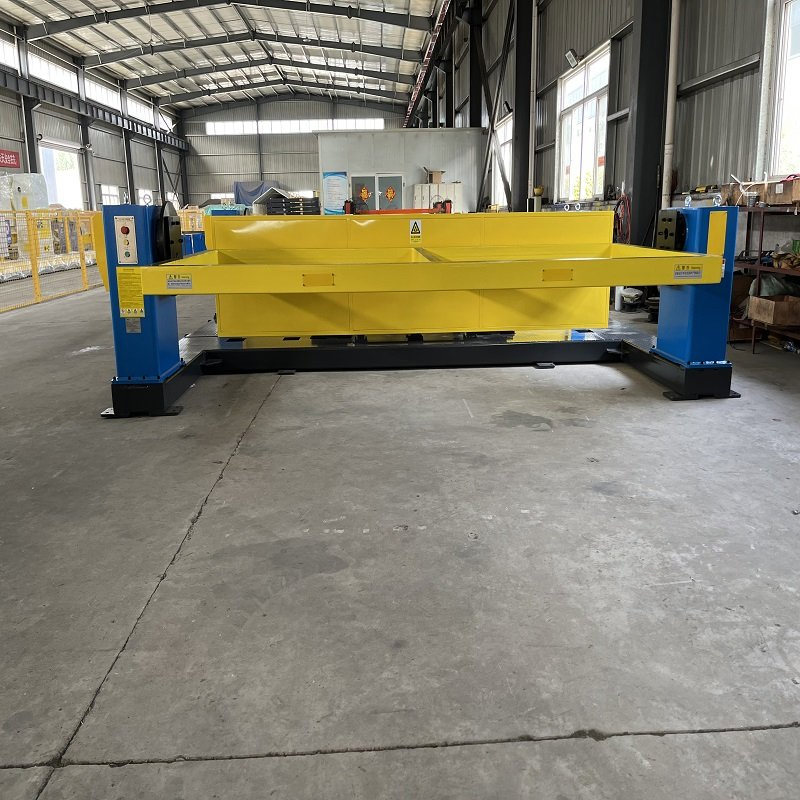

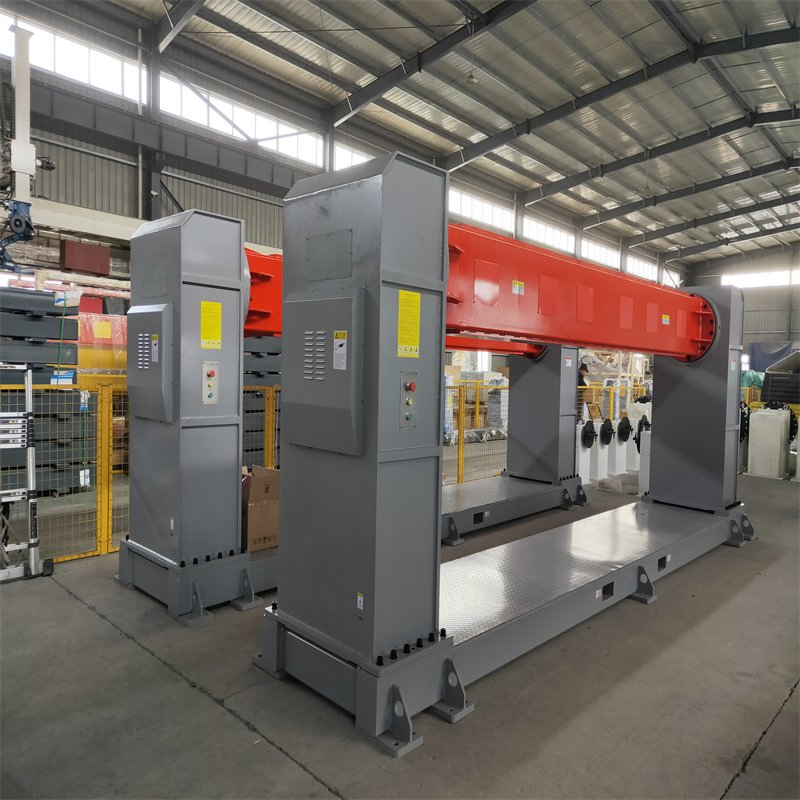

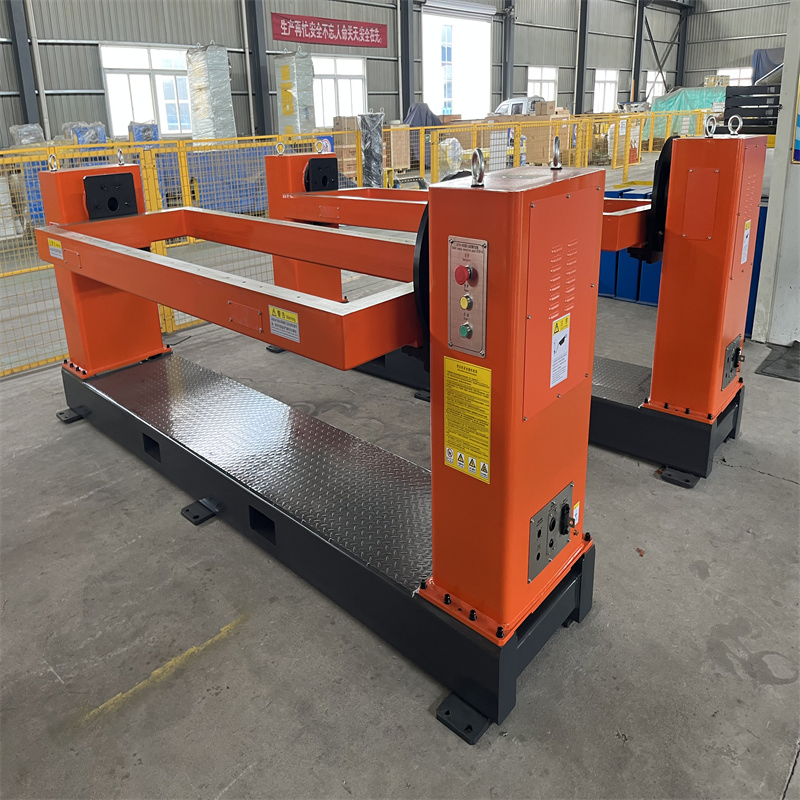

Servo positioner is specialized welding and cutting equipment for industrial robots, suitable for complex workpieces to achieve ideal machining positions and speeds. The rotary table adopts a high-precision reducer and servo motor, ensuring high accuracy and strong load-bearing capacity.
It consists of a fixed base, rotating spindle box, welded frame, conductive mechanism, and electrical control system. The overall frame is made of high-quality steel, professionaly processed to ensure key position accuracy. The surface features rust-proof exterior paint, with customizable colors.
| Single Axis Head And Tail Stock Welding Positioner | ||||
|---|---|---|---|---|
| Model | AUT-SWP-ZW-300 | AUT-SWP-ZW-500 | AUT-SWP-ZW-800 | AUT-SWP-ZW-1000 |
| Rated payload | 300kg | 500kg | 800kg | 1000kg |
| Standard gyration radius | R600mm | R650mm | R650mm | R650mm |
| Max eccentricity | ≤200mm | ≤150mm | ≤100mm | ≤150mm |
| Angle of gyration | ±360° | ±360° | ±360° | ±360° |
| Speed of gyration | 70°/S | 50°/S | 50°/S | 50°/S |
| Repeat accuracy | ±0.06mm | ±0.08mm | ±0.10mm | ±0.10mm |
| Equipment net weight | ~400kg | ~500kg | ~650kg | ~850kg |
As a high-tech enterprise, the focus is on research, development, and production of automation equipment. Products are widely utilized in:
