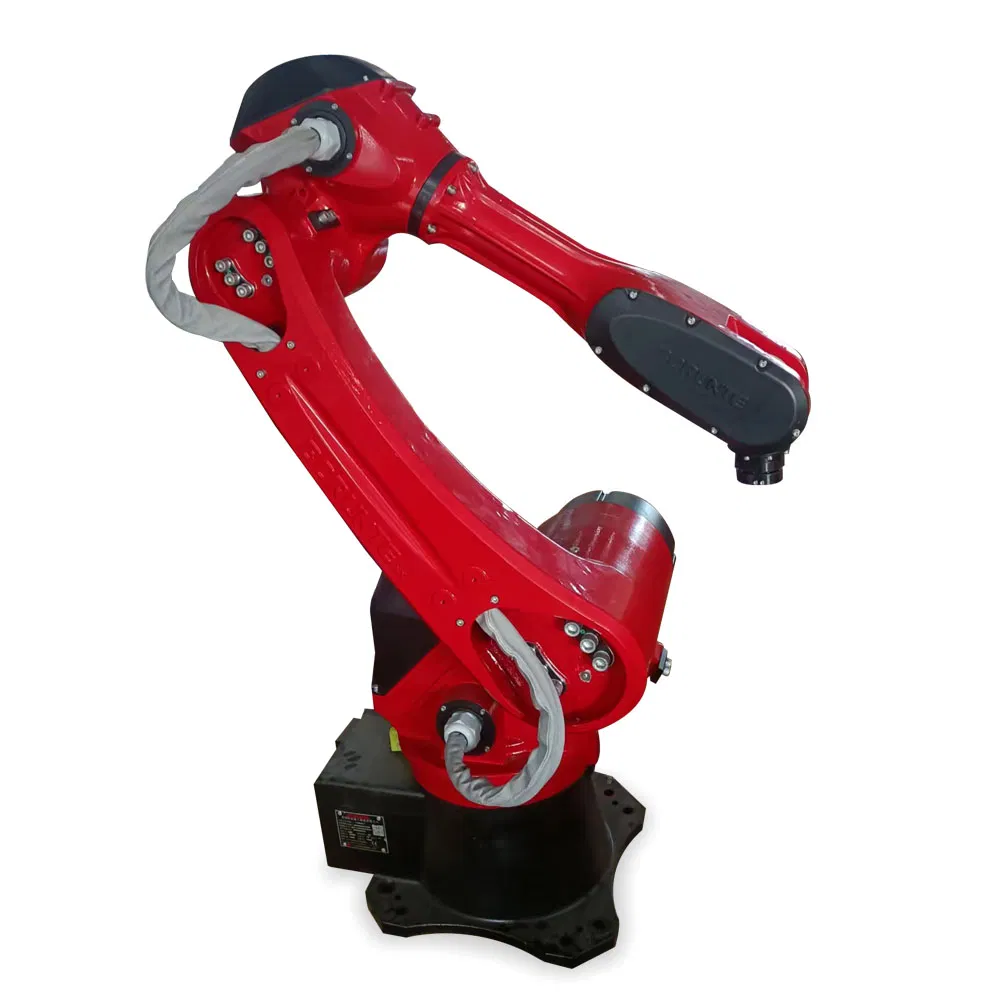

Industrial Machine Weld Robot Arm Automatic Welding Aluminium

i

Basic Information

Drive Mode

Electric

Max Load

8kg

Condition

New

Certification

ISO, CE

Warranty

1 Year

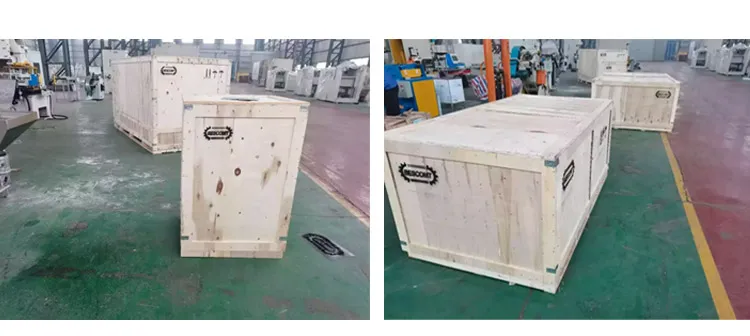

Transport Package

Wooden Cases

Specification

1500mm

Production Capacity

20 sets Per Month

★

Product Description

Cnc Industrial Automatic Arm Robot Welding Equipment With Robotic Arm Welding Robot

Industrial robots are multi-joint manipulators or multi-degree-of-freedom robots oriented to the industrial field. An industrial robot is a machine device that automatically performs work. It is a machine that realizes various functions by its own power and control capabilities. It can be commanded by humans, or it can run in accordance with a pre-arranged program. Typical applications of industrial robots include welding, painting, assembly, collection and placement, product inspection and testing, etc.; all tasks are completed with high efficiency, durability, speed and accuracy.

⚙

Product Parameters

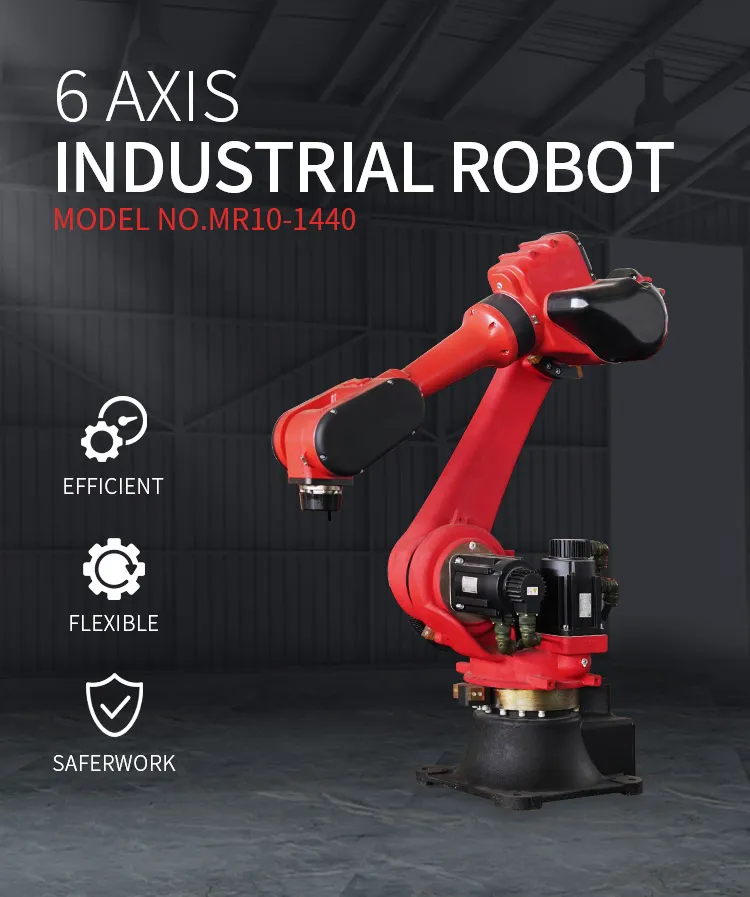

Model No.	JX10-1440
Controlled axis	6-DOF
Max payload	10 kg
Max stroke	1440mm
IP Level	J1, J2-IP56; J3, J4, J5, J6-- IP67
Installation mode	Floor type, ceiling type
Robot mass	172 kg
Repeatability	±0.05 mm
Welding machines	Standard: Aotai NBC-350R (MIG/MAG/CO2) Optional: Aotai NBC-350RL (low spatter)
Welding current	350A/500A
Welding torch	Standard air-cooling torch with built-in anti-collision protection

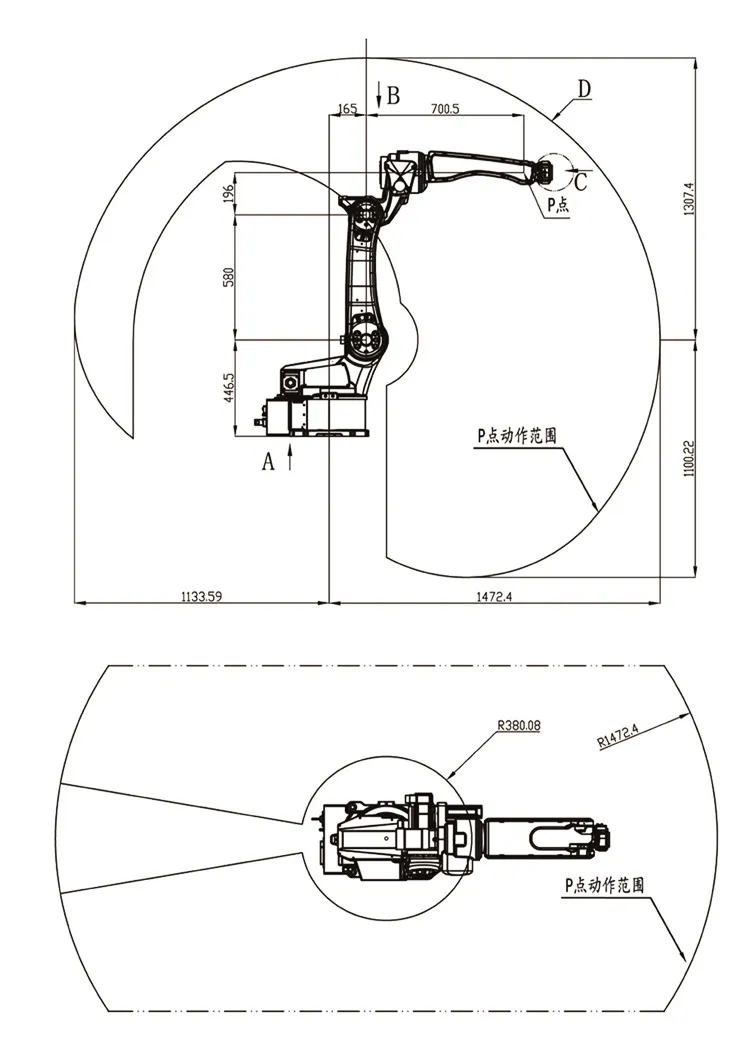

Travel Range
J1 axis S	±160°
J2 axis L	+80°~-145°
J3 axis U	+145°~-75°
J4 axis R	±190°
J5 axis B	+50°~-210°
J6 axis T	±230°
Travel Speed
J1 axis S	199.5 ˚/s
J2 axis L	159.3 ˚/s
J3 axis U	199.5 ˚/s
J4 axis R	392 ˚/s
J5 axis B	272 ˚/s
J6 axis T	1000 ˚/s

📷

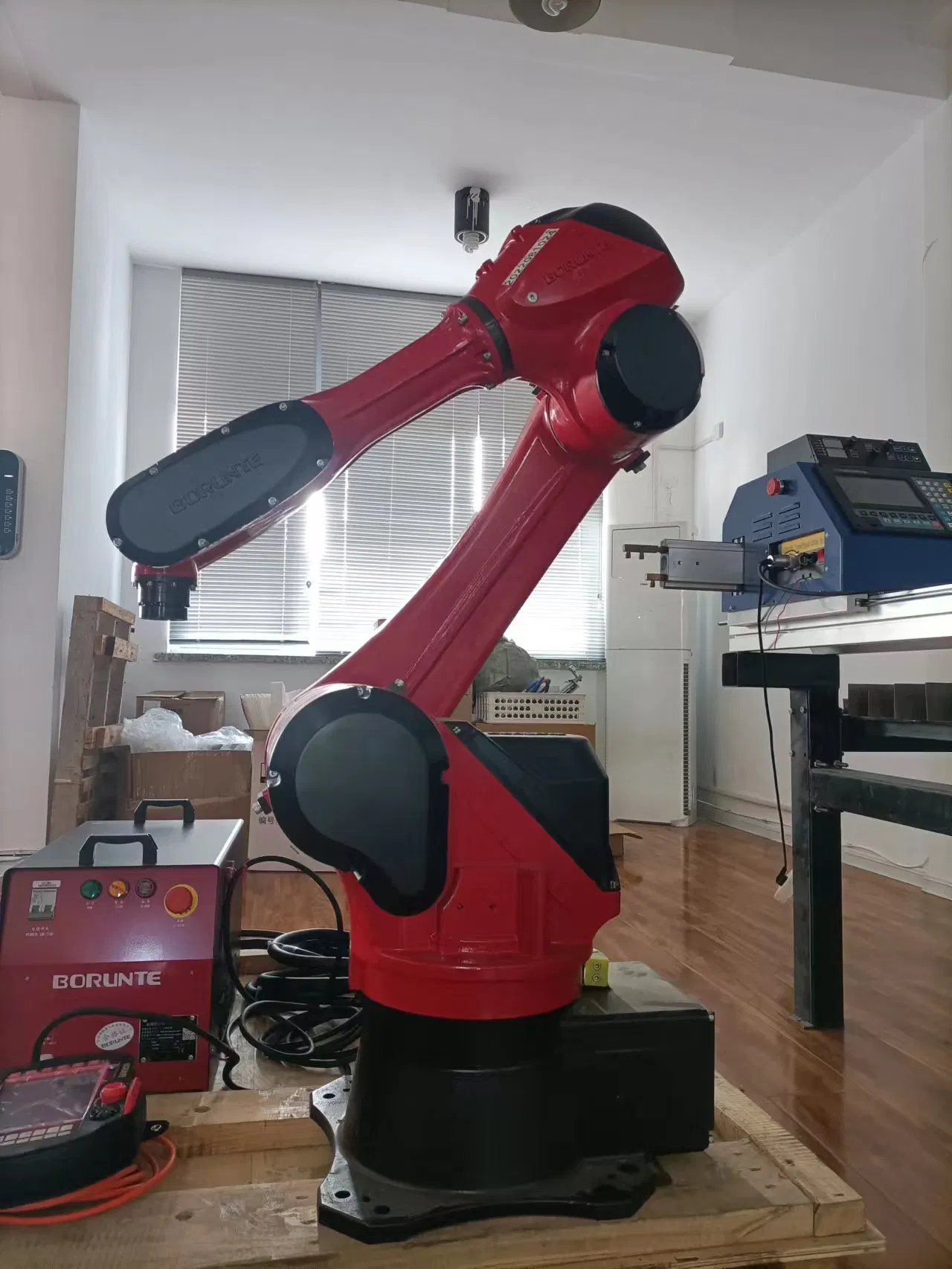

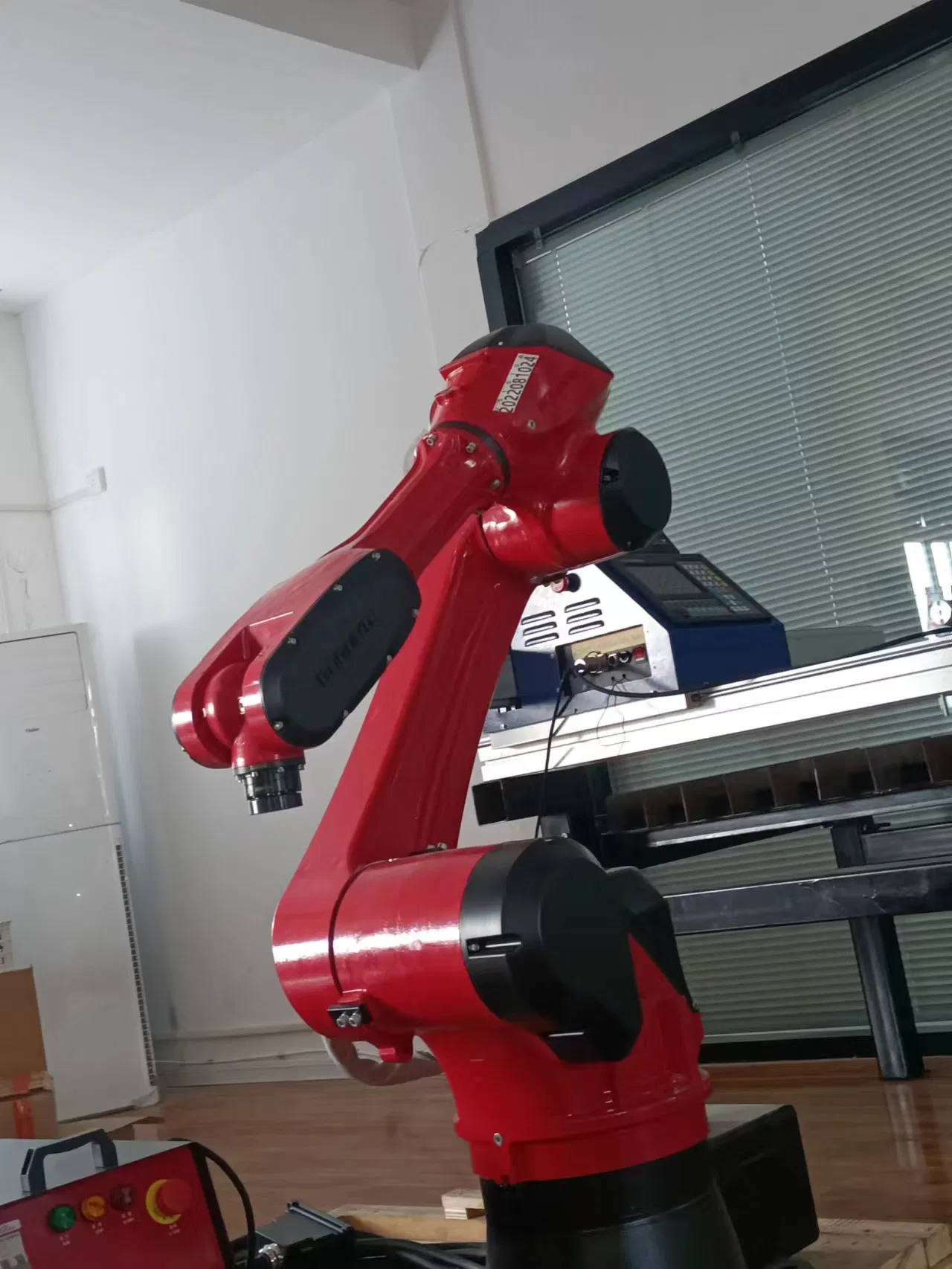

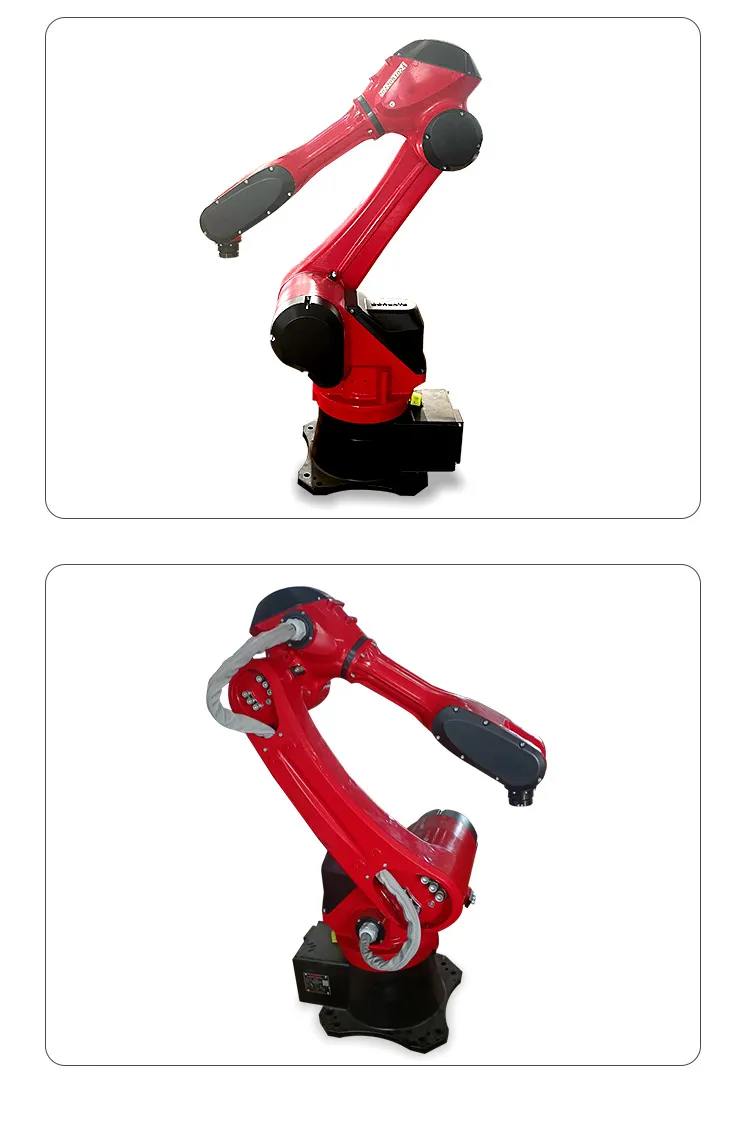

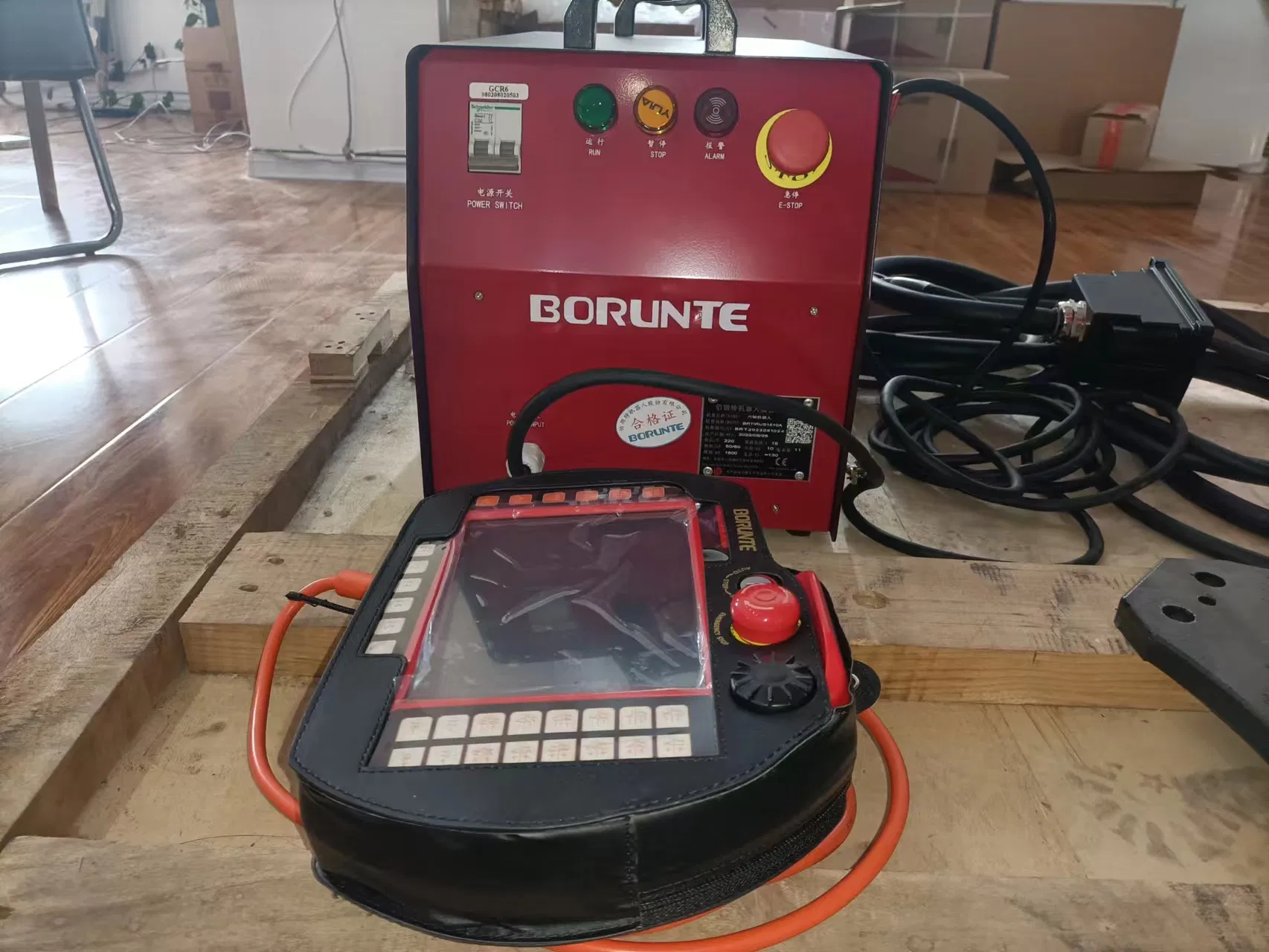

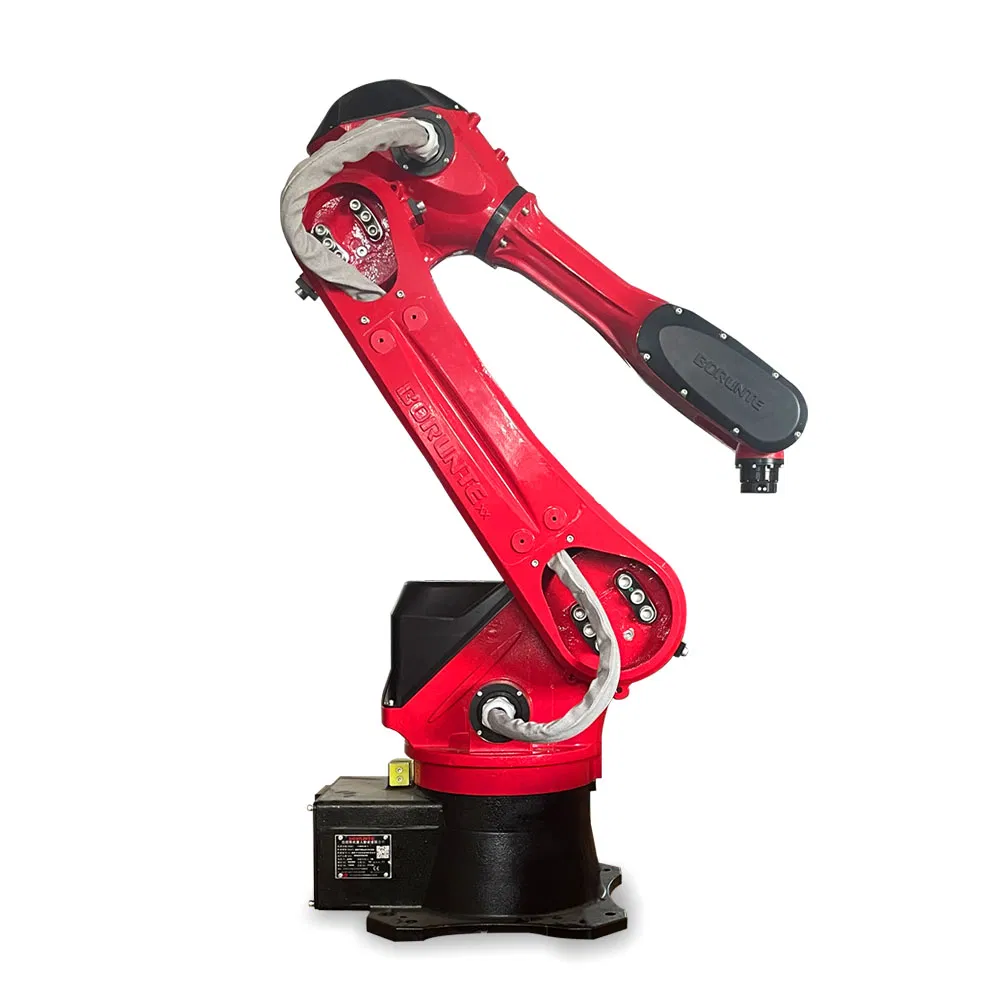

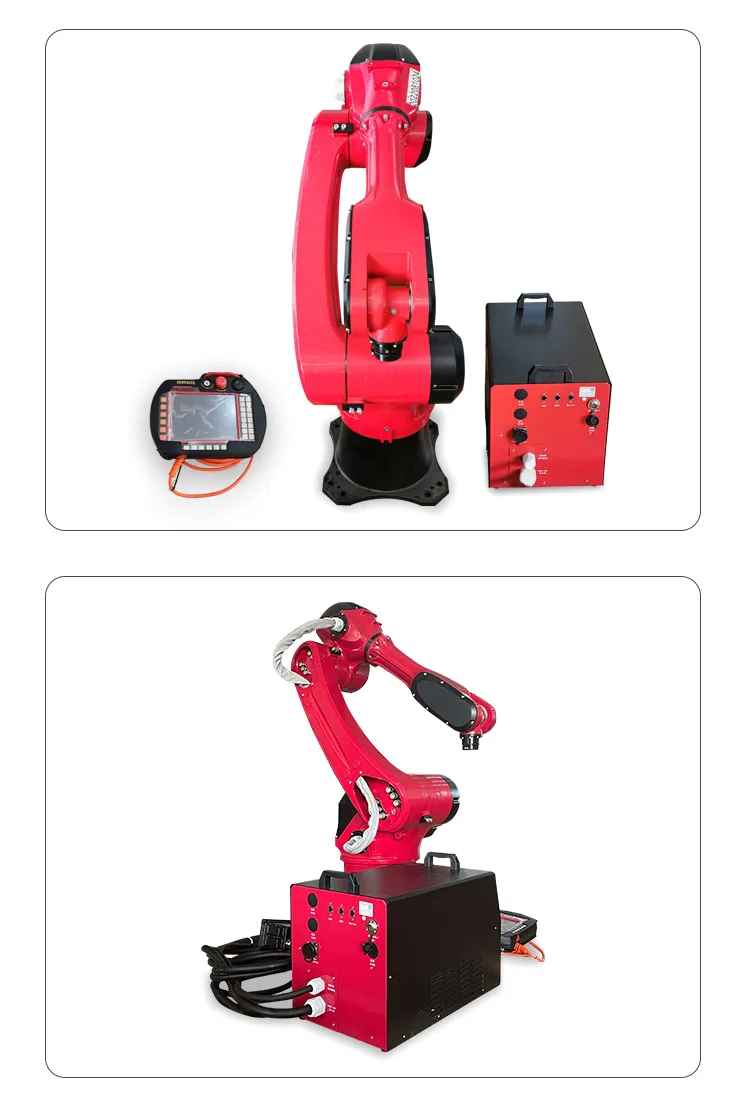

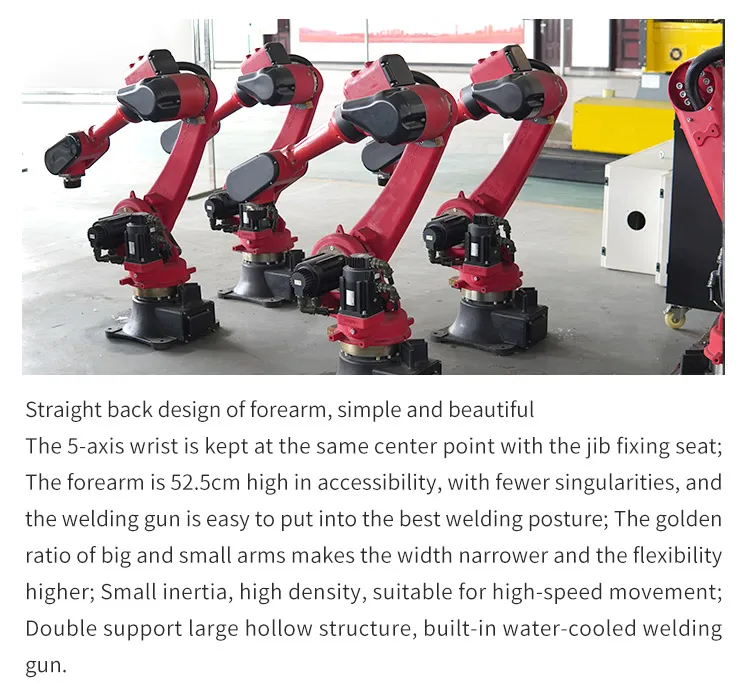

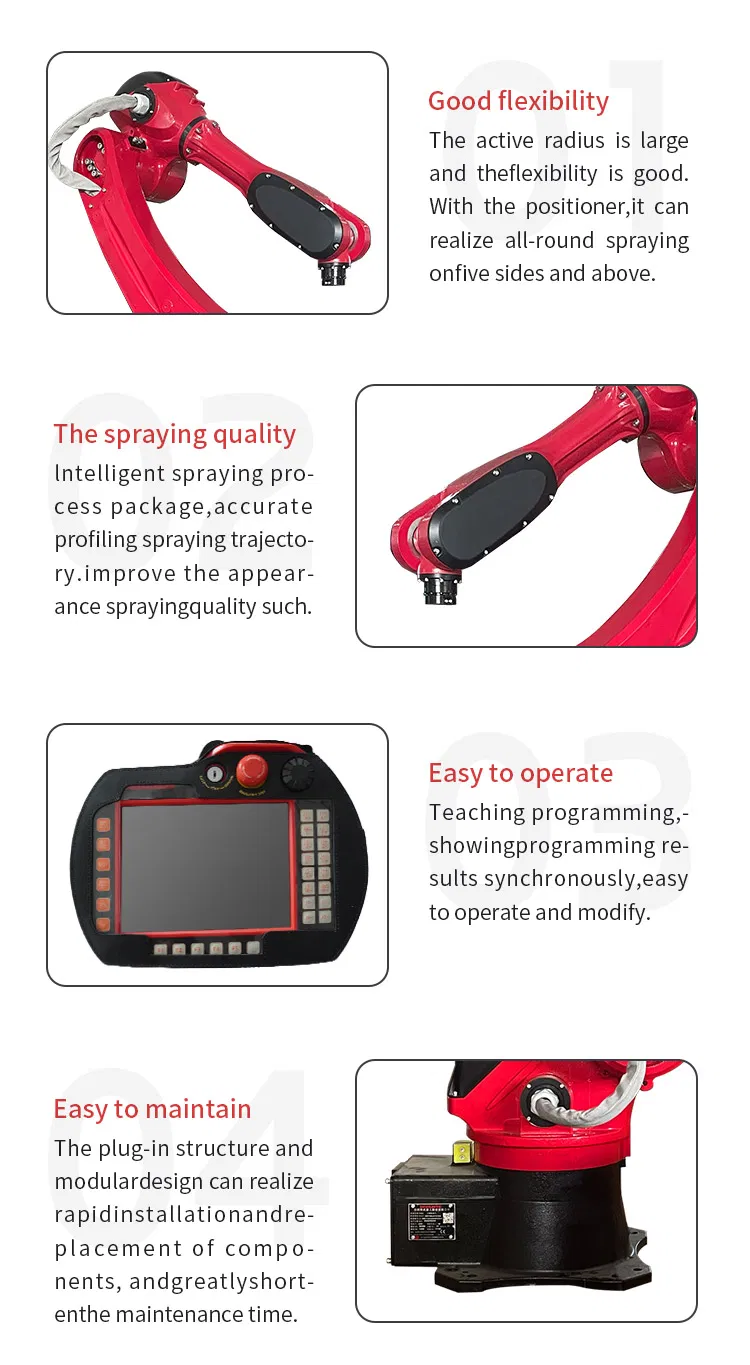

Product Display

?

Frequently Asked Questions

What is the maximum payload and stroke of this welding robot?

The JX10-1440 model features a maximum payload of 10kg and a maximum stroke of 1440mm, making it suitable for a wide range of industrial welding tasks.

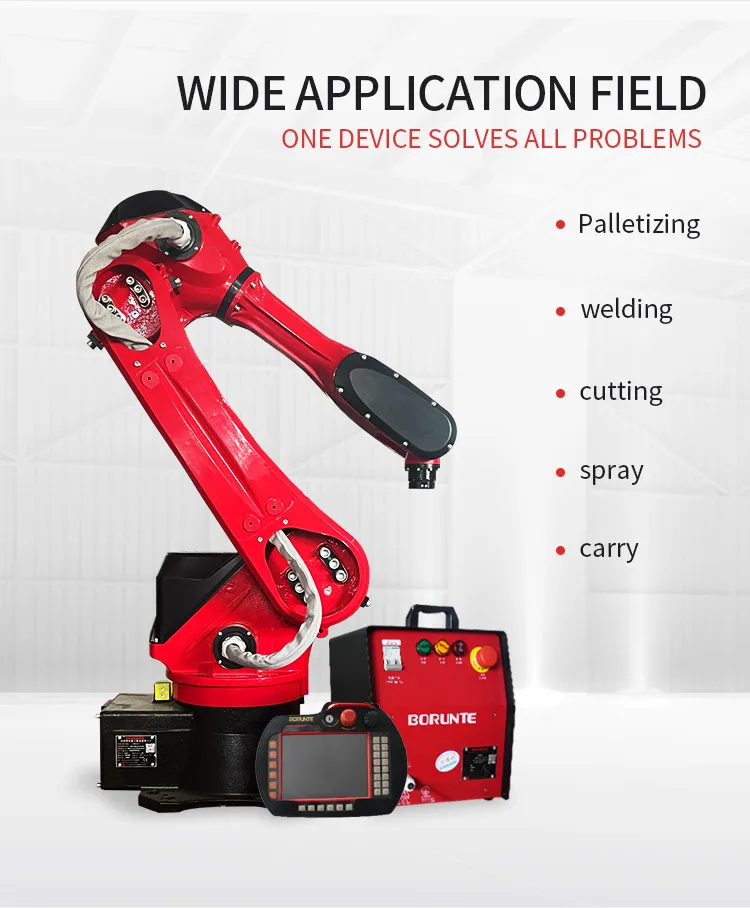

What are the primary applications for this robotic arm?

Typical applications include welding, painting, assembly, collection and placement, as well as product inspection and testing.

How precise is the robot's movement?

The robot offers high precision with a repeatability of ±0.05 mm, ensuring consistent quality in automated production.

What kind of welding machines can be used with this system?

It comes standard with the Aotai NBC-350R (MIG/MAG/CO2). Low spatter options like the NBC-350RL are also available.

What are the available installation modes?

This robot supports both floor-type and ceiling-type installations to accommodate different factory layouts and space requirements.

What is the environmental protection rating (IP Level)?

The J1 and J2 axes are rated at IP56, while the J3, J4, J5, and J6 axes feature a higher IP67 rating for superior protection against dust and water ingress.
