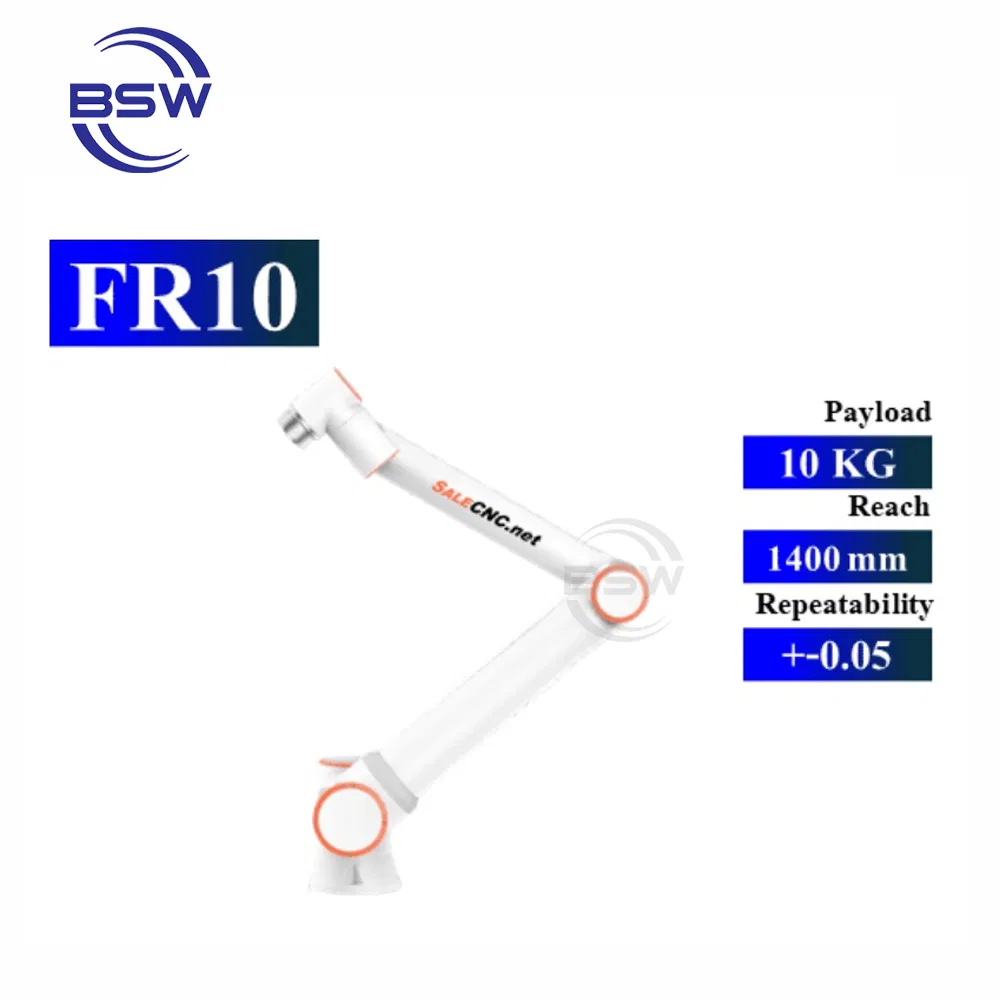

📋 Product Parameters
| Model Number |
FR10 |
| Payload |
10kg |
| Reach |
1400mm |
| Degrees of Freedom |
6 rotating joints |
| HMI |
10.1 inch teach pendant or mobile terminal Web App |
| IP Classification |
IP54 |
| Noise |
<65db |
| TCP Speed |
1.5m/s |
| Robot Mounting |
Any orientation |
| Materials |
Aluminium, Steel |

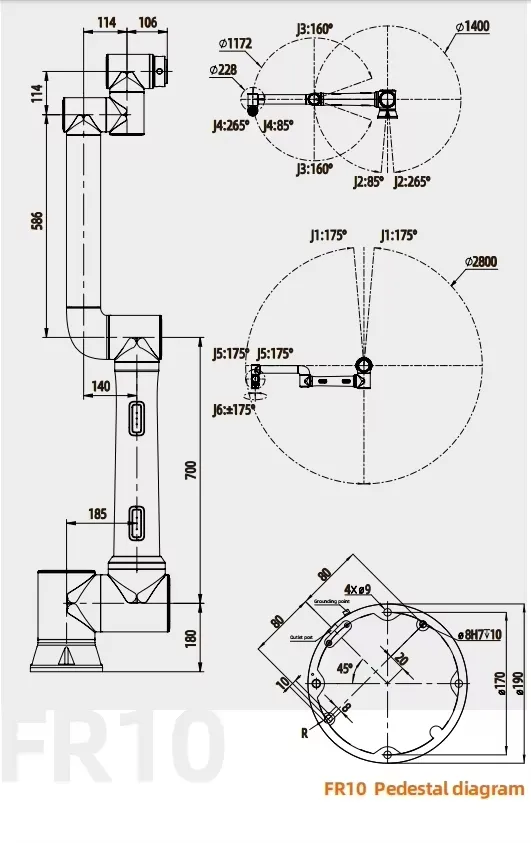

⚙️ Axis Movement Performance
| Axis |
Working Range |
Maximum Speed |
| 1 Axis | ±175° | ±120°/s |
| 2 Axis | +85°/ -265° | ±120°/s |
| 3 Axis | ±160° | ±180°/s |
| 4 Axis | +85°/ -265° | ±180°/s |
| 5 Axis | ±175° | ±180°/s |
| 6 Axis | ±175° | ±180°/s |

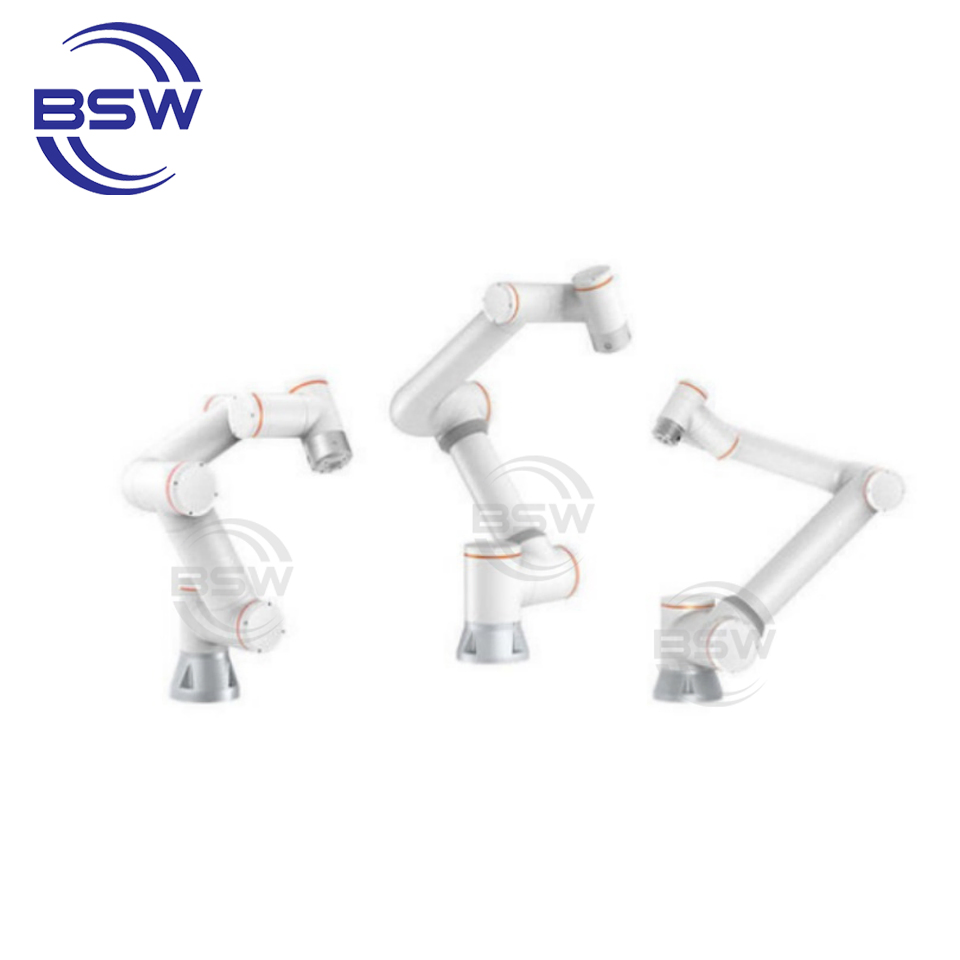

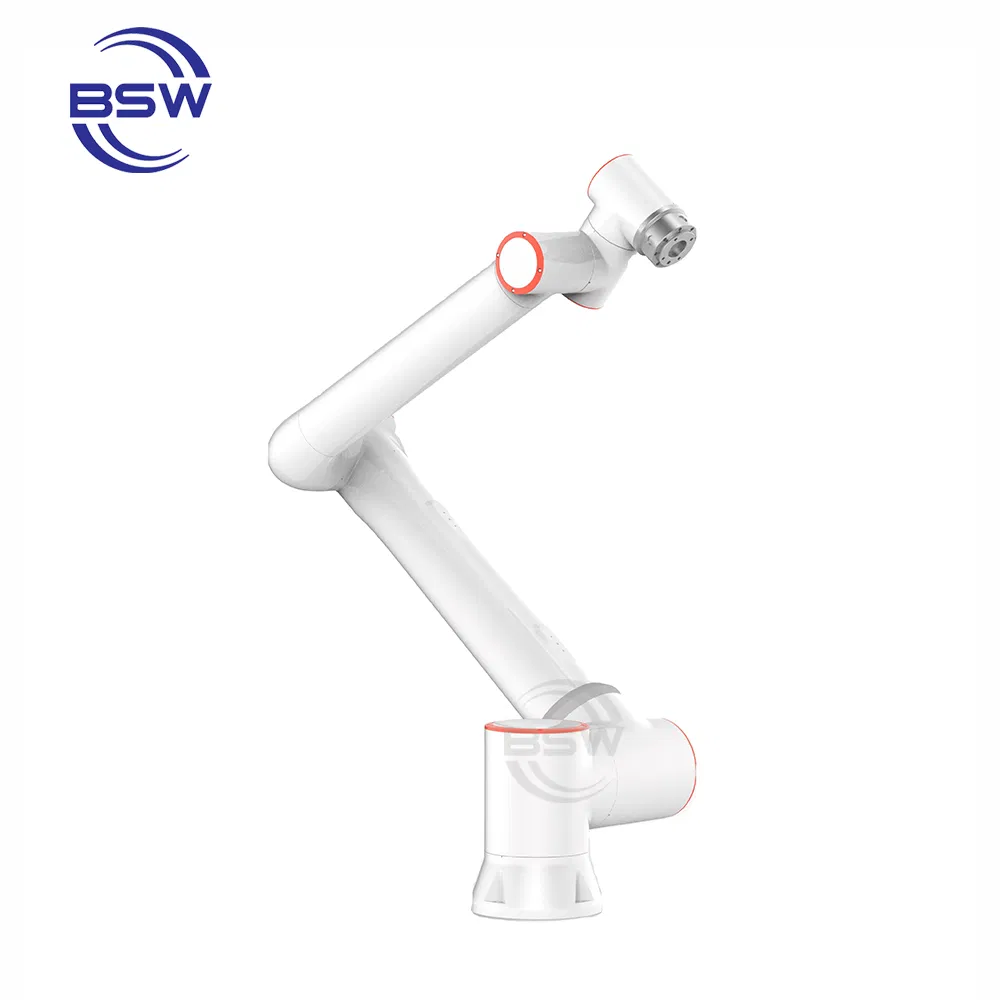

🖼️ Product Display

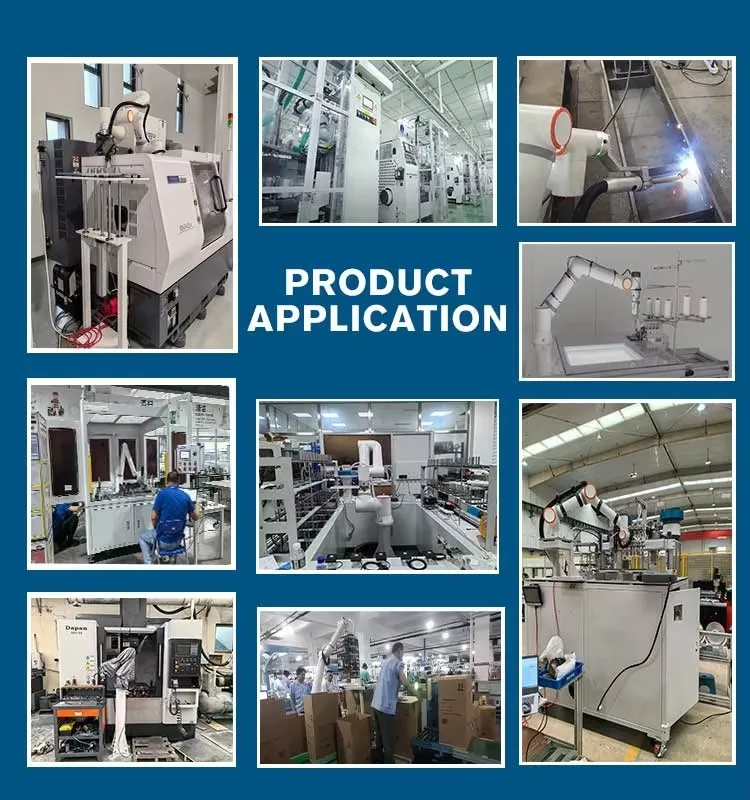

🚀 Product Application & Certifications
📦 Packaging & Shipping
❓ Frequently Asked Questions
What are the primary capabilities of the FR10 robot arm?
The FR10 is a 6-axis collaborative robot with a 10kg payload and a 1400mm reach, designed for high-precision tasks including welding, spraying, and assembly.
What is the standard warranty period for your robots?
We provide a 12-month warranty for our collaborative robot products to ensure reliable performance and customer satisfaction.
How do you guarantee product quality?
Quality is managed through rigorous pre-production samples before mass production and a final inspection process prior to shipment.
What control interfaces are available for the robot?
The robot is equipped with a 10.1-inch teach pendant and supports mobile terminal Web App control for flexible human-machine interaction.
What are the accepted delivery and payment terms?
We accept delivery terms such as FOB and EXW. Payments are typically accepted in USD via T/T or Western Union.
Can the robot operate in harsh industrial environments?
Yes, the robot features an IP54 classification and is built with durable aluminium and steel materials, making it suitable for various industrial applications within 0-45℃.
