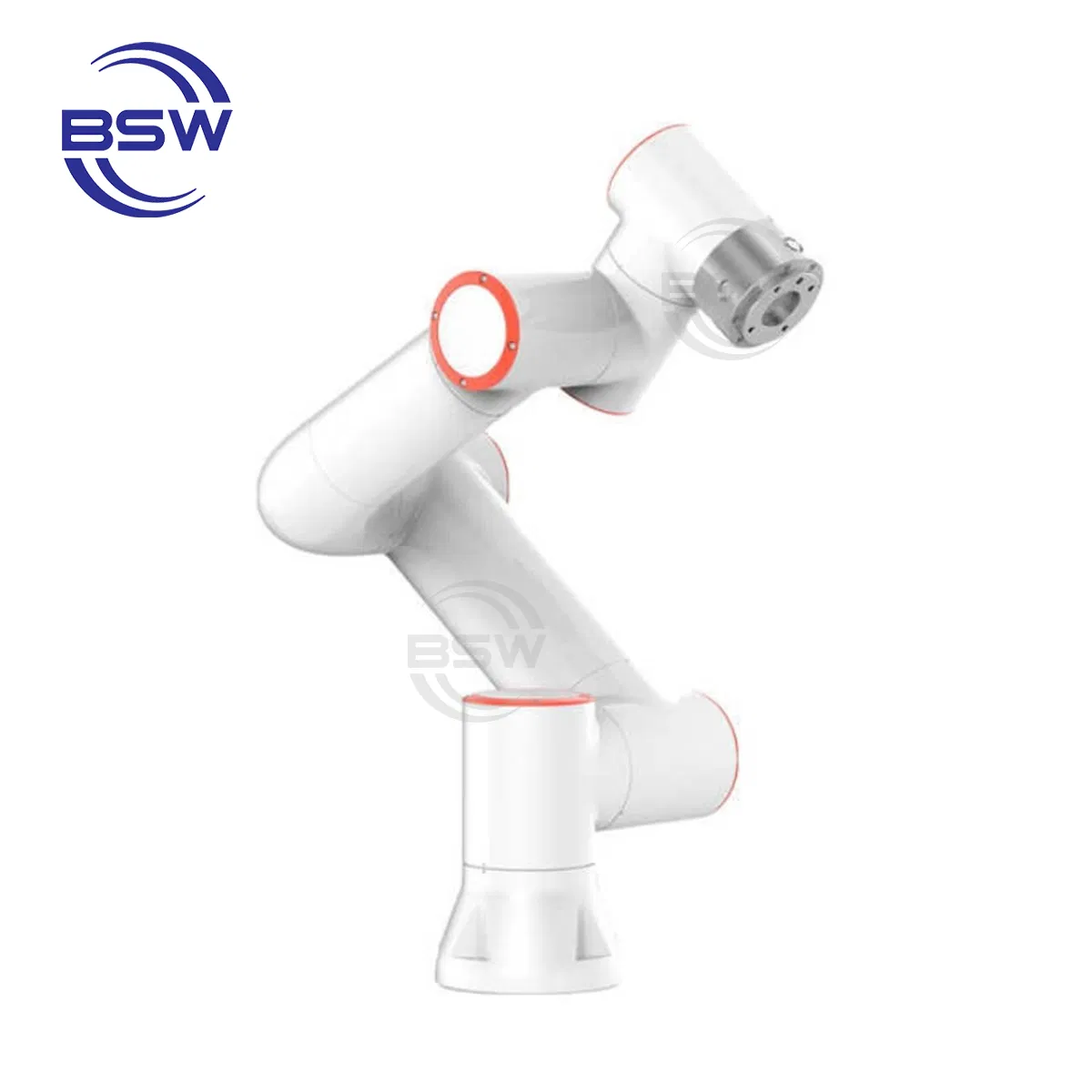

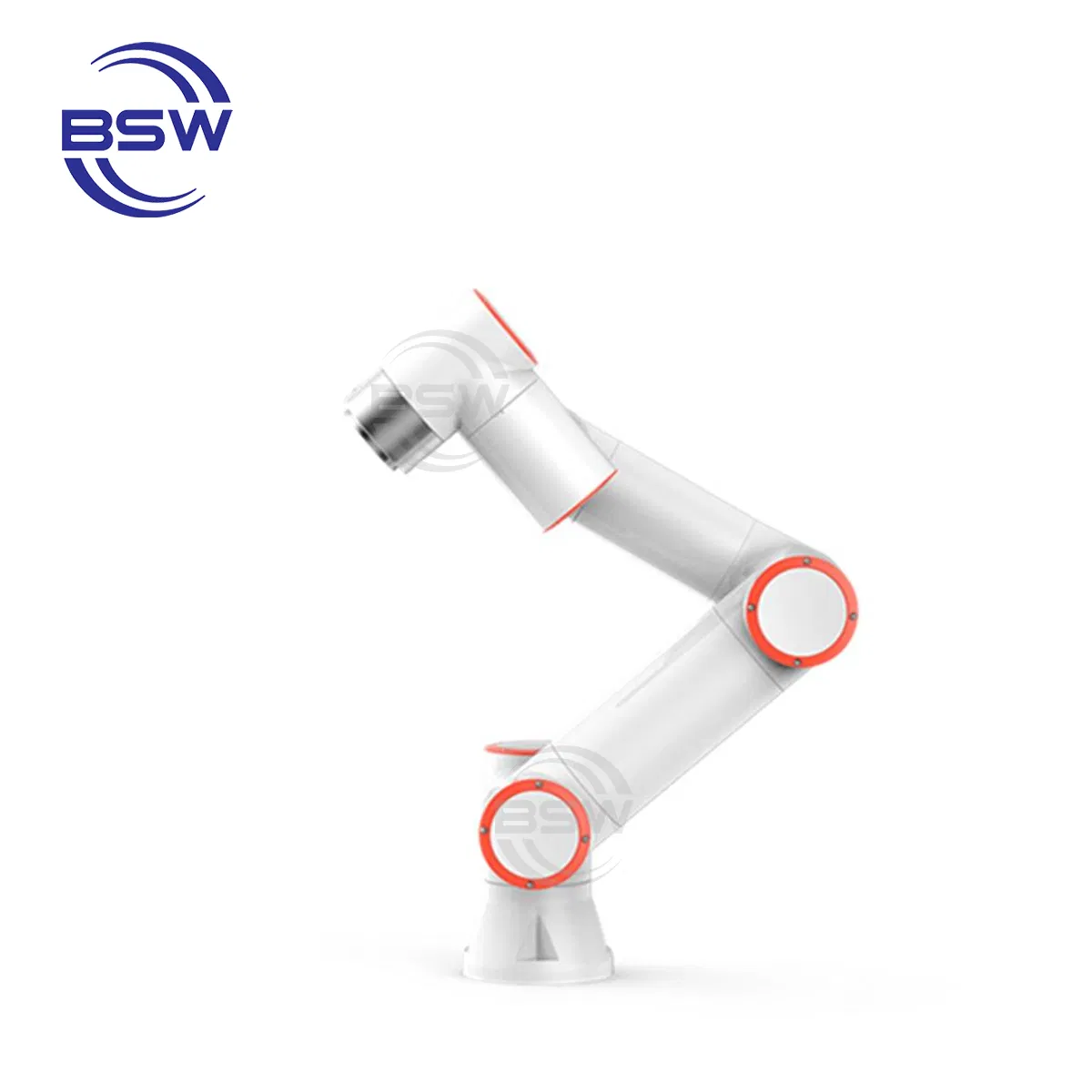

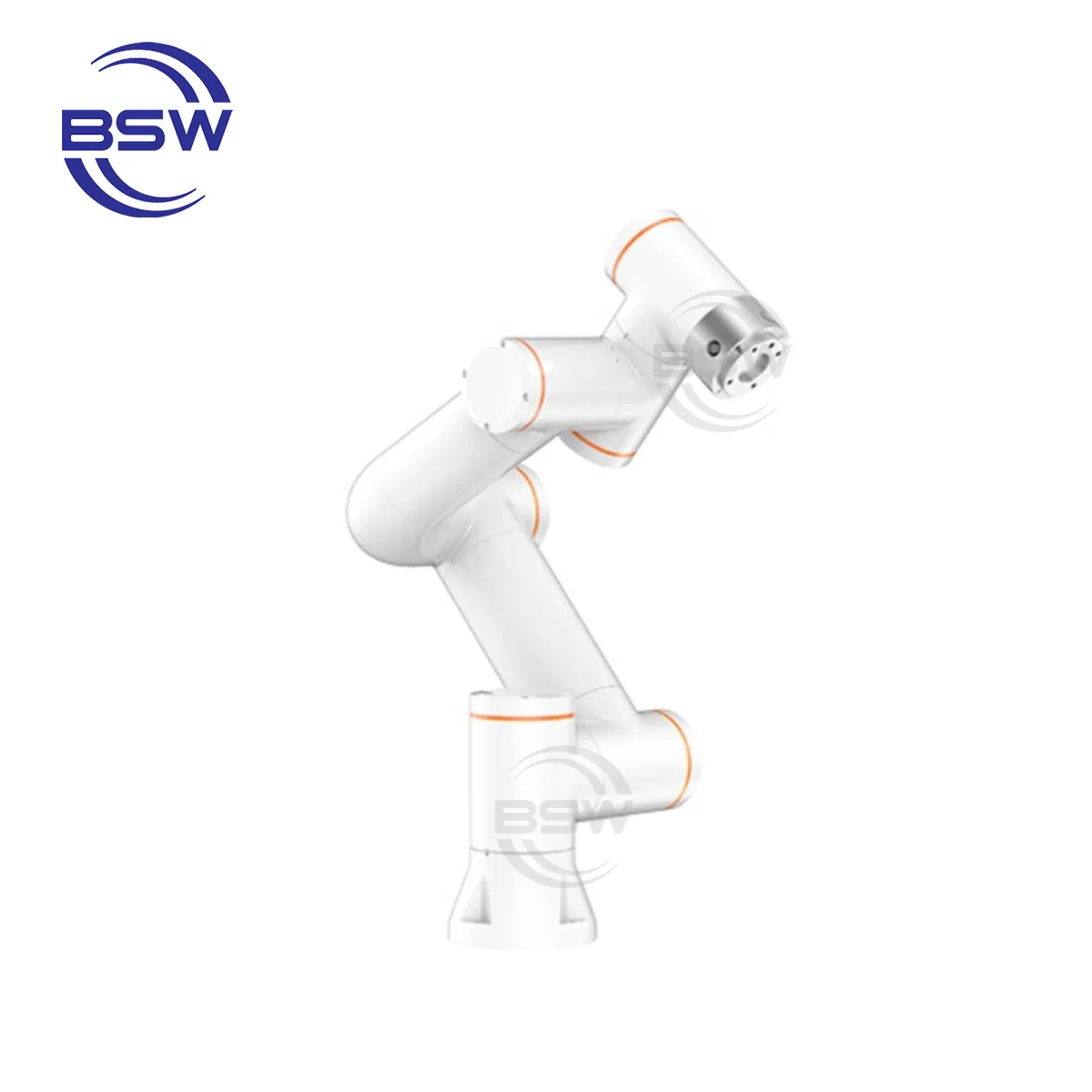

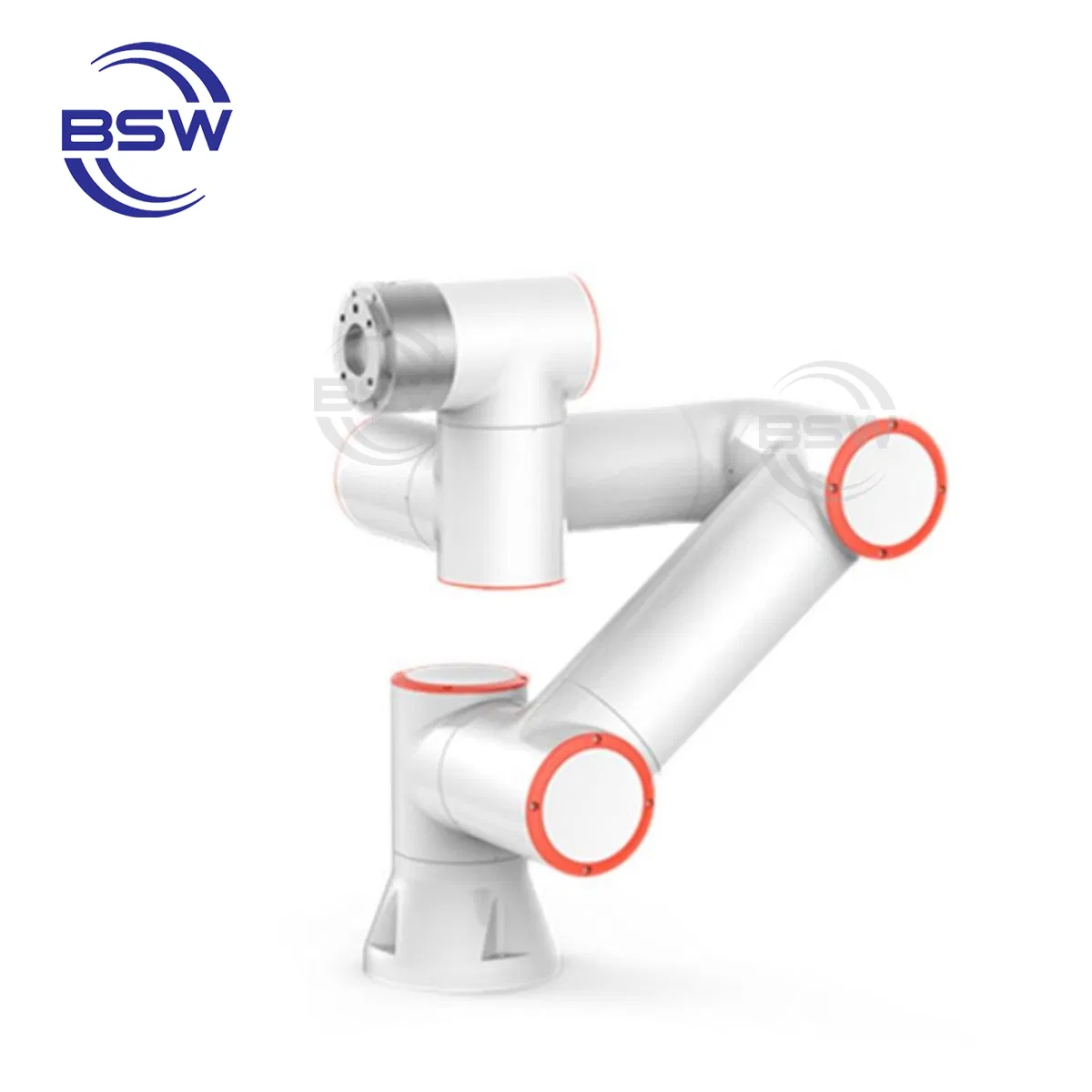

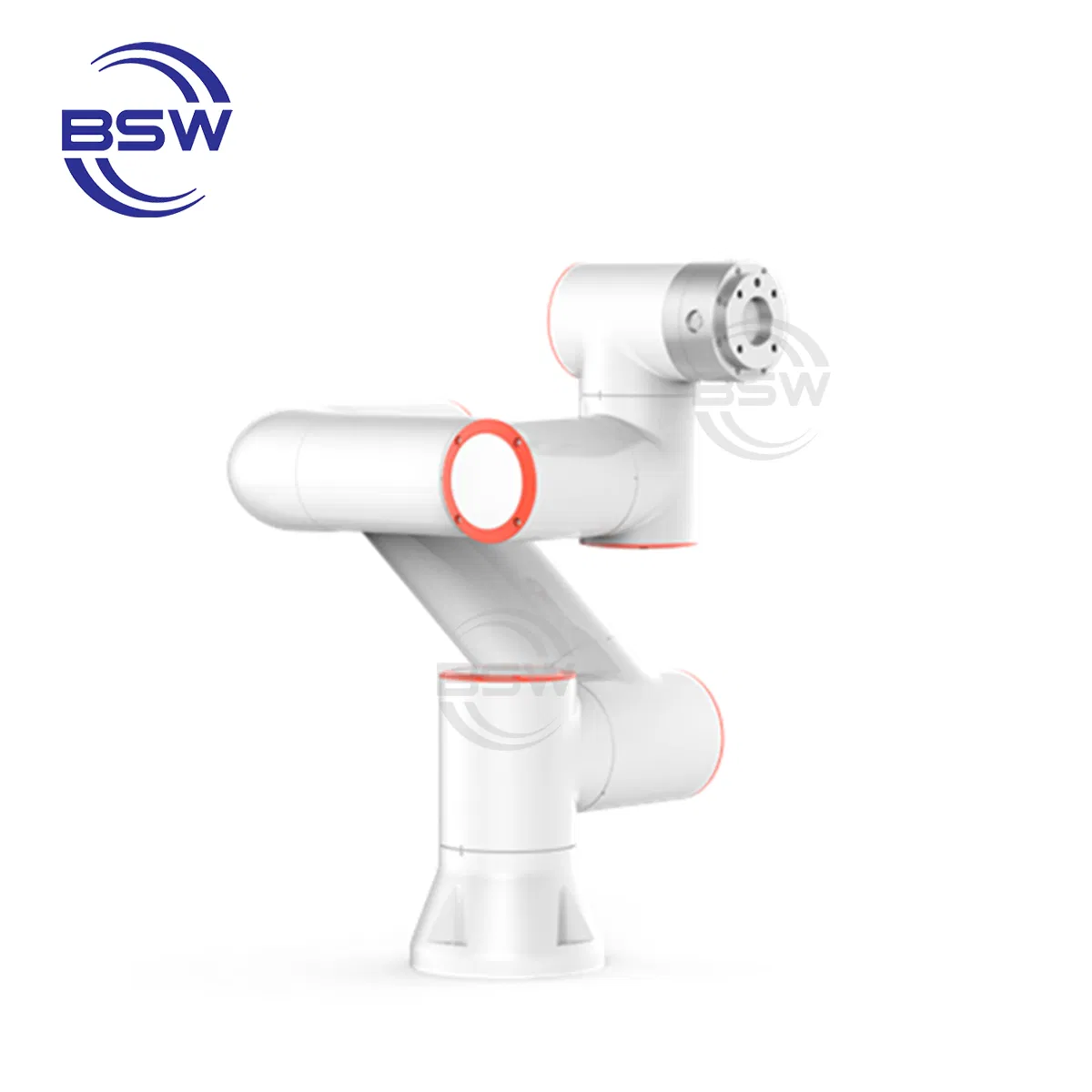

Intelligent 6-Axis Handling Robot Automatic Collaborative Robot Arm for Quality Inspection

Application:	Assembly, Machine Tending, Packaging, Painting, Picking and Placing, Welding
Degrees of Freedom:	6-axis
Drive Mode:	Mechanical

Send Inquiry

Product Description

Basic Information

Model NO.

FR-3

Payload Capacity

3 kg

Product Name

6 Axis Robot Arm

Robot Type

6 Axis Articulated Robot

Reach

622mm

Weight (Kg)

Power(W)

224W

Voltage

220V

Materials

Aluminium, Steel

Origin

China

Product Description

Product Parameters

Parameter	Specifications
Model number	FR3
Payload	3kg
Reach	622mm
Degrees of freedom	6 rotating joints
HMI	10.1 inch teach pendant or mobile terminal Web App

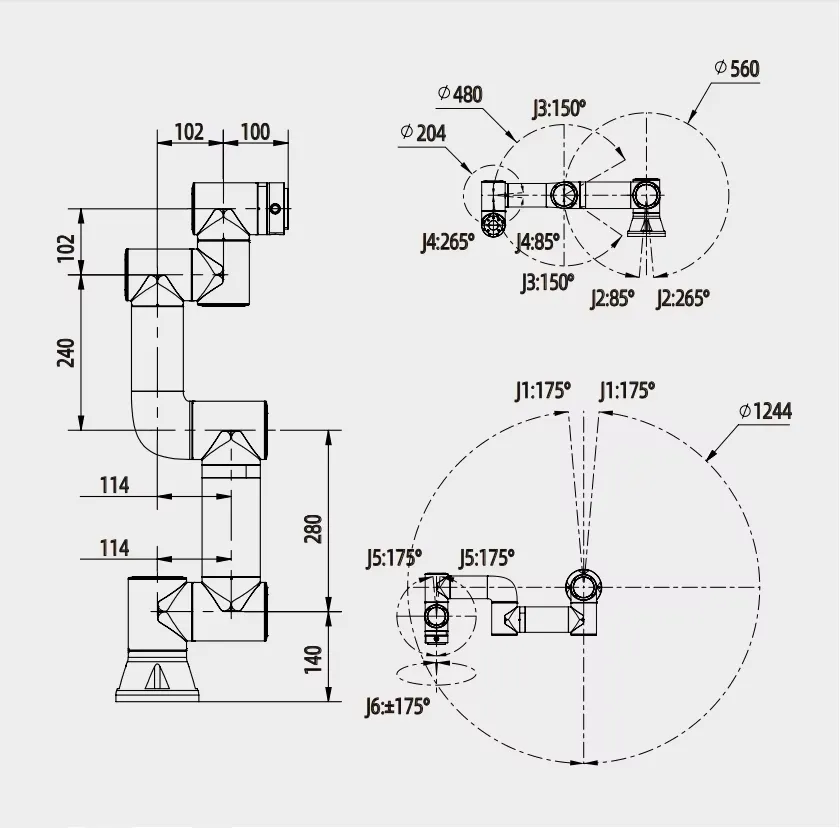

Axis Movement	Working Range	Max Speed
1 Axis	±175°	±180°/s
2 Axis	+85°/ -265°	±180°/s
3 Axis	±150°	±180°/s
4 Axis	+85°/ -265°	±180°/s
5 Axis	±175°	±180°/s
6 Axis	±175°	±180°/s
Typical TCP speed	1m/s
IP classification	IP54
Noise	<65db

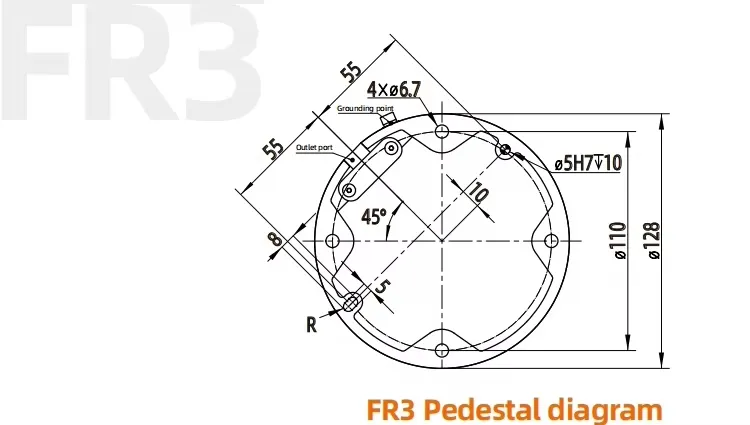

Robot mounting	Any orientation
Development environment	C#/C++/Python/java/ROS
Weight	≈15kg

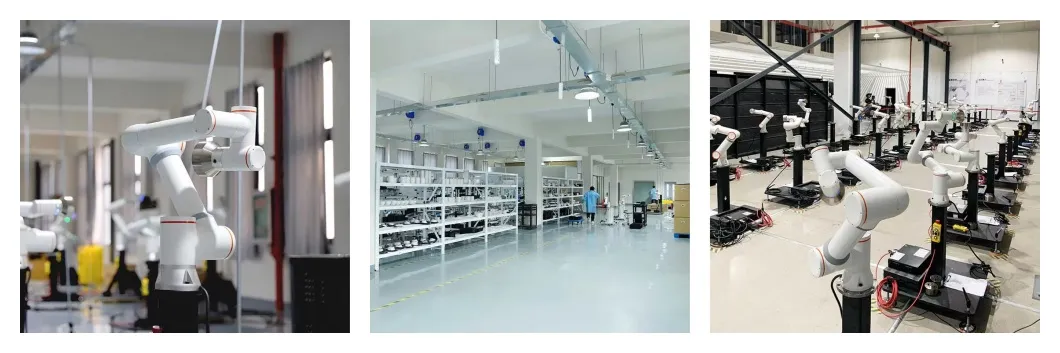

Product Display

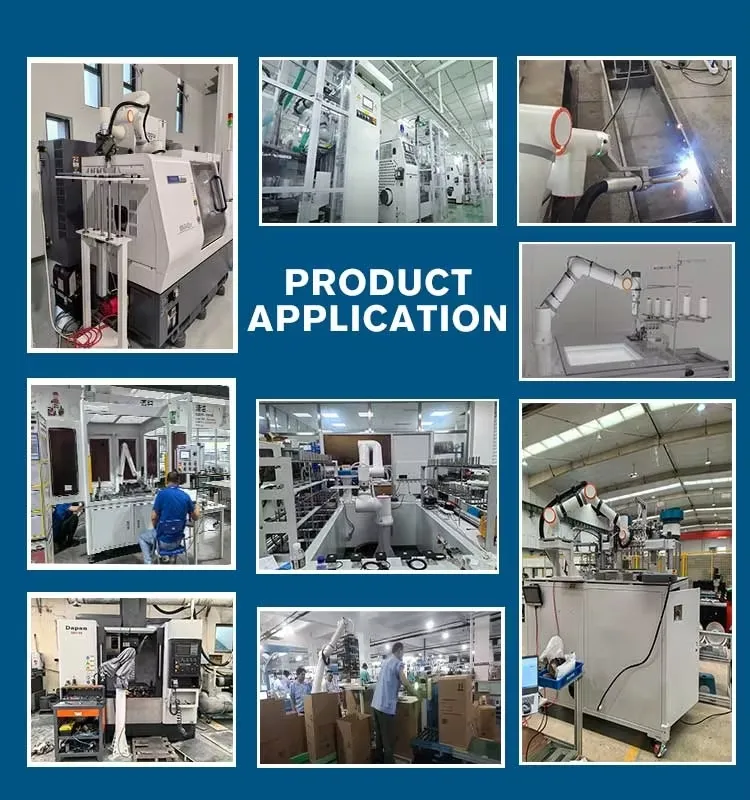

Product Application

Certifications

Packaging & Shipping

Frequently Asked Questions

Q1. What type of company are we?

We are a collaborative robot company that prioritizes independent research and development of all core components. Our focus is on providing intelligent automation solutions with high-quality robotic arms.

Q2. What is the warranty period for the robot arm?

We provide a standard warranty of 12 months for our products to ensure reliable operation and peace of mind for our customers.

Q3. Why should you choose our robotic solutions?

We offer excellent quality products at competitive prices, backed by a professional team with deep expertise in collaborative robotics and R&D.

Q4. How do we guarantee the quality of our products?

Quality is ensured through a rigorous process: we always provide a pre-production sample before mass production and conduct a final inspection before every shipment.

Q5. What delivery and payment terms do we accept?

We accept delivery terms such as FOB and EXW. Payment is accepted in USD via T/T or Western Union. We provide support in both English and Chinese.

Q6. Which development environments are supported?

The FR3 robot arm supports a wide range of development environments, including C#, C++, Python, Java, and ROS, making it highly versatile for various industrial applications.
