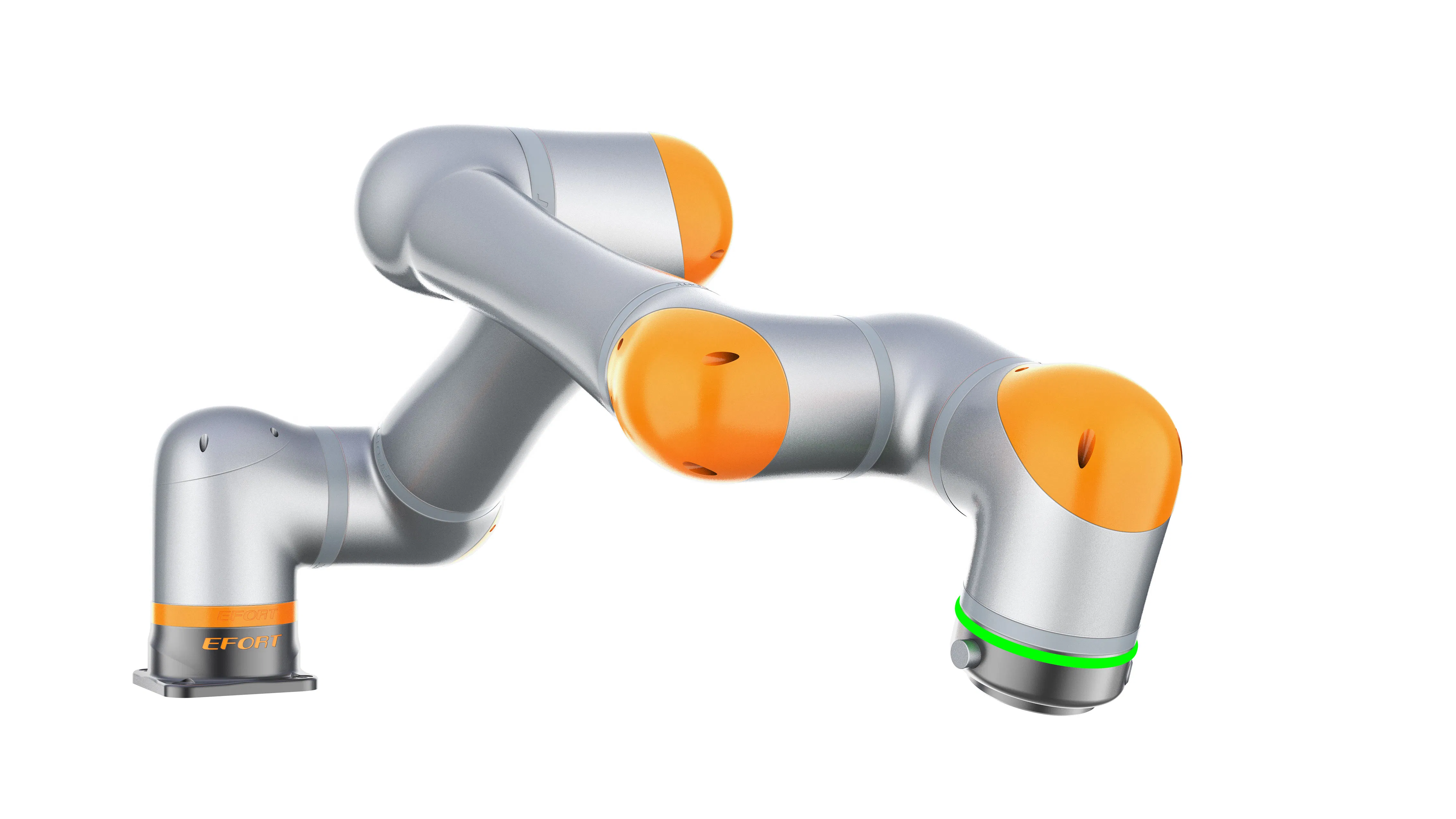

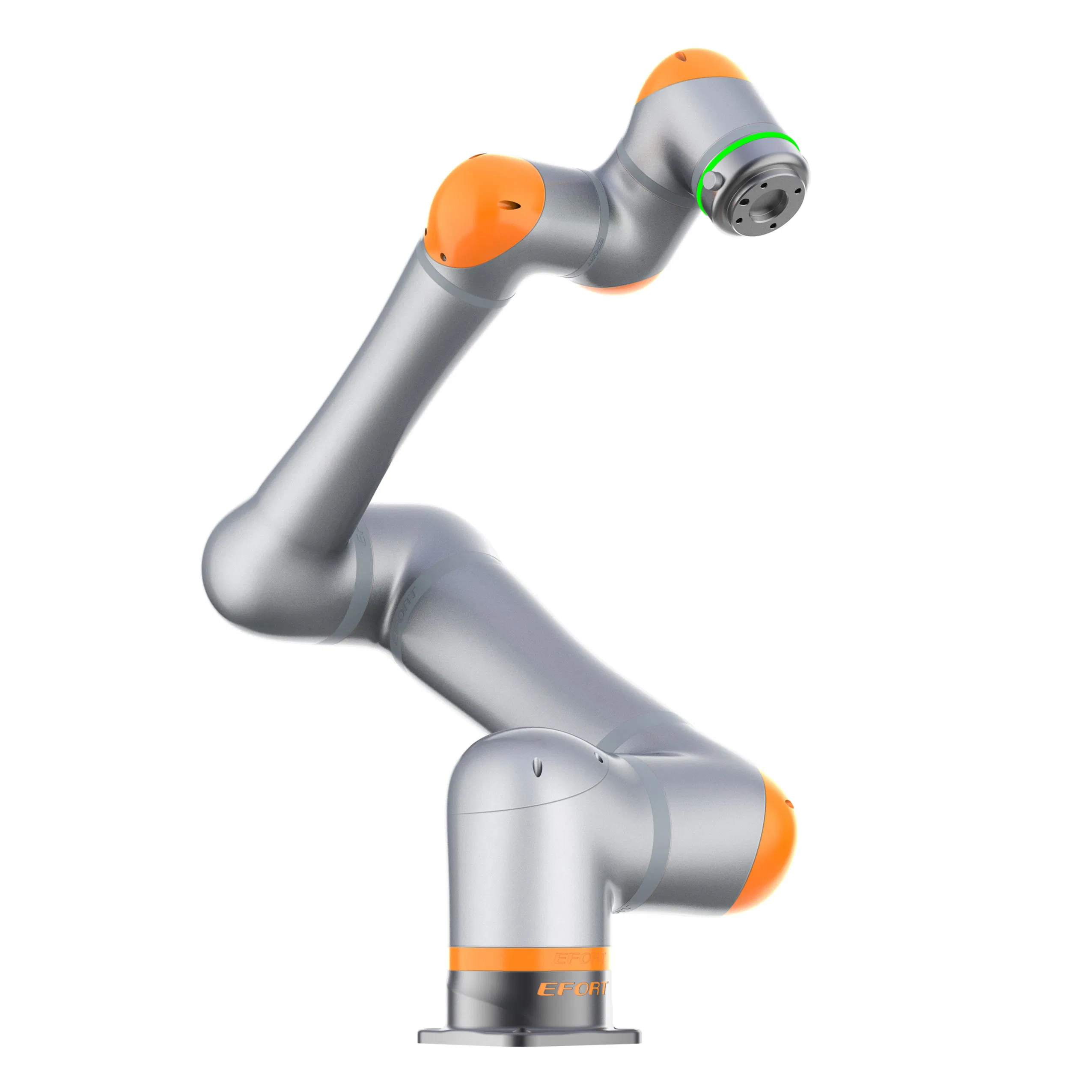

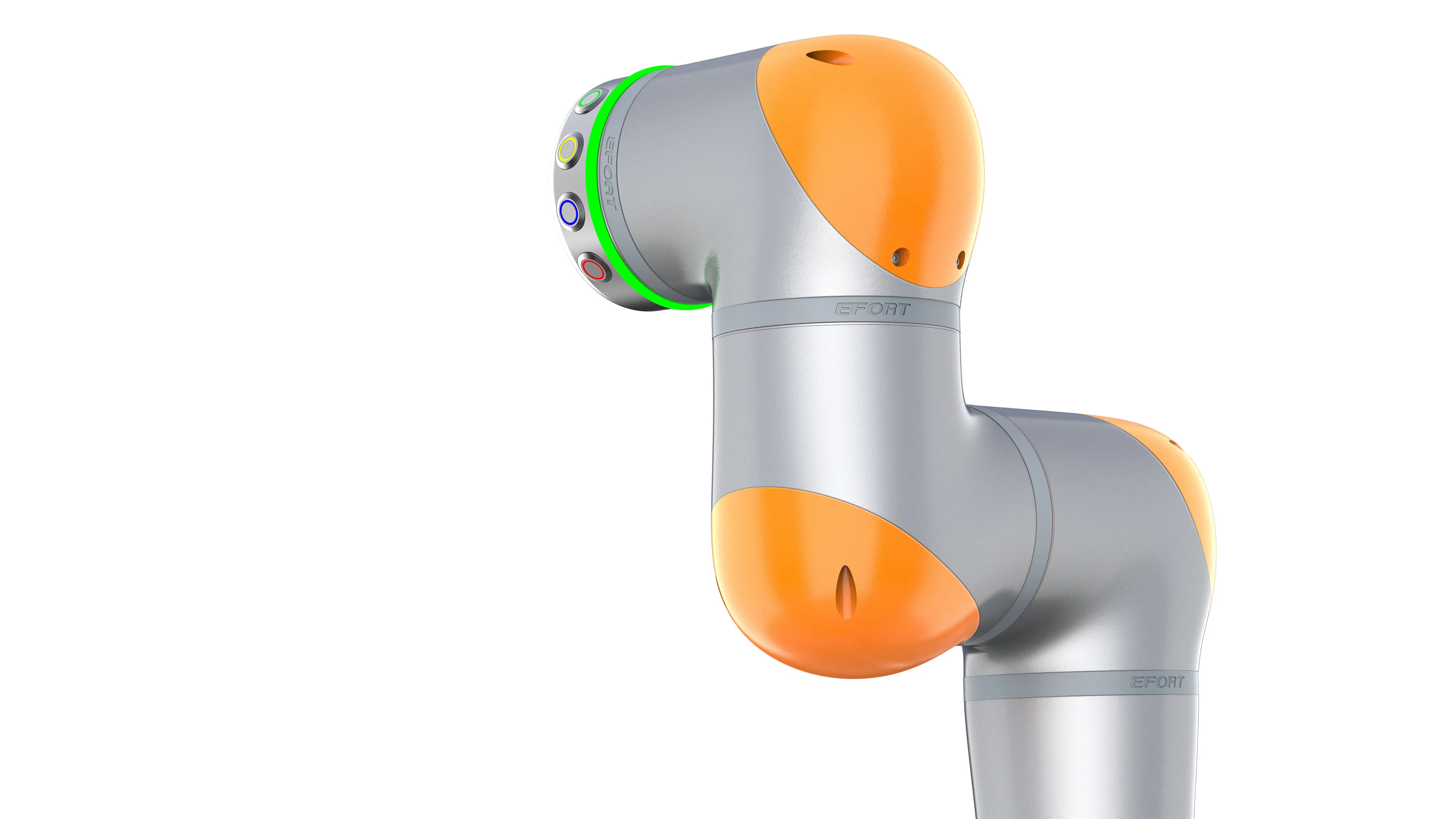

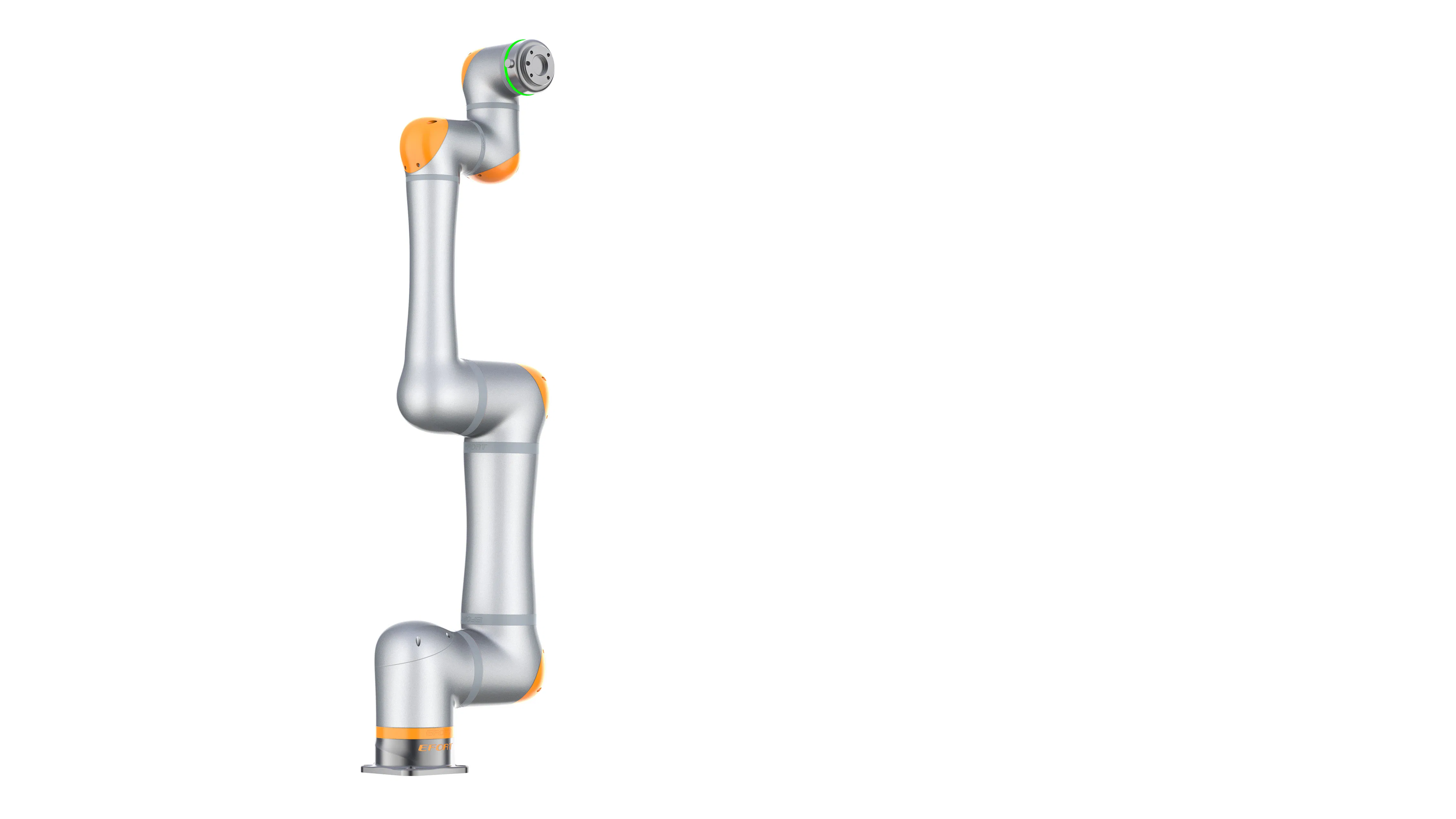

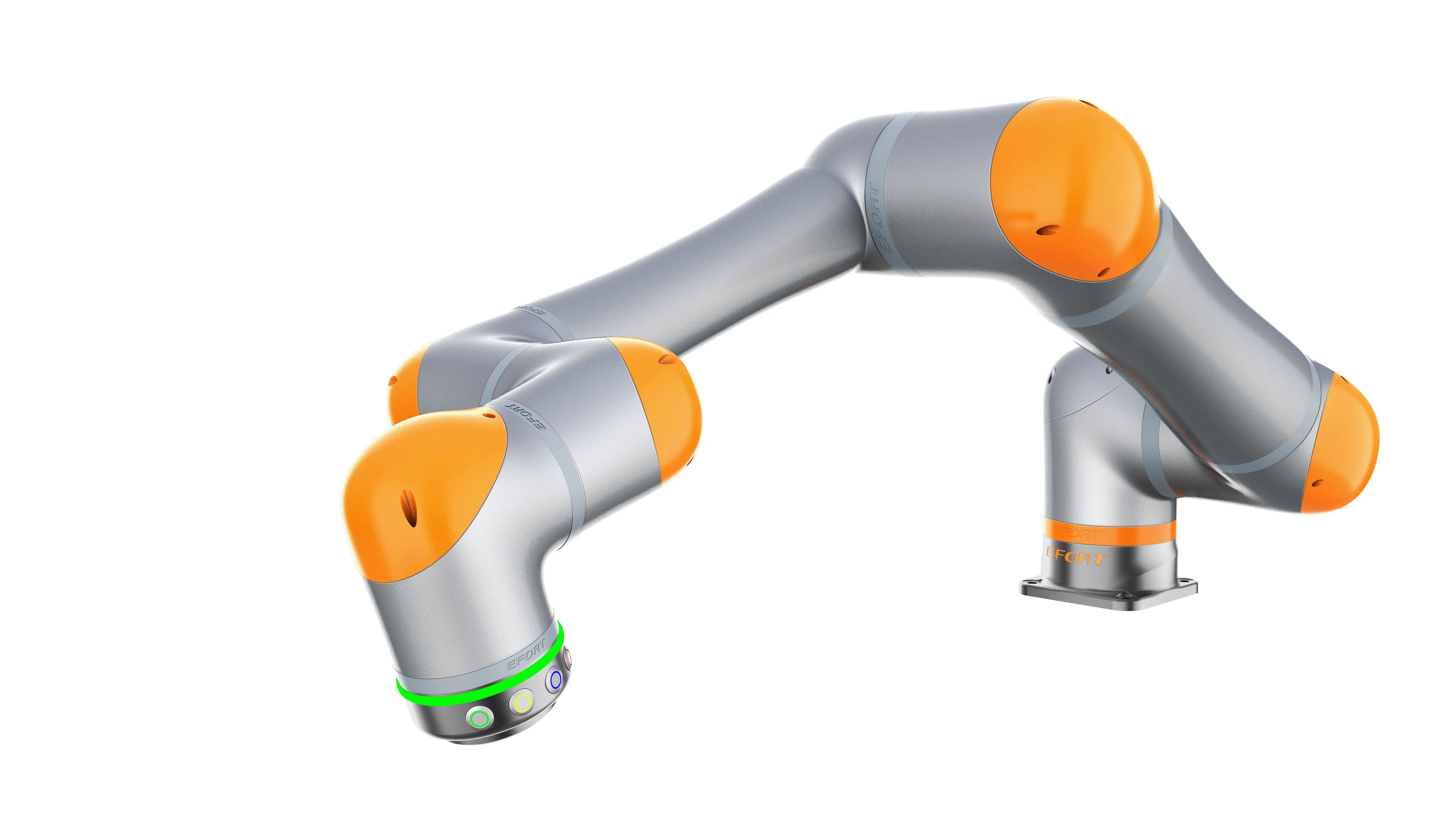

| Product Name | Automated efficient Six-axis Industrial robot machinery |
| Model | ECR5-900 |
| Payload | 5KG |
| Axis | 6 Axes |
| Application | Assembly, handling, pick and place |
| Package | Wooden box |
| Parameter | Specifications (ECR5) | Axis Speed / Range |
|---|---|---|
| Repeatability | ±0.03 mm | J1: 150 °/sec | ±180° |

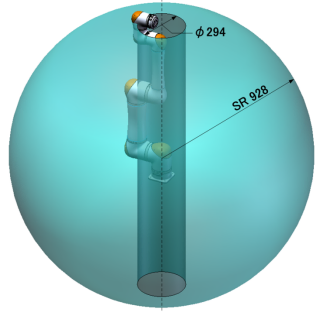

| Max Reach | 928 mm | J2: 150 °/sec | ±180° |
| Robot Weight | 20.5 kg | J3: 150 °/sec | ±160° |
| IP Grade | IP54 (Robot) / IP40 (Cabinet) | J4: 180 °/sec | ±180° |
| Wrist Load Moment | J4: 19 N·m | J5: 13 N·m | J5: 180 °/sec | ±180° |
| Environment | 0~50 ºC | Humidity RH≤80% | J6: 180 °/sec | ±360° |

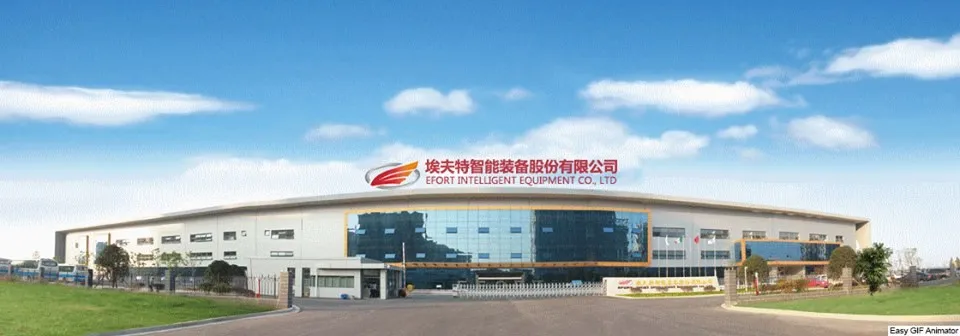

Providing customers with a full range of industrial robot products and cross-industry intelligent manufacturing solutions. The manufacturer has successfully integrated advanced international technologies through strategic acquisitions in painting, metal processing, and motion control components.
With 19 subsidiaries worldwide and dedicated R&D centers, the company leads robotics projects and participates in formulating national standards for the robot industry. Especially in automotive welding, automated conveyors, and painting processes, they provide comprehensive turnkey solutions.
