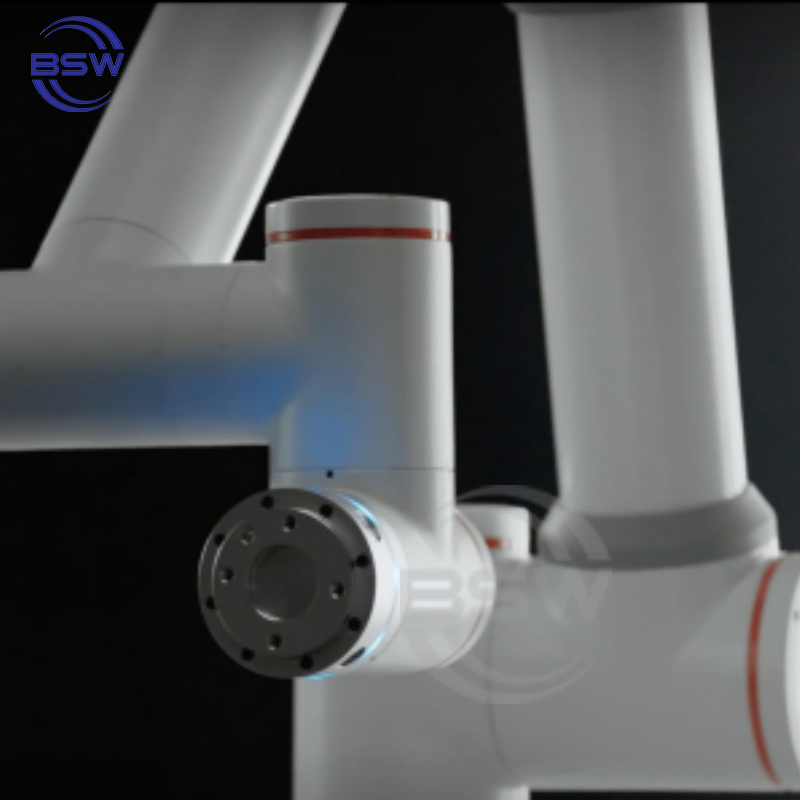

Machine Tool Loading Cobot 16kg Payload Robot Arm for Mold Parts Handling

1 / 5

Machine Tool Loading Cobot 16kg Payload Robot Arm for Mold Parts Handling

Application:	Assembly, Machine Tending, Packaging, Painting, Picking and Placing, Welding
Degrees of Freedom:	6-axis
Drive Mode:	Mechanical

Send Inquiry

Product Description

Overview
Product Parameters
Product Display
Product Application
Certifications
Packaging & Shipping
FAQ

Basic Info.

Model NO.

FR-16

Payload Capacity

16 Kg

Model No.

Fr16

Product Name

6 Axis Robot Arm

Robot Type

6 Axis Articulated Robot

Video Outgoing-Inspection

Provided

Warranty of Core Components

1 Year

Weight (Kg)

Dimension(L*W*H)

80*45*45

Power(W)

315W

Voltage

220V

Reach

1034mm

Materials

Aluminium, Steel

Operating Temperature

0-45ºC

Transport Package

Carton

Specification

80*45*45

Origin

China

Product Parameters

Model number	FR16
Payload	16kg
Reach	1034mm
Degrees of freedom	6 rotating joints
HMI	10.1 inch teach pendant or mobile terminal Web App

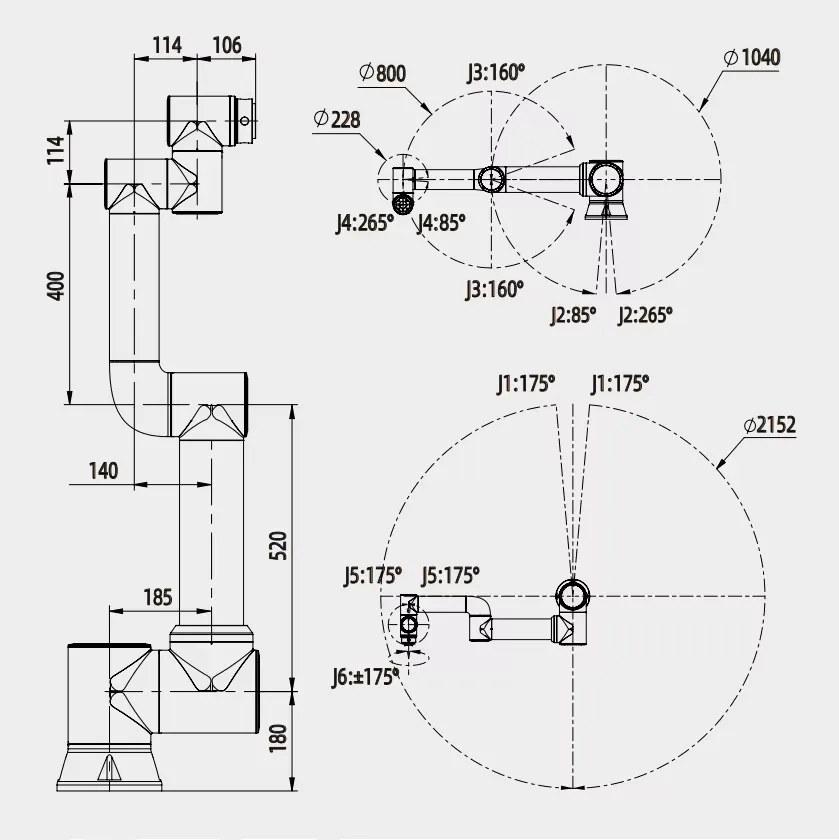

Axis movement	Working range	Maximum speed
1 Axis	±175°	±120°/s
2 Axis	+85°/ -265°	±120°/s
3 Axis	±160°	±180°/s
4 Axis	+85°/ -265°	±180°/s
5 Axis	±175°	±180°/s
6 Axis	±175°	±180°/s
Typical TCP speed	1m/s
IP classification	IP54
Noise	<65db
Robot mounting	Any orientation
I/O	(DI) 2	(DO) 2
I/O	(AI) 1	(AO) 1
Power supply	24V/1.5A

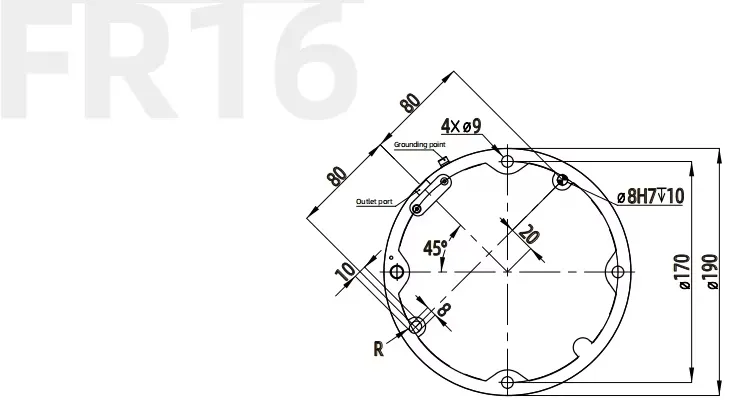

Footprint	190mm
Weight	≈40kg
Operating temperature	0-45ºC
Operating humidity	90%RH (non-condensing)
Materials	Aluminium, Steel

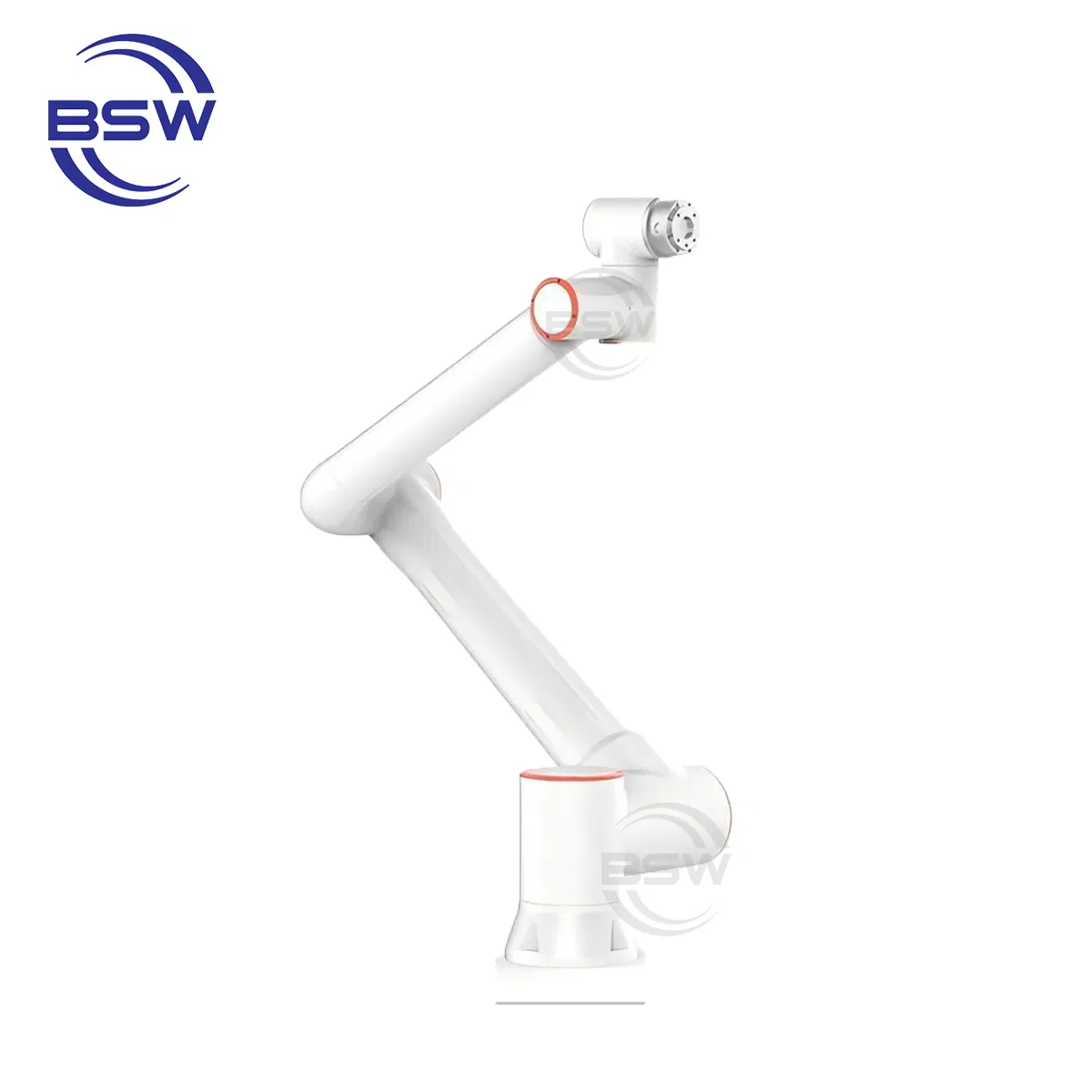

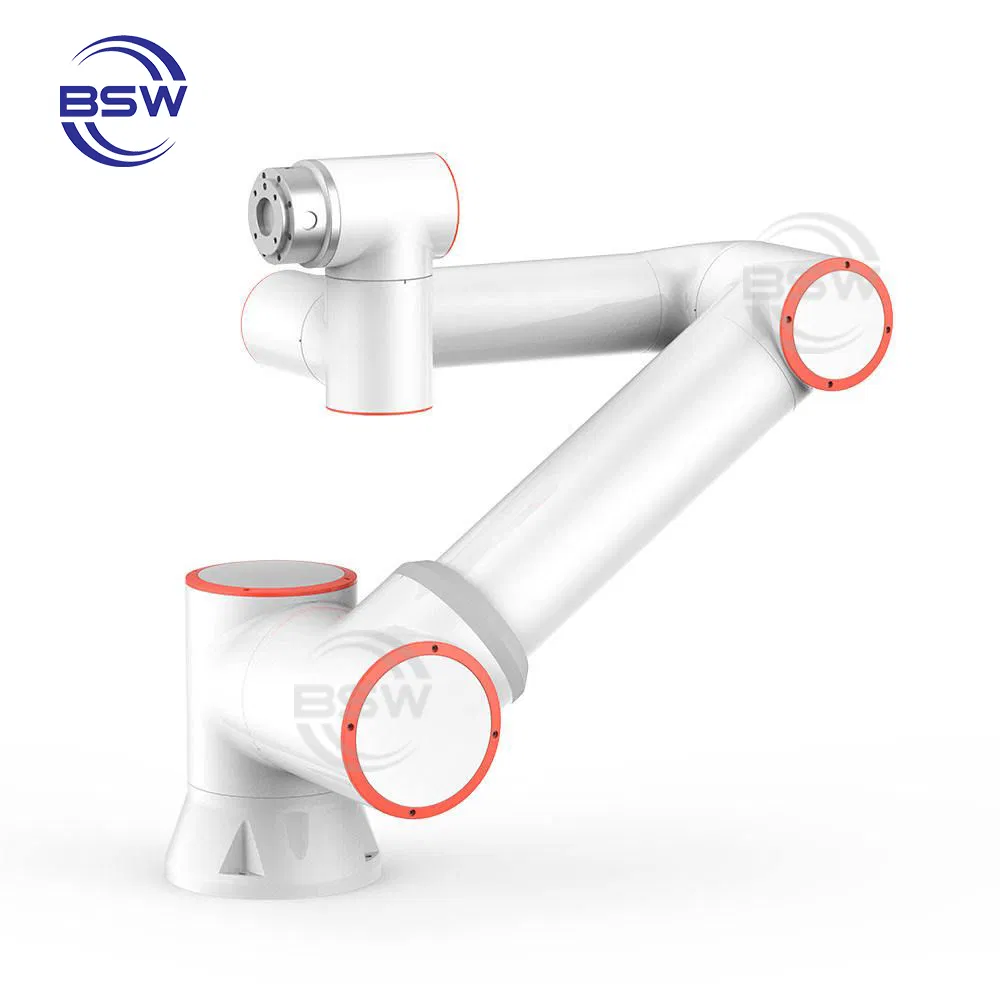

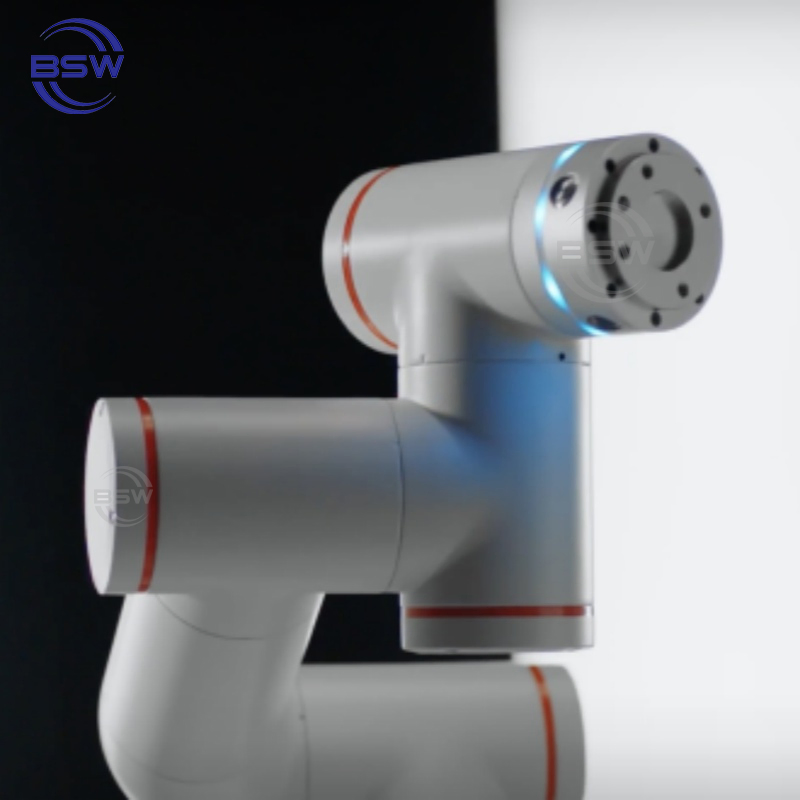

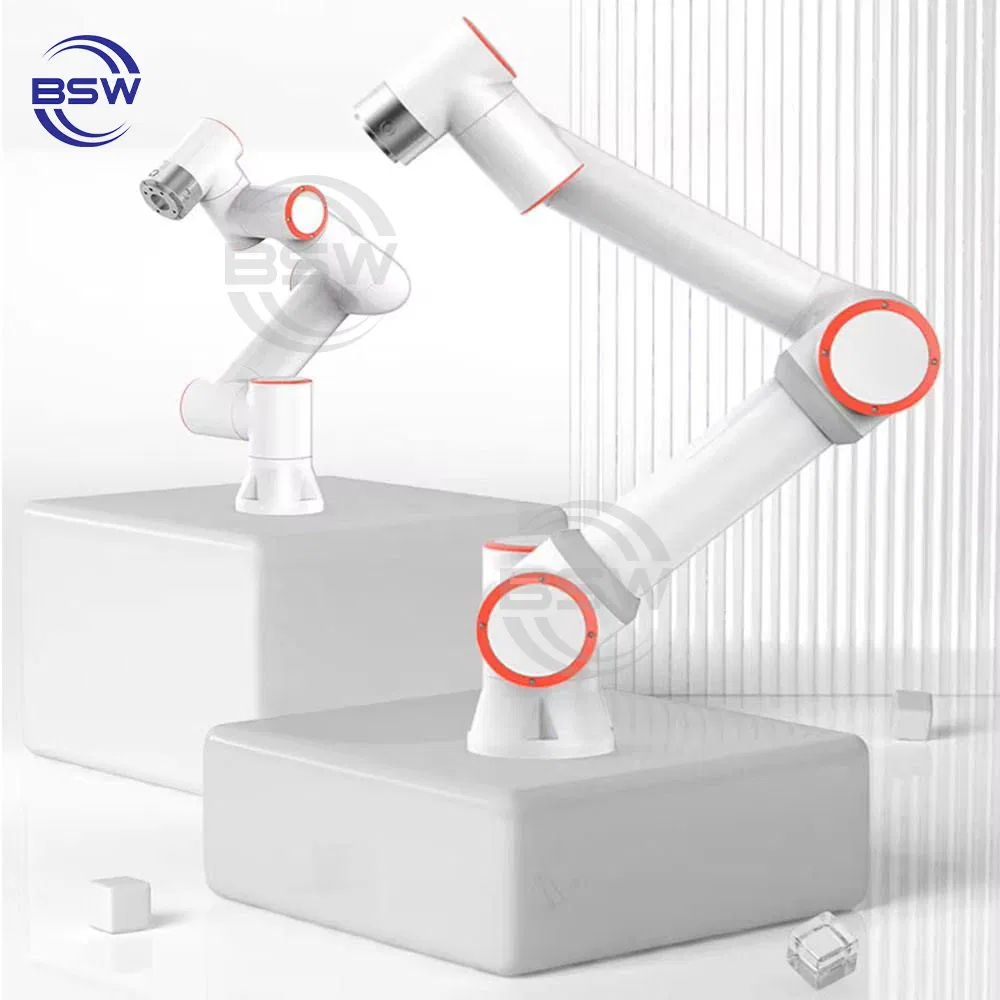

Product Display

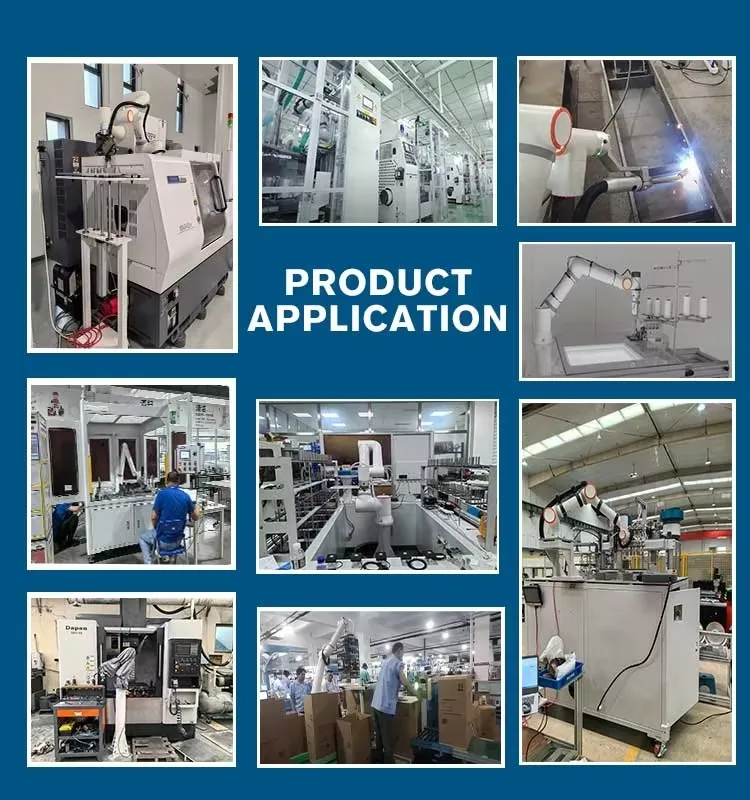

Product Application

Certifications

Packaging & Shipping

FAQ

Q1. Who we are?

We are a collaborative robot company that prioritizes independent research and development of all core components in the domestic market, utilizing multiple advanced production bases.

Q2. What is warranty?

12 months.

Q3. Why choose us?

We have excellent quality products, very competitive product prices and the most professional team.
