New Product Hits Joint Manipulator Low Tolerance Stamping for Welding Work

Customization:	Available
After-sales Service:	Available
Warranty:	12 Months

Send Inquiry

Product Description

Basic Information

Model NO.QF-MD-3100-4

TypeGeneral Punching Machine

Punch ShapeOpen Punch

Slider MovementSingle Action

Slider Drive MechanismCrank Press

Automatic GradeAutomatic

PrecisionHigh Precision

CertificationCE, ISO 9001

Max. Working Radius3100mm

VoltageAC380

Power8.5kw

Robot Weight1500kg

Product Description

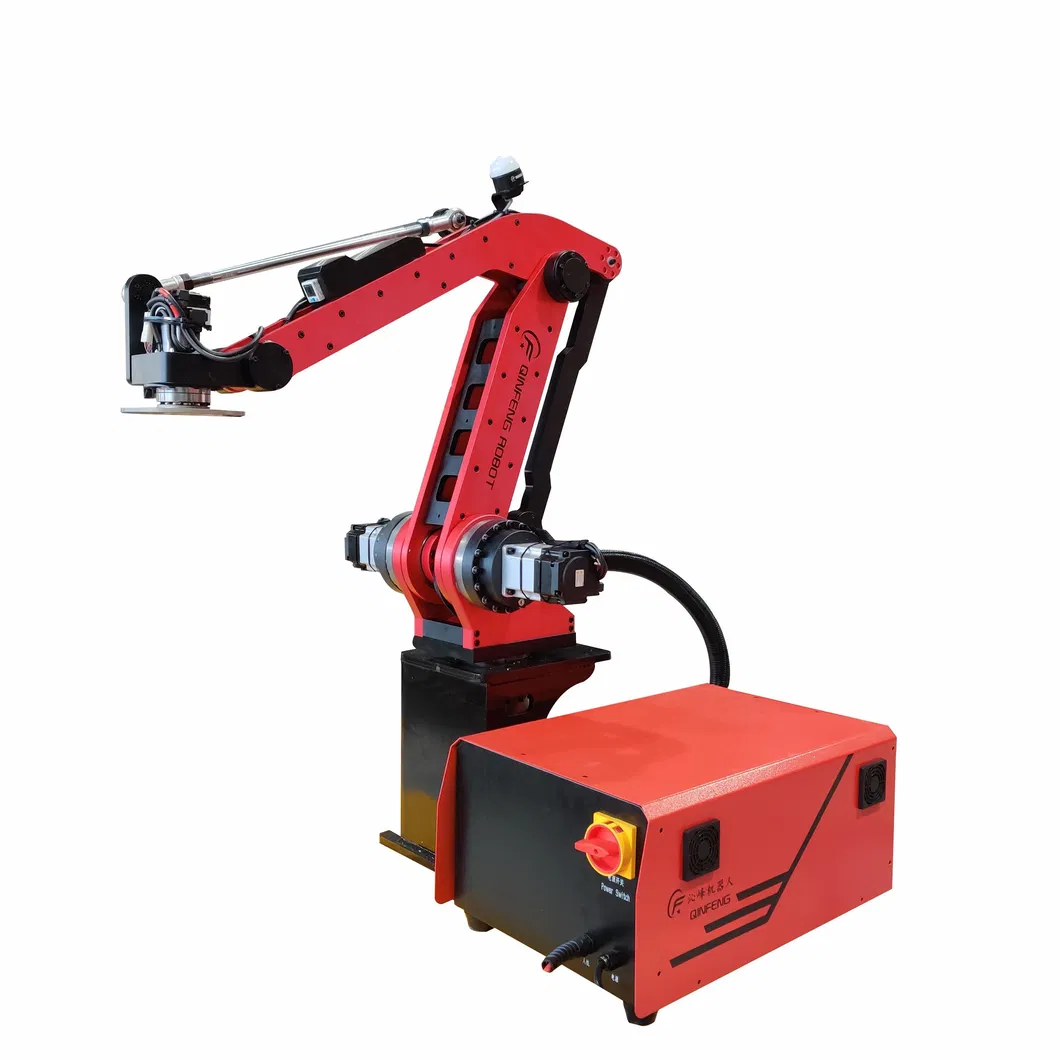

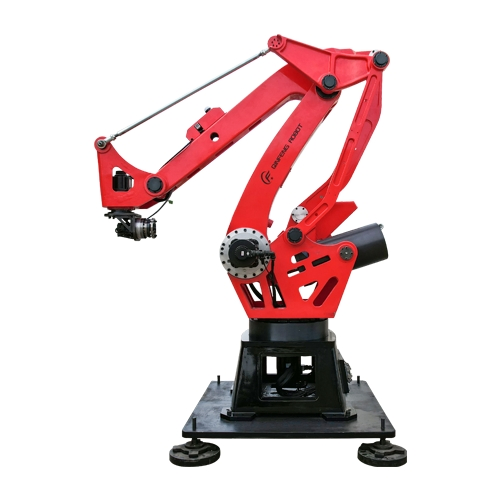

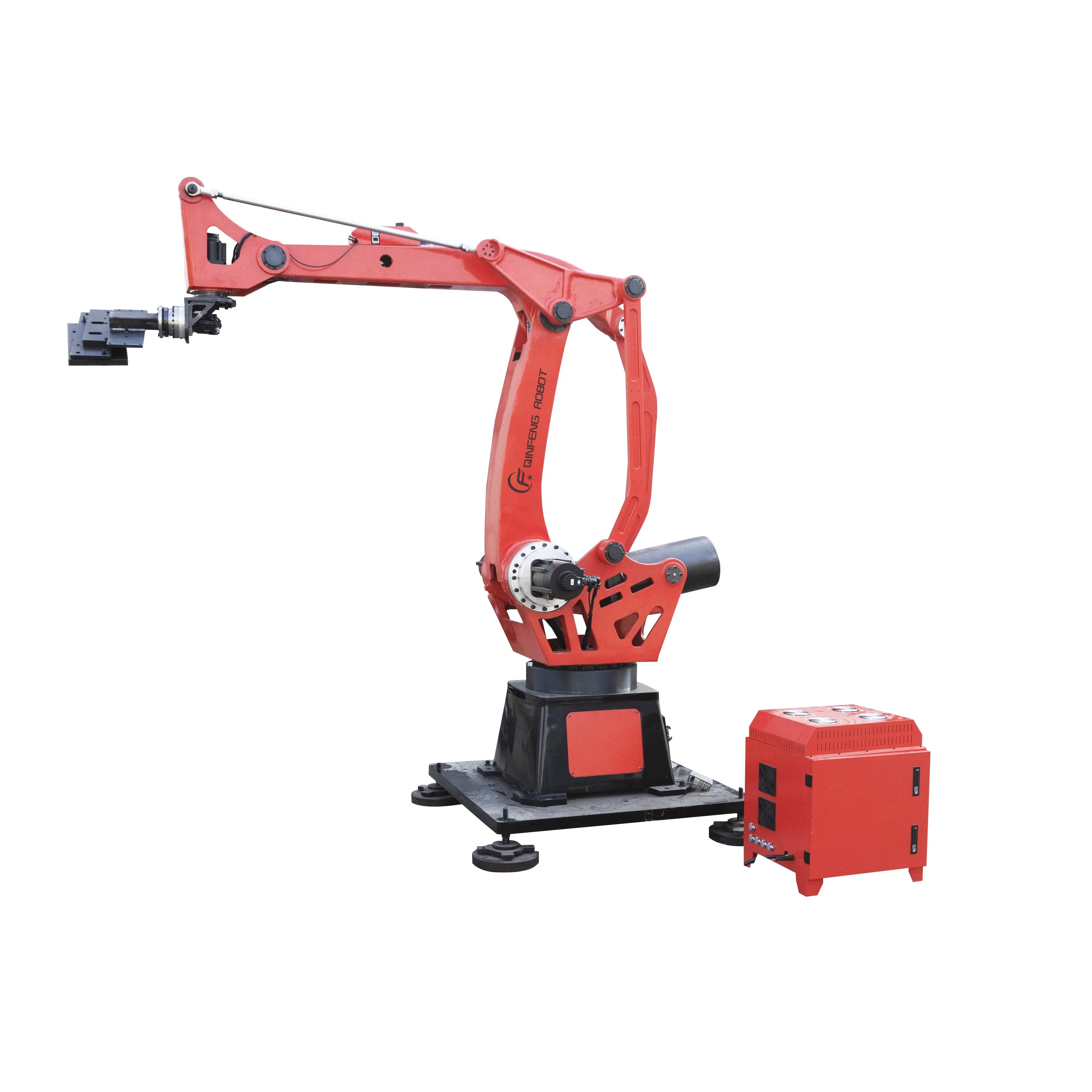

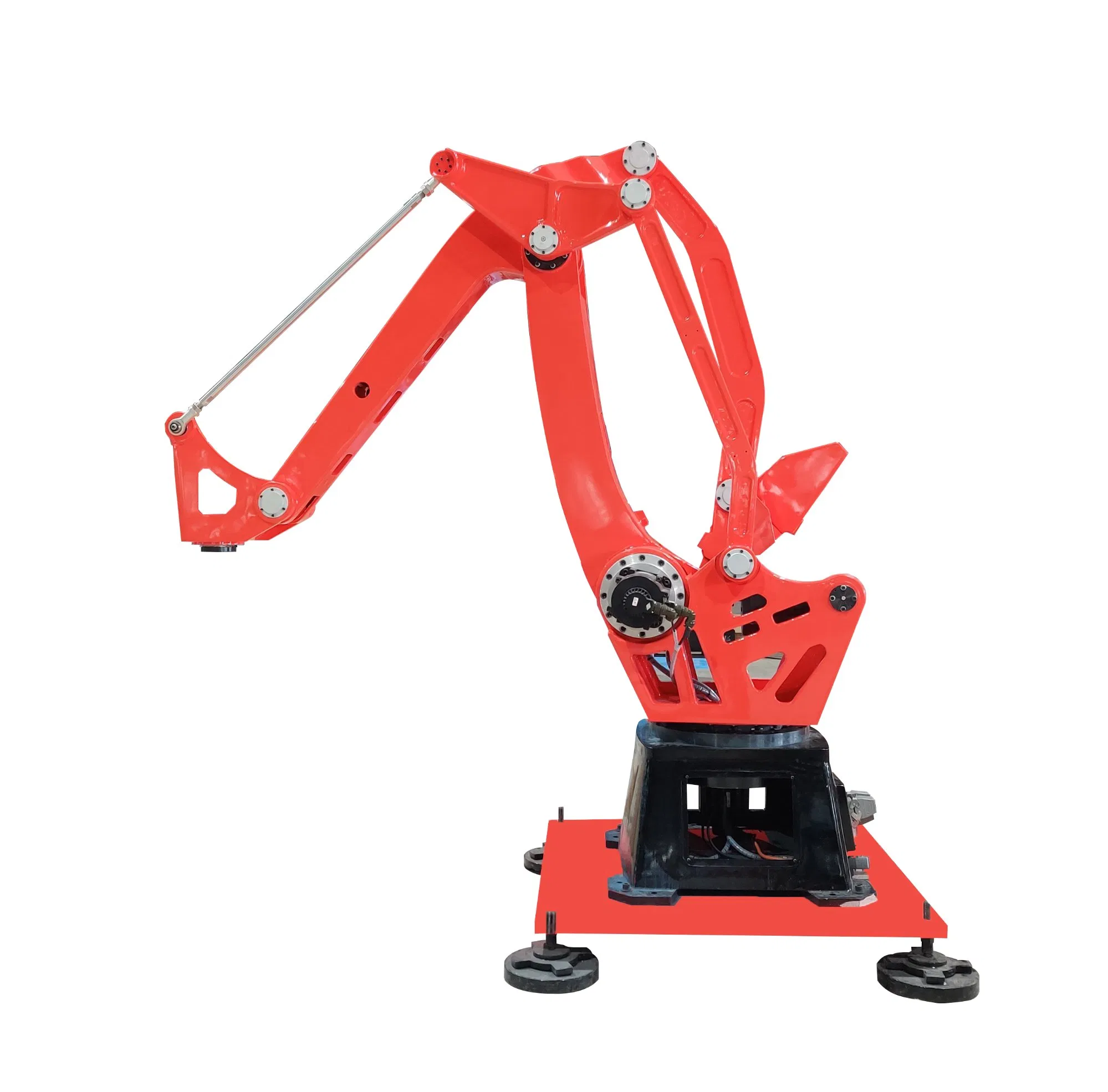

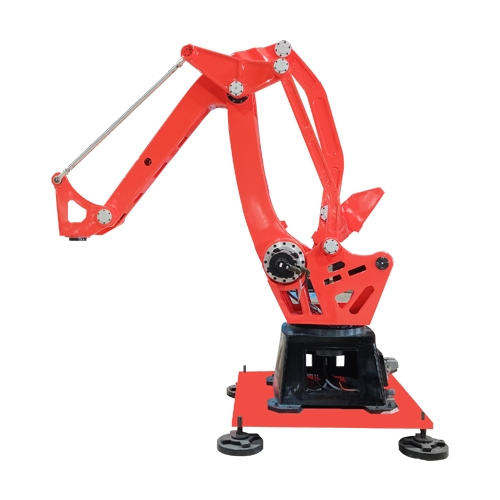

This intelligent joint stamping manipulator is designed for high-efficiency material handling, offering precise control and flexible operation for various stamping applications.

Effectively solve the picking and placing of materials within 100KG, the arm span can reach 3.1m, and the efficiency can reach 8-20 times/min (depending on the equipment style and site conditions). With path programs such as material palletizing and depalletizing, it is suitable for the stacking, depalletizing and handling of common materials.

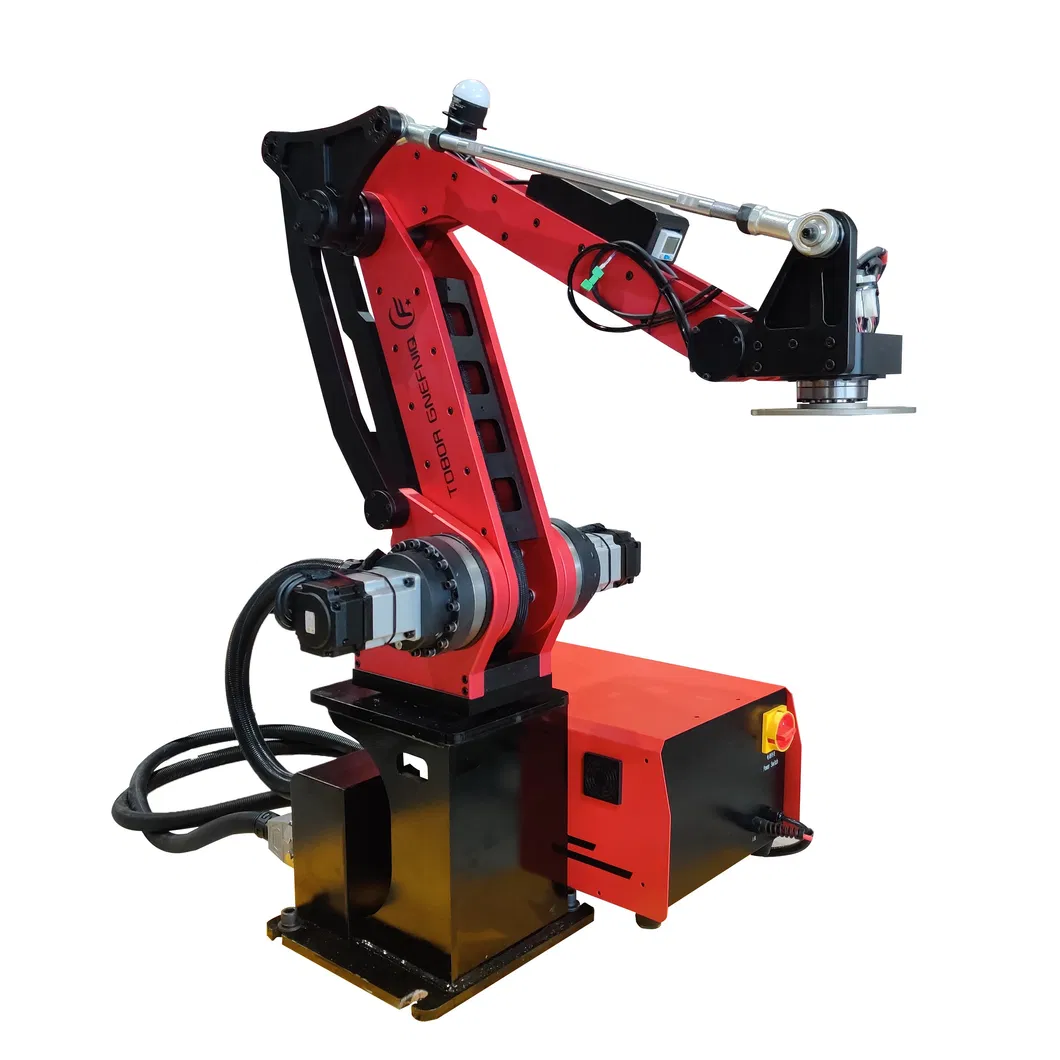

High flexibility, all-round, Multi-angle realization of various stamping actions: turnover, Turn over and play scrap (before discharging), side mount, slanted or stacked, etc. Suitable for progressive dies, single die and transfer dies.

Technical Specifications

Parameter	Unit	Index
Voltage	V	AC 380
Power frequency	Hz	50/60
Power	KW	8.5
Working temperature	ºC	-20 ~ 45
Max. working radius	mm	3100
Payload	kg	≤100
Robot weight	kg	≈1500

Frequently Asked Questions

Q1: Is the machinery standard or customized?

Both. Most machinery are standard models. If standard models can't meet your personal needs, we can customize as per your specific requirements.

Q2: What is the warranty period of the machine?

The warranty is one year. With proper maintenance, these machines are designed to be used for more than 10 years.

Q3: What kind of products is this manipulator suitable for?

It is suitable for stamping sites of electronic products, home appliance parts, mechanical parts, and auto parts. It can handle material picking, placing, and palletizing.

Q4: Does the machine require complex maintenance?

The system is highly standardized with easy installation. We provide support through manuals, and remote assistance, and our products are built for stable, long-term operation.

Q5: Can it be used with different types of press machines?

Yes, it is suitable for connecting hydraulic presses, gear presses, and pneumatic punches at will, regardless of the tonnage or the height of the machine, allowing for flexible equipment combinations.

Q6: What is the repeatability precision of the robot?

The machine features high-precision core accessories with a positioning tolerance of ±0.1mm, ensuring consistent and reliable production quality.
