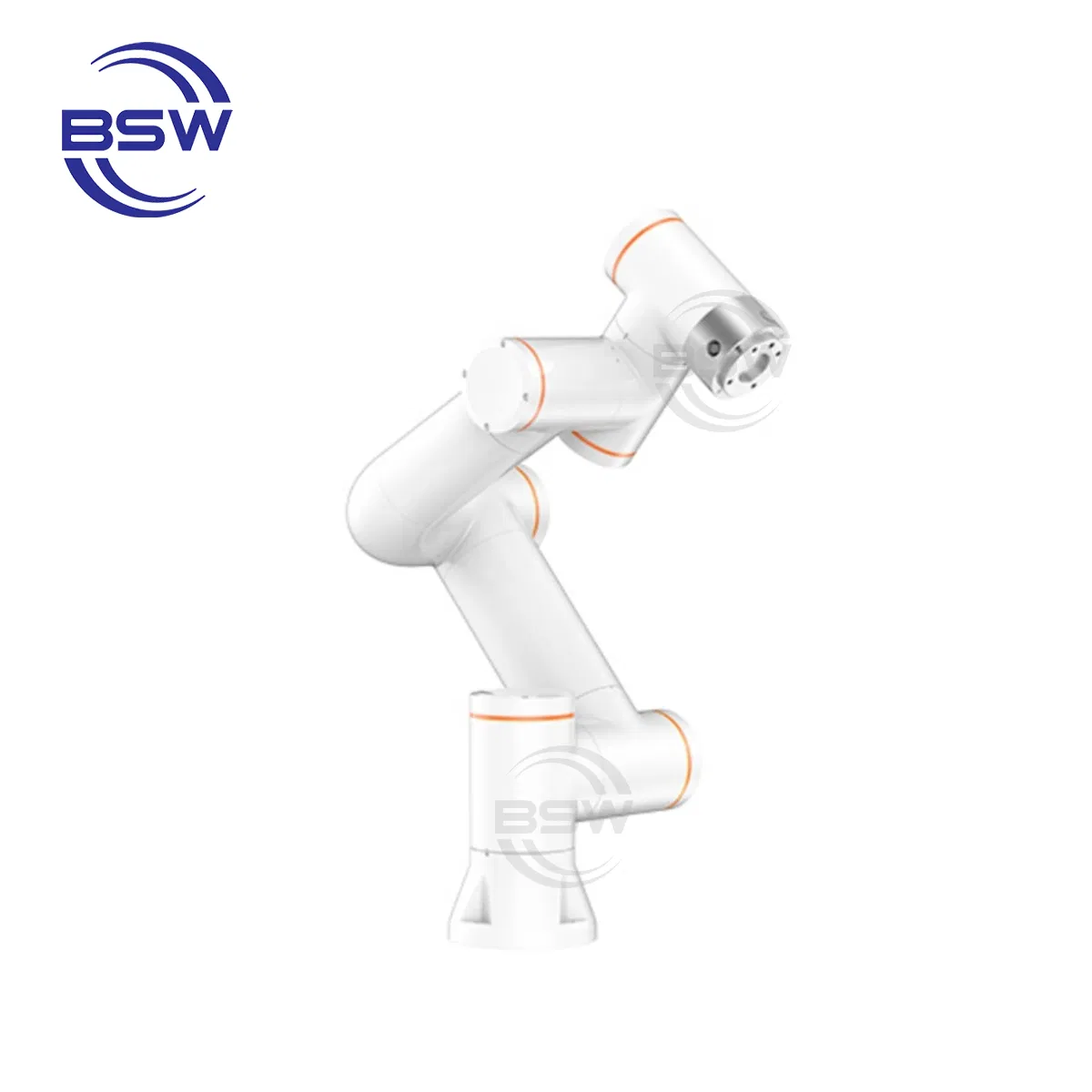

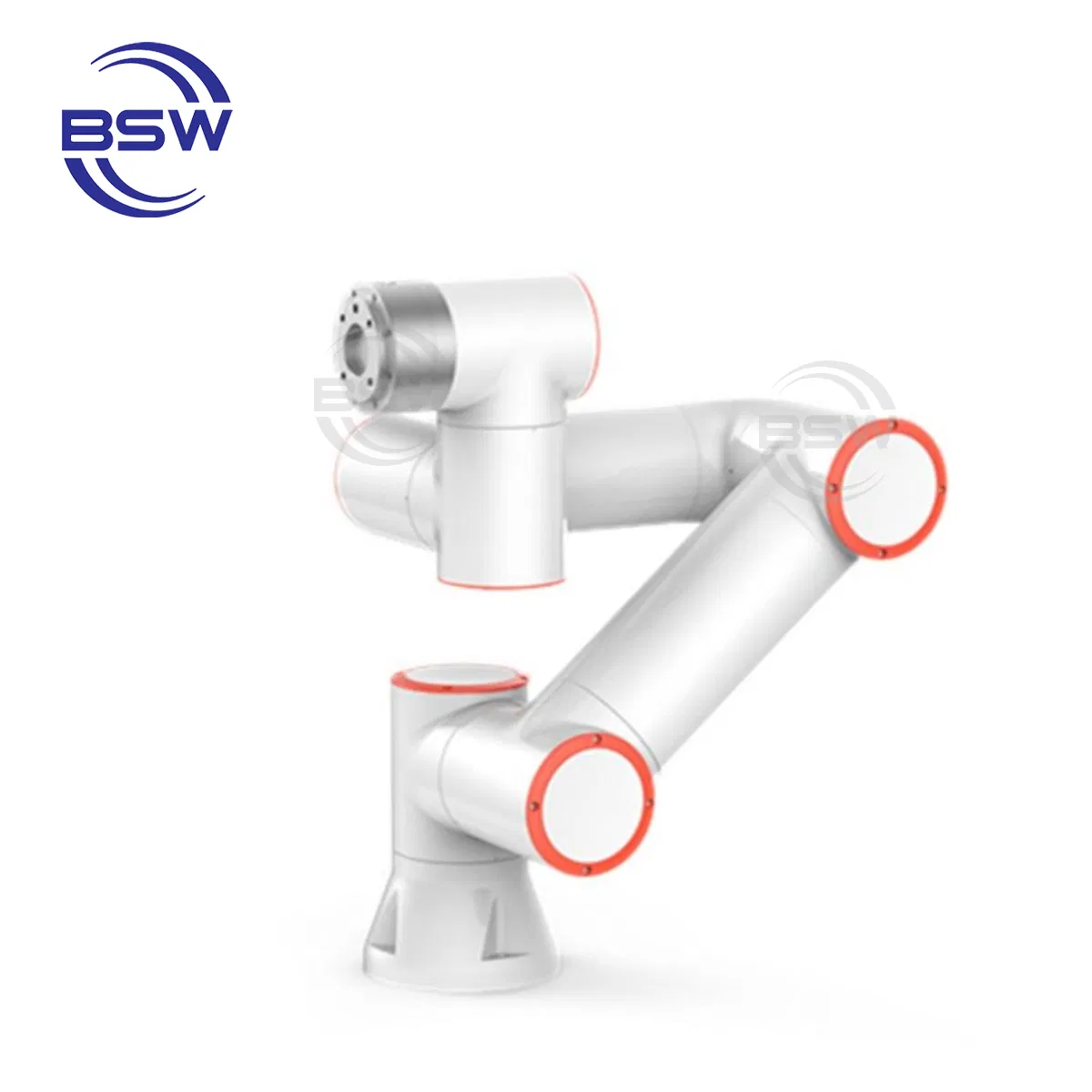

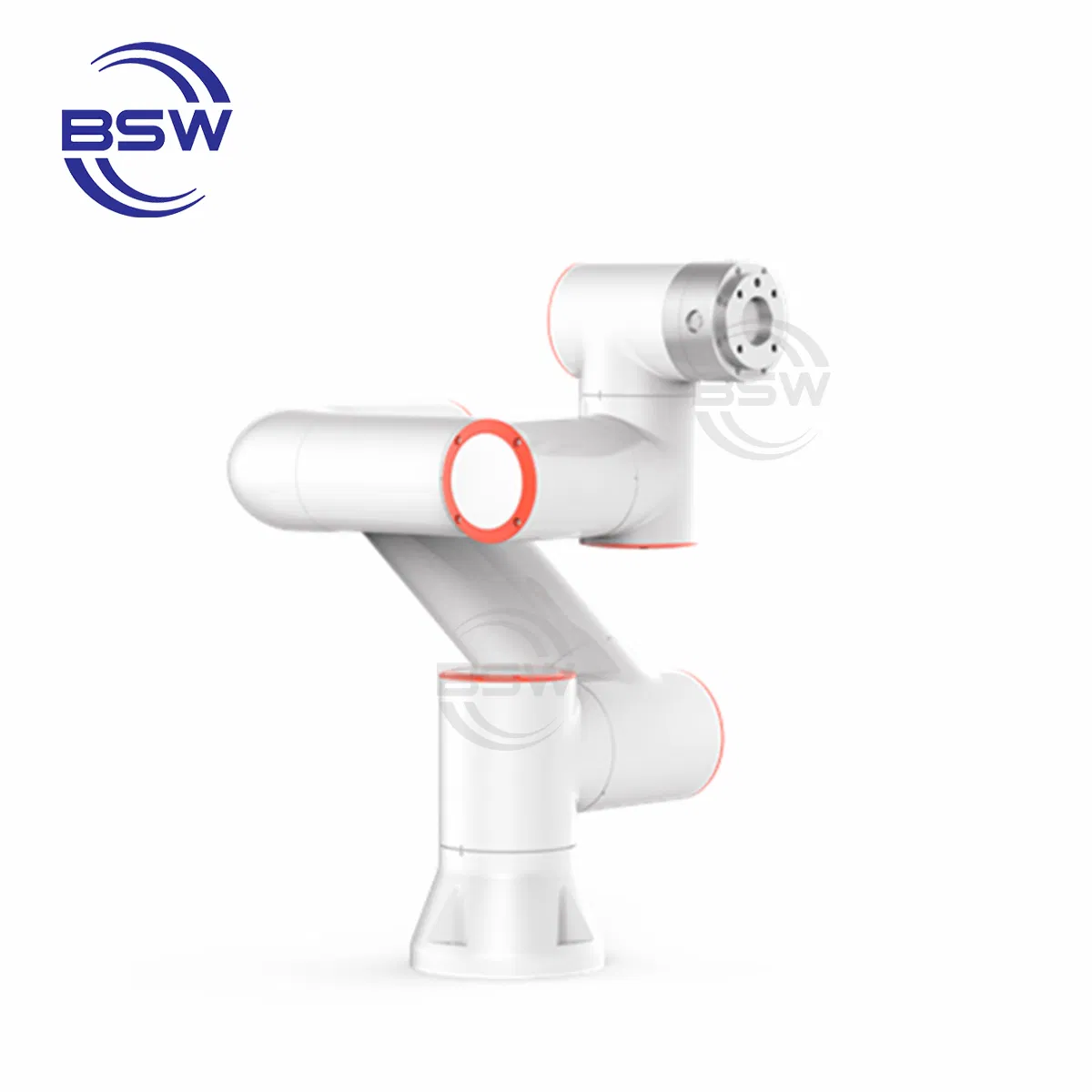

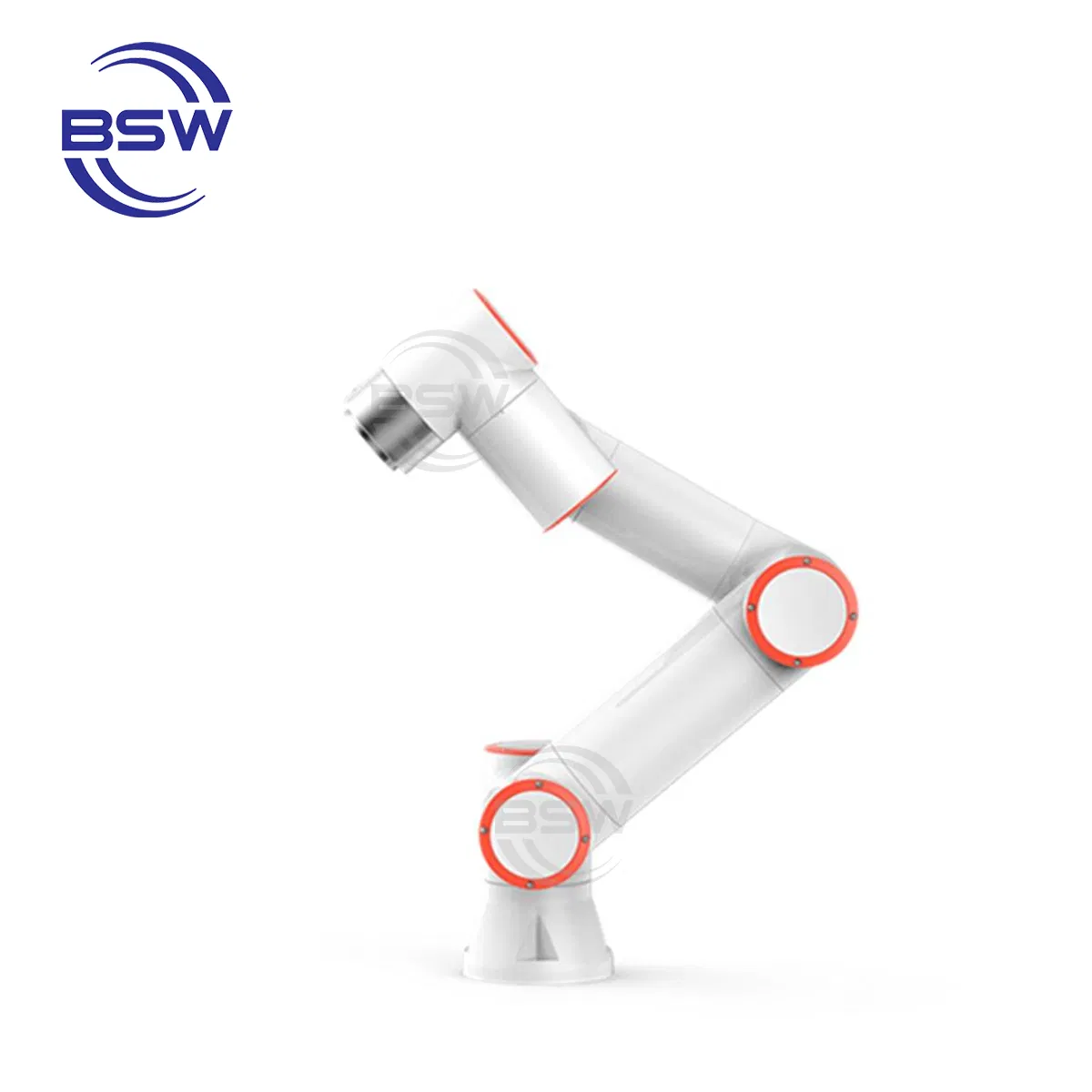

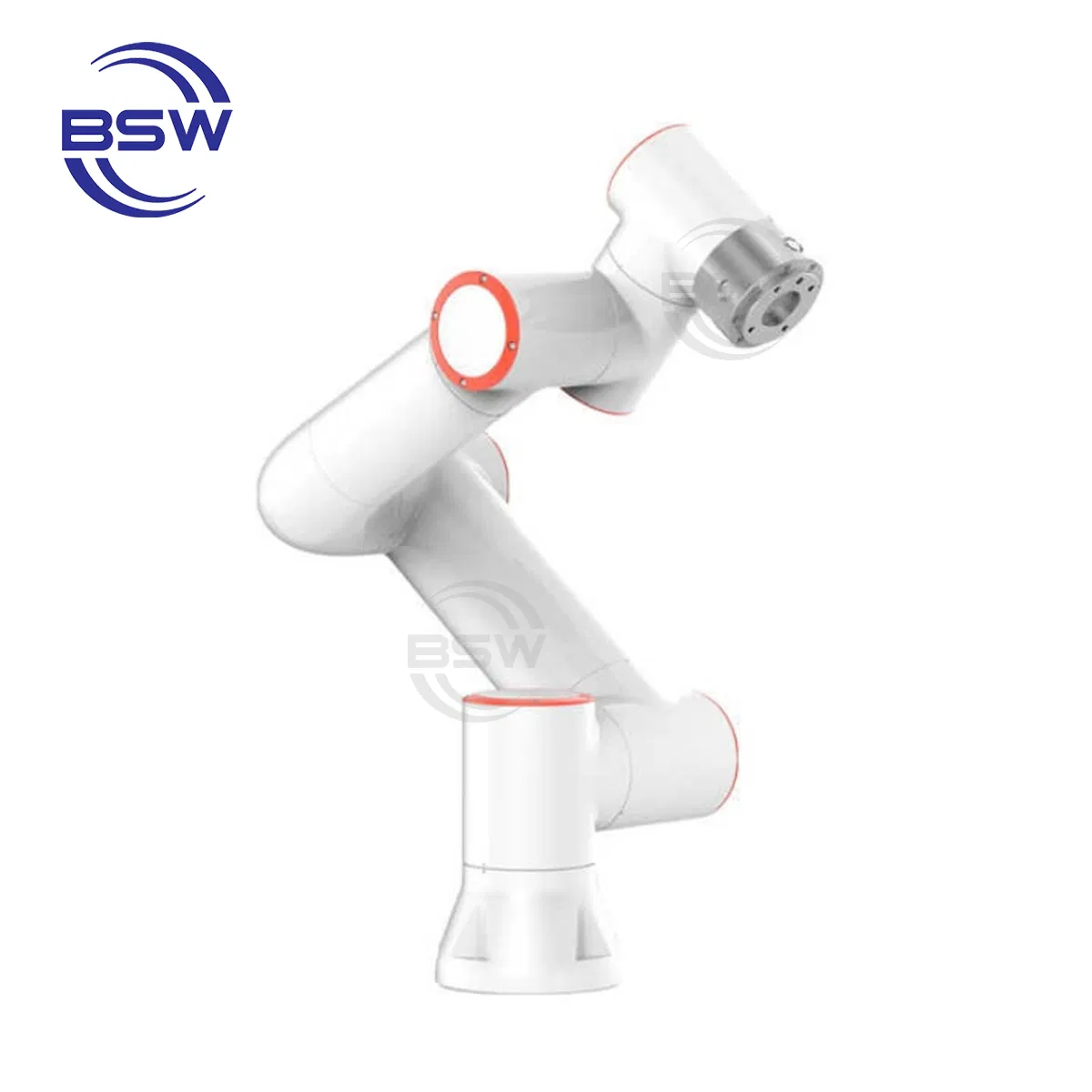

Test Tube Transfer 6-Axis Articulated Robot Portable 3kg Payload Collaborative Robotic Arm
Test Tube Transfer 6-Axis Articulated Robot Portable 3kg Payload Collaborative Robotic Arm
Test Tube Transfer 6-Axis Articulated Robot Portable 3kg Payload Collaborative Robotic Arm
Test Tube Transfer 6-Axis Articulated Robot Portable 3kg Payload Collaborative Robotic Arm
Test Tube Transfer 6-Axis Articulated Robot Portable 3kg Payload Collaborative Robotic Arm
1 / 5
Test Tube Transfer 6-Axis Articulated Robot Portable 3kg Payload Collaborative Robotic Arm
Test Tube Transfer 6-Axis Articulated Robot Portable 3kg Payload Collaborative Robotic Arm
Test Tube Transfer 6-Axis Articulated Robot Portable 3kg Payload Collaborative Robotic Arm
Test Tube Transfer 6-Axis Articulated Robot Portable 3kg Payload Collaborative Robotic Arm
Test Tube Transfer 6-Axis Articulated Robot Portable 3kg Payload Collaborative Robotic Arm

Test Tube Transfer 6-Axis Articulated Robot Portable 3kg Payload Collaborative Robotic Arm

Application: Assembly, Machine Tending, Packaging, Painting, Picking and Placing, Welding
Degrees of Freedom: 6-axis
Drive Mode: Mechanical
Send Inquiry

Product Description

Overview & Basic Info
6-Axis Articulated Robot Arm
Model NO.
FR-3
Payload Capacity
3 kg
Product Name
6 Axis Robot Arm
Robot Type
6 Axis Articulated Robot
Weight (Kg)
15
Dimension (L*W*H)
80*45*45
Reach
622mm
Power
224W
Voltage
220V
Operating Temp
0-45ºC
Materials
Aluminium, Steel
Origin
China
Product Parameters
Model numberFR3
Payload3kg
Reach622mm
Degrees of freedom6 rotating joints
HMI10.1 inch teach pendant or mobile terminal Web App
Axis movementWorking rangeMaximum speed
1 Axis±175°±180°/s
2 Axis+85°/ -265°±180°/s
3 Axis±150°±180°/s
4 Axis+85°/ -265°±180°/s
5 Axis±175°±180°/s
6 Axis±175°±180°/s
Typical TCP speed1m/s
IP classificationIP54
CommunicationI/O, TCP/IP, Modbus_TCP/RTU, Profinet
Development environmentC#/C++/Python/java/ROS
Product Display
Display 1
Display 2

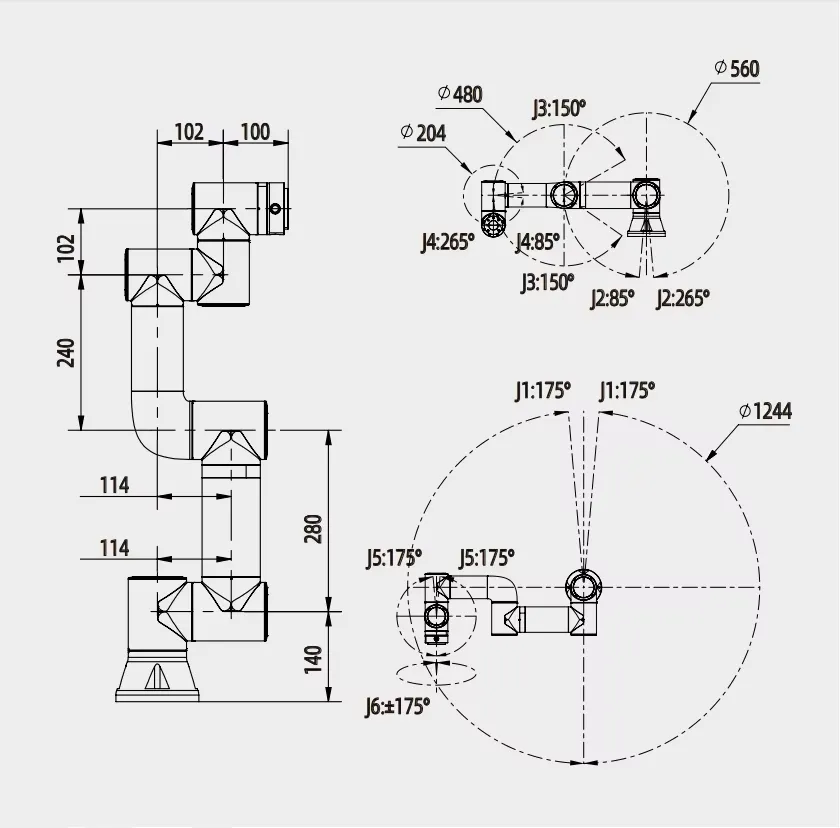

Display 3

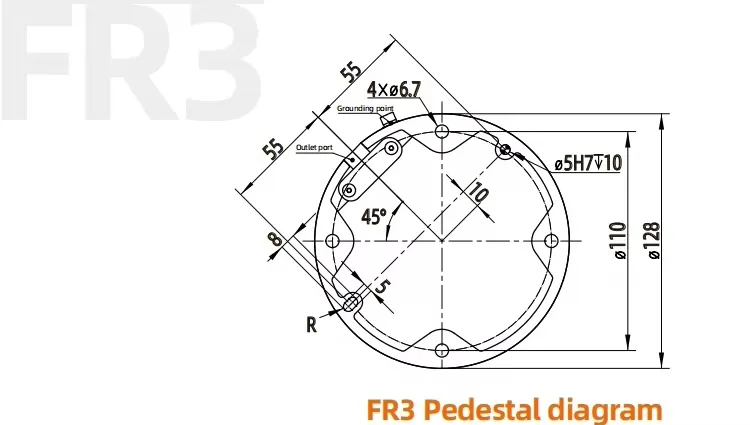

Display 4

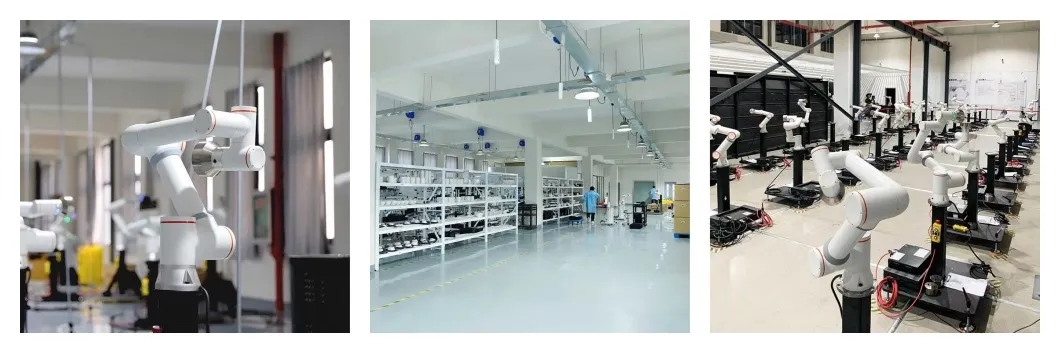

Display 5
Display 6
Product Application

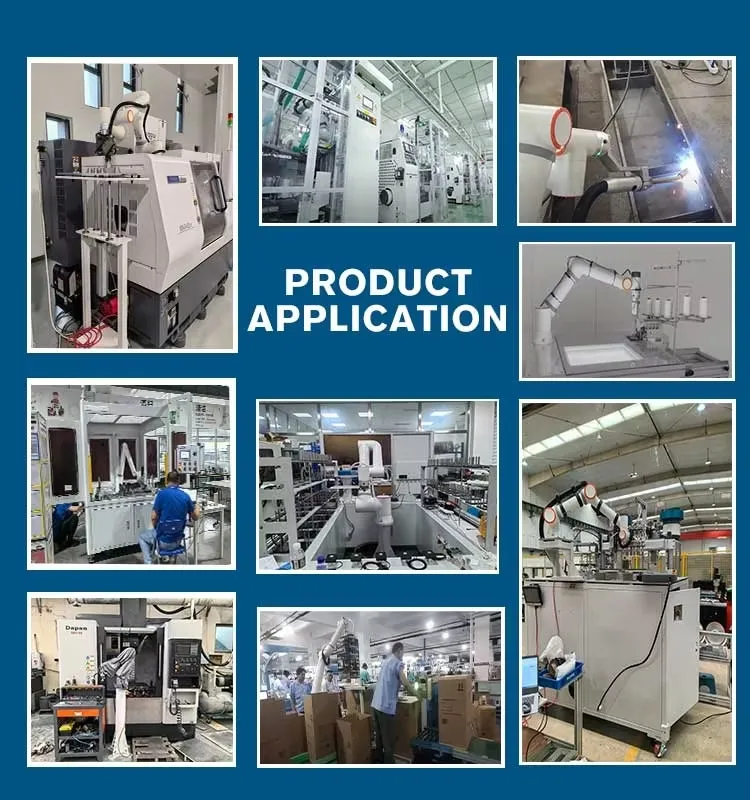

Application Case
Certifications
Cert 1
Cert 2
Packaging & Shipping
Packing 1
Packing 2
Packing 3
Frequently Asked Questions
FAQ Header
Who are we?
We are a collaborative robot company that prioritizes independent research and development of all core components. Our R&D and production centers are specialized in advanced robotic solutions.
What is the warranty period?
We provide a standard warranty of 12 months for our robotic arms and core components.
Why choose our collaborative robots?
We offer excellent quality products, highly competitive pricing, and support from a professional technical team.
How do we guarantee quality?
We always provide a pre-production sample before mass production and conduct a strict final inspection before shipment.
What delivery and payment terms are accepted?
Accepted Delivery Terms: FOB, EXW; Accepted Payment Currency: USD; Accepted Payment Type: T/T, Western Union.
Which development environments are supported?
Our robots support various environments including C#, C++, Python, Java, and ROS for flexible integration.
