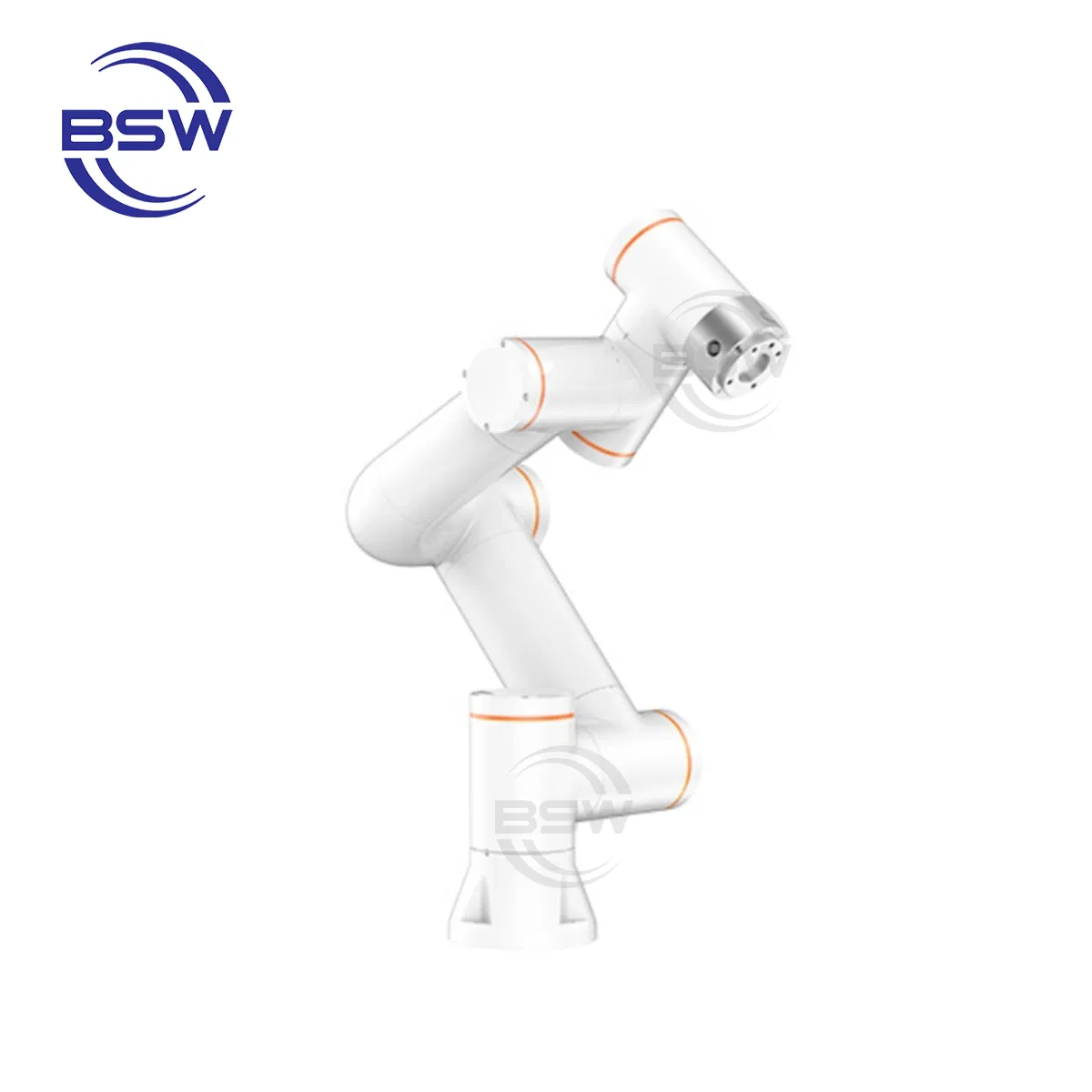

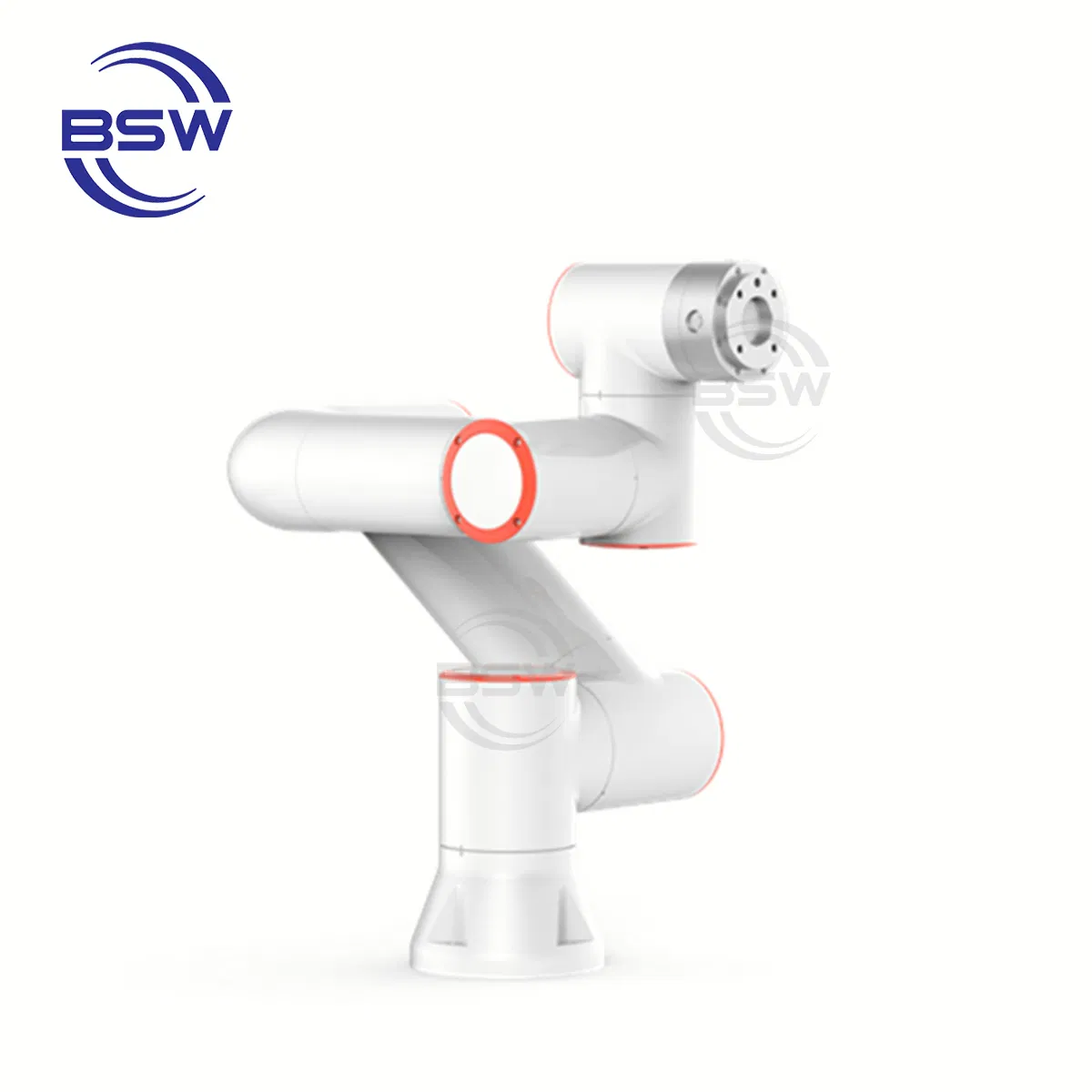

Precision Gluing and Dispensing Collaborative Robot Arm 6-Axis Industrial Cobot Arm

1 / 5

Precision Gluing and Dispensing Collaborative Robot Arm 6-Axis Industrial Cobot Arm

Application:	Assembly, Machine Tending, Packaging, Painting, Picking and Placing, Welding
Degrees of Freedom:	6-axis
Drive Mode:	Mechanical

Send Inquiry

Product Description

Overview

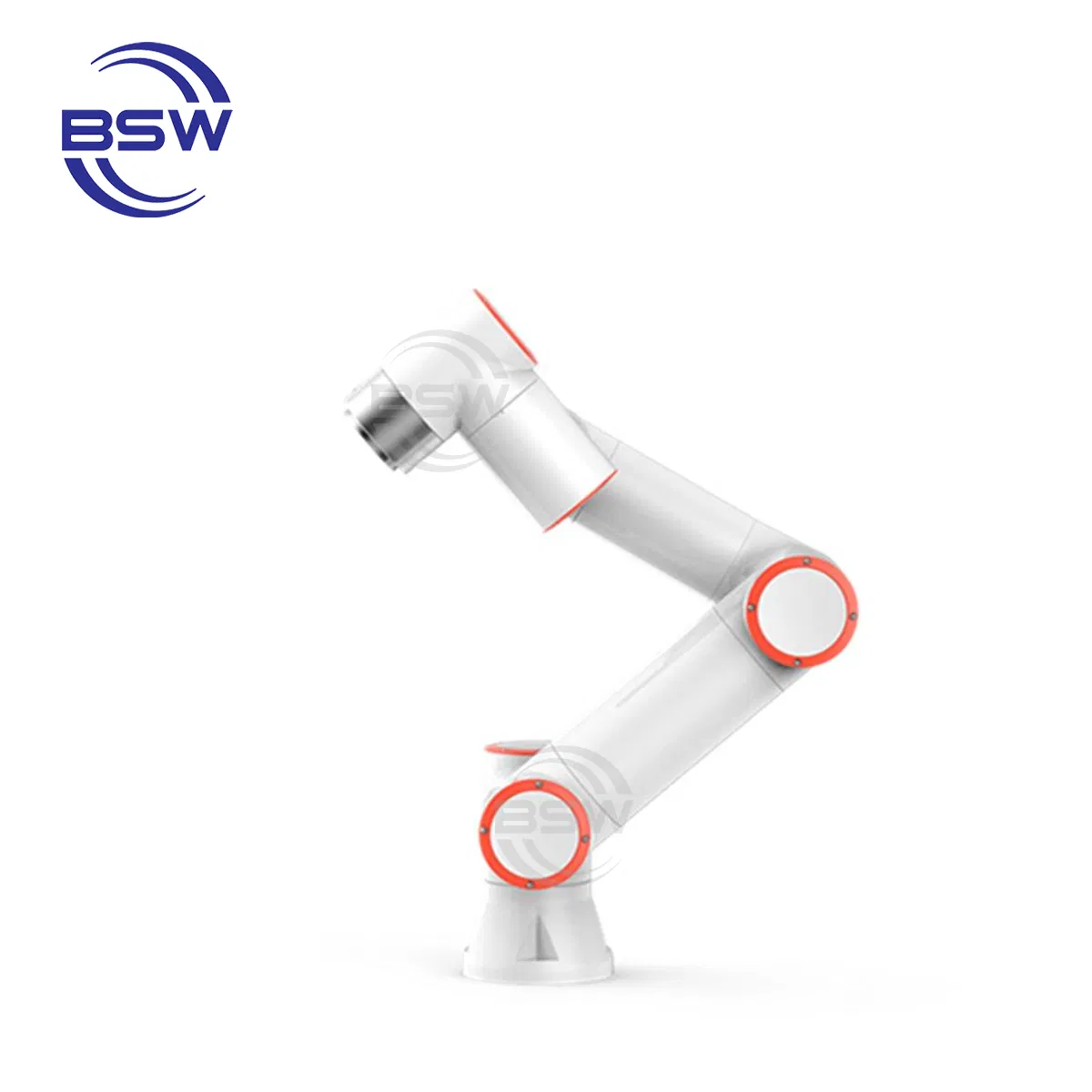

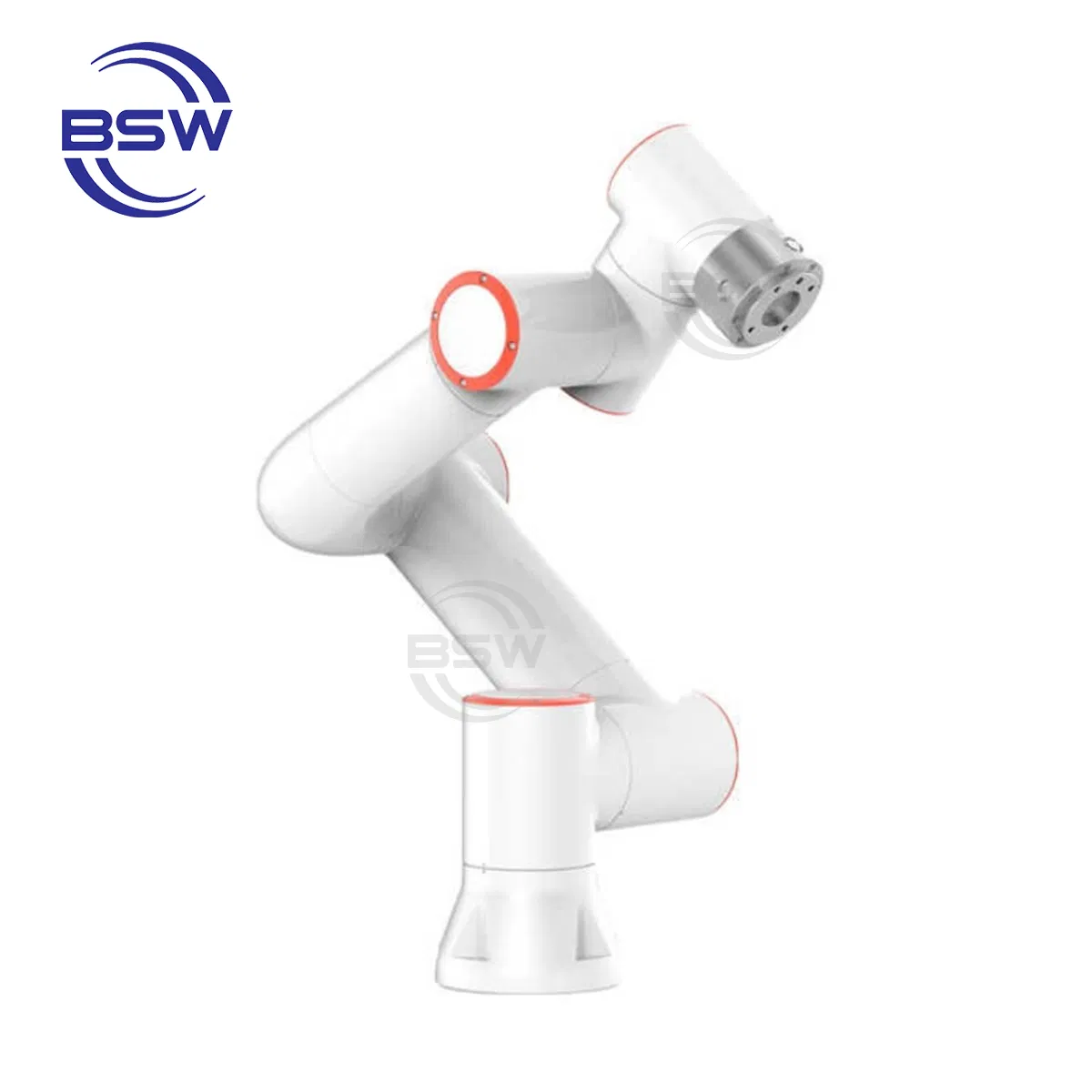

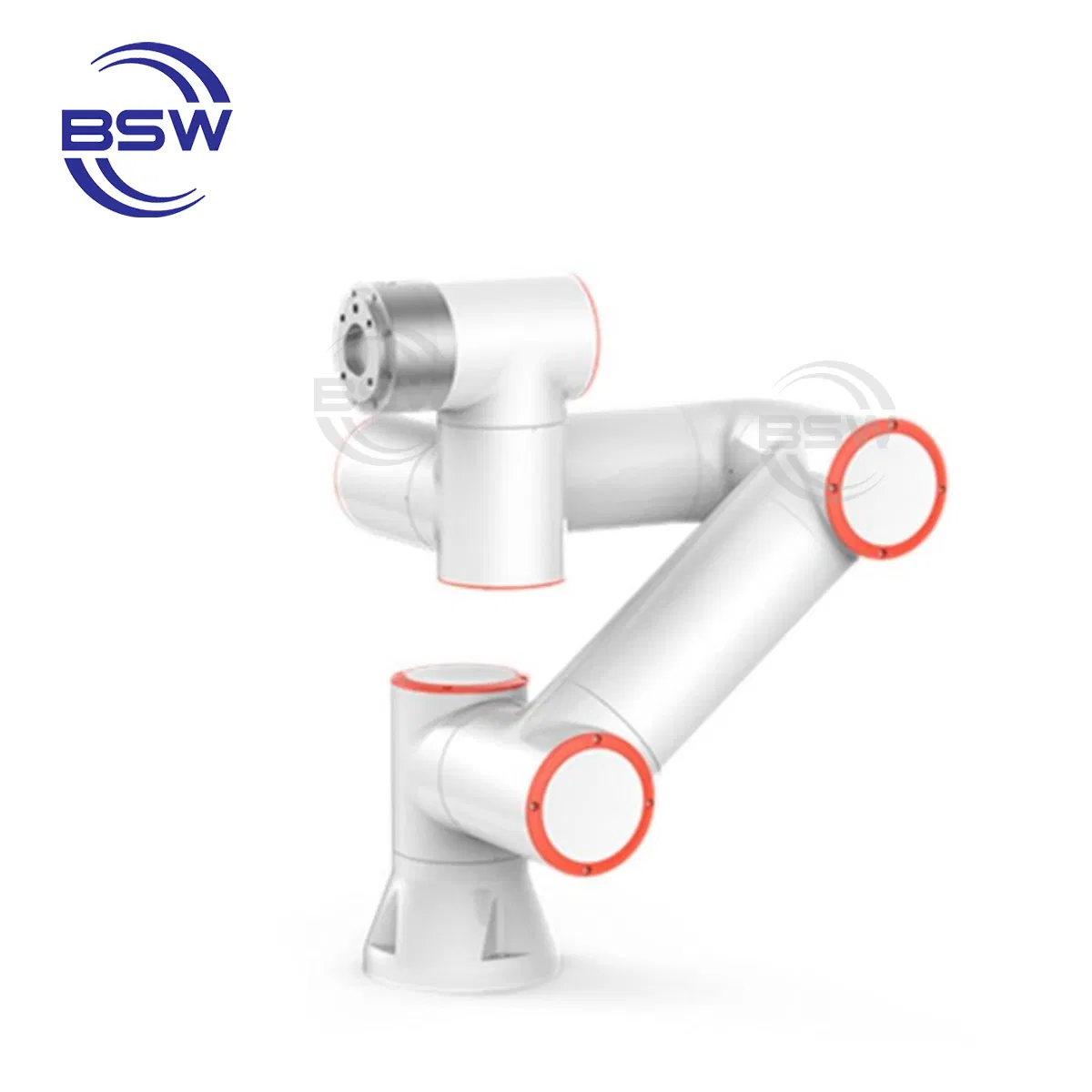

Precision Gluing and Dispensing Collaborative Robot Arm

Model NO.:FR-3

Payload Capacity:3 kg

Robot Type:6 Axis Articulated Robot

Weight (Kg):15

Dimension(L*W*H):80*45*45

Power(W):224W

Voltage:220V

Reach:622mm

Materials:Aluminium, Steel

Operating Temp:0-45ºC

Origin:China

Product Parameters

Parameter	Specifications
Model number	FR3
Payload	3kg
Reach	622mm
Degrees of freedom	6 rotating joints
HMI	10.1 inch teach pendant or mobile terminal Web App

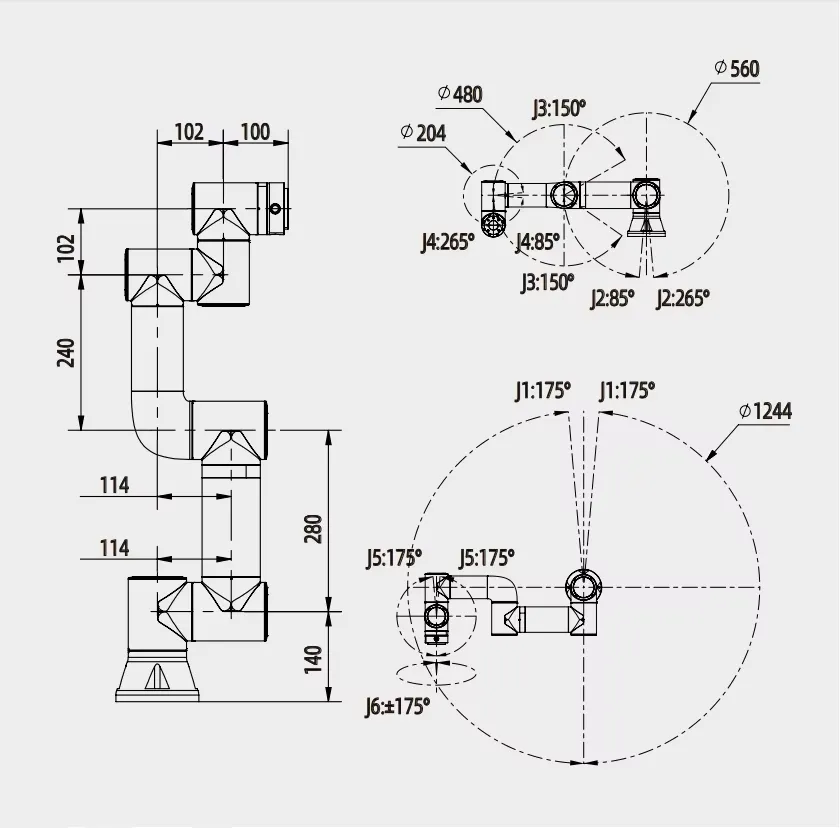

Axis Movement	Working Range	Maximum Speed
1 Axis	±175°	±180°/s
2 Axis	+85°/ -265°	±180°/s
3 Axis	±150°	±180°/s
4 Axis	+85°/ -265°	±180°/s
5 Axis	±175°	±180°/s
6 Axis	±175°	±180°/s
Typical TCP speed	1m/s
IP classification	IP54
Development environment	C#/C++/Python/java/ROS

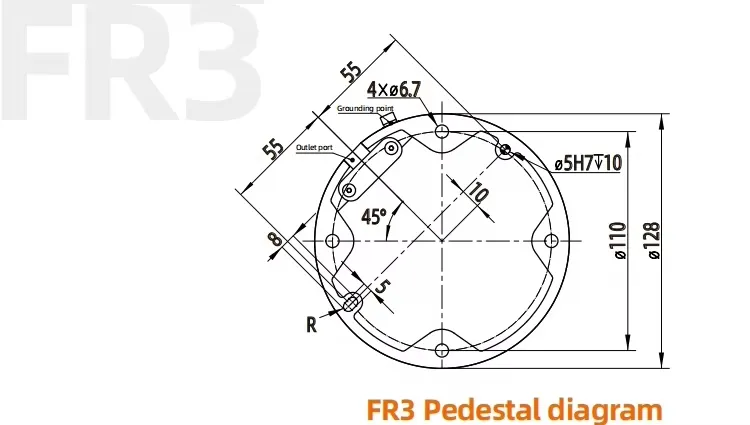

Footprint	128mm
Operating humidity	90%RH (non-condensing)

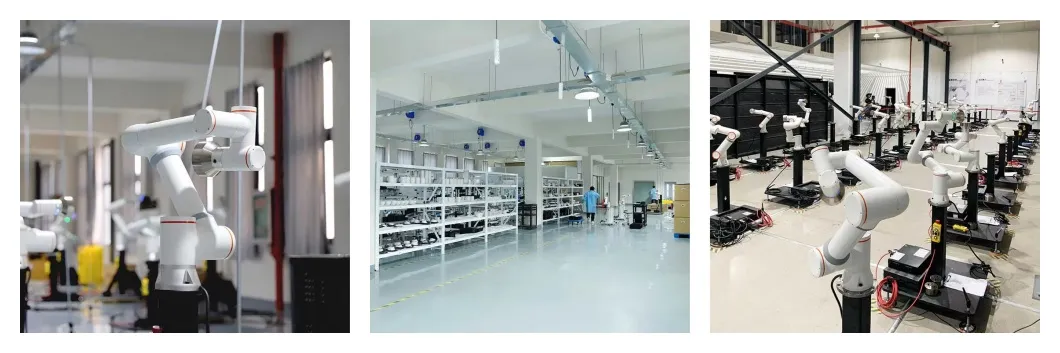

Product Display

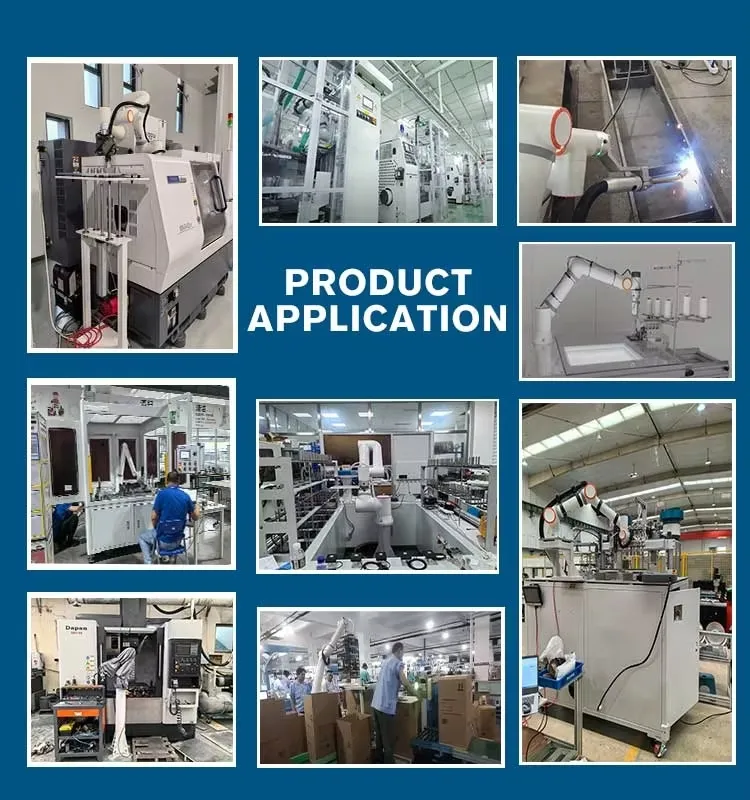

Product Application

Certifications

Packaging & Shipping

FAQ

Who are we?

We are a collaborative robot company that prioritizes independent research and development of all core components. Our R&D center and production bases are strategically located to serve the market efficiently.

What is the warranty period?

We provide a 12-month warranty on our products.

Why choose our collaborative robots?

We offer excellent quality products, highly competitive pricing, and support from a most professional technical team.

How can we guarantee quality?

We always provide a pre-production sample before mass production and conduct a final inspection before shipment to ensure high standards.

What services can we provide?

Accepted Delivery Terms: FOB, EXW; Accepted Payment Currency: USD; Accepted Payment Type: T/T, Western Union; Languages: English, Chinese.

What are the core specs of the FR-3 model?

The FR-3 features a 3kg payload capacity, 622mm reach, and a lightweight design of approximately 15kg, suitable for precision tasks.
