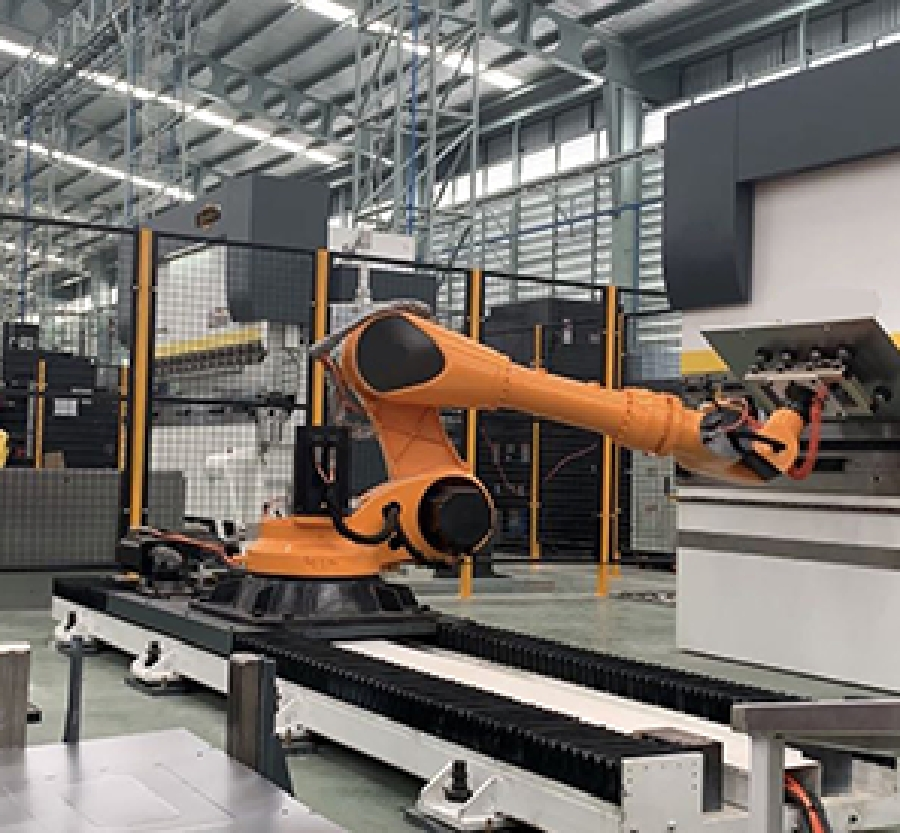

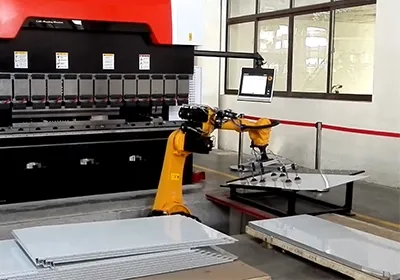

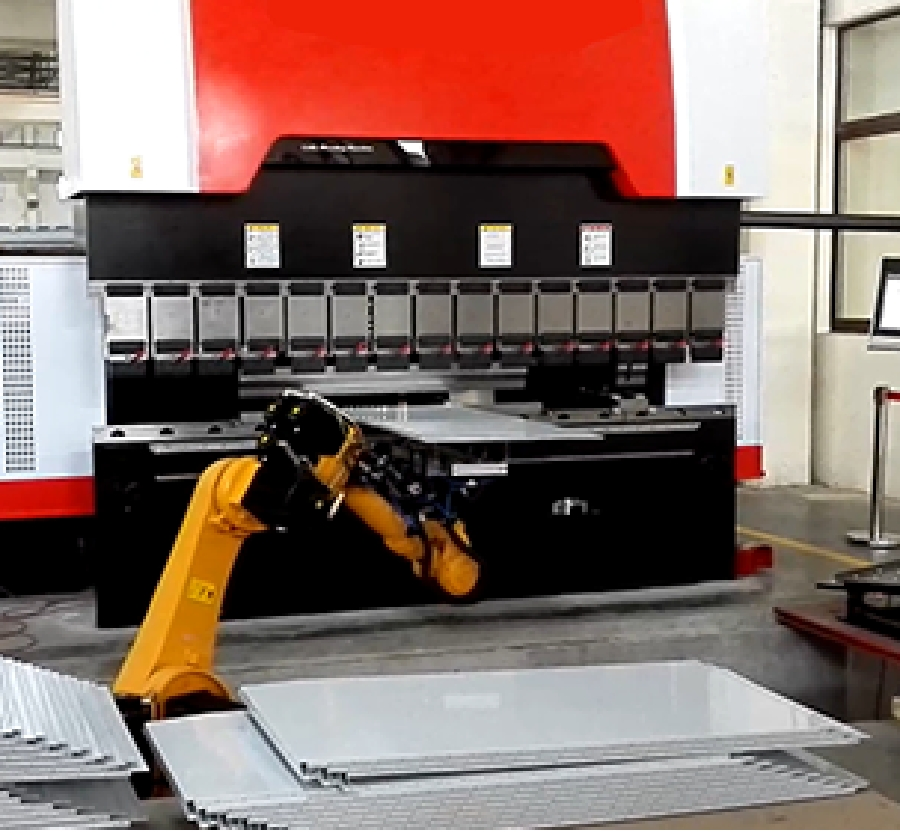

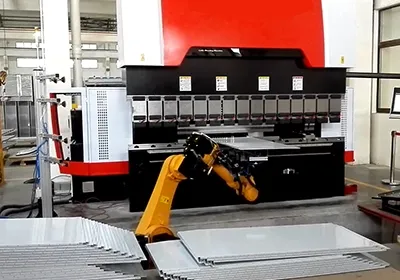

45KG Load Bending Robot Non-Standard Customization Automatic Production Line

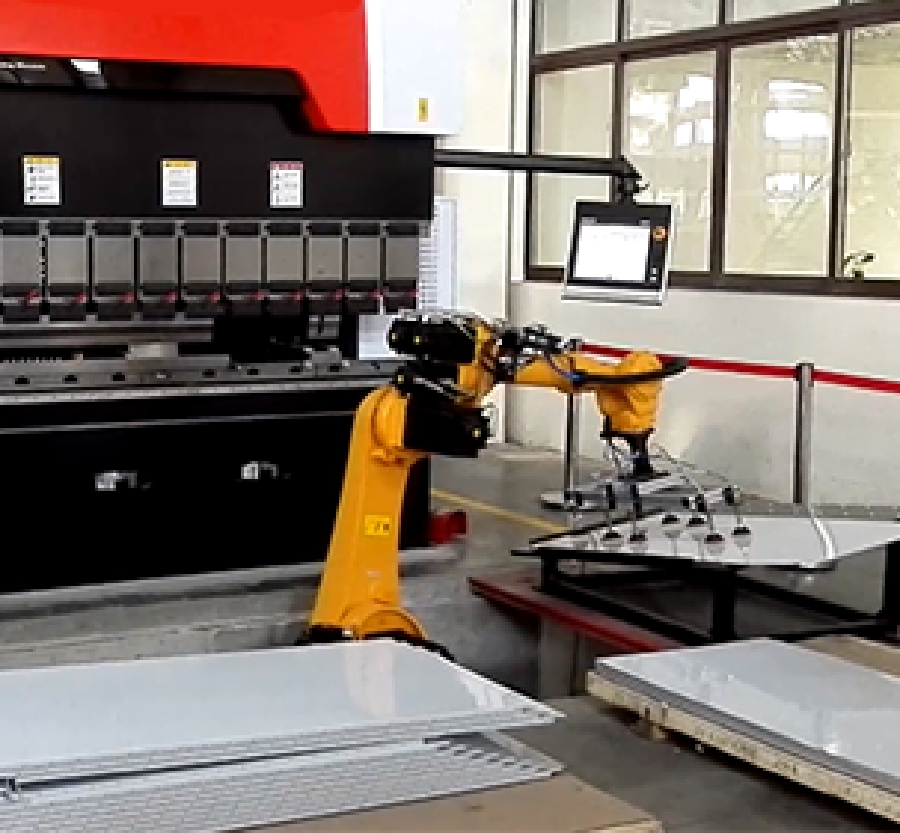

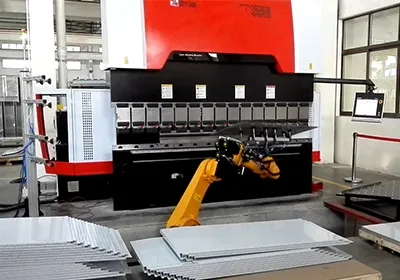

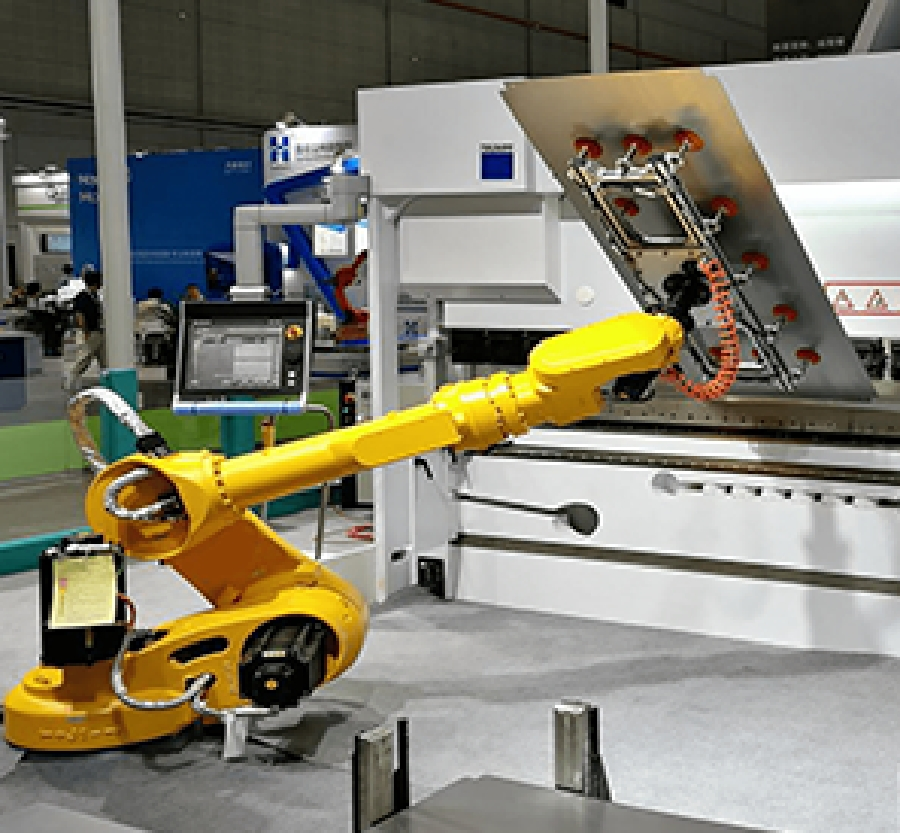

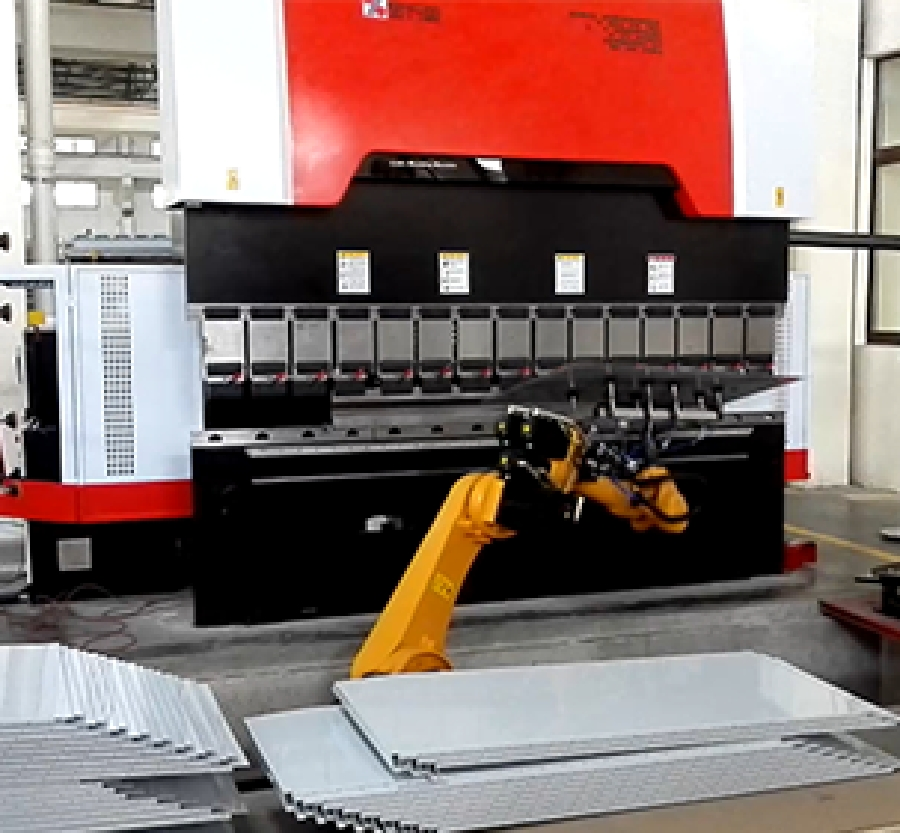

The bending robot achieves rapid positioning, lifting, and movement through high-performance servo motors. The entire production line is controlled by a microcomputer and linked with the press machine for interlocking operation. This effectively saves manpower, reduces labor costs, improves work safety, and enhances production capacity. Vacuum suction cups, electromagnetic suction iron, and pneumatic fixtures are used in combination to adapt to different workpieces.
| Arm span | 2200mm | |
| Repeat positioning accuracy | ±0.08mm | |
| Maximum load | 45KG | |
| Weight | 520KG | |
| Axis number | 6 | |
| Actuation range | J1 | ±180° |
| J2 | -67°~+150° | |
| J3 | -190°~+66° | |
| J4 | ±170° | |
| J5 | ±130° | |
| J6 | ±360° | |
| Maximum speed | J1 | 110°/s |
| J2 | 105°/s | |
| J3 | 130°/s | |
| J4 | 215°/s | |
| J5 | 160°/s | |
| J6 | 205°/s | |
Classification of Bending Robots:
1. Hybrid Electric: Combines hydraulic and electric drive for versatile metal sheet operations.
2. Electro-hydraulic CNC: Uses advanced sensors and control systems for high-precision real-time monitoring.
3. Hydraulic Bending: Uses powerful hydraulic cylinders driven by CNC systems for stable performance.
Standard Warranty: 12 months or 2,000 operating hours.
Extended Warranty: Optional coverage up to 36 months.
Global Support: 24/7 technical assistance and spare parts supply.
Training: On-site or remote operation and maintenance training.
