📊 Overview
Model NO.
ZMD-2010A-GG-12DG
Control Mode
Continuous Path Control
📦 Packaging & Delivery
Package Size
3000.00cm * 3000.00cm * 3000.00cm
🤖 Product Description

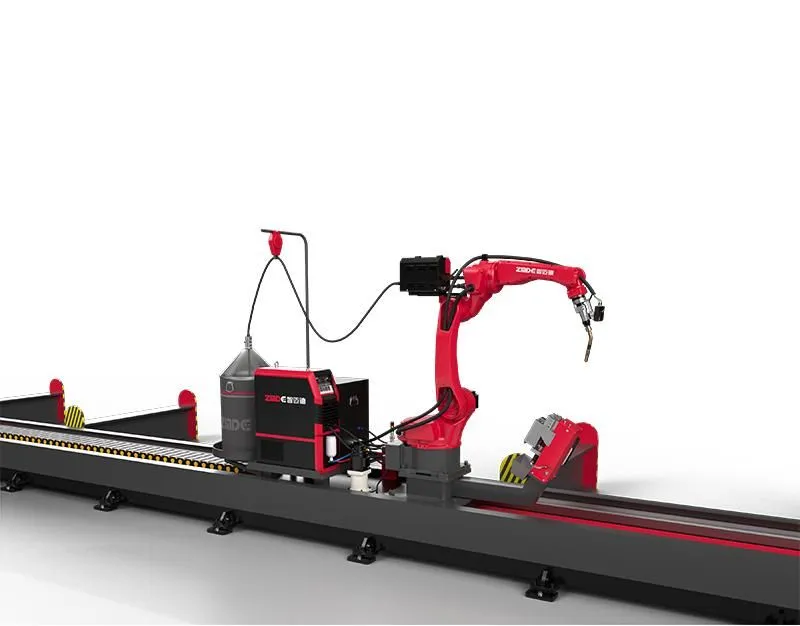

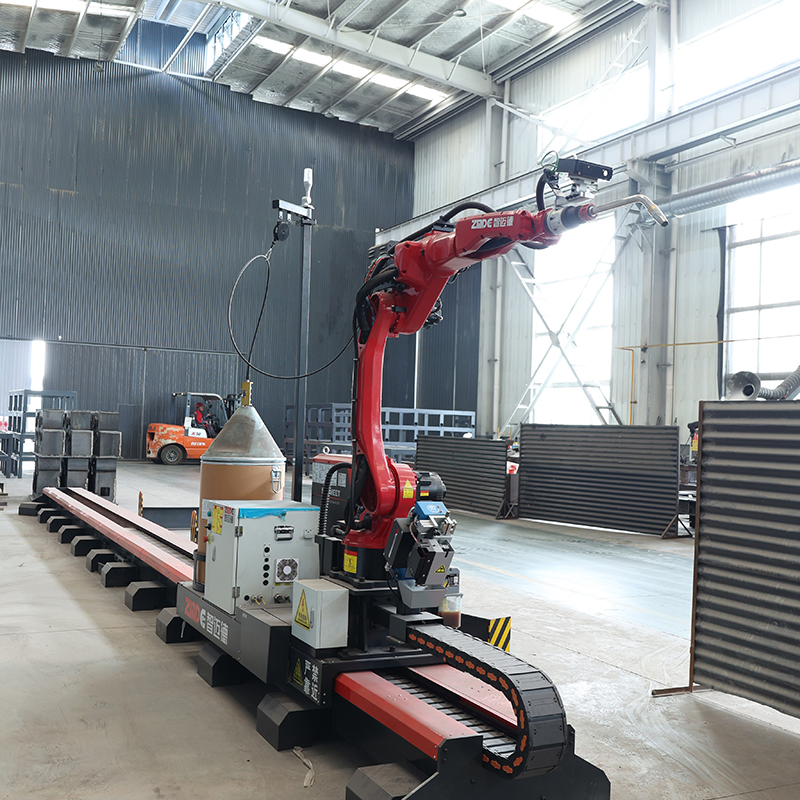

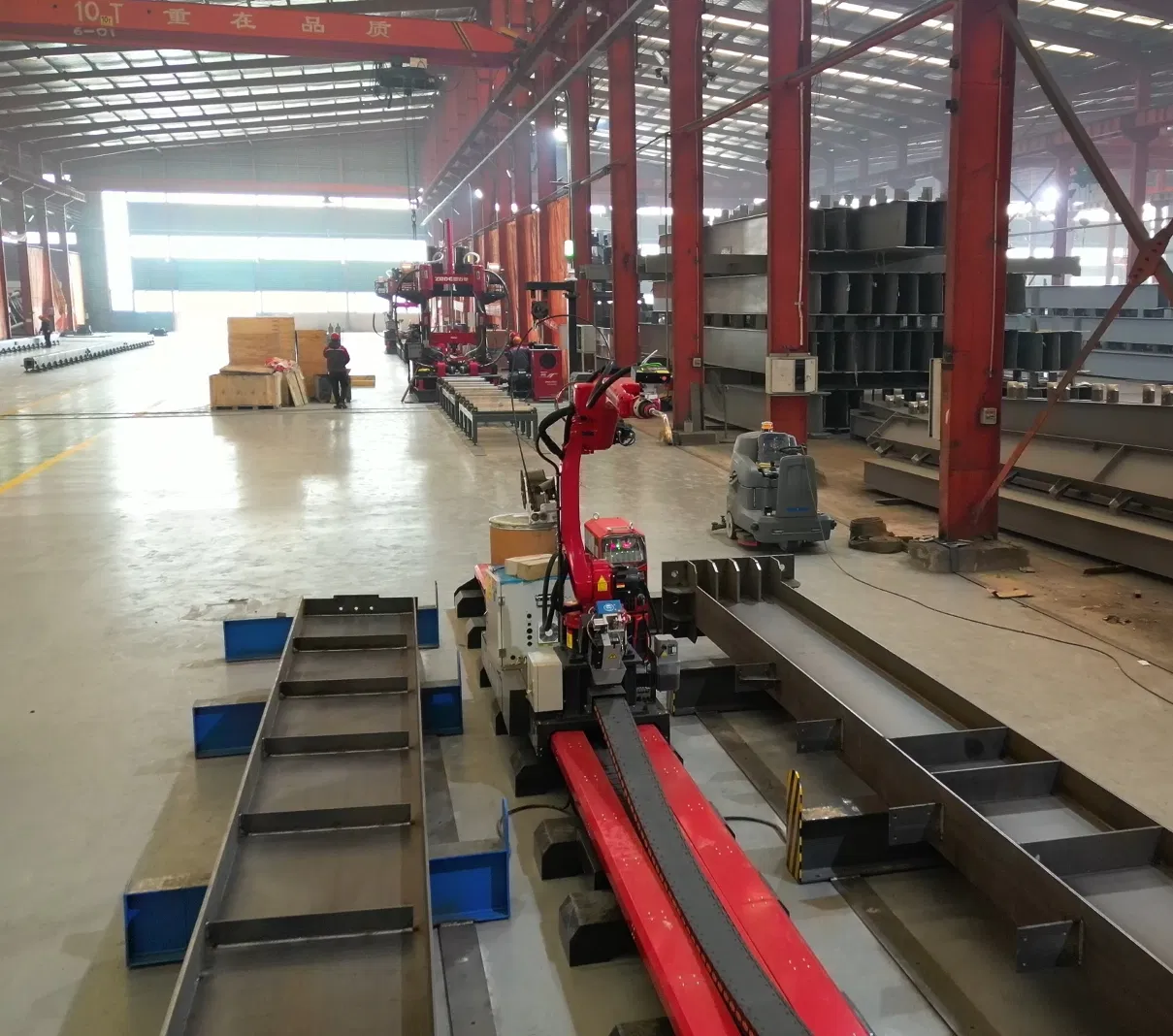

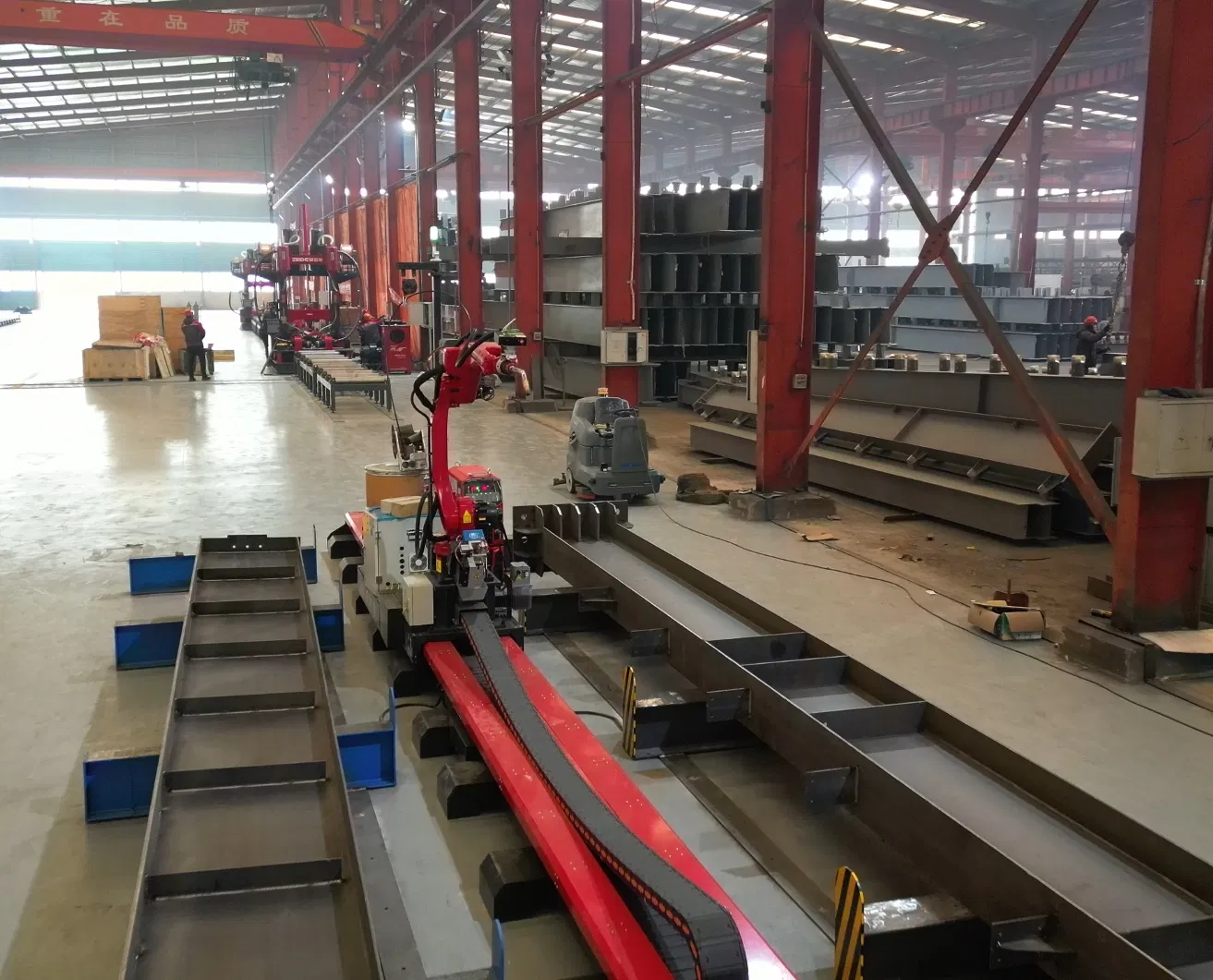

Hot Industrial Welding Robot Arm designed specifically for H T Beam production lines. This innovative 6-axis control TIG welding arm ensures superior precision and efficiency in ground rail welding.
⚙️ Technical Parameters
| ZMD-2010A-GG-12DG Specifications |
| Conditions of Use |
0-45ºC, 20-80%RH |
| Type |
Vertical joint 6 degrees of freedom |
| Maximum Reachable Range |
1598mm |
Protection Class |
Comparable to IP65 |
| Installation |
Ground level |
Positional Repeatability |
±0.08 |
| Maximum Load Weight |
6KG |
Body Weight |
168KG |
| Power Capacity |
2KVA |
Main Function
» Weld identification and welding of H/T beam accessory plates.
Applicable Industry
» Steel structure industry, assembly building, bridge engineering, shipyard, etc.
⭐ Advantages
Highly Adaptable and Intelligent
1. Perfectly suited for both multi-batch and small batch welding needs.

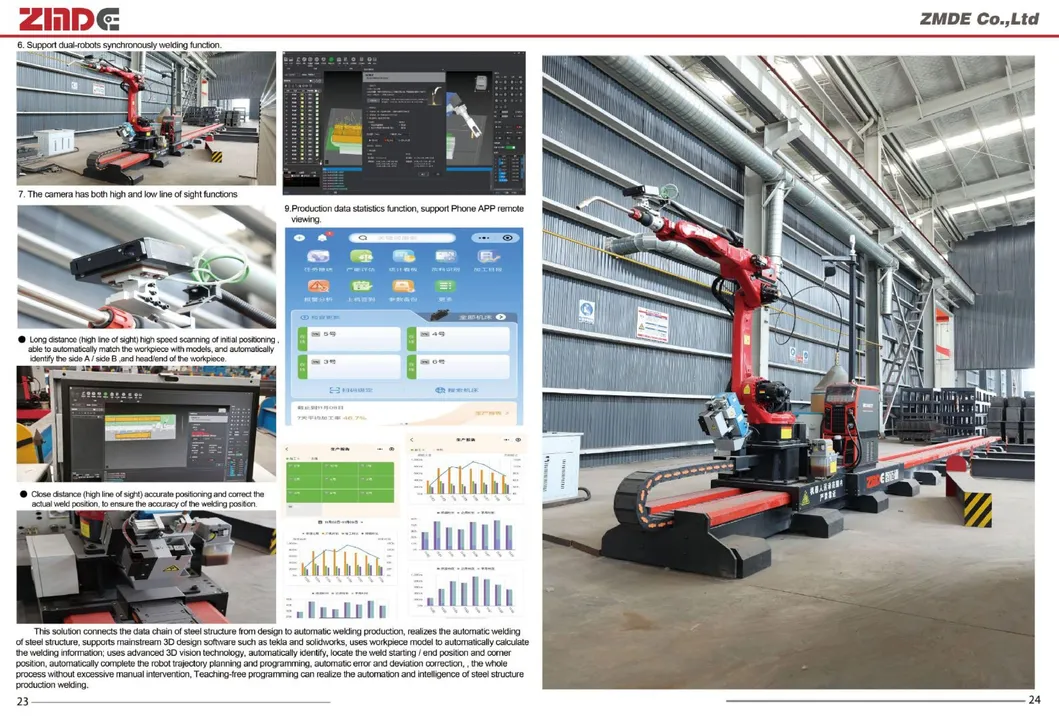

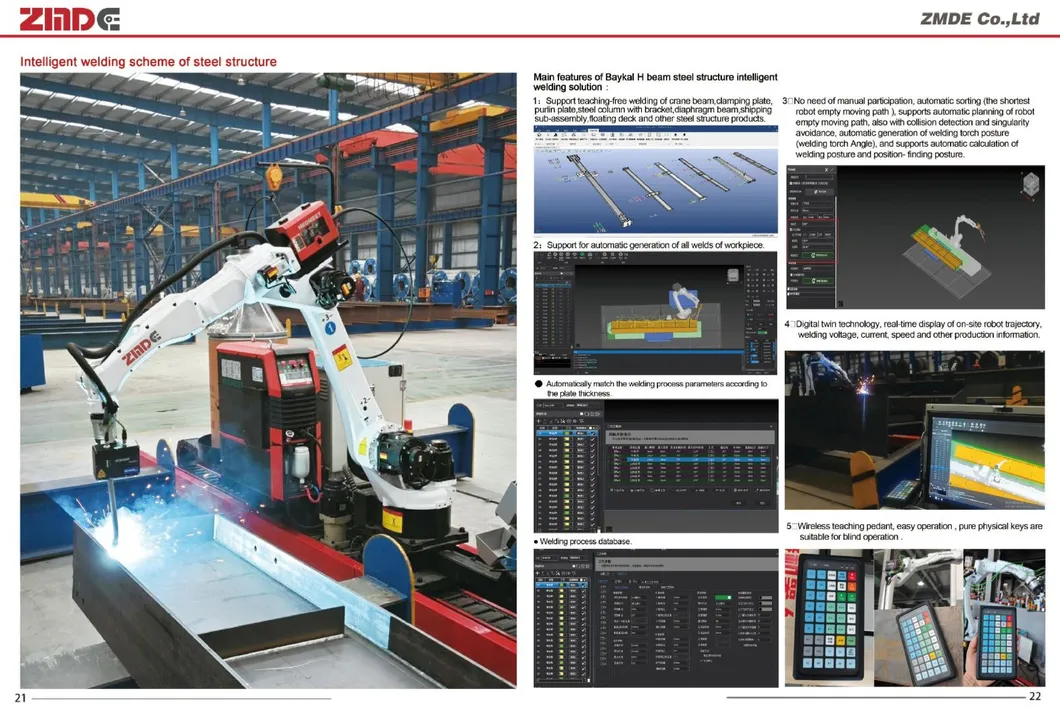

2. Teach-free programming: System autonomously calculates welding attitude and paths.
3. Seamlessly import models from Tekla, SolidWorks, and other 3D software.
4. Digital twin technology synchronizes software movements with the real workstation.
Long Service Life and Easy Maintenance
1. Internalized pipeline design eliminates the risk of hanging wires.
2. Fully enclosed floor track prevents welding spatter and dust wear.
3. Features collision detection and singularity avoidance to enhance equipment lifespan.

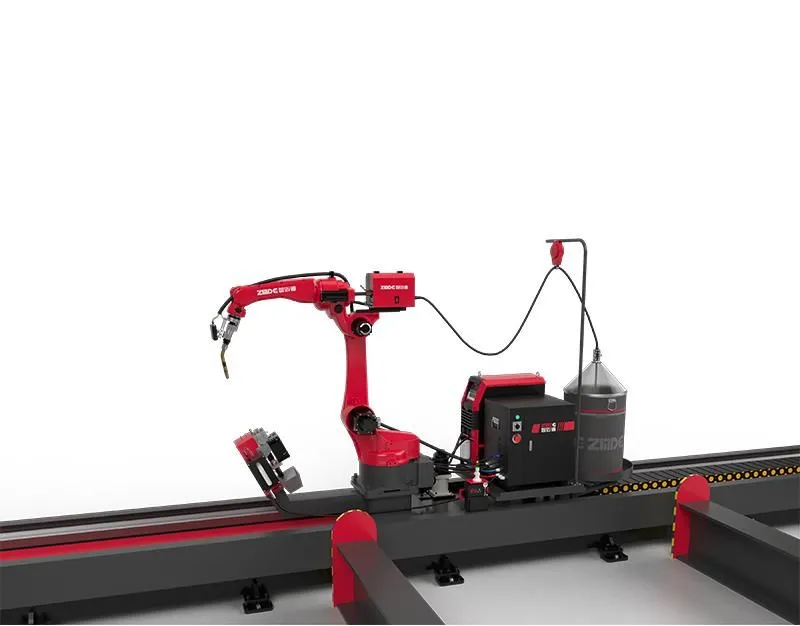

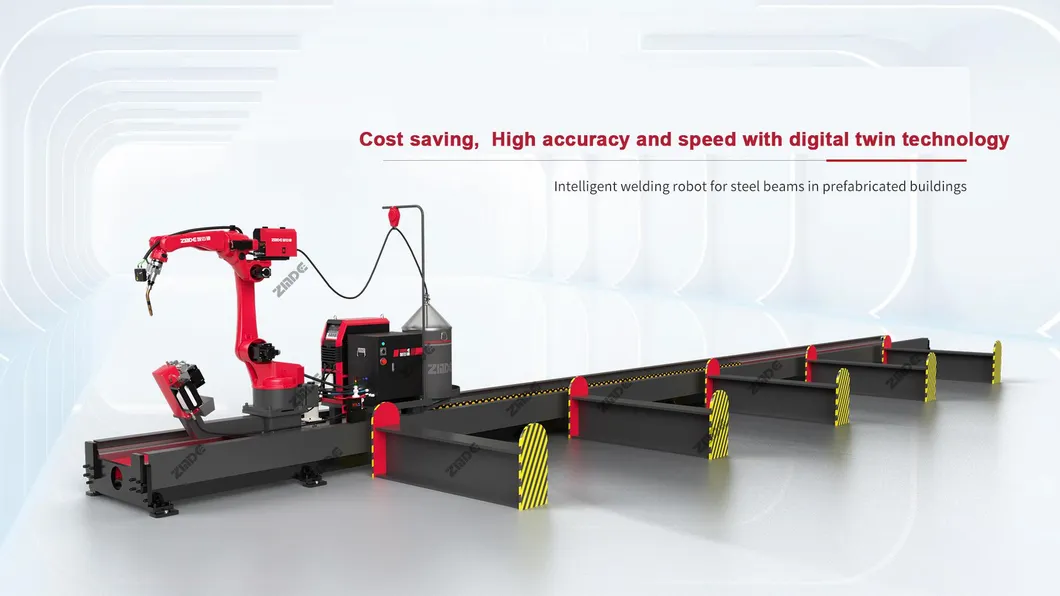

| System Components |
|---|
| Welding Robot | ZMD-2010A (arm span 2 meters) |
| Welding Torch | TRM602W HD-22L anti-collision torch |
| Welding Power Source | Megmeet Dex2500MPR Special Power Supply |
| Ground Rail | ZMD6100A-12 (load 1 ton, total length 12 meters) |

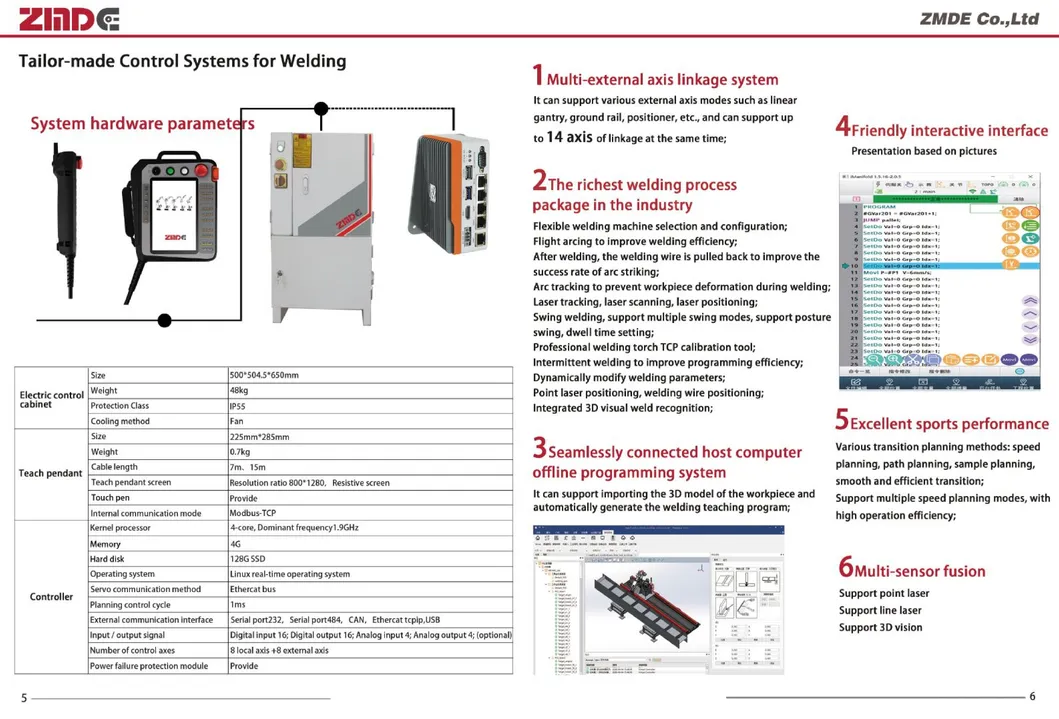

| Intelligent System | CypTronic Pro-E |
| Laser Vision Sensor | BCW600P |
| Offline Programming Software | CypWeidV2.0 |

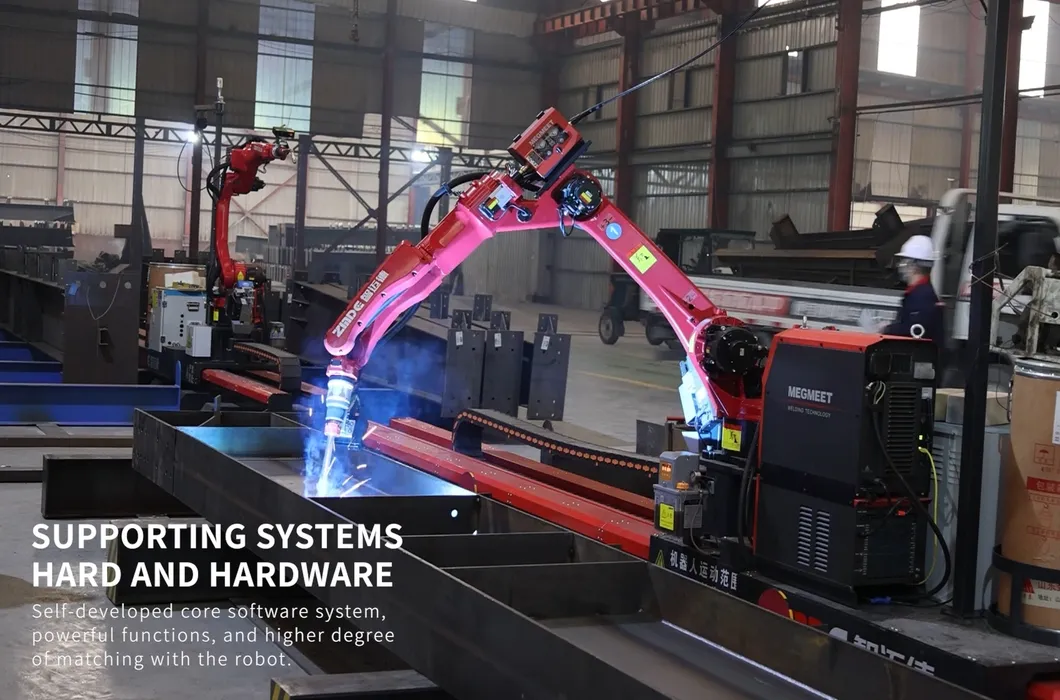

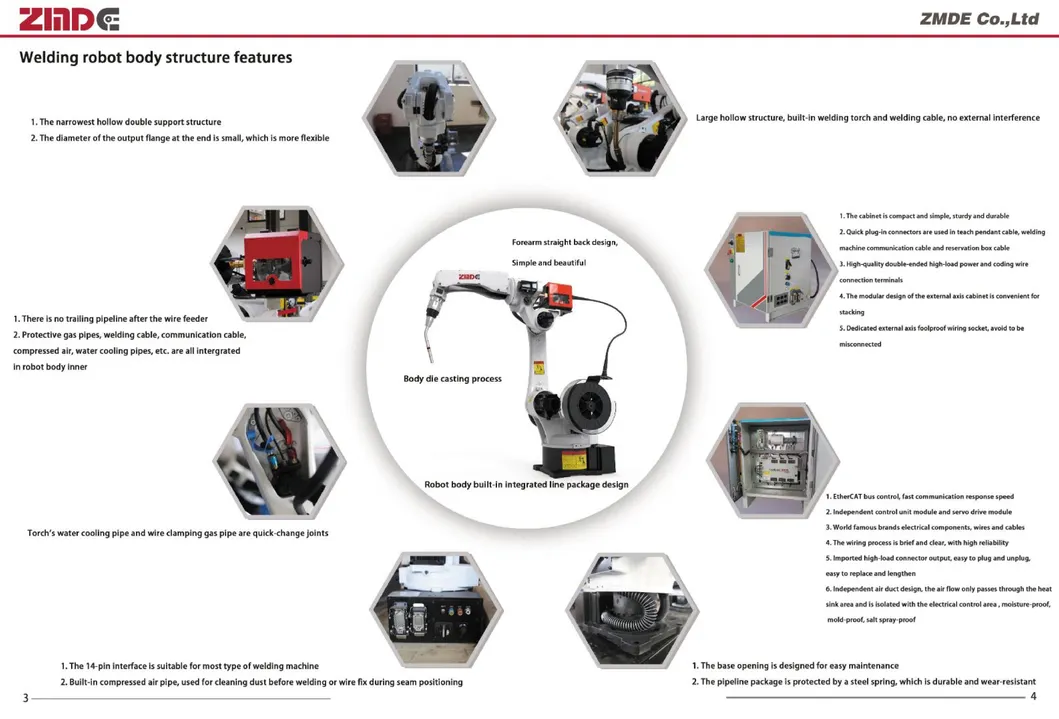

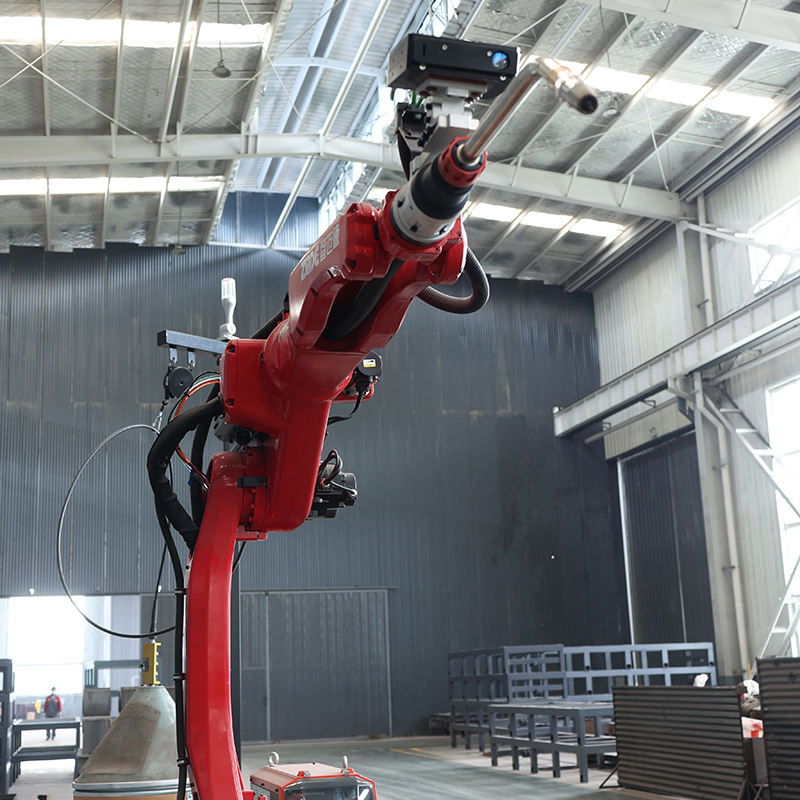

Our welding robot features a unique hollow structure with built-in welding cables, allowing seamless operations in tight spaces. Its compact, lightweight design is dust-proof and drip-proof, ensuring high safety standards. Equipped with a protective body cover, it remains reliable even in harsh environments. Boasting a large working space and rapid running speeds, this robot offers high repeat positioning accuracy.
❓ FAQ
1. What is the minimum order quantity (MOQ)?
The minimum order quantity is 1 unit.
2. What are the accepted payment terms?
We accept L/C (Letter of Credit) and T/T (Telegraphic Transfer).
3. How long is the delivery time for the robot system?
Standard delivery time is approximately 30 days.
4. What is the warranty period for the equipment?
The equipment comes with a 1-year warranty. Original manufacturer parts can be provided for lifelong maintenance support.
5. Which industries is this welding robot arm suitable for?
It is ideal for the steel structure industry, assembly building, bridge engineering, and shipyards.
6. Does the robot support offline programming?
Yes, it features offline programming capability and integrates with 3D modeling software like Tekla and SolidWorks for efficient path generation.
