| ZMD-2010A-GG-12DG Specification | |||
|---|---|---|---|
| Conditions of use | 0-45ºC, 20-80%RH | ||
| Type | Vertical joint 6 degrees of freedom | ||
| Max Reachable Range | 1598mm | Protection class | Comparable to IP65 |
| Installation | Ground level | Positional repeatability | ±0.08mm |
| Max Load Weight | 6KG | Body weight | 168KG |
| Power capacity | 2KVA | ||

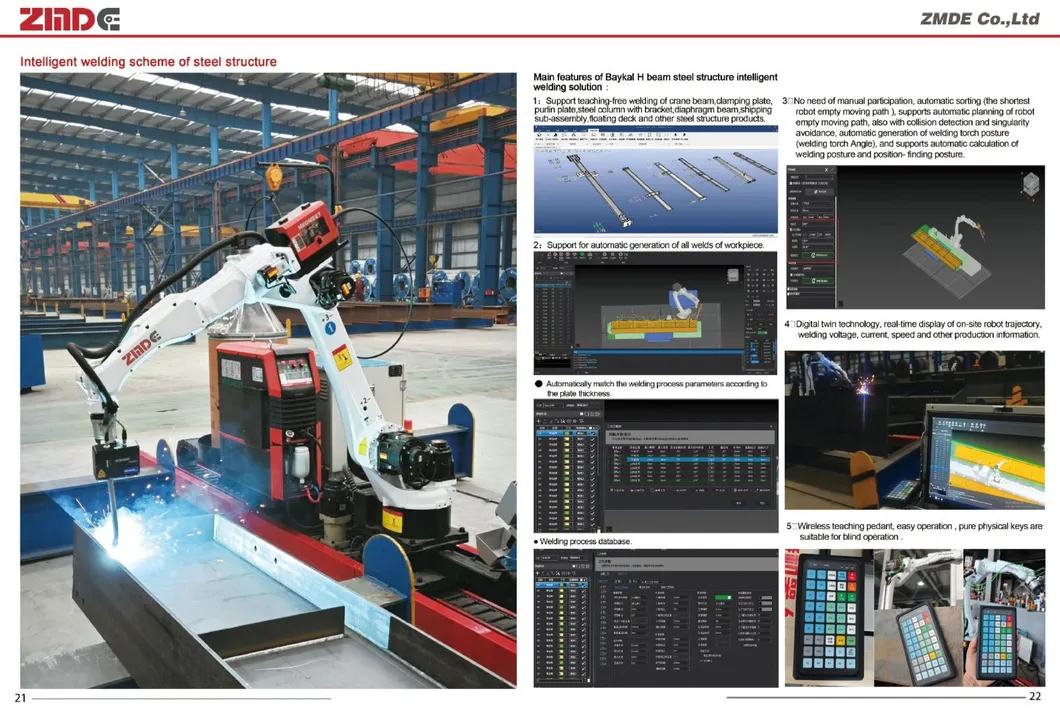

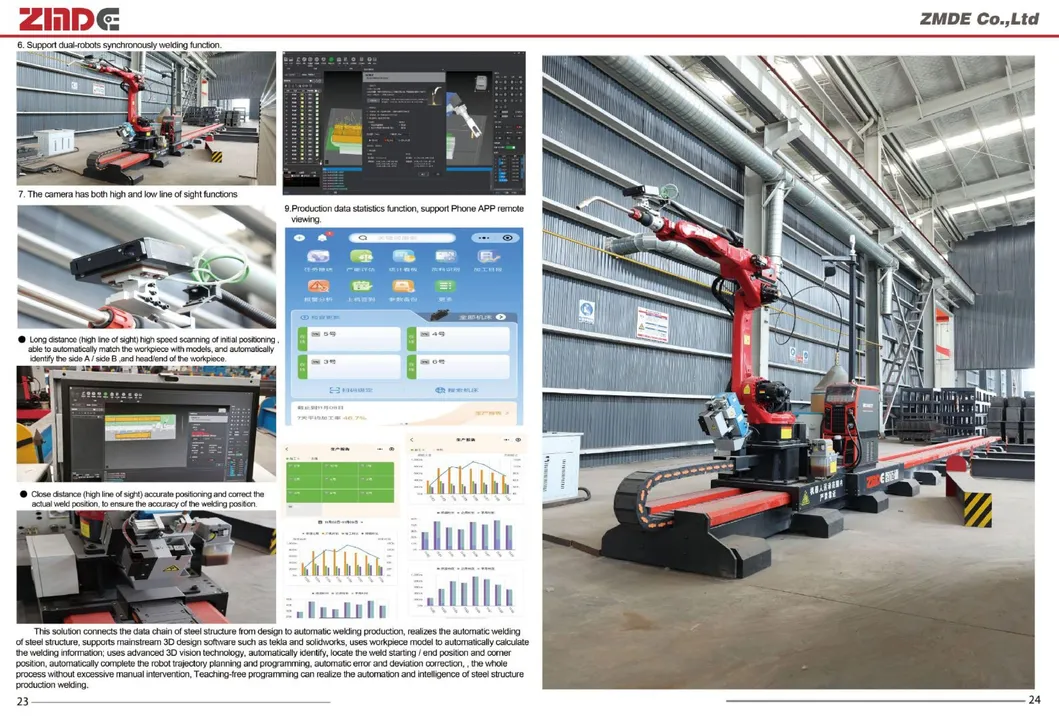

Teach-free programming with sophisticated software that automatically extracts weld seams from models (Tekla, SolidWorks).

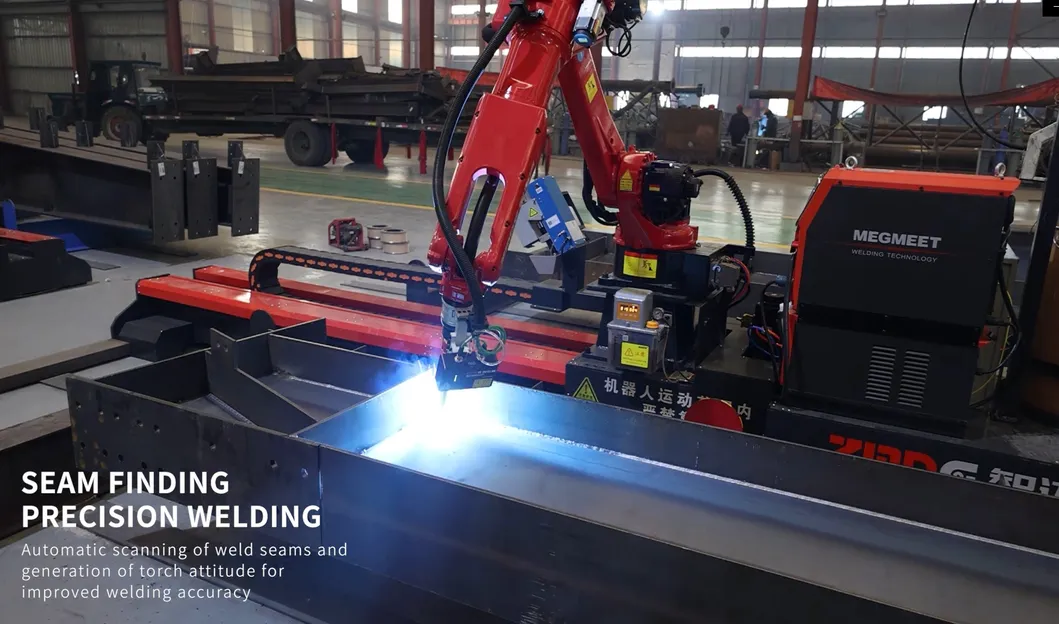

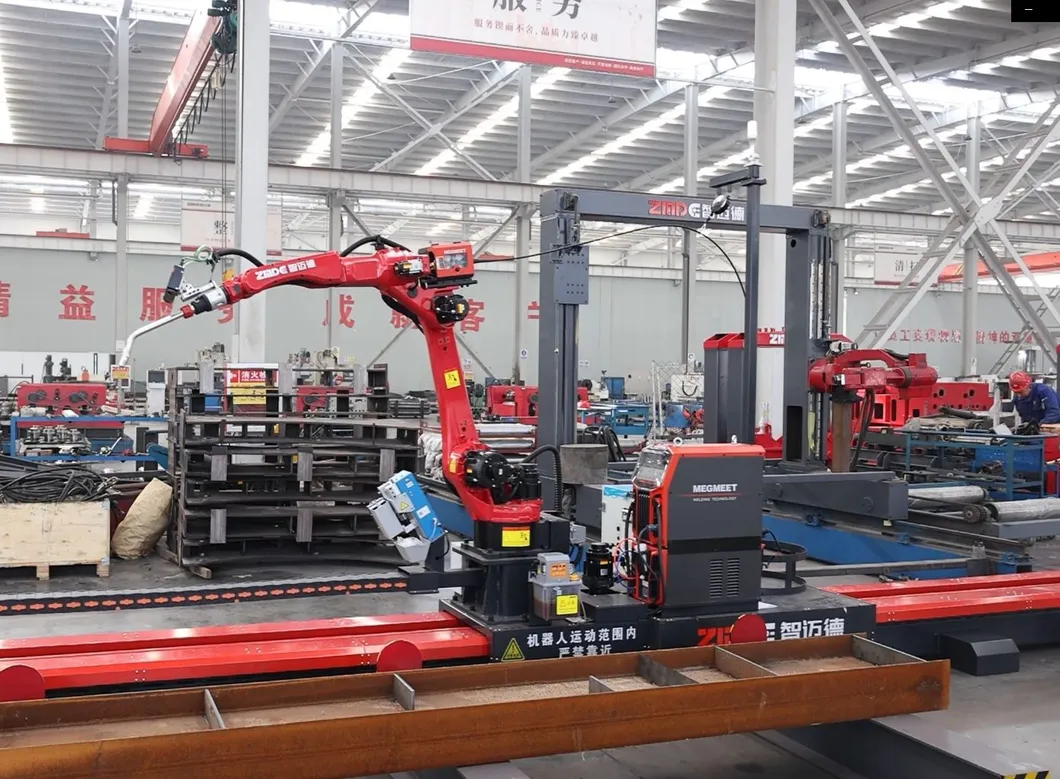

Equipped with advanced composite vision sensors and automatic obstacle avoidance for optimal welding trajectories.

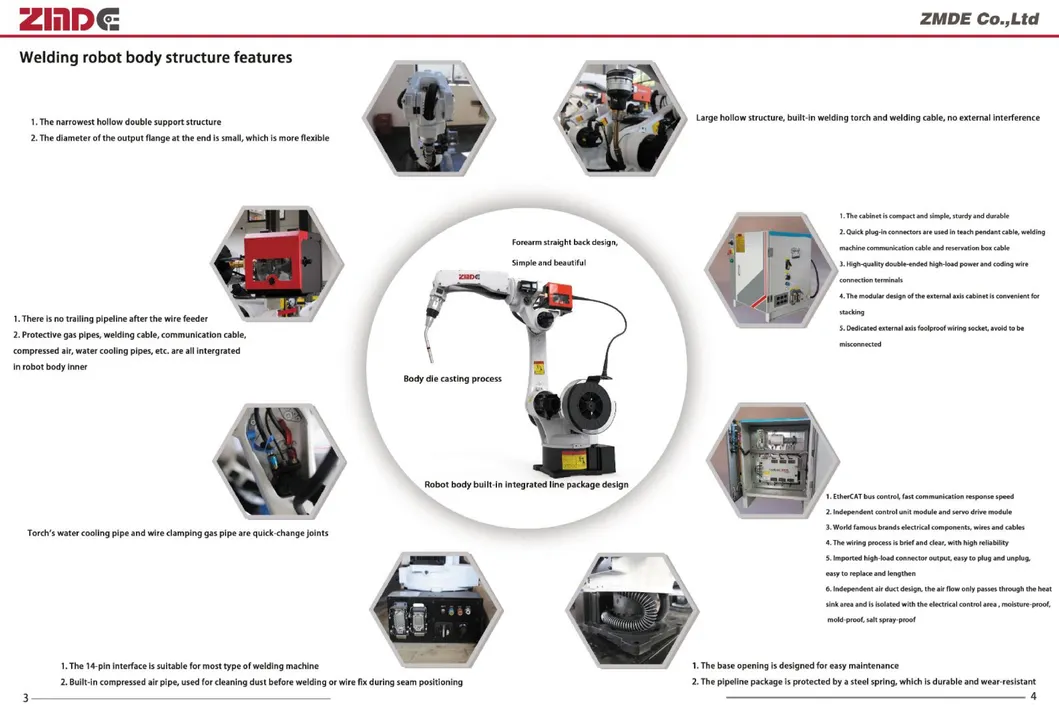

Internal pipeline integration prevents hanging wires. Independent air duct design for high-dust environments.
Significant reduction in manual labor costs and scrap rates with consistent breakpoint positioning and arc restart capabilities.

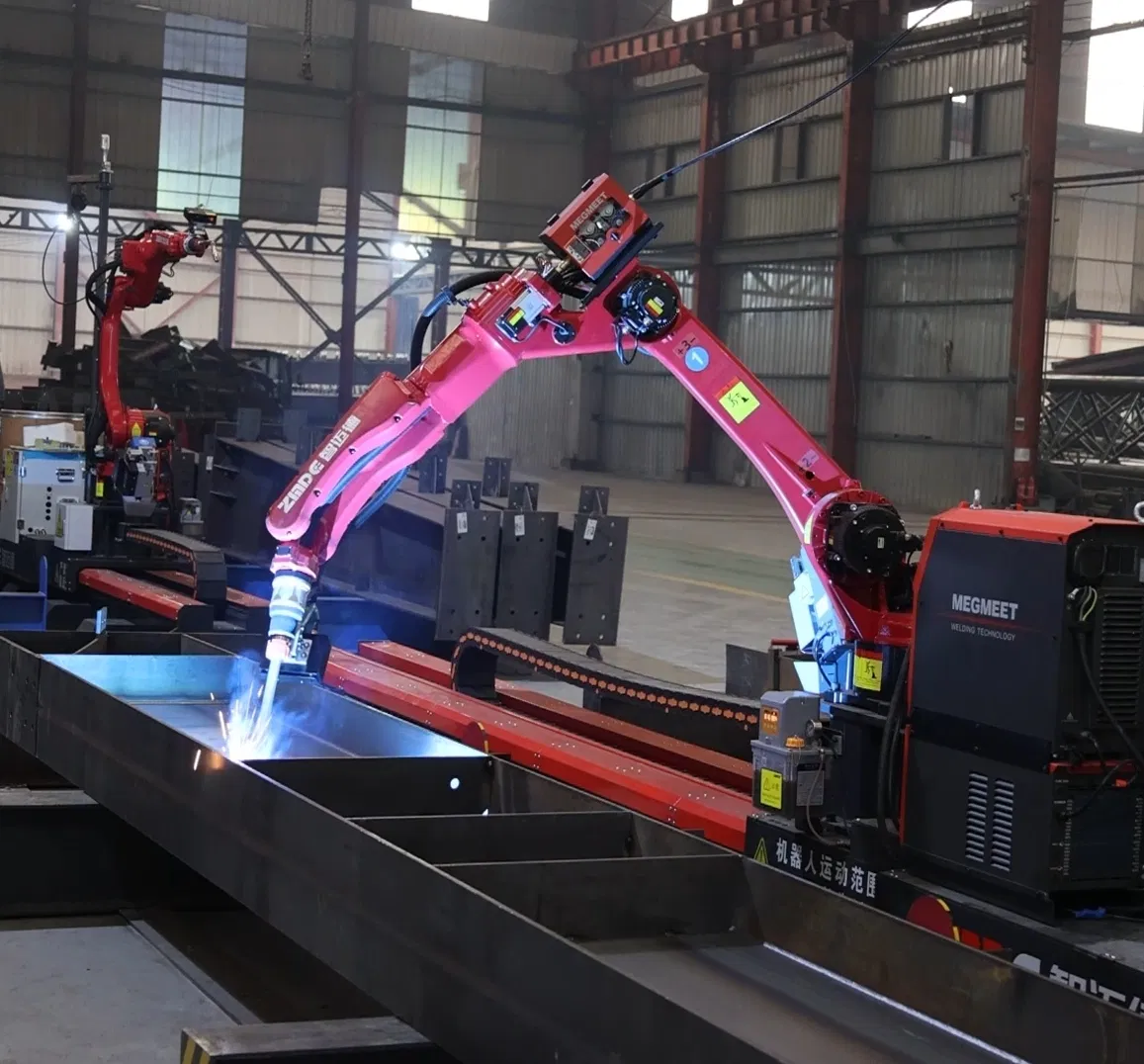

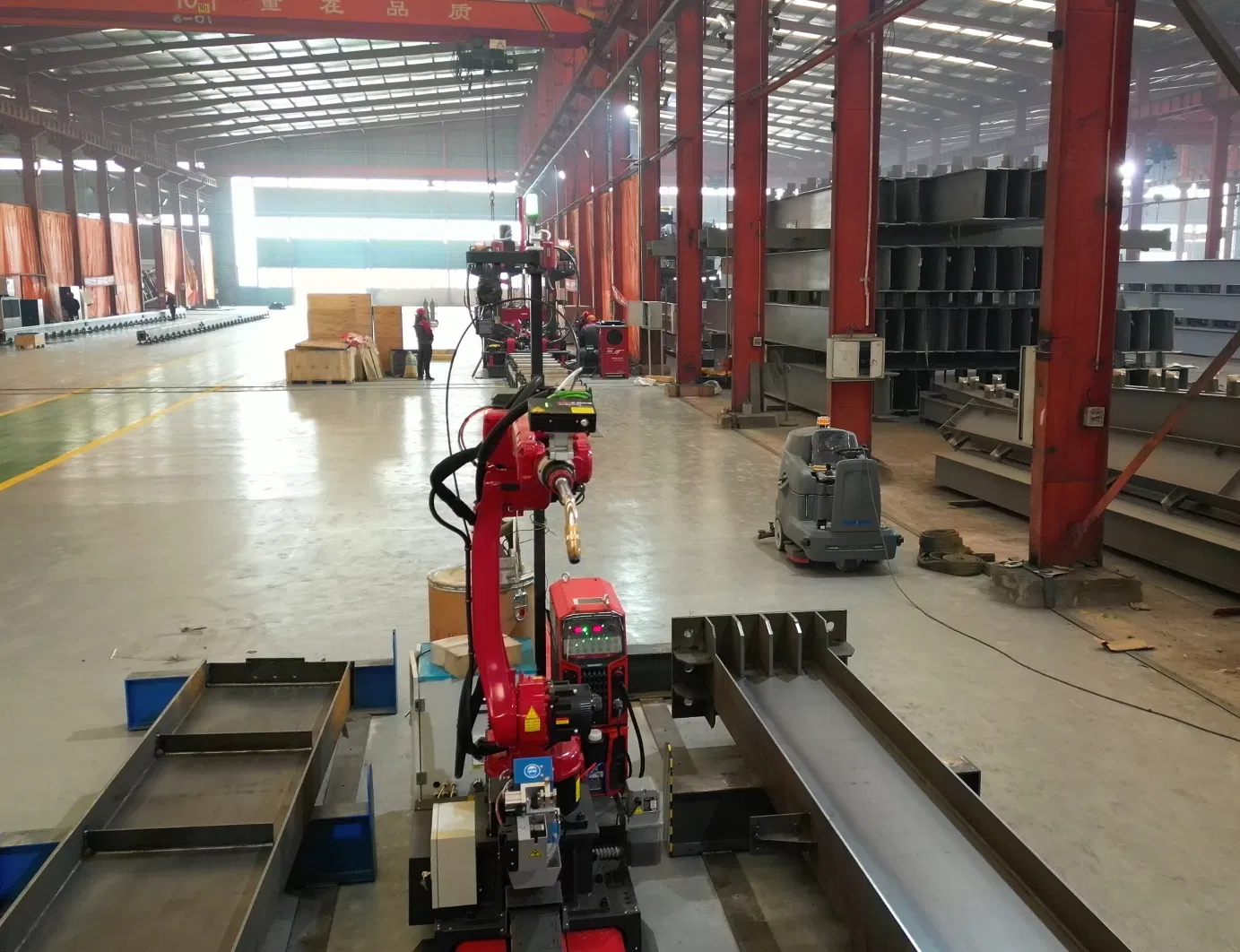

This state-of-the-art welding robot features a striking design with hollow structure arms and wrists. Its compact form factor allows it to effortlessly conduct welding in tight spaces. Engineered for durability, it is lightweight, dust-proof, and drip-proof, with a protective body cover for reliability in the toughest environments.
