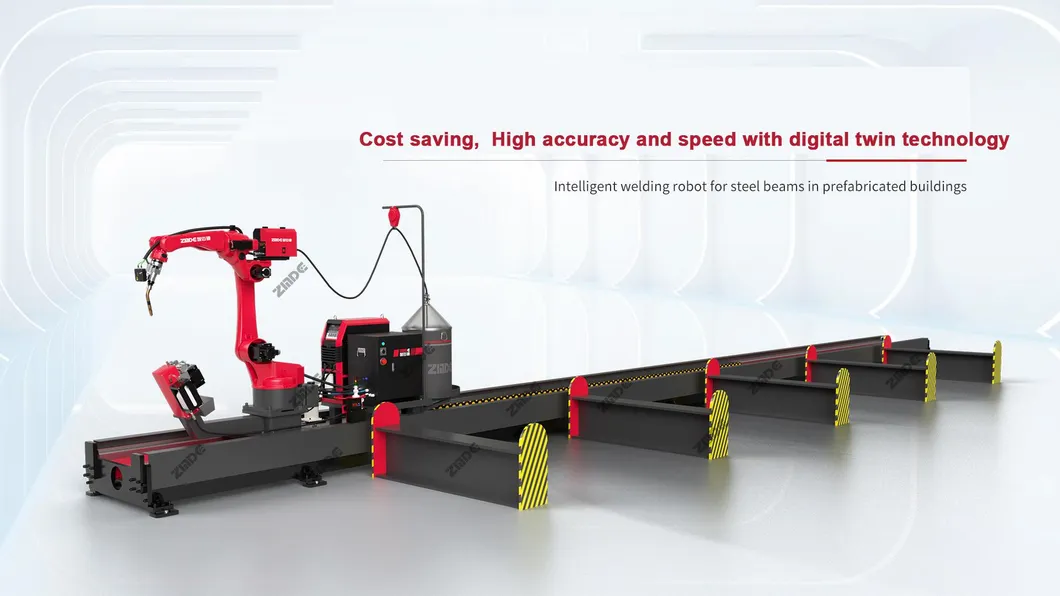

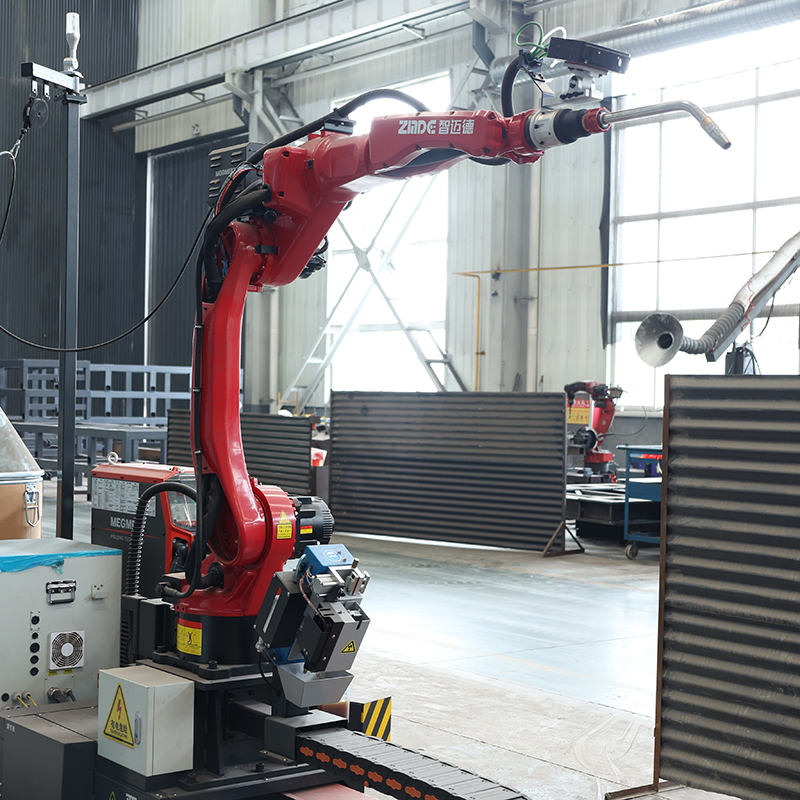

Robust Welding Robot Arm for MIG Welding Steel H Beam Production
(Please note that slight variations may exist between the actual product and the displayed images.)

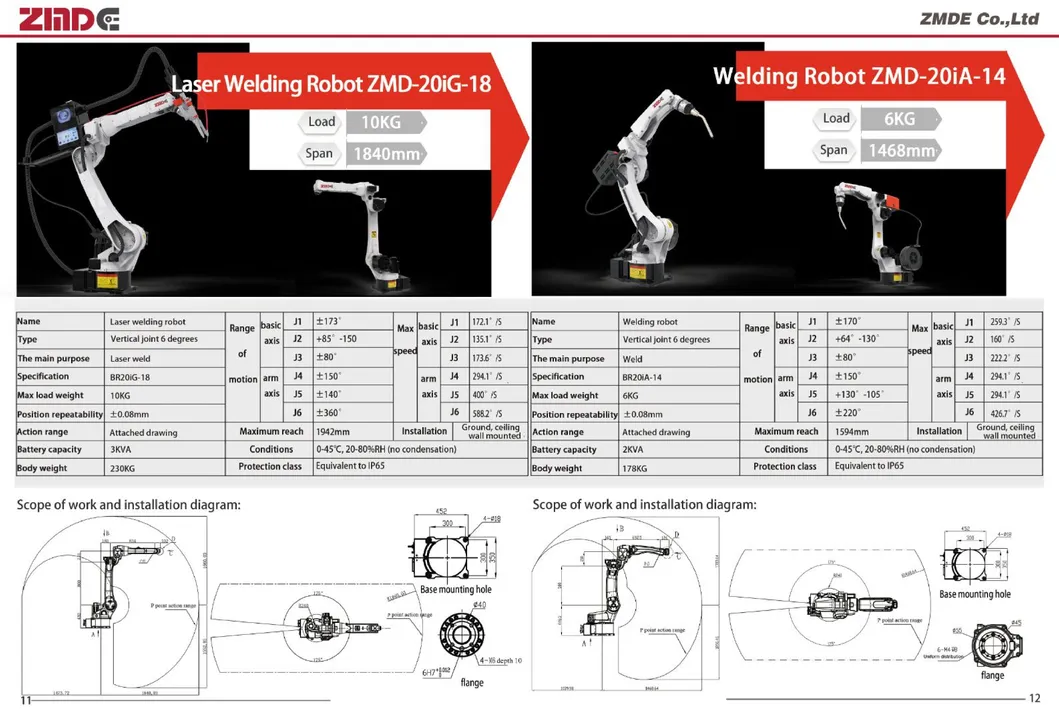

| Basic Specification (ZMD-2010A-GG-12DG) | |||
|---|---|---|---|
| Conditions of use | 0-45ºC, 20-80%RH | Type | Vertical joint 6 degrees of freedom |
| Max Range | 1598mm | Protection Class | IP65 Comparable |
| Installation | Ground level | Repeatability | ±0.08mm |
| Max Load | 6KG | Body Weight | 168KG |
| Power Capacity | 2KVA | ||
| Axis | Range of action | Maximum speed |
|---|---|---|
| J1 (Basic) | ±170° | 259.3°/S |
| J2 (Basic) | +64° -130° | 160°/S |
| J3 (Basic) | ±75° | 296.3°/S |
| J4 (Arm) | ±150° | 294.1°/S |
| J5 (Arm) | +130° -105° | 294.1°/S |
| J6 (Arm) | ±220° | 426.7°/S |
⚡ Main Function:

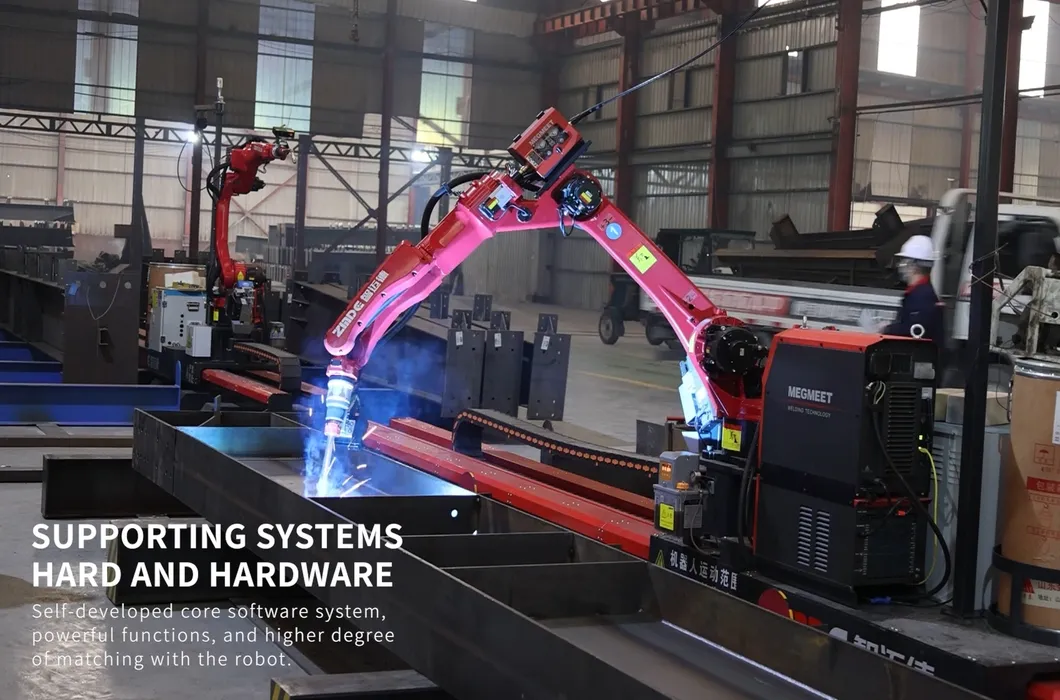

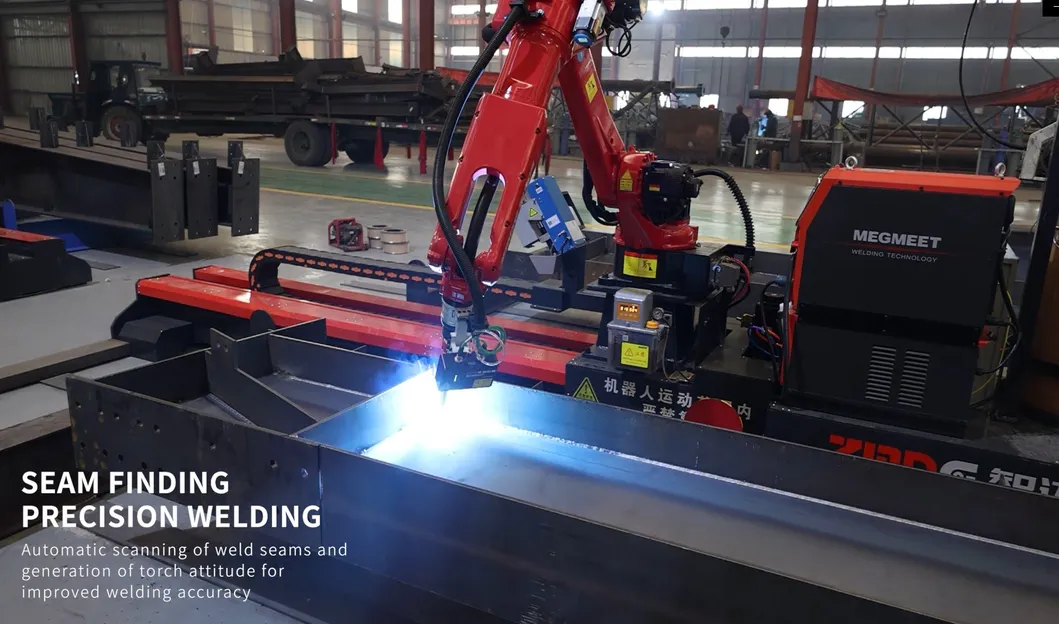

Weld Identification and Welding of H/T Beam Accessory Plates.
🏗️ Applicable Industry:
Steel Structure Industry, Assembly Building, Bridge Engineering, Shipyard, etc.

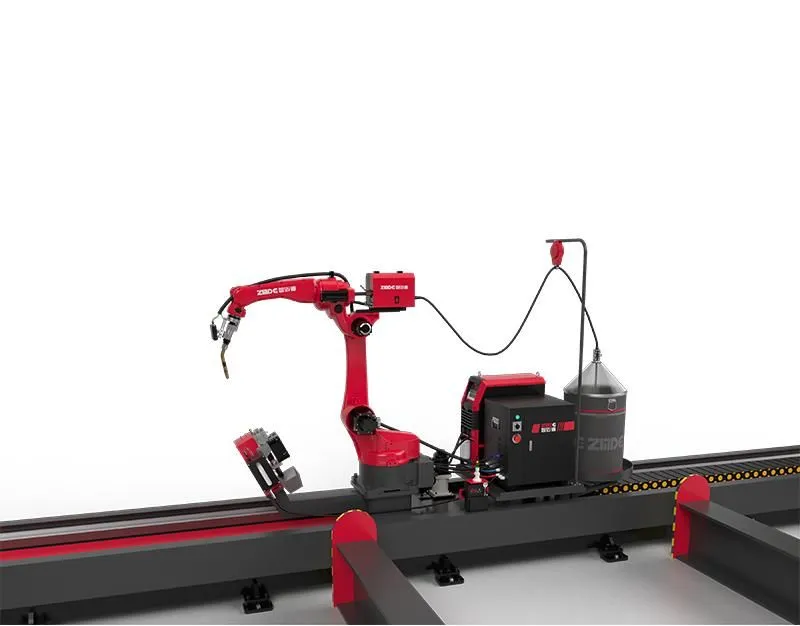

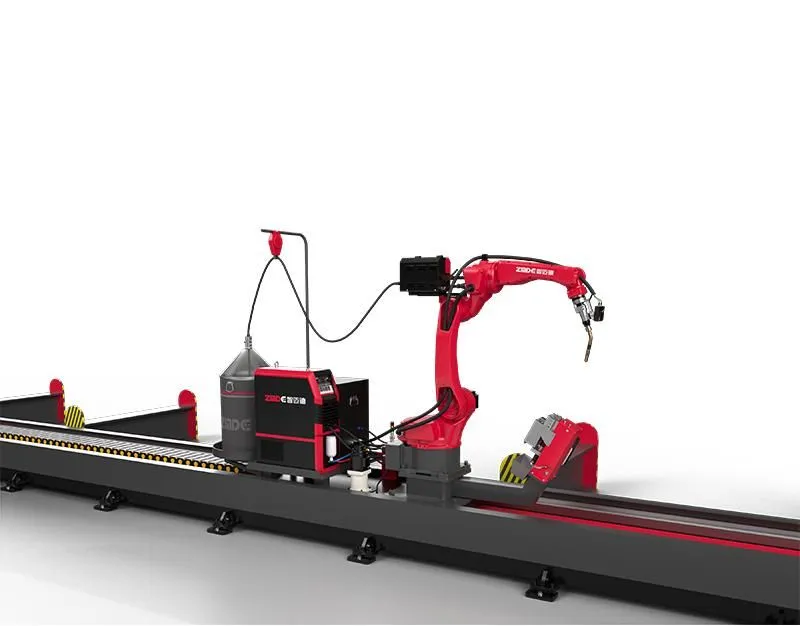

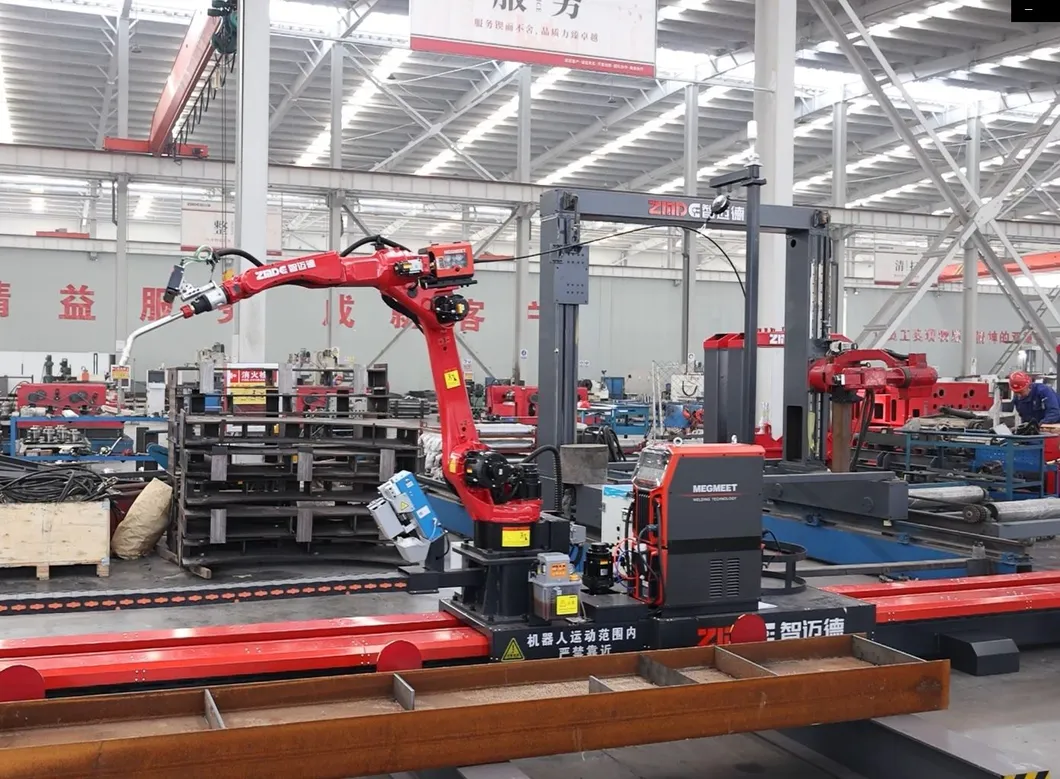

| Welding Robot | Arm span 2 meters |
| Welding Torch | Anti-collision welding torch for robots |
| Power Source | Special robot welding power supply |

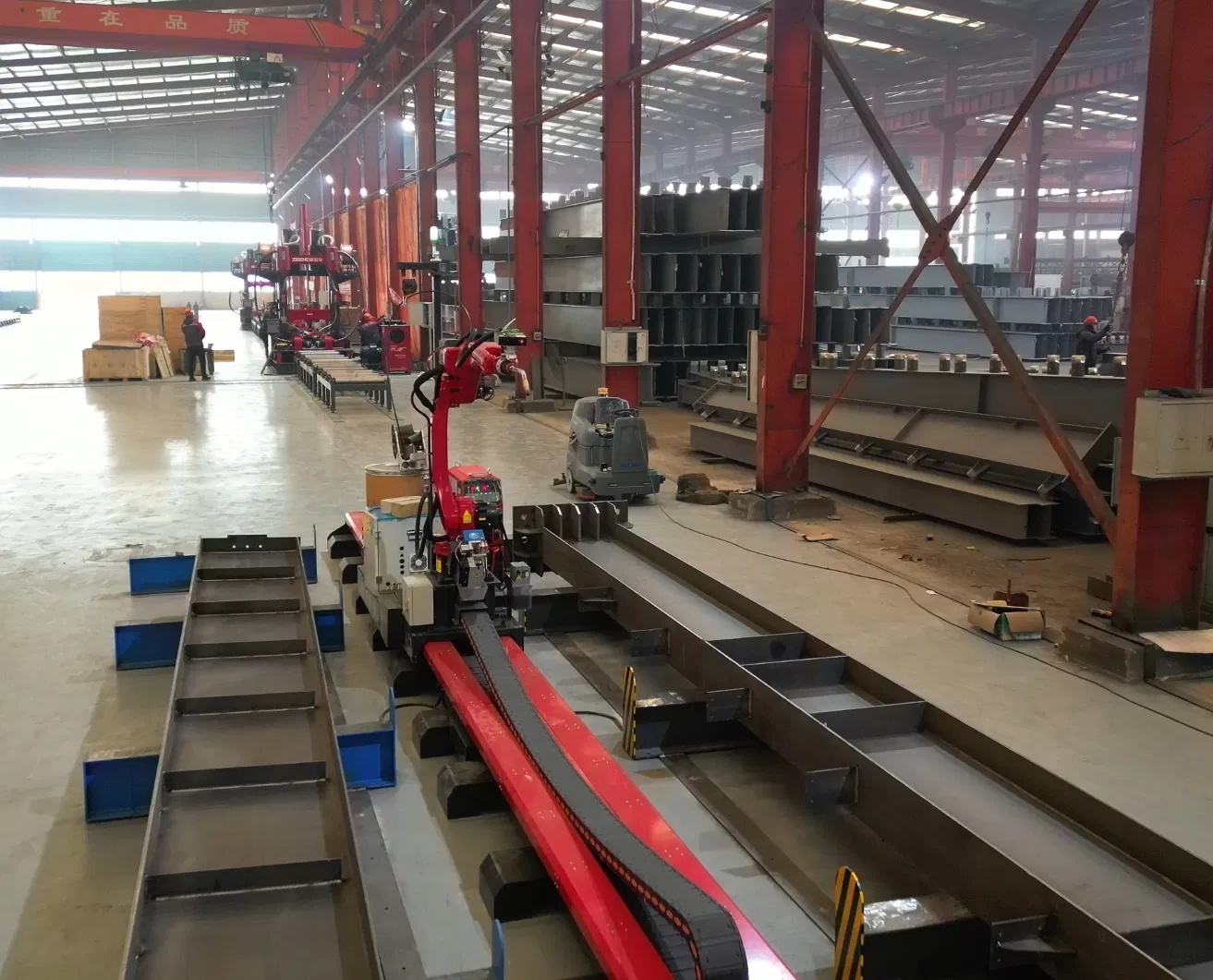

| Ground Rail | Total length 12 meters, Load 1 ton |
| Vision Sensor | Laser Vision Sensor BCW600P |

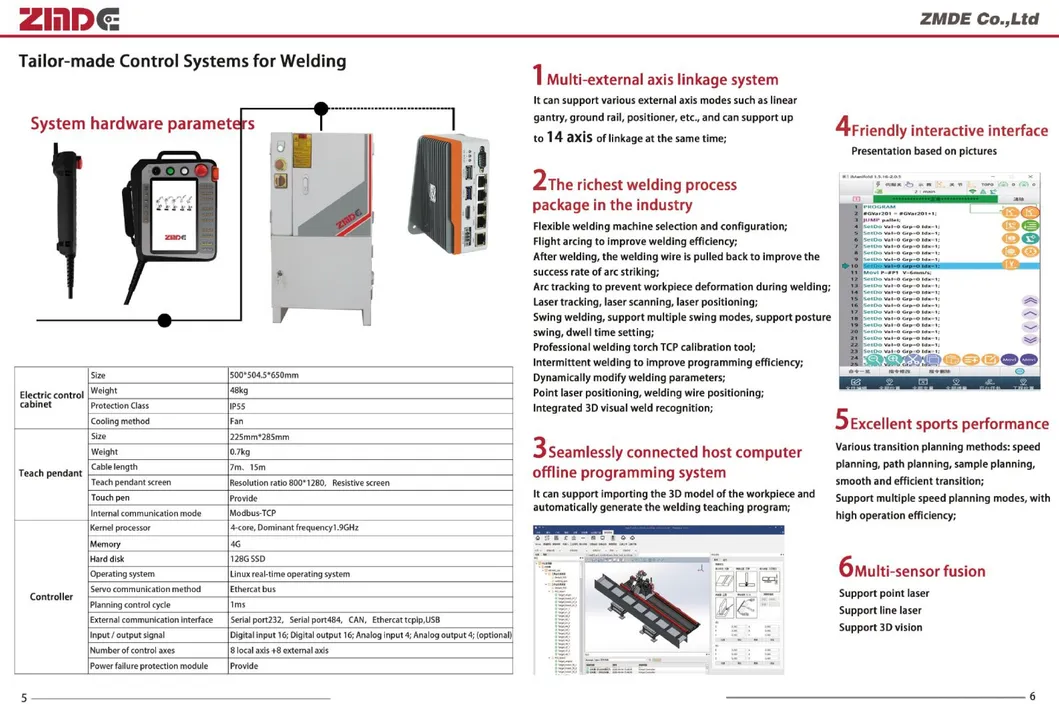

| Software | Offline programming & Arc welding package |

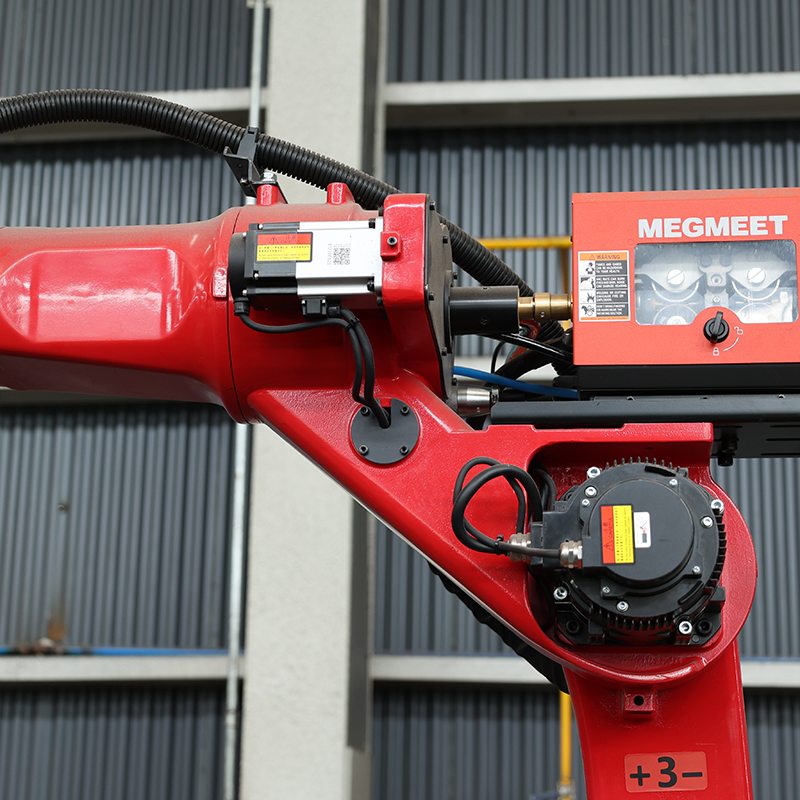

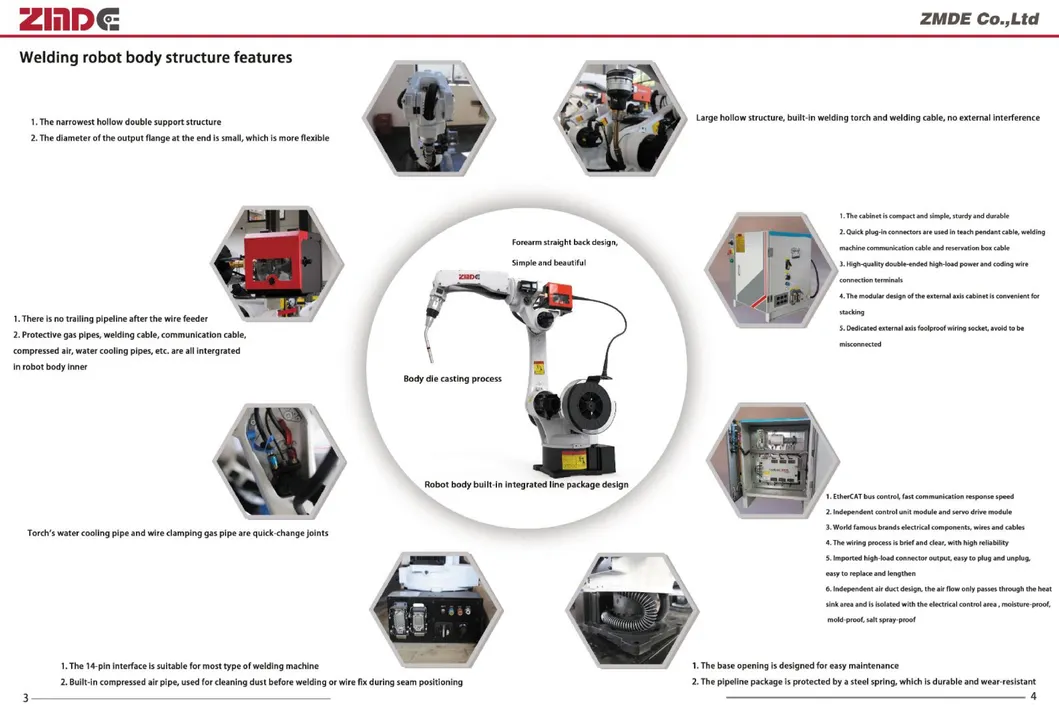

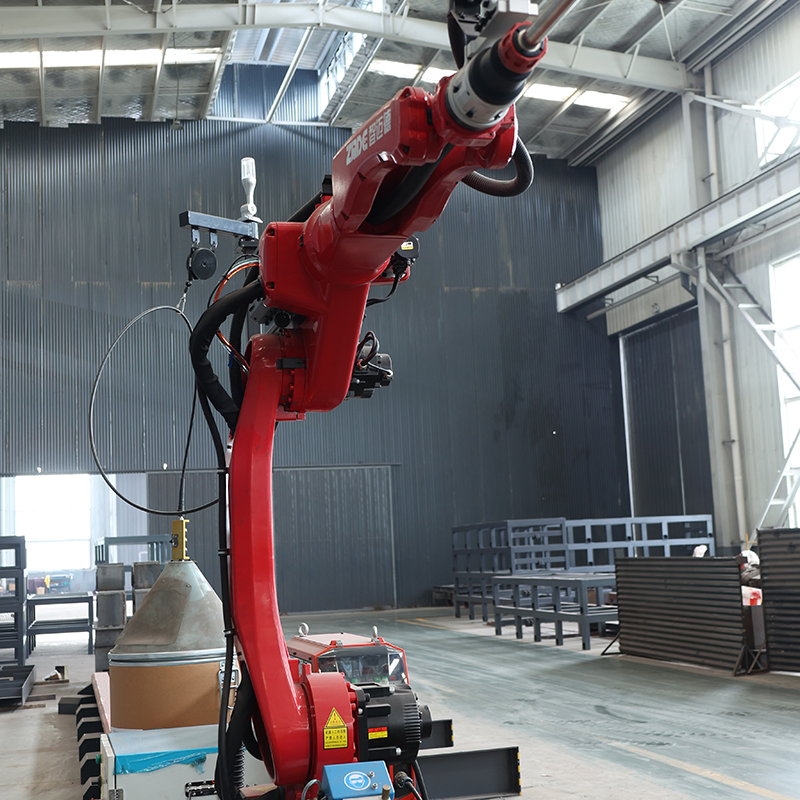

This welding robot features a distinctive hollow structure in its arms and wrists, with built-in welding cables. Its compact design enables effortless welding in confined spaces. The robot is lightweight, dust-proof, and drip-proof, ensuring high safety standards.
The minimum order quantity is 1 unit.
We accept L/C (Letter of Credit) and T/T (Telegraphic Transfer).
The standard delivery time is approximately 30 days.
The equipment comes with a 1-year warranty. Original manufacturer parts are available for lifelong maintenance.
Yes, it features a fully enclosed floor track, dust-proof design, and internal cabling to thrive in high-dust and harsh welding environments.
Yes, it supports offline programming with automatic obstacle avoidance algorithms to quickly generate optimal welding paths without manual teaching.
