Sandai Robot
1 / 5

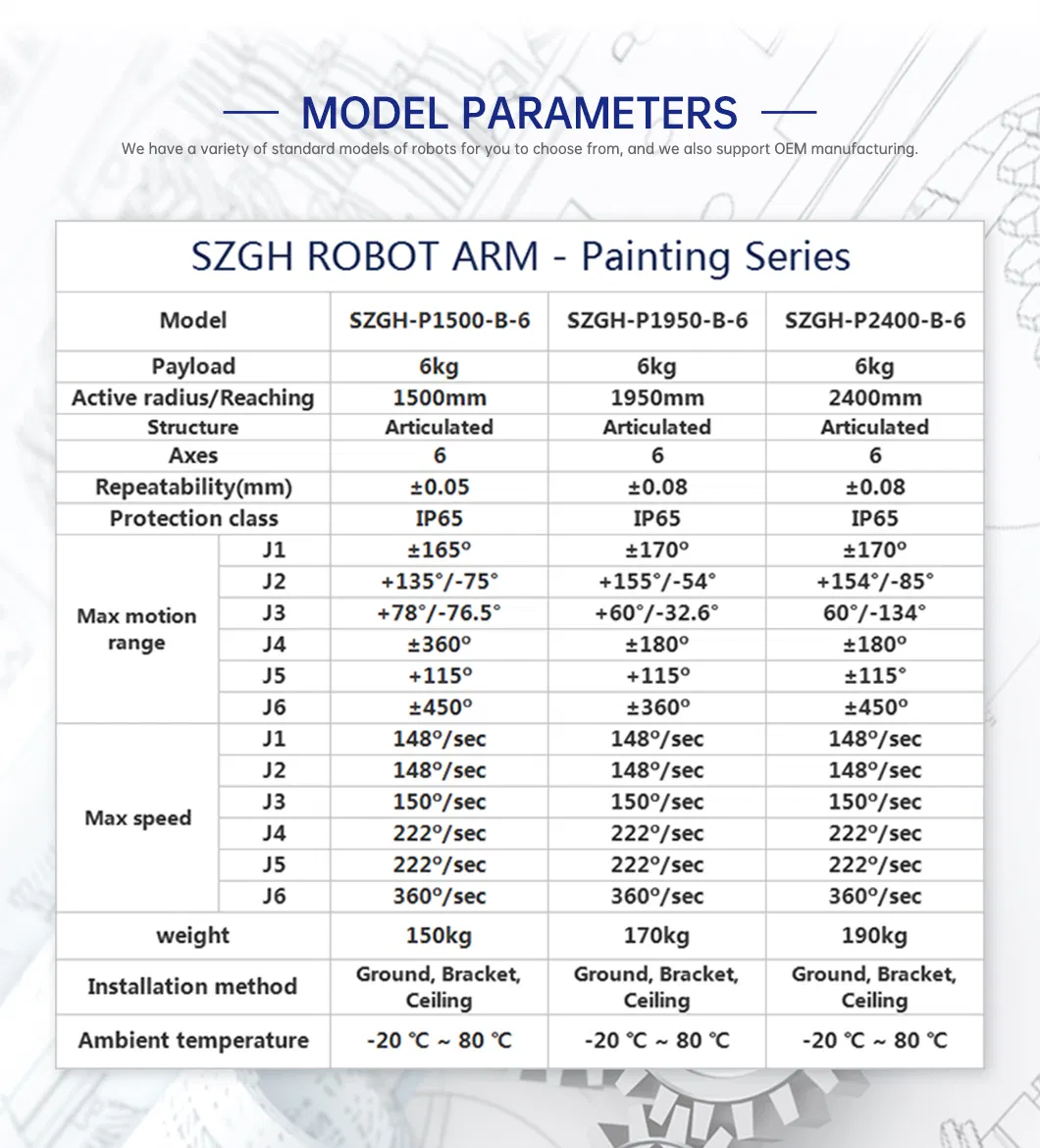

| Model | P1950-B-6 |
| Drive Mode | Electric |
| Name Type | Welding Robot Arm |
| Axes | 6 - 11 axes |

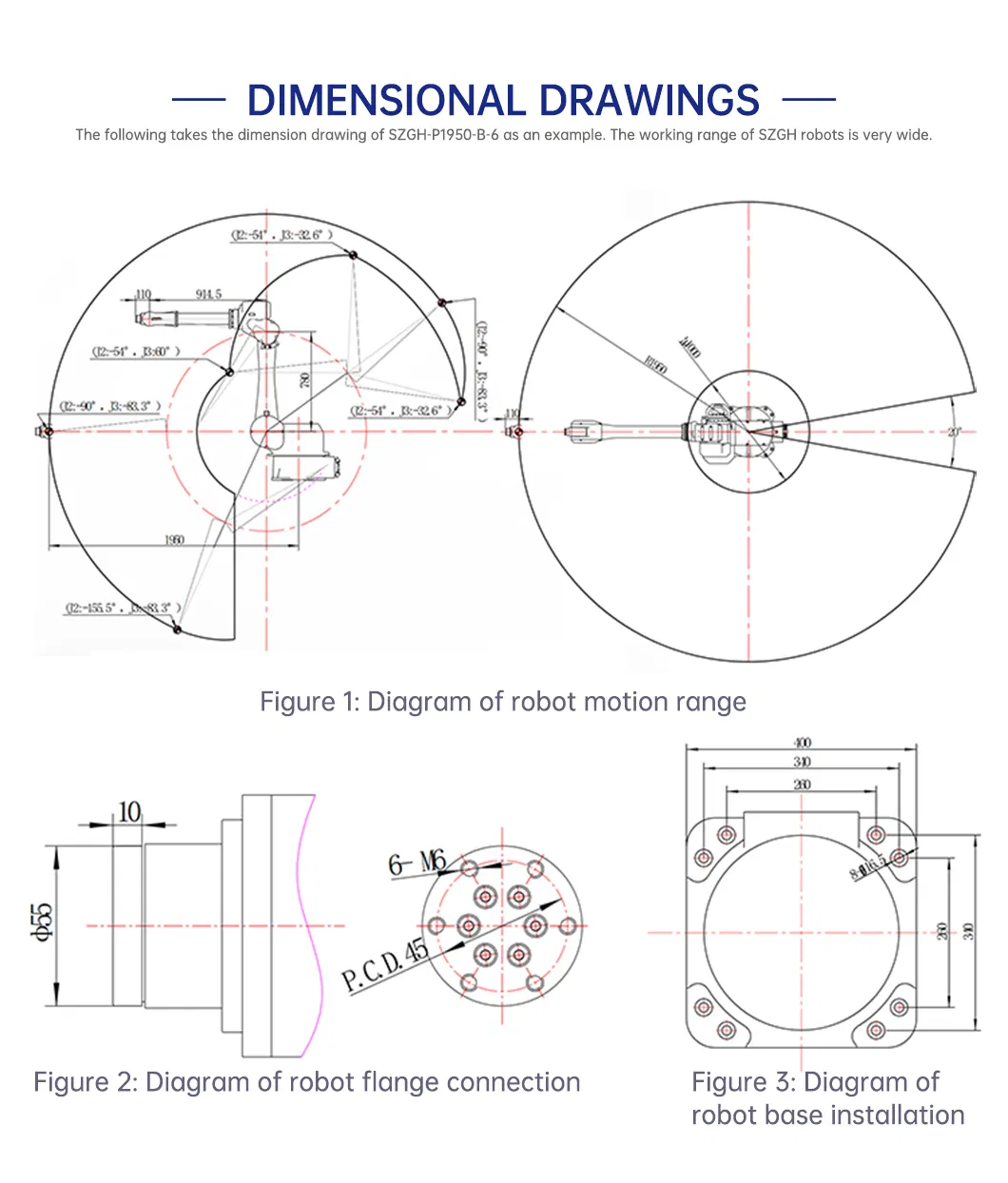

| Reaching | 1950mm |
| Payload | 6kg |
| Structure | Articulated |
| Repeatability | 0.08mm |
| Weight | 170kg |
| Mounting Type | Ground, Bracket, Ceiling |
| Certification | ISO, CE, RoHS |
| HS Code | 8479509090 |
| Production Capacity | 1000 Sets /Month |

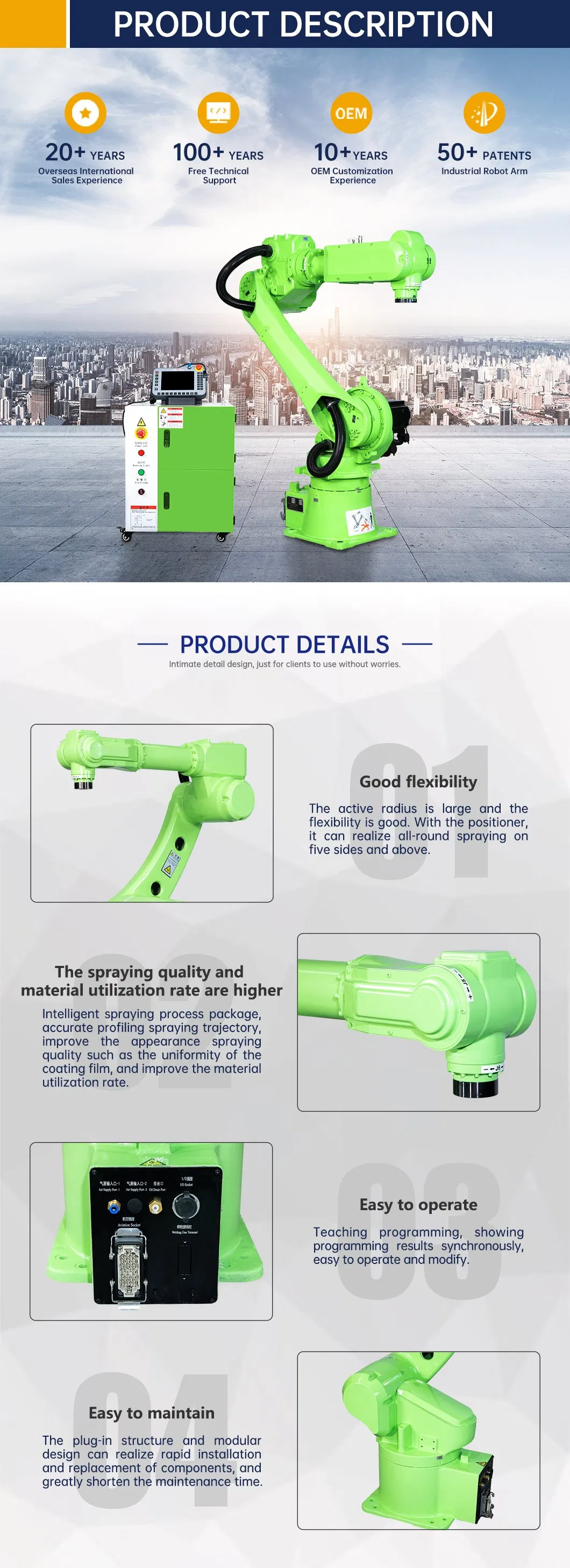

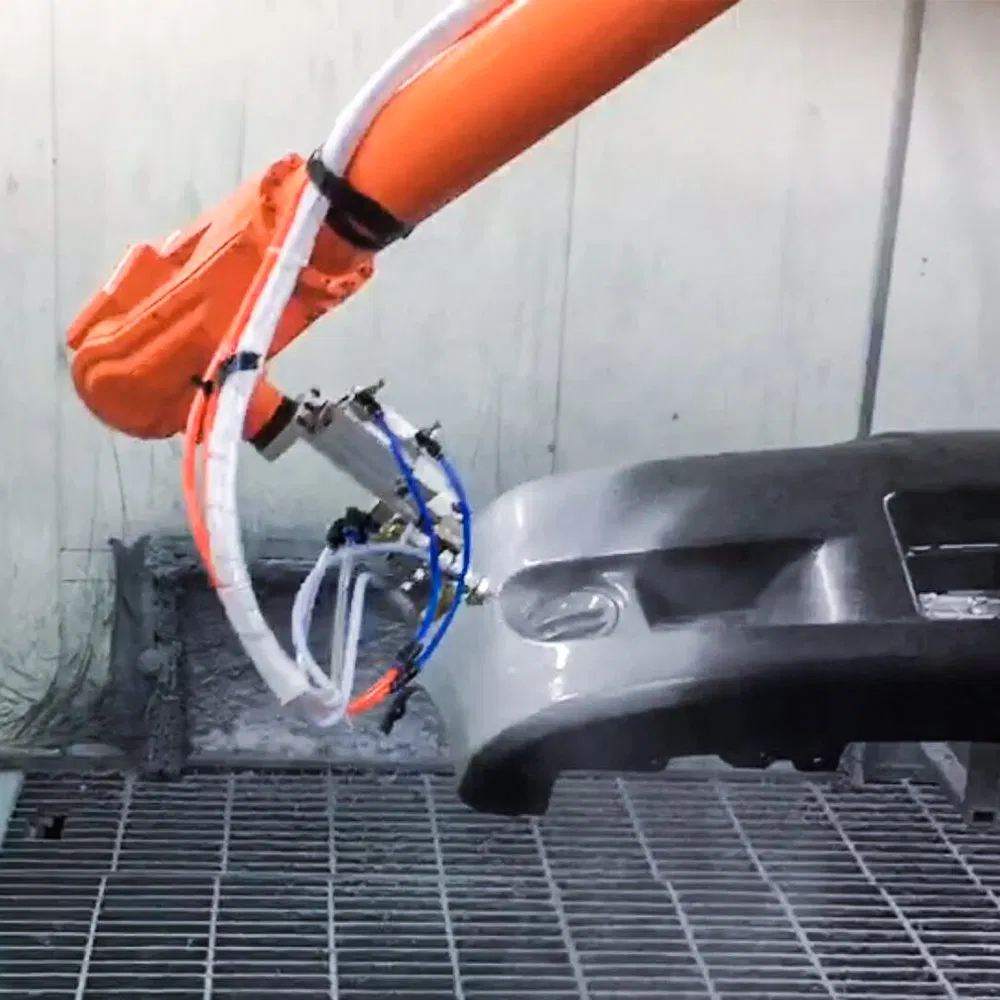

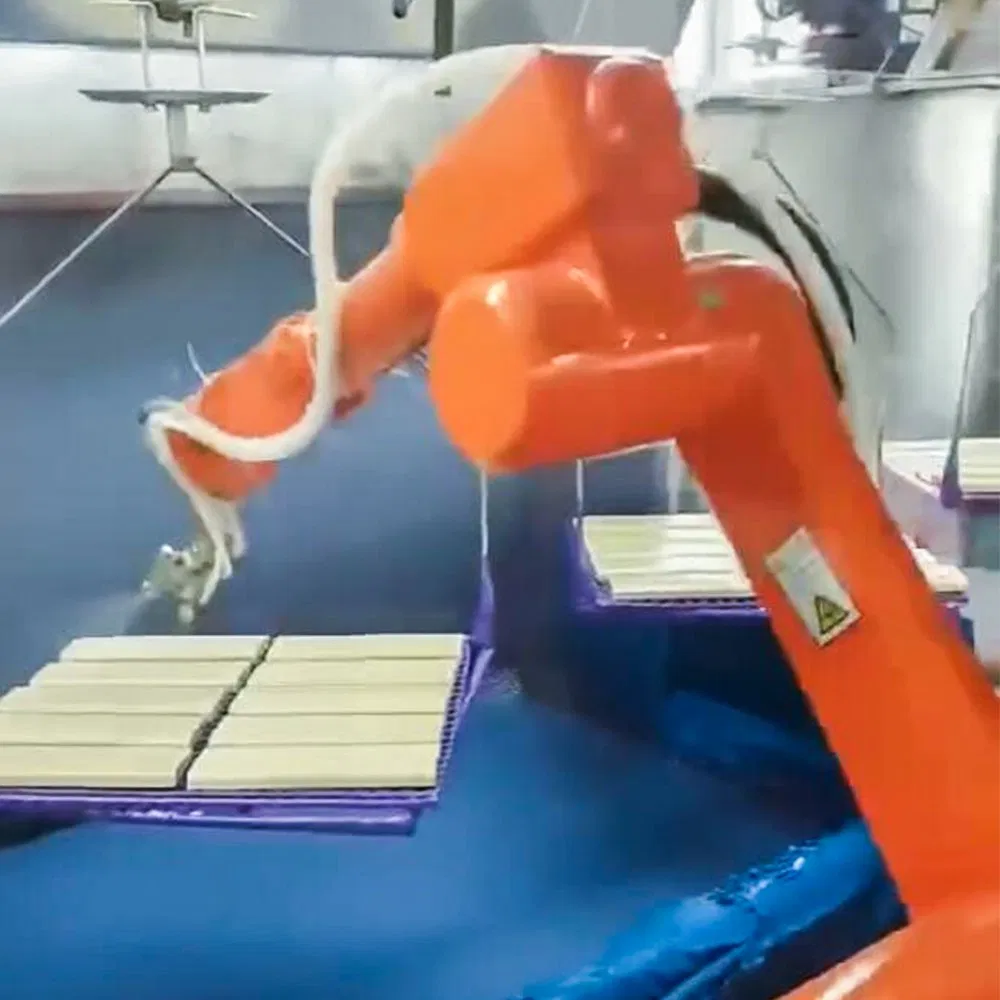

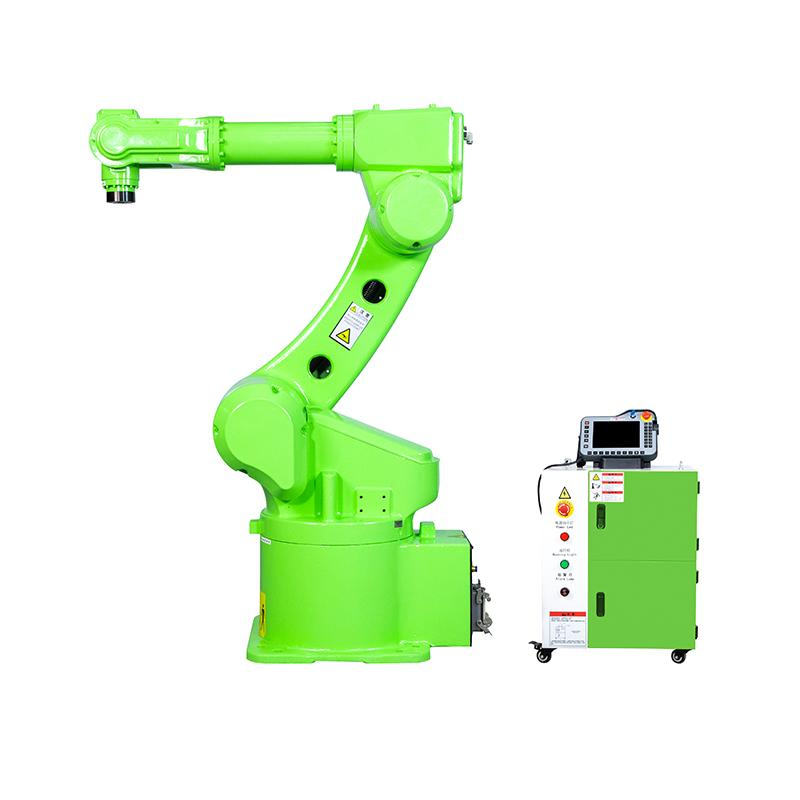

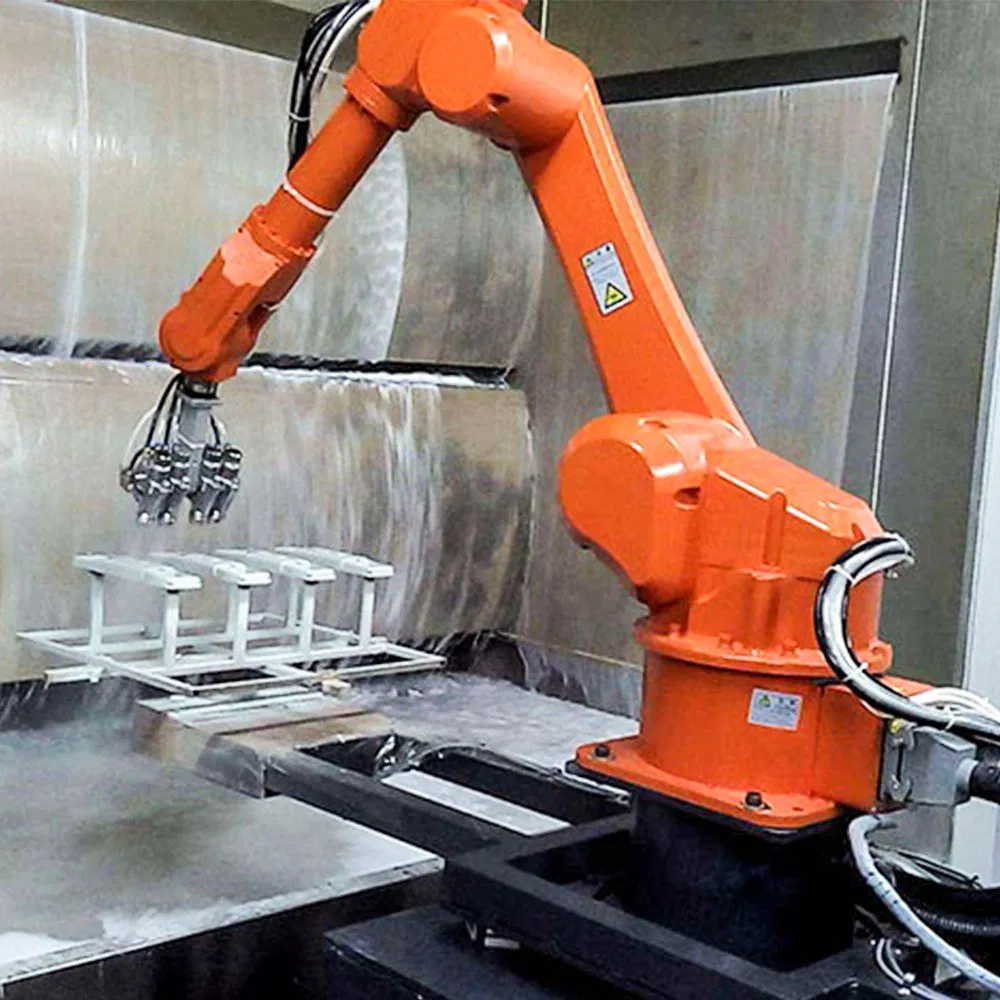

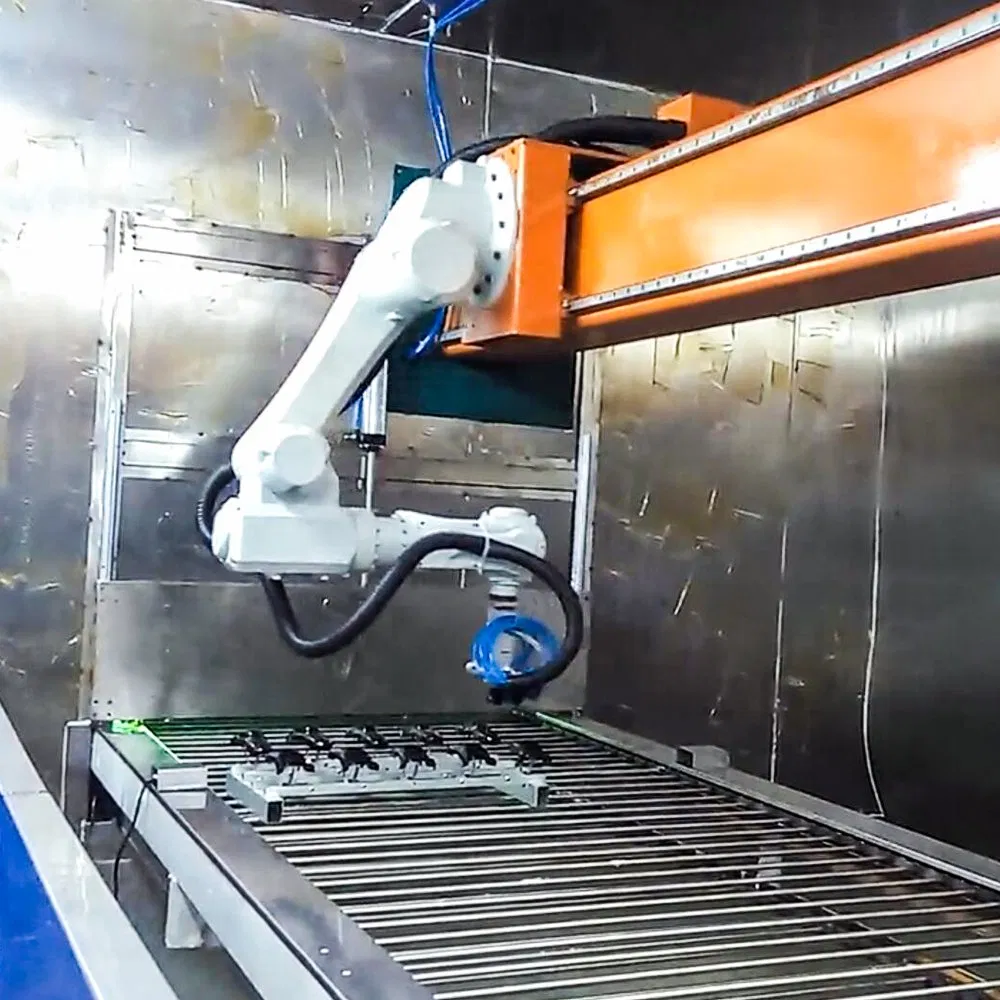

The P1950-B-6 robot is a high-performance system dedicated to painting and spraying applications. It offers easy operation, high efficiency, and maximum safety for industrial environments.

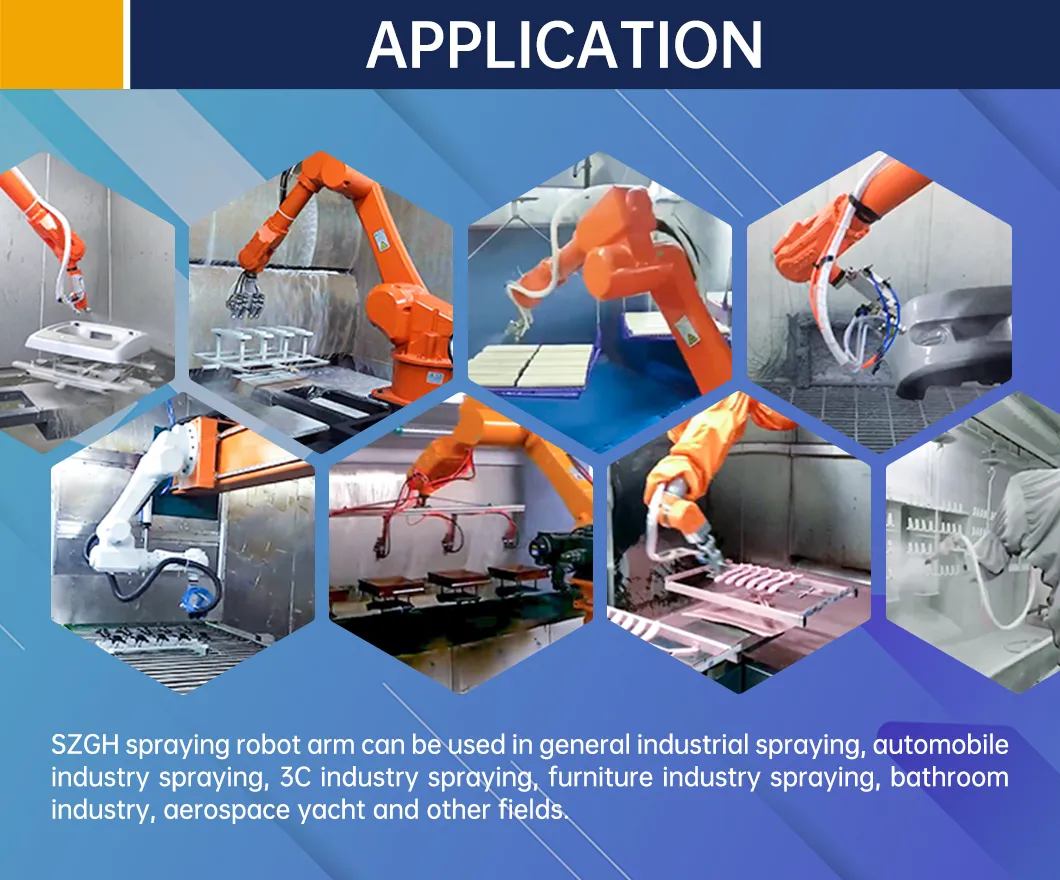

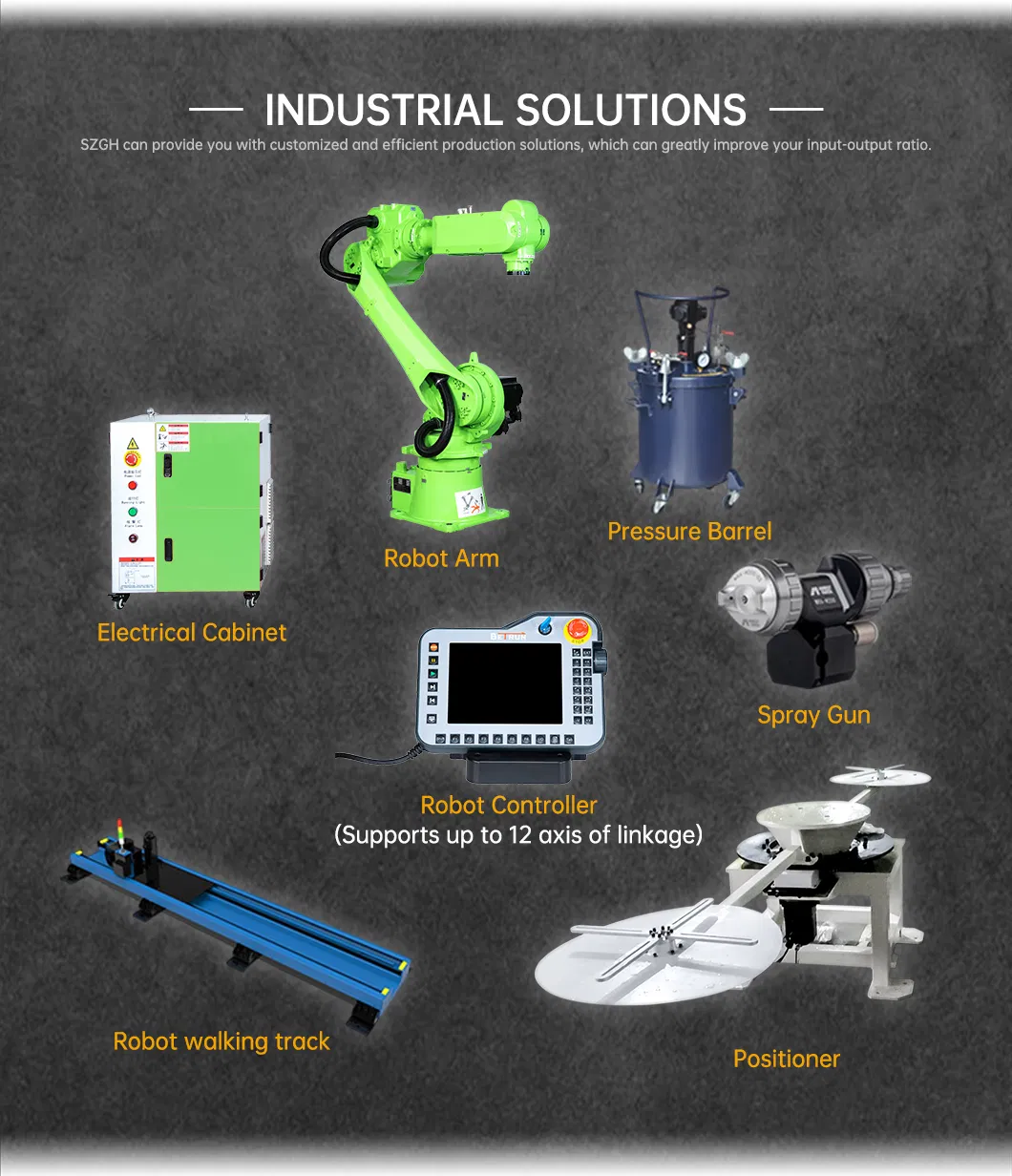

This series includes 25 models of robot arms in mass production, covering general-purpose, welding, spraying, palletizing, grinding, and handling types. All models are equipped with an independently developed intelligent robot control system. We provide customized non-standard robotic solutions, including 9-axis linkage robots currently in mass production.
| Reach | 1950mm | Payload | 6kg |
| Application | Painting & Spraying | Customization | Color & Logo available |
| Warranty | 12 Months | Support | Video & Online Technical Support |
| Storage | 2 GB |

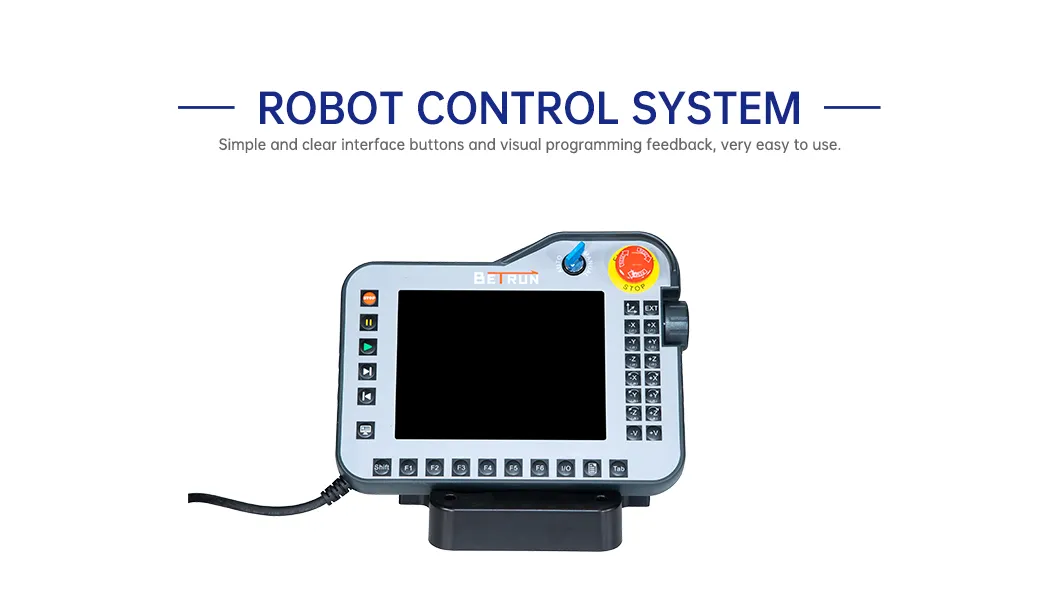

| Teaching Box | Full keyboard + touch screen, mode select switch, safety switch, emergency switch |
| Interface | Multiple encoder signals, robot terminal interface, Ethernet, serial communication |
| Programming Mode | Online teaching, process programming, teaching by dragging |
| Motion Functions | Point-to-point, linear, circular |
| Anomaly Detection | Emergency stop, servo anomaly, anti-collision, arcing anomaly, coordinate anomaly |
