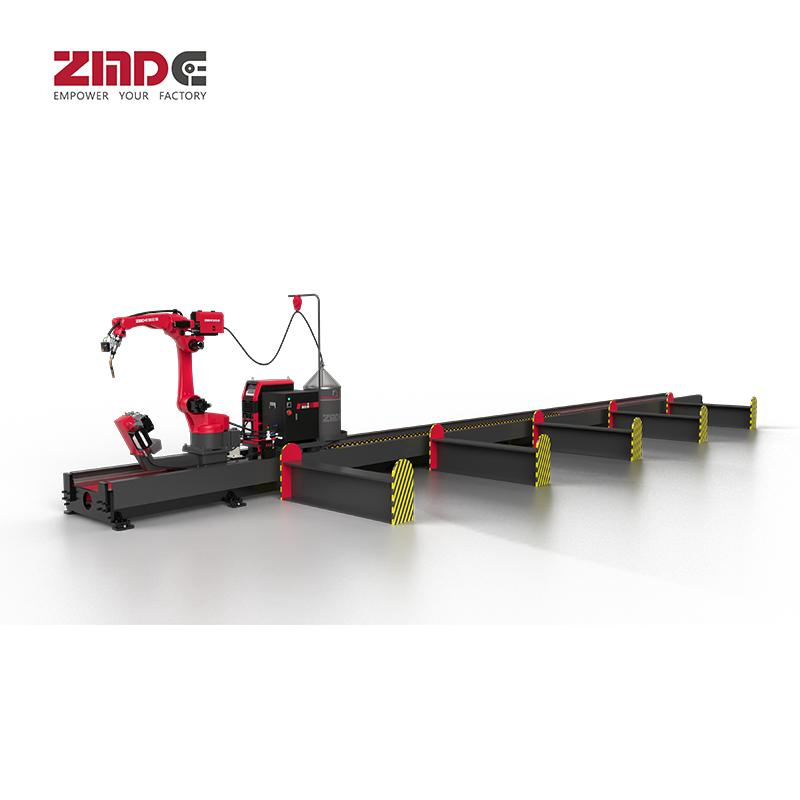

Advanced Zmde Robotic Arm for Precision MIG Welding Solutions

1 / 5

Advanced Zmde Robotic Arm for Precision MIG Welding Solutions

Customization:	Available
Accuracy:	-
Application:	Automotive Industry, Construction Industry, Metal Fabrication Industry, Welding

Send Inquiry

Product Description

Overview

Technical Parameters

FAQ

Basic Information

Model NO. ZMD-2010A-GG-12DG

Control Mode Continuous Path Control

Drive Mode Electric

Type MIG Welding Robot

Welding Speed -

Transport Package Export Standard or Customized

Origin China

HS Code 8468800000

Production Capacity Other

Product Description

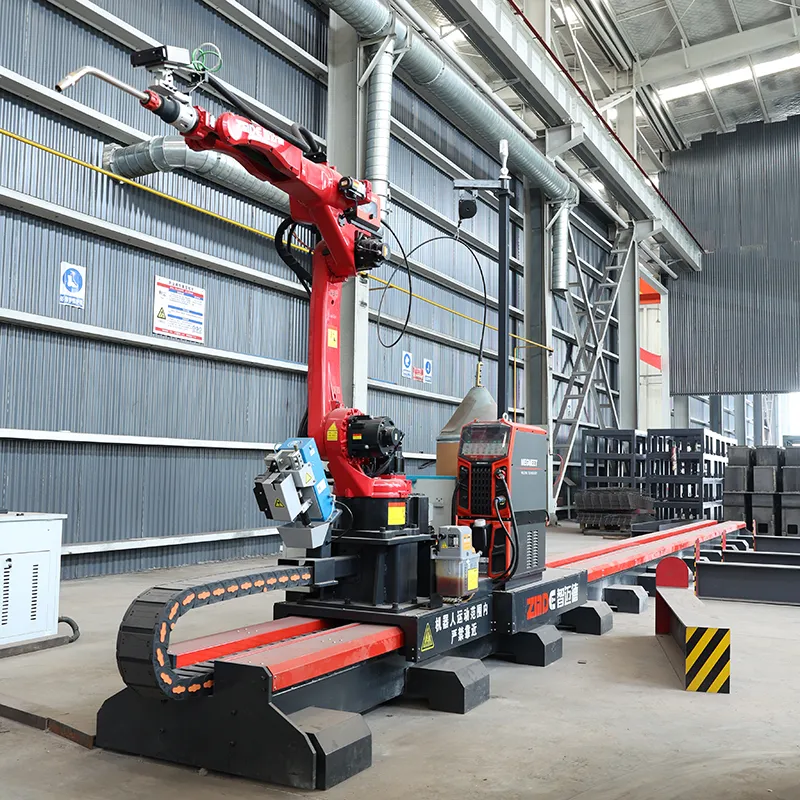

Robotic Arm Welding System for Industrial MIG Welding and Metal Fabrication

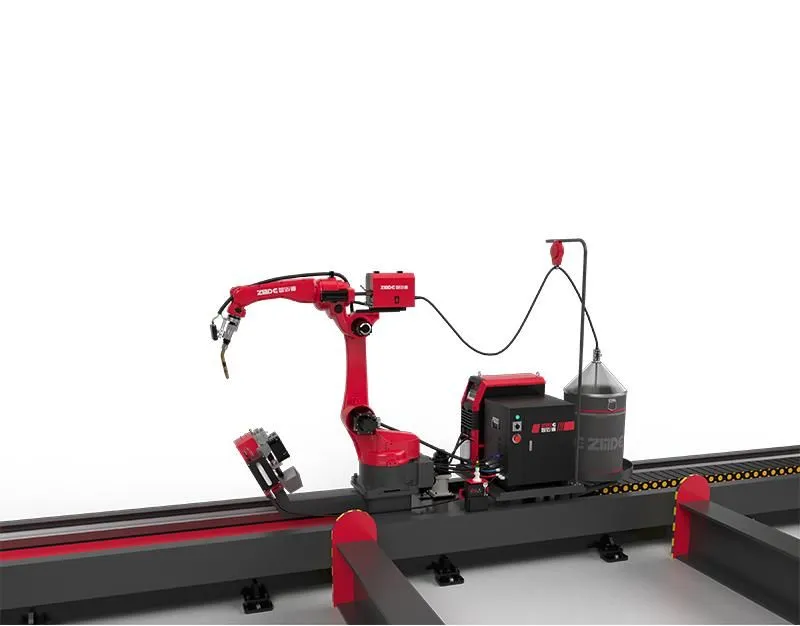

Advanced Robotic Arm for Precision MIG Welding Solutions

(Note: Slight variations may exist between the actual product and the shown image.)

Technical Parameters

ZMD-2010A-GG-12DG Specifications
Conditions of Use	0-45ºC, 20-80%RH	Type	Vertical joint 6 degrees of freedom
Maximum Reachable Range	1598mm	Protection Class	Comparable to IP65
Installation	Ground level	Positional Repeatability	±0.08mm
Maximum Load Weight	6KG	Body Weight	168KG
Power Capacity	2KVA

Range of Action & Maximum Speed
Basic Axis	J1	±170°	259.3°/S
	J2	+64° -130°	160°/S
	J3	±75°	296.3°/S
Arm Axle	J4	±150°	294.1°/S
	J5	+130° -105°	294.1°/S
	J6	±220°	426.7°/S

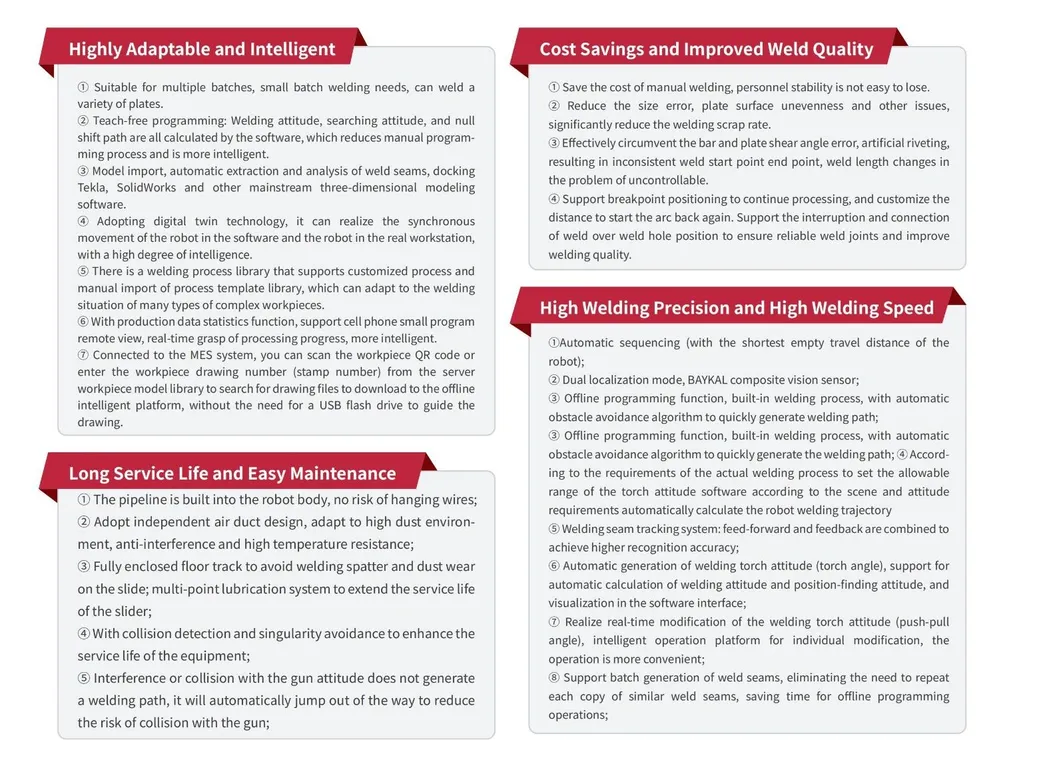

Key Highlights & Advantages

Main Function

Advanced weld identification and precision welding of H/T beam accessory plates.

Applicable Industries

Ideal for steel structure industries, assembly buildings, bridge engineering, shipyards, and more.

System Configuration Parameters
Model	ZMD-2010A-GG-12DG
Welding Robot	ZMD-2010A (arm span 2 meters)
Welding Torch	TRM602W HD-22L anti-collision welding torch for robots

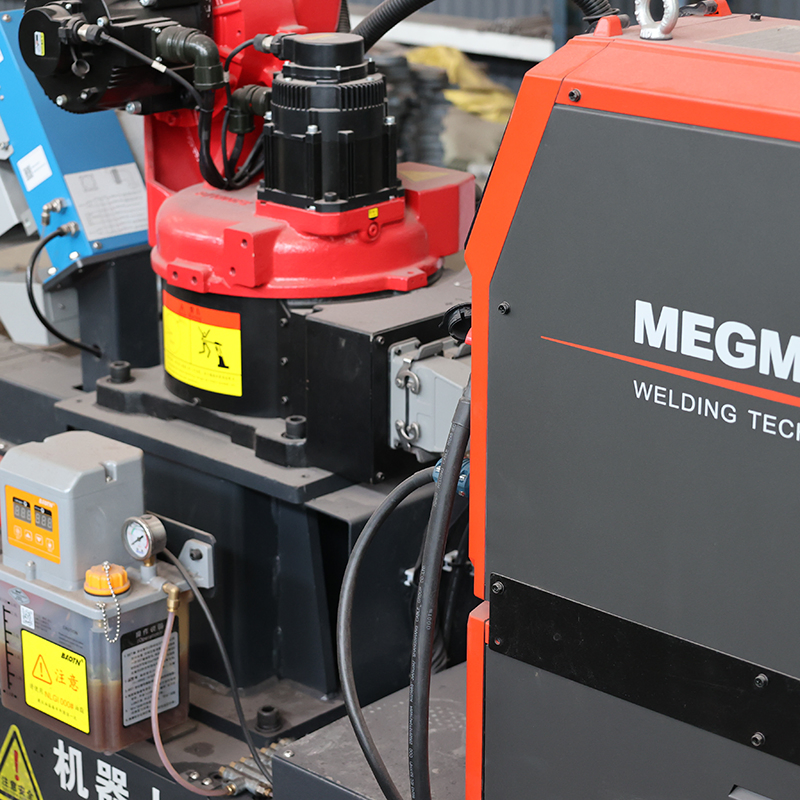

Welding Power Source	Megmeet Dex2500MPR robot special welding power supply

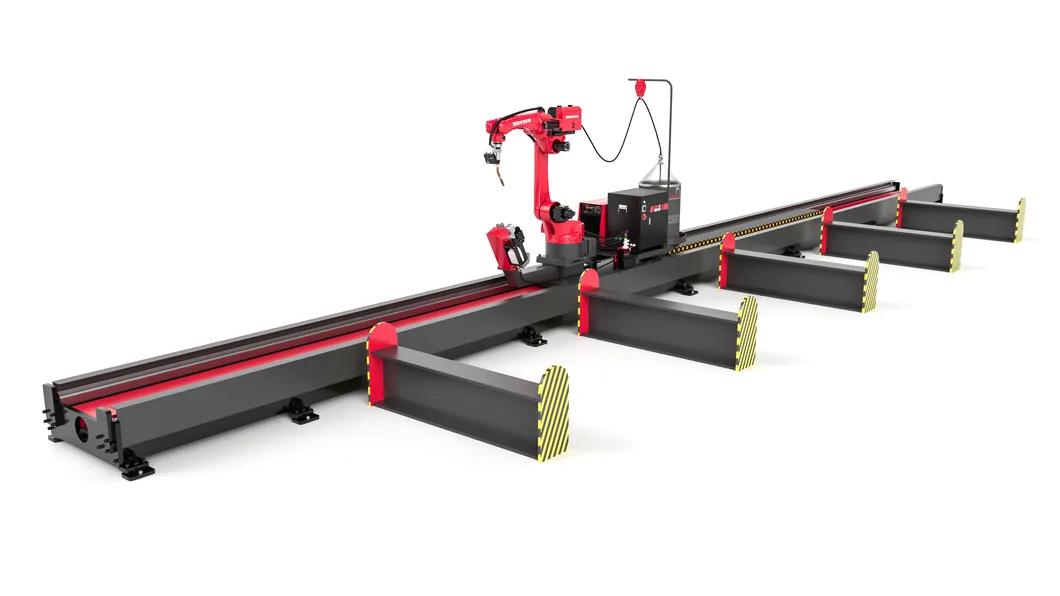

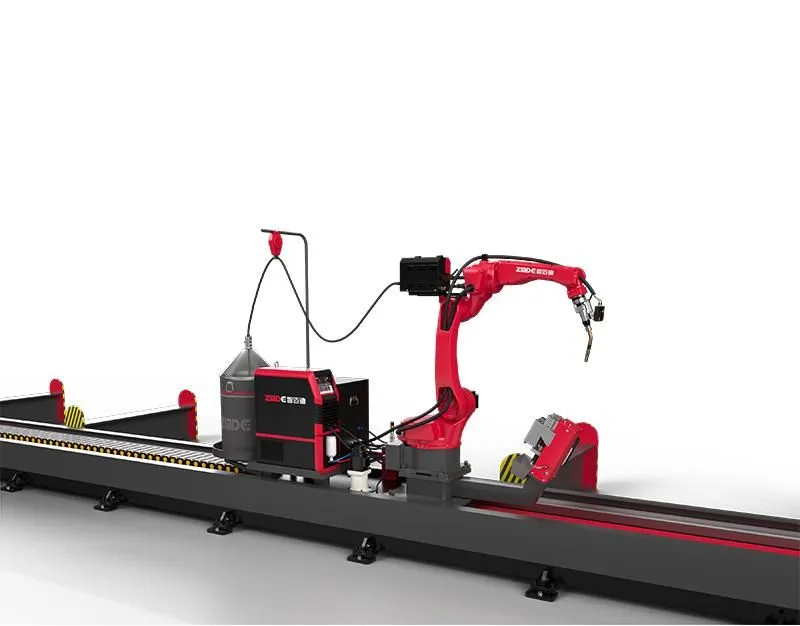

Ground Rail	ZMD6100A-12 (load 1 ton, total length 12 meters)
Intelligent System	CypTronic Pro-E

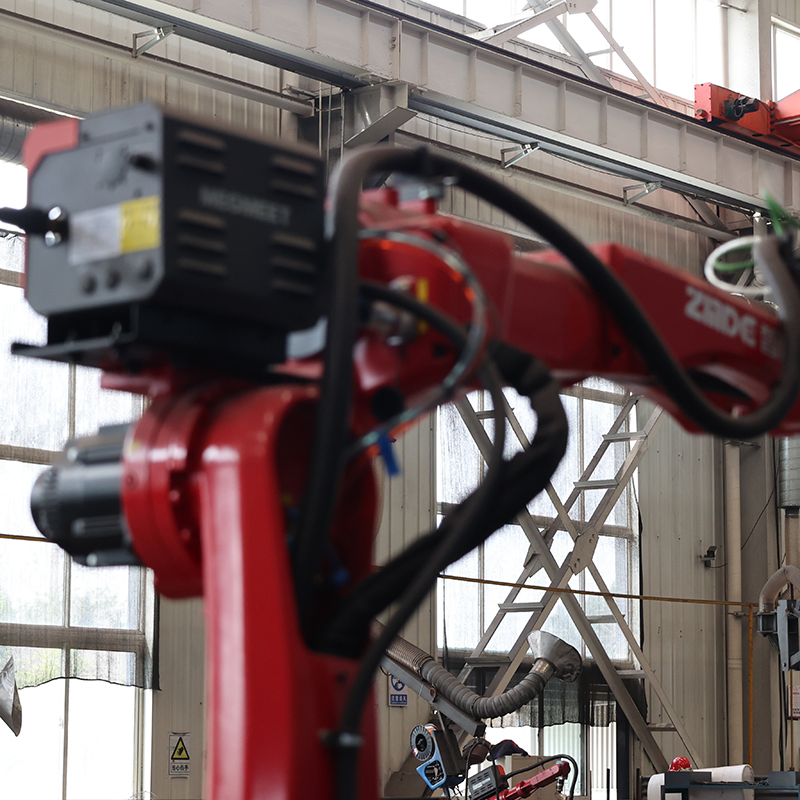

Laser Vision Sensor	BCW600P
Arc Welding Process Software Package	BRW2.0V
Offline Programming Software	CypWeidV2.0
Power Supply	AC 380V 50HZ 3 phase

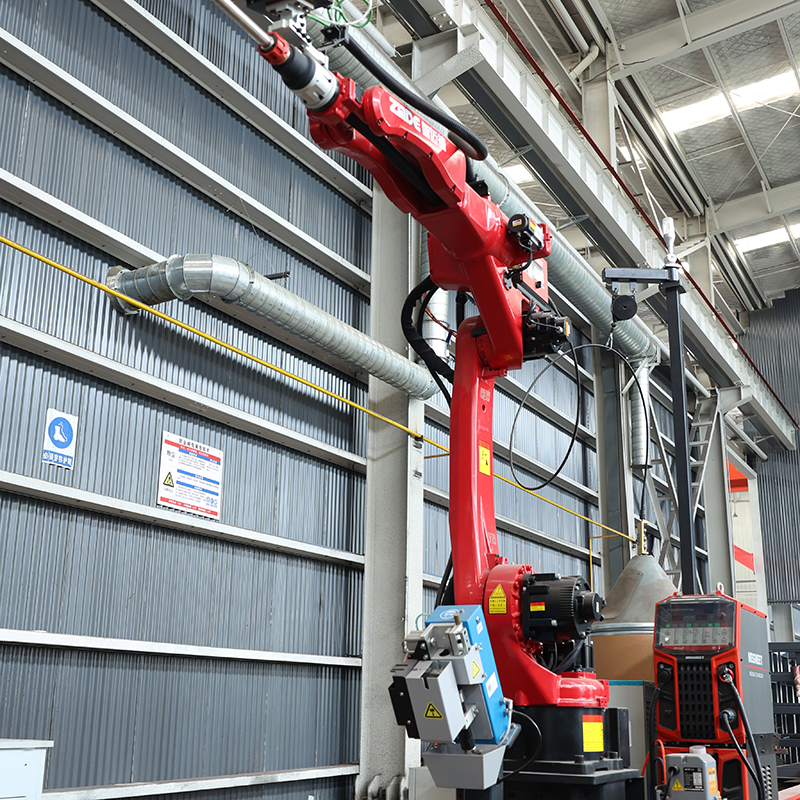

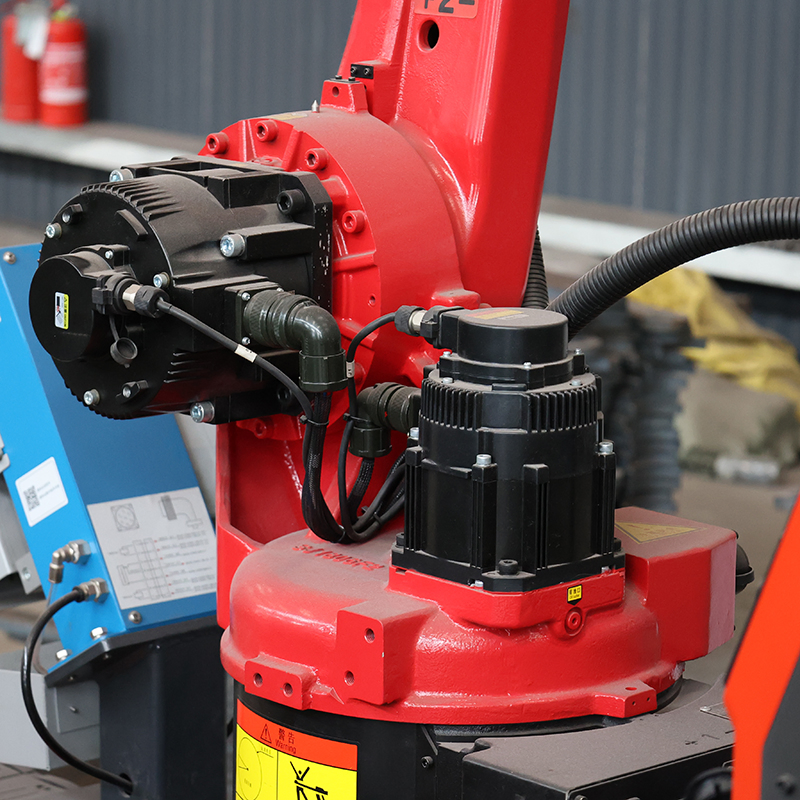

The welding robot stands out with its innovative hollow structure arms and wrists, incorporating built-in welding cables. Its compact design ensures seamless operations in narrow spaces. Lightweight and fortified against dust and water, this robot guarantees utmost safety. Equipped with a protective body cover, it remains reliable even in harsh environments.

With an expansive working space and rapid operational speeds, this robot promises high repeat positioning accuracy, making it perfect for precision welding tasks. Its versatility shines across various demanding conditions, consistently delivering top-notch quality while upholding efficiency and safety.

Frequently Asked Questions

1. Q: What is the minimum order quantity?

A: 1 unit.

2. Q: What are the payment terms?

A: L/C (Letter of Credit); T/T (Telegraphic Transfer).

3. Q: How long is the delivery time?

A: Approximately 30 days depending on specific configurations and destination.

4. Q: How long is the warranty period?

A: 1 Year. Original manufacturer equipment parts can achieve lifelong maintenance.

5. Q: What is the maximum load weight and reachable range of the robotic arm?

A: The maximum load weight capacity is 6KG, and the maximum reachable arm span range is 1598mm.

6. Q: What industries is this welding robot system most suitable for?

A: It is ideal for heavy-duty metal fabrication applications, including steel structures, assembly buildings, bridge engineering, shipyards, and specialized machinery manufacturing.
