China Factory metal rust-proof Electric automatic robotic arm with CE

1 / 5

China Factory metal rust-proof Electric automatic robotic arm with CE

Customization:	Available
Accuracy:	±0.05mm
Application:	Aerospace Industry, Automotive Industry, Construction Industry, Metal Fabrication Industry, Shipbuilding Industry

Send Inquiry

Product Description

Basic Info & Specifications

Model NO.	SZGH-H1600-10C
Type	MIG Welding Robot
Control Mode	Point to Point Control
Drive Mode	Electric AC Servo
Payload	10kg

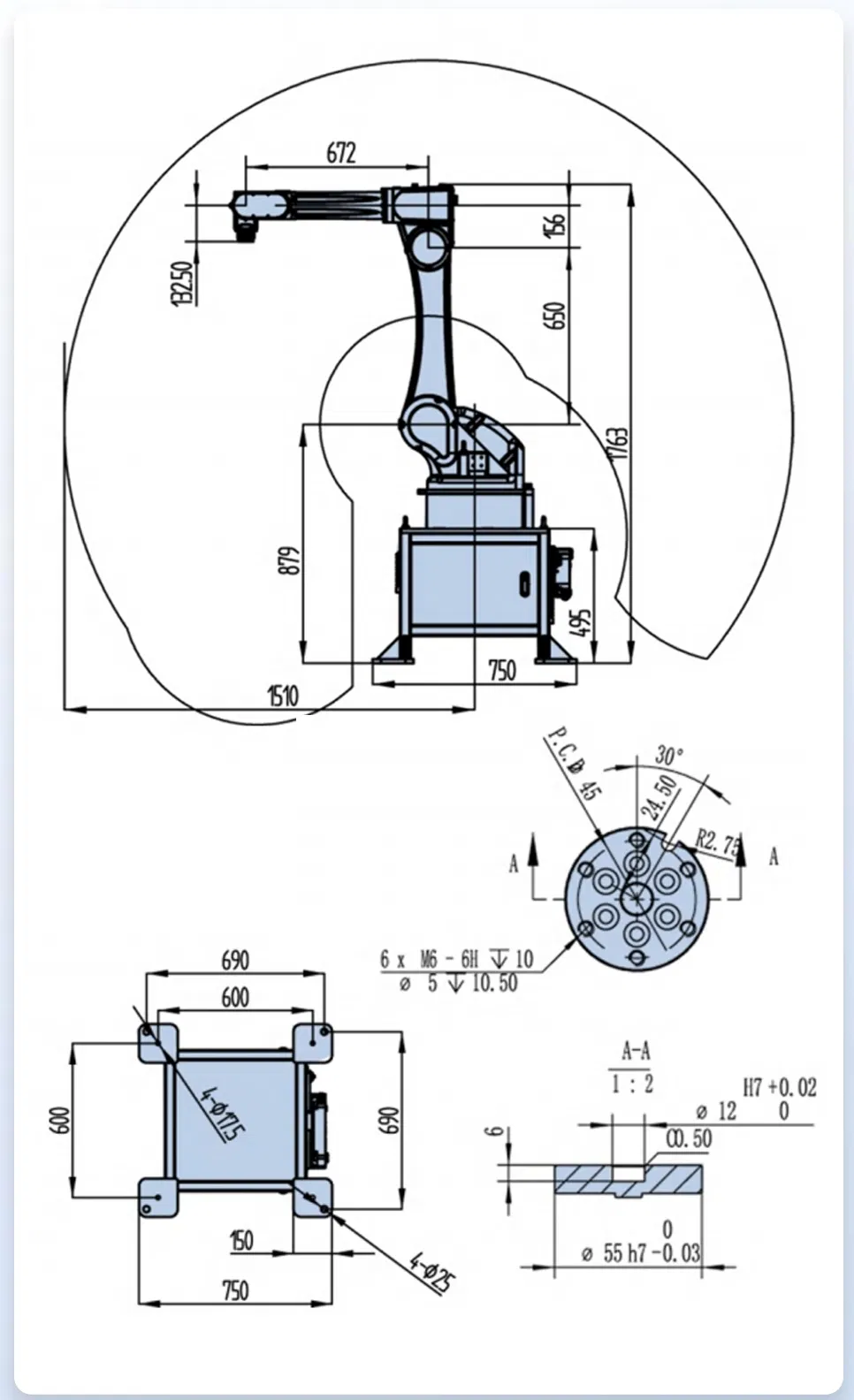

Reach	1510mm
Number of Axes	6 Axis
Position Repeatability	±0.05 mm
Welding Speed	0.5 m/min
Installation	Ground, Bracket, Ceiling
Certification	CE
Robot Mass	160 kg

Product Description

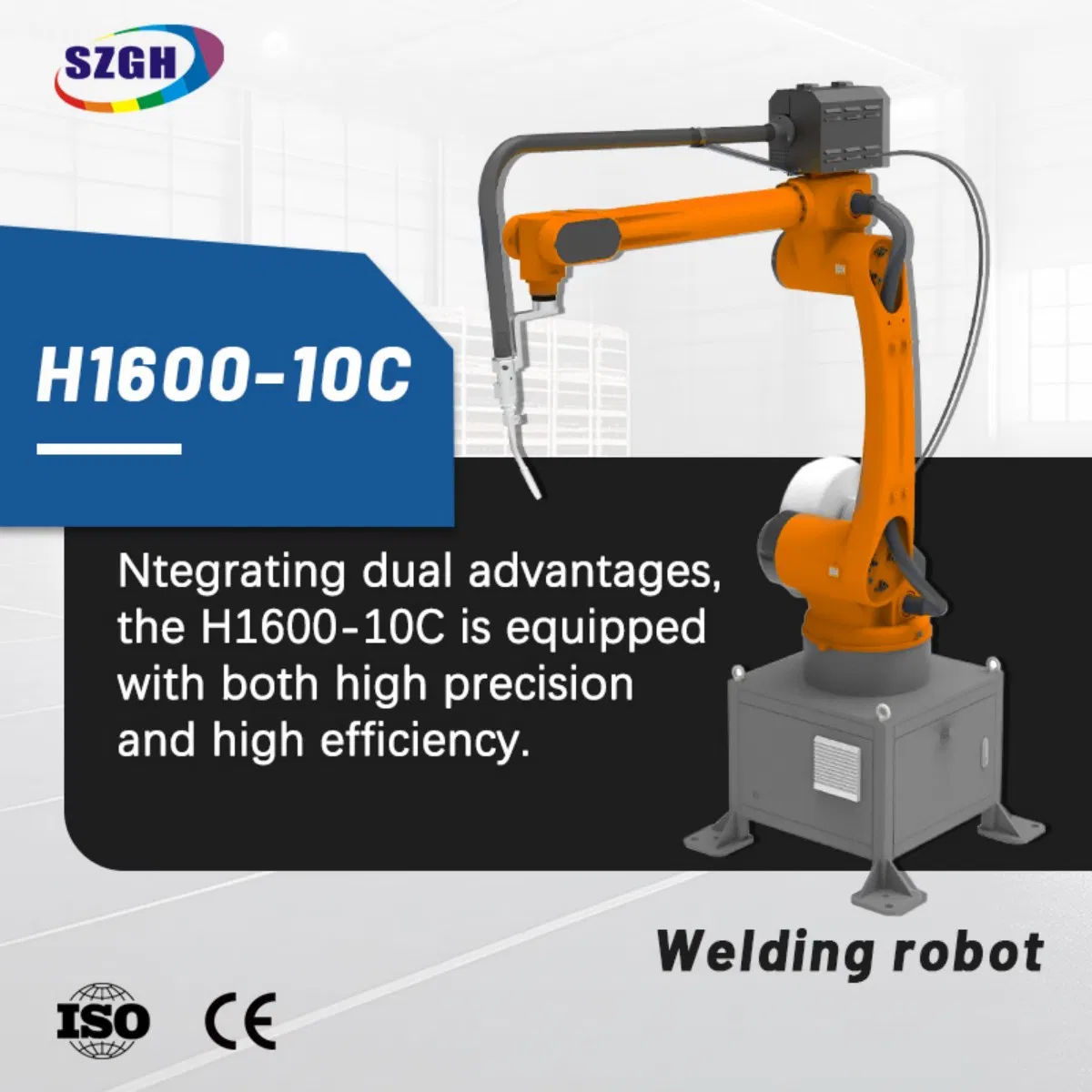

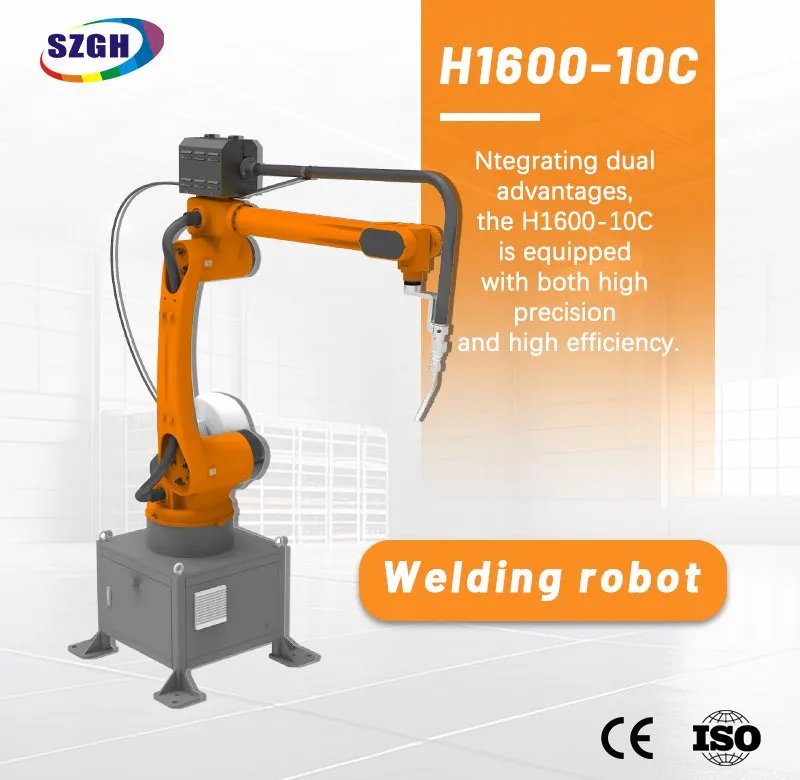

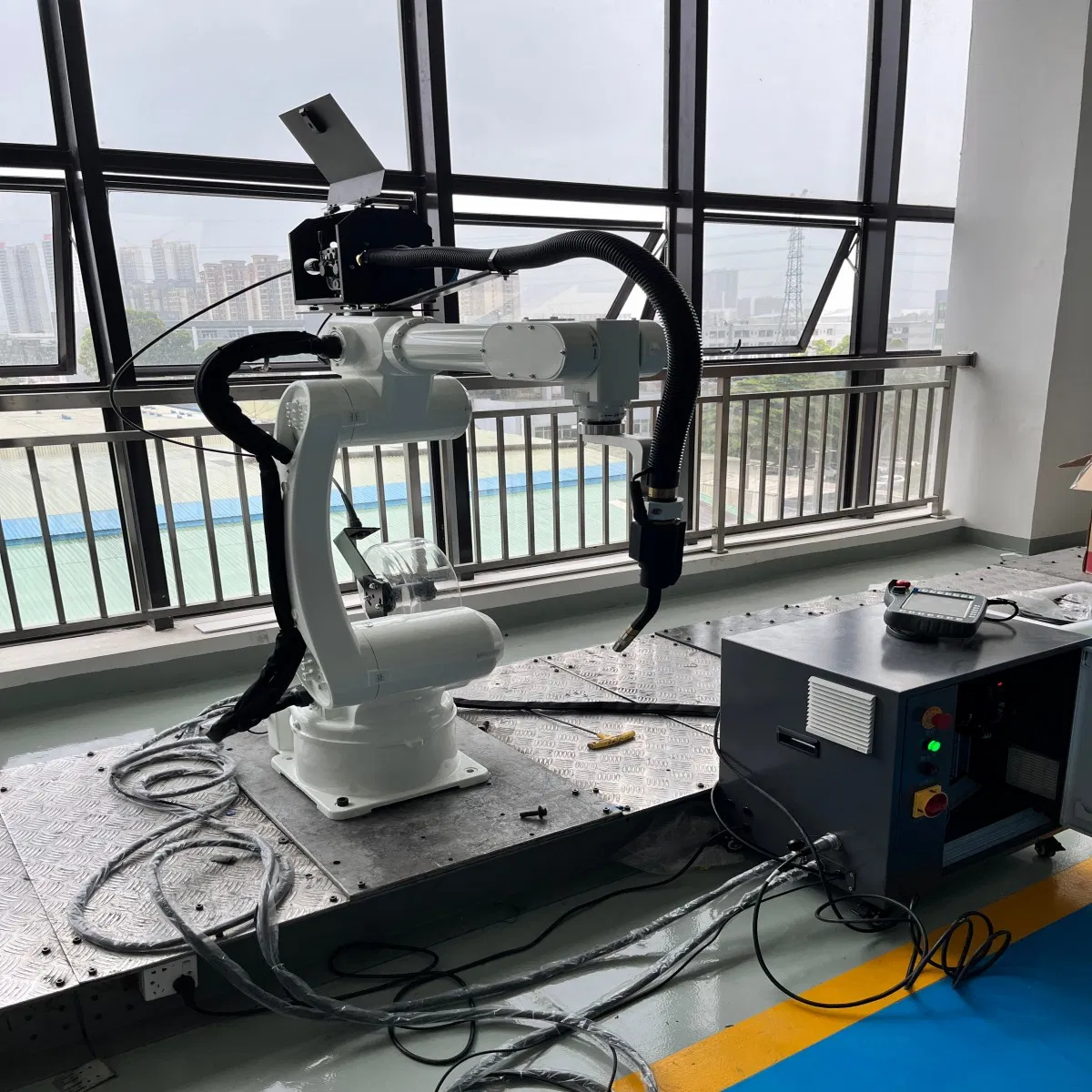

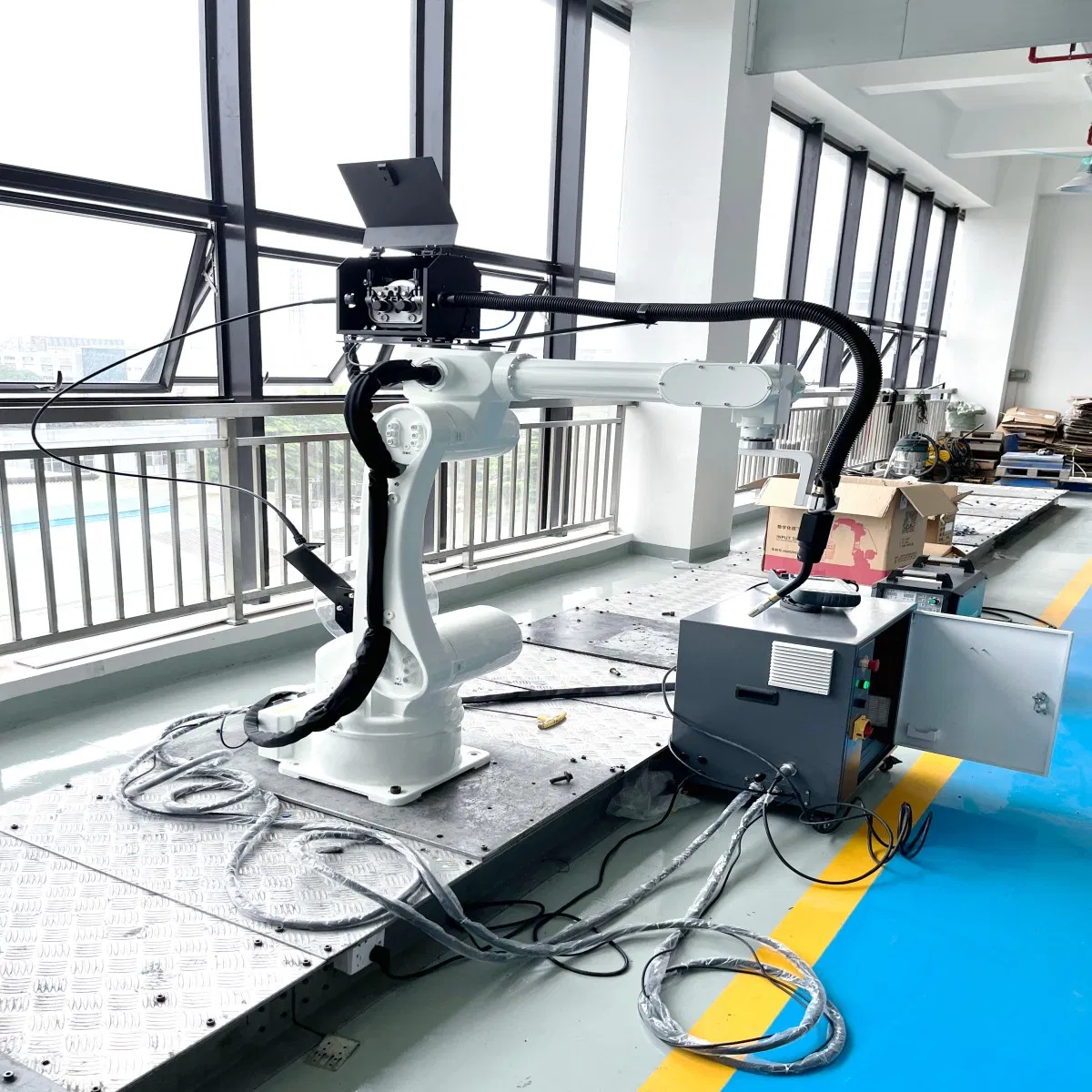

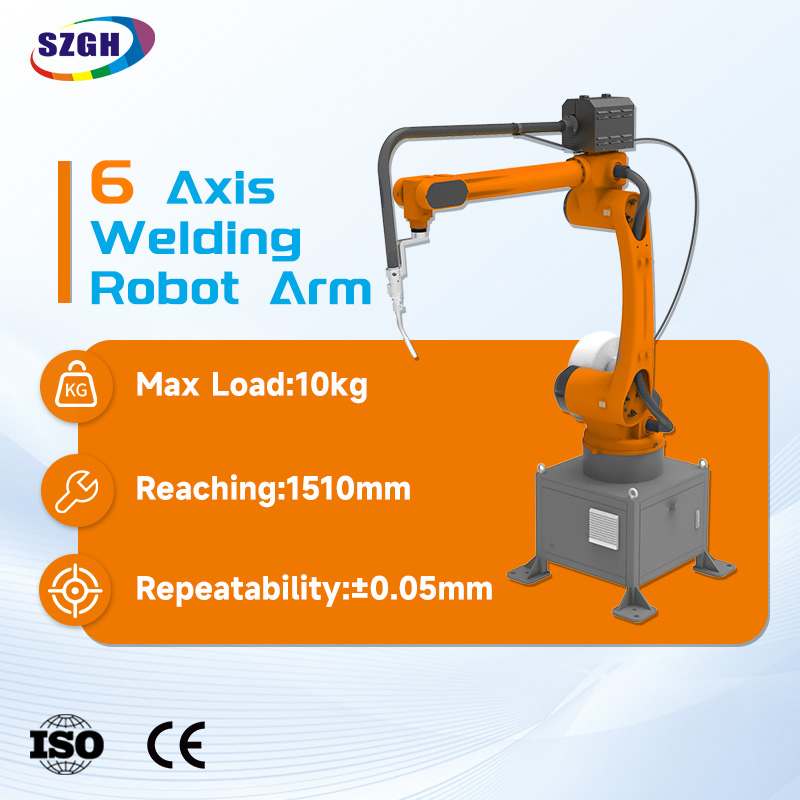

6 Axis Welding Robot Arm SZGH-H1600-10C

The robot features a compact and lightweight design, with high-precision reducers installed on every joint to ensure faster motion performance. The J1, J2, J3, and J6 axes adopt a direct-connection structure between the reducer and the servo motor, eliminating intermediate transmission components. This design delivers higher and longer-lasting accuracy, minimizes oil-leak risks, reduces noise, and significantly lowers failure rates.

With its powerful wrist load capacity, the robot can easily handle various material handling and transfer tasks with exceptional stability and efficiency.

🚀 High Speed

High speed and high precision performance

⚙️ Stable

Stable performance with direct-drive structure

🔋 Energy Saving

30% more energy-efficient than similar models

🖥️ Easy Operation

Intuitive graphical interface

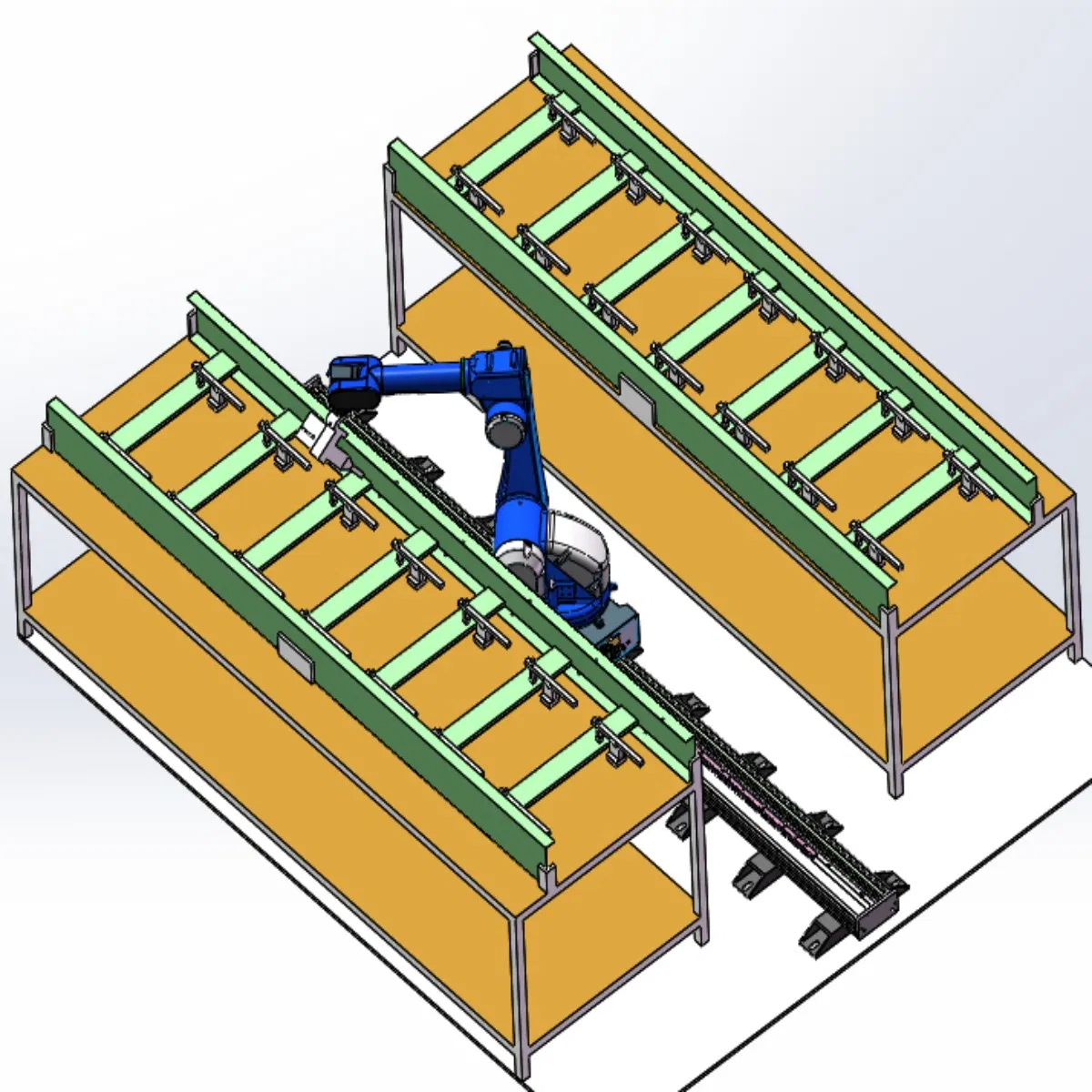

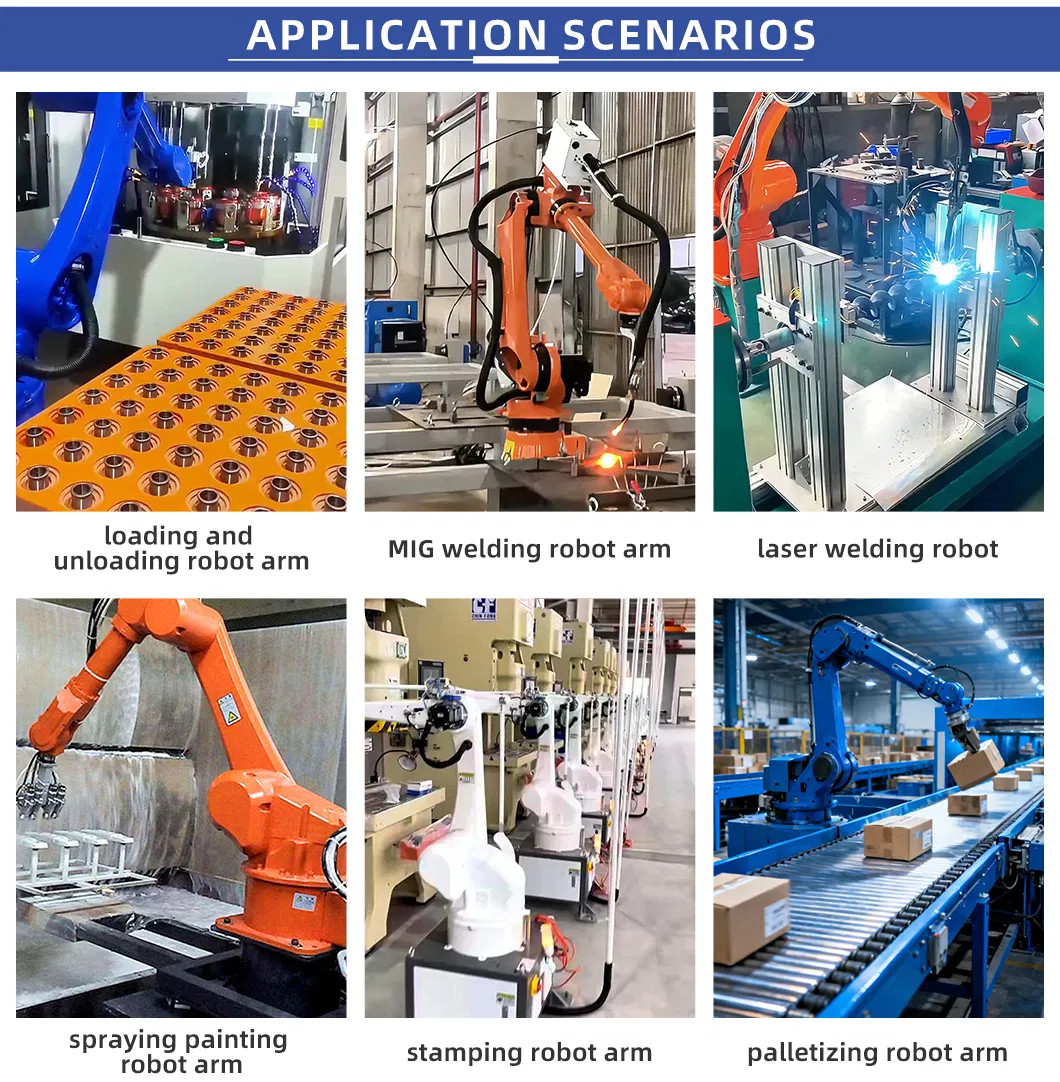

Product Applications

🔹 Spot Welding: High speed and high repeat positioning accuracy; Excellent welding nugget quality.
🔹 Arc Welding: Supports multiple positions including flat, vertical, horizontal, and overhead welding.

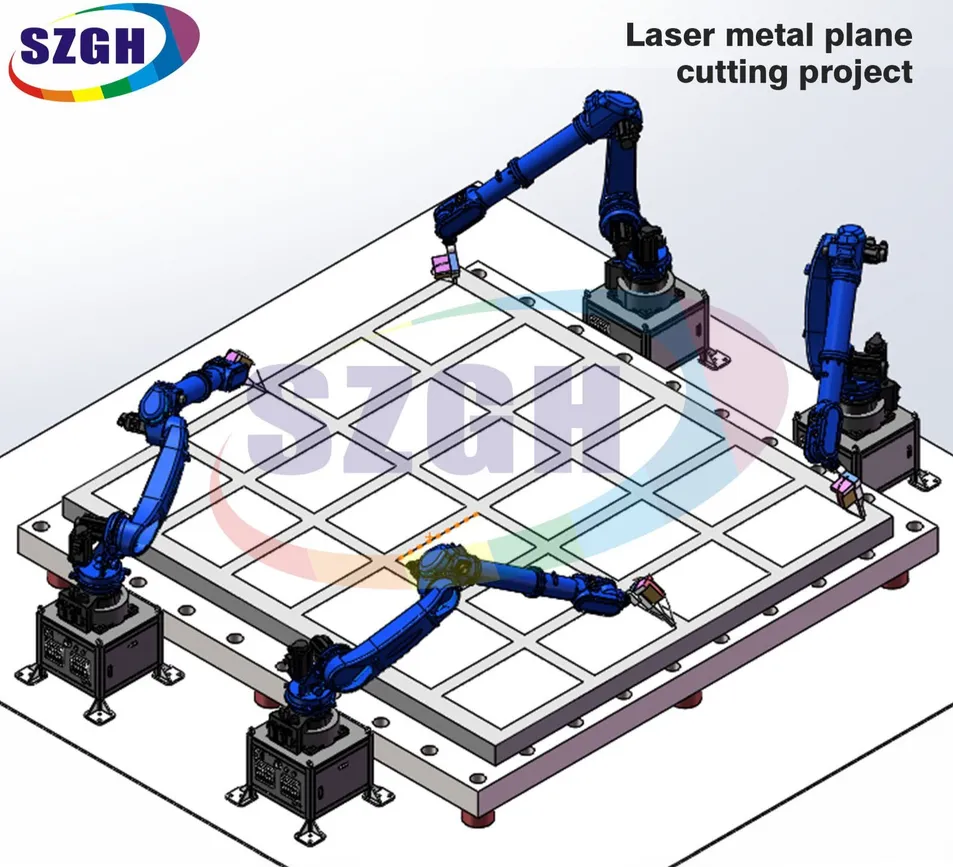

🔹 Special Processes: Capable of laser welding, multi-layer welding for thick plates, and MAG/MIG pulse welding.

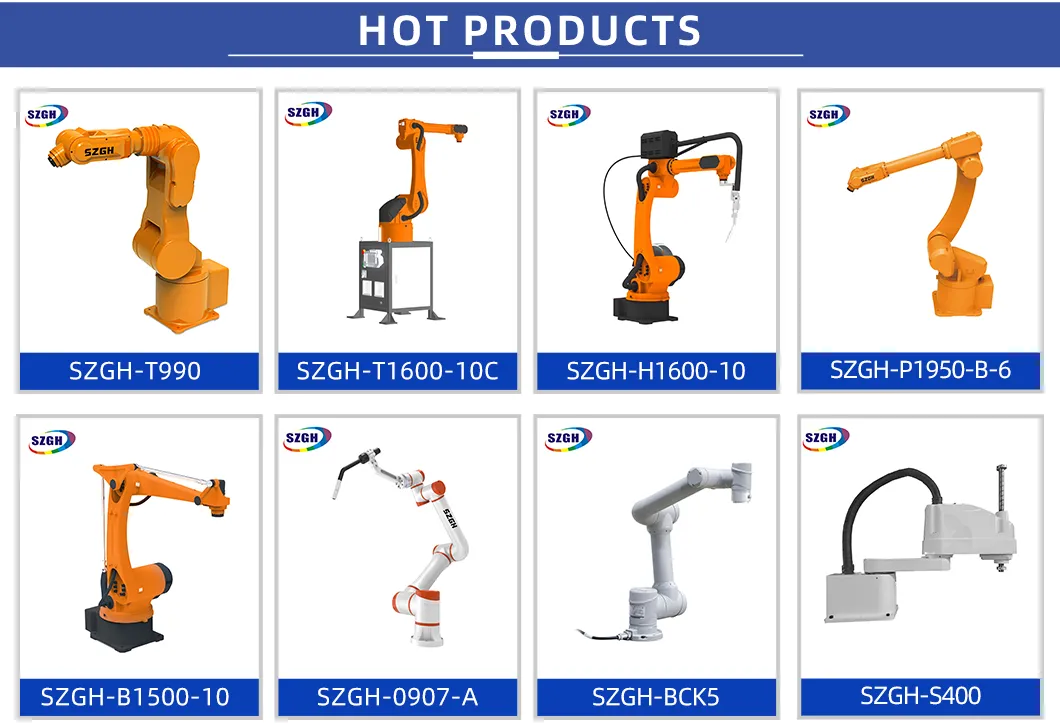

Main Product Series

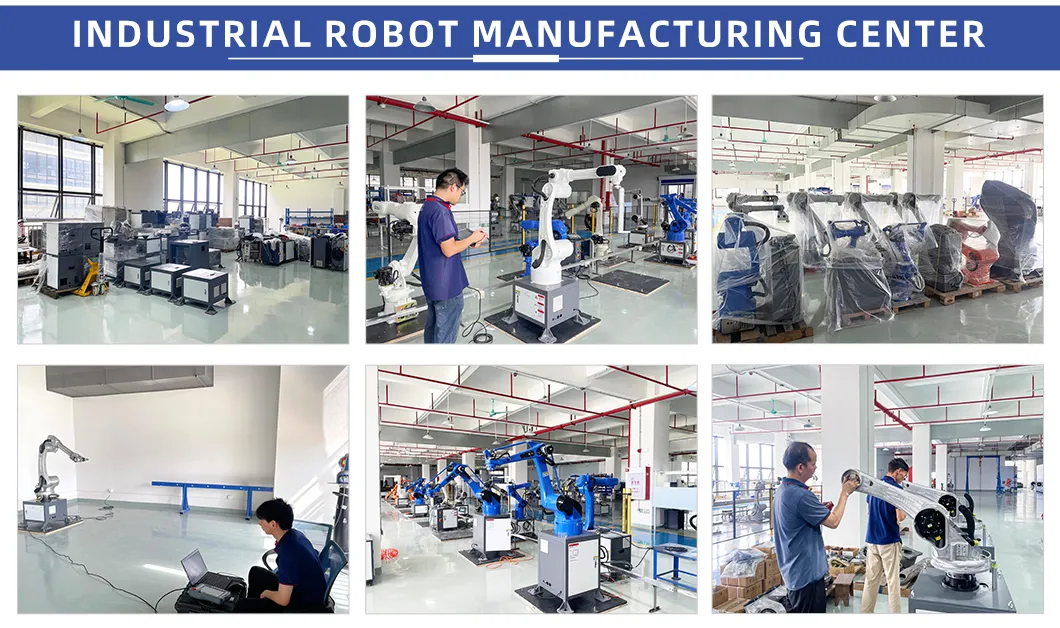

Technical Strength & Quality Control

Equipped with independent technical teams and over 10 years of industrial experience, the manufacturing process focuses on replacing traditional manual work with intelligent technologies. All systems undergo full pre-testing and 100% inspection before shipment.

Quality Certificates

Customer Reviews

Packaging & Delivery

Package Size: 146.00cm * 95.00cm * 200.00cm

Gross Weight: 285.000kg

Fast, professional and reliable international delivery.
Flexible and low-cost delivery solutions.
Strict quality control during transit.

Frequently Asked Questions

What are the main applications for the SZGH-H1600-10C robot?

This 6-axis robot is primarily designed for MIG, TIG, and MAG welding, but it is also highly effective for material handling, picking and placing, and laser welding tasks.

How is the quality of the robot guaranteed?

Every unit undergoes comprehensive pre-testing by professional engineers and a final 100% inspection before shipment to ensure stability and precision.

What is the payload and reach of this model?

The SZGH-H1600-10C features a 10kg payload capacity at the wrist and a maximum reach of 1510mm, making it suitable for medium-sized workpieces.

Does the robot support different mounting positions?

Yes, the robot can be installed on the ground, mounted on a bracket, or attached to the ceiling, providing great flexibility for different factory layouts.

Is the control system easy for new operators to learn?

Absolutely. The robot uses an intuitive graphical interface that simplifies programming and operation, significantly reducing the learning curve for staff.

What kind of maintenance does the direct-connection structure require?

The direct-connection between the reducer and servo motor minimizes intermediate parts, which reduces the risk of oil leaks and mechanical failure, leading to lower maintenance requirements compared to traditional belt or gear-driven models.
