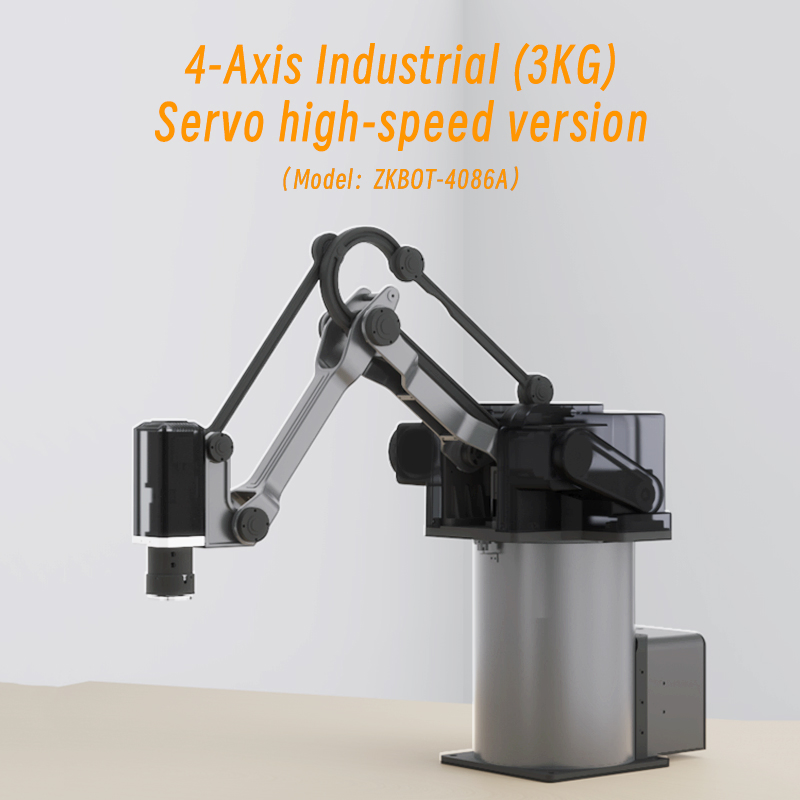

Core Functional Applications

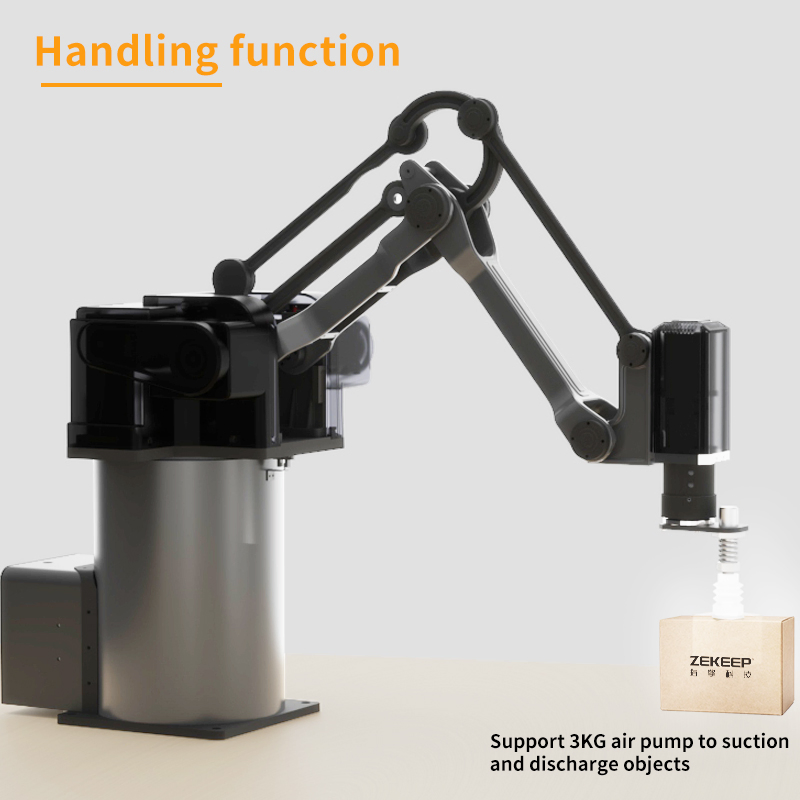

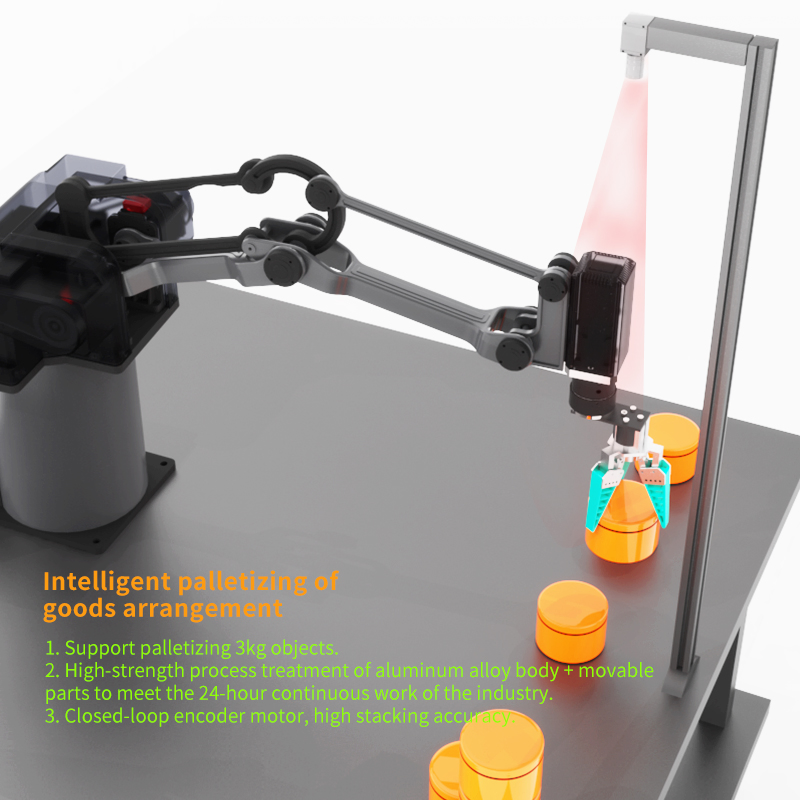

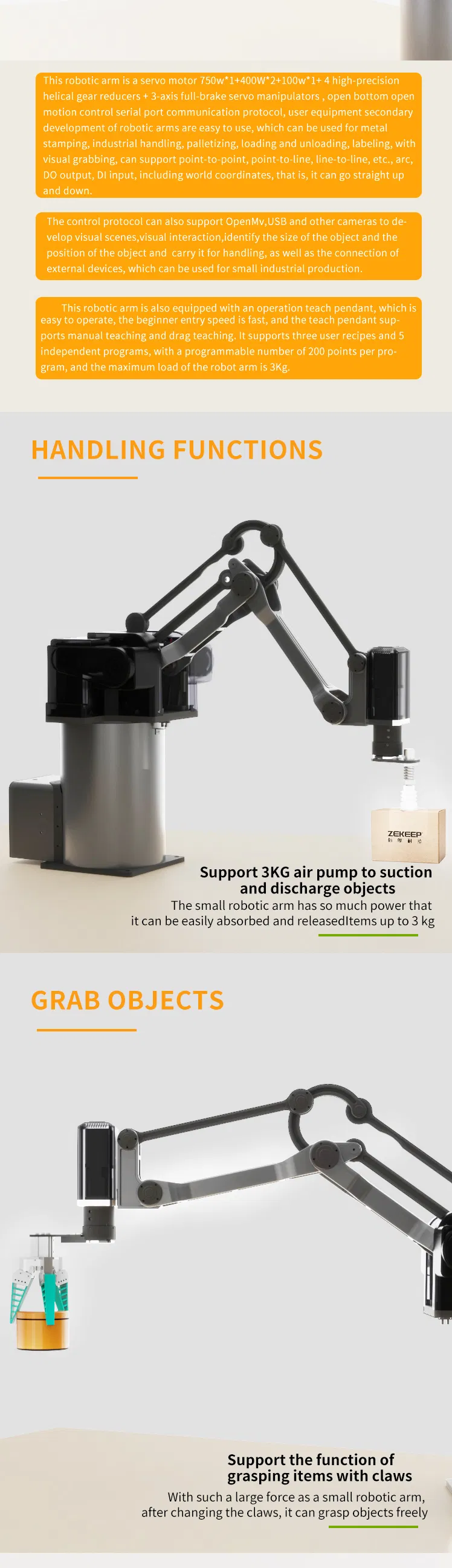

Our Industrial Mechanical Arm is designed for high-precision operations including industrial handling, palletizing, loading/unloading, assembly, gluing, business presentations, writing, and drawing. It supports visual coordination for material identification, defect detection, and qualified testing.
✓
High-Precision Drive: Equipped with Servo Motor (750W*1 + 400W*2 + 100W*1) and 4 high-precision helical gear reducers.
✓
Safety Guaranteed: Permanent magnet brakes ensure the machine remains secure during power-offs.
✓

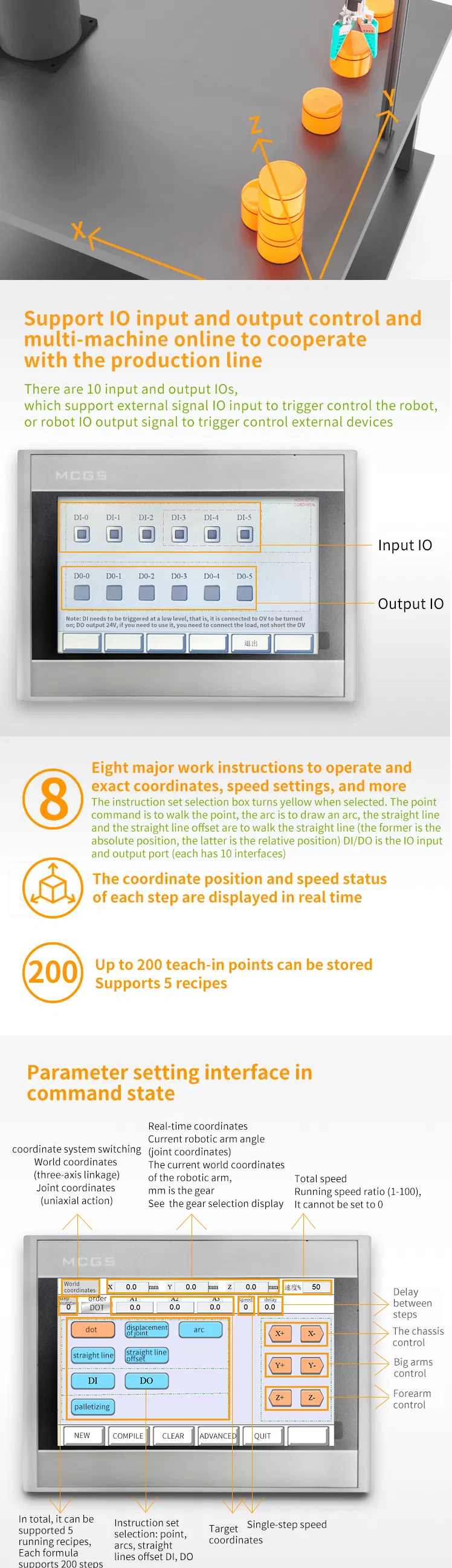

Intelligent Interaction: Supports open control protocols (Serial Port, 10 Inputs, 10 Outputs) for secondary development and visual scene integration (OpenMv, USB cameras).
✓
Easy Operation: 7-inch industrial touch screen supporting manual teaching and "Drag to Teach" functionality.
Technical Capabilities
This robotic arm supports complex motion trajectories including squares and multi-segment arcs. With a maximum load capacity of 3KG, it is built with a high-strength aluminum alloy body suitable for 24-hour continuous industrial work. The closed-loop encoder motor ensures no lost steps and maintains extreme precision.
Package Size
200.00cm * 150.00cm * 150.00cm
Reference Frame
Joint / World Coordinates
Communication
Serial Port, 10 In / 10 Out
Frequently Asked Questions
Q1 Can you set the cycle work?
The touch screen supports motion node cycles within 50 steps, while PC control supports unlimited step cycles.
Q2 Does it save teaching points during power failure?
Yes, the system includes a function to automatically save teaching points when power is disconnected.
Q3 Is the robotic arm open source?
It is not completely open source; however, the bottom layer provides a manipulator control communication protocol, supporting secondary development for peripherals and external device interaction.
Q4 What is the maximum payload and accuracy?

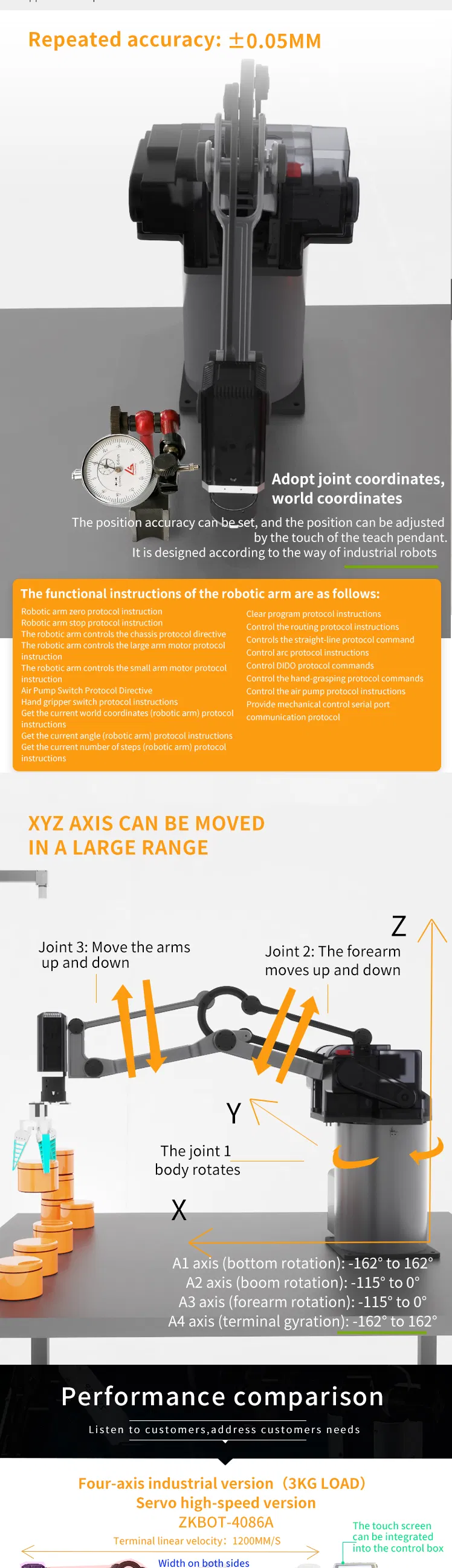

The robotic arm supports a maximum payload of 3KG with a repeat positioning accuracy of ±0.05mm.
Q5 What teaching methods are available for beginners?
It supports both manual touch screen programming and "Drag Teaching," allowing users to record motion tracks by hand without complex coding knowledge.

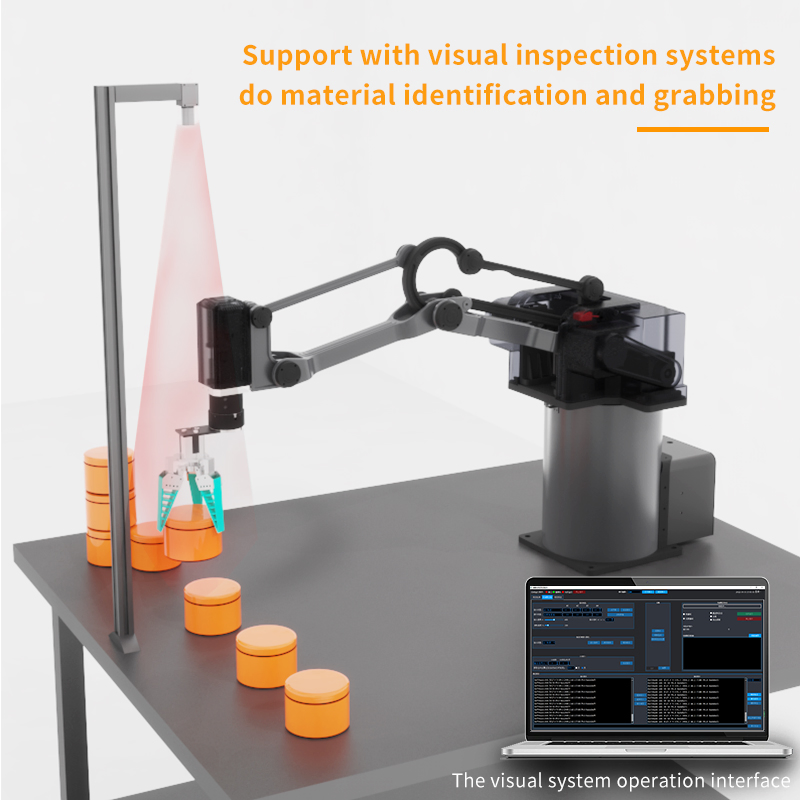

Q6 Can it be used with visual inspection systems?
Yes, it supports OpenMv, USB cameras, and other systems for material identification, color recognition, and defect detection.
