Product Description

Automatic Laser Mig/tig Welding Robot Station
Welding Station Overview
🔍 Introduction
The laser energy feedback fiber-optic conduction laser welding machine is an advanced laser application device that achieves laser output control through the industry's first-class "energy negative feedback" technology to obtain laser with higher stability. The equipment can effectively improve welding stability, reduce product defect rate, and reduce material and processing costs for enterprises.

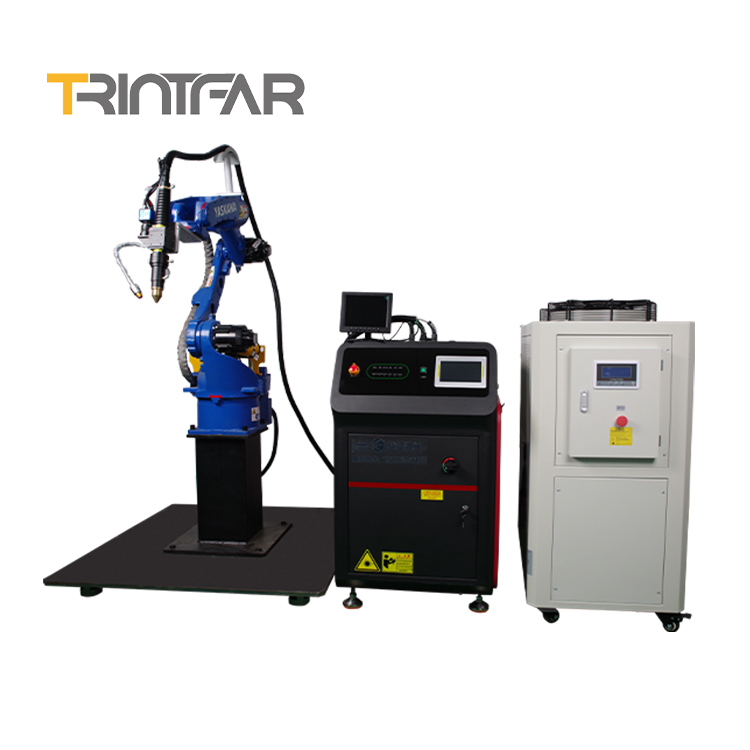

Robotic Arm Detail 1
Robotic Arm Detail 2

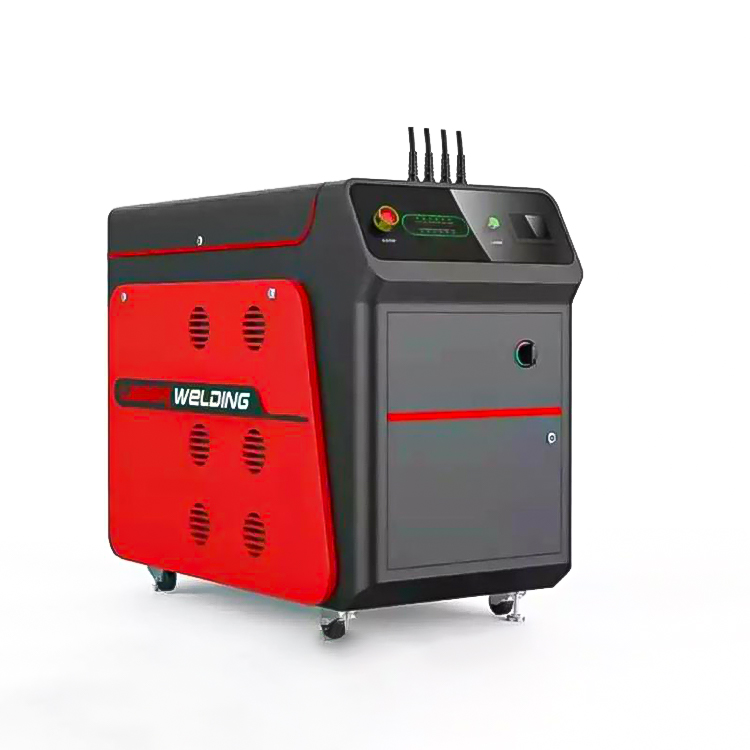

Robotic Arm Detail 3
⭐ Key Features
  • Energy Negative Feedback Technology: Laser output energy conversion is controlled within 3% to ensure stable power, improving repeatability and reducing defect rates.
  • Optical Fiber Transmission: Unique transient spectroscopic technology makes production efficiency twice as fast as traditional time splitting.
  • Superior Welding Quality: Smooth and beautiful welding points with no pores; weld strength exceeds base metal, requiring minimal post-treatment.
  • Rich I/O Interface: Convenient control systems for seamless operation.
  • Imported Key Components: High-quality components sourced from abroad to ensure long-term product reliability.
  • Customization Ability: Various worktables available, tailor-made according to specific customer requirements.
📊 Technical Parameters
Model BH-50 BH-150 BH-300 BH-400 BH-500
Maximum laser power 50W 150W 300W 400W 500W
Laser working medium Nd:YAG
Laser wavelength 1064mm
Single pulse max energy 30J/10ms 50J/10ms 60J/10ms 90J/10ms 100J/10ms
Fiber outputs Up to 4 channels
Feedback type Energy feedback
Pulse width / Frequency 0.1-50ms / 1-300HZ
Cooling method Air cooled Water cooling Water cooling Water cooling Water cooling
Machine power 2KW 6KW 12KW 15KW 15KW
🛠️ Application Range
Suitable for 3C, fiber optic connectors, microelectronic components, medical devices, sensor diaphragms, precision parts and other specialized welding.

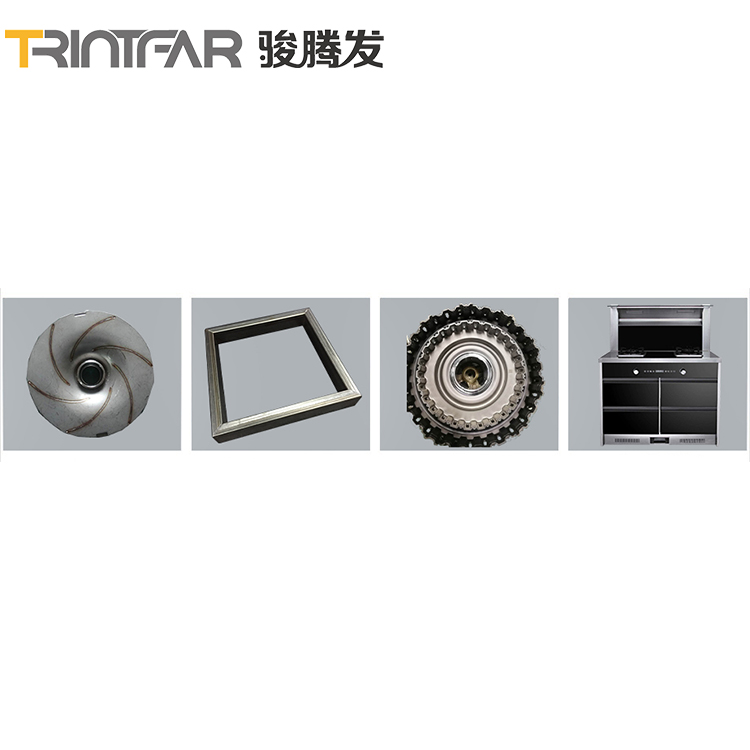

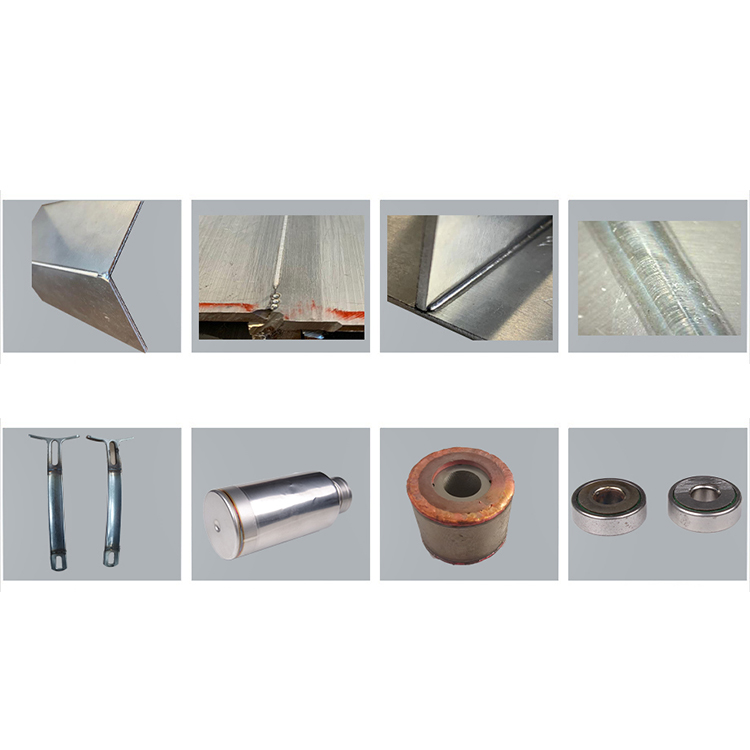

Application Sample 1
Application Sample 2
Application Sample 3
Industrial Robotic Arm
Welding Process
Control Panel
Finished Product
Machine Structure
Bottom Banner
❓ Frequently Asked Questions
What is "Energy Negative Feedback Technology"?
It is a control system that keeps laser output energy variation within 3%. This ensures consistent power throughout the welding process, significantly improving repeatability and reducing product defects.
How does fiber-optic transmission benefit production?
The system utilizes transient spectroscopic technology, which allows for much higher production efficiency compared to traditional splitting methods, enabling faster processing times.
What is the quality of the weld seam?
The welds are smooth, beautiful, and free of pores. In many cases, the strength of the weld meets or exceeds the strength of the base metal itself.
Does the equipment require extensive post-weld treatment?
No, due to the high-quality finish of the laser weld, very little to no post-processing is required, which helps in reducing labor intensity and costs.
What materials and industries are best suited for this machine?
It is ideal for high-precision industries including 3C electronics, medical devices, sensors, and microelectronic components where accuracy is critical.
Can the machine be customized for specific workflows?
Yes, we offer special machine customization and a variety of worktables to meet specific customer production requirements.
