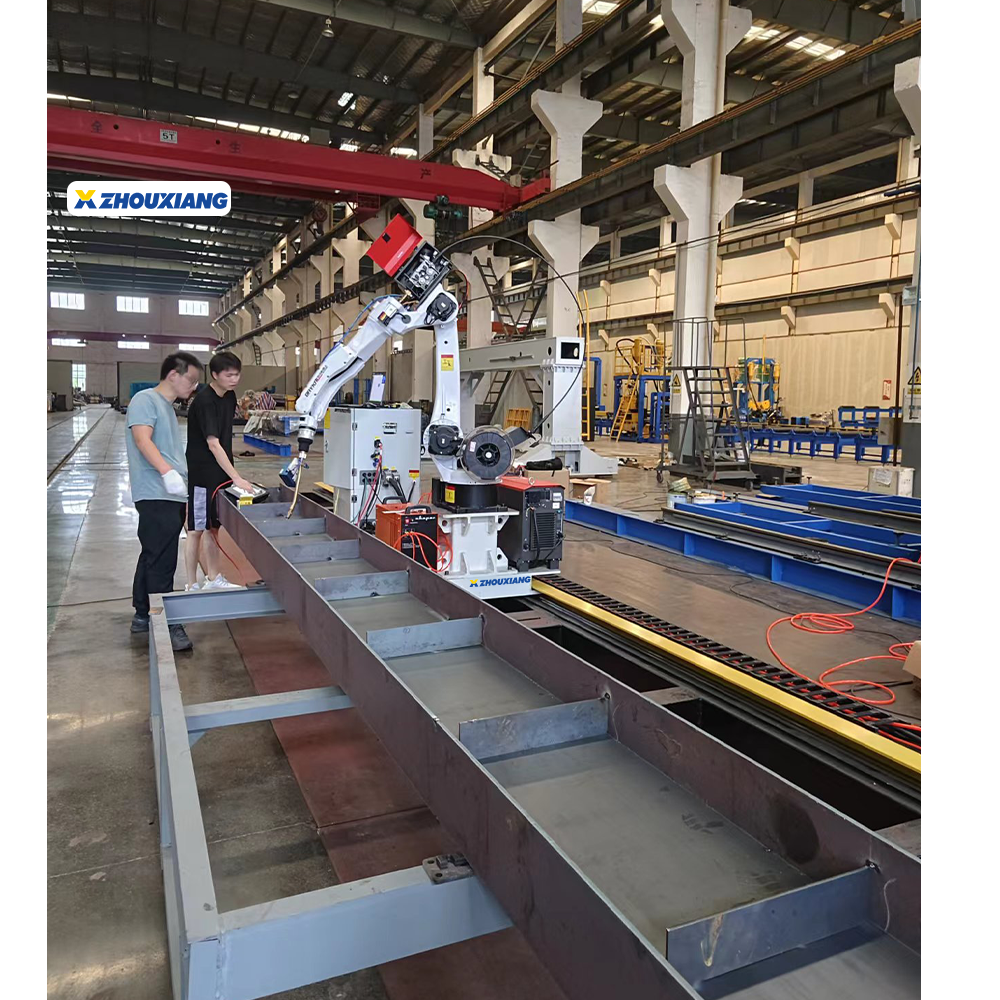

1Product Description

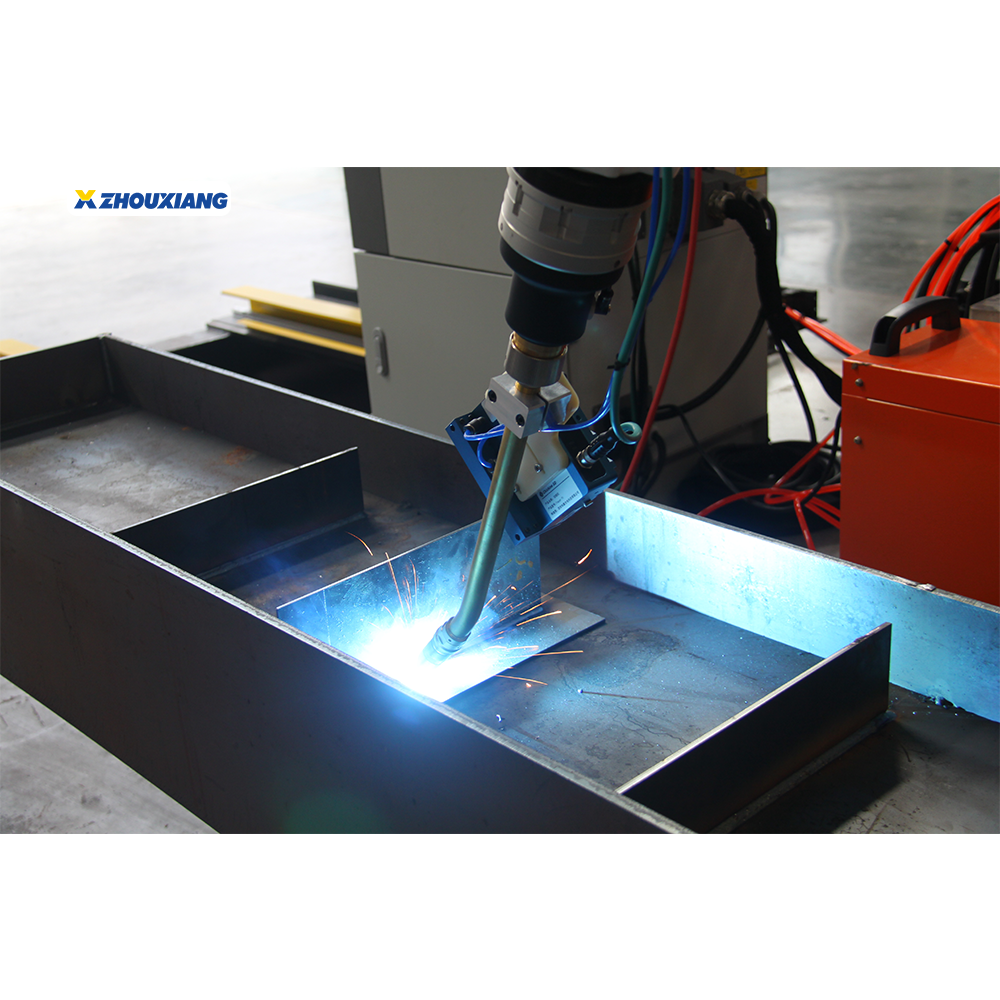

Unique appearance, hollow structure arms and wrists, built-in welding cables, compact structure, can be used for welding operations in narrow spaces, light weight, dust-proof and drip-proof, high safety, equipped with body cover, can be used in various harsh conditions with confidence. It has a large environmental working space, fast running speed, and high repeat positioning accuracy. It is suitable for welding applications that have high requirements on weld quality.
2Product Parameters
| Specification Item |
Details |
| Robot |
1 set of industrial robot |
| Optional welding power source |
Aotai welding machine or Megmeet welding machine and accessories |
| Welding system |
Teaching-free offline programming welding software, Mingtu line laser tracking |
| Applicable scenarios |

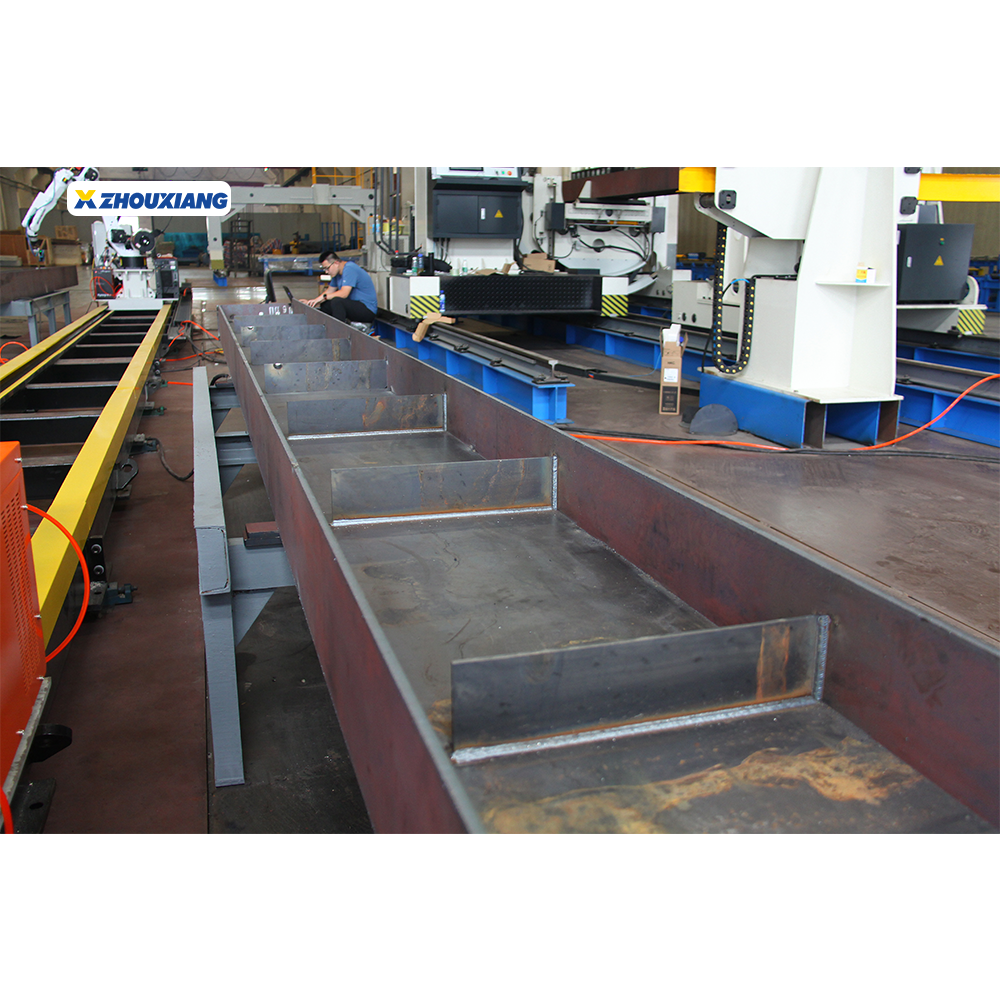

Suitable for gusset plates, corbel parts, small structural parts, H-shaped main beams, secondary beams of steel structures, ship bridge plate units, etc. |
| Gun cleaning system |
SC220A gun cleaning system |
| Ground rail length |
6 meters (optional according to user requirements) |
3Robot Operation & Design

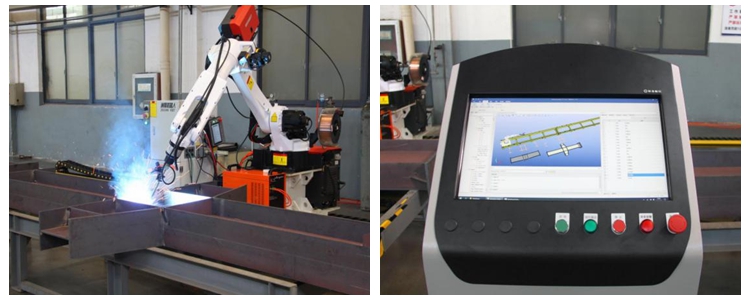

The robot wrist adopts a hollow structure, and the surrounding forearms and five-axis wrists are equipped with built-in wiring channels. The welding gun can rotate 360° without tangling the lines. Compared with traditional external structure welding guns, the spatial movement range is larger and more flexible.
Application areas: Specialized for gas shielding, argon arc, laser welding of aluminum, stainless steel, and carbon steel.
| Models |
ZXR12-2010 |
ZXR10W-1440-D |
| Number of axes |
6 axes |
6 axes |
| Movement radius |
2010mm |
1440mm |
| Payload |
12KG |
10KG |
| Protection level |
J1, J2 IP56 / J3-J6 IP67 |
J1, J2 IP56 / J3-J6 IP67 |
| Power capacity |
4.5KVA |
4.5KVA |
| Repeat positioning accuracy |
±0.05 |
±0.05 |

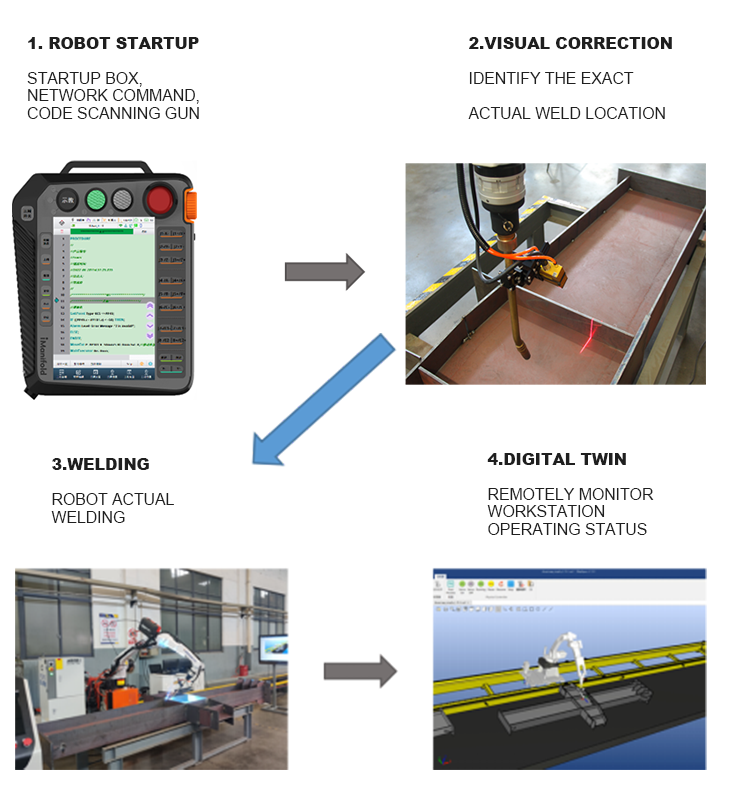

4Intelligent Auxiliary Systems

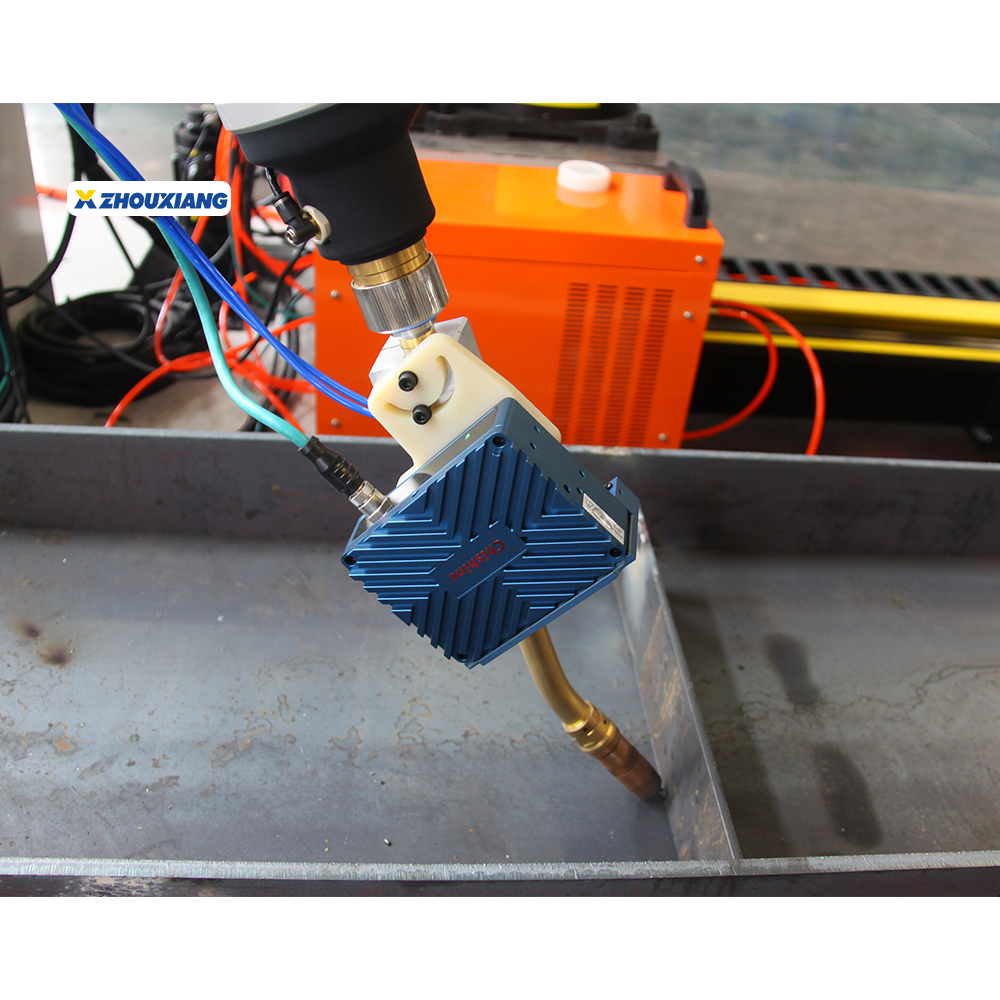

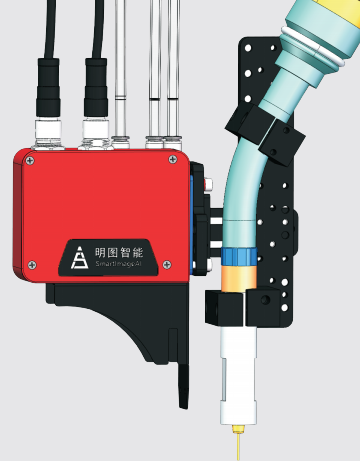

CP350V Laser Tracker
Intelligent line scanning welding seam sensor. Obtains contour information through line laser scanning. Guides the robot to complete welding automatically. Image acquisition and identification are completed inside the sensor.

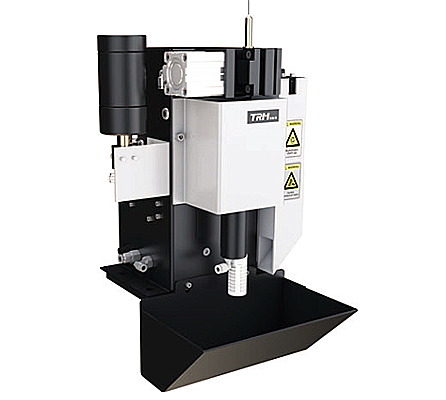

SC220A Gun Cleaning Station
Automatically cleans welding slag, cuts wires, and protects the nozzle. Extends service life and maintains high welding quality without manual operation.

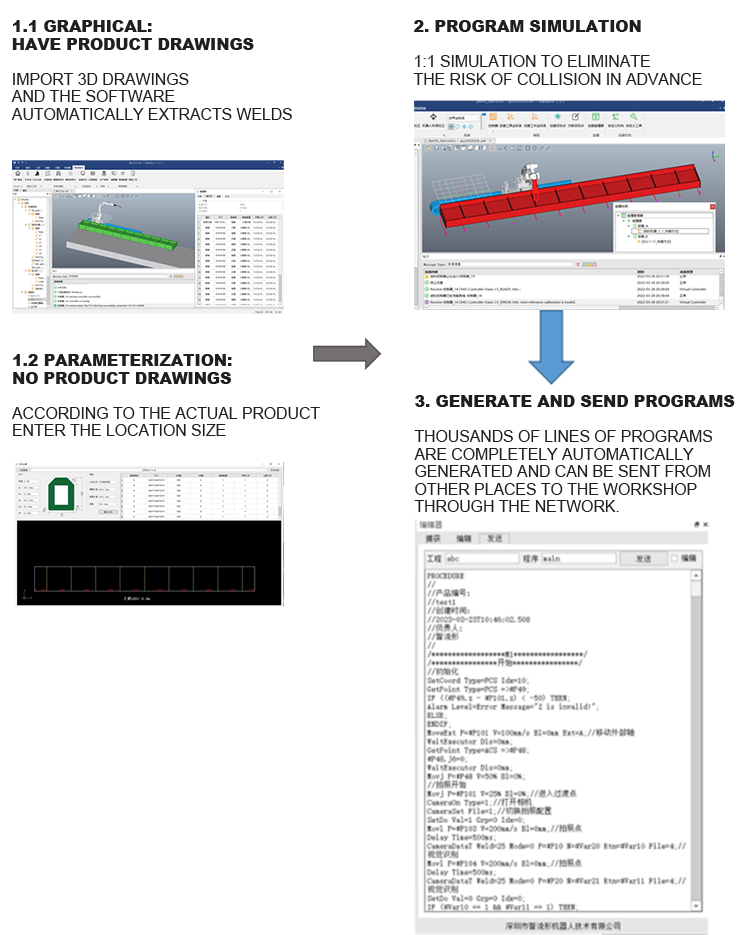

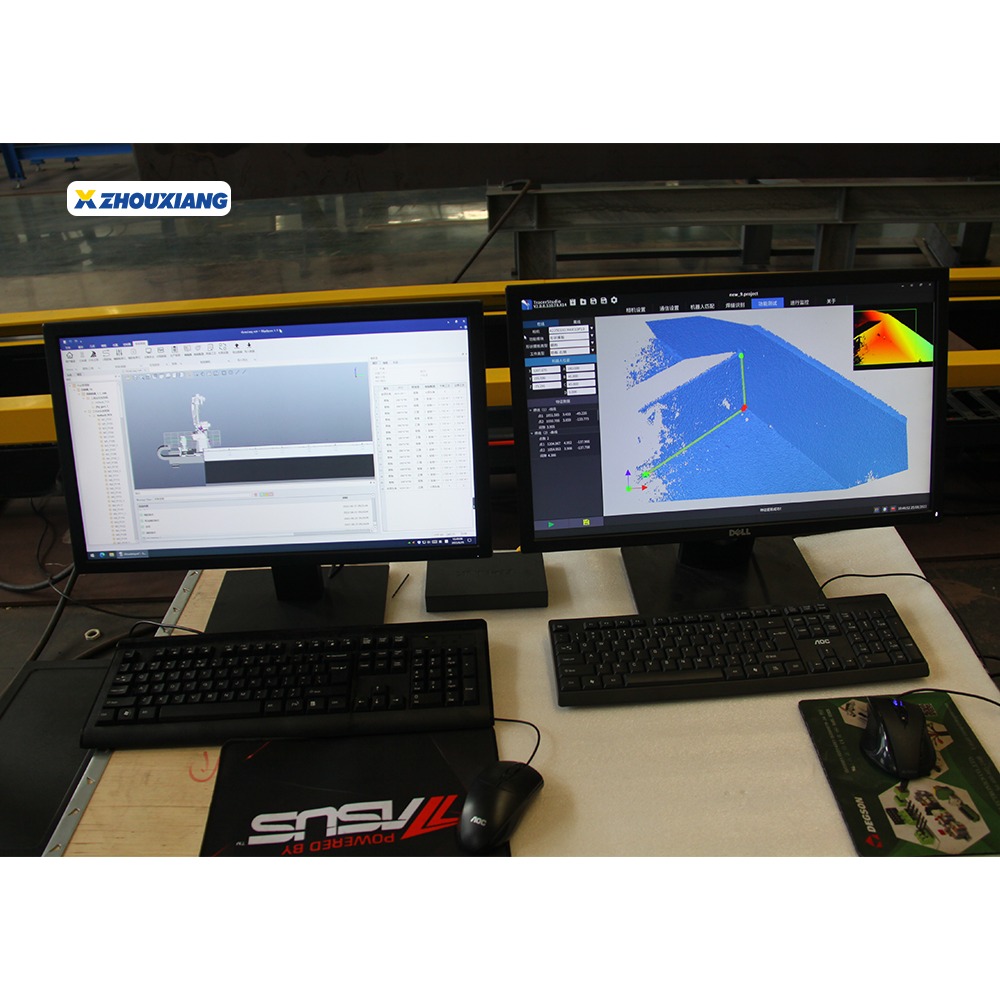

5Robot Welding Software

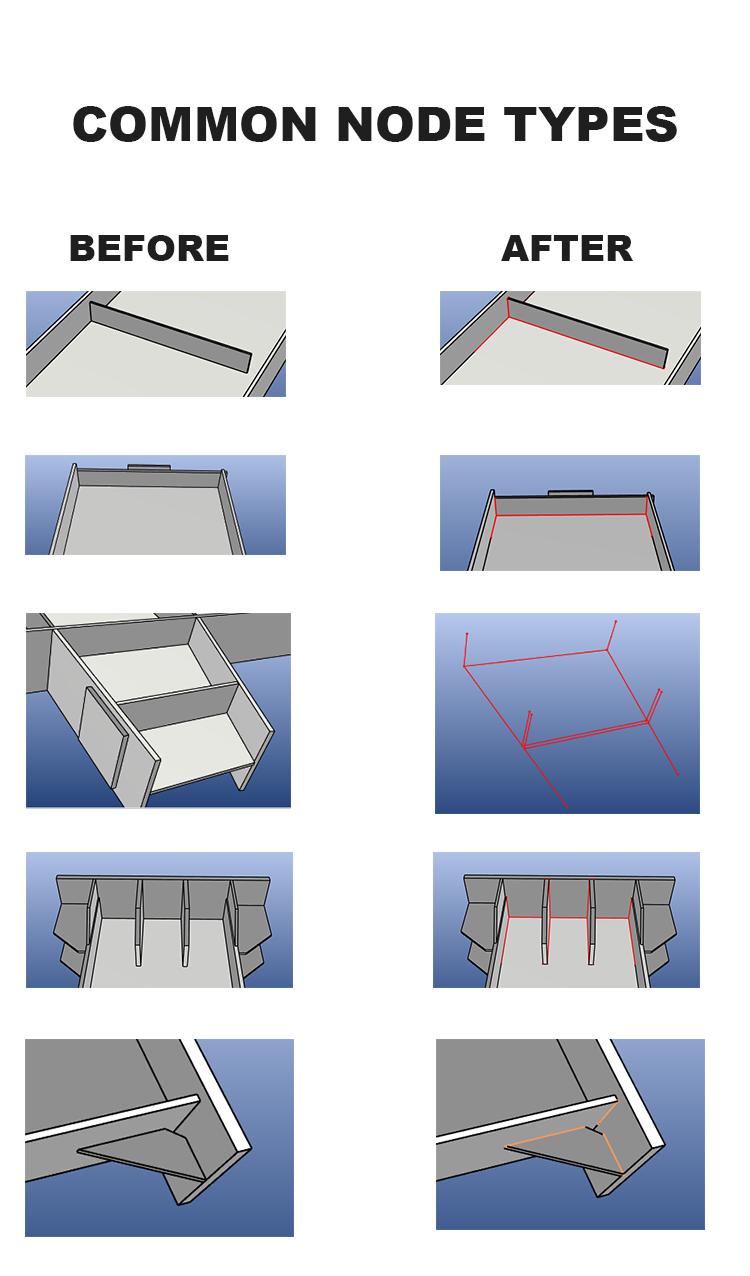

Automatically extracts welds from drawings without marking. Uses a high-performance 3D engine for simulation and collision verification.
● Supports teaching-free for sandwich panels, truss beams, and partitions.
● Automatic transition, position finding, welding, and counting.
● 1:1 simulation of robot movements to avoid interference.
● Digital twin technology for real-time trajectory and current monitoring.

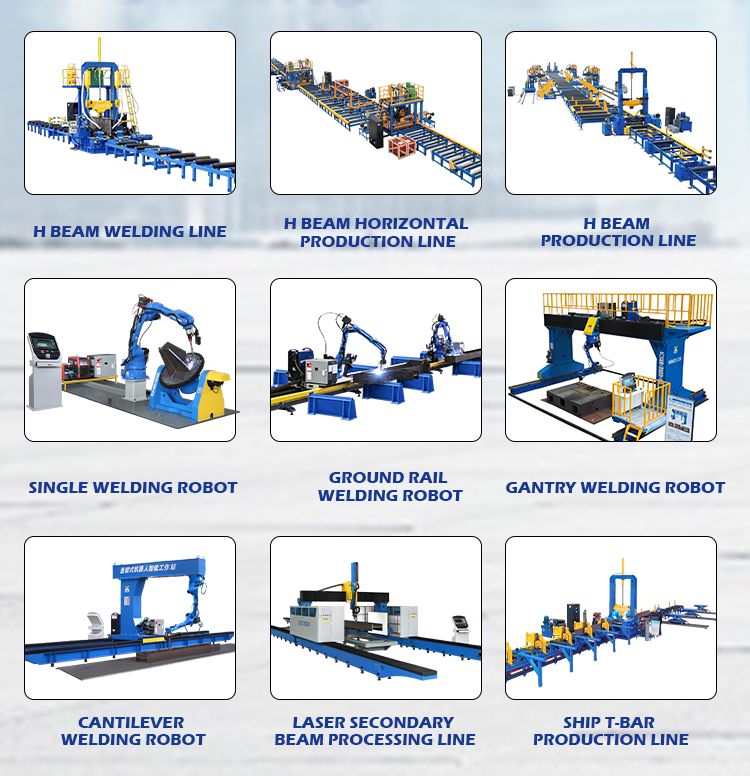

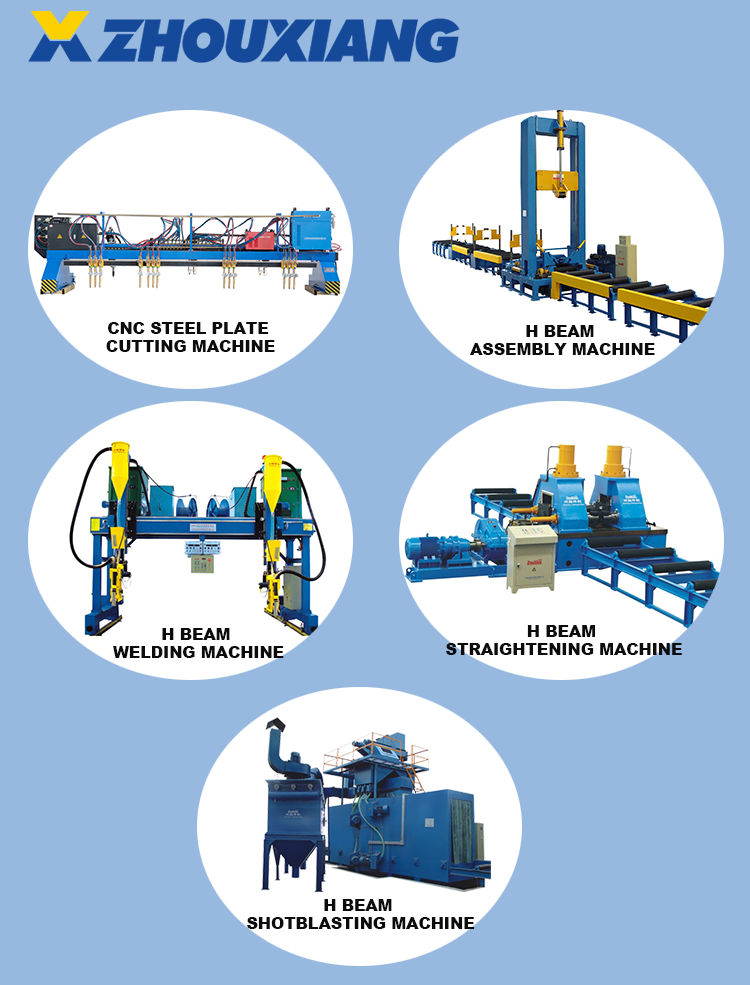

6Main Products & Customer Cases

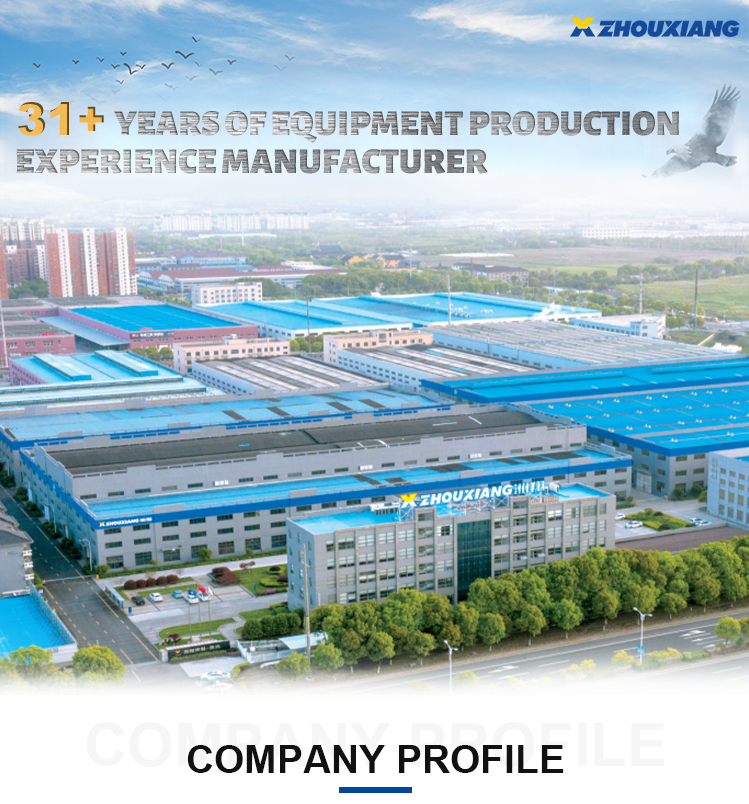

7Manufacturing Excellence
Founded in 1991, our facility covers an area of 160,000 m2. We were certified to ISO9001 Quality System Certification firstly in the industry. Our products include CNC cutting machines, H beam production lines, box beam production lines, welding manipulators, rotators, and fiber laser cutting machines. We have high sincerity to do business with customers all over the world and establish good friendships.
Frequently Asked Questions
1. What is the minimum order quantity (MOQ)?
The minimum order quantity for our welding robots is 1 set.
2. What are the accepted payment terms?
We support multiple payment methods including L/C (Letter of Credit) and T/T (Telegraphic Transfer).
3. How long does the delivery take?
Standard delivery time is approximately 30 days after order confirmation.
4. What is the warranty period for the robot?
We provide a 1-year warranty period for our robotic systems.
5. Which materials can the robot weld?
The system is specialized for gas shielding, argon arc, and laser welding of carbon steel, stainless steel, aluminum, and more.
6. Does the software require manual programming for each part?
No, our software supports teaching-free offline programming, which can automatically extract welds from drawings.
