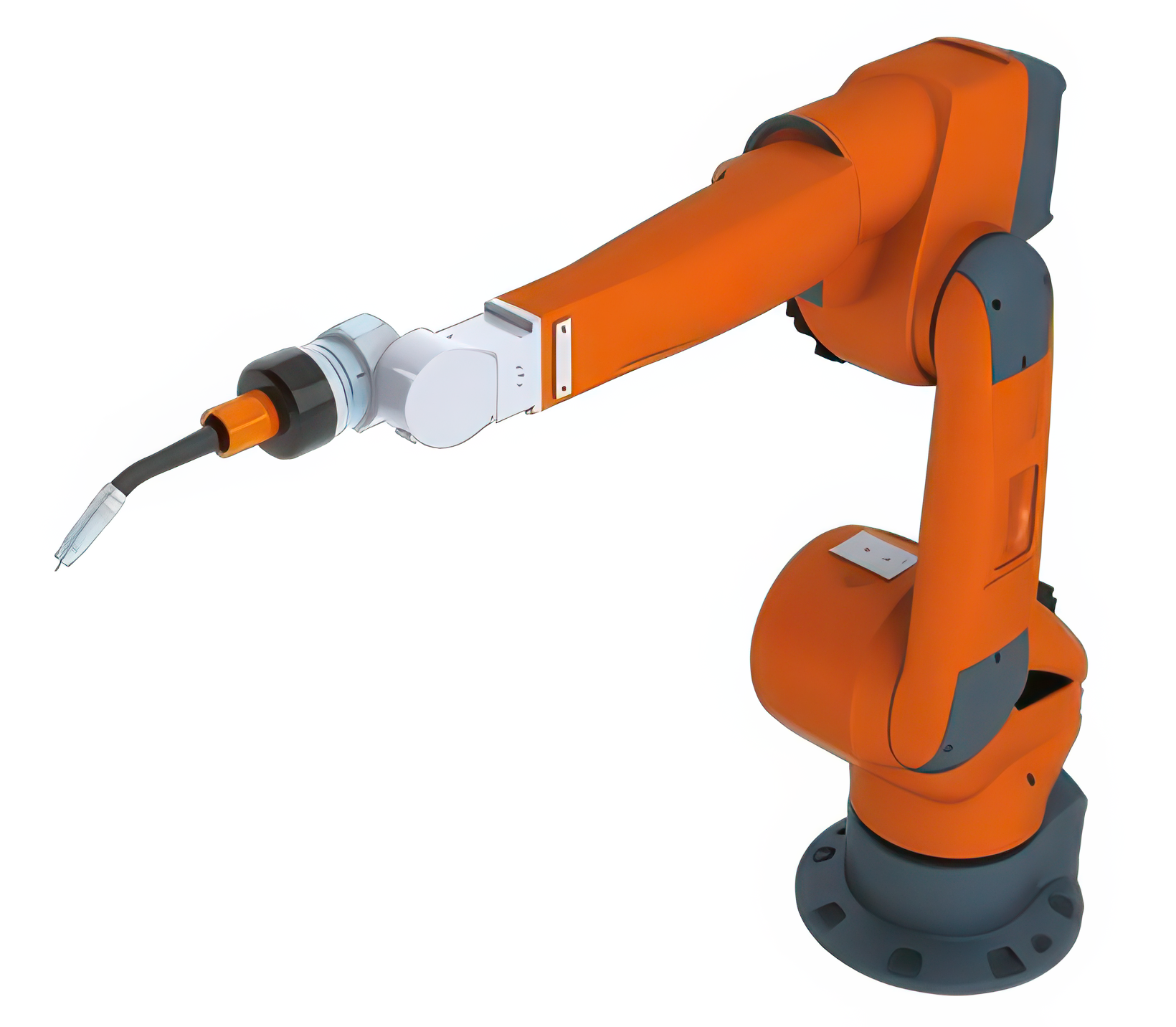

New Customizable Six Axis Welding Robot Arm with PLC Motor Automatic Welding Torch Cleaning Station for Pressure Vessel Welding
New Customizable Six Axis Welding Robot Arm with PLC Motor Automatic Welding Torch Cleaning Station for Pressure Vessel Welding
New Customizable Six Axis Welding Robot Arm with PLC Motor Automatic Welding Torch Cleaning Station for Pressure Vessel Welding
New Customizable Six Axis Welding Robot Arm with PLC Motor Automatic Welding Torch Cleaning Station for Pressure Vessel Welding
New Customizable Six Axis Welding Robot Arm with PLC Motor Automatic Welding Torch Cleaning Station for Pressure Vessel Welding
1 / 5
New Customizable Six Axis Welding Robot Arm with PLC Motor Automatic Welding Torch Cleaning Station for Pressure Vessel Welding
New Customizable Six Axis Welding Robot Arm with PLC Motor Automatic Welding Torch Cleaning Station for Pressure Vessel Welding
New Customizable Six Axis Welding Robot Arm with PLC Motor Automatic Welding Torch Cleaning Station for Pressure Vessel Welding
New Customizable Six Axis Welding Robot Arm with PLC Motor Automatic Welding Torch Cleaning Station for Pressure Vessel Welding
New Customizable Six Axis Welding Robot Arm with PLC Motor Automatic Welding Torch Cleaning Station for Pressure Vessel Welding

New Customizable Six Axis Welding Robot Arm with PLC Motor Automatic Welding Torch Cleaning Station for Pressure Vessel Welding

Send Inquiry

Product Description

🤖Product Overview
This is a fully automated welding robot arm. We have a professional R & D team for you to customize personalized solutions.
Automated Welding Robot
📸Detailed Display

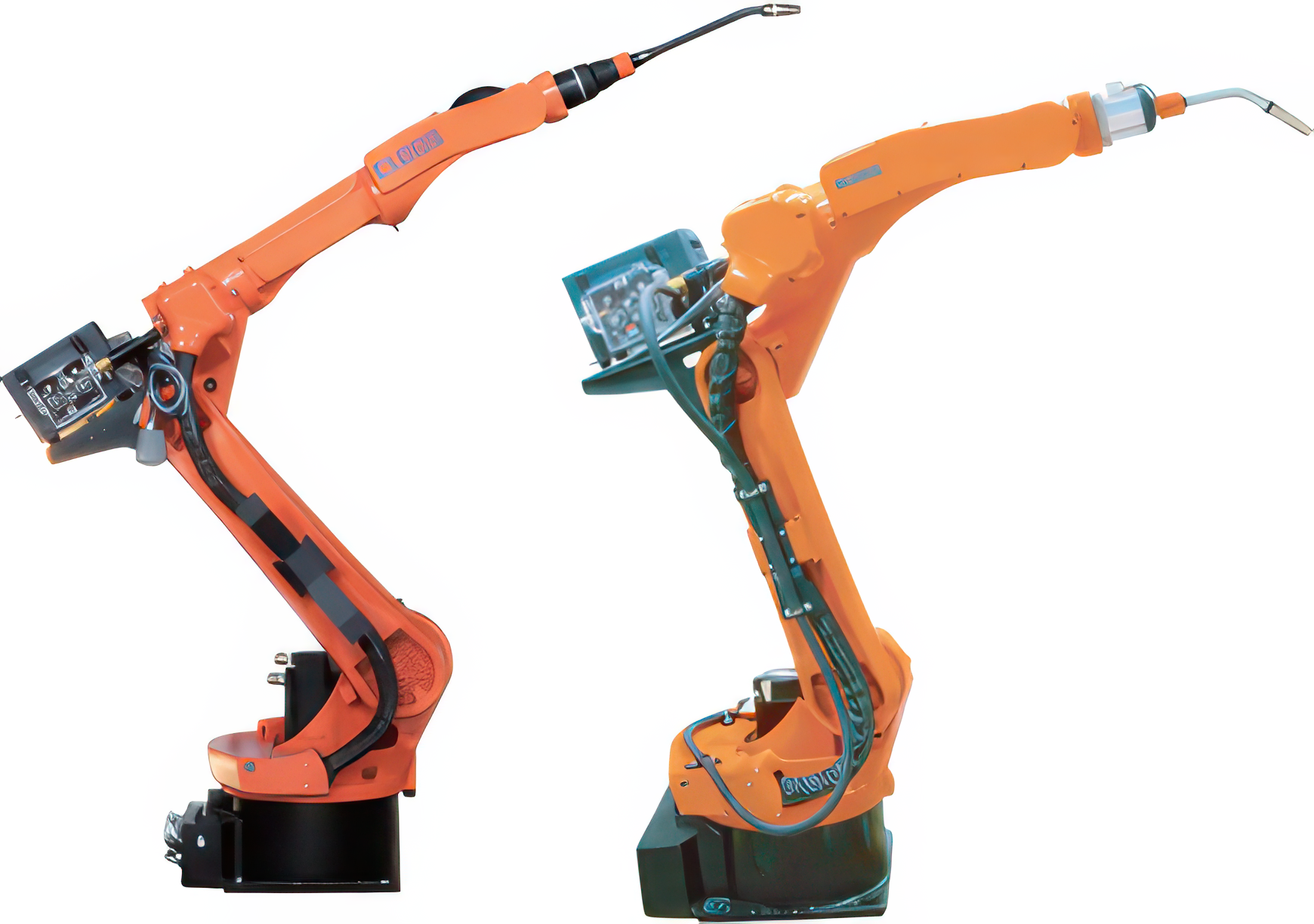

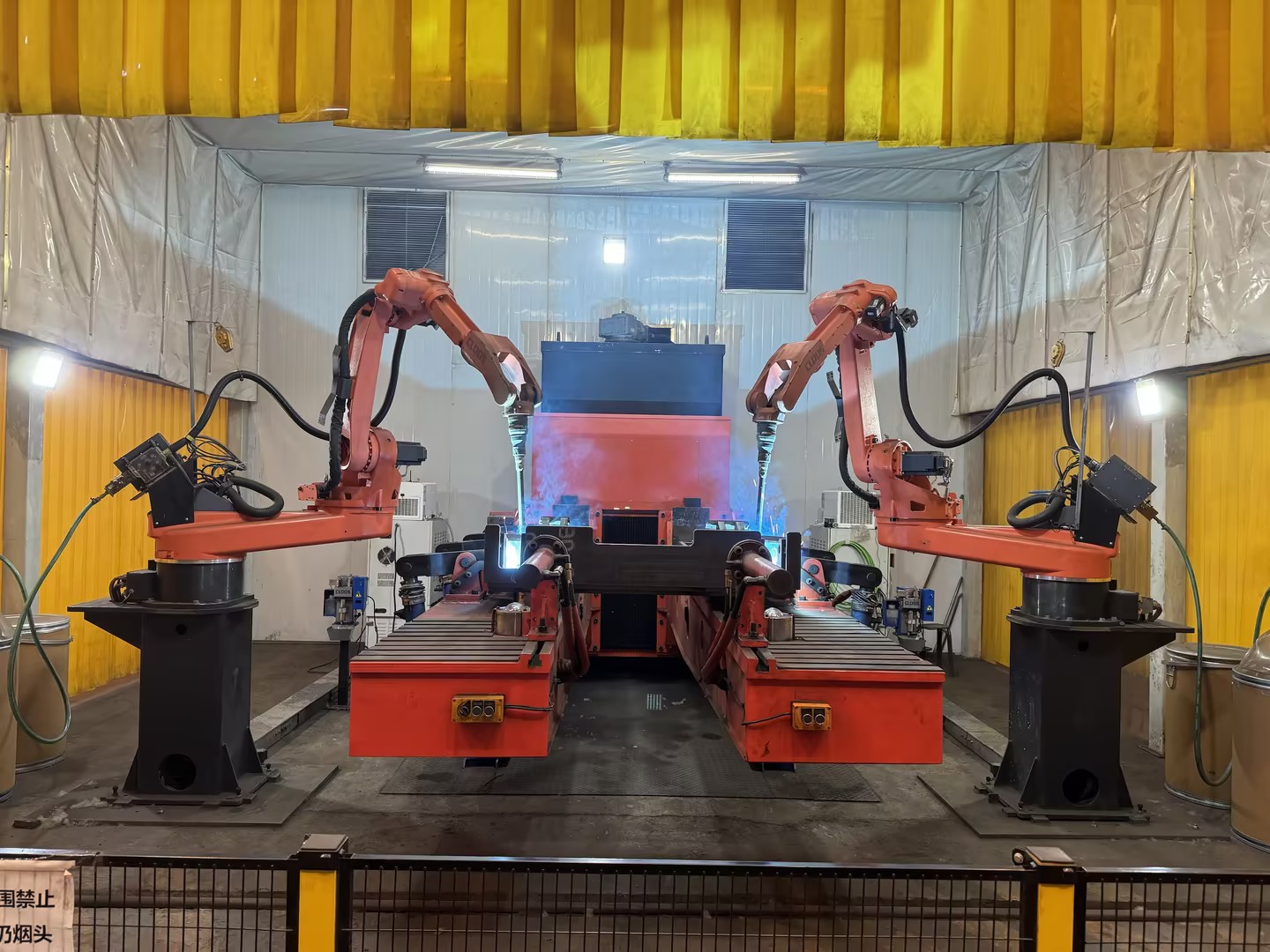

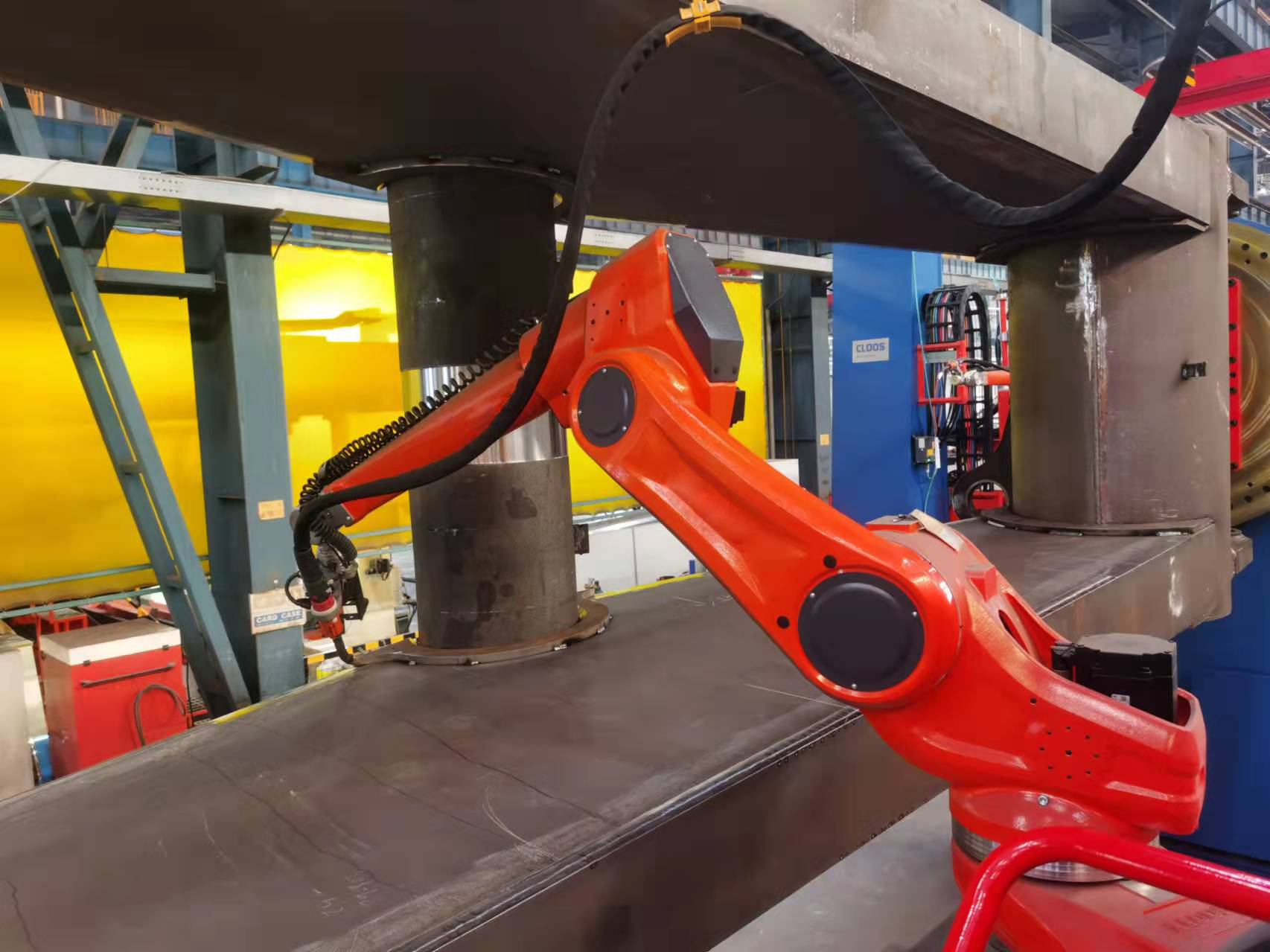

Robot View 1
Robot View 2
Robot View 3
⚡System Advantages
The standard-equipped welding power source QINEO StarT supports multiple welding processes—users only need to input the required welding current, and the coordinated characteristic curve will automatically configure all other welding parameters accordingly.
The rich set of additional functions can meet users' higher welding requirements. Customize your exclusive welding system to complete welding tasks efficiently!
System Component 1
System Component 2
⚙️Technical Capabilities
  • Robust computing capacity: Guarantees the robot’s motion performance and trajectory precision.
  • Uncompromising reliability: All components are neatly organized within a rugged control cabinet, equipped with anti-contamination protection.
  • Intuitive and clear programming: Facilitates early achievement of operational objectives.
  • Space-efficient design: Compact configuration and lightweight chassis.
  • Versatile applicability: Effortless transportation—compatible with overhead cranes, pallet jacks, and forklifts.
Technical View 1
Technical View 2
🎯Precision & Performance
  • High-quality components with excellent cost-effectiveness and outstanding welding performance.
  • FineWeld technology minimizes spatter, making it particularly suitable for thin plates and precise weld seams.
  • 5 preset exclusive welding processes help you achieve objectives quickly.
  • Compact control panel "MasterPlus Compact": Simple, fast and intuitive.
  • Equipped with multiple universal industrial interfaces.
  • Modular design and comprehensive accessories fully meet personalized requirements.
Detail 1
Detail 2
Detail 3
📊Product Specifications
Specifications QRH 295 QRH 405
Swing Range
Axis 1 / Axis 2+170°/-170° | +155°/-90°+170°/-170° | +155°/-100°
Axis 3 / Axis 4+85°/-150° | +170°/-170°+86°/-160° | +150°/-150°
Axis 5 / Axis 6+180°/-180° | +360°/-360°+135°/-135° | +210°/-210°
Swing Speed
Axis 1 / Axis 2212°/sec180°/sec
Axis 3 / Axis 4285°/sec | 440°/sec241°/sec | 430°/sec
Axis 5 / Axis 6400°/sec | 640°/sec400°/sec | 640°/sec
Working RangeØ 2900mmØ 4030mm
Payload Capacity8.00kg8.00kg
Repeat Accuracy+/-0.07mm+/-0.08mm
Floor Space344mm × 344mm344mm × 344mm
Weight170kg286kg
Mounting MethodFloor/Ceiling MountFloor/Ceiling Mount

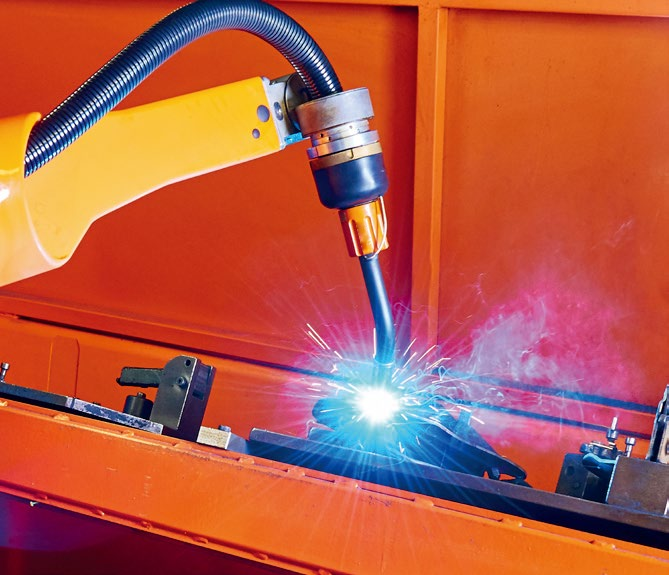

💎Weld Seam Display
Weld Seam 1
Weld Seam 2
Weld Seam 3
Result 1
Result 2
Result 3
Comprehensive View
❓Frequently Asked Questions
Are you a trading company or a manufacturer?
We are a professional manufacturing company specializing in automated welding solutions.
Do you have your own R&D team?
Yes, we have a dedicated R&D team and can customize our products according to your specific industrial requirements.
Do you offer free samples?
No, due to the high-value nature of the industrial robot arms, we do not provide free samples.
How do you ensure product quality?
We employ professional engineers and maintain a strict quality assurance and control system to ensure every unit meets the highest standards.
What is the typical delivery time?
Depending on the order quantity and customization requirements, delivery usually takes about 15 days.
Can you provide custom packaging?
Yes, we can provide specialized packaging solutions based on your specific transportation and storage needs.
