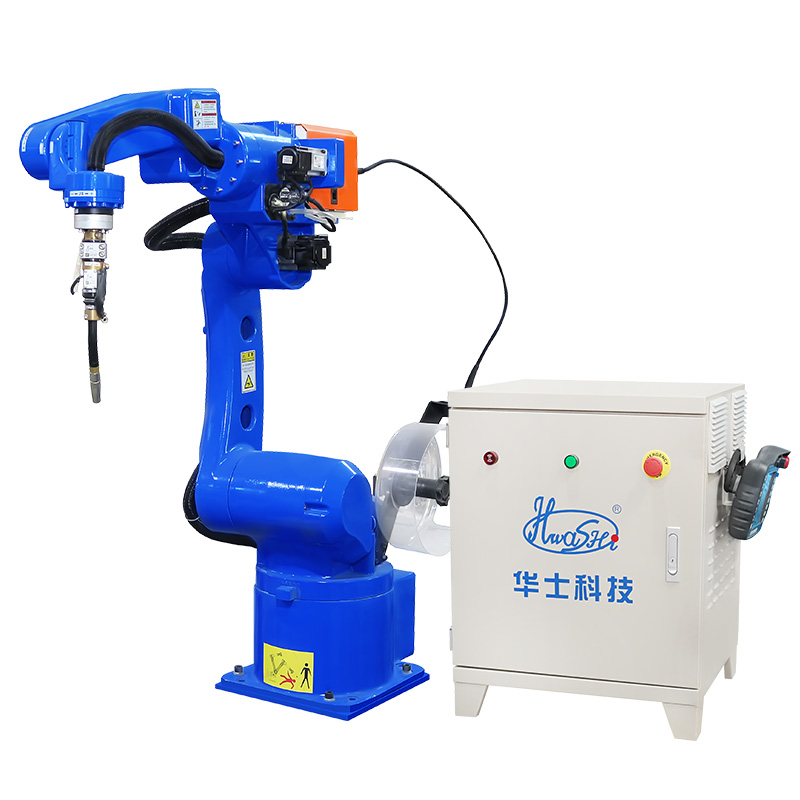

Automatic Industrial TIG Welding Robot Arm Workstation
System Solutions:

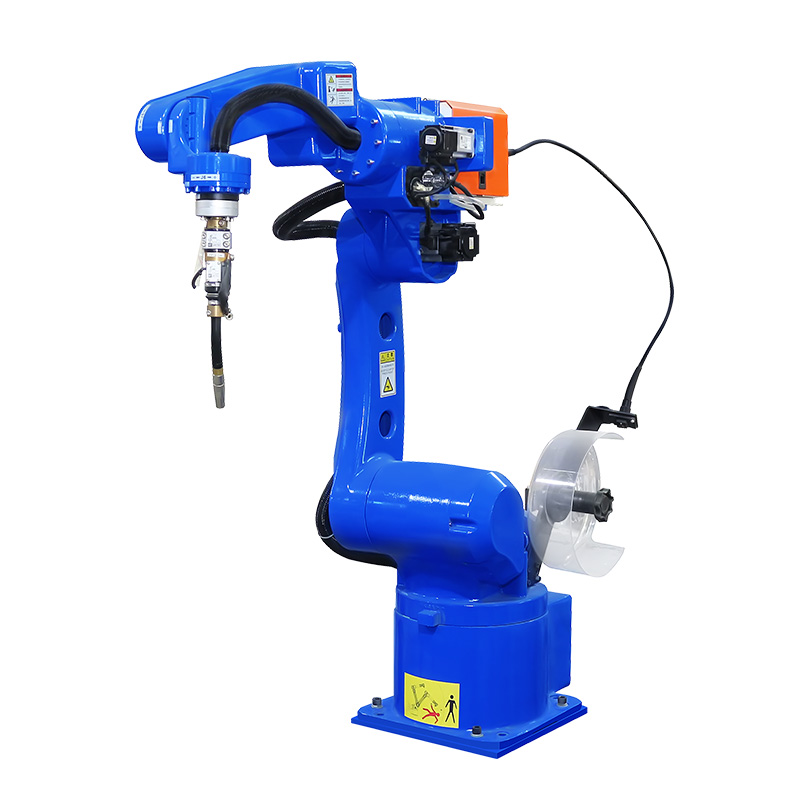

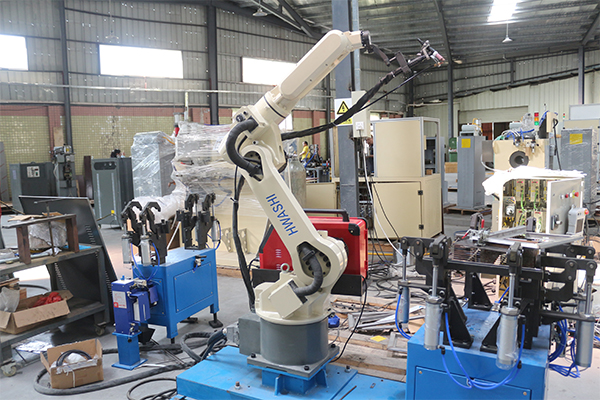

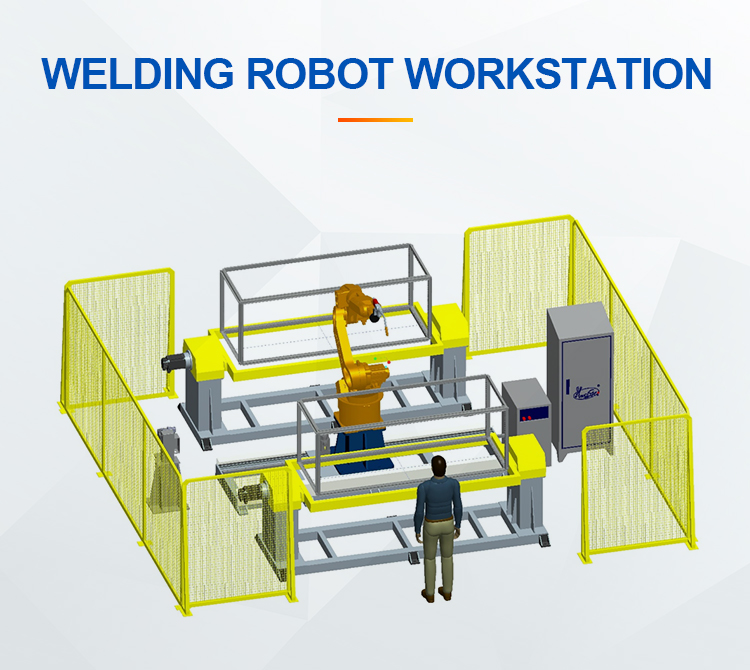

1. Complete welding system includes 1.4m arm length robot, 400A TIG welding machine, automatic anti-collision welding gun, two-set one-axis vertical rotation positioner, and adjustable welding fixtures.
2. Automatic welding by six-axis robot. Fast clamps fix the product position ensuring precise robot positioning. Two positioners allow simultaneous welding and loading/unloading to maximize efficiency.

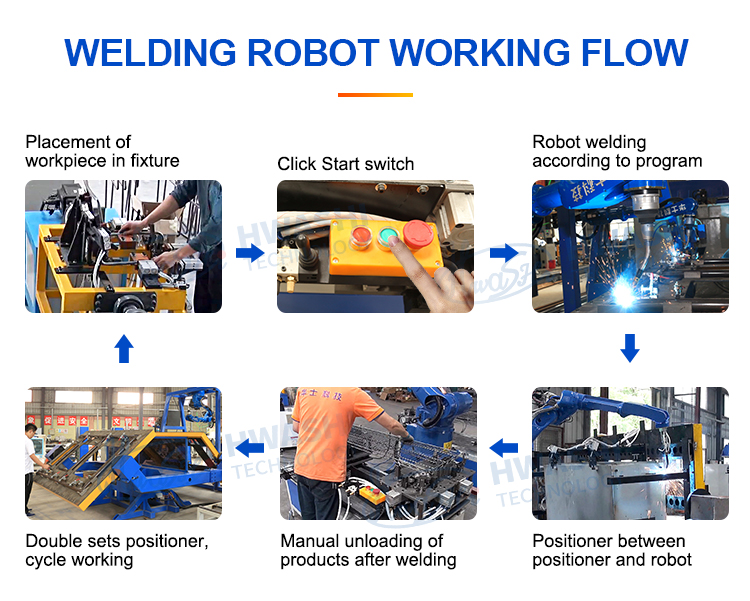

💡 Operational Workflow
- Manual loading of the workpiece to the fixture in Station 1.
- Start the automated welding sequence.
- Robot and welding machine execute the preset program.
- Welding completed; Station 2 is loaded while Station 1 is being welded.
- Alternating cycle working for continuous production.
- Improves welding quality, efficiency, and reduces production costs.

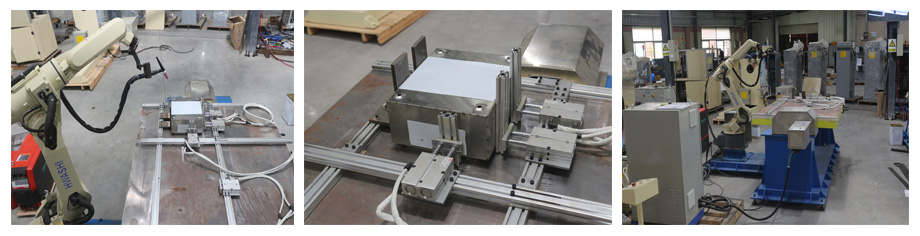

📋 Customer Requirements & Specifications

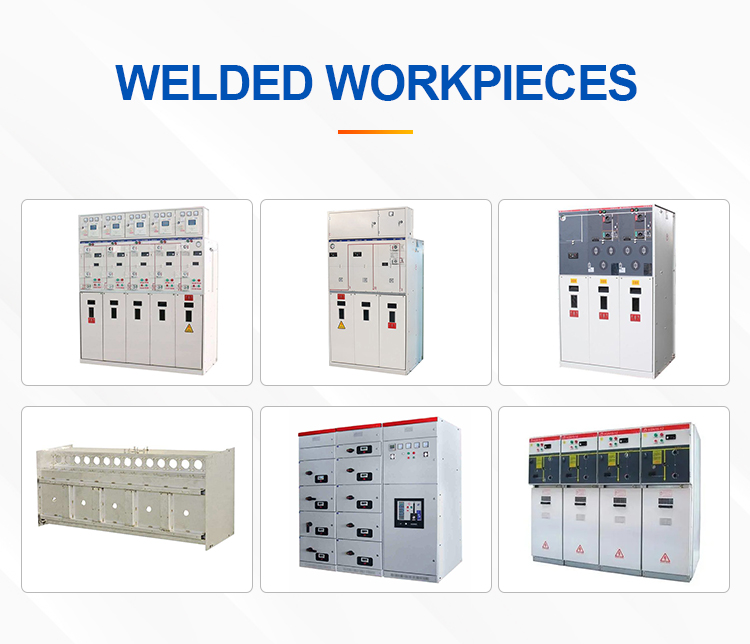

Target: Replace labor force with robotic welding for stainless steel electric boxes.
Material: Stainless steel, wall thickness 1-2mm.
Size: 350x450x200mm.
Precision: Flatness request of +/-1mm with reduced deformation through alternate side welding.
🚀 Technical Advantages
This specialized arc welding robot is compact and high-precision. It ensures a stable welding path, shortens replacement cycles, and maintains high consistency.
- Positioner Integration: Coordinated movement ensures constant welding speed and optimal attitude.
- 7th Axis Customization: Increases working range for large-scale projects and complex movement.
- High Precision: Uses imported servo motors and reducers for accurate rotary positioning.

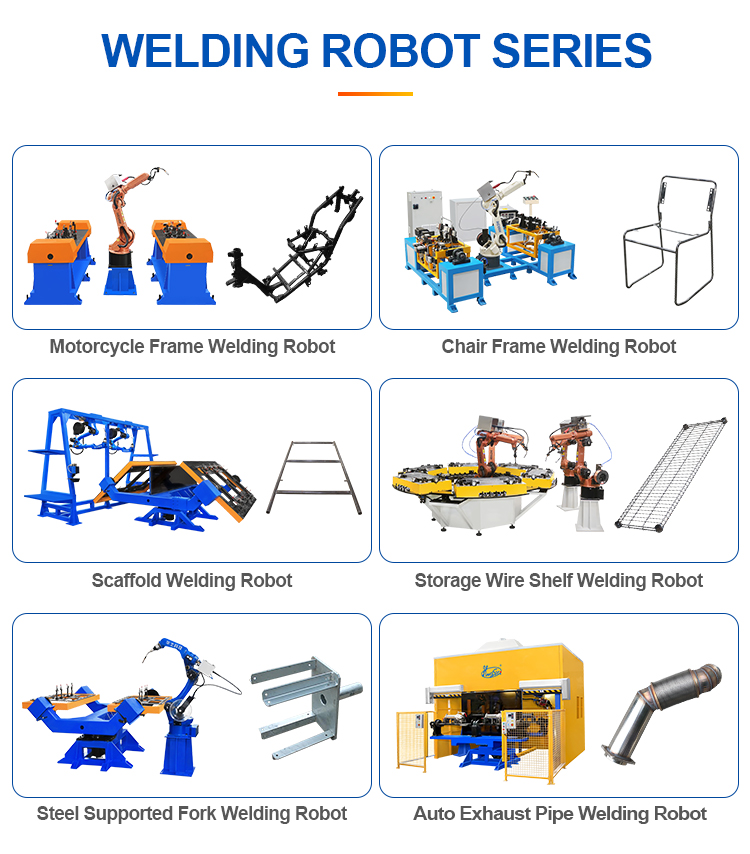

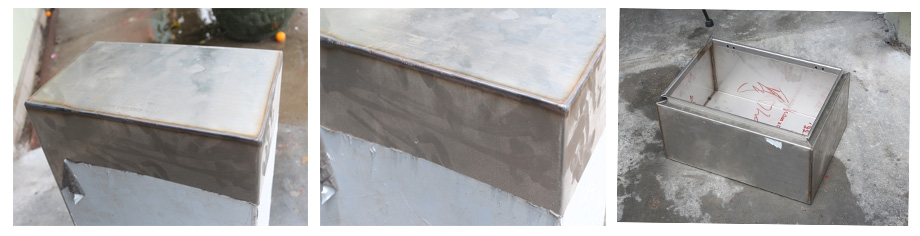

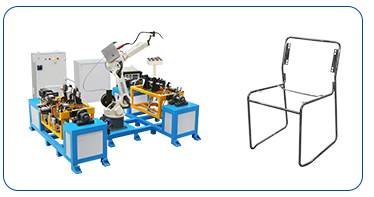

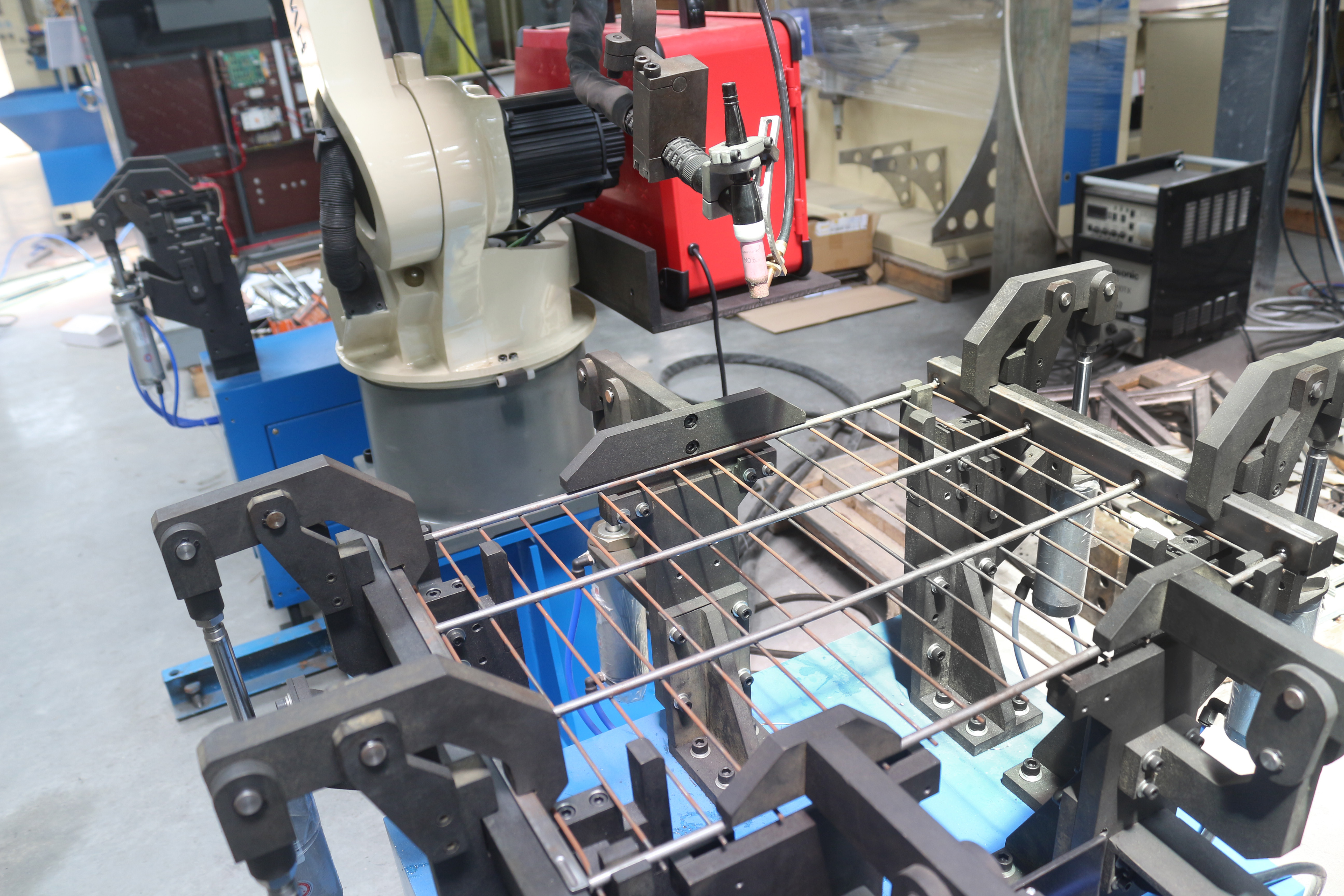

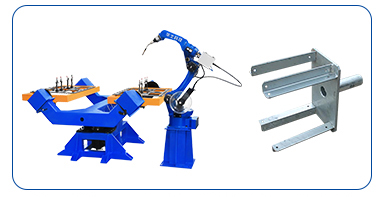

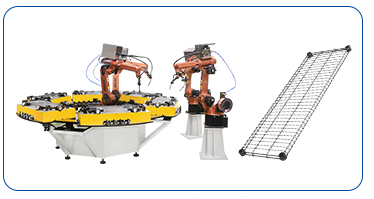

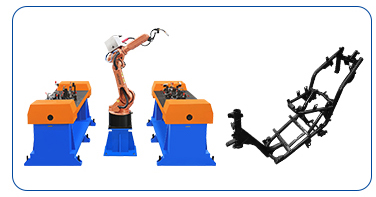

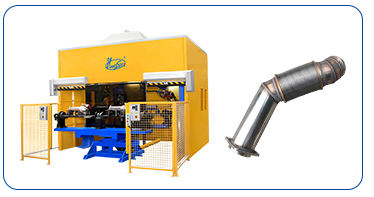

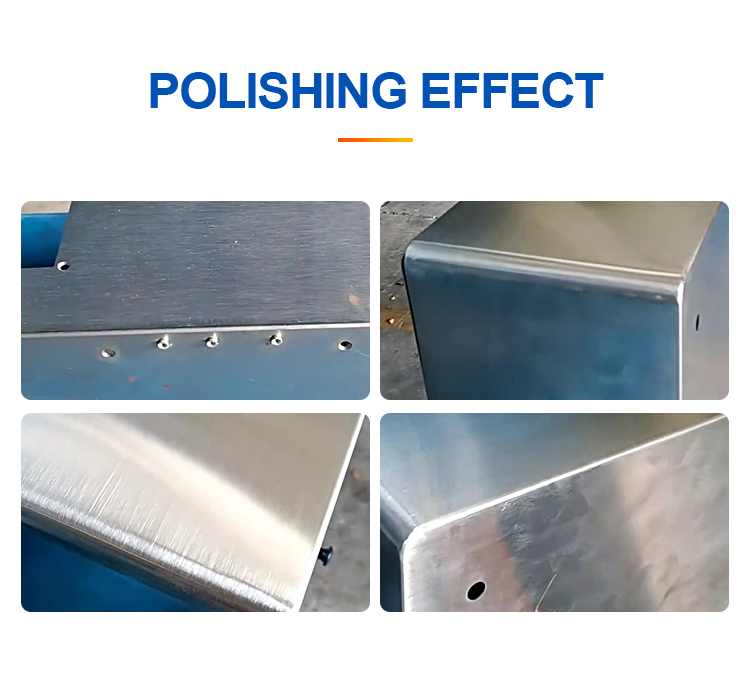

📸 Robot Cases and Welding Samples
🛠️ Service & Quality Control
All aspects of material, assembly, and testing are strictly controlled. Professional packaging includes full film wrapping, anti-collision edges, and iron-bound wooden boxes.
❓ Frequently Asked Questions
Q1: How do I get a price quote for a welding workstation?
Answer: Our machines are customized. Please provide product material, thickness, dimensions, and welding positions so our engineers can provide a technical proposal and price.
Q2: What is the standard warranty period?
Answer: The standard warranty period is one year after shipment. Extended warranty options are available upon request.
Q3: How is technical support handled during the warranty?
Answer: Engineers provide online guidance for diagnosis. Damaged parts are replaced free of charge. If online support cannot resolve the issue, on-site engineer assistance can be arranged.
Q4: What is the typical delivery time?
Answer: Standard machines in stock can ship within 7 days. Customized solutions typically take between 30 to 90 days depending on complexity.
Q5: Can I send samples for welding tests before ordering?
Answer: Yes, you can send samples for testing. We will provide photos and videos of the results, and can ship the samples back for your quality inspection.
Q6: How is the installation and training managed?
Answer: For simple machines, we provide manuals, videos, and online training. For complex systems, engineers can be dispatched to your facility for setup and staff training.
