Industrial Manipulator Robot Arm Mechanical Robot Arm For Automotive Industry

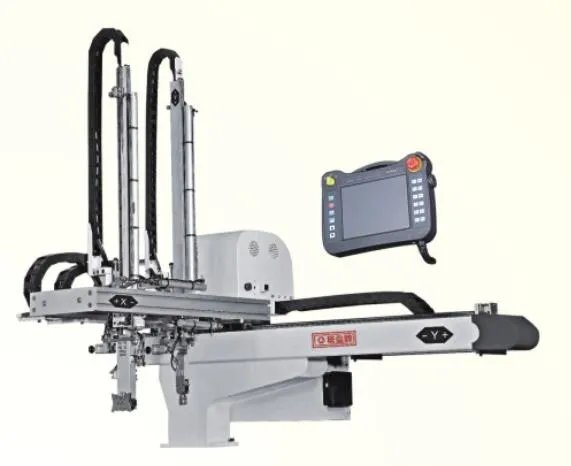

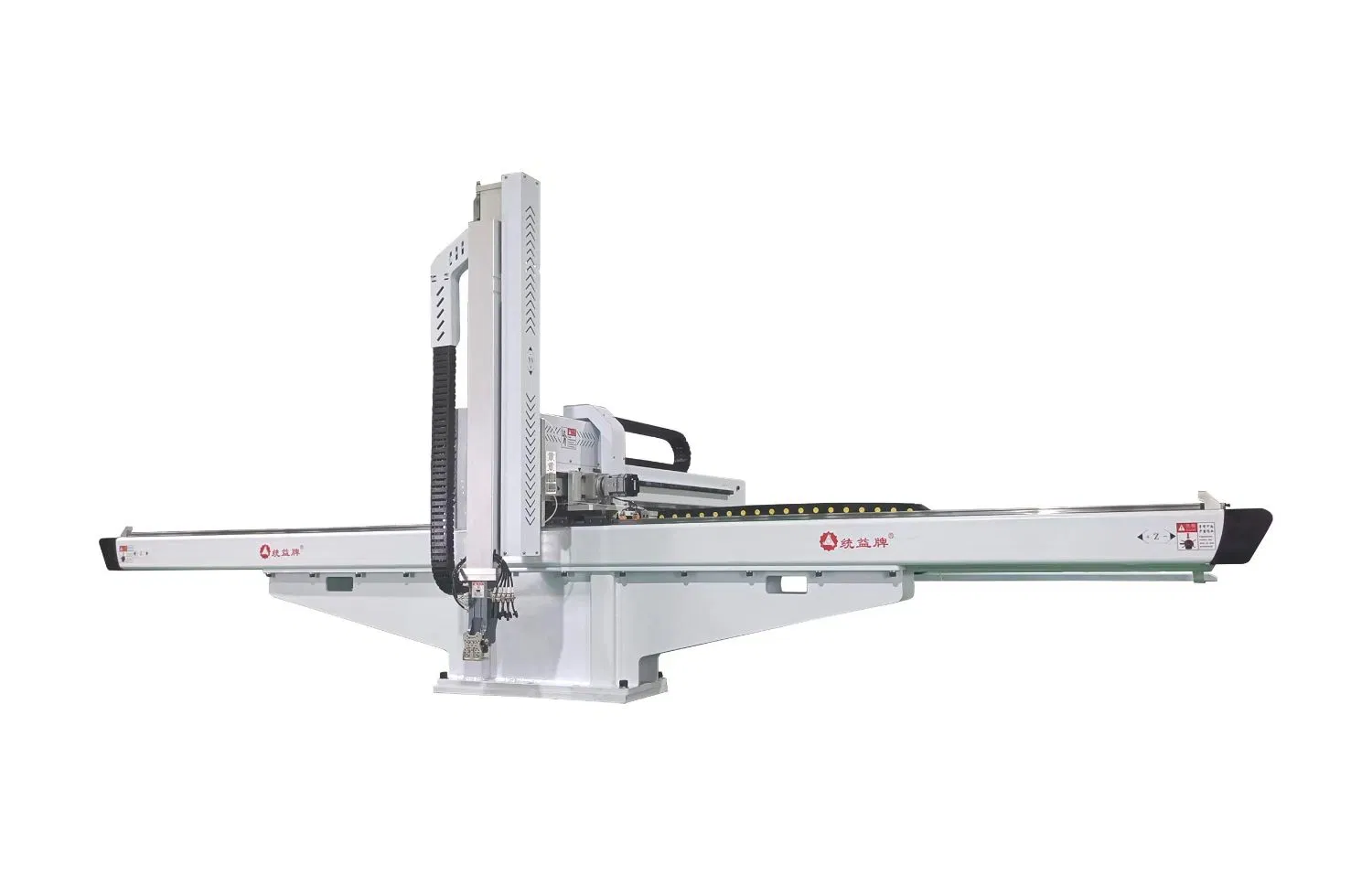

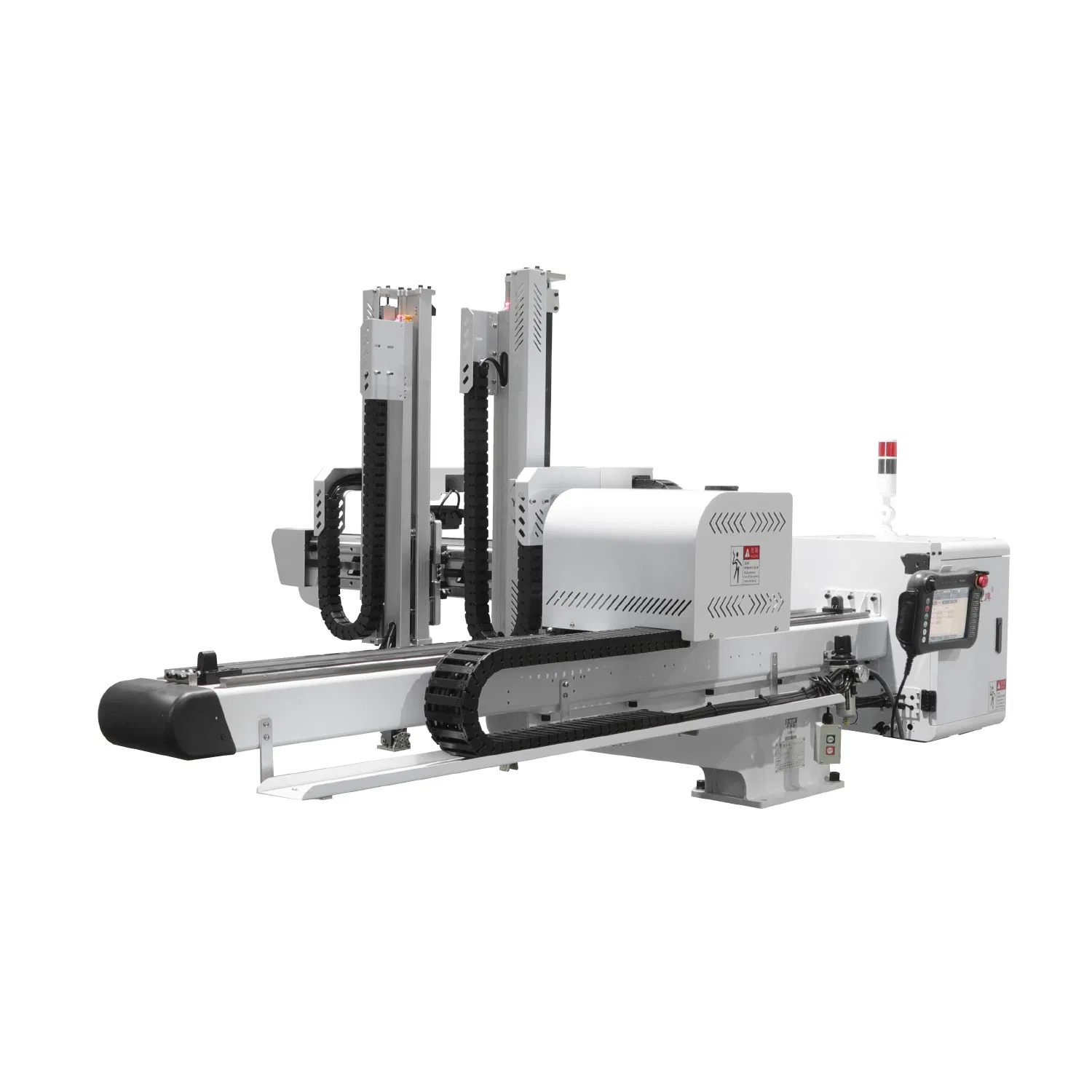

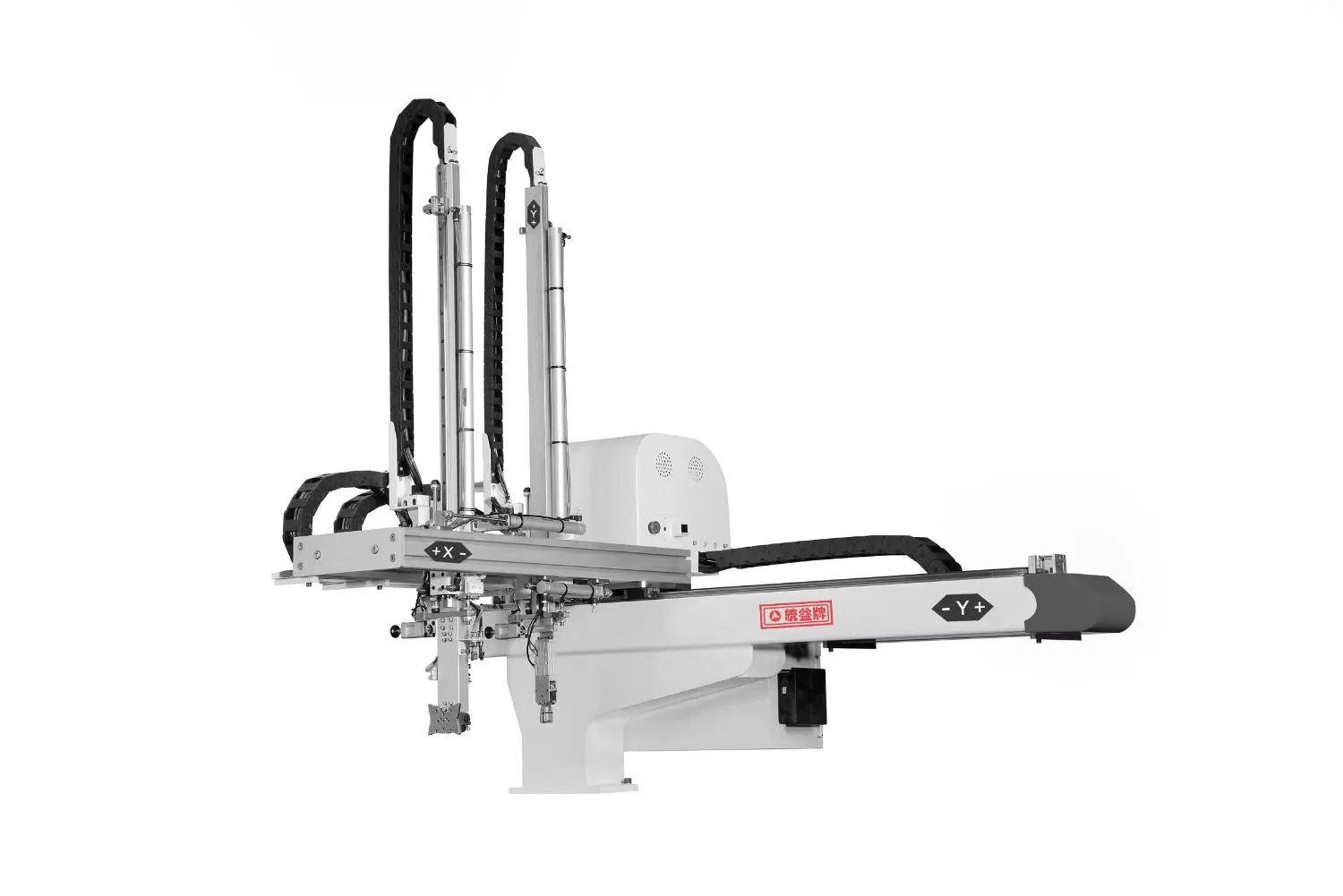

Three/ Five Axes AC Servo Driven Robots are extensively applied to horizontal plastic injection machines from 50~850T which are mainly designed for rapid and precise removal on strict demands of good appearance of finished products and sprues. There are two types of arms: single stage and telescopic. Full AC servo motors are driven on three axes (traverse/ crosswise/ main arm) and five axes (traverse/crosswise & vertical for main arm & sub arm), take-out time at 0.65-1.5 sec and dry cycle time at 5-9 sec. All linear movement are controlled by servo driven control systems to cooperate with high rigidity structure of linear guiderail for realizing high precise take-out and accurate repeatability.

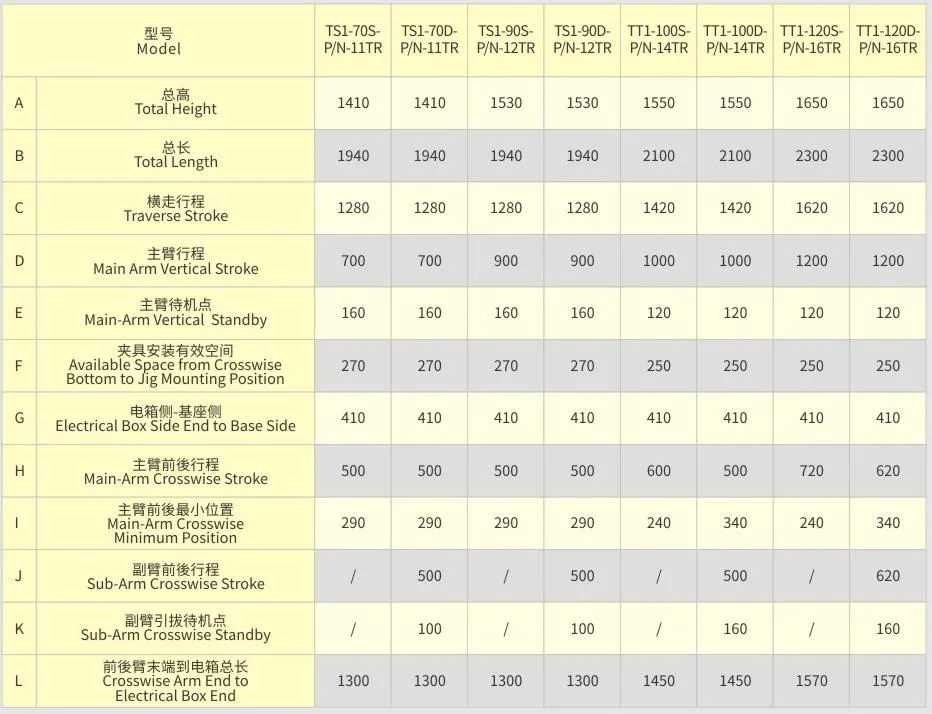

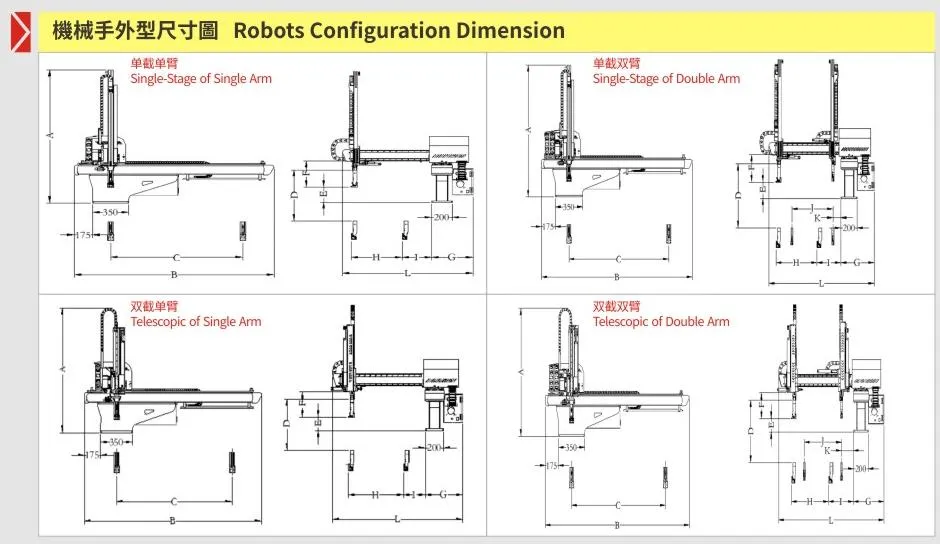

| Model | TS3-70S-P/N-13TR | TS3-90S-P/N-14TR | TT3-100S-P/N-16TR | TT3-120S-P/N-16TR | TT3-140S-P/N-17TR | |
|---|---|---|---|---|---|---|
| Arm Type | - | Single-Stage | Single-Stage | Telescopic | Telescopic | Telescopic |
| IMM Range | TONS | 50-120T | 100-220T | 250-350T | 300-450T | 400-850T |
| Vertical Stroke | MM | 700 | 900 | 1000 | 1200 | 1400 |
| Traverse Stroke | MM | 1350 | 1450 | 1600 | 1600 | 1750 |
| Max. Load | KG | 5 | 6 | 8 | 10 | 15 |
| Take Out Time | S | 0.65 | 0.65 | 0.7 | 1.5 | 1.5 |
| Dry Cycle Time | S | 5 | 5 | 7 | 9 | 9 |
| Drive System | - | AC Servo | AC Servo | AC Servo | AC Servo | AC Servo |
| Power Supply | - | AC 220V±10%, 50/60Hz | ||||
| No. | Standard Function | Description |
|---|---|---|
| 1 | Language Exchange | Supports 8 languages and internal multi-fonts. |
| 2 | Jig Circuit | Standard 2 suction and 2 grasp circuits. |
| 3 | Teaching Function | Programs can be edited, deleted, or inserted coordinate-wise. |
| 4 | Stacking | 4 sets stacking, each axis packaging up to 256 points. |
| 5 | USB Port | For uploading/downloading mold data and program updates. |
| No. | Optional Function | Description |
|---|---|---|
| 1 | Spray Mold Agent | Interval and spray time can be set for smooth demolding. |
| 2 | Pneumatic Scissors | Installed at end of arm for cutting runners. |
| 3 | Auto Lubrication | Automatic lubrication based on preset run cycles. |
| 4 | Euromap Connector | Standard EUROMAP 12 or EUROMAP 67 connectors. |
Injection molding robots are specialized equipment for automation in injection molding production. They significantly reduce heavy labor, improve working conditions, and ensure production safety. By stabilizing product quality and improving the production rate, these robots enhance the competitiveness of manufacturing facilities.

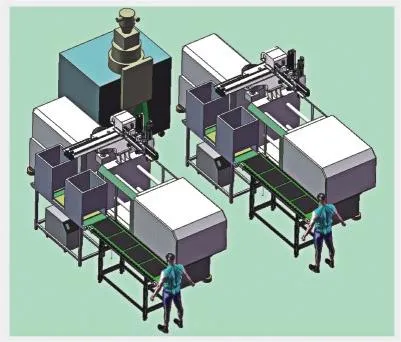

Single-axis robots are primarily used for simple take-out, while 3/5 axis servo robots are utilized for complex tasks like inserting, stacking, and palletizing in coordination with conveyor belts.
With decades of experience in the industry, the manufacturer is a professional high-tech enterprise dedicated to the research, development, and production of intelligent automation equipment. Adhering to the principle of "Excellence and Quality First," the company provides comprehensive factory planning and intelligent manufacturing solutions.
With multiple production bases and service centers globally, the company assists clients in transitioning from standalone automation to full-scale intelligent production systems, ensuring immediate technical support and value creation for customers worldwide.
