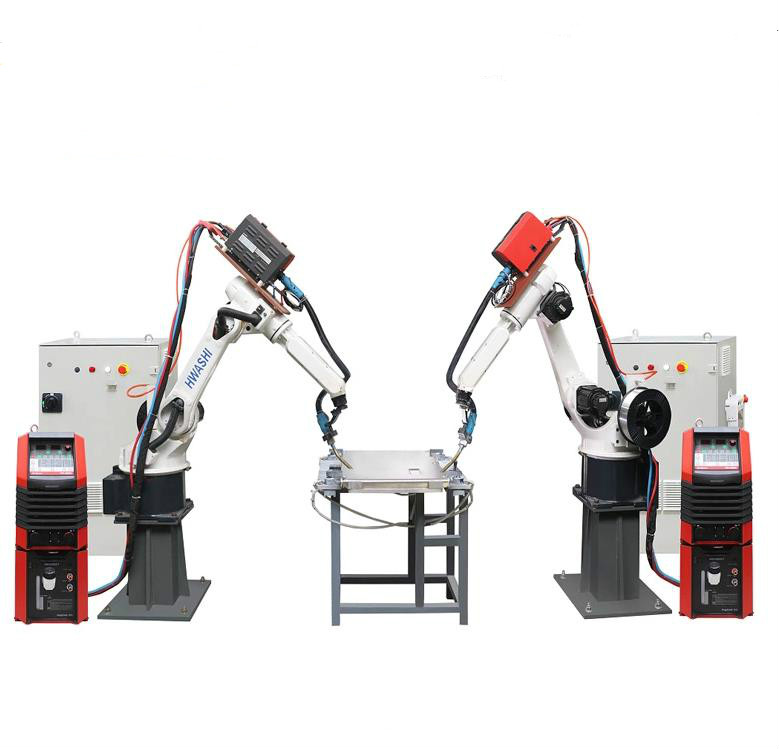

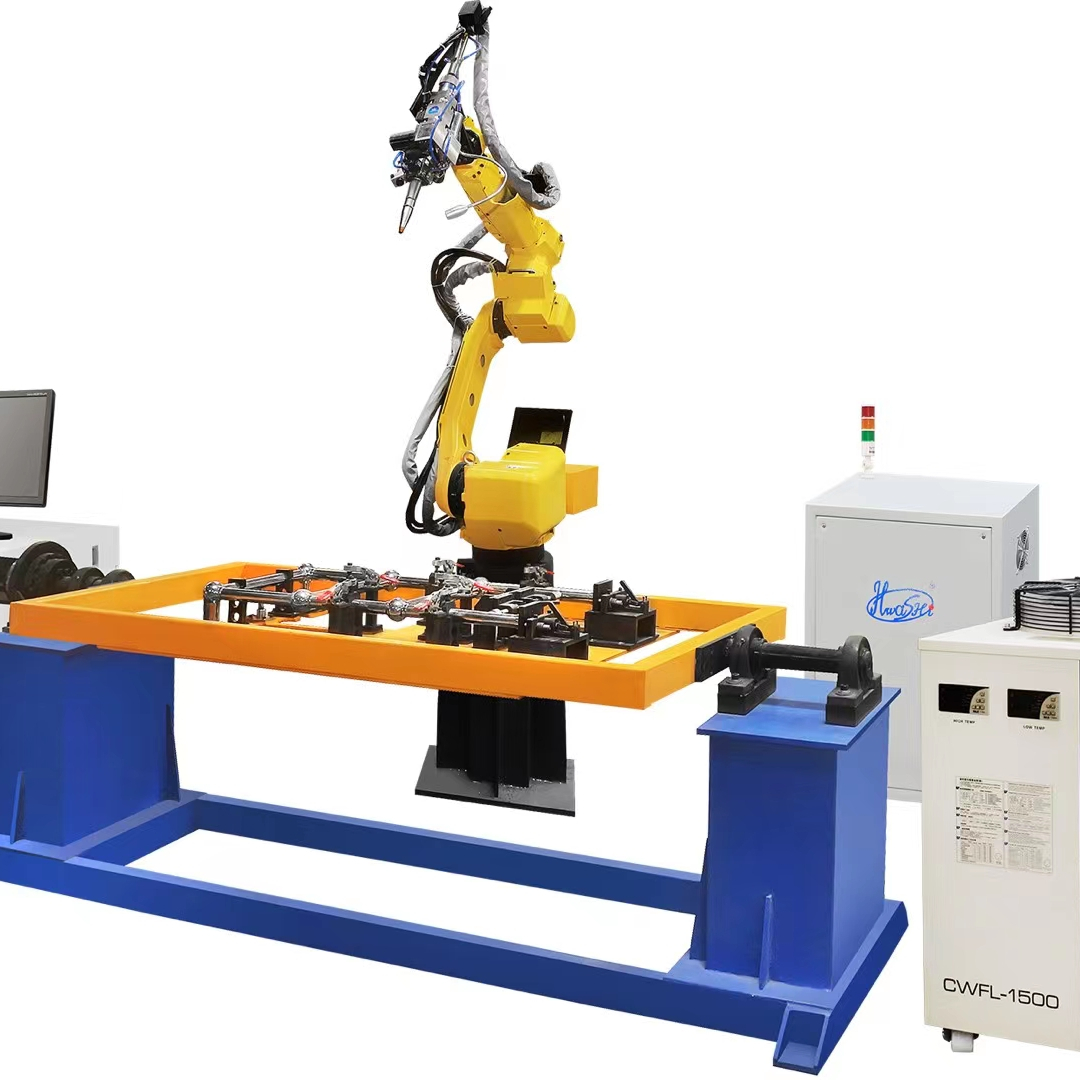

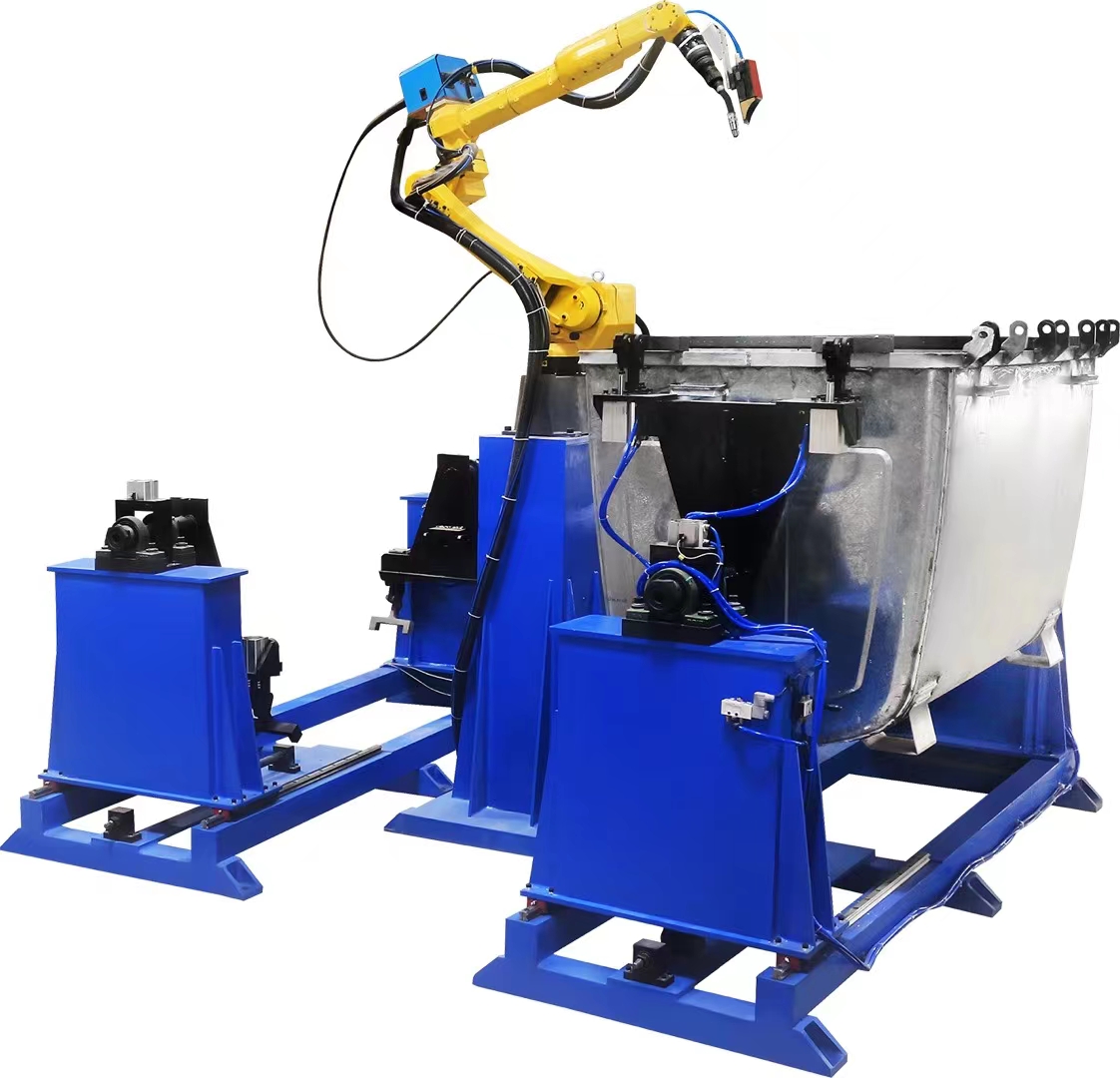

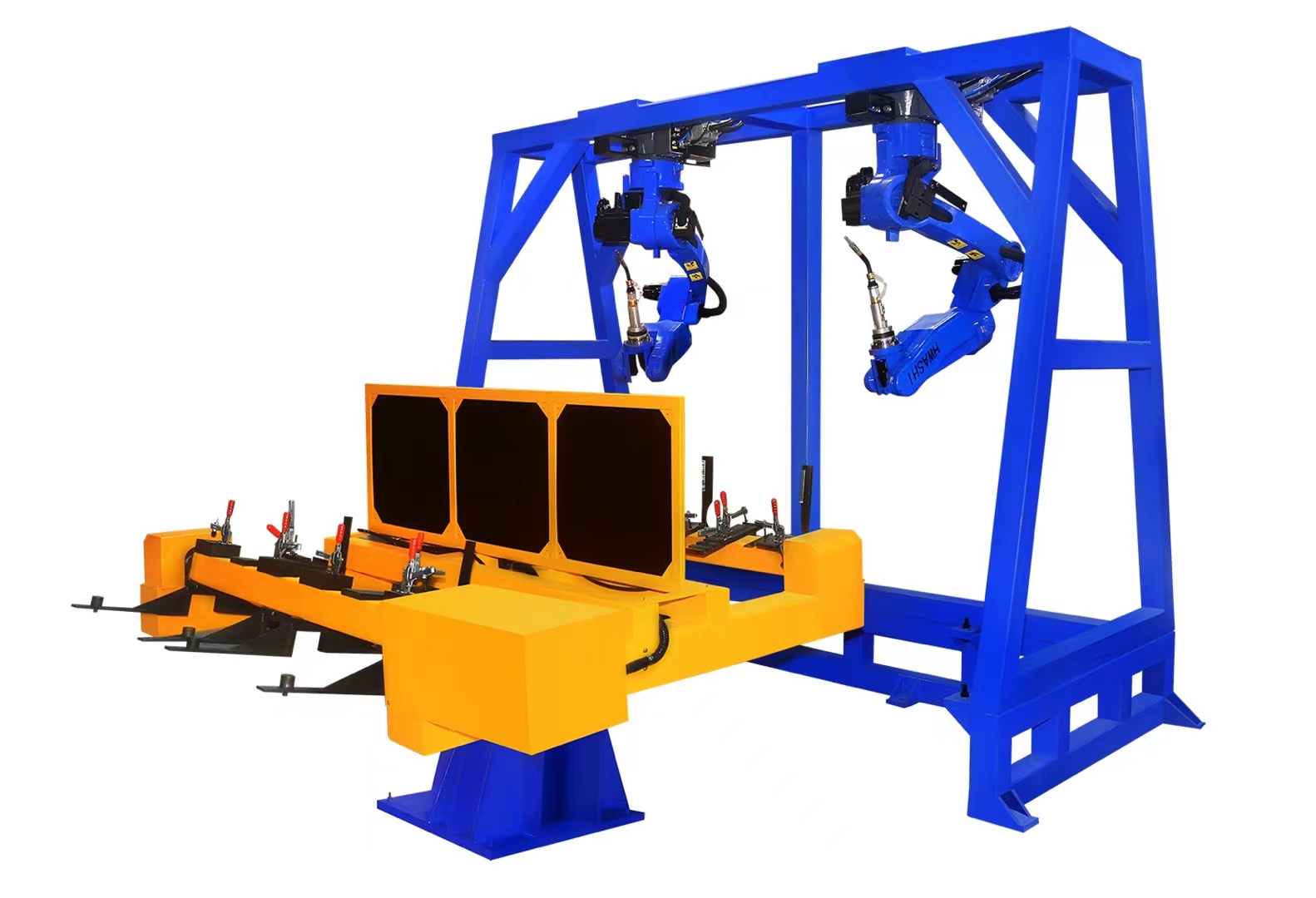

Automatic CNC 6 Axis MIG Robotic Arm Welding Machine
Welding Robot Features & Components
1. Welding System
MIG or TIG welding machine with automatic wire feeding system for stable performance.
2. Automatic Alarm System
Detects wire feeding or gas supply issues; robot stops until the alarm is cleared.
3. Welding Gun System
Equipped with famous brand TBI welding gun.
4. Maintenance System
TBI brand welding gun cleaning and wire cutting system.

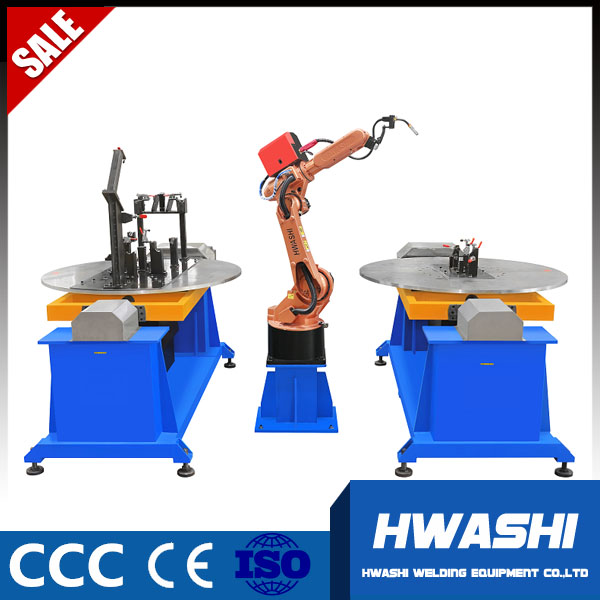

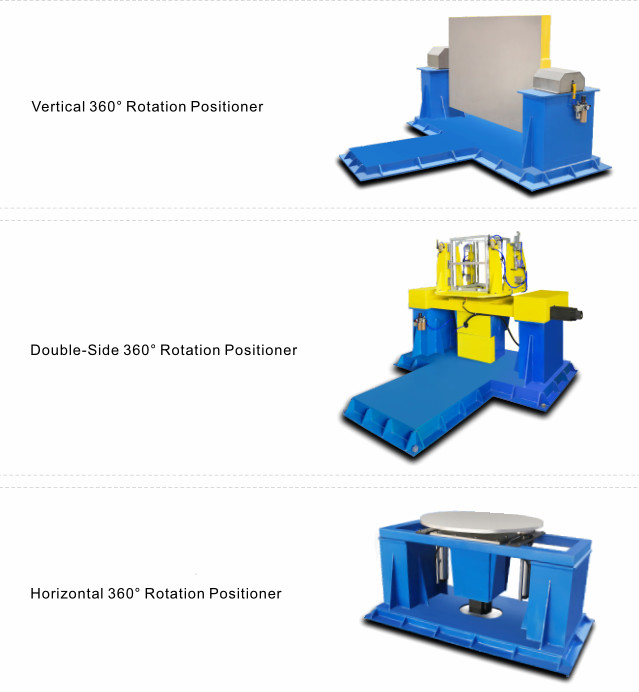

5. Working Station Positioner
Two sets of tables with 360° and 180° rotation options via spindle motor for maximum efficiency.
6. Clamping System
Cylinder-driven clamping ensures balanced and stable force on the work piece.
7. Arc Light Baffle
Automatic cylinder rotation to prevent light pollution during operation.
8. Start Control Panel
Portable structure with Manual/Automatic modes for convenient operation.
Specifications for Robot Arm Models
| Model |
HS-R6-08 |
HS-R6-10 |
HS-R6-20 |
HS-R6-50 |
HS-R6-165 |
| DOF |
6 |
| Driving Mode |
AC Servo Driving |
| Effective Load |
8KG |
10KG |
20KG |
50KG |
165KG |
| Repeat Accuracy |
±0.05mm |
| Working Radius |
1400mm |
1589mm |
1595mm |
1950mm |
2483mm |
| Weight |
180KG |
180KG |
290KG |
600KG |
1300KG |
| Motion Range (°) |
J1 |
±170 |
±170 |
±170 |
±180 |
±180 |
| J2 |
±120~-85 |
±120~-80 |
±132~-95 |
±130~-90 |
±80~-60 |
| J3 |
±85~-165 |
±85~-165 |
±73~-163 |
±75~-210 |
±80~-190 |
| J4 |
±180 |
±180 |
±180 |
±360 |
±360 |
| J5 |
±135 |
±135 |
±133 |
±115 |
±115 |
| J6 |
±360 |
±360 |
±360 |
±360 |
±360 |
| Power |
4KVA |
4KVA |
6KVA |
14KVA |
31KVA |
| Voltage |
380V or 220V |
Product Descriptions
1. Custom-designed six-axis frame equipped with TIG/MIG welders for fully automatic welding solutions.
2. Advanced clamping systems utilize leverage principles and cylinder power to ensure precise positioning for every part.

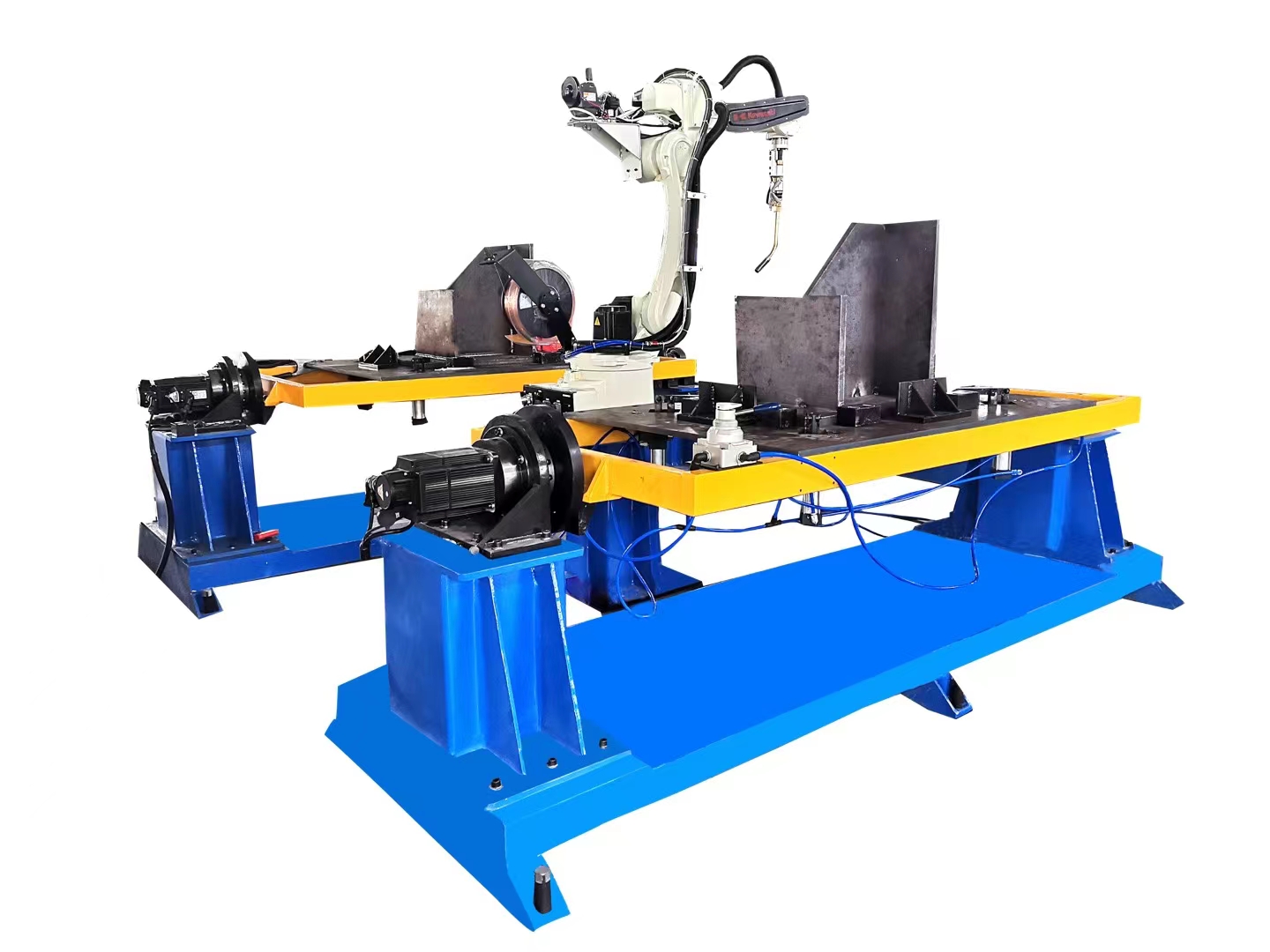

3. Dual-fixture design allows for simultaneous loading and welding, significantly improving production efficiency.
The Welding Robot workstation & fixture can be designed according to your specific product requirements.

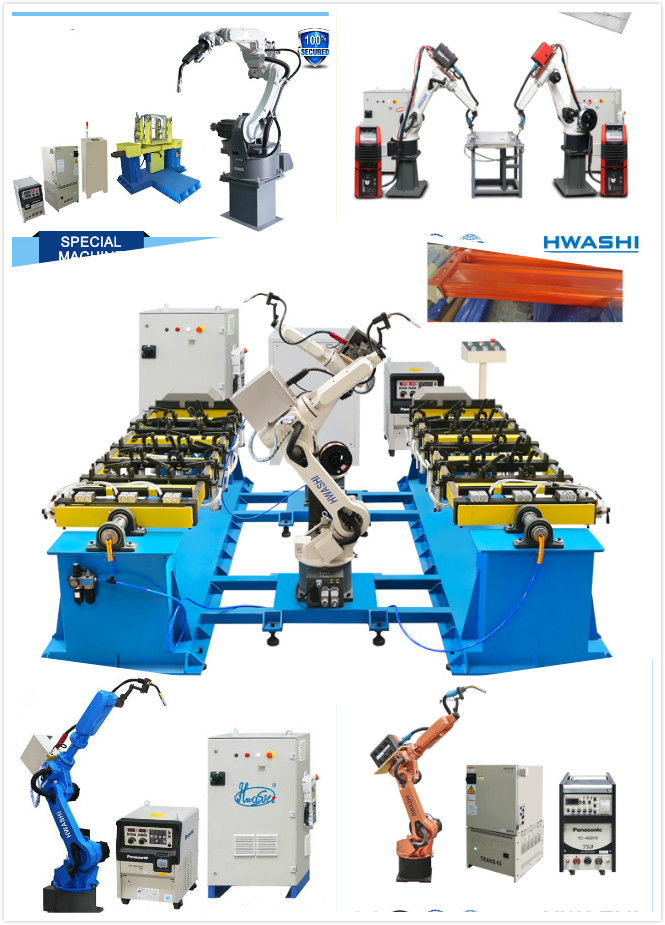

System Components

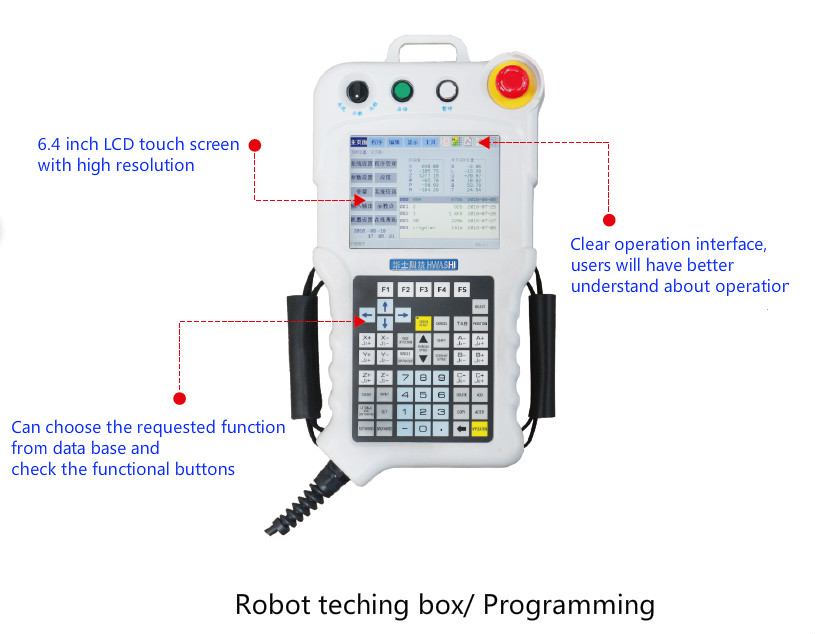

Clear robot arm programming remote:

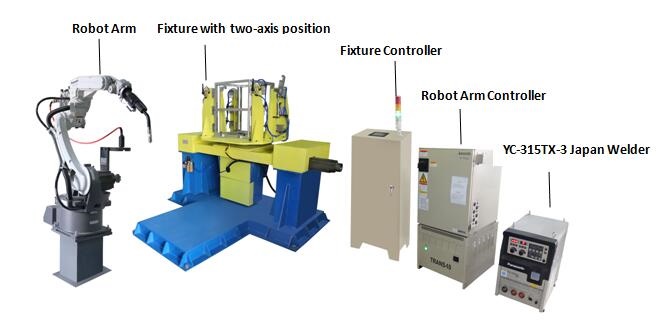

A complete welding robot includes: Robot arm, position changing device, controller box, programming remote, cables, etc.

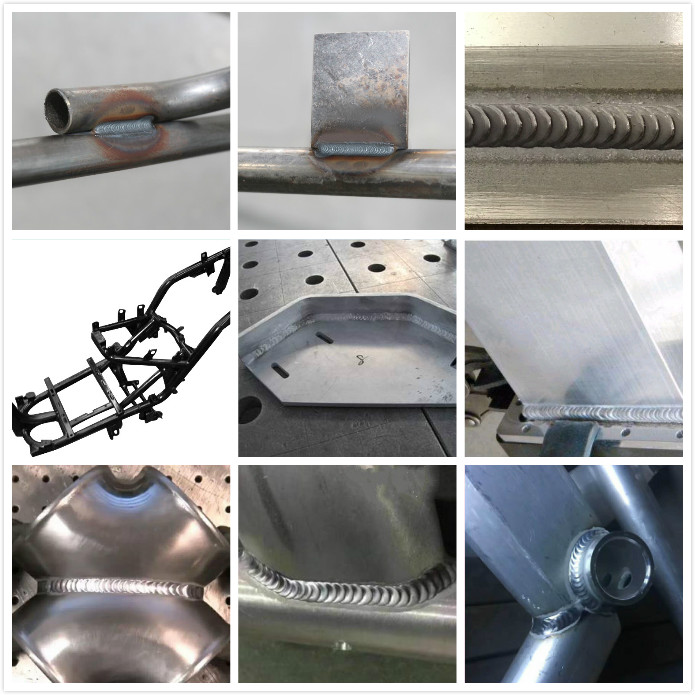

Welding Samples & Applications
Suitable for a wide range of materials including Steel, Stainless Steel, Aluminum, and more.
Why Choose Our Robotic Solutions
Industry Leadership
Over 20 years of experience in robotic arm welding technology.
Customized Service
Flexibility to design and develop welding machines based on unique customer requirements.
Quality Assurance
Strict compliance with ISO9001 and high standards, offering 12 months warranty and long service life.
Technical Support
Prompt technical assistance and professional consultancy for all welding projects.
Frequently Asked Questions
What is the repeat accuracy of the welding robot?
The system offers high precision with a repeat accuracy of ±0.05mm, ensuring consistent welding quality across production runs.
What types of welding can this robot perform?
The robot can be equipped with either Panasonic MIG or TIG welding machines, depending on your specific material and project needs.
How does the automatic alarm system protect the machine?
If the system detects any issues with wire feeding or gas supply, it will trigger an alarm and stop operation immediately to prevent damage or poor-quality welds.
Can the workstation be customized for specific products?
Yes, the workstations and fixtures are fully customizable. We design the positioning and clamping systems based on the dimensions and complexity of your workpieces.
What materials are suitable for this robotic welding machine?
The robot is ideal for welding a variety of metals, including steel, stainless steel, and aluminum, making it highly versatile for industrial use.
Is technical support available after purchase?
We provide comprehensive technical support and consultancy to ensure your robotic system operates at peak efficiency.
