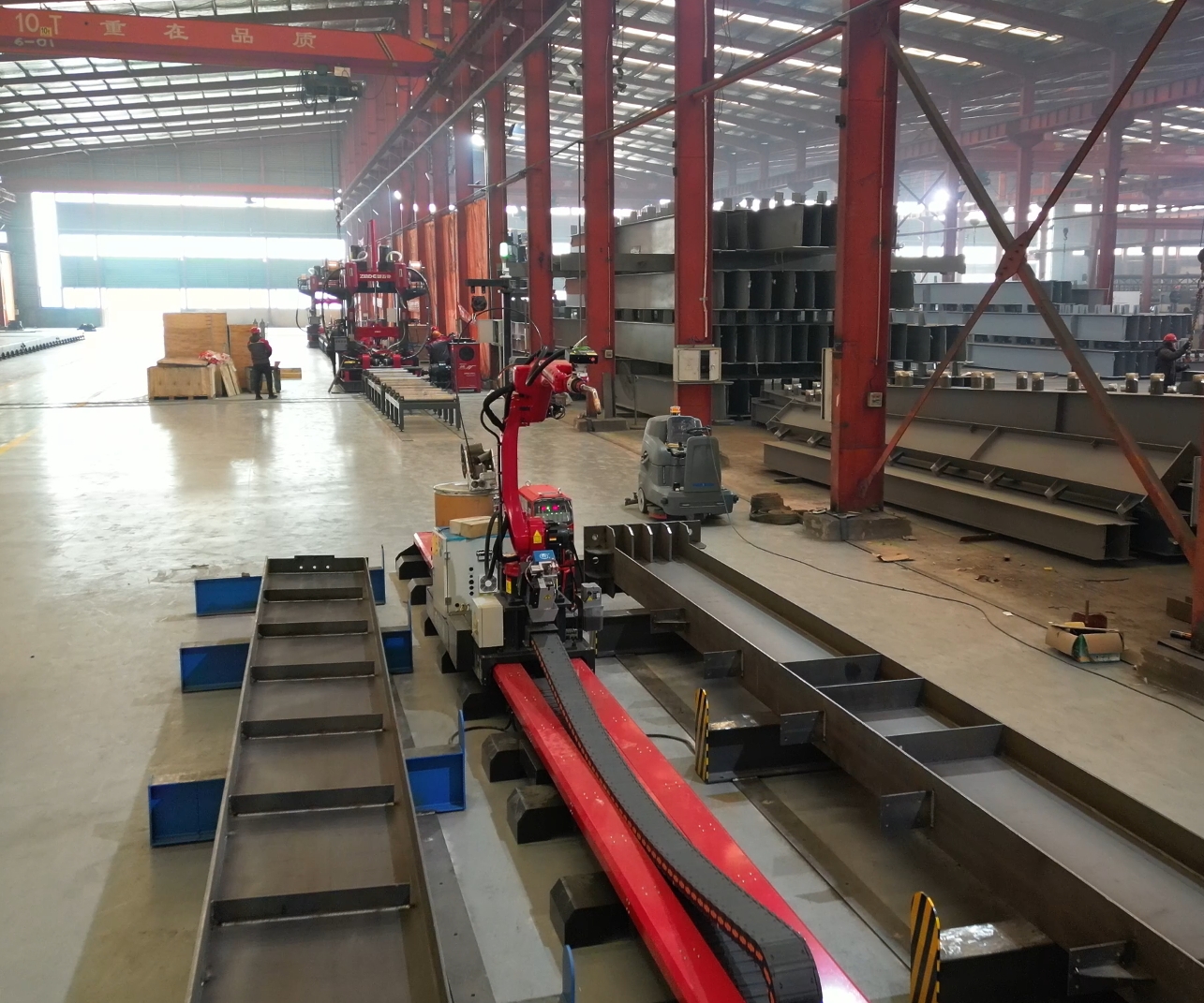

Intelligent Automatic Beam Welding Robot Production Line Ground Rail Robotic Arm TIG Welding Machine Workstation
(Real product may vary slightly from the images shown)

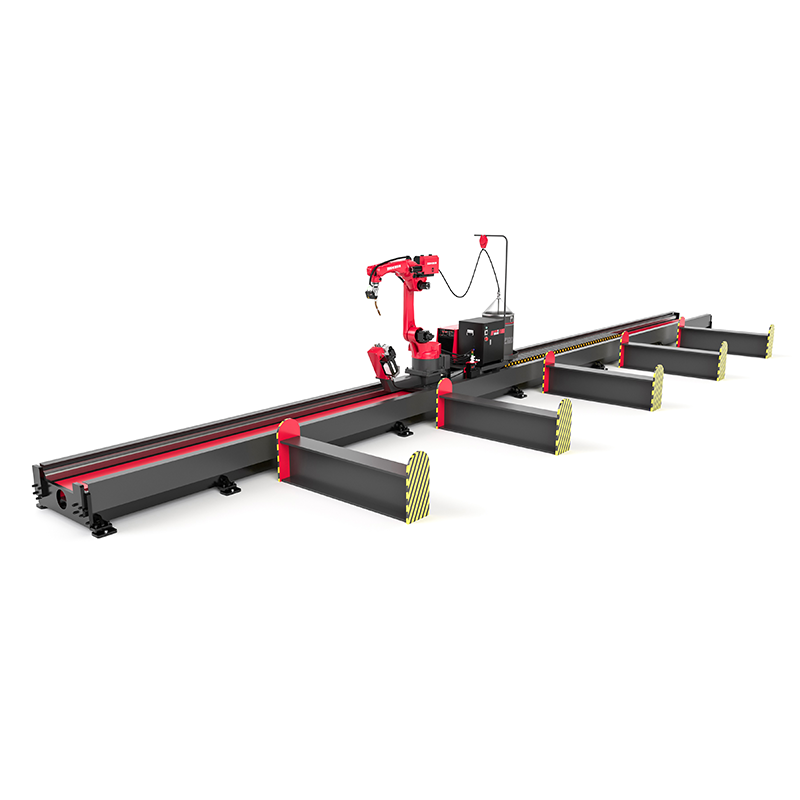

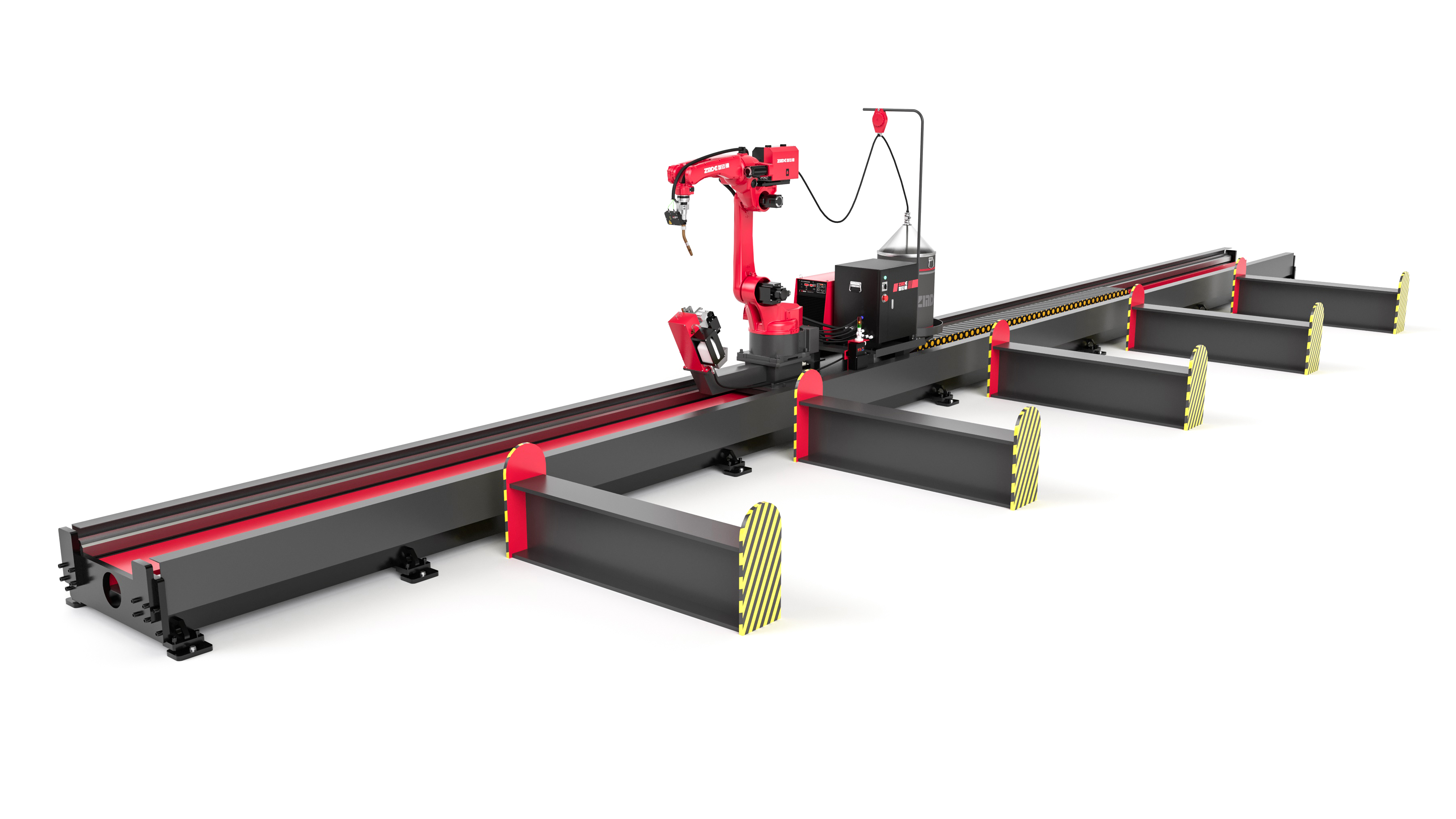

Technical Parameter
| Model: ZMD-2010A-GG-12DG |
| Conditions of Use |
0-45℃, 20-80% RH |
| Type |
Vertical joint 6 degrees of freedom |
| Max Reachable Range |
1598mm |
Protection Class |
IP65 Comparable |
| Installation |
Ground level |
Positional Repeatability |
±0.08mm |
| Max Load Weight |
6KG |
Body Weight |
168KG |
| Power Capacity |
2KVA |
| Range of Action |
Axis |
Range |
Max Speed |
Axis |
Speed |
| Basic Axis |
J1 |
±170° |
Basic Axis |
J1 |
259.3°/S |
| J2 |
+64° -130° |
J2 |
160°/S |
| J3 |
±75° |
J3 |
296.3°/S |
| Arm Axle |
J4 |
±150° |
Arm Axle |
J4 |
294.1°/S |
| J5 |
+130° -105° |
J5 |
294.1°/S |
| J6 |
±220° |
J6 |
426.7°/S |
Main Function
➤
Weld identification and welding of H/T beam accessory plates.
Applicable Industry
✔
Steel structure industry, assembly building, bridge engineering, shipyard, etc.

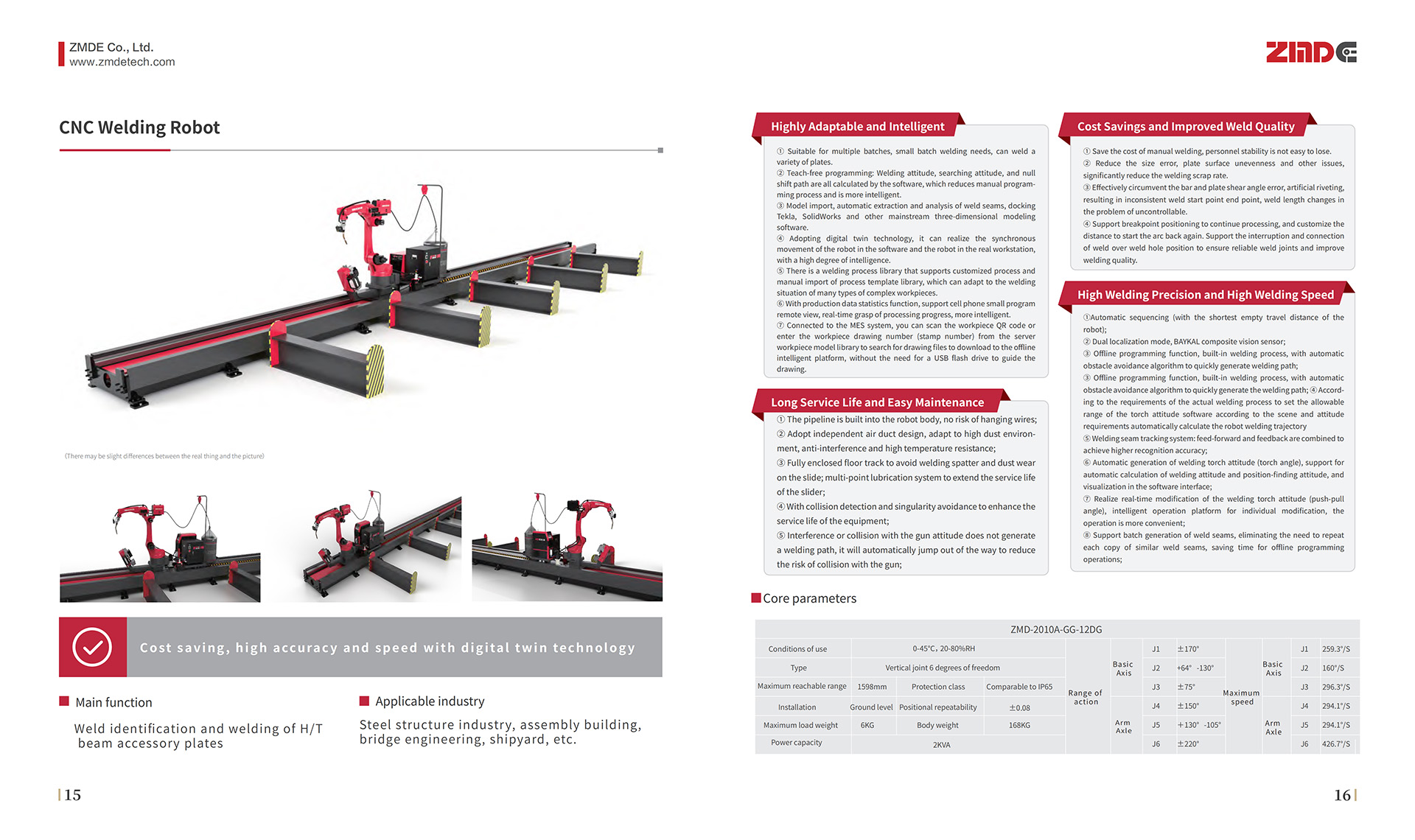

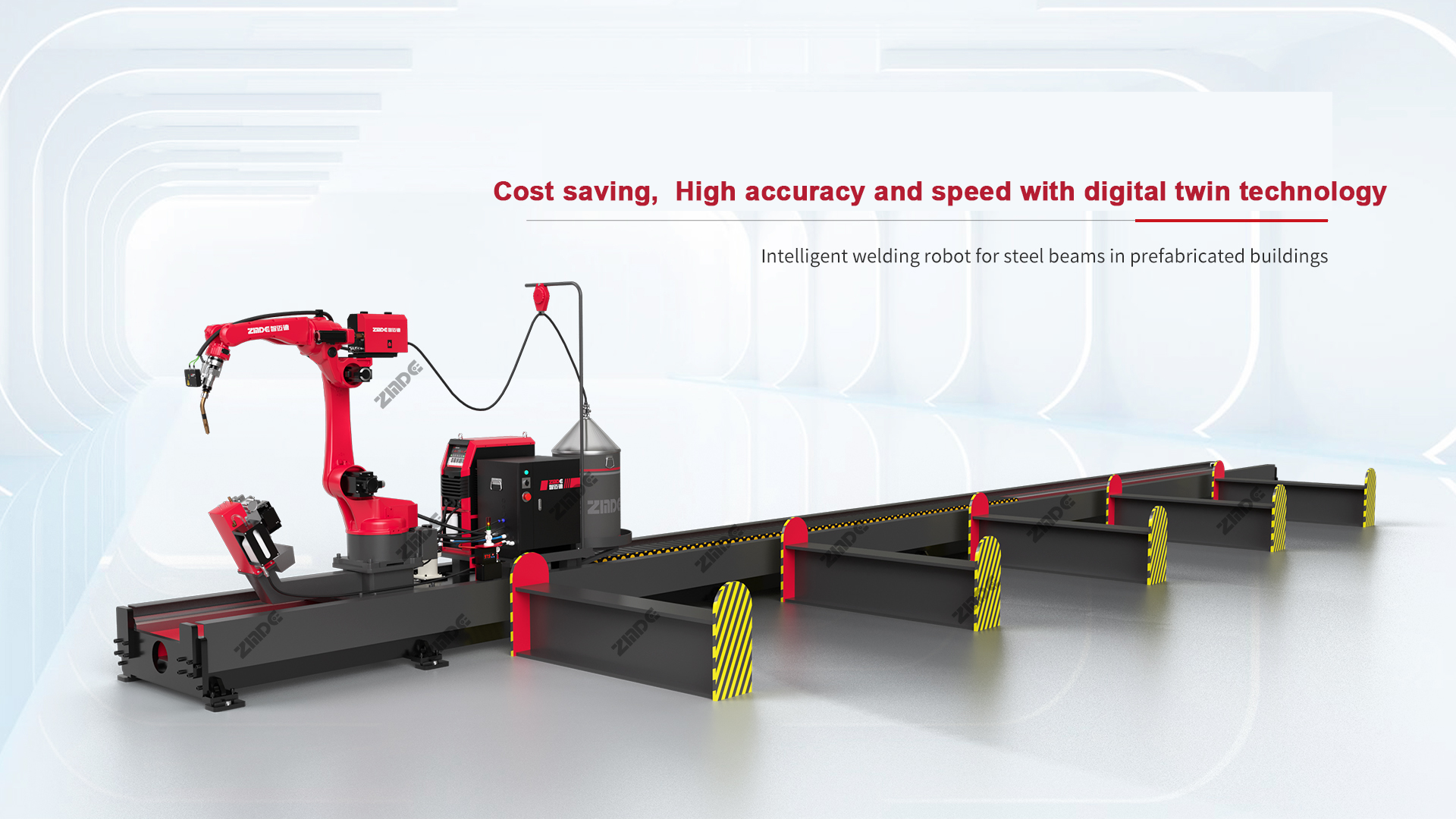

Product Advantages
The welding robot boasts a unique appearance with hollow structure arms and wrists, featuring built-in welding cables. Its compact design allows it to perform welding operations in narrow spaces with ease. Lightweight, dust-proof, and drip-proof, this robot ensures high safety standards and is equipped with a protective body cover, making it reliable in harsh environments.

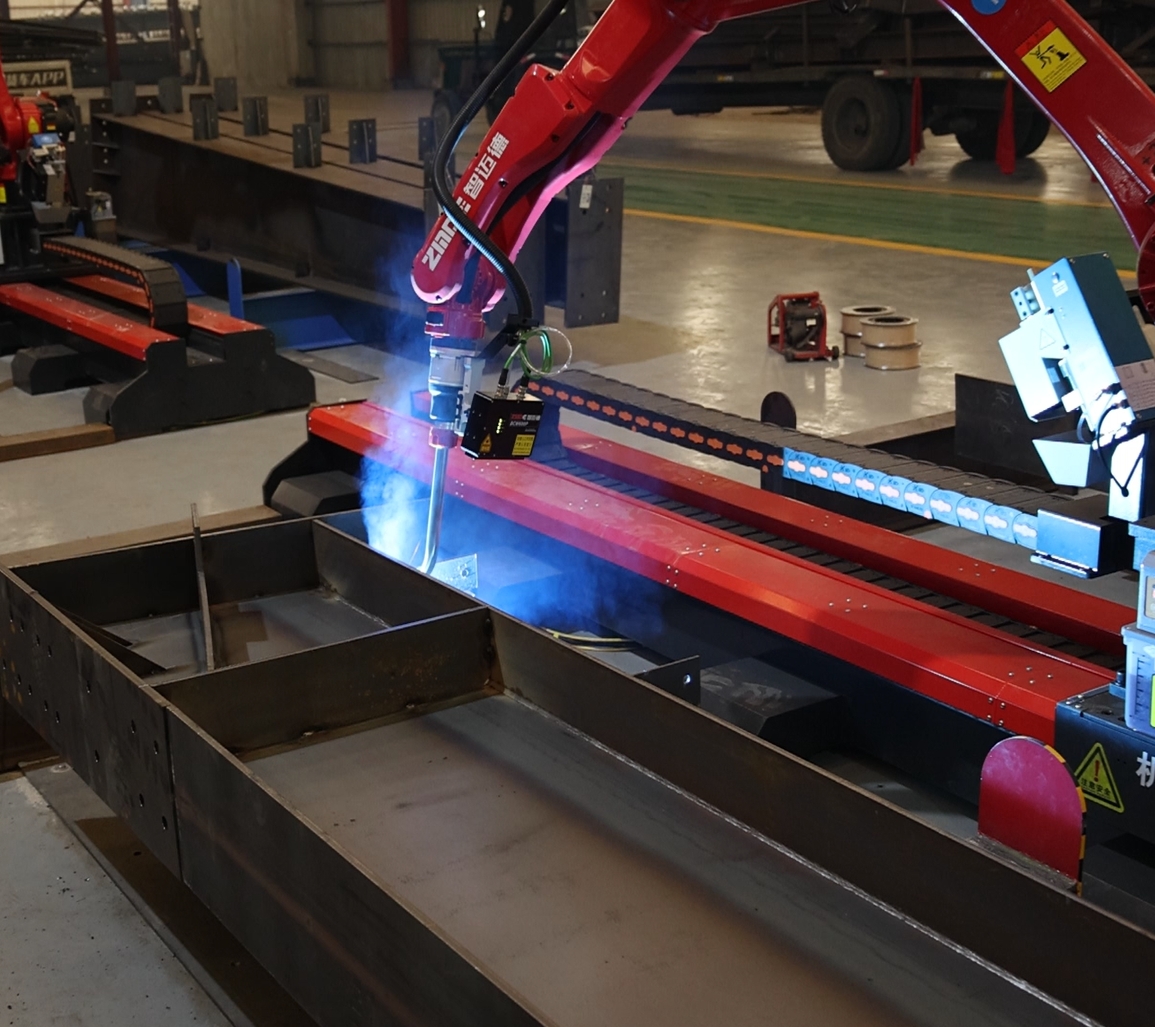

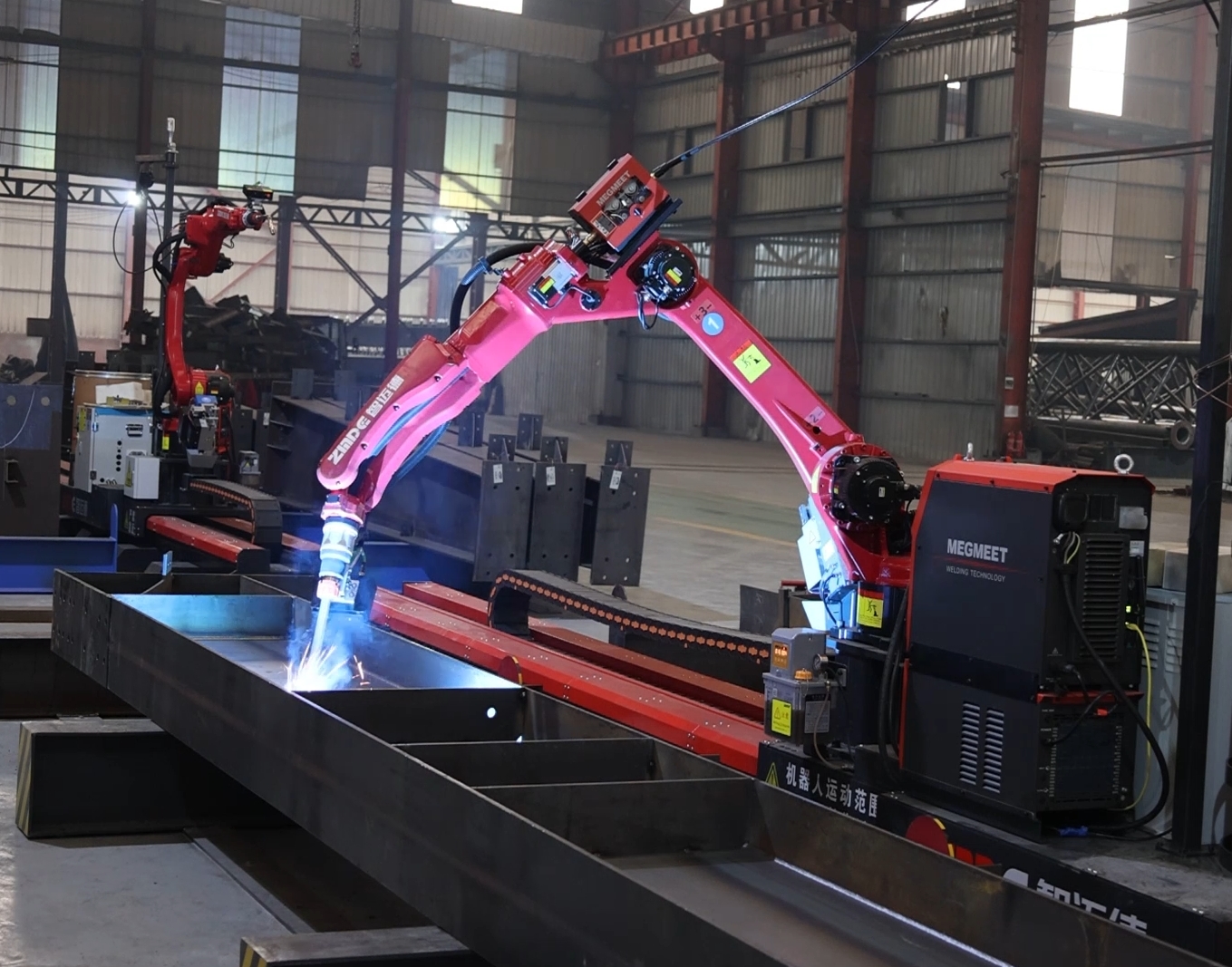

Product Details

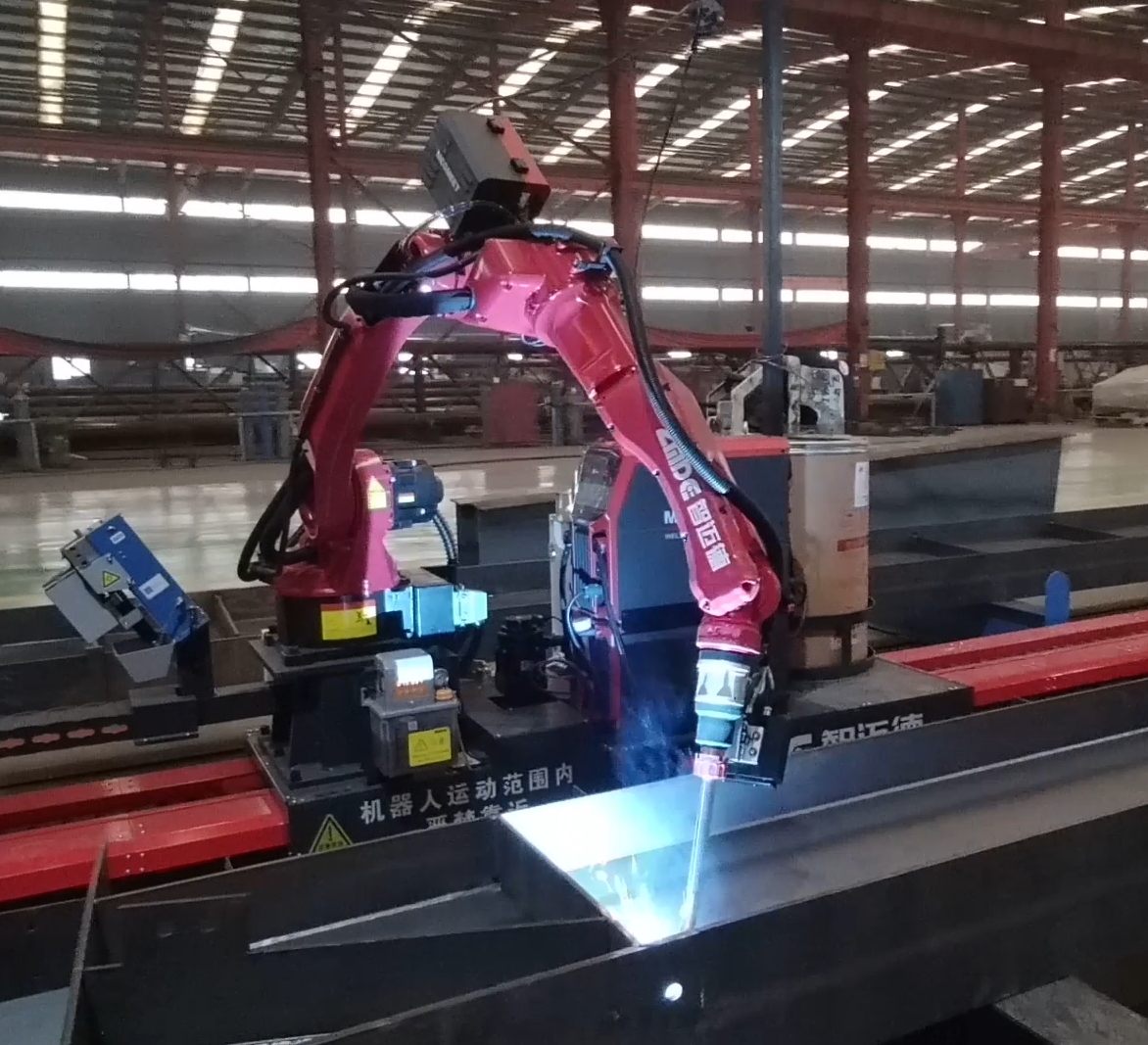

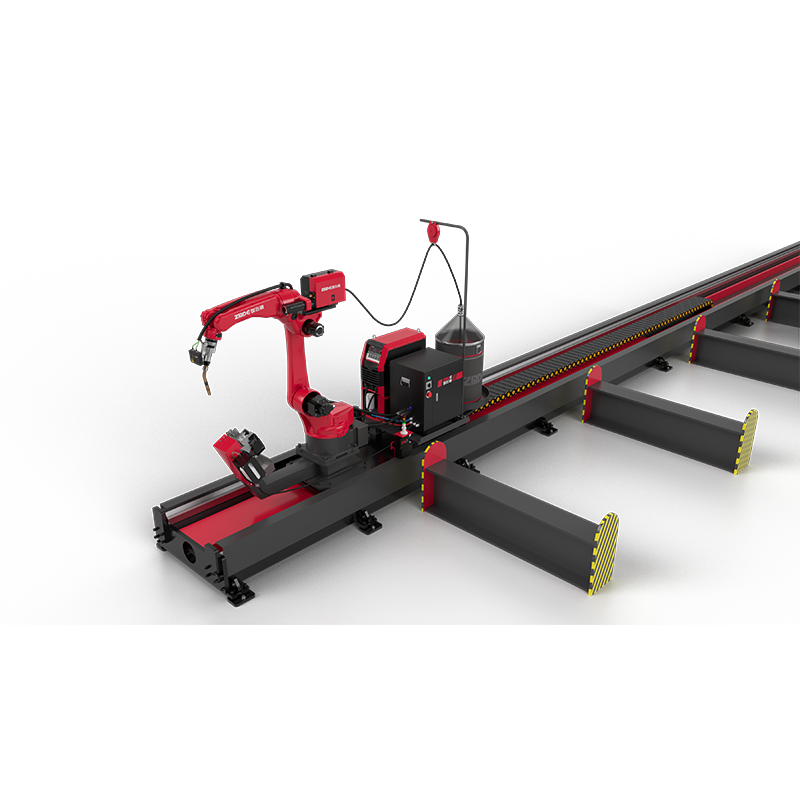

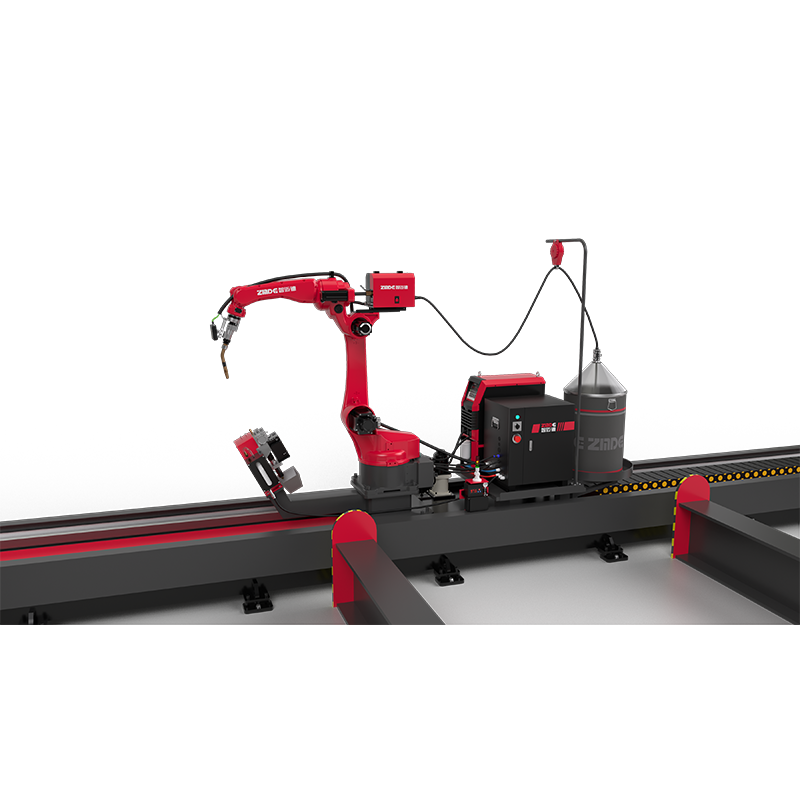

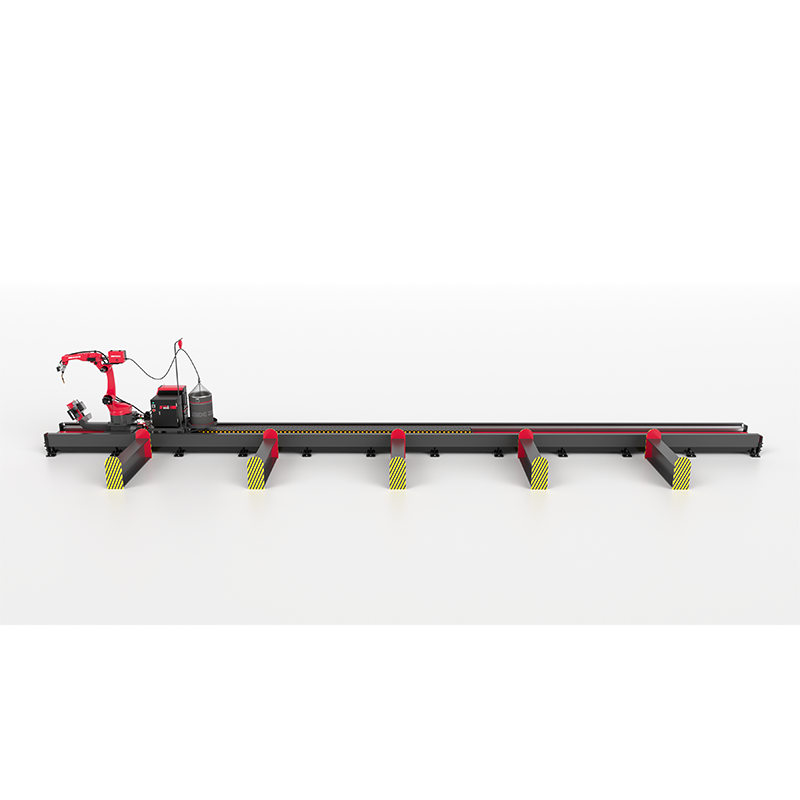

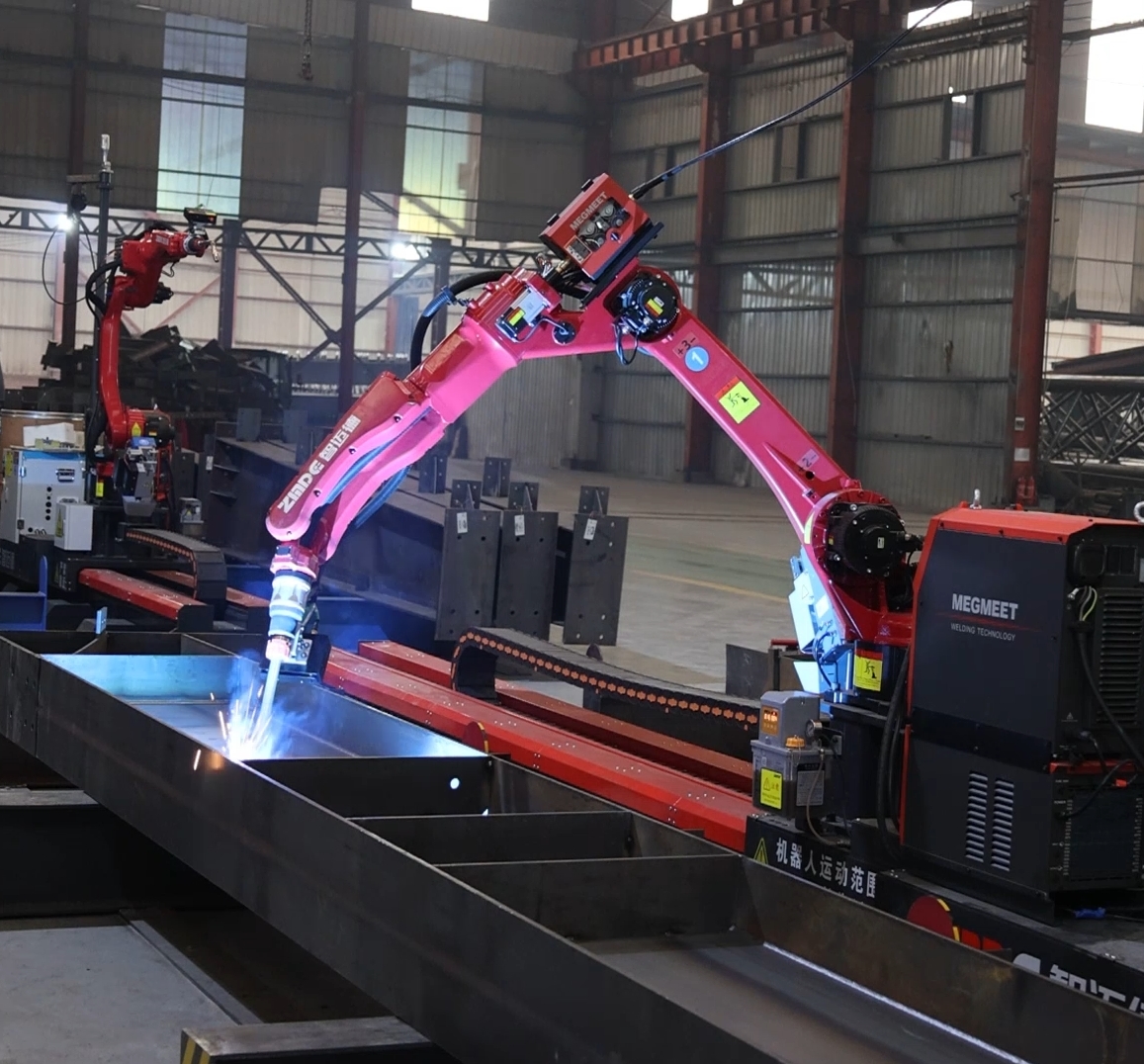

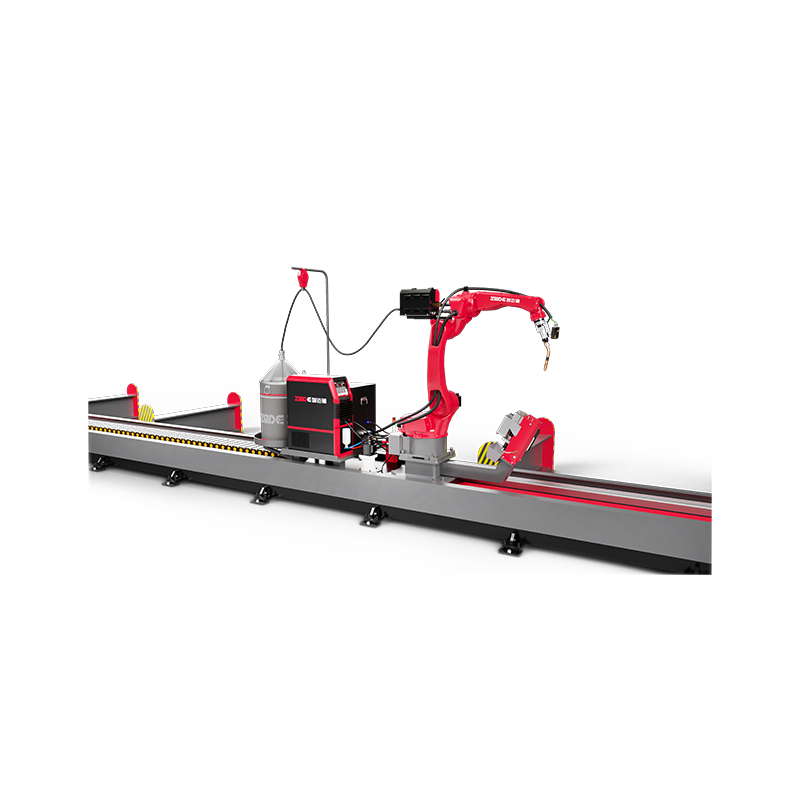

| System Components |
| Model |
ZMD-2010A-GG-12DG |
| Welding Robot |
ZMD-2010A (arm span 2 meters) |
| Welding Torch |
TRM602W HD-22L anti-collision welding torch |
| Welding Power Source |
Dex2500MPR specialized robot power supply |
| Ground Rail |
ZMD6100A-12 (1 ton load, 12 meters length) |
| Intelligent System |
CypTronic Pro-E |
| Laser Vision Sensor |
BCW600P |
| Programming Software |
CypWeidV2.0 / BRW2.0V Offline Programming |
Production and Quality Control
Why Choose This Solution
Global Projects & Exhibition
Packaging & Transport
Frequently Asked Questions
1. What types of beams can this robot weld?
The system is specifically designed for the intelligent identification and welding of H-beam and T-beam accessory plates, commonly used in steel structures.
2. How is the welding quality guaranteed?
Quality is ensured through laser vision sensors (BCW600P) for precise tracking and advanced arc welding software packages that maintain consistent weld beads.
3. Can the robot operate in narrow or harsh environments?
Yes, the robot features a compact hollow-arm design for narrow spaces and has an IP65-comparable protection class, making it dust-proof and drip-proof.
4. What specialized software is included?
The workstation includes CypTronic Pro-E intelligent systems and CypWeidV2.0 offline programming software to streamline production.
5. What are the main components of the workstation?
The core components include a 6-axis robotic arm, a 12-meter ground rail, an anti-collision welding torch, a specialized power source, and laser vision sensors.
6. Is technical support available for installation?
We provide comprehensive services including various delivery terms (FOB, CIF, DDP) and support for international projects across multiple languages.
