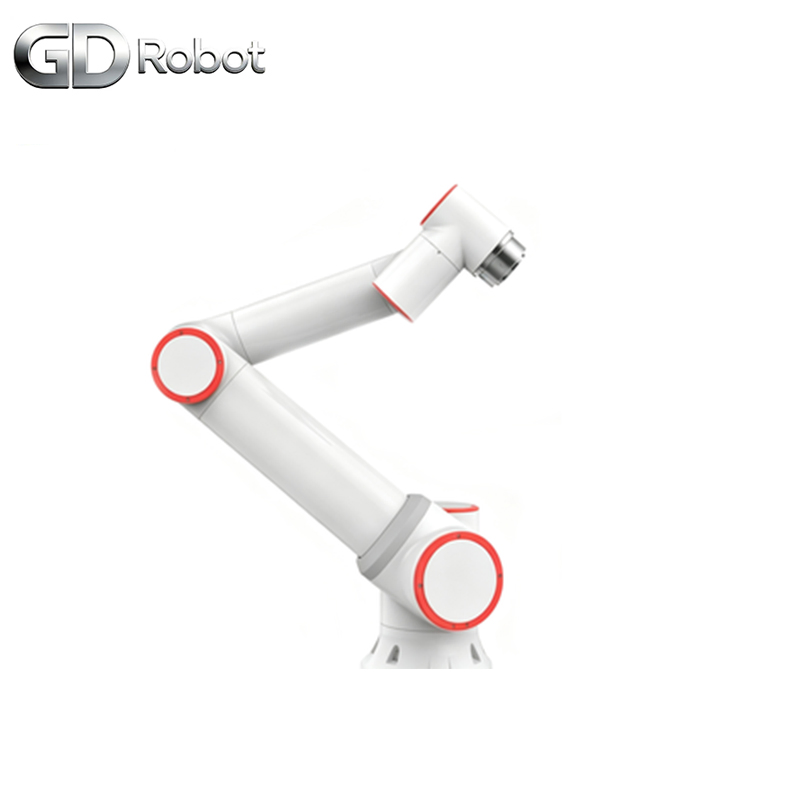

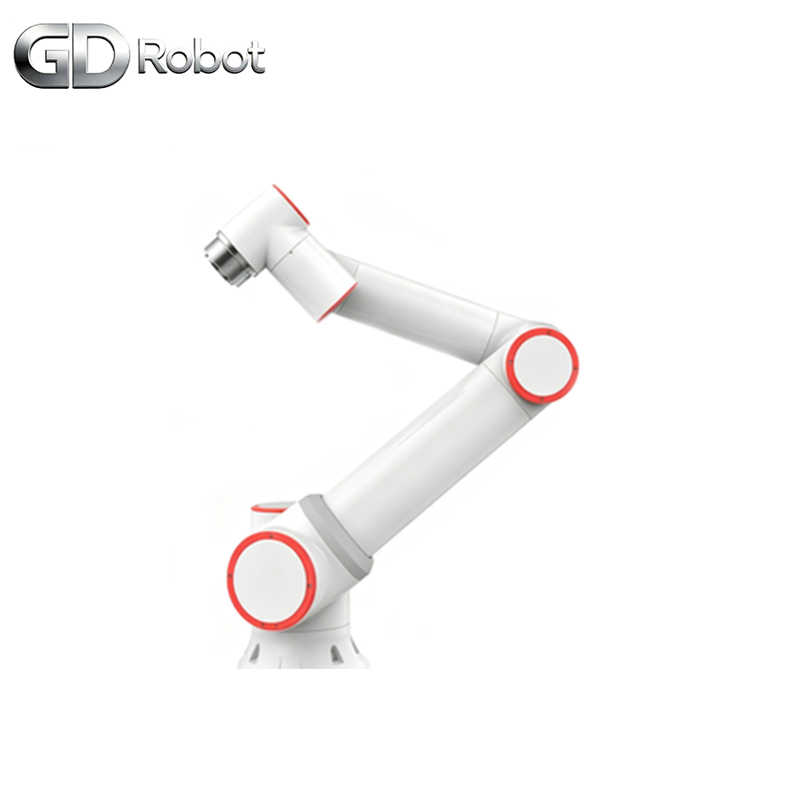

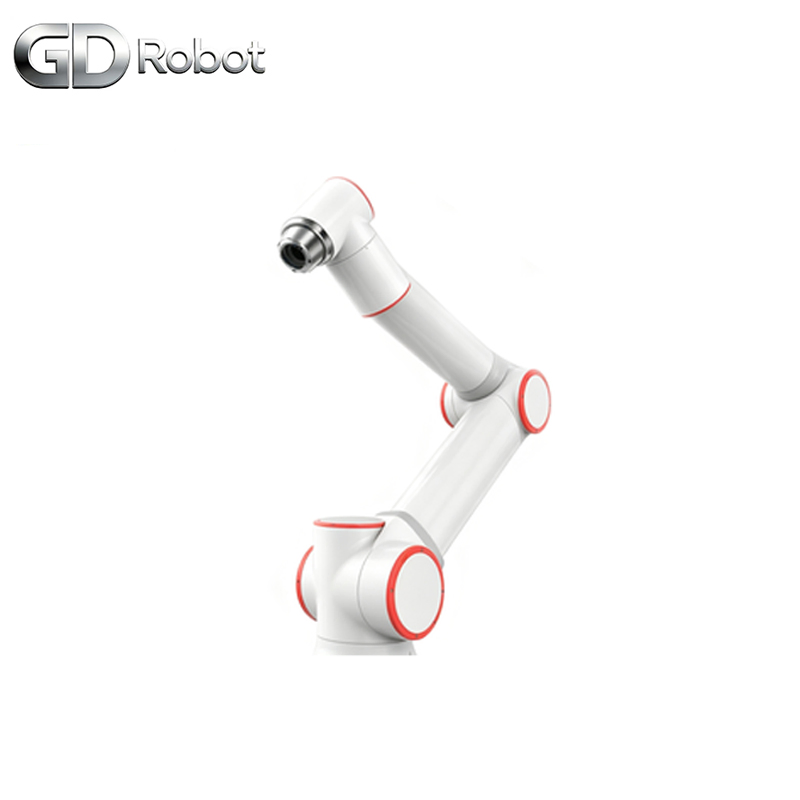

China Factory Direct Gd16 16kg 6-Axis Collaborative Robot Arm for Material Handling with ±0.03mm Repeatability & OEM Support

Product Description

Product Description

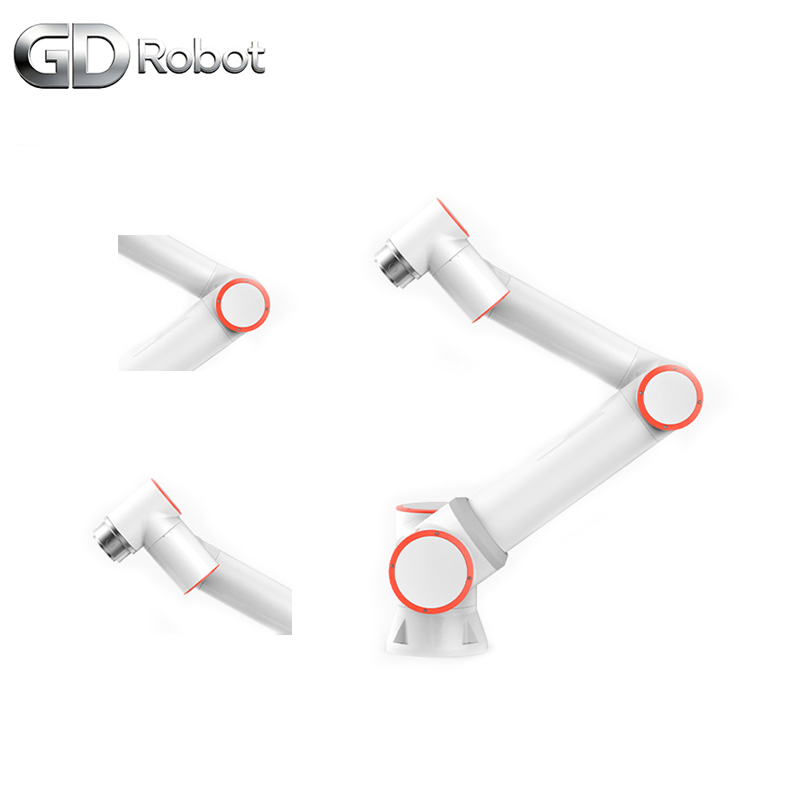

Collaborative Robot Arm 1 Collaborative Robot Arm 2
Mid-Duty Performance: 16kg payload collaborative robot arm with 1034mm reach, ideal for workshop loading tasks.
High Precision: Industrial handling stability with ±0.03mm repeatability for assembly applications.

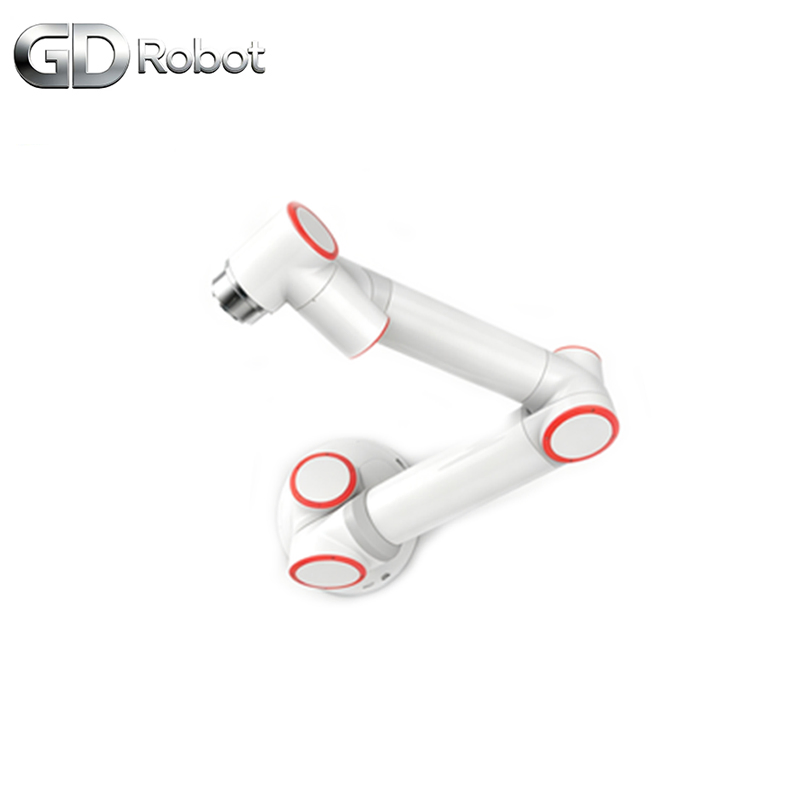

Flexible Integration: IP54-rated supports any mounting orientation for diverse loading robot integration.
Quiet Operation: Low-noise under 65dB, suitable for continuous use in quiet production environments.
Easy Control: Multiple options including teach pendant, mobile terminal, and Web App.
Customization: Factory direct OEM support available for custom collaborative projects.
Technical Specification
Parameter Specification
ModelGD16
Payload16kg (Max: 20kg)
Reach1034mm
Degrees of Freedom6 rotating joints
HMI10.1 inch teach pendant, mobile terminal or Web App
Pose Repeatability±0.03mm
Typical TCP Speed1m/s
IP ClassificationIP54 (IP65 Optional)
Noise Level<65dB
Robot MountingAny orientation
Weight≈40kg
Typical Average Power310W
MaterialsAluminium, Steel
Robot Drawings

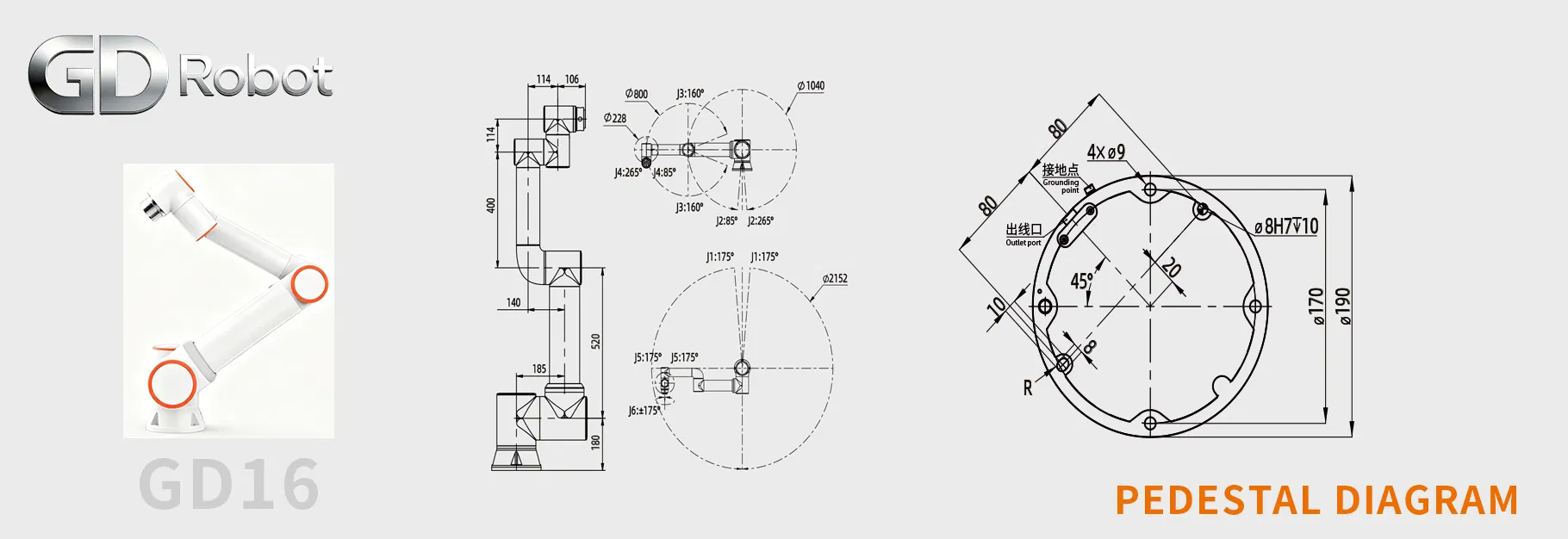

Robot Technical Drawings
Packing & Delivery
Robot Packing and Delivery
Hot Selling Products

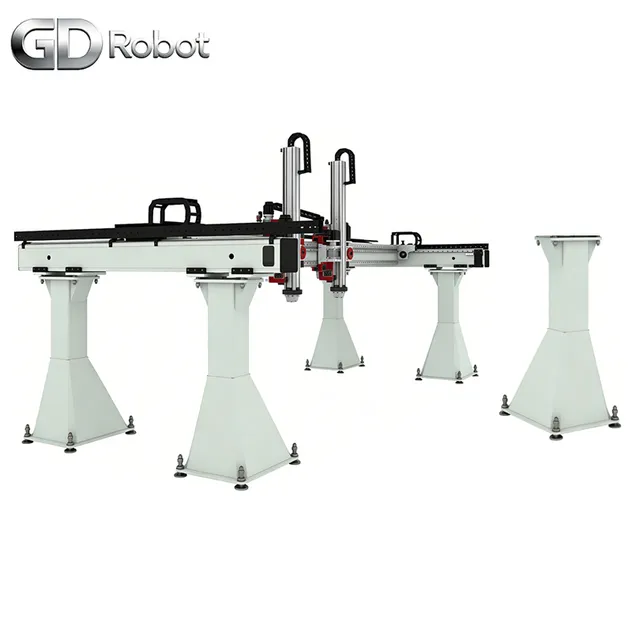

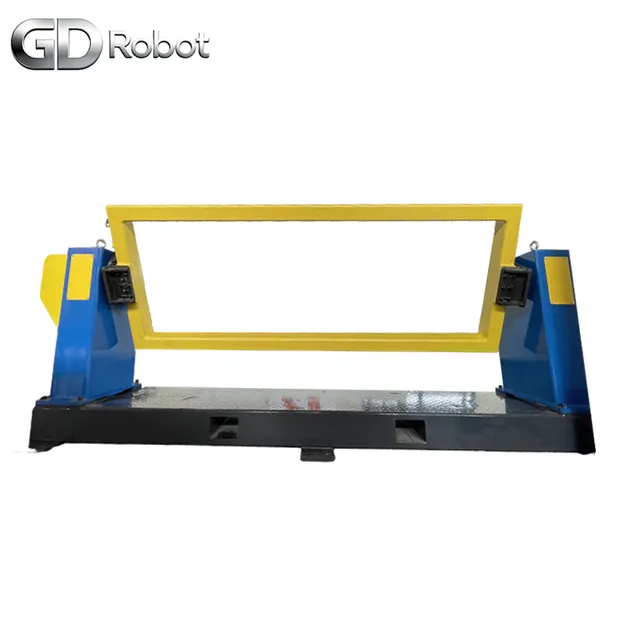

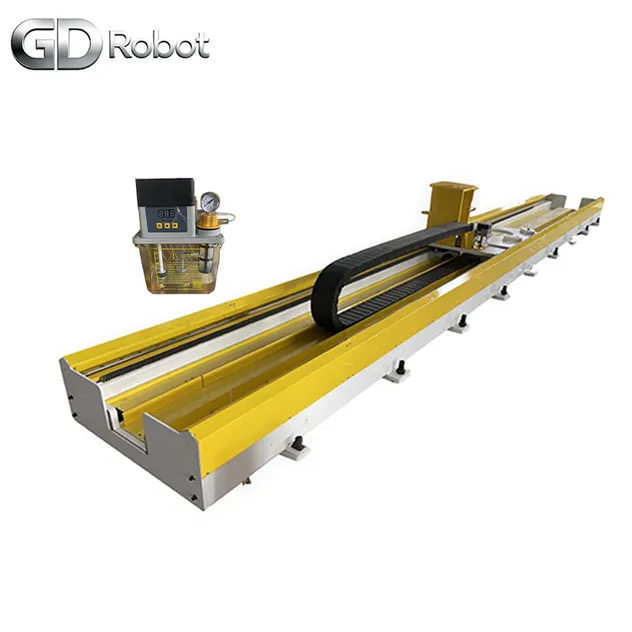

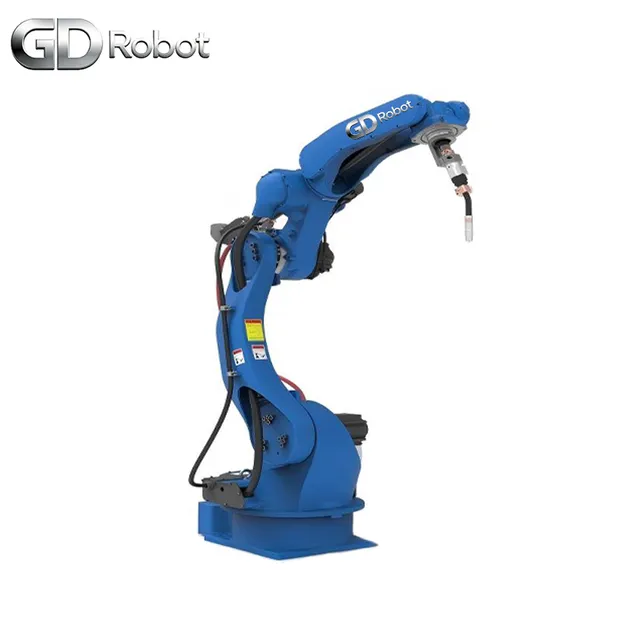

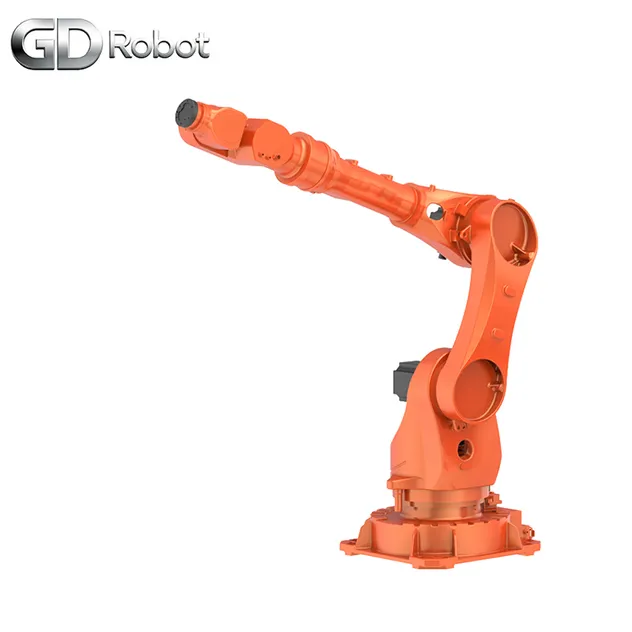

Industrial Articulated Robot Truss System Welding Positioner Automatic Welding Robot Robot Linear Track CNC Bending Robot
Production Capabilities

Our manufacturing facility is a high-tech enterprise specializing in the R&D and production of industrial robots, gantry robots, robot linear guides, and welding positioners, while also providing customized automation solutions.

The core manufacturing base maintains strong production capacity, producing more than 60 sets of robot linear guides, over 1,000 welding positioners, and more than 200 sets of gantry robot systems annually. We provide over 50 types of automation solutions and more than 300 industrial robots each year, offering customized production as well as OEM/ODM services for global customers.

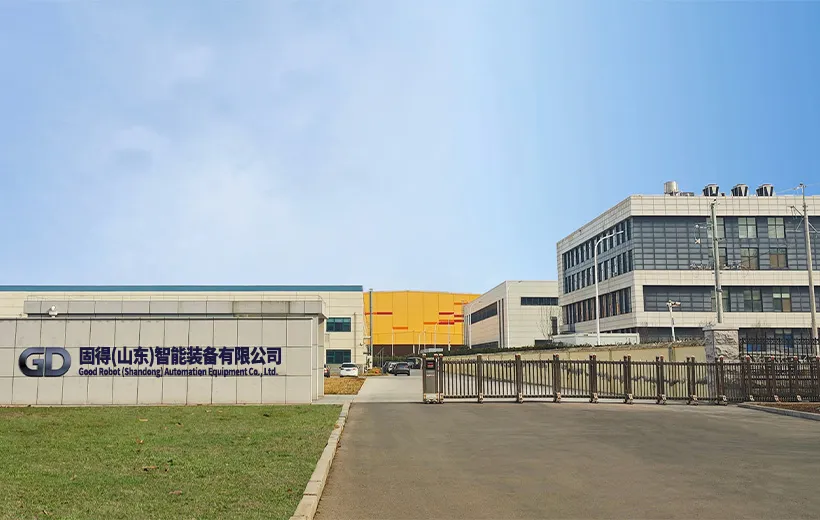

Production Workshop Manufacturing Facility R&D Center
Certifications
Quality Certifications
Frequently Asked Questions
Q: What is the payload capacity of the GD16 collaborative robot arm?
A: The GD16 robot arm offers a 16kg payload (maximum 20kg), making it ideal as a mid-duty loading robot.
Q: What is the working reach of this cobot?
A: This collaborative robot arm features a reach of 1034mm, perfect for compact-range material handling and loading tasks.
Q: How accurate is the GD16 robot arm during operation?
A: It delivers a high precision repeatability of ±0.03mm, ensuring accuracy for industrial assembly and handling.
Q: What are the environmental protection ratings?
A: It comes with a standard IP54 rating, with an optional IP65 upgrade for more demanding environments.
Q: What control methods are supported?
A: It supports multiple control options including a 10.1-inch teach pendant, mobile terminals, and a Web App for easy operation.
Q: Does the robot arm support custom branding or OEM services?
A: Yes, we provide full OEM services including customization of specifications and branding for diverse automation projects.
