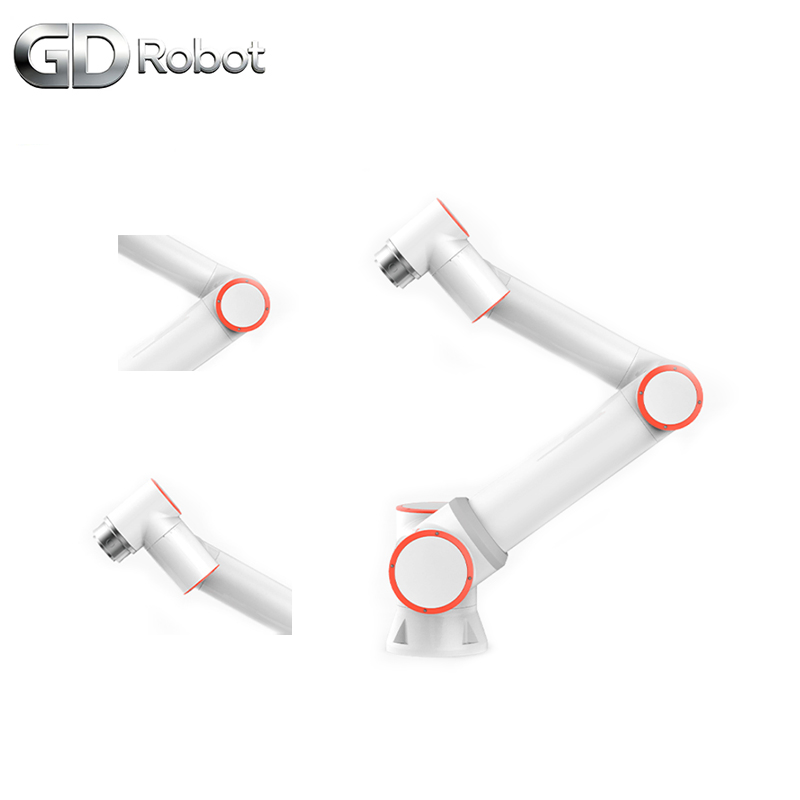

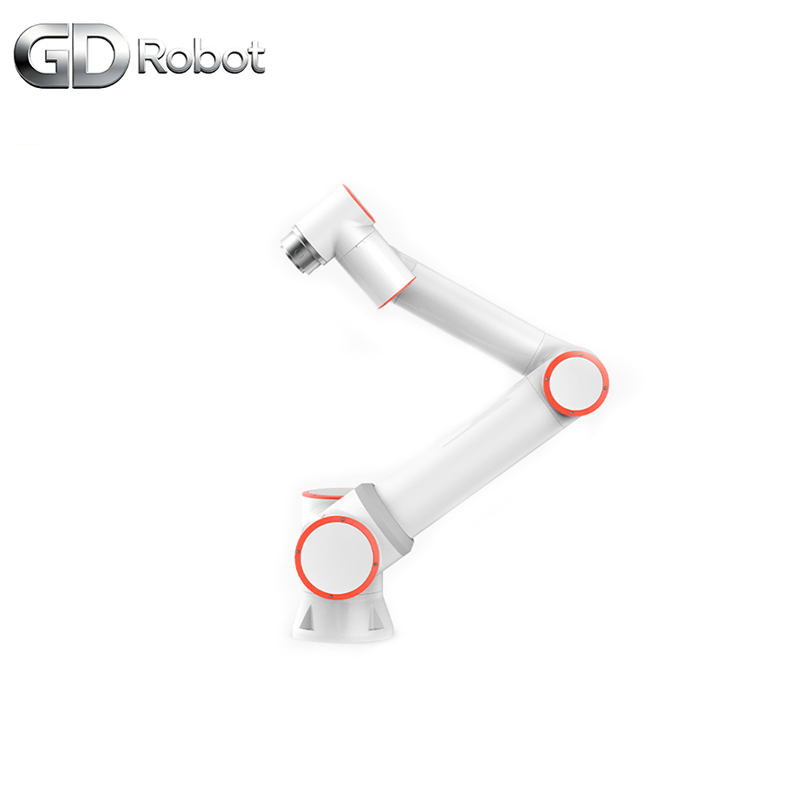

| Parameter | Specification |
|---|---|

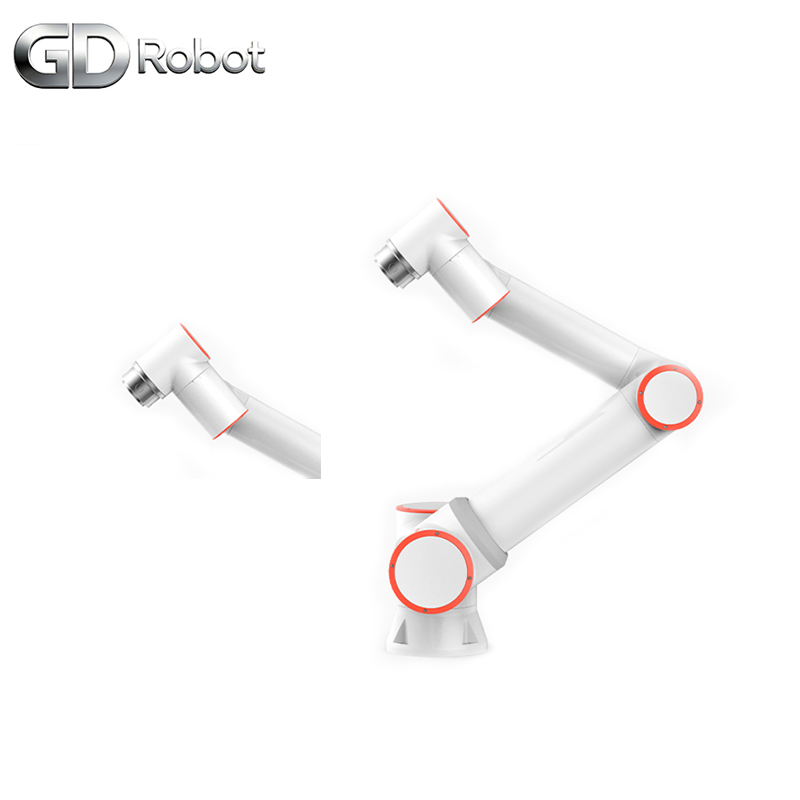

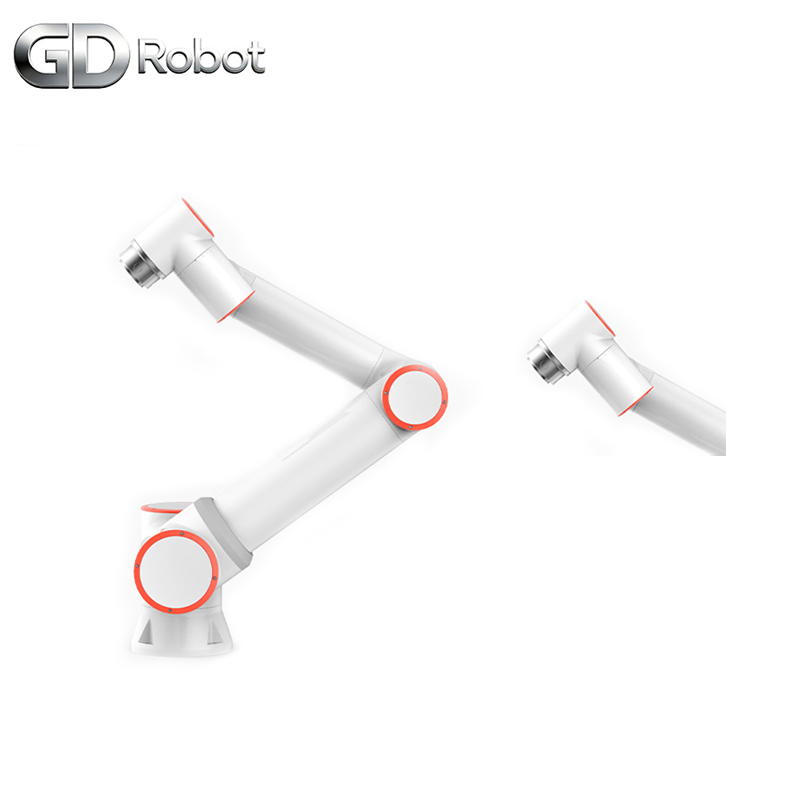

| Model | GD16 |
| Payload | 16kg (Max: 20kg) |

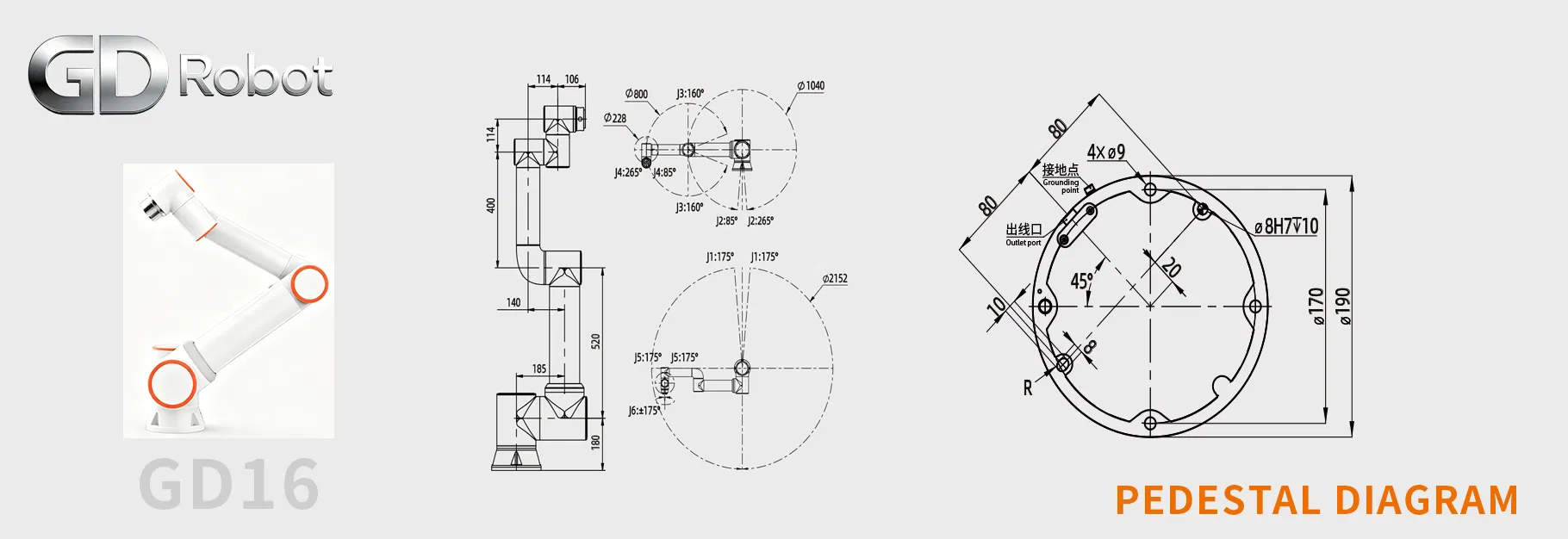

| Reach | 1034mm |
| Degrees of Freedom | 6 rotating joints |
| HMI | 10.1 inch teach pendant, mobile terminal or Web App |
| Pose Repeatability | ±0.03mm |
| Typical TCP Speed | 1m/s |
| IP Classification | IP54 (IP65 Optional) |
| Noise | <65dB |

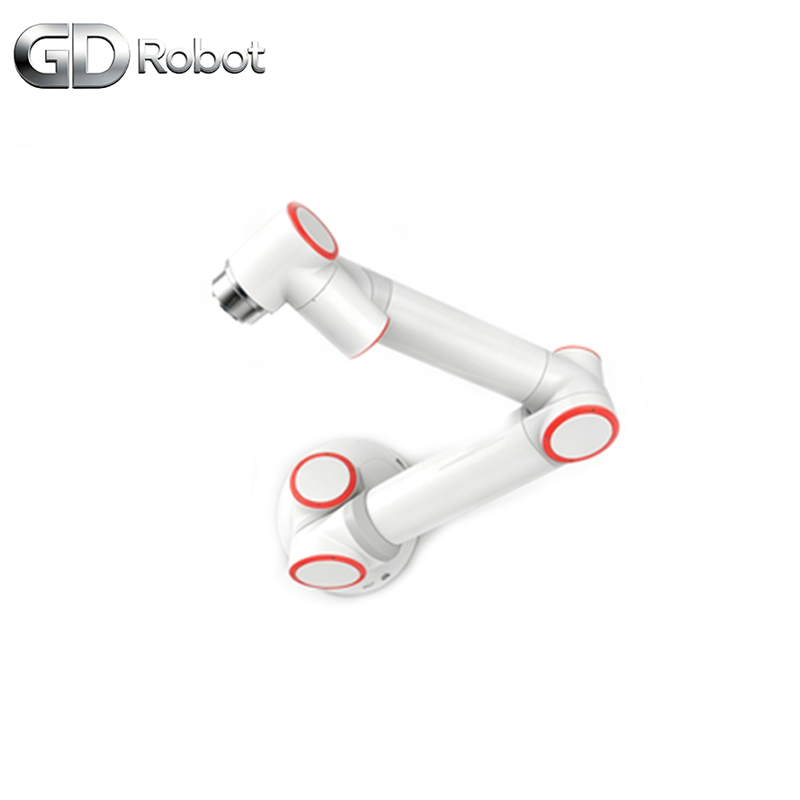

| Robot Mounting | Any orientation |
| Weight | ≈40kg |
| Typical Average Power | 310W |
| Materials | Aluminium, Steel |

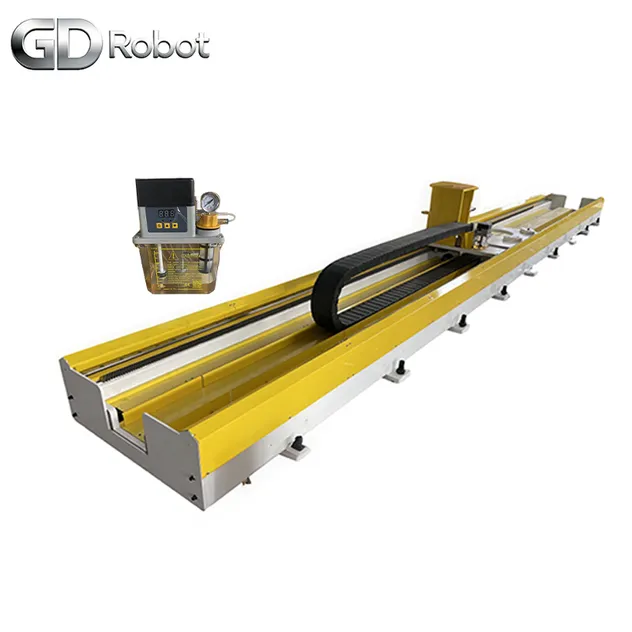

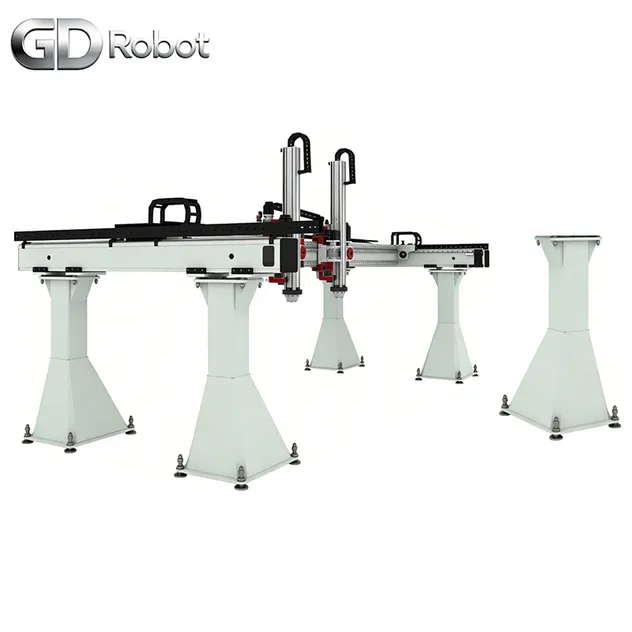

A high-tech enterprise established in 2018, specializing in the R&D and production of industrial robots, gantry robots, robot linear guides, and welding positioners. The company provides customized automation solutions covering fields such as welding, palletizing, metal processing, and spraying.

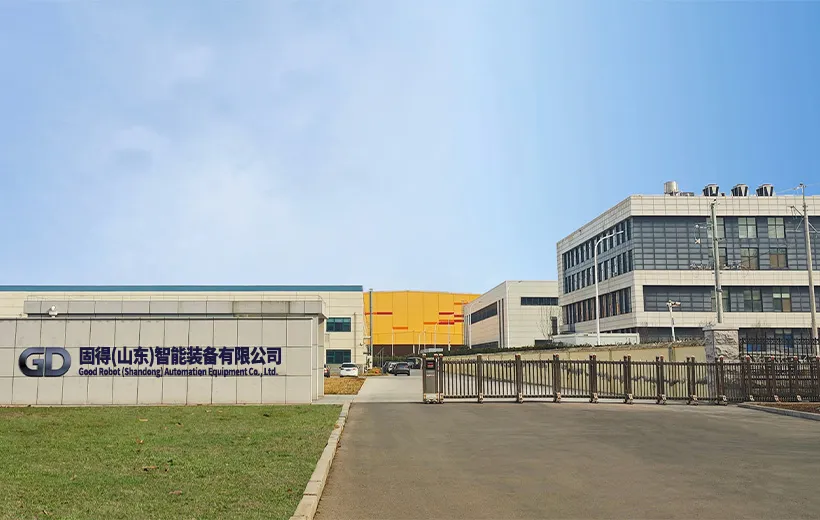

With strong production capacity, the facility produces over 60 sets of linear guides, 1,000 welding positioners, and 200 gantry systems annually. It offers more than 50 types of automation solutions and 300 industrial robots each year, including professional OEM/ODM services for global customers.
