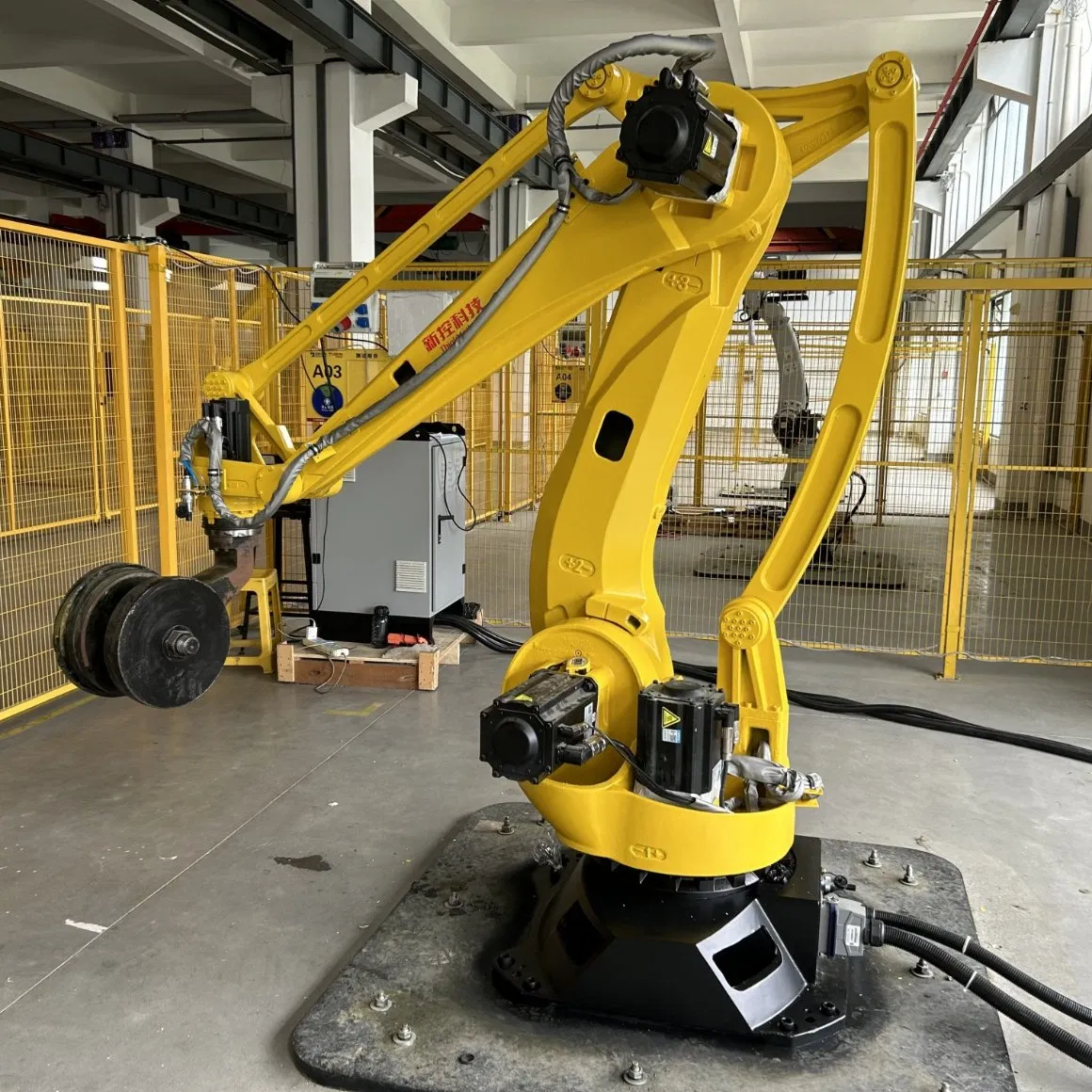

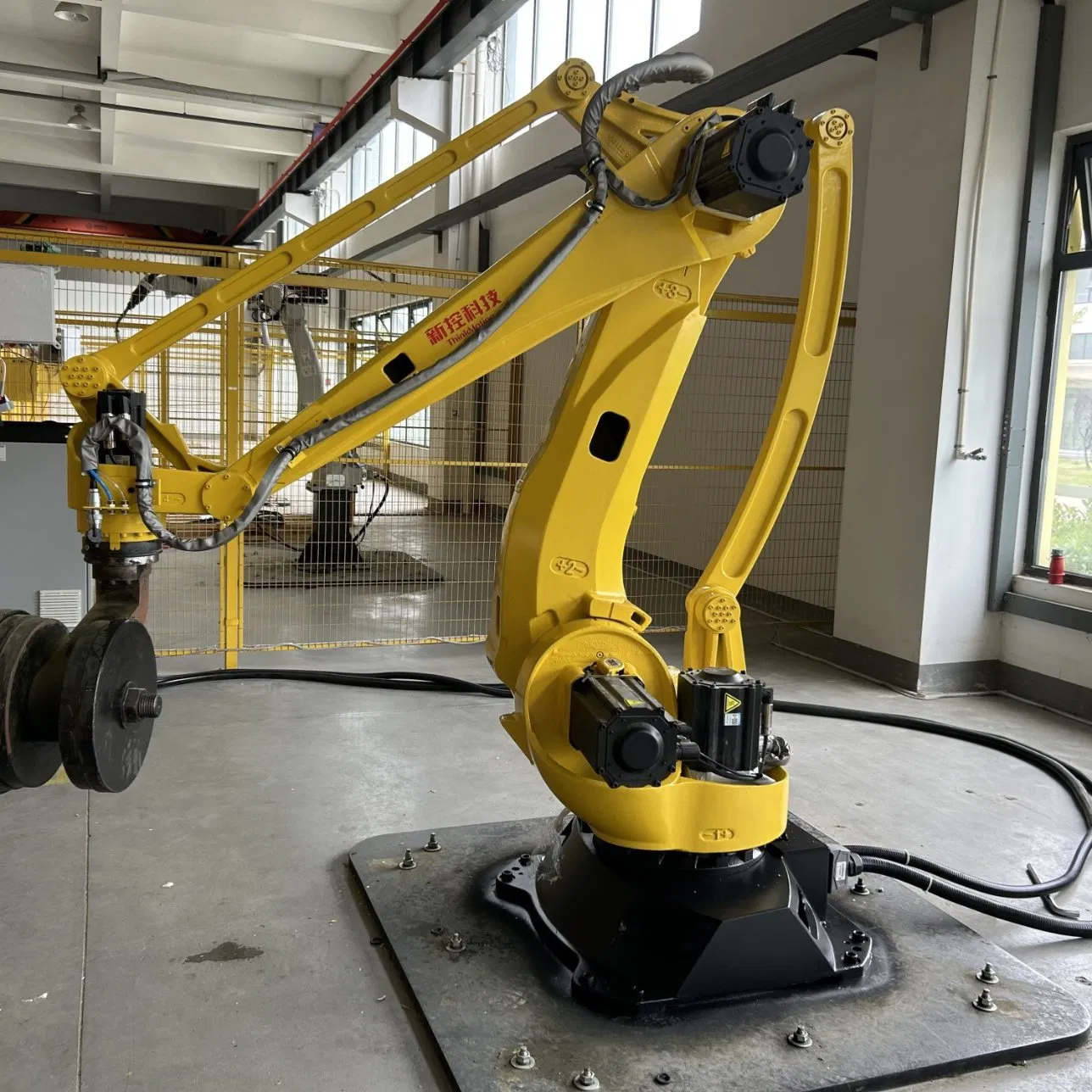

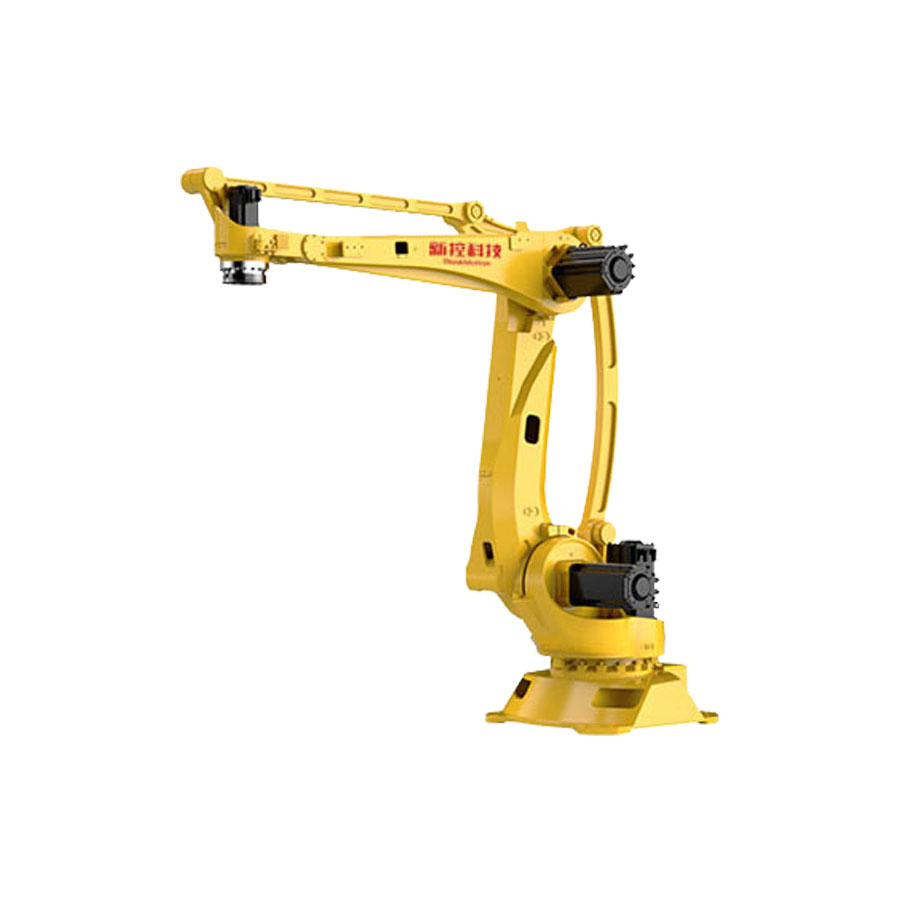

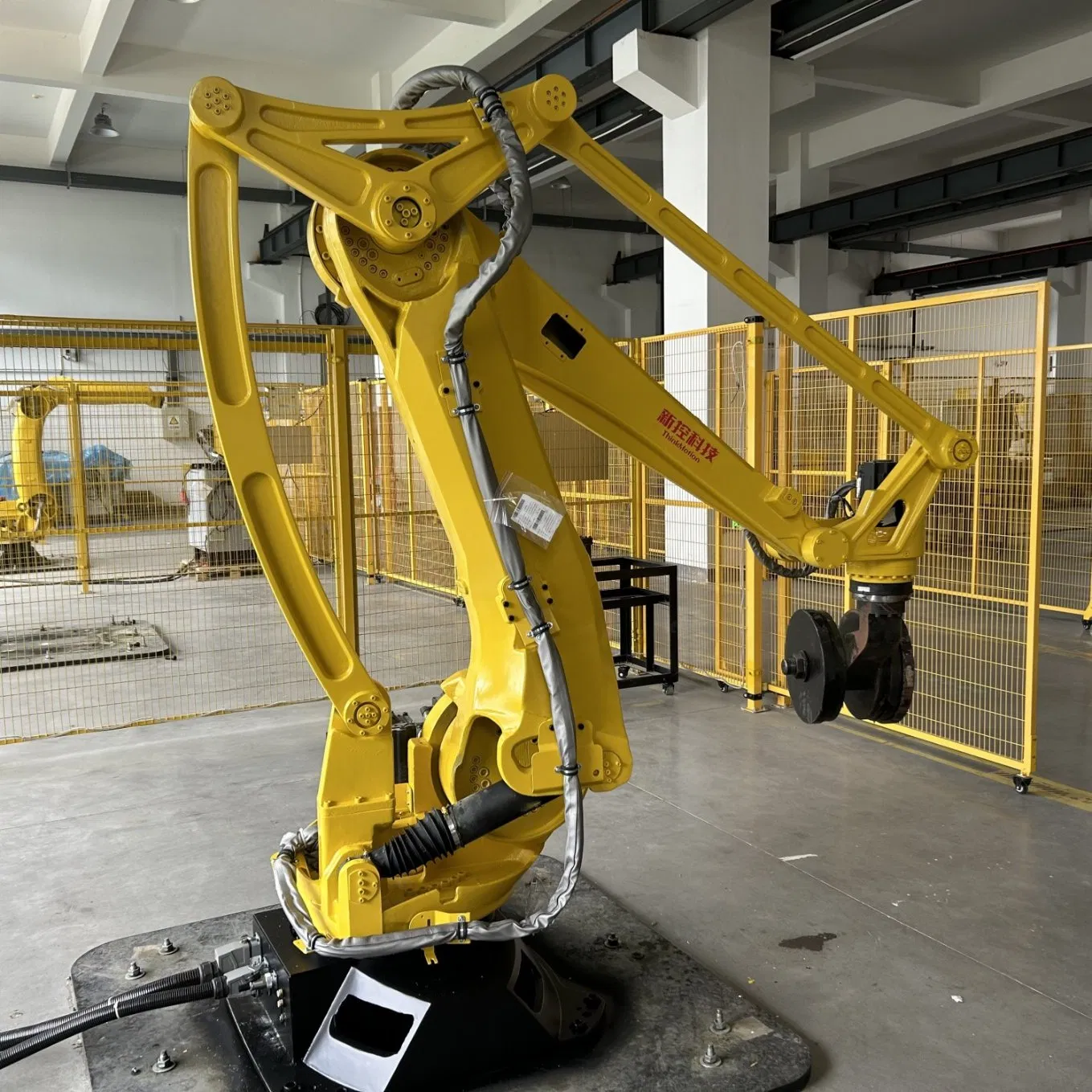

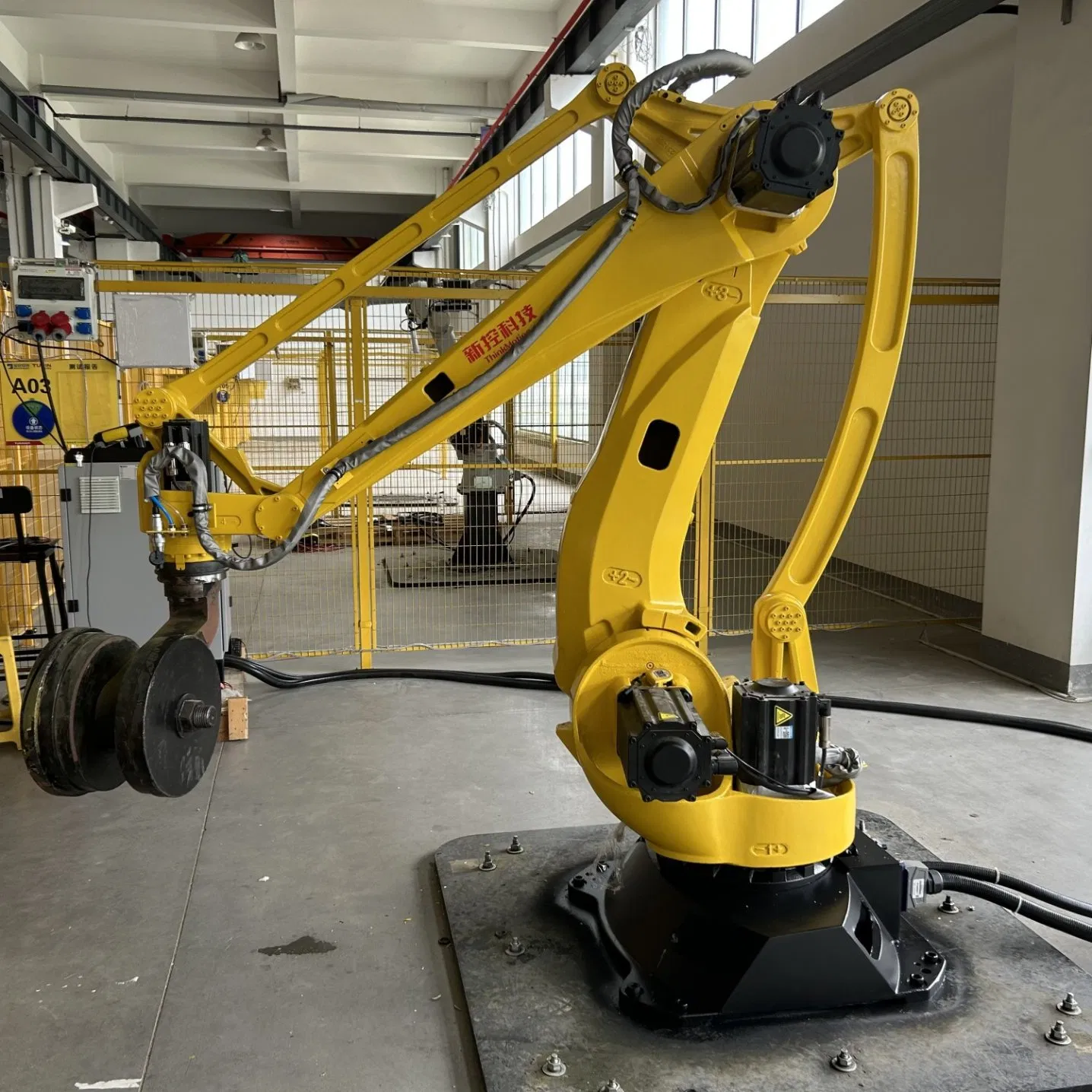

High-Precision Welding Station Intelligent Humanoid Robot Mechanical Arm
High-Precision Welding Station Intelligent Humanoid Robot Mechanical Arm
High-Precision Welding Station Intelligent Humanoid Robot Mechanical Arm
High-Precision Welding Station Intelligent Humanoid Robot Mechanical Arm
High-Precision Welding Station Intelligent Humanoid Robot Mechanical Arm
1 / 5
High-Precision Welding Station Intelligent Humanoid Robot Mechanical Arm
High-Precision Welding Station Intelligent Humanoid Robot Mechanical Arm
High-Precision Welding Station Intelligent Humanoid Robot Mechanical Arm
High-Precision Welding Station Intelligent Humanoid Robot Mechanical Arm
High-Precision Welding Station Intelligent Humanoid Robot Mechanical Arm

High-Precision Welding Station Intelligent Humanoid Robot Mechanical Arm

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Specifications

Model NO.:TR180-3200P
Control Mode:Point to Point Control
Drive Mode:Electric
Type:Arc Welding Robot
Welding Speed:1 m/min
Payload:180kg
Max Working Radius:3200mm
DOF:4 Axes
Body Weight:1193kg
Rated Power:5.5kw
Protection:IP54/IP65 (4-Axis Optional)
HS Code:8479501000

Product Description

  • Mechanical Properties: Load capacity: Rated load 180kg, arm span 3200mm, suitable for operating large workpieces.
  • High Precision: Repeat positioning accuracy: ±0.1mm, ensuring high-precision operation stability.
  • Joint Speed: Maximum speed of J1: 105°/s, J4: 270°/s, combining efficiency and flexibility.
  • Protection Grade: Key shafts can be selected as IP54/IP65, suitable for dusty, humid or high-temperature environments.
  • Heavy Industry Manufacturing: Suitable for automotive body welding, metal sheet stamping forming, and hardware polishing.
Model TR180-3200P Rated Power 5.5kw
Payload 180kg Repeat Accuracy ±0.1mm
Max Radius 3200mm Body Weight 1193kg
DOF 4 axes Specification IP54/IP65 (Optional)

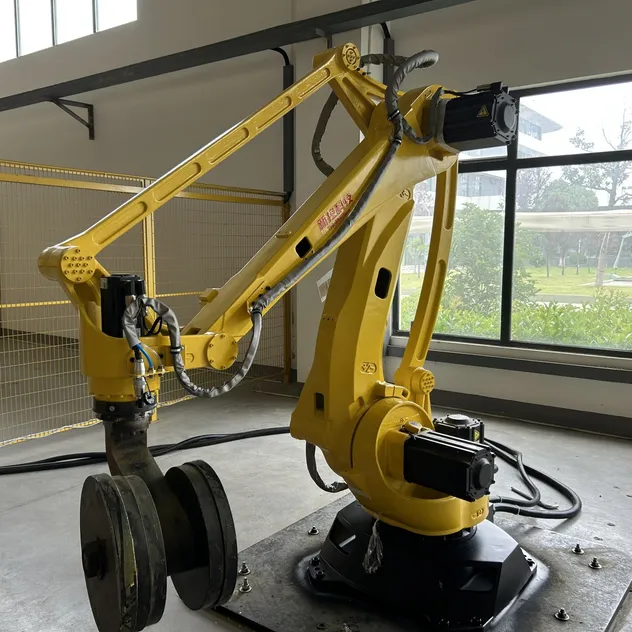

Welding Robot 1
Welding Robot 2

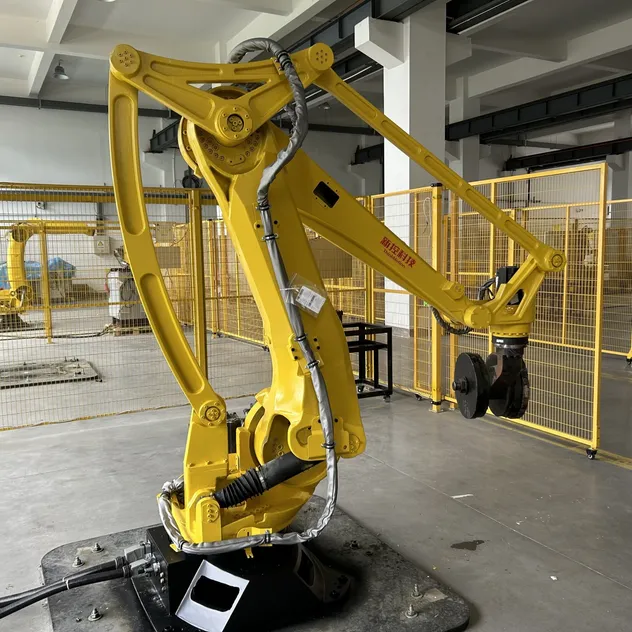

Welding Robot 3

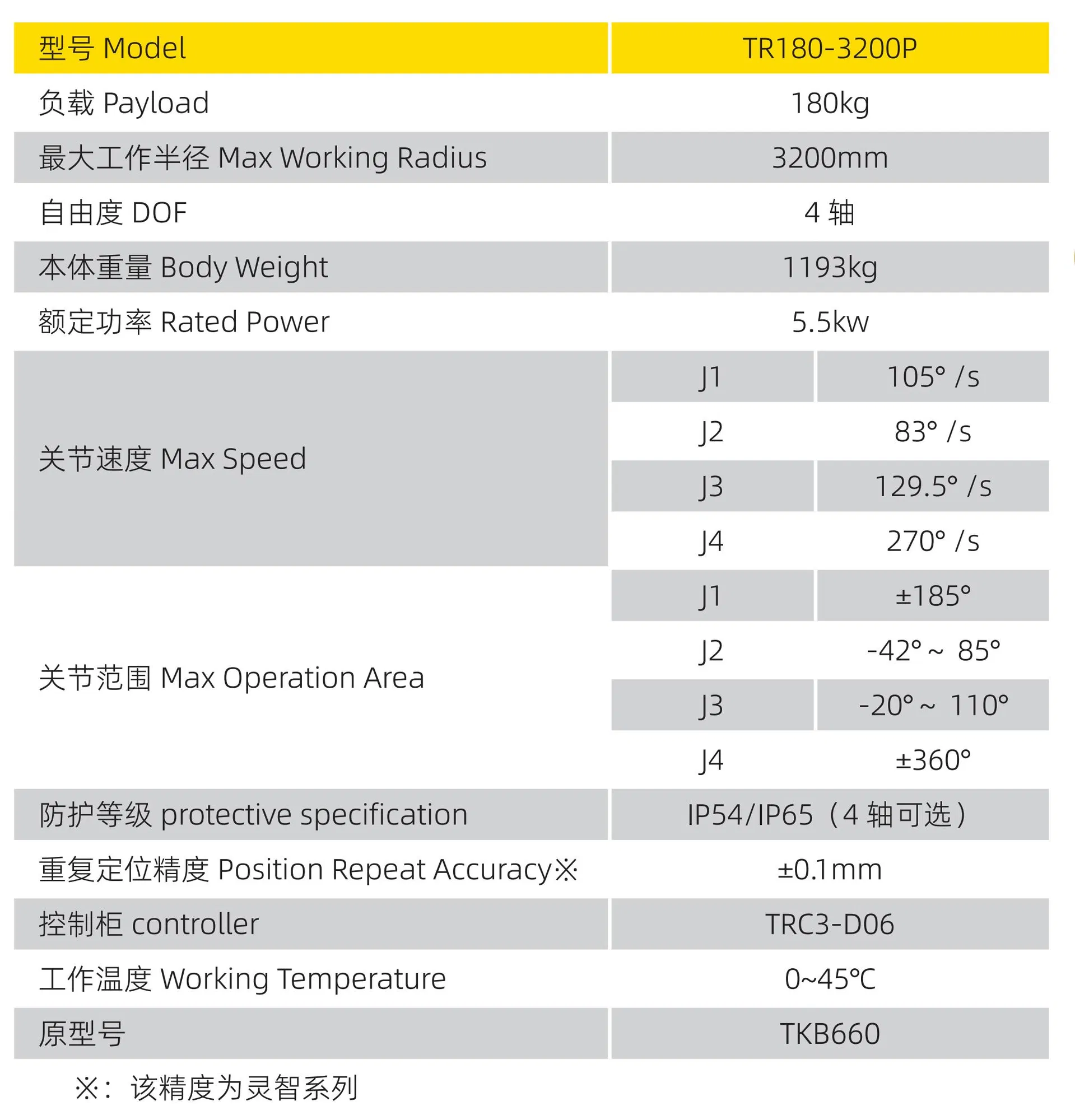

Detailed View 1

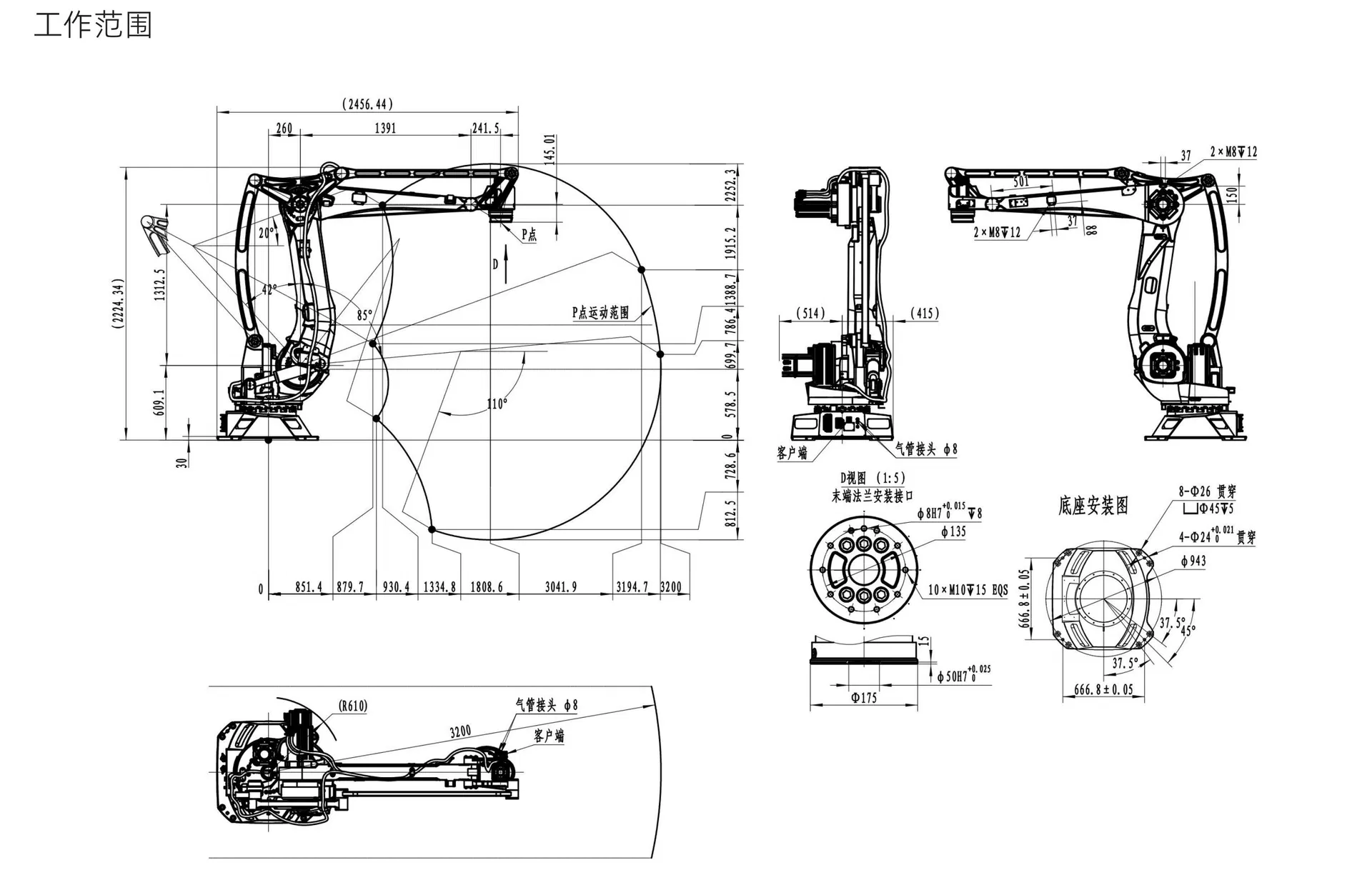

Detailed View 2

Factory Overview

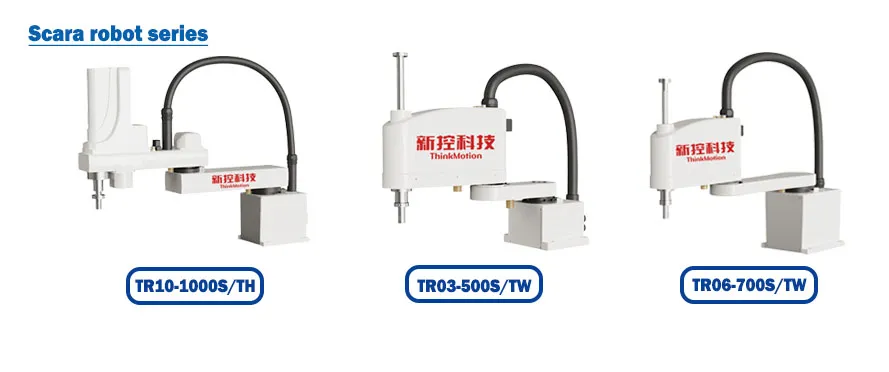

Factory Environment

Packing & Delivery

Package Size:1460cm * 1360cm * 1640cm
Gross Weight:400.00kg
Transport Package:Wooden Board
Packaging Process

Certifications

Quality Certifications

Frequently Asked Questions

What is the payload capacity of the TR180-3200P?
The robot features a high-duty payload capacity of 180kg, making it ideal for heavy-duty industrial tasks and handling large workpieces.
What is the maximum reaching distance of this robotic arm?
It has a maximum working radius of 3200mm, providing a wide operational range for welding, stamping, and material handling applications.
How precise is the repeat positioning?
The TR180-3200P offers a repeat positioning accuracy of ±0.1mm, ensuring consistent quality and stability in high-precision path planning.
Can this robot work in harsh industrial environments?
Yes, the robot can be equipped with IP54 or optional IP65 protection for its axes, making it suitable for dusty, humid, or high-temperature environments.
What are the primary applications for this model?
This model is highly versatile and commonly used for arc welding, automotive body welding, metal sheet stamping, and hardware polishing or grinding.
What type of control mode does it utilize?
The system utilizes Point to Point Control with high-speed joint movements across 4 axes to balance efficiency and flexibility.
