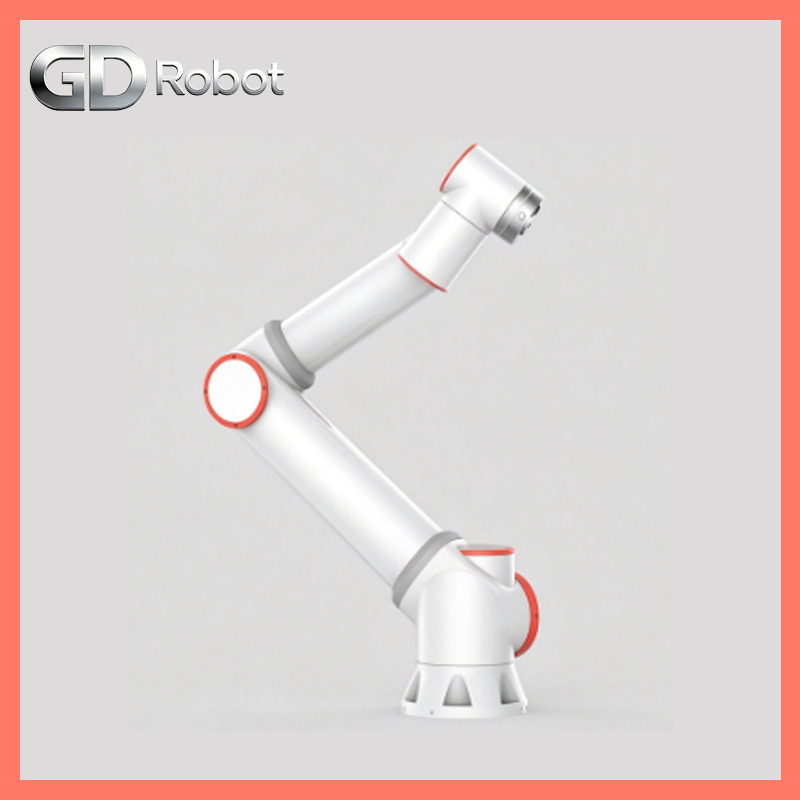

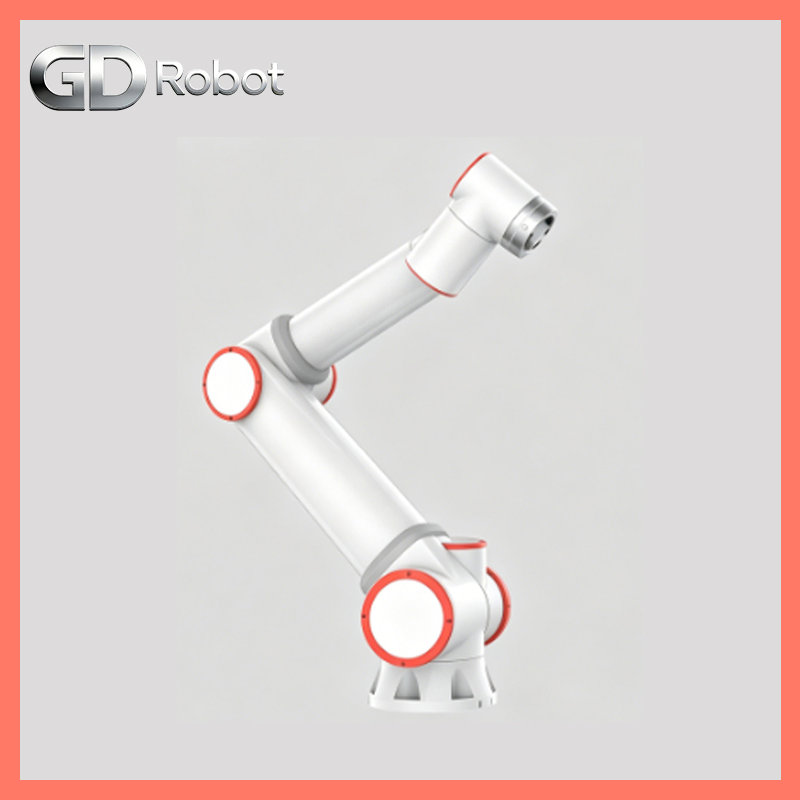

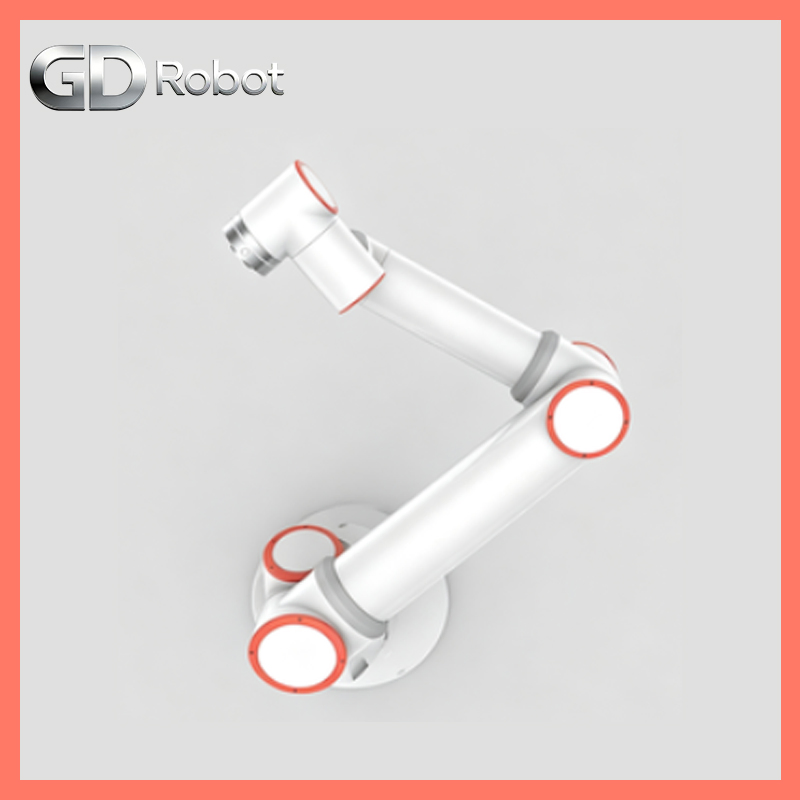

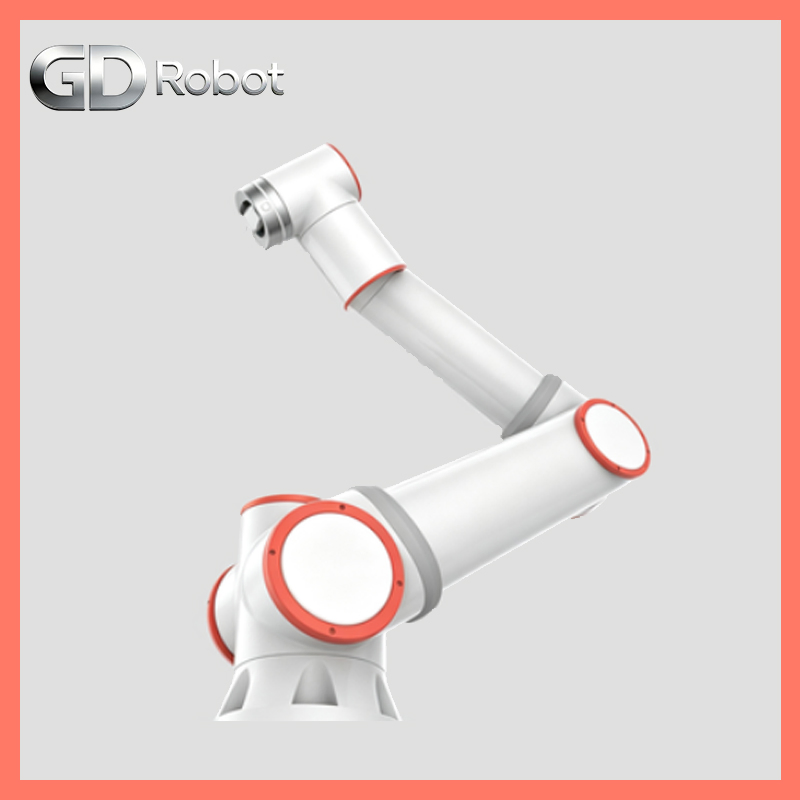

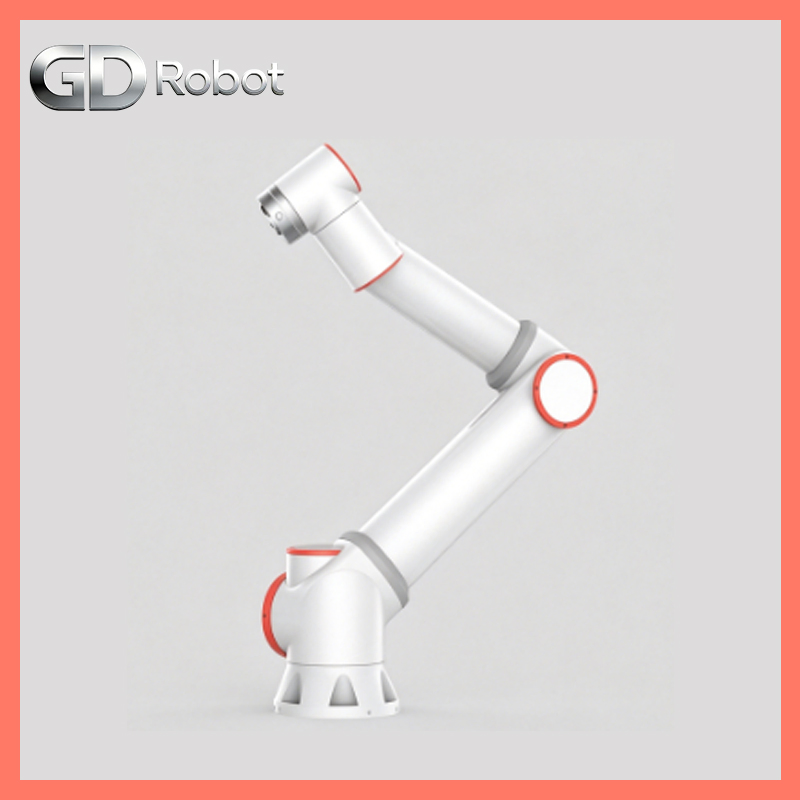

Factory Direct Gd30 30kg Collaborative Robot Arm for High-Volume Loading Tasks with Stable Performance & Custom OEM Solutions
Factory Direct Gd30 30kg Collaborative Robot Arm for High-Volume Loading Tasks with Stable Performance & Custom OEM Solutions
Factory Direct Gd30 30kg Collaborative Robot Arm for High-Volume Loading Tasks with Stable Performance & Custom OEM Solutions
Factory Direct Gd30 30kg Collaborative Robot Arm for High-Volume Loading Tasks with Stable Performance & Custom OEM Solutions
Factory Direct Gd30 30kg Collaborative Robot Arm for High-Volume Loading Tasks with Stable Performance & Custom OEM Solutions
1 / 5
Factory Direct Gd30 30kg Collaborative Robot Arm for High-Volume Loading Tasks with Stable Performance & Custom OEM Solutions
Factory Direct Gd30 30kg Collaborative Robot Arm for High-Volume Loading Tasks with Stable Performance & Custom OEM Solutions
Factory Direct Gd30 30kg Collaborative Robot Arm for High-Volume Loading Tasks with Stable Performance & Custom OEM Solutions
Factory Direct Gd30 30kg Collaborative Robot Arm for High-Volume Loading Tasks with Stable Performance & Custom OEM Solutions
Factory Direct Gd30 30kg Collaborative Robot Arm for High-Volume Loading Tasks with Stable Performance & Custom OEM Solutions

Factory Direct Gd30 30kg Collaborative Robot Arm for High-Volume Loading Tasks with Stable Performance & Custom OEM Solutions

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Specifications

Model No.GD-30
Payload Capacity30kg (Max: 35kg)
Max Reach1403mm
Drive ModeElectric
Repeatability±0.1mm
IP ClassIP54 (IP65 Optional)
TCP Speed2m/S
Noise Level<70dB

Product Highlights

Collaborative Robot Arm 1
Collaborative Robot Arm 2
  • Payload 30kg collaborative robot arm with 1403mm reach, ideal for heavy-duty workshop loading tasks.
  • High-load cobot with max 35kg capacity, stable for industrial handling and heavy assembly.
  • ±0.1mm repeatability ensures reliable precision for high-volume loading operations.
  • IP54-rated design supports any mounting orientation for flexible integration.
  • <70dB low noise operation, suitable for continuous use in high-demand environments.
  • Custom customization available with multi-control options including teach pendant and Web App.

Detailed Specifications

Parameter Specification
Degrees of Freedom6 rotating joints
HMI10.1 inch teach pendant, mobile terminal or Web App
Base Movement±175° / ±120°/s
Shoulder Movement+85° / -265° / ±120°/s
Elbow Movement±160° / ±120°/s
Wrist 1/2/3 Range±175° to +85°/-265° / Up to ±180°/s
Typical PowerAverage 600W / Peak 910W
Operating Temp0-45°C
MaterialsAluminium, Steel
Footprint240mm

Robot Drawings & Packing

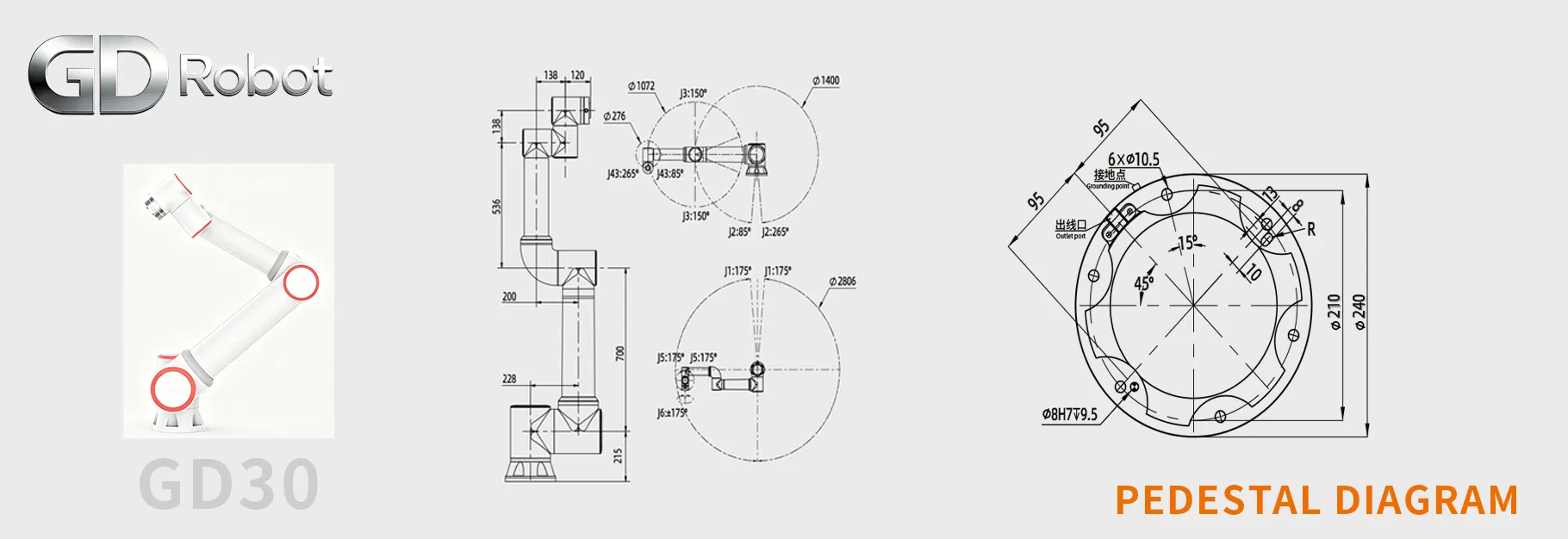

Robot Drawings
Packing and Delivery

Other Hot Solutions

Industrial Robot

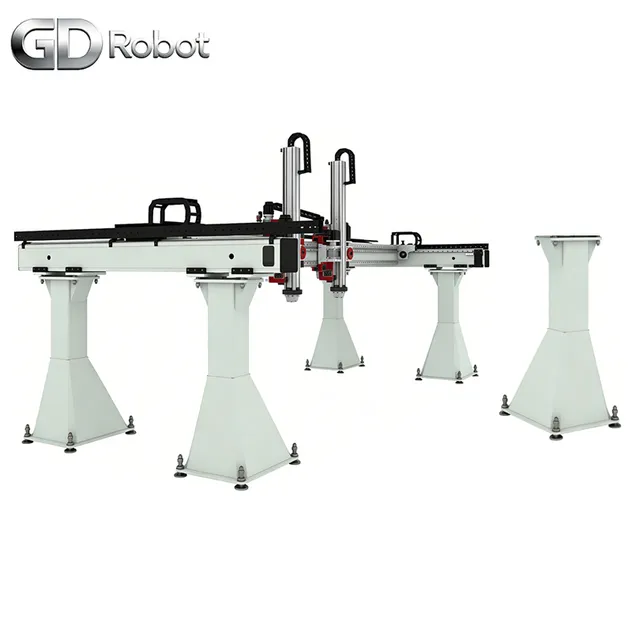

Truss System

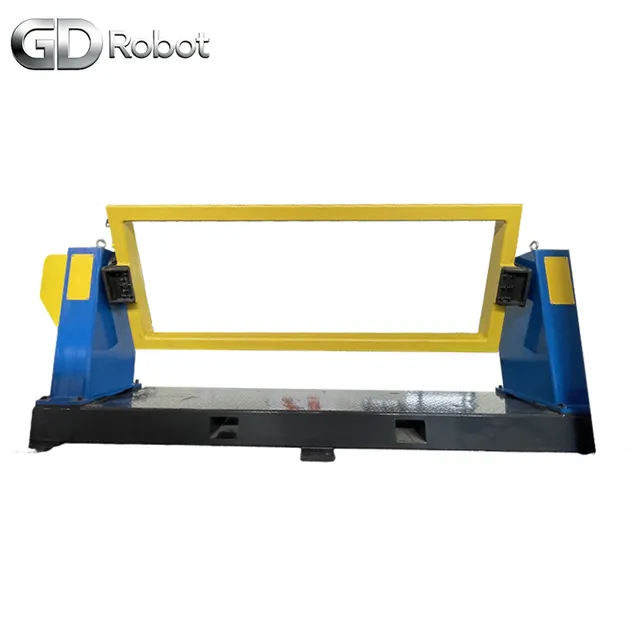

Welding Positioner

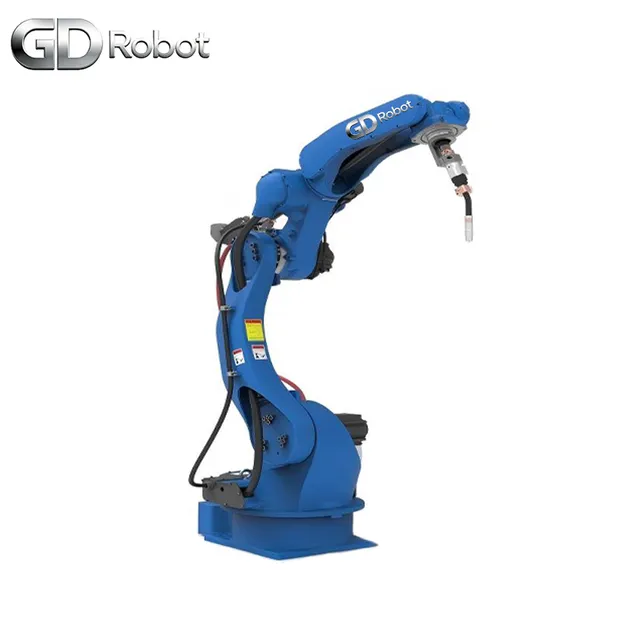

Automatic Welding

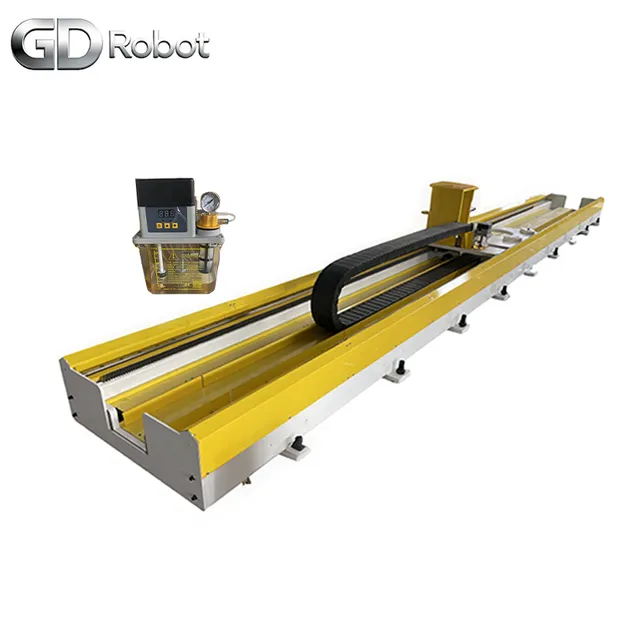

Robot Linear Track

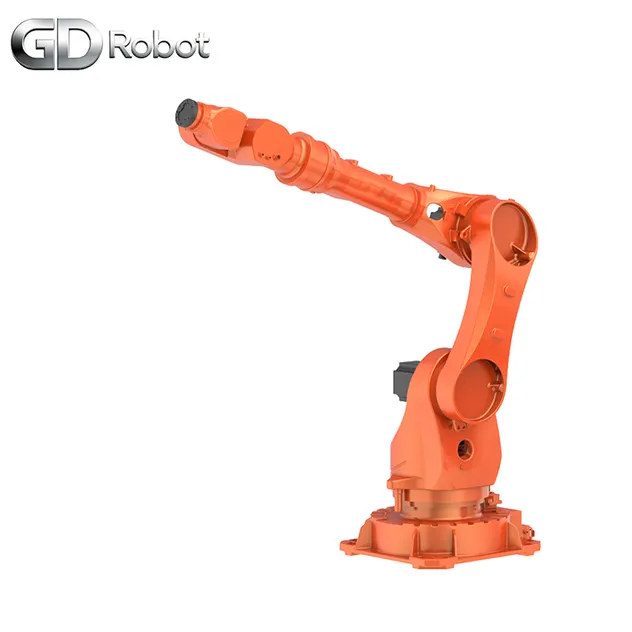

Bending Robot

Manufacturing Excellence

Specializing in the R&D and production of industrial robots, gantry robots, robot linear guides, and welding positioners. Providing customized automation solutions for welding, palletizing handling, metal processing, bending, and spraying applications. Widely used in agricultural machinery, engineering machinery, petroleum machinery, forging processing, warehousing, and food processing industries.

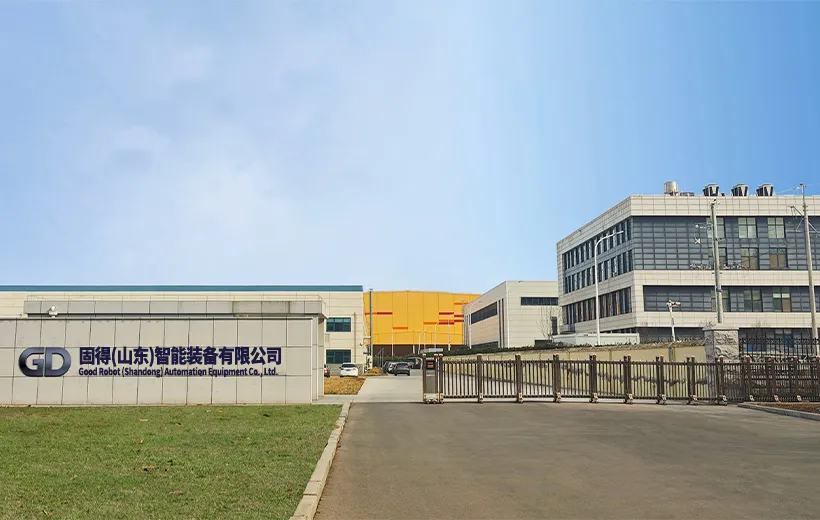

Facility Image
Production Line
Certifications Overview

Frequently Asked Questions

Q: What is the maximum payload of the GD30 robot arm?
A: The GD30 robot arm features a standard 30kg payload with a maximum capacity of 35kg, making it perfect for heavy-duty industrial tasks.
Q: What is the reach and precision of this collaborative robot?
A: It has a working reach of 1403mm and delivers high precision with a pose repeatability of ±0.1mm.
Q: Can the robot be mounted in different orientations?
A: Yes, the GD30 supports mounting in any orientation (floor, ceiling, or wall), providing extreme flexibility for production line integration.
Q: What are the protection and noise standards?
A: It comes with an IP54 classification (IP65 optional) and operates at a low noise level of less than 70dB.
Q: How can I control the GD30 robot arm?
A: The system supports multiple control interfaces, including a 10.1-inch teach pendant, mobile terminal control, and a Web App interface.
Q: Do you offer customization or OEM services?
A: Yes, full customization and OEM/ODM services are available to meet specific industrial requirements and branding needs.
