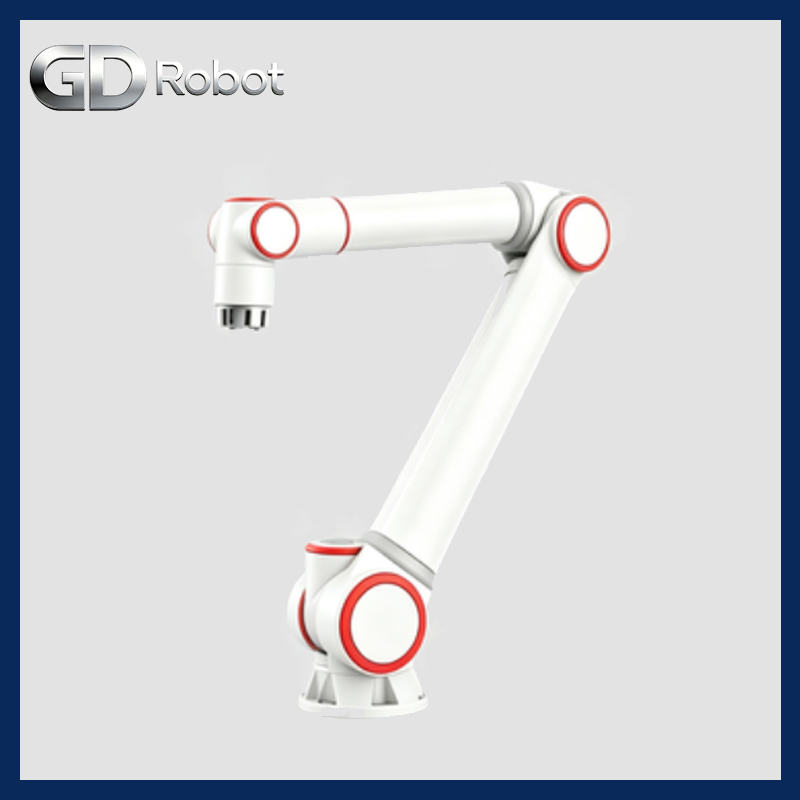

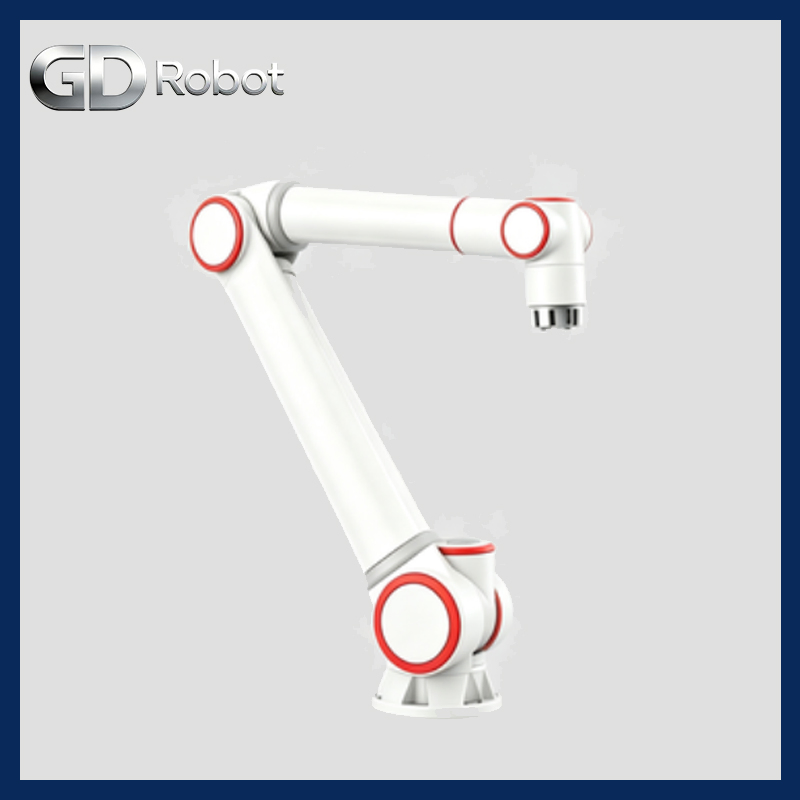

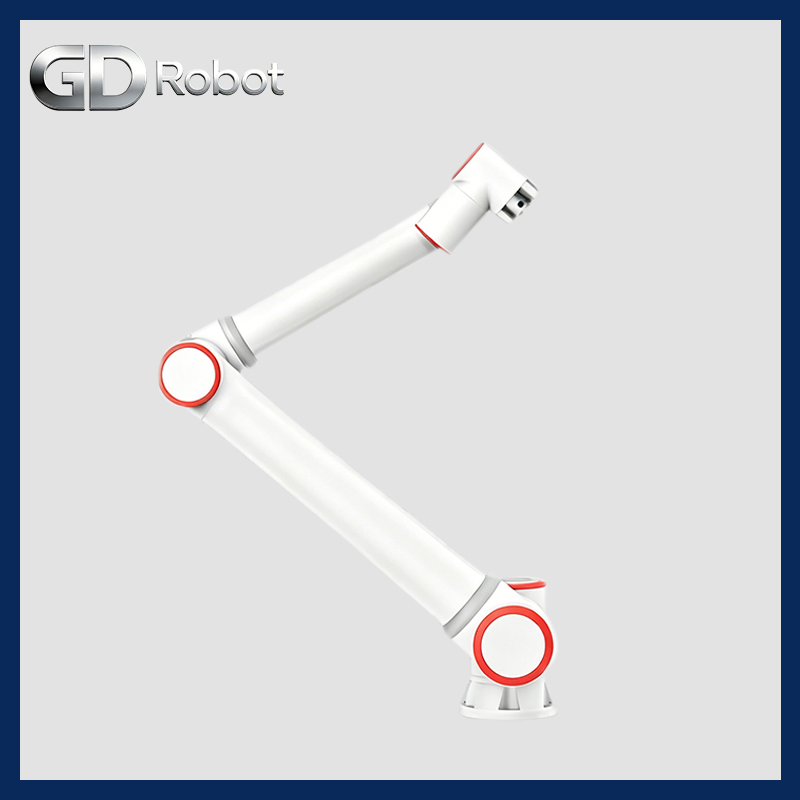

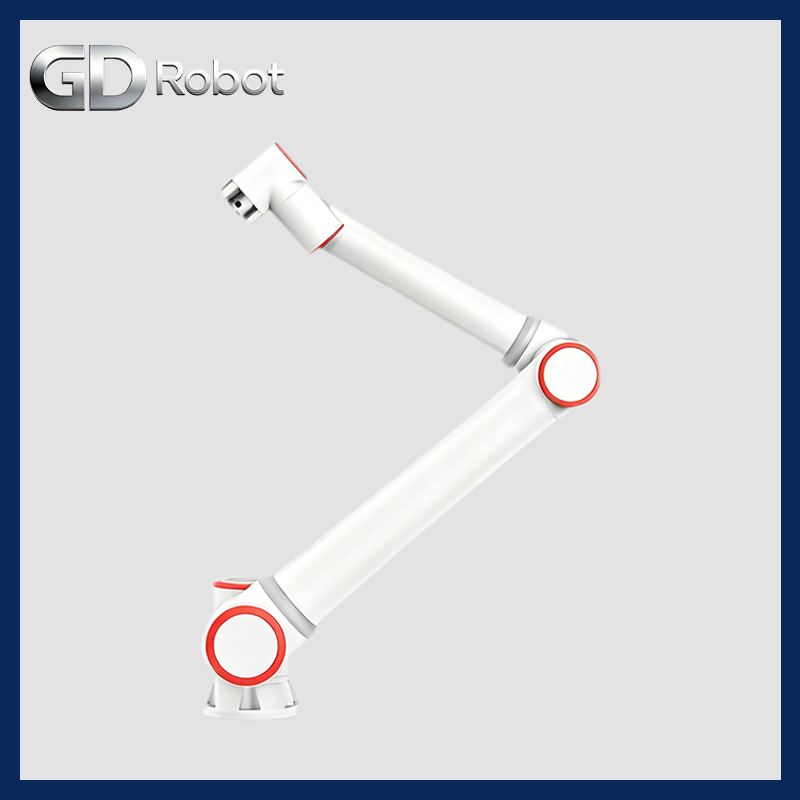

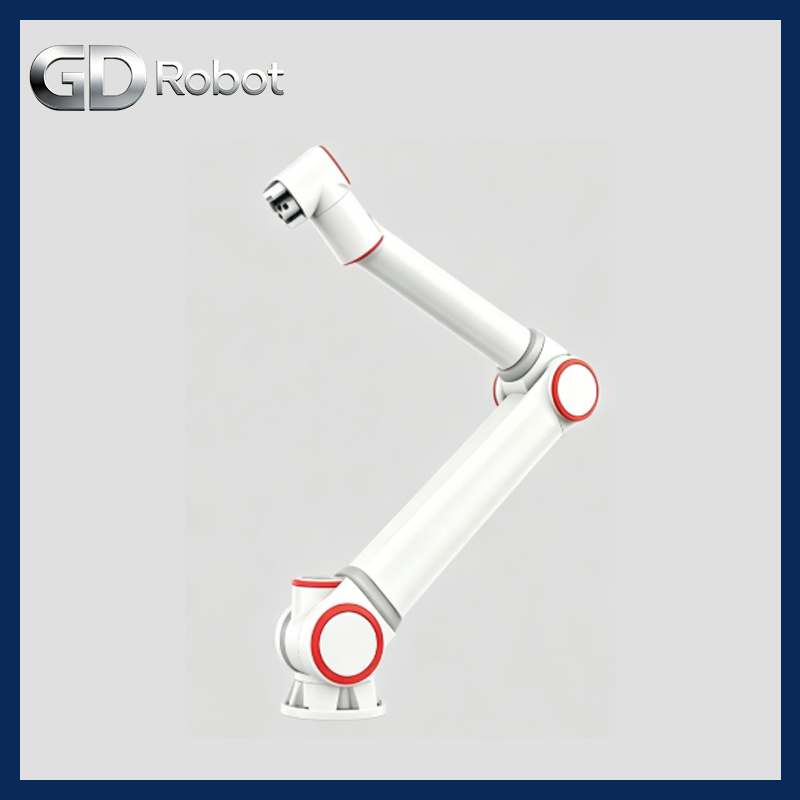

Durable Source Factory Gd20 Long Reach 1854mm Robot Arm for Extended-Range Loading with Low Power Consumption Design

Product Description

1

Product Description

Robot Arm Analysis
Robot Arm Application
  • Payload 20kg collaborative robot arm with 1854mm reach, ideal for heavy workshop loading tasks.
  • High payload cobot with max 25kg capacity, stable for industrial handling applications.
  • ±0.1mm repeatability ensures high precision for assembly and loading operations.
  • IP54-rated design supports any mounting orientation for flexible loading integration.
  • <70dB low noise operation, suitable for continuous use in production environments.
  • Factory direct OEM customization available for your custom loading robot projects.
2

Technical Specification

Parameter Specification
ModelGD20
Payload20kg (Max: 25kg)
Reach1854mm
Degrees of Freedom6 rotating joints
HMI10.1 inch teach pendant or mobile terminal
Pose Repeatability±0.1mm
Typical TCP Speed2m/s
IP ClassificationIP54 (IP65 Optional)
Noise<70dB
Robot MountingAny orientation
I/O PortsDI: 2 / DO: 2; AI: 1 / AO: 1
Weight≈85kg
MaterialsAluminium, Steel
Typical Average Power620W
3

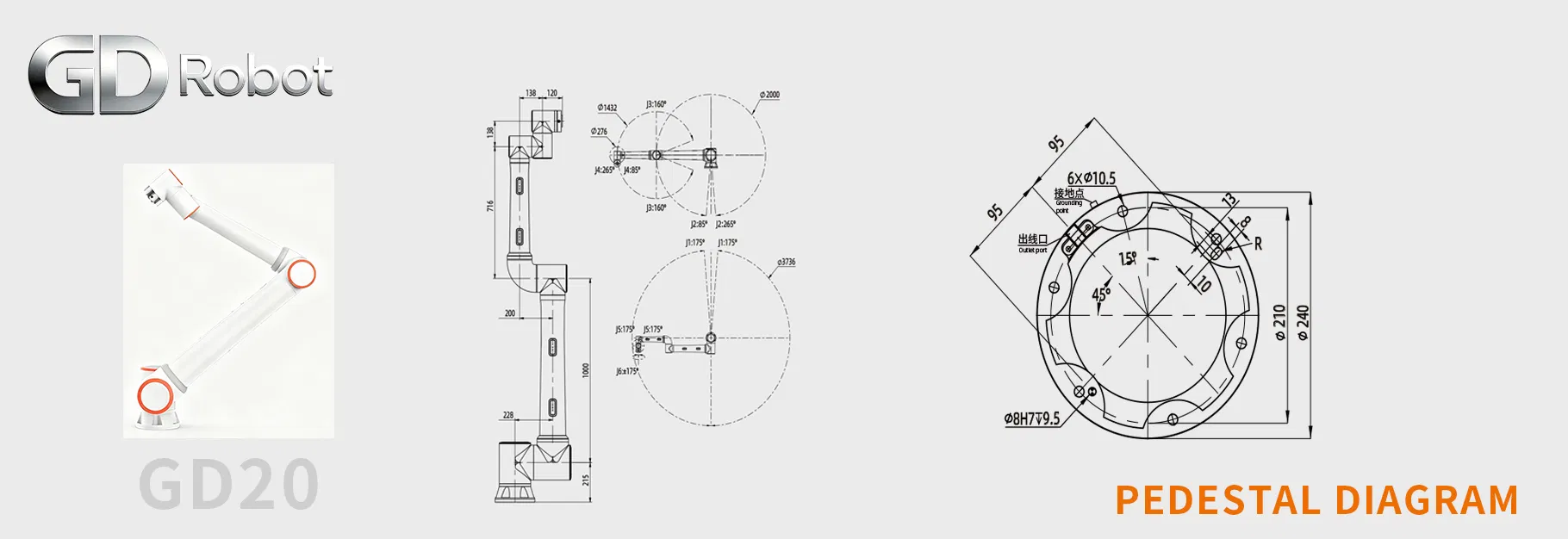

Robot Drawings

Technical Drawings
4

Packing & Delivery

Packaging
5

Related Solutions

Robot 1

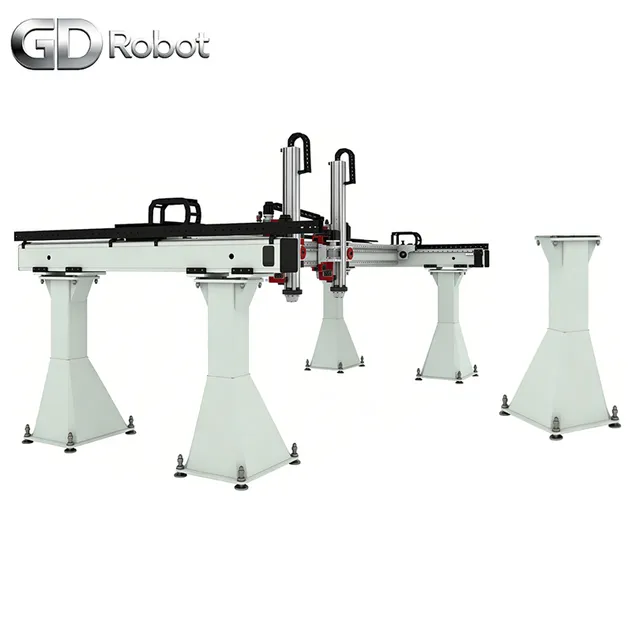

Robot 2

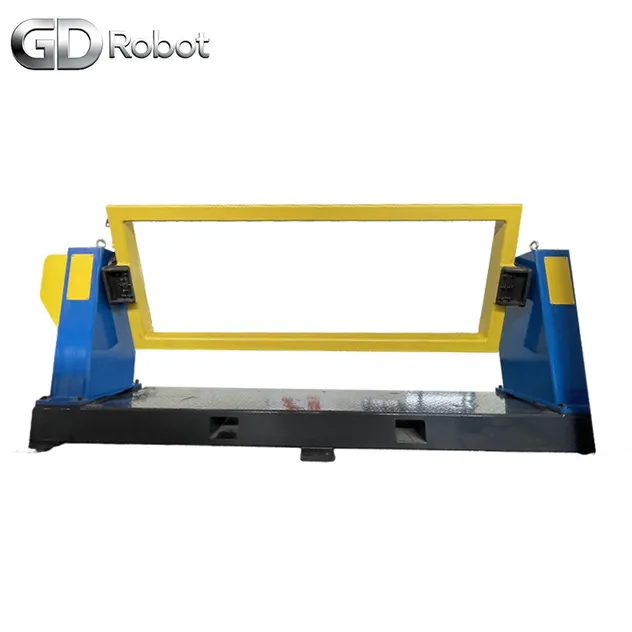

Robot 3

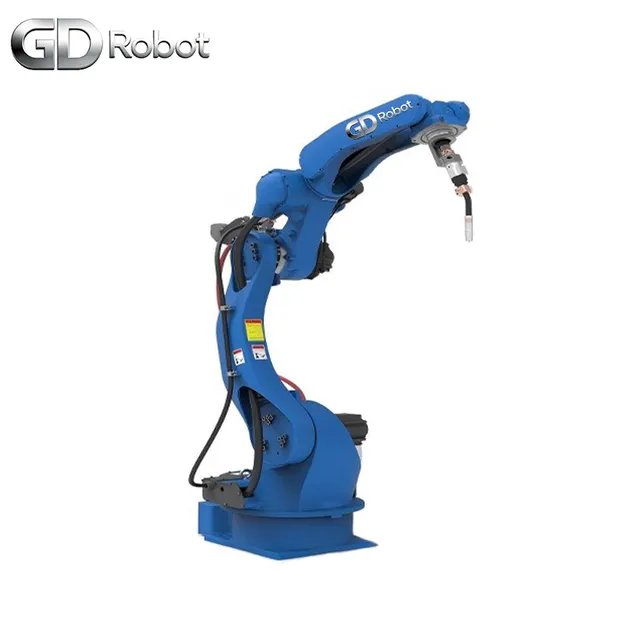

Robot 4

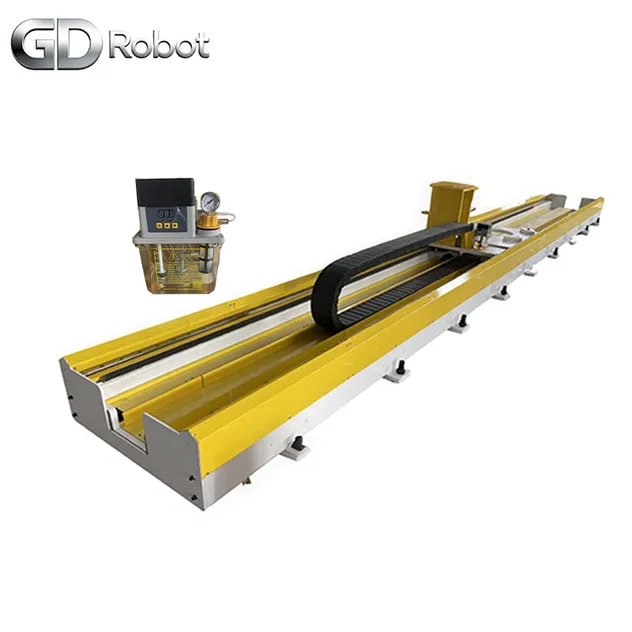

Robot 5

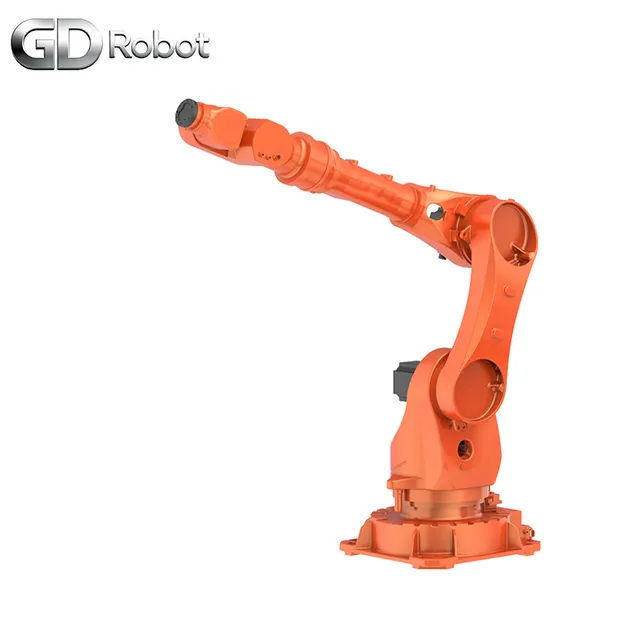

Robot 6
6

Professional Automation Partner

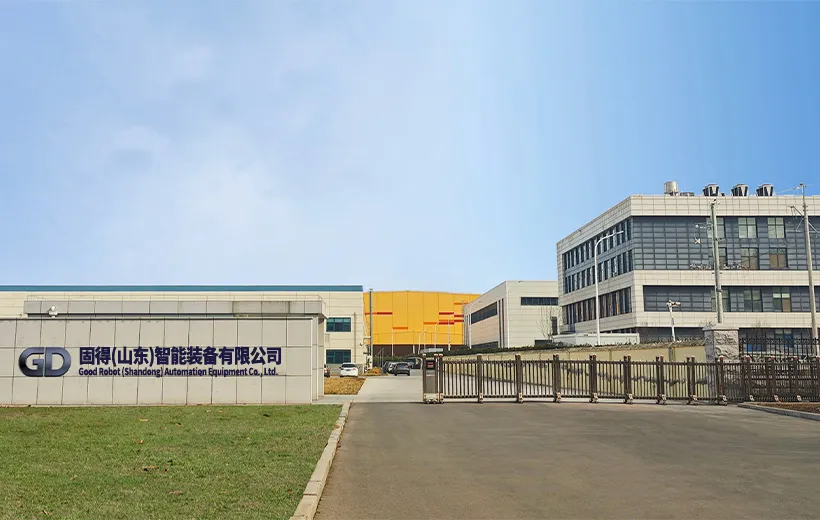

Workshop
Established in 2018, this high-tech enterprise specializes in the R&D and production of industrial robots, gantry robots, robot linear guides, and welding positioners. The business covers a wide range of industrial fields, including welding, palletizing handling, metal processing, bending, and spraying. Products are widely used in agricultural machinery, engineering machinery, petroleum machinery, warehousing and logistics, and food processing industries. With strong production capacity, the factory provides over 50 types of automation solutions and more than 300 industrial robots each year, offering customized production and OEM/ODM services for global customers.
Production
Quality Control
Testing
7

Quality Certifications

Certificates
?

Frequently Asked Questions

What is the payload of the GD20 collaborative robot arm?
The GD20 robot arm offers a 20kg payload (max 25kg), making it ideal for heavy-duty loading tasks with OEM support.
What is the working reach of the GD20 robot arm?
This collaborative robot arm features an 1854mm long reach, perfect for extended-range loading robot applications.
How accurate is the GD20 cobot arm?
The GD20 robot arm delivers ±0.1mm repeatability, ensuring high precision for collaborative robot tasks.
Can the GD20 collaborative robot arm be mounted flexibly?
Yes, it supports mounting in any orientation, offering great flexibility for various industrial loading integrations.
What is the IP rating and noise level of the GD20?
It has a standard IP54 rating (IP65 optional) and operates at a low noise level of <70dB, suitable for workshop environments.
Does the GD20 collaborative robot arm support OEM customization?
Yes, full OEM services are available, including custom specifications and branding for specific loading robot projects.
