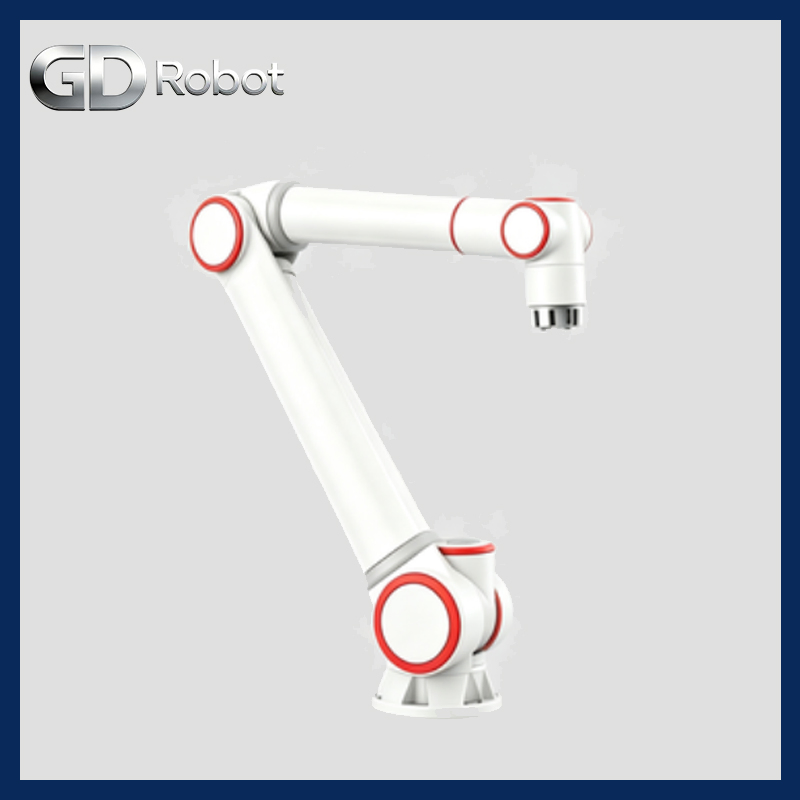

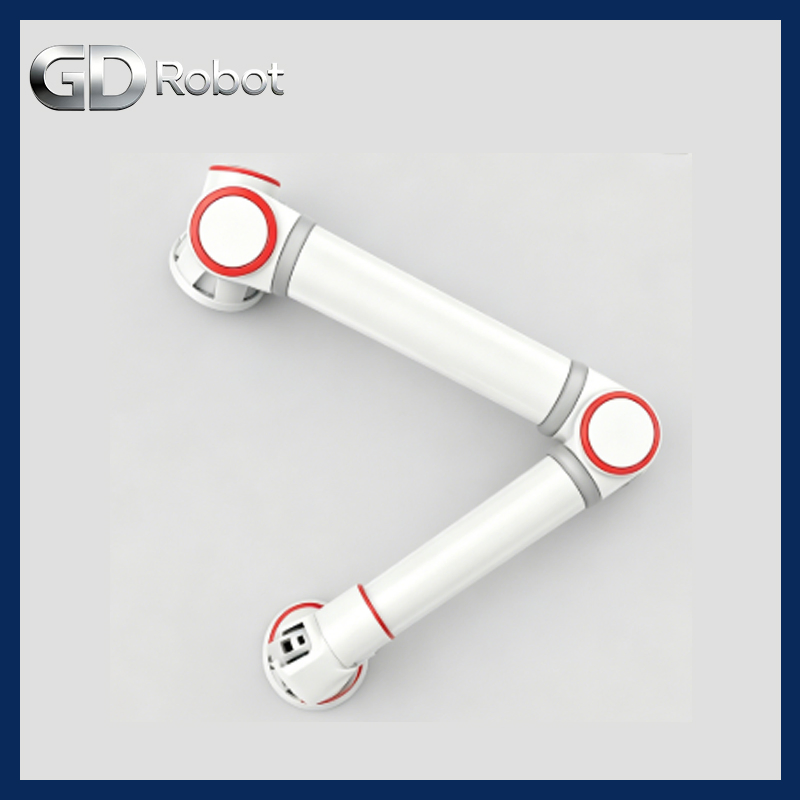

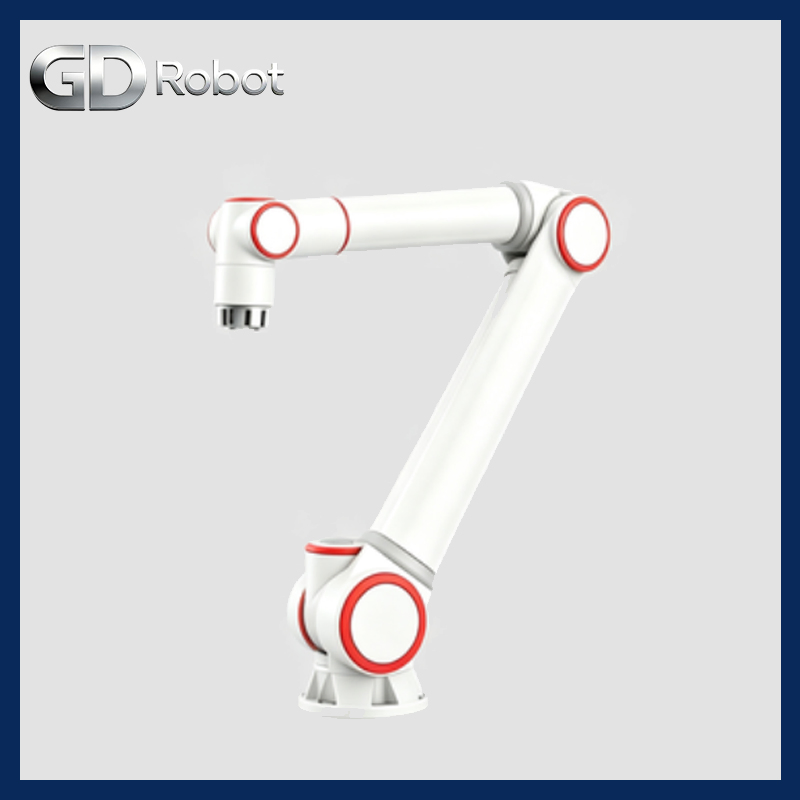

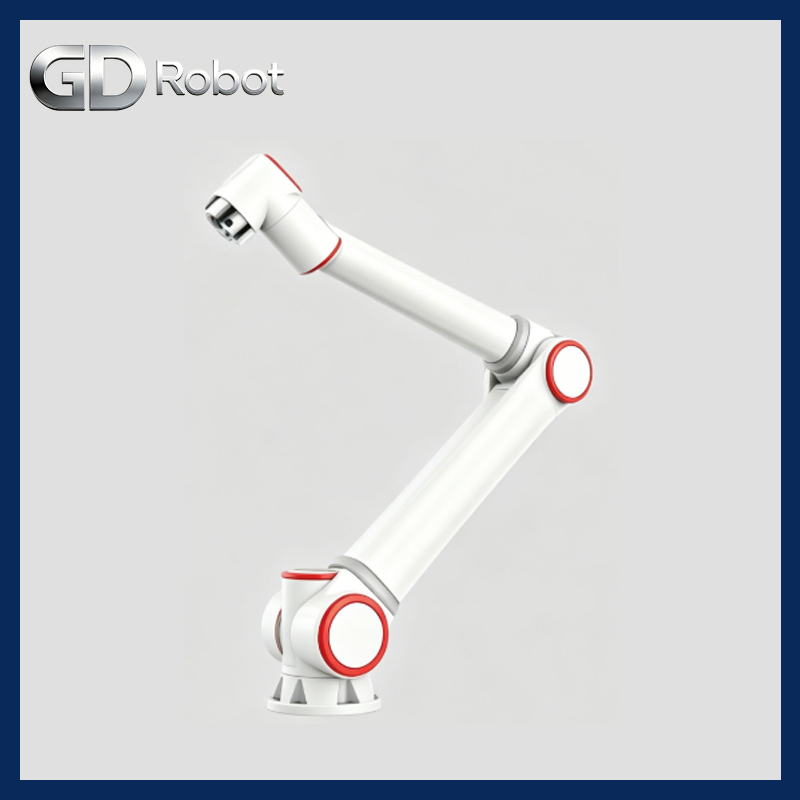

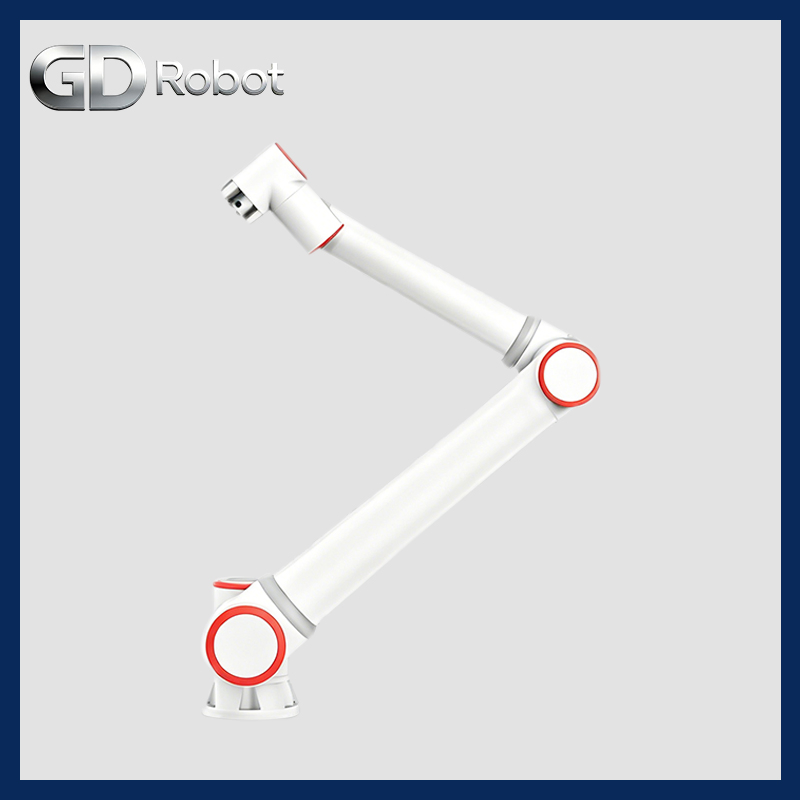

Sandai Robot
1 / 5
Model: GD-20
Drive Mode: Electric
Payload Capacity: 20kg (Max: 25kg)
Reach: 1854mm
Pose Repeatability: ±0.1mm
Typical TCP Speed: 2m/S
IP Classification: IP54 (IP65 Optional)
Robot Mounting: Any Orientation
| Parameter | Specification |
|---|---|
| Model | GD20 |
| Payload | 20kg (Max: 25kg) |
| Reach | 1854mm |
| Degrees of Freedom | 6 rotating joints |
| HMI | 10.1 inch teach pendant or mobile terminal |
| Pose Repeatability | ±0.1mm |
| Base Movement | ±175° / ±120°/s |
| Shoulder Movement | +85° / -265° / ±120°/s |
| Elbow Movement | ±160° / ±120°/s |
| Wrist 1/2/3 | ±175° to +85°/-265° / Up to ±180°/s |
| Typical TCP Speed | 2m/s |
| Typical Average Power | 620W |
| Operating Temperature | 0-45°C |
| Materials | Aluminium, Steel |
Package Size: 135.00cm * 60.00cm * 60.00cm
Package Gross Weight: 100.000kg
Lead Time: 10 days (1 - 1 Pieces); To be negotiated (> 1 Pieces)

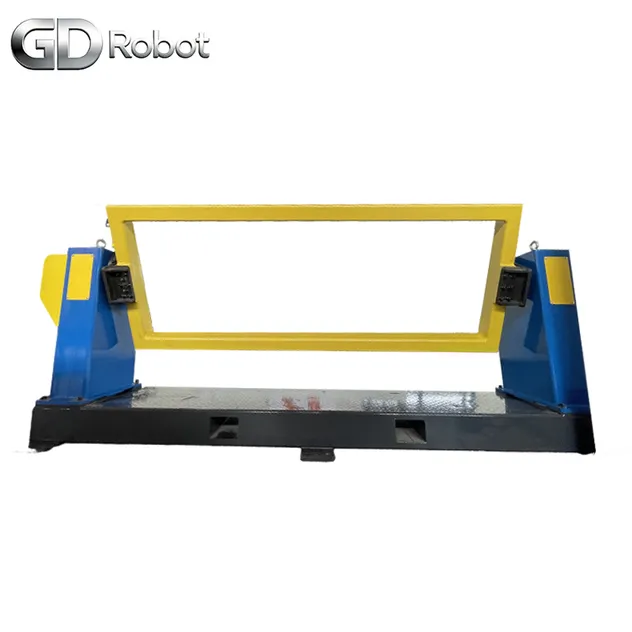

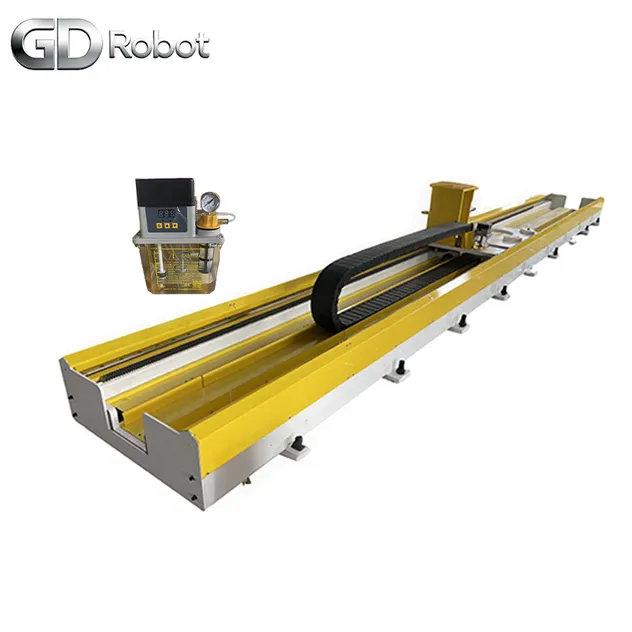

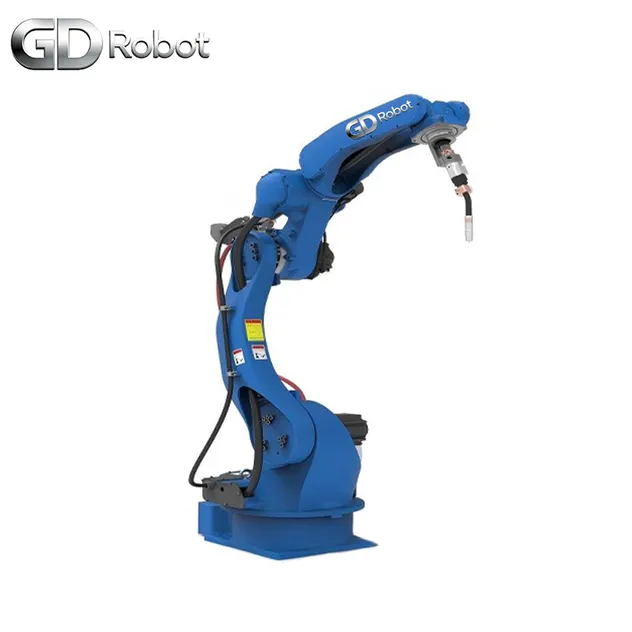

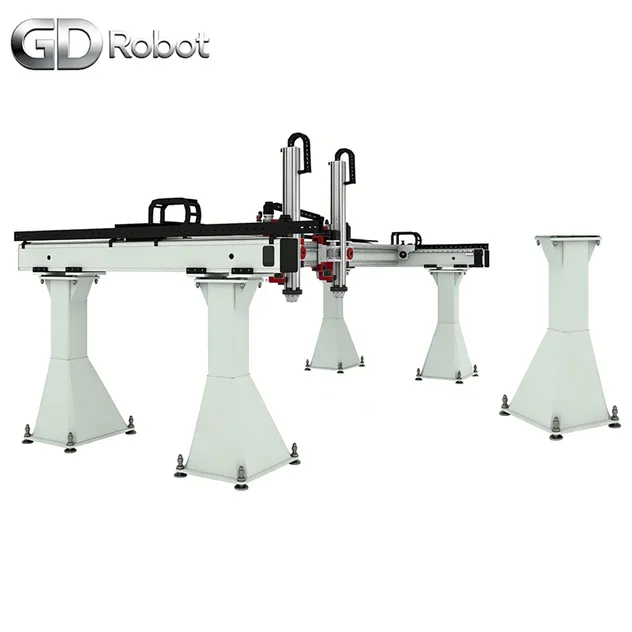

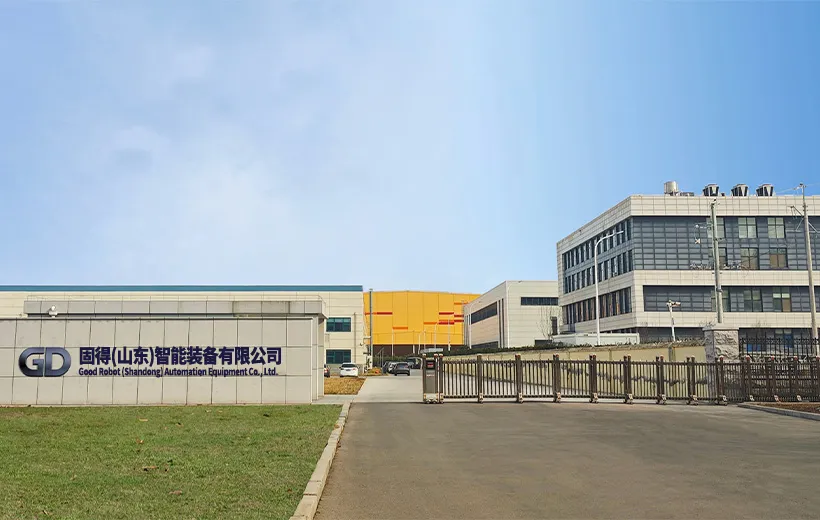

Specializing in the R&D and production of industrial robots, gantry robots, robot linear guides, and welding positioners. Providing customized automation solutions across fields including welding, palletizing handling, metal processing, bending, and spraying.
Annual production capacity exceeds 60 sets of robot linear guides, 1,000 welding positioners, and 200 sets of gantry robot systems. Offering over 50 types of automation solutions and 300+ industrial robots annually with full OEM/ODM support.
A: The GD20 offers a 20kg standard payload with a maximum capacity of 25kg, making it ideal for heavy-duty industrial loading tasks.
A: It features an 1854mm long reach and delivers ±0.1mm repeatability for high-precision collaborative applications.
A: Yes, it supports mounting in any orientation, providing extreme flexibility for various workshop layouts and integration needs.
A: With an IP54 rating (IP65 optional) and a noise level under 70dB, it is built for reliable performance in industrial production environments.
A: Yes, we provide comprehensive OEM services, including custom technical specifications and branding for large-scale automation projects.
A: It comes equipped with a 10.1-inch professional teach pendant or can be controlled via mobile terminals for ease of use.
