Product Description

Product Overview

Model NO.
GD-16
Drive Mode
Electric
Payload Capacity
16kg (Max: 20kg)
Reach
1034mm
Pose Repeatability
±0.03mm
IP Classification
IP54 (IP65 Optional)
Noise
<65db
Mounting
Any Orientation

Product Description

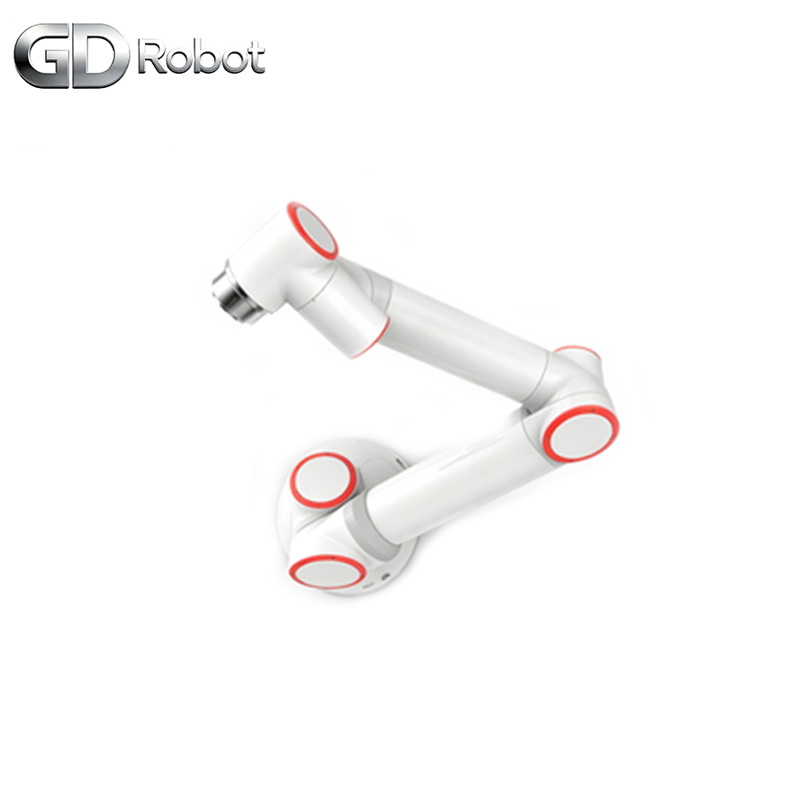

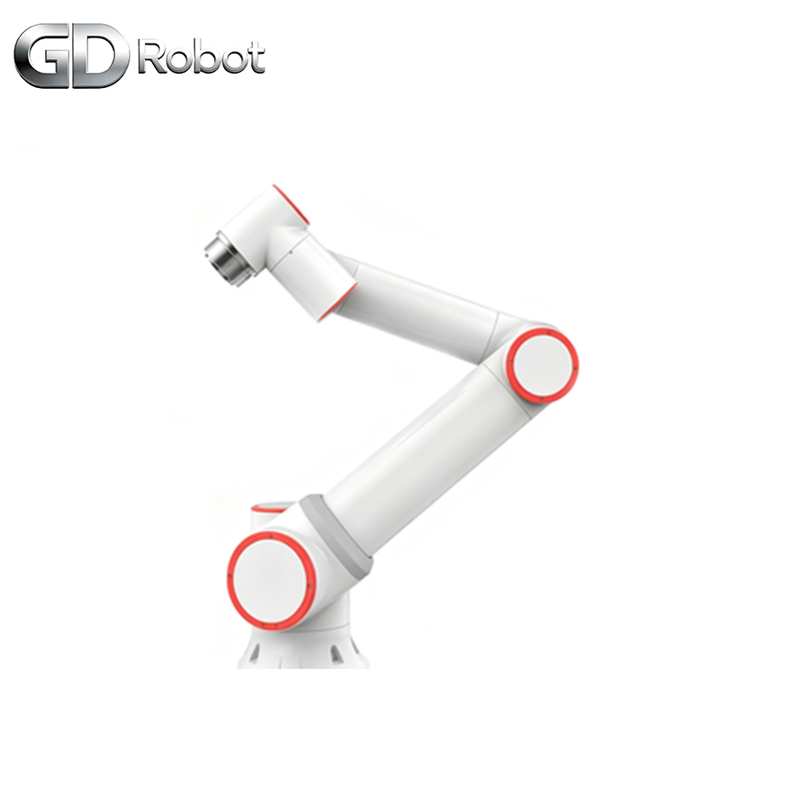

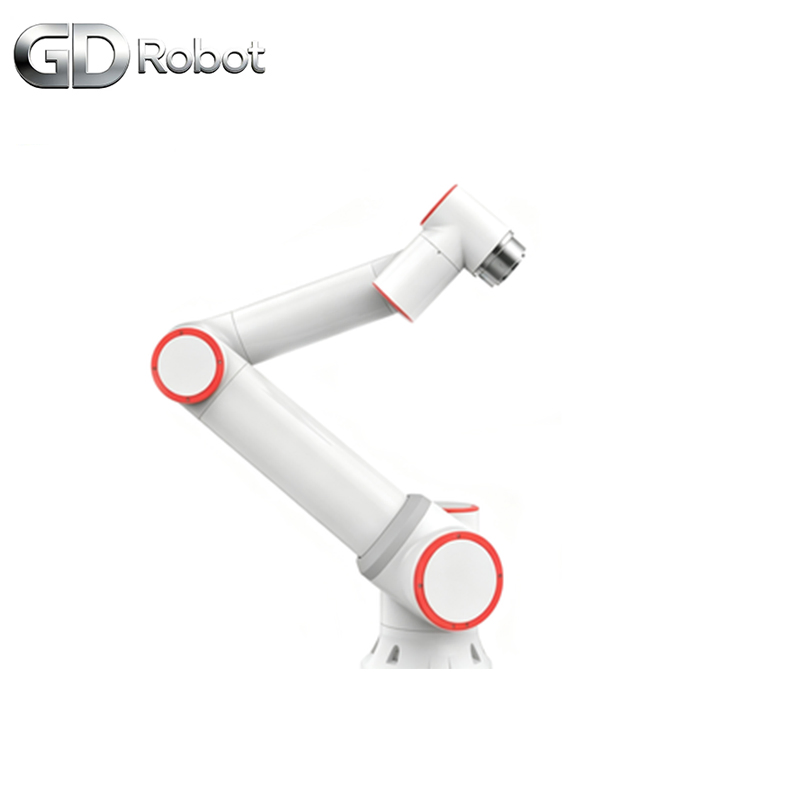

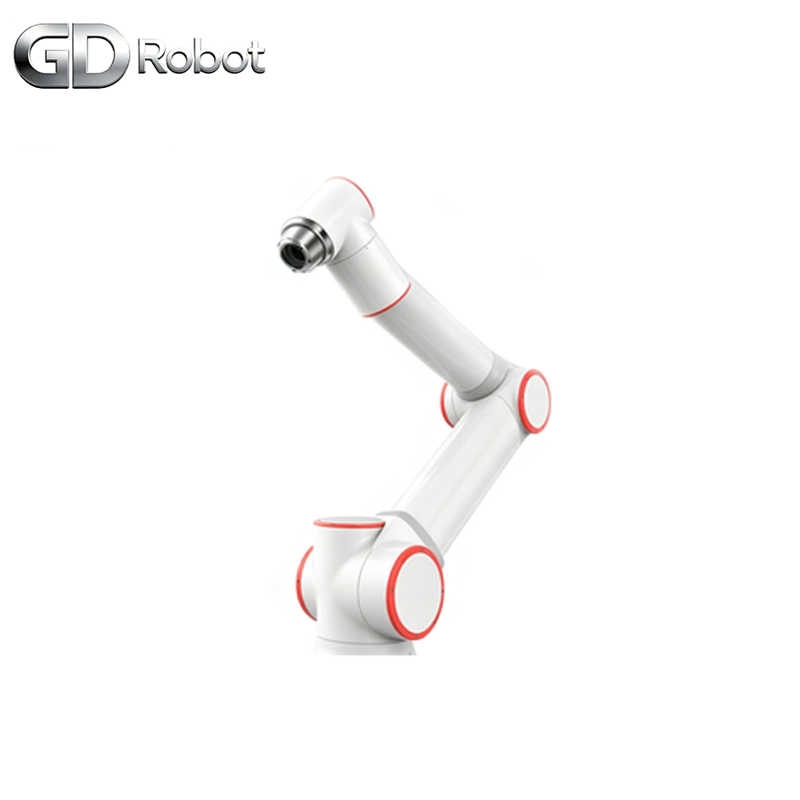

GD16 Cobot Arm

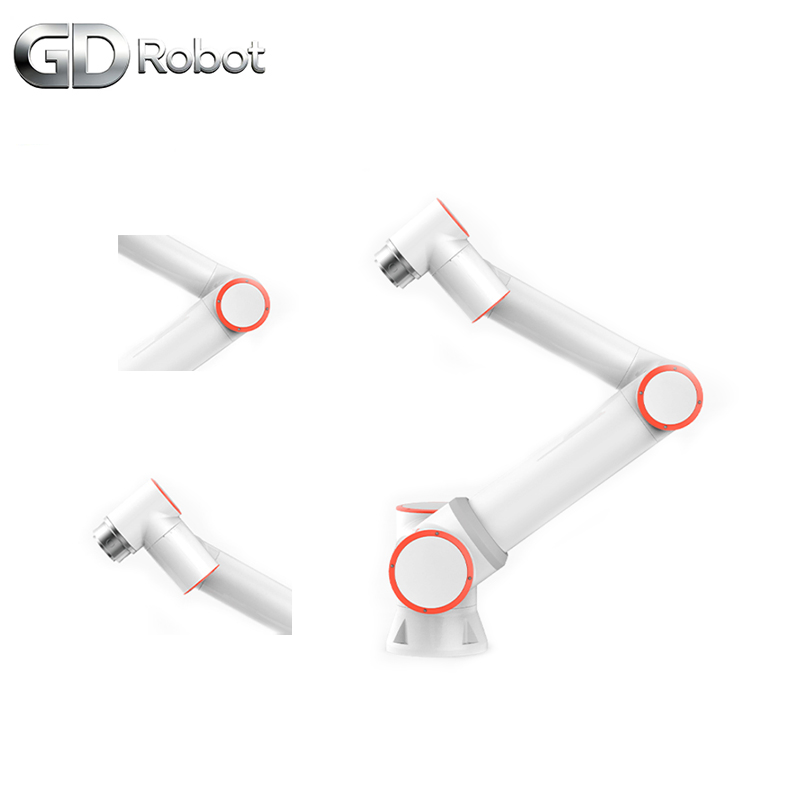

GD16 Cobot Arm View

Key Performance Highlights:

  • Payload 16kg collaborative robot arm with 1034mm reach, ideal for mid-duty workshop loading tasks.
  • High-precision cobot with ±0.03mm repeatability, stable for industrial handling and assembly applications.
  • IP54-rated robot arm supports any mounting orientation, flexible for diverse loading robot integration.
  • Low-noise operation under 65dB, suitable for continuous use in quiet production environments.
  • Multiple control options including teach pendant, mobile terminal and Web App, easy to operate.

Technical Specification

Parameter Specification
ModelGD16
Payload16kg (Max: 20kg)
Reach1034mm
Degrees of Freedom6 rotating joints
HMI10.1 inch teach pendant, mobile terminal or Web App
Pose Repeatability±0.03mm
Base Movement±175° / ±120°/s
Shoulder Movement+85° / -265° / ±120°/s
Elbow Movement±160° / ±180°/s
Wrist Speed (1/2/3)±180°/s
Typical TCP Speed1m/s
Operating Temp0-45°C
MaterialsAluminium, Steel
Typical Peak Power410W

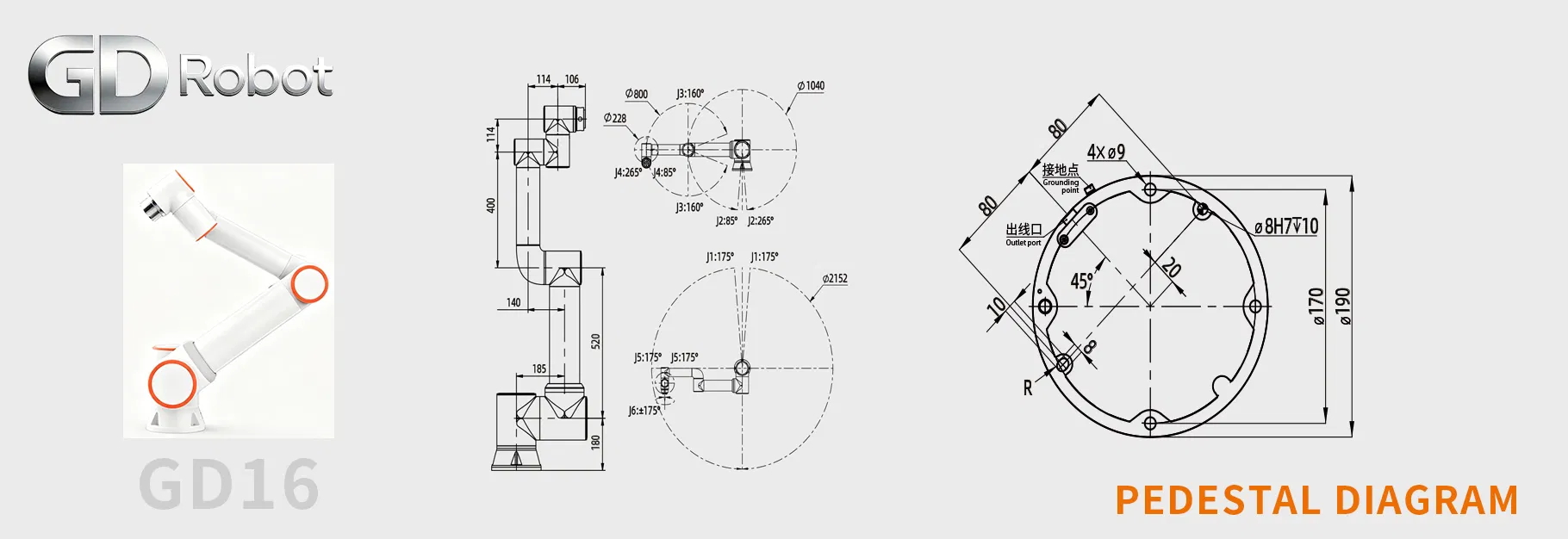

Robot Drawings

Robot Technical Drawings

Packing & Delivery

Package Size
80.00cm * 45.00cm * 45.00cm
Gross Weight
45.000kg
Lead Time
10 days (1-1 Pieces); Negotiable (>1 Pieces)
Packing Process

Hot Selling Products

Industrial Robot

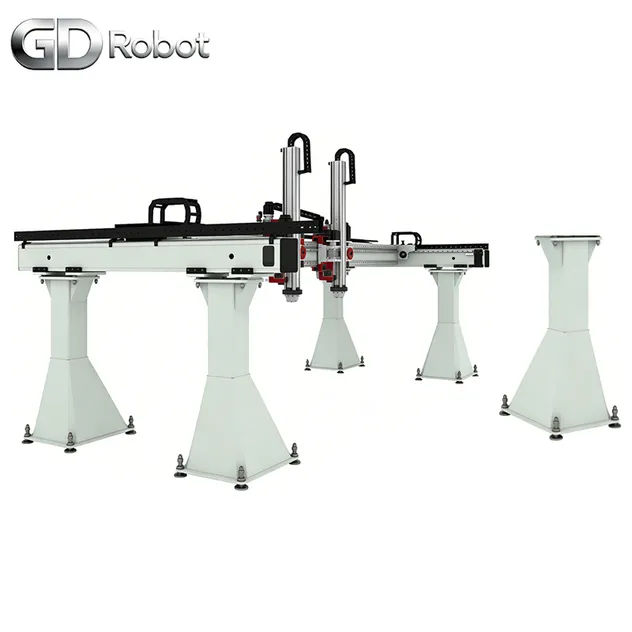

Truss System

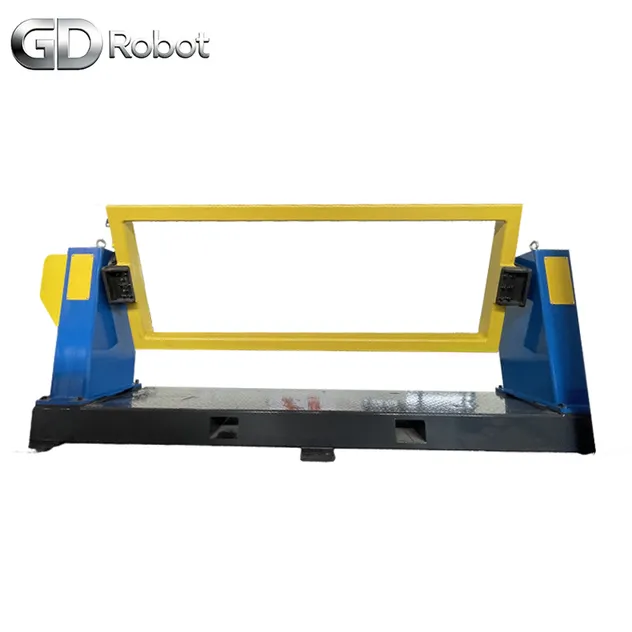

Welding Positioner

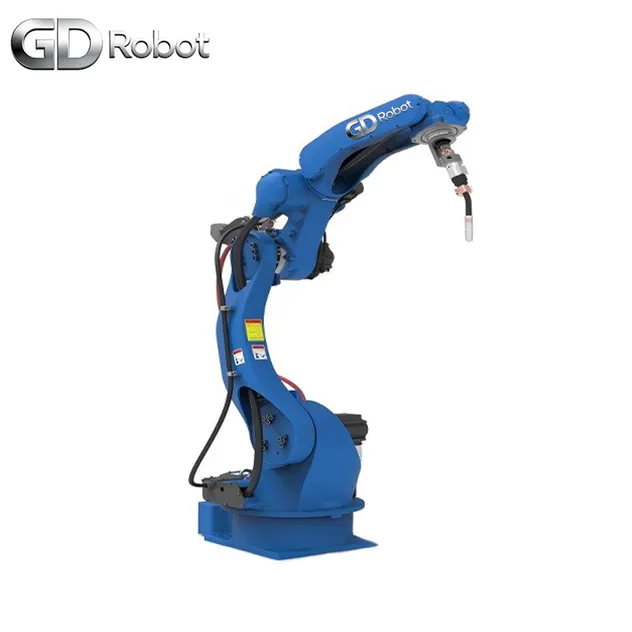

Automatic Welding System

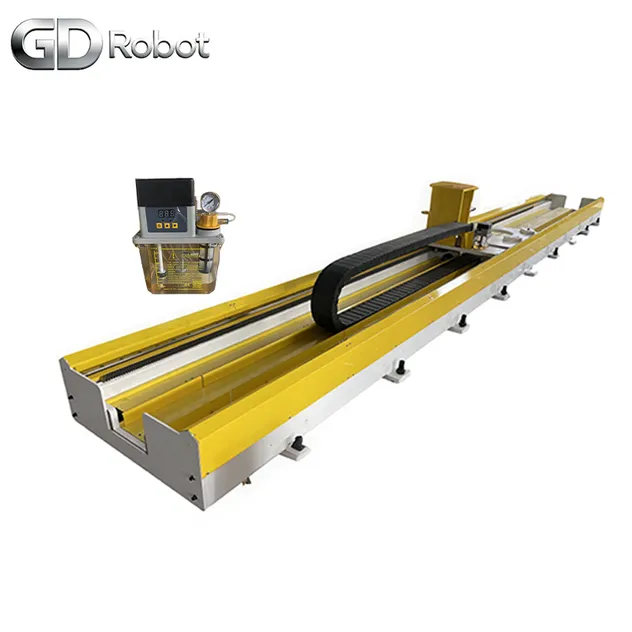

Robot Linear Track

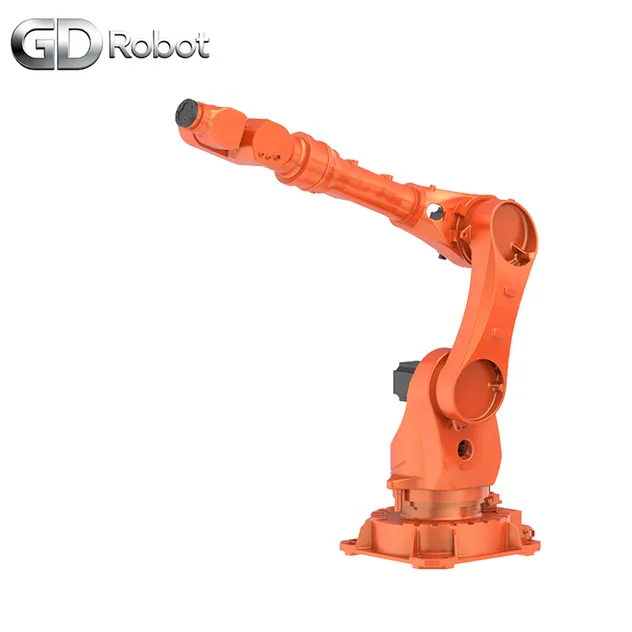

Bending Robot

Company Profile

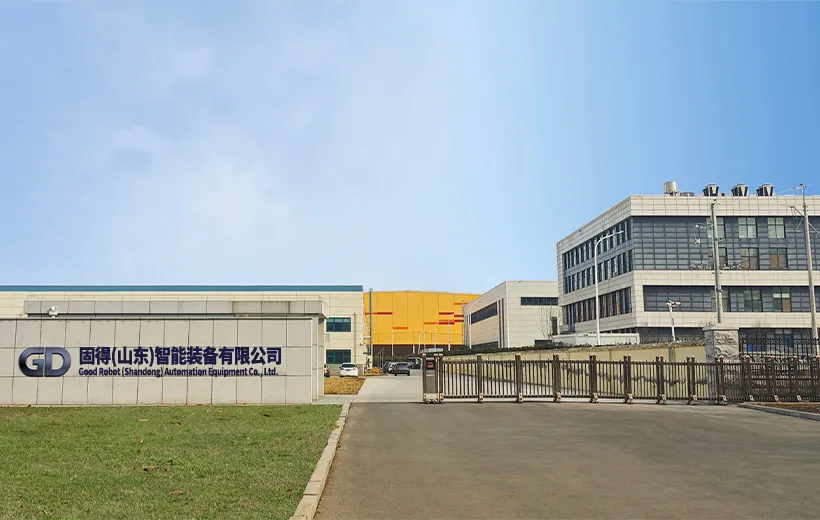

Manufacturing Facility

A high-tech enterprise established in 2018 specializing in the R&D and production of industrial robots, gantry robots, robot linear guides, and welding positioners. The business covers welding, palletizing handling, metal processing, bending, and spraying across industries like agricultural machinery, engineering machinery, and logistics.

Workshop 1
Workshop 2

Certifications

Product Certifications

Frequently Asked Questions

What is the maximum payload of the GD16 robot arm?
The GD16 collaborative robot arm offers a standard 16kg payload, with a maximum capacity of up to 20kg, making it suitable for mid-duty industrial tasks.
What is the precision level for high-accuracy tasks?
The GD16 delivers an impressive ±0.03mm pose repeatability, ensuring high precision for handling, assembly, and loading applications.
Does the robot support flexible mounting orientations?
Yes, this cobot arm is designed to support mounting in any orientation (ground, wall, or ceiling) to fit various workshop layouts.
What control interfaces are available for operation?
Operators can control the GD16 via a 10.1-inch teach pendant, mobile terminals, or a Web App interface for maximum convenience.
Is the robot suitable for quiet production environments?
Absolutely. The GD16 operates at a noise level of less than 65dB, ensuring a comfortable environment for human-robot collaboration.
What is the protection rating for harsh environments?
The standard model is rated IP54, but an IP65 version is optional for environments requiring higher protection against dust and water.
