Factory Wholesale Gd16 Collaborative Robot Arm 16kg for Continuous Production with Any Orientation Installation & Customization

Still deciding? Get samples of $ !
Order Sample

Product Description

📊 Basic Info.
Model NO.
GD-16
Drive Mode
Electric
Payload Capacity
16kg (Max: 20kg)
Reach
1034mm
Repeatability
±0.03mm
IP Classification
IP54 (IP65 Optional)
Noise
<65db
Mounting
Any Orientation
Origin
China
HS Code
8479501100
🤖 Product Description

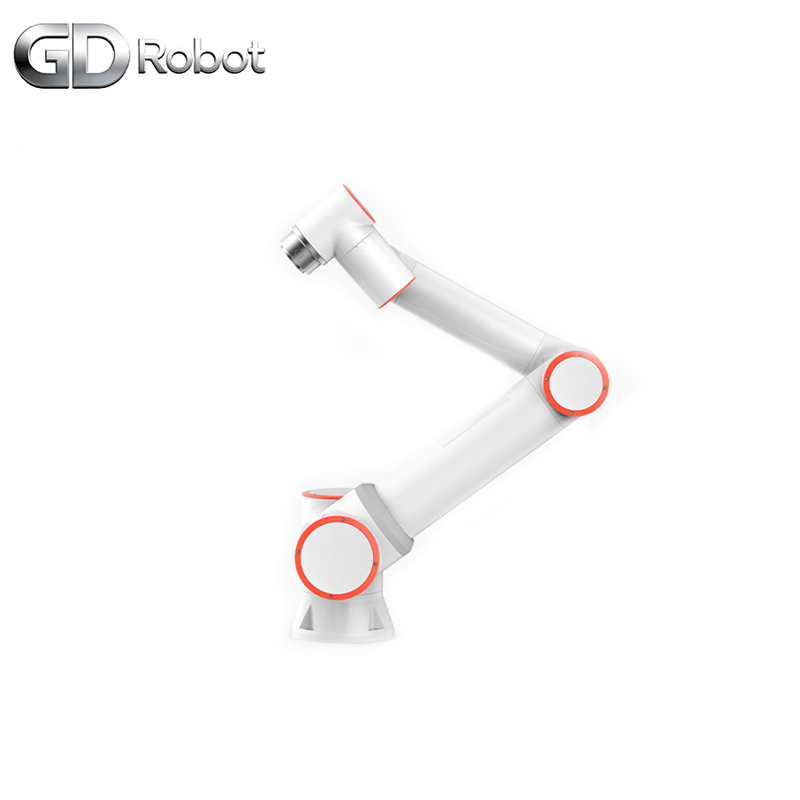

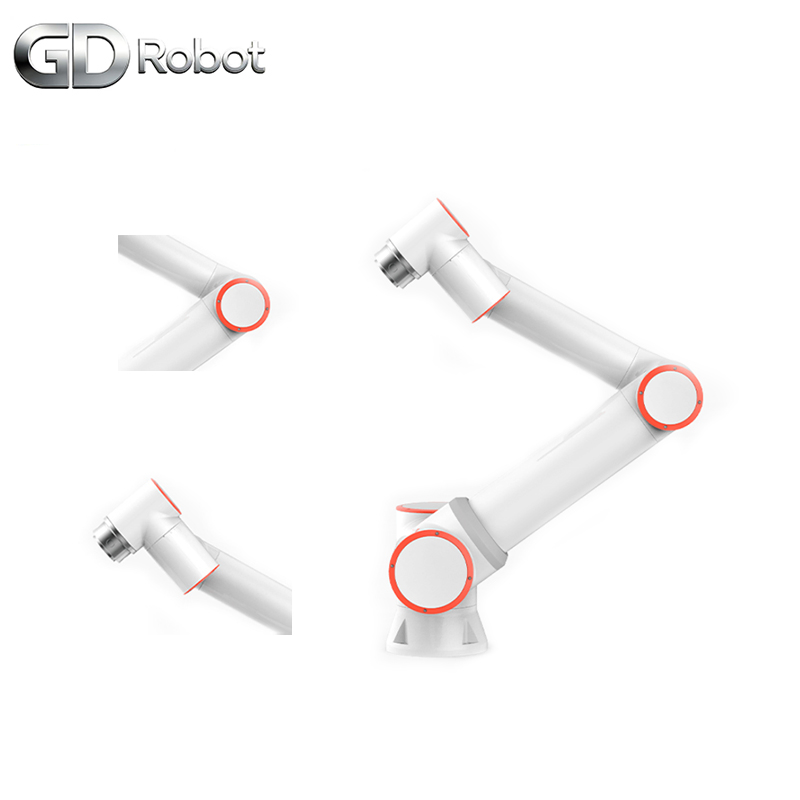

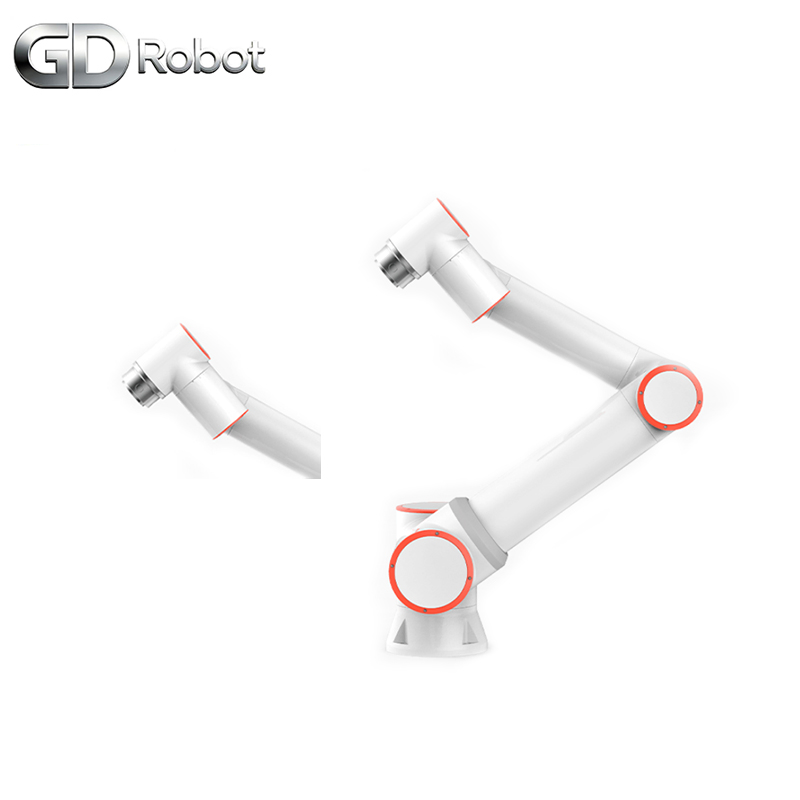

Collaborative Robot Arm 16kg

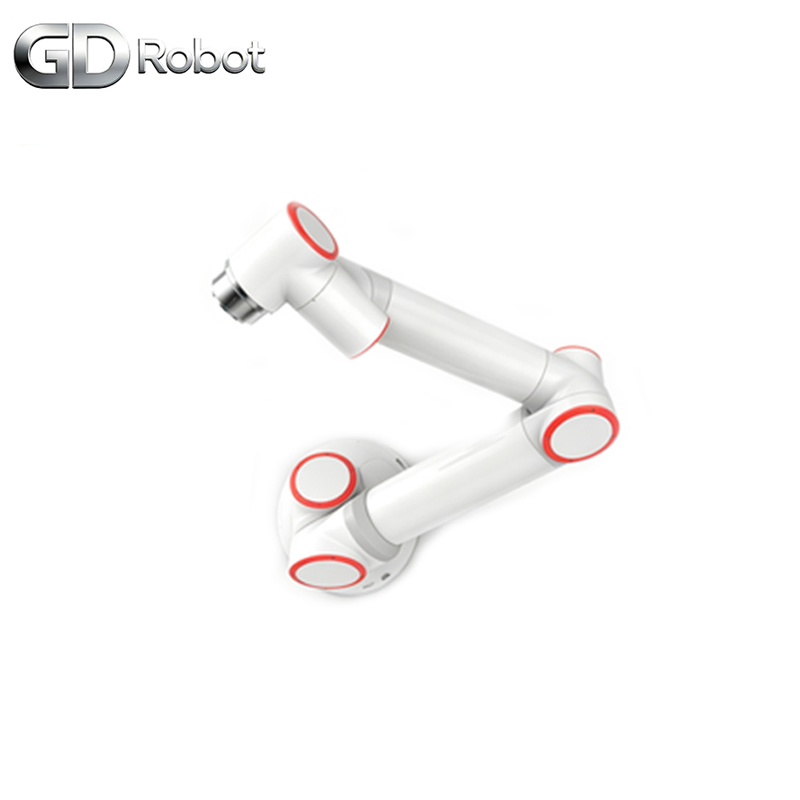

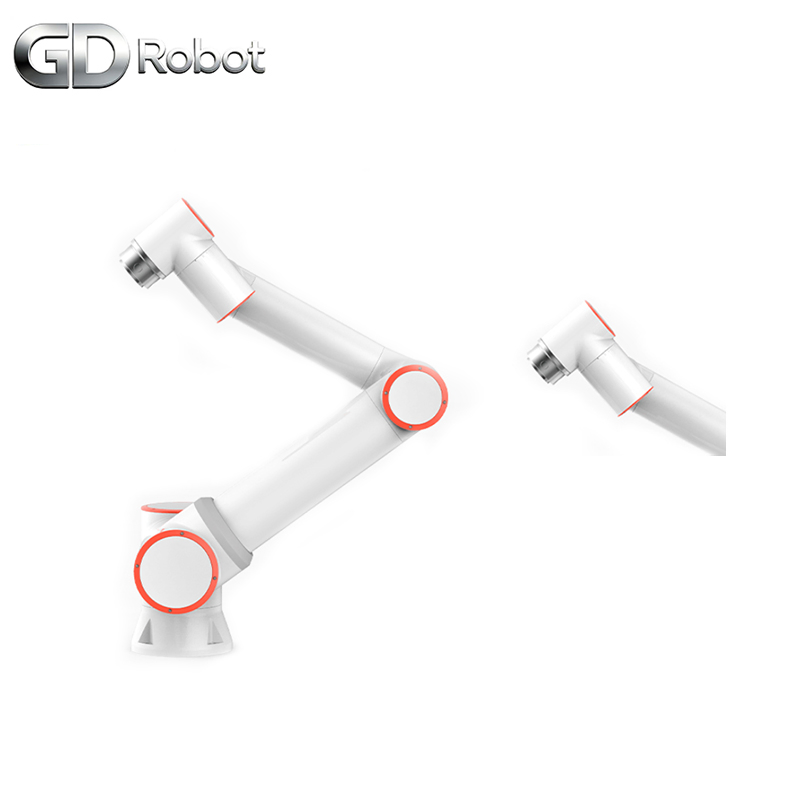

Collaborative Robot Arm 16kg detail
  • Payload 16kg collaborative robot arm with 1034mm reach, ideal for mid-duty workshop loading tasks.
  • High-precision cobot with ±0.03mm repeatability, stable for industrial handling and assembly applications.
  • IP54-rated robot arm supports any mounting orientation, flexible for diverse loading robot integration.
  • Low-noise operation under 65dB, suitable for continuous use in quiet production environments.
  • Multiple control options including teach pendant, mobile terminal and Web App, easy to operate.
  • Factory direct OEM customization available for your custom collaborative robot and loading projects.
📋 Specification
Parameter Specification
ModelGD16
Payload16kg (Max: 20kg)
Reach1034mm
Degrees of Freedom6 rotating joints
HMI10.1 inch teach pendant, mobile terminal or Web App
Pose Repeatability±0.03mm
Typical TCP Speed1m/s
IP ClassificationIP54 (IP65 Optional)
Noise<65dB
I/O PortsDI: 2 / DO: 2; AI: 1 / AO: 1
Operating Temperature0-45°C
Weight≈40kg
Typical Average Power310W

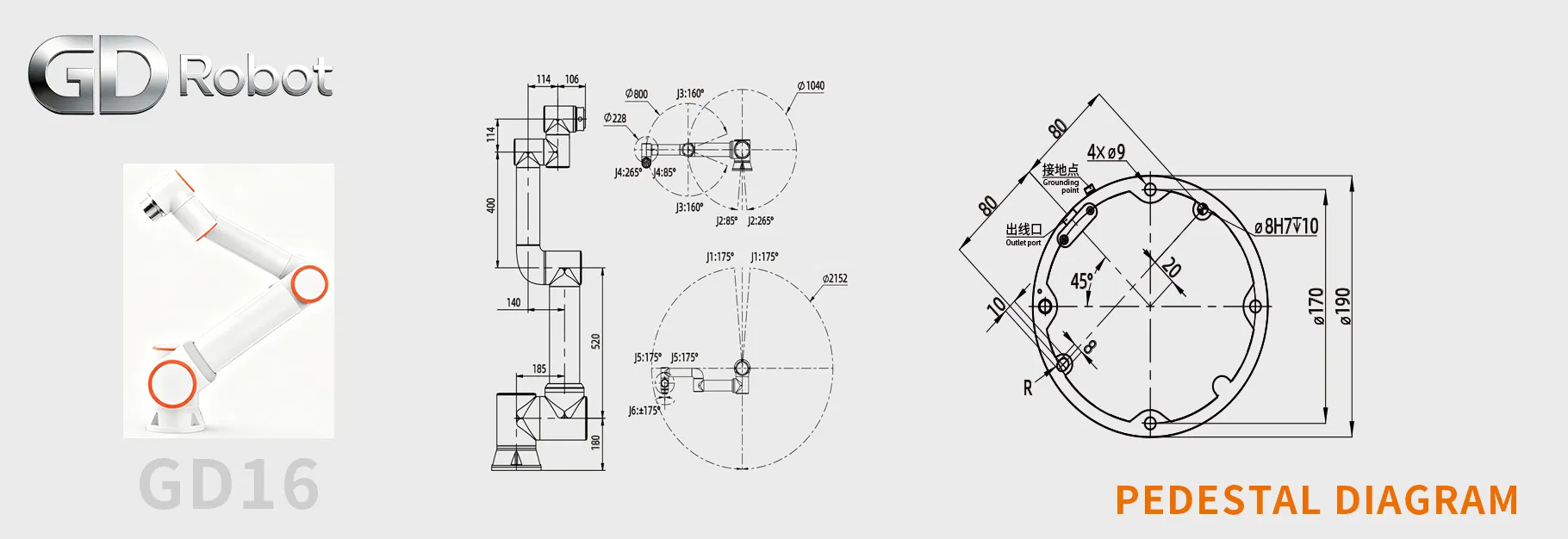

📐 Robot Drawings
Robot Technical Drawings
📦 Packing & Delivery
Package Size
80.00cm * 45.00cm * 45.00cm
Gross Weight
45.000kg
Lead Time
10 days (1-1 Pieces); Negotiable (>1 Pieces)
Packing details
🔥 Hot Selling Products
Product 1

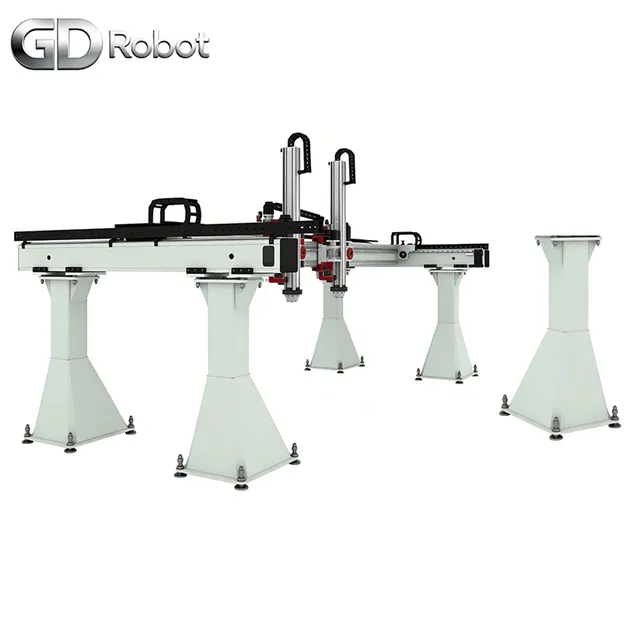

Product 2

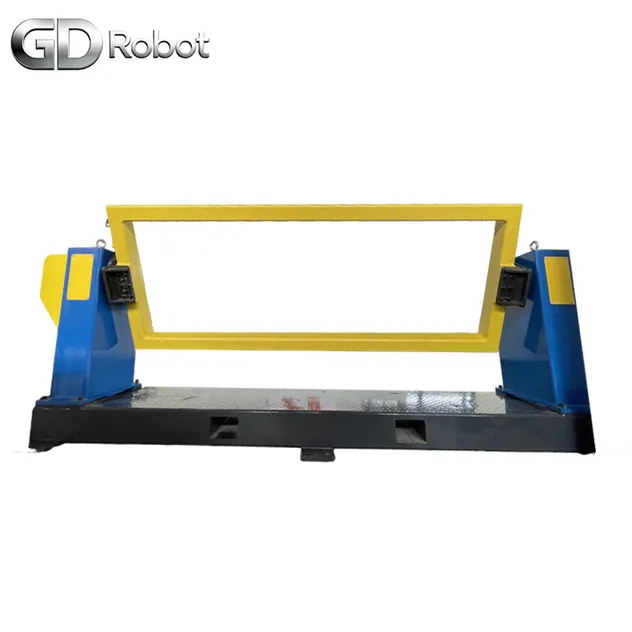

Product 3

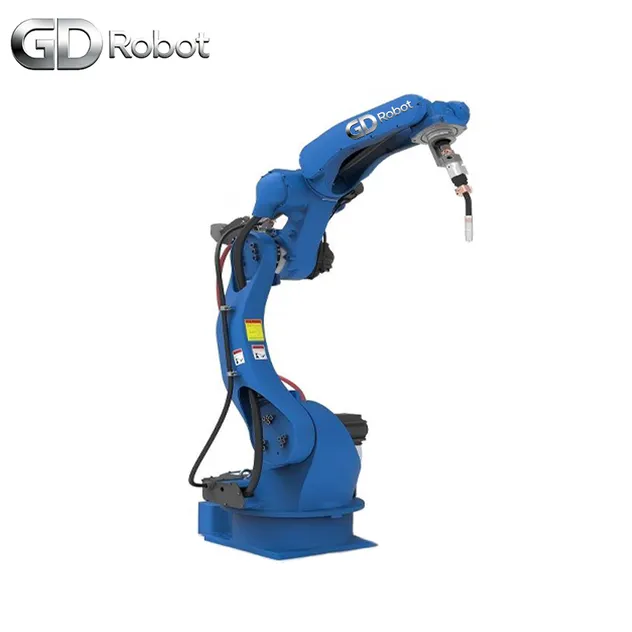

Product 4

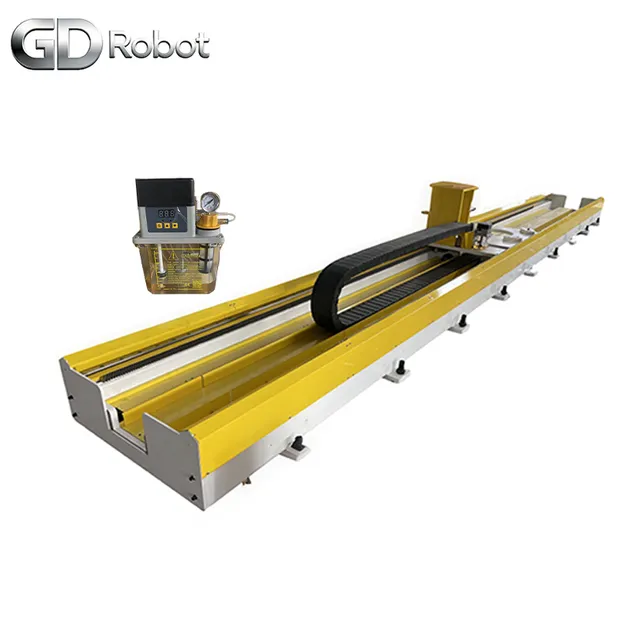

Product 5

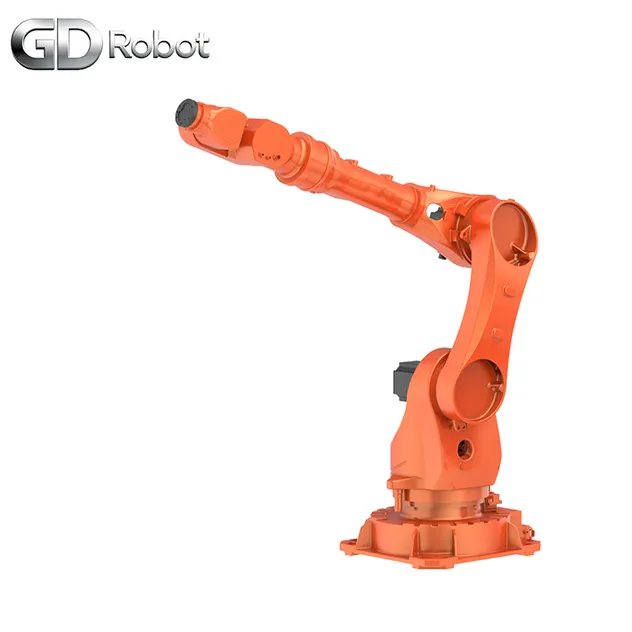

Product 6
Product 7
Product 8

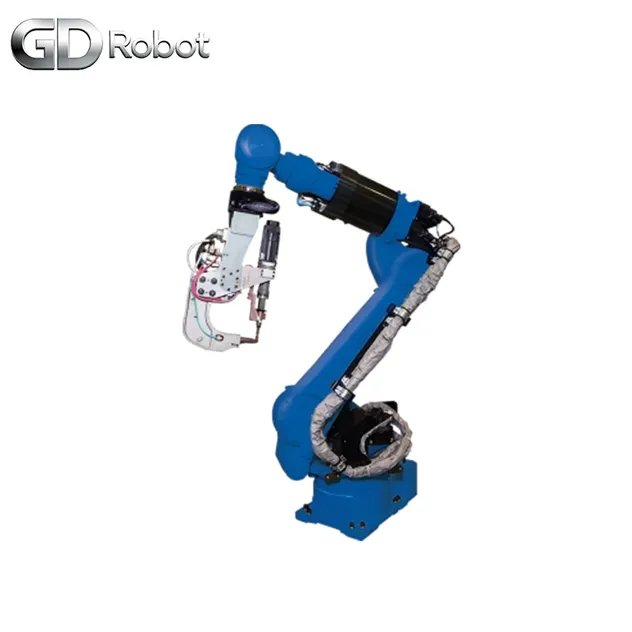

Product 9
🏢 Profile

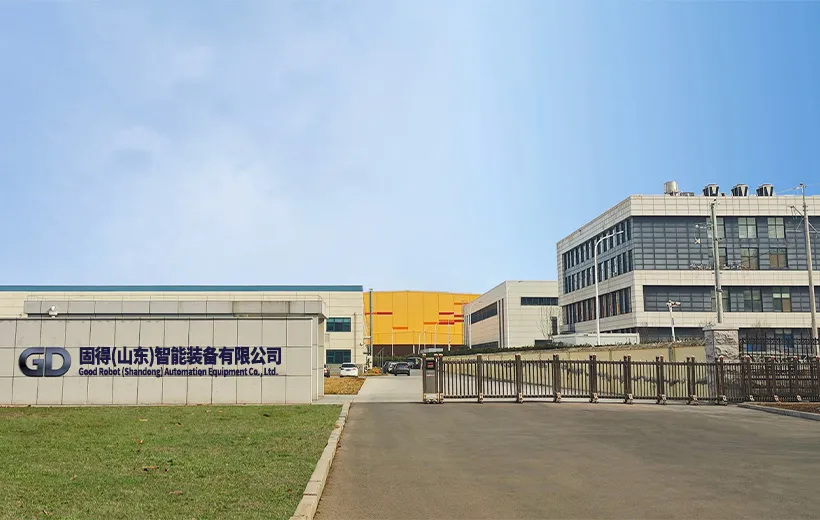

Production Facility

Established in 2018, the company is a high-tech enterprise specializing in the R&D and production of industrial robots, gantry robots, robot linear guides, and welding positioners, while also providing customers with customized automation solutions. The business covers a wide range of industrial fields, including welding, palletizing handling, metal processing, bending, spraying, etc. Products are widely used in agricultural machinery, engineering machinery, petroleum machinery, forging processing, warehousing and logistics, food processing, and other industries.

As a core manufacturing base with strong production capacity, more than 60 sets of robot linear guides, over 1,000 welding positioners, and more than 200 sets of gantry robot systems are produced annually. We provide over 50 types of automation solutions and more than 300 industrial robots each year, offering customized production as well as OEM/ODM services.

Workshop 1
Workshop 2
Equipment 1
Equipment 2
Equipment 3
📜 Certifications
Certifications Display
FAQ
Q: What is the payload of the GD16 collaborative robot arm?
A: The GD16 robot arm offers a 16kg (max 20kg) payload, ideal as a mid-duty loading robot with OEM support.
Q: What is the working reach of the GD16 robot arm?
A: This collaborative robot arm features a 1034mm reach, perfect for compact-range loading robot tasks.
Q: How accurate is the GD16 cobot arm?
A: The GD16 robot arm delivers ±0.03mm repeatability, ideal for high-precision collaborative robot applications.
Q: Can the GD16 collaborative robot arm be mounted flexibly?
A: Yes, it supports any orientation mounting, offering great flexibility for loading robot integration.
Q: What is the IP rating of the GD16 robot arm?
A: It comes with a standard IP54 rating (IP65 optional), making it reliable for workshop loading robot operations.
Q: What control options are available?
A: It supports teach pendant, mobile terminal, and Web App control, making it a versatile and easy-to-operate loading robot.
