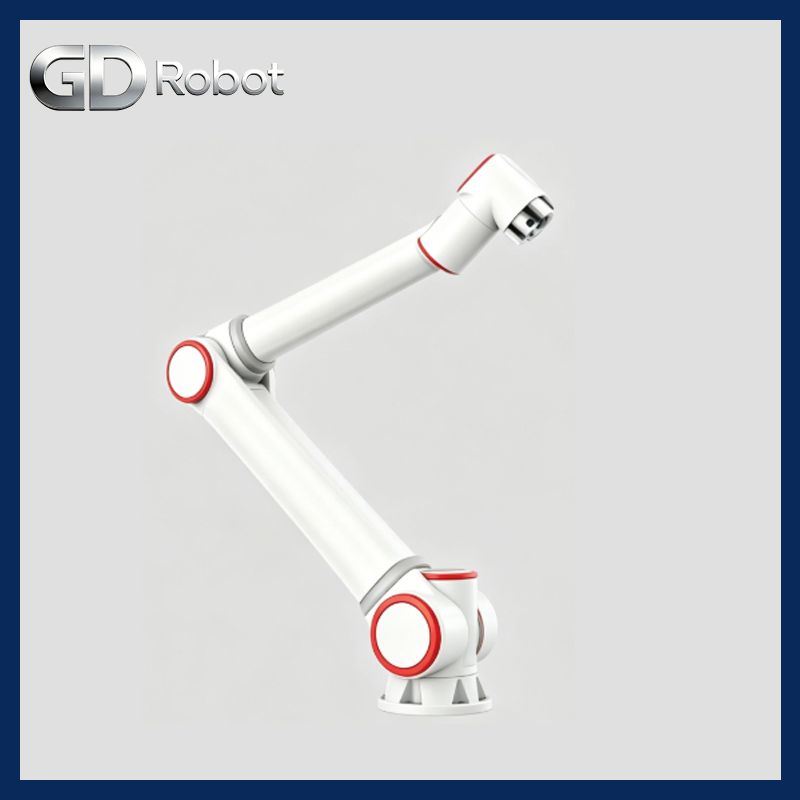

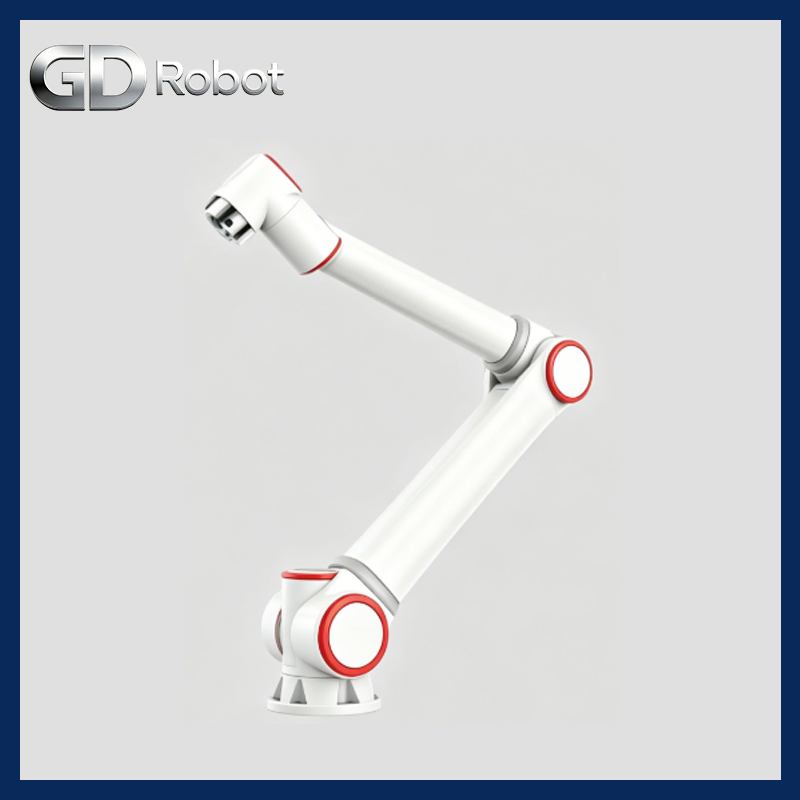

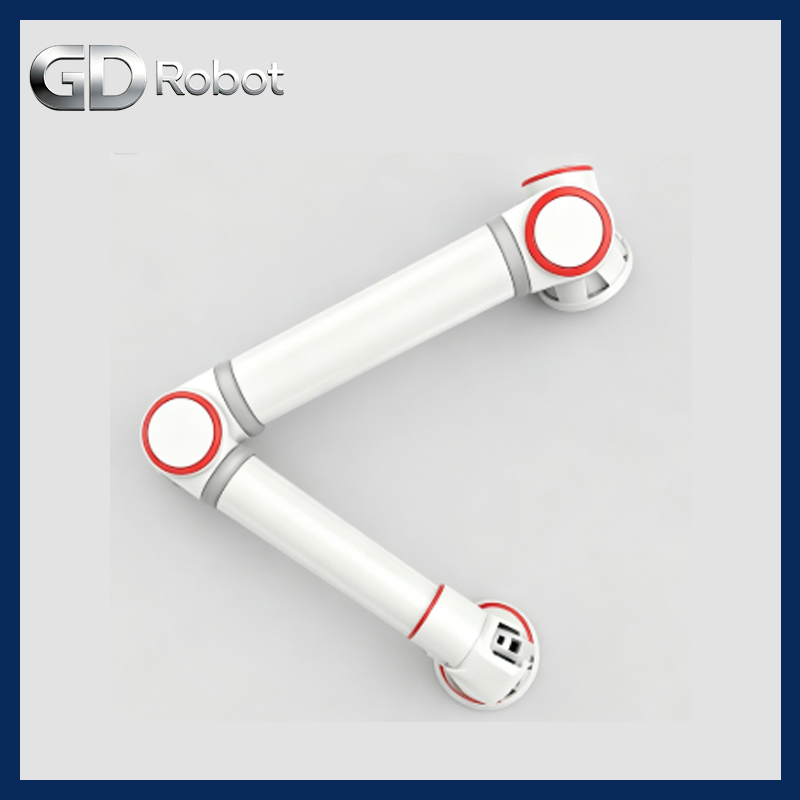

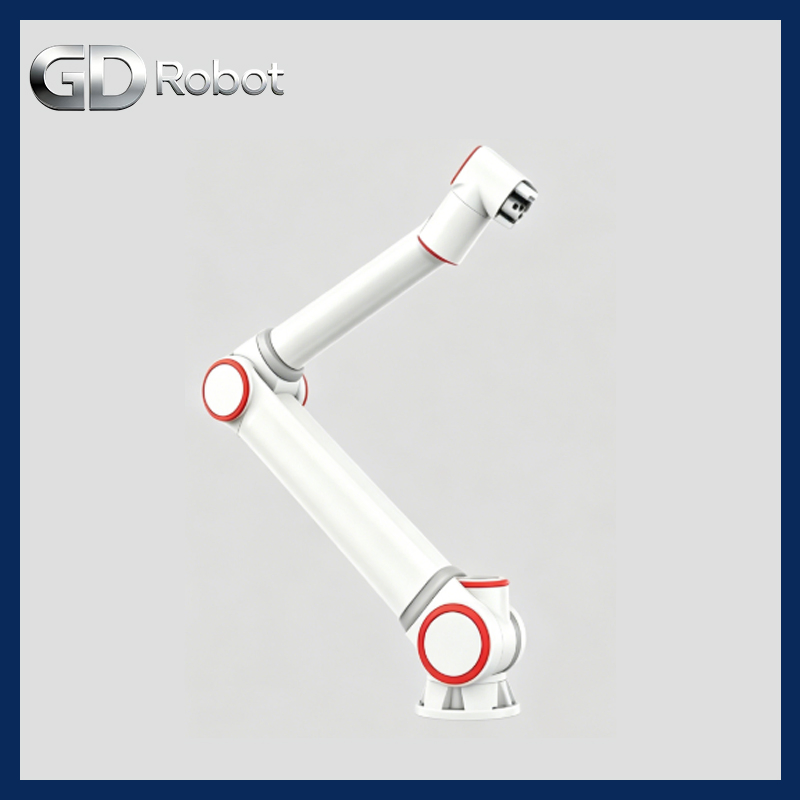

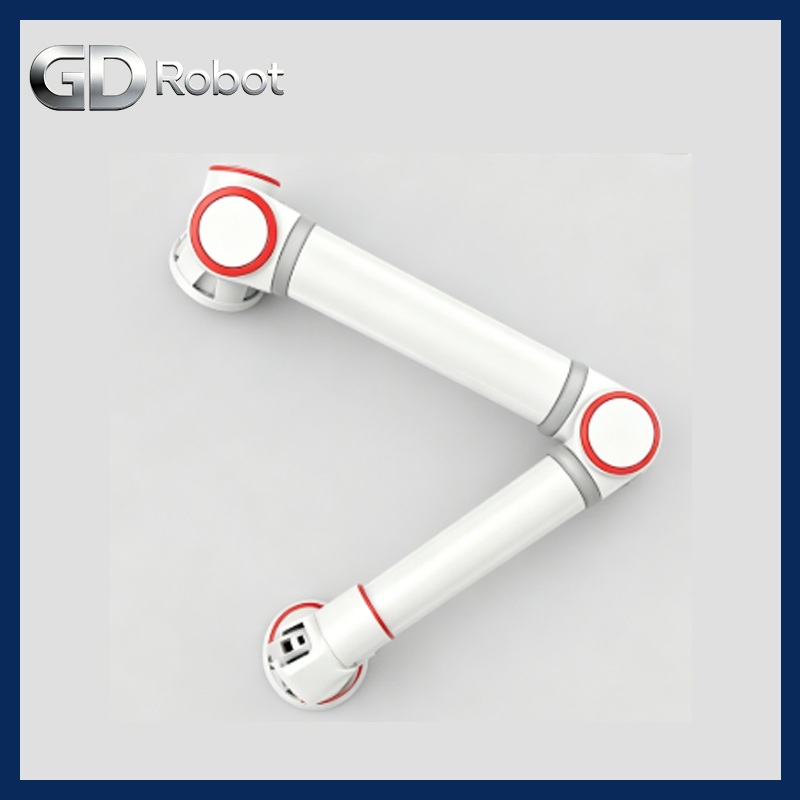

1. Payload 20kg collaborative robot arm with 1854mm reach, ideal for heavy workshop loading tasks.
2. High payload cobot with max 25kg capacity, stable for industrial handling applications.
3. ±0.1mm repeatability ensures high precision for assembly and loading operations.
4. IP54-rated design supports any mounting orientation for flexible loading integration.
5. <70dB low noise operation, suitable for continuous use in production environments.
| Parameter | Specification |
|---|---|
| Model | GD20 |
| Payload | 20kg (Max: 25kg) |
| Reach | 1854mm |
| Degrees of Freedom | 6 rotating joints |
| HMI | 10.1 inch teach pendant |
| Base Movement | ±175° / ±120°/s |
| Shoulder Movement | +85° / -265° / ±120°/s |
| Wrist 1/2/3 Speed | ±180°/s |
| Operating Temp | 0-45°C |
| Materials | Aluminium, Steel |
| Average Power | 620W |
Package Size: 135.00cm * 60.00cm * 60.00cm
Gross Weight: 100.000kg
Lead Time: 10 days (1 - 1 Pieces); To be negotiated (> 1 Pieces)
