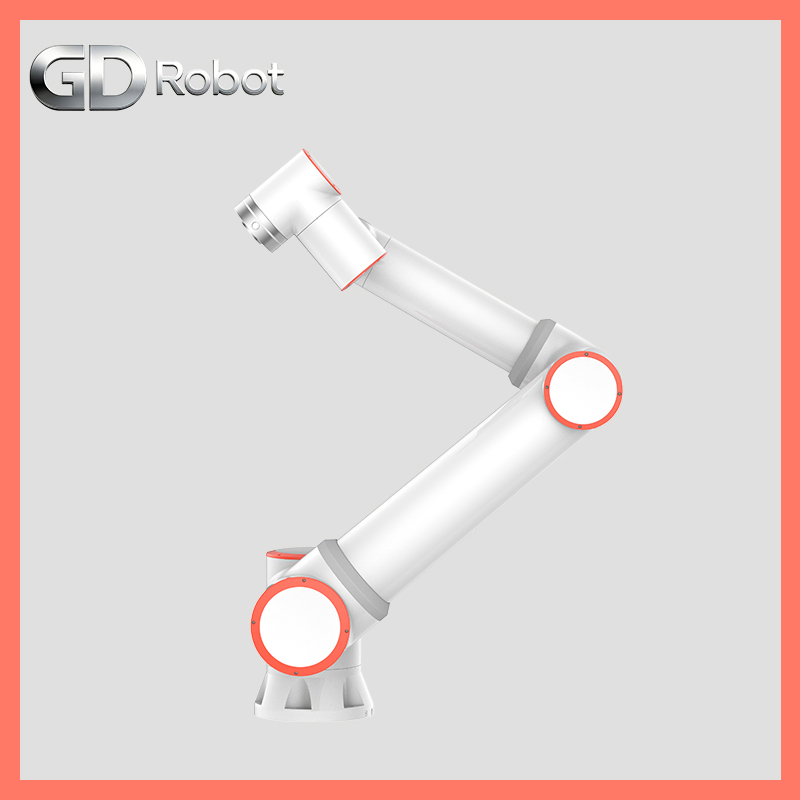

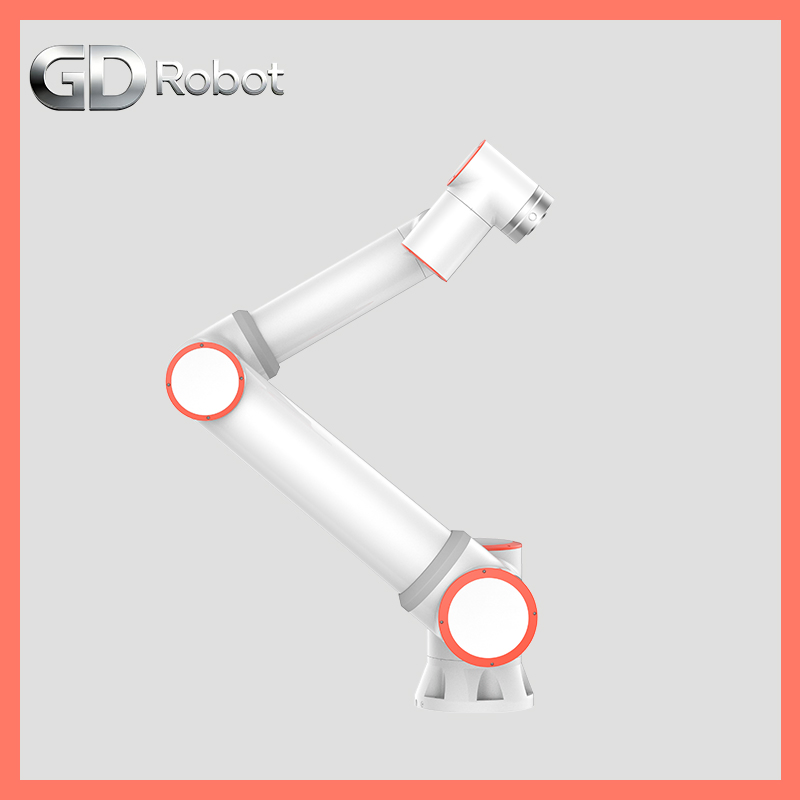

Original Factory Wholesale Gd30 30kg Payload Cobot Arm for Warehouse Loading with Any Orientation Installation & Customization
Original Factory Wholesale Gd30 30kg Payload Cobot Arm for Warehouse Loading with Any Orientation Installation & Customization
Original Factory Wholesale Gd30 30kg Payload Cobot Arm for Warehouse Loading with Any Orientation Installation & Customization
Original Factory Wholesale Gd30 30kg Payload Cobot Arm for Warehouse Loading with Any Orientation Installation & Customization
Original Factory Wholesale Gd30 30kg Payload Cobot Arm for Warehouse Loading with Any Orientation Installation & Customization
1 / 5
Original Factory Wholesale Gd30 30kg Payload Cobot Arm for Warehouse Loading with Any Orientation Installation & Customization
Original Factory Wholesale Gd30 30kg Payload Cobot Arm for Warehouse Loading with Any Orientation Installation & Customization
Original Factory Wholesale Gd30 30kg Payload Cobot Arm for Warehouse Loading with Any Orientation Installation & Customization
Original Factory Wholesale Gd30 30kg Payload Cobot Arm for Warehouse Loading with Any Orientation Installation & Customization
Original Factory Wholesale Gd30 30kg Payload Cobot Arm for Warehouse Loading with Any Orientation Installation & Customization

Original Factory Wholesale Gd30 30kg Payload Cobot Arm for Warehouse Loading with Any Orientation Installation & Customization

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Information

Model:GD-30
Payload:30kg (Max: 35kg)
Reach:1403mm
Repeatability:±0.1mm
Drive Mode:Electric
IP Class:IP54 (Optional IP65)
Speed:2m/S (TCP)
Noise:<70db

Product Description

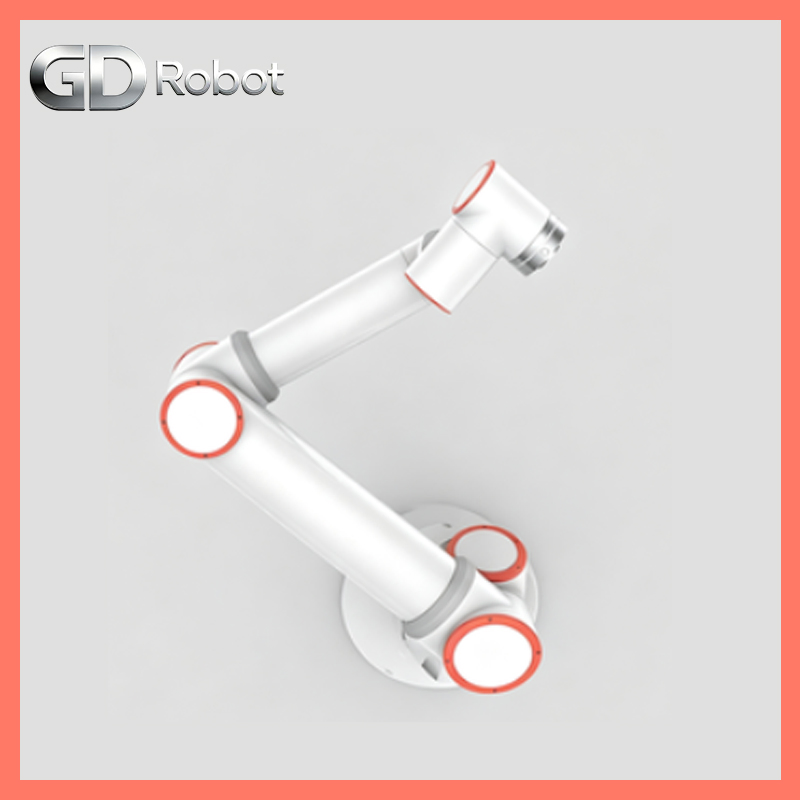

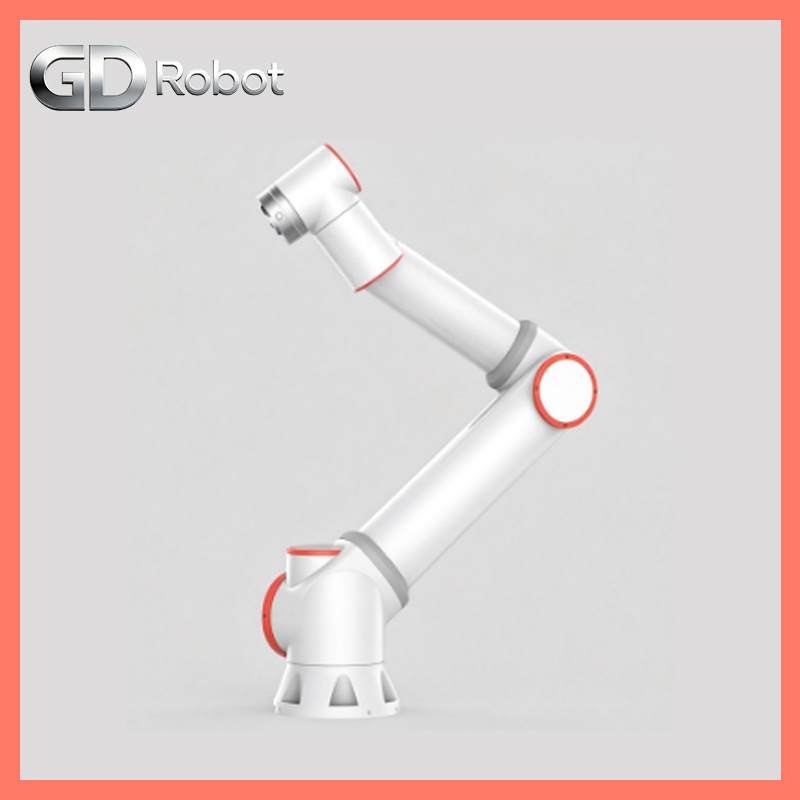

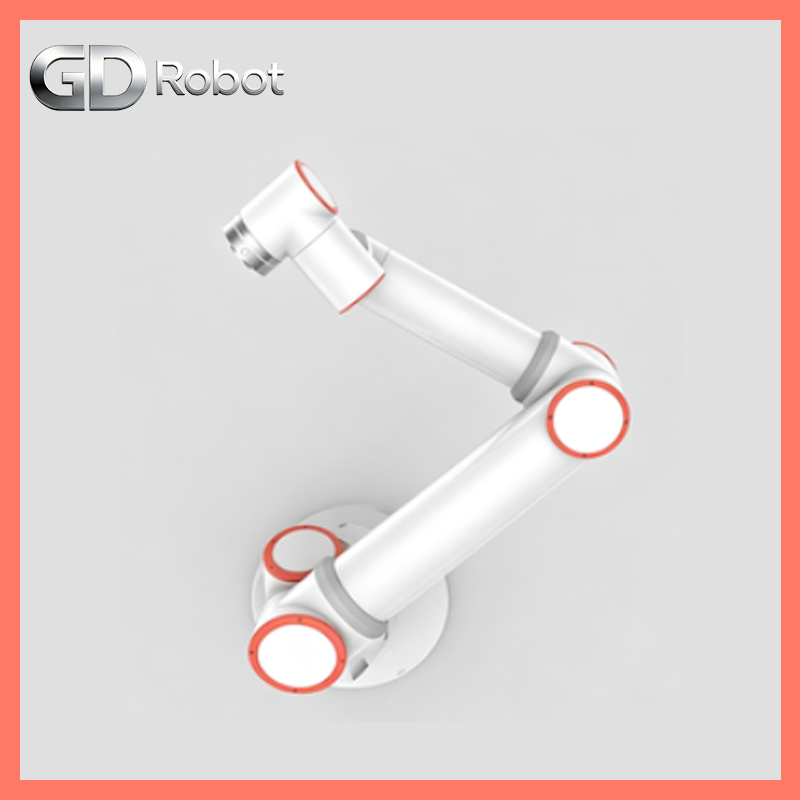

Cobot Arm GD30
Cobot Arm Details
  • High Capacity: 30kg payload collaborative robot arm with 1403mm reach, ideal for heavy-duty workshop loading tasks.
  • Precision Performance: ±0.1mm repeatability ensures reliable precision for high-volume loading and material handling operations.
  • Flexible Integration: IP54-rated design supports any mounting orientation, adaptable for diverse heavy loading robot systems.
  • Advanced Control: Supports multiple control options including teach pendant, mobile terminals, or Web App.
  • Industrial Standards: Low noise operation (<70dB) suitable for continuous use in high-demand environments.

Technical Specification

Parameter Specification Details
ModelGD30
Degrees of Freedom6 rotating joints
Working Range - Base±175° / ±120°/s
Working Range - Shoulder+85° / -265° / ±120°/s
Working Range - Elbow±160° / ±120°/s
Typical Power600W (Average) / 910W (Peak)
I/O PortsDI: 2 / DO: 2; AI: 1 / AO: 1
Tool Power Supply24V / 1.5A
Operating Temp0-45°C
MaterialsAluminium, Steel

Robot Drawings

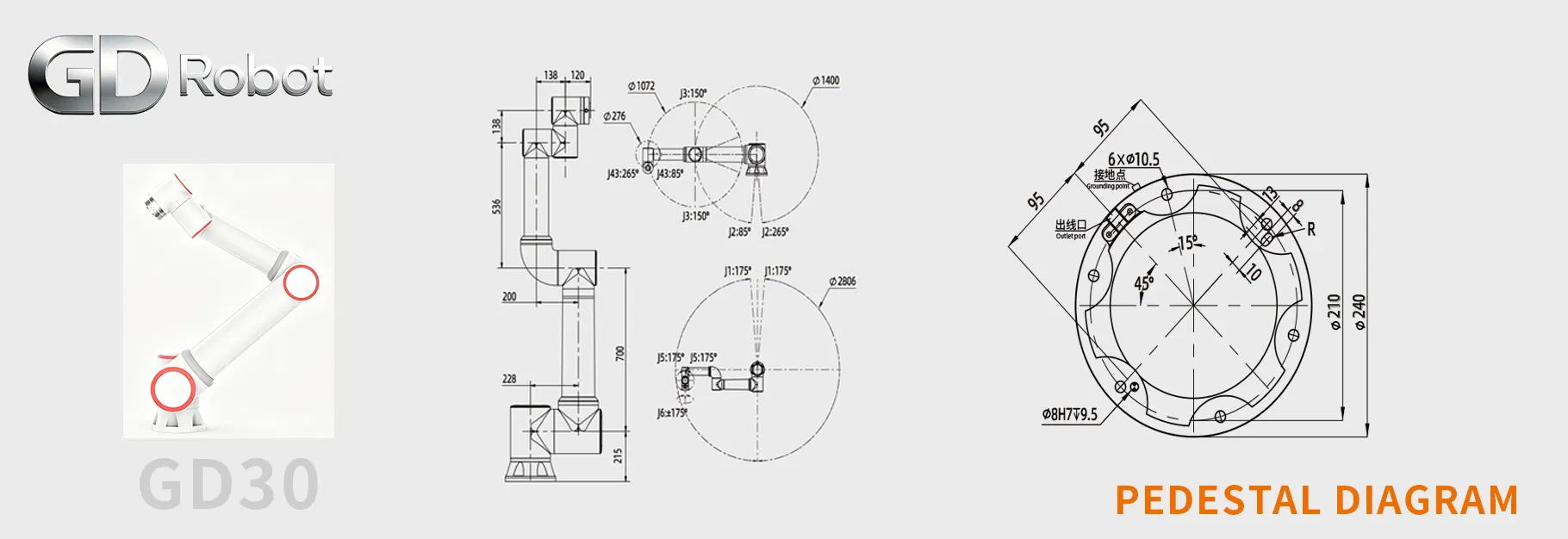

Technical Drawing

Packaging & Delivery

Package Size:135cm * 60cm * 60cm
Gross Weight:95.00kg
Packaging

Related Solutions

Industrial Robot

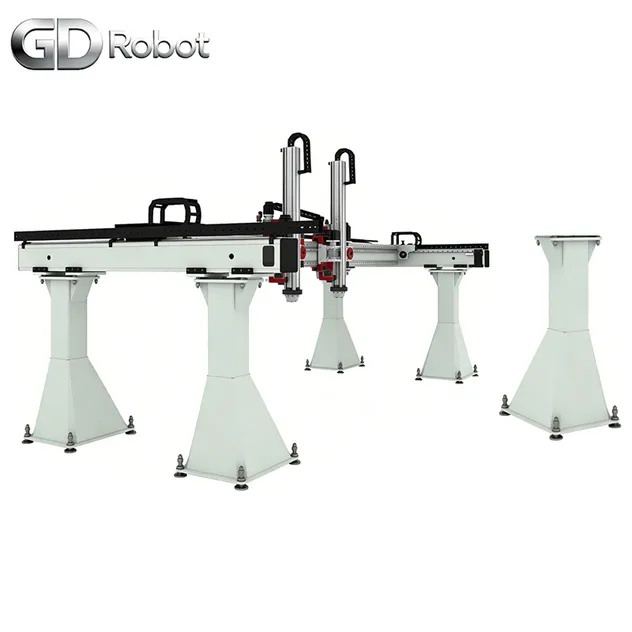

Truss System

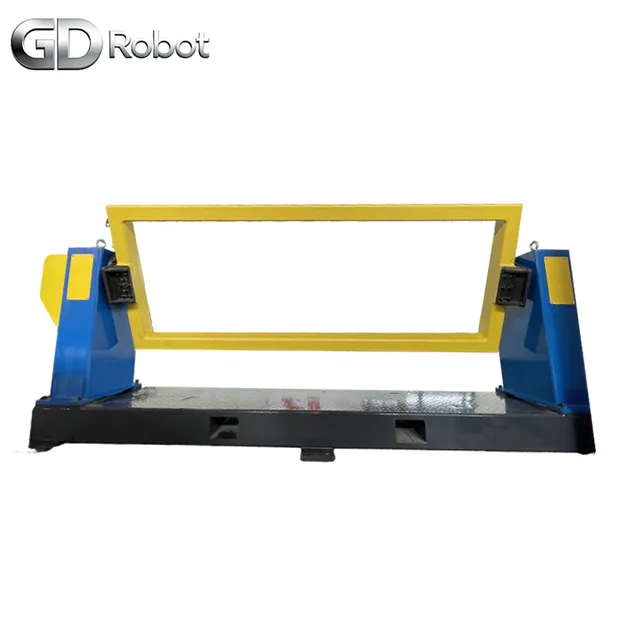

Welding Positioner

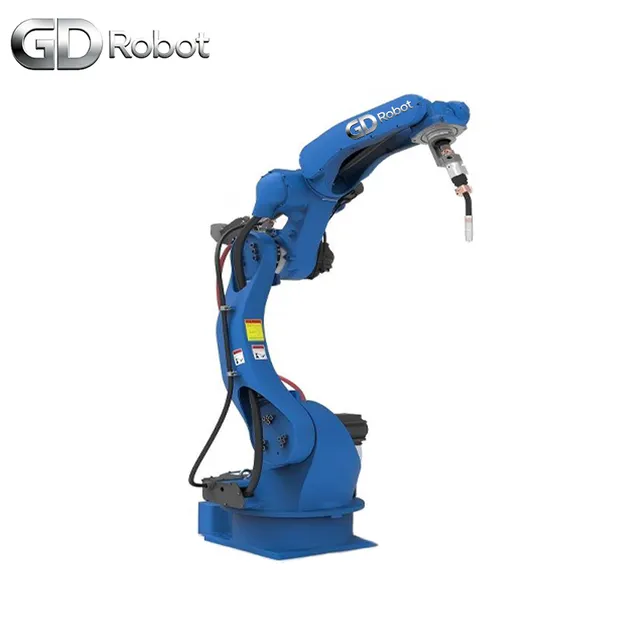

Welding Robot

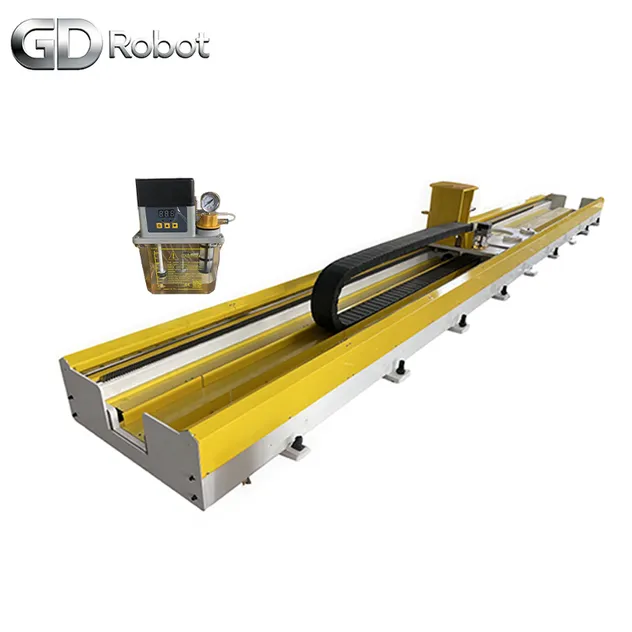

Linear Track

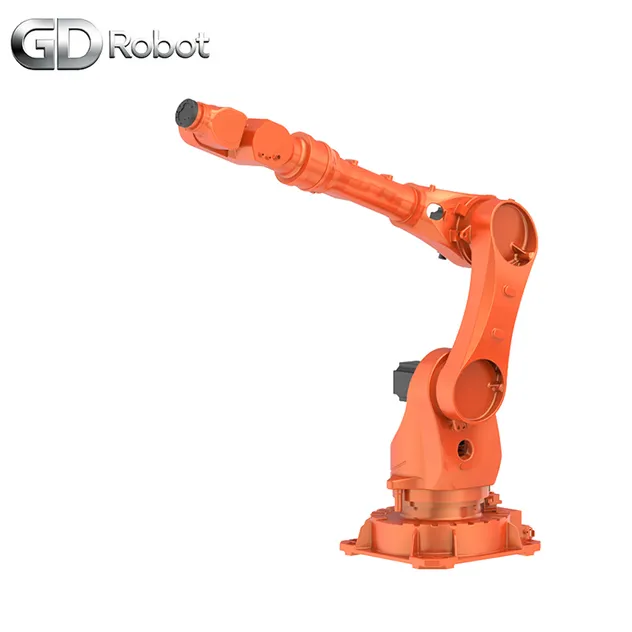

Bending Robot

Company Overview

Established in 2018, we are a high-tech enterprise specializing in the R&D and production of industrial robots, gantry robots, robot linear guides, and welding positioners. Our expertise covers welding, palletizing, metal processing, bending, and spraying across various industries like agricultural machinery, logistics, and food processing. With strong production capacity, we offer customized automation solutions and OEM/ODM services for global customers.

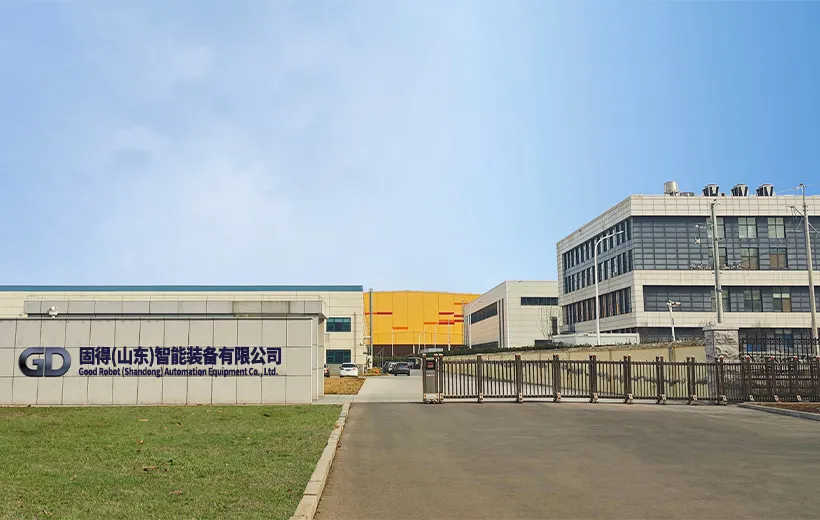

Workshop

Certifications

Certificates

Frequently Asked Questions

Q: What is the payload capacity of the GD30 robot arm? A: The GD30 offers a standard 30kg payload with a maximum capacity of up to 35kg, suitable for heavy-duty applications.
Q: What is the working reach and precision of this cobot? A: It features a reach of 1403mm and delivers high precision with ±0.1mm repeatability.
Q: Can the robot be mounted in different orientations? A: Yes, it is designed for flexible installation and supports mounting in any orientation.
Q: What is the IP protection rating? A: The standard rating is IP54, with an optional IP65 upgrade available for more demanding environments.
Q: What control methods are available? A: Operators can use a 10.1-inch teach pendant, mobile terminals, or a specialized Web App for control.
Q: Is OEM customization supported? A: Yes, we provide full OEM and ODM services to meet specific industrial automation requirements.
