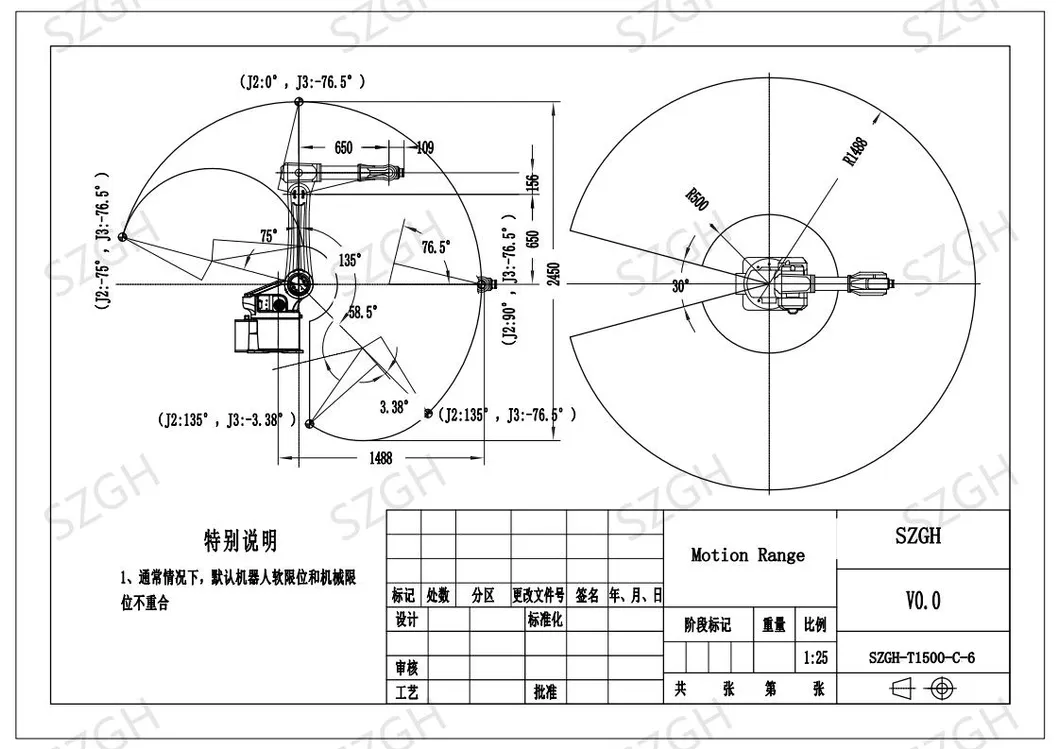

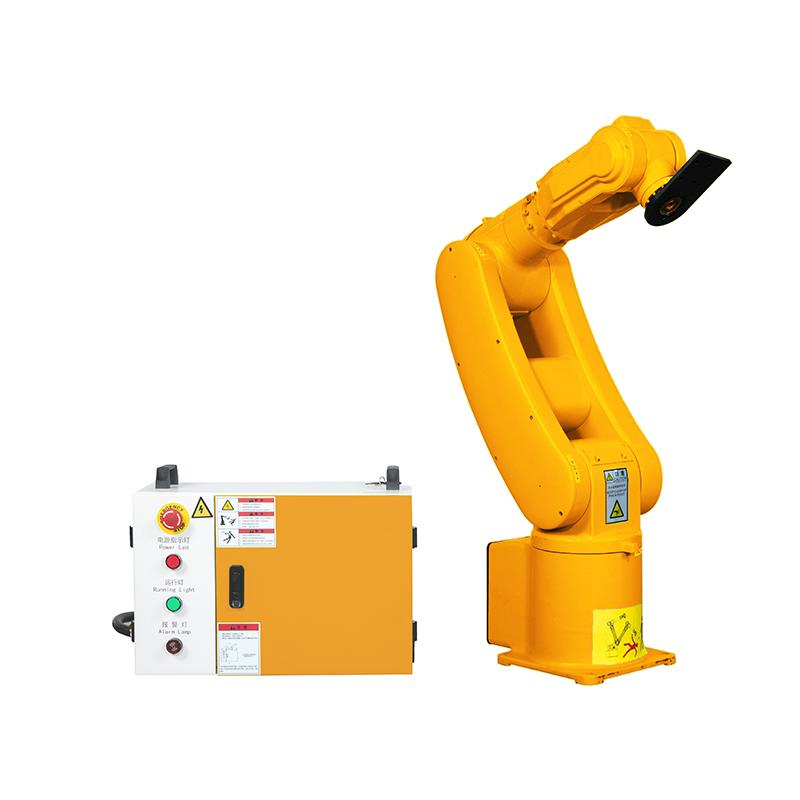

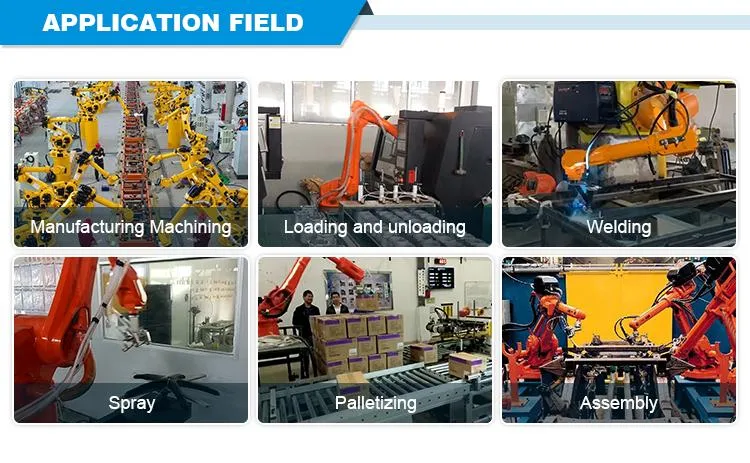

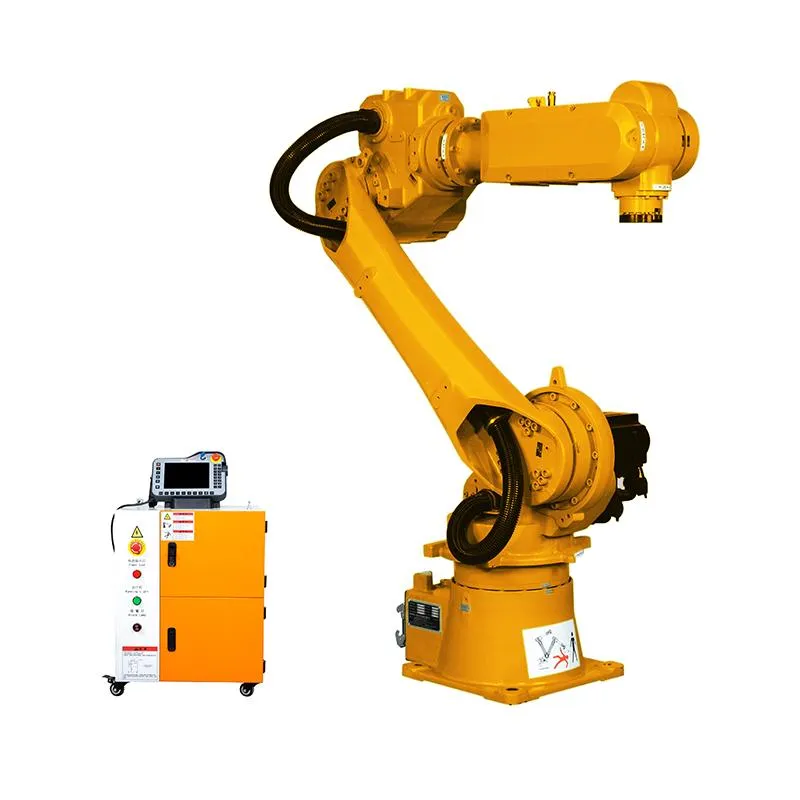

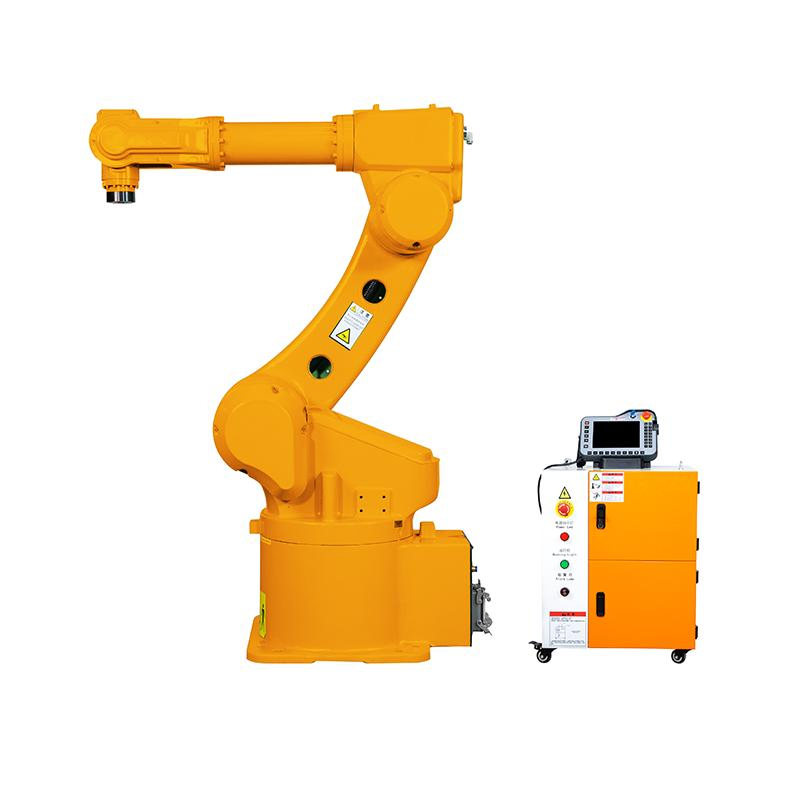

Efficient Intelligence 6 axis industrial welding robot arm with 10kg payload is widely used for materials handling and assembly. The SZGH-T1500-C-6 series offers reaching capability from 750mm to 2950mm. This light-weight body design features a suitable arm length and moderate load weight, making it ideal for parts transfer, machine management, testing, gluing, and assembly.
| Component | Quantity |
|---|---|
| Robot Body | 1 set |

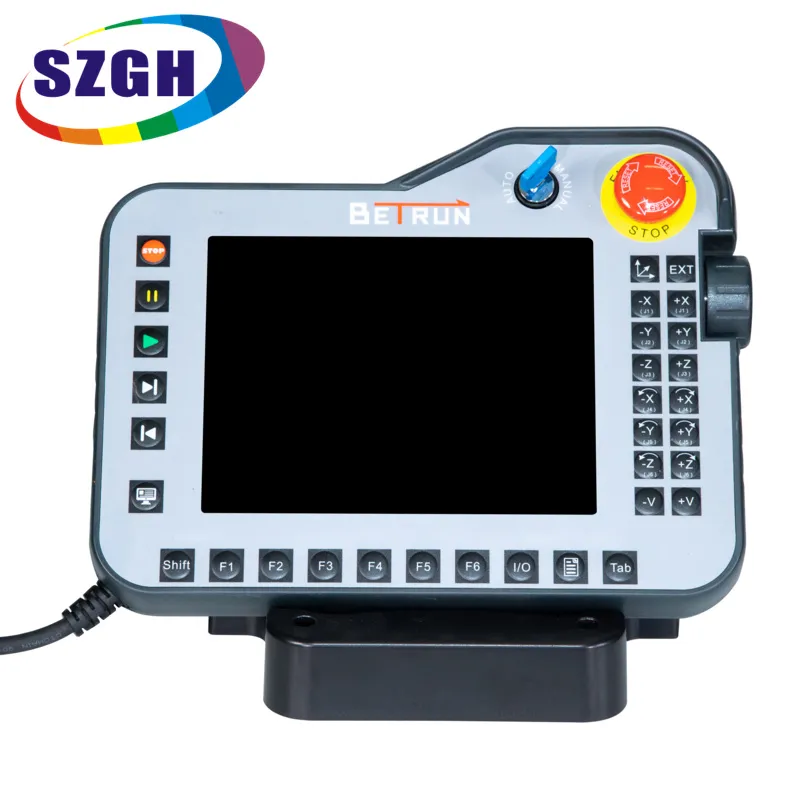

| Robot Teach Pendant | 1 set |
| Servo Motor | 6 pcs |
| Servo Driver | 6 pcs |
| Gear Box (RV or Harmonic) | 6 pcs |
| Electrical Cabinet | 1 pcs |

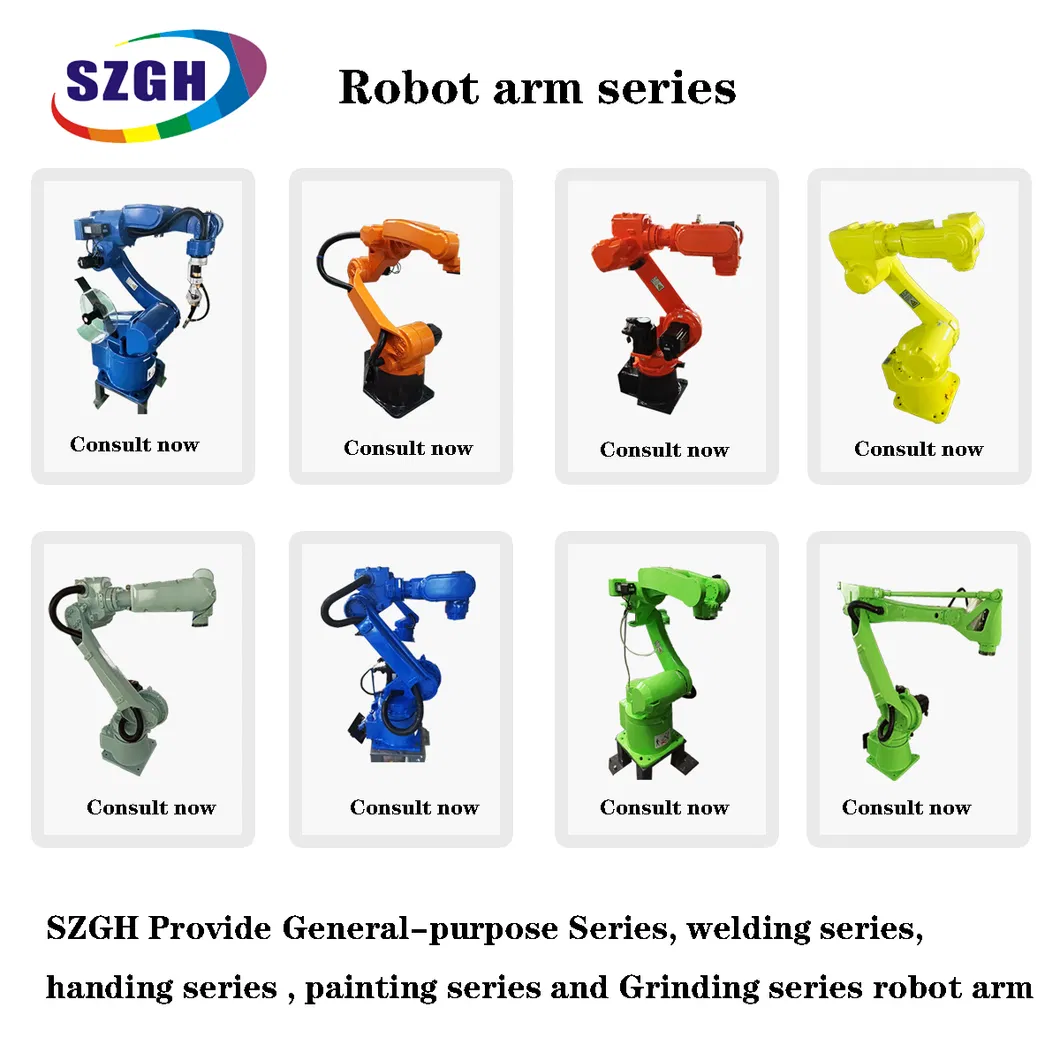

| Model | Payload | Reach | Repeatability | Axes | Weight |
|---|---|---|---|---|---|
| SZGH-T750-B-6 | 6KG | 750mm | ±0.05mm | 6 | 85KG |
| SZGH-T850-A3-6 | 1KG | 850mm | ±0.05mm | 6 | 50KG |
| SZGH-T950-A-6 | 3KG | 950mm | ±0.05mm | 6 | 86KG |
| SZGH-T1500-C-6 | 10KG | 1500mm | ±0.05mm | 6 | 150KG |
| SZGH-T1850-D-6 | 20KG | 1850mm | ±0.08mm | 6 | 250KG |
| SZGH-T2100-E-6 | 50KG | 2100mm | ±0.1mm | 6 | 750KG |

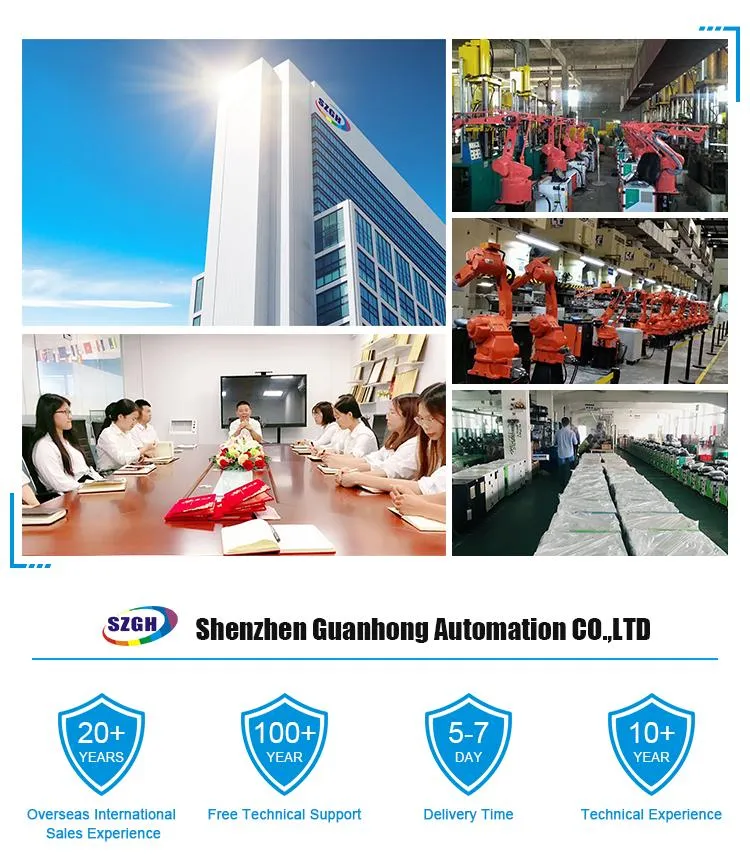

Specializing in CNC package solutions and industrial robot arms, our expertise includes lathe, milling, engraving, and grinding systems. Every product undergoes strict quality control measures to guarantee reliability, with 100% inspection performed before packaging and shipment.
