Product Description

Product Description

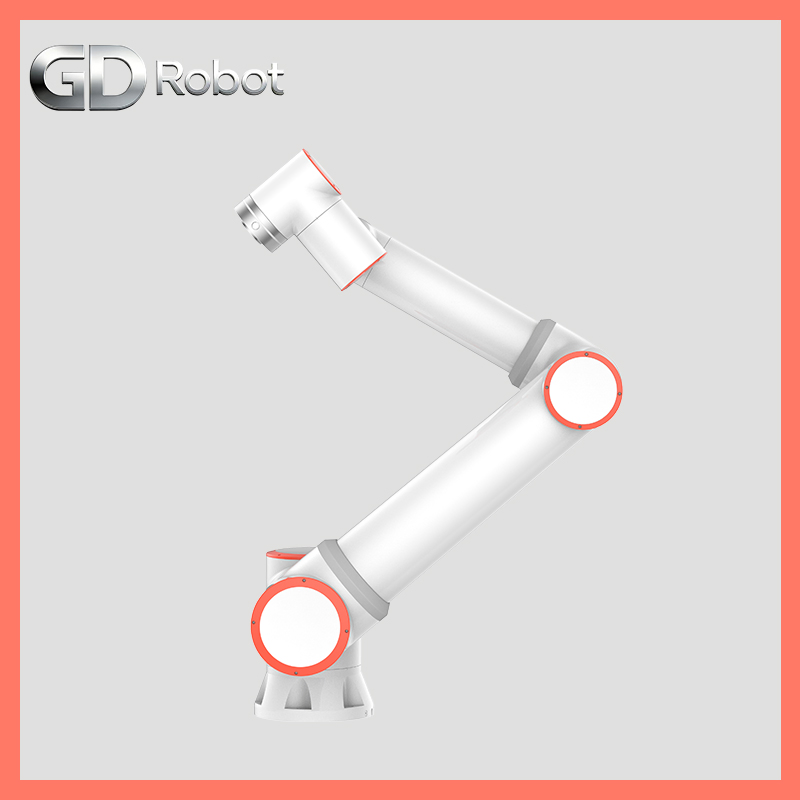

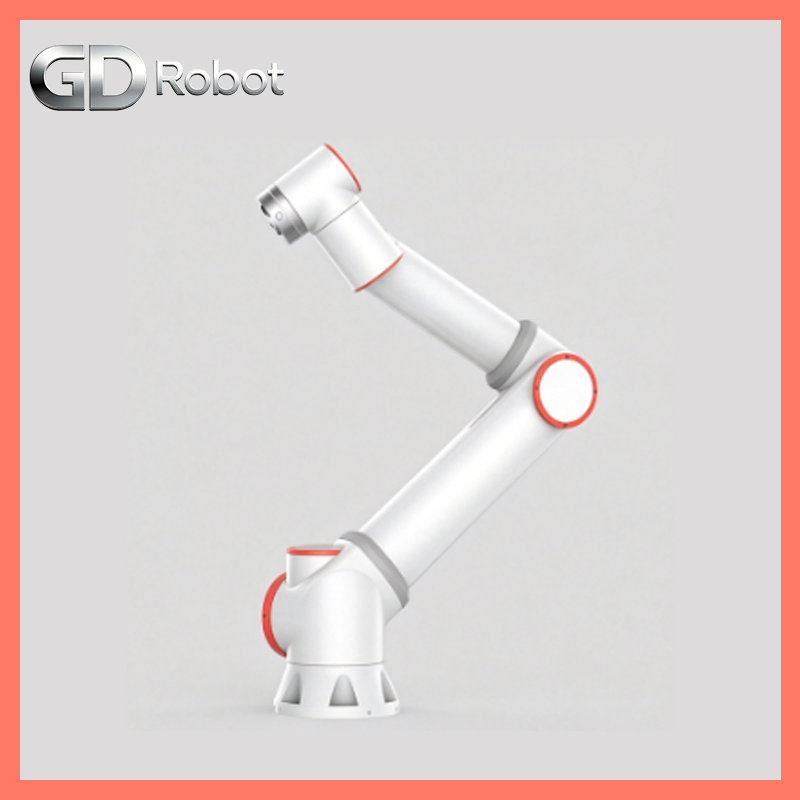

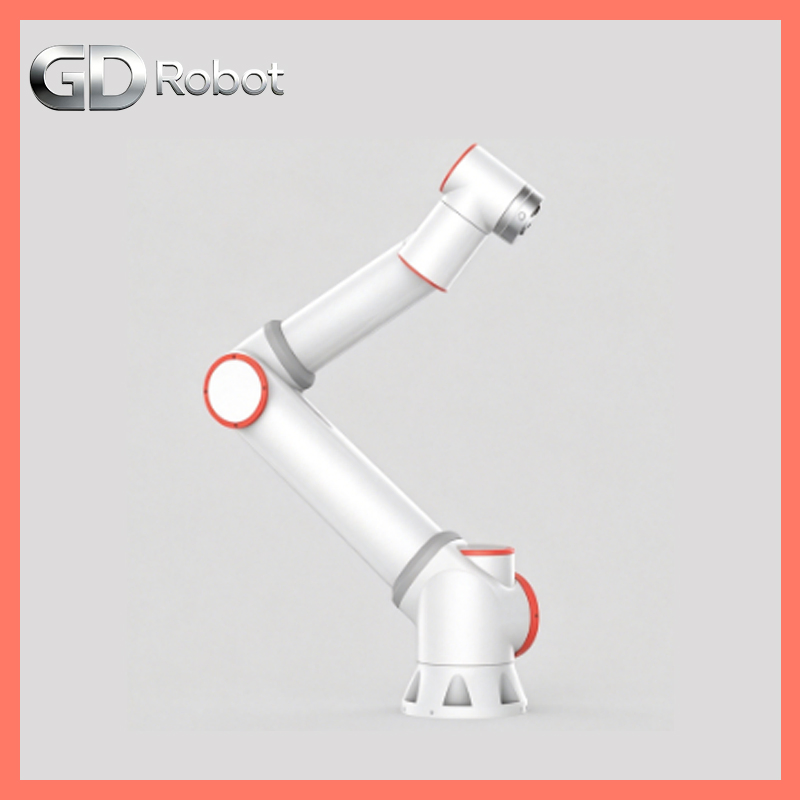

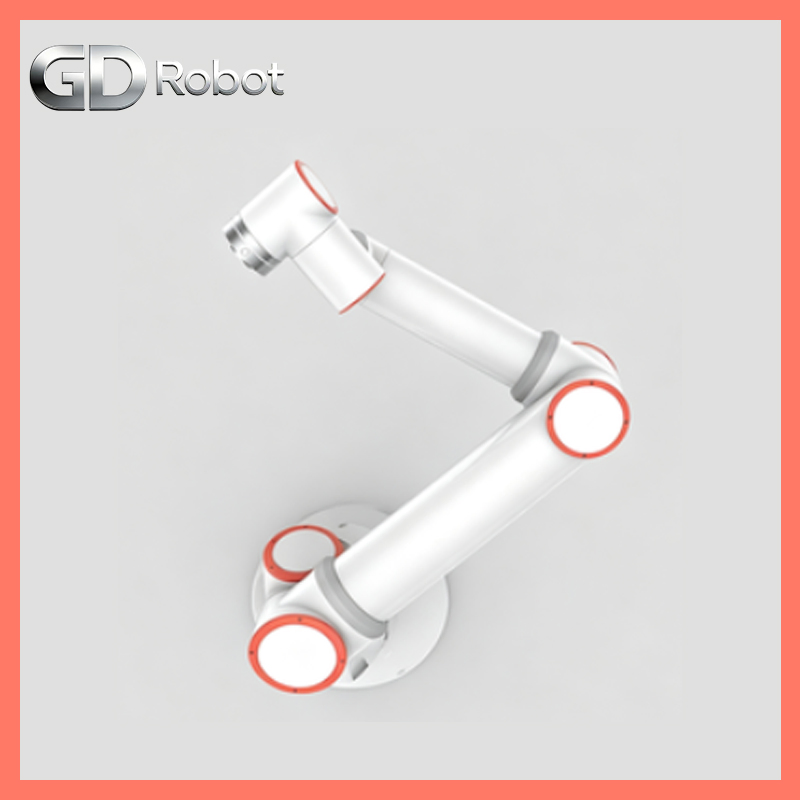

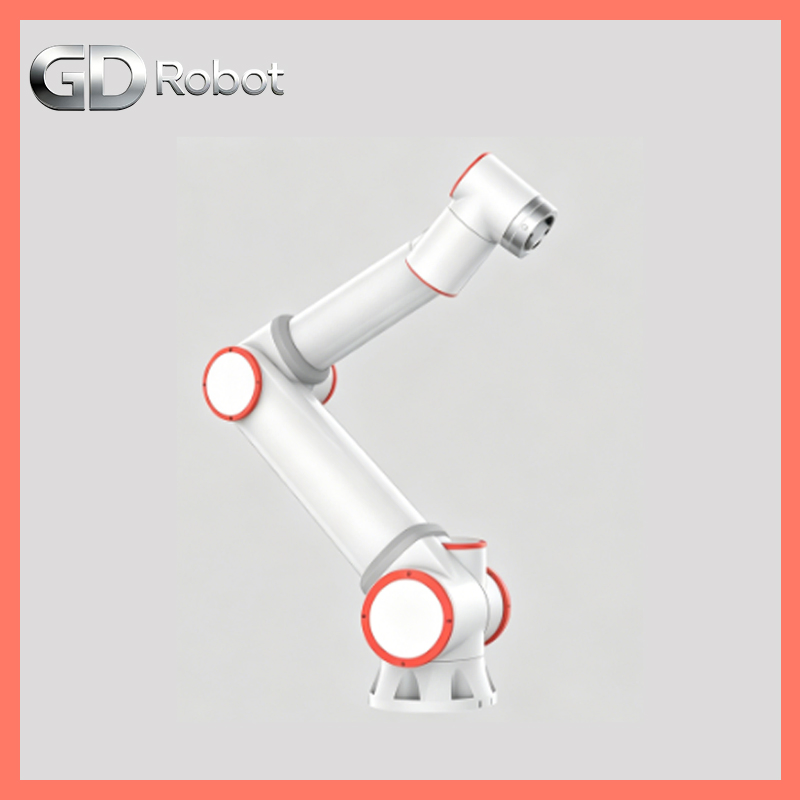

GD30 Collaborative Robot Arm
GD30 Robot Application
⚡ High Capacity 30kg payload collaborative robot arm with 1403mm reach, ideal for heavy-duty workshop loading tasks. Stable for industrial handling and assembly.
🎯 Precision Performance ±0.1mm repeatability ensures reliable precision for high-volume loading and material handling operations.
🛠️ Flexible Integration IP54-rated design supports any mounting orientation, flexible for diverse heavy loading robot integration.
🔇 Low Noise Operation <70dB low noise operation, suitable for continuous use in high-demand industrial production environments.
Technical Specifications
ModelGD30
Payload30kg (Max: 35kg)
Reach1403mm
Degrees of Freedom6 rotating joints
HMI10.1 inch teach pendant, mobile terminal or Web App
Pose Repeatability±0.1mm
Typical TCP Speed2m/s
IP ClassificationIP54 (IP65 Optional)
Noise Level<70dB
Robot MountingAny orientation
Weight≈85kg
Power ConsumptionTypical Average: 600W / Peak: 910W
MaterialsAluminium, Steel

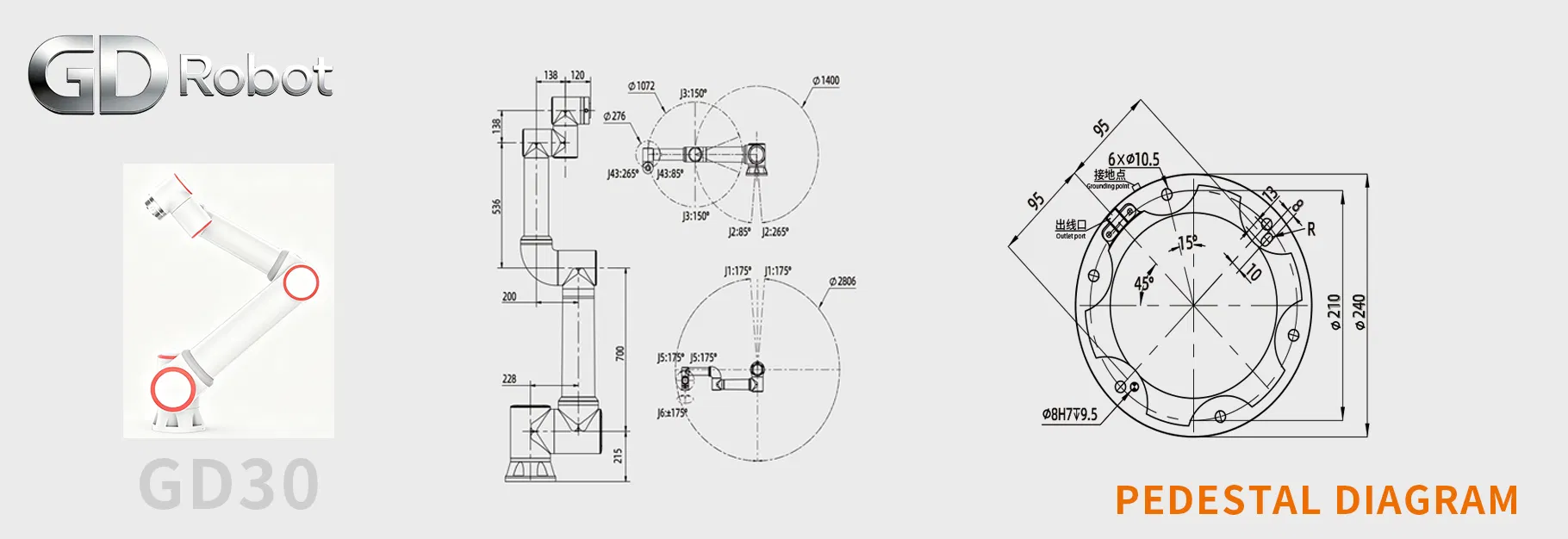

Robot Drawings & Dimensions
Robot Drawings
Packing & Delivery
Packing and Delivery
Hot Selling Solutions
Industrial Robot

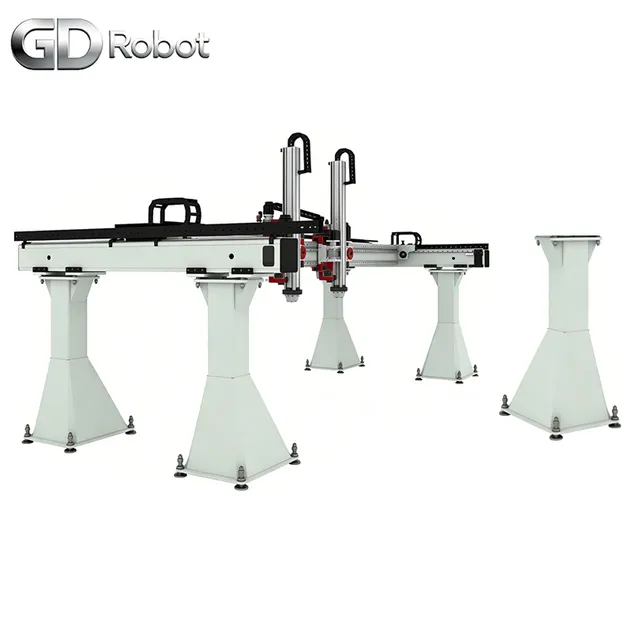

Truss System

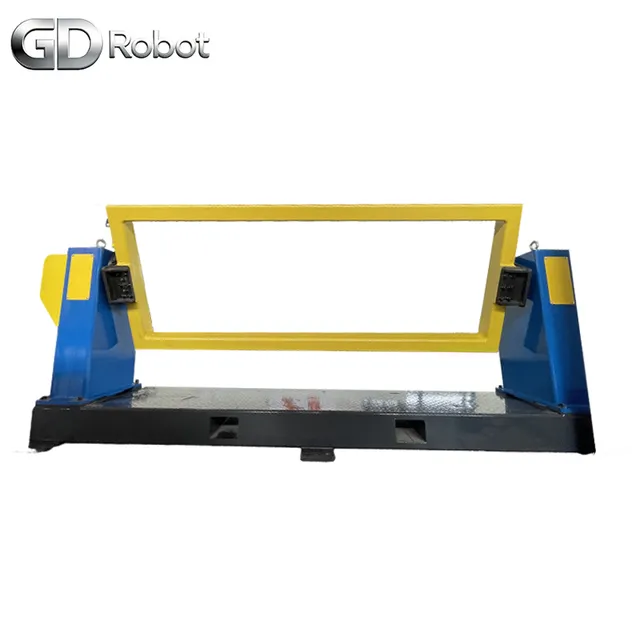

Welding Positioner

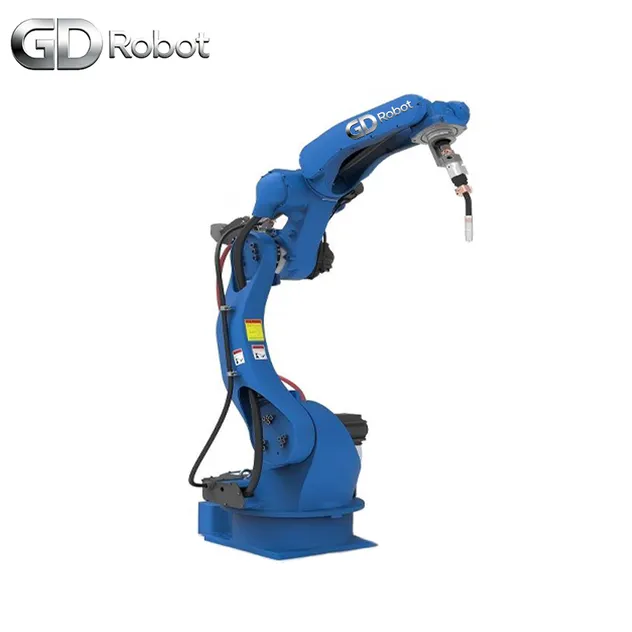

Welding Robot

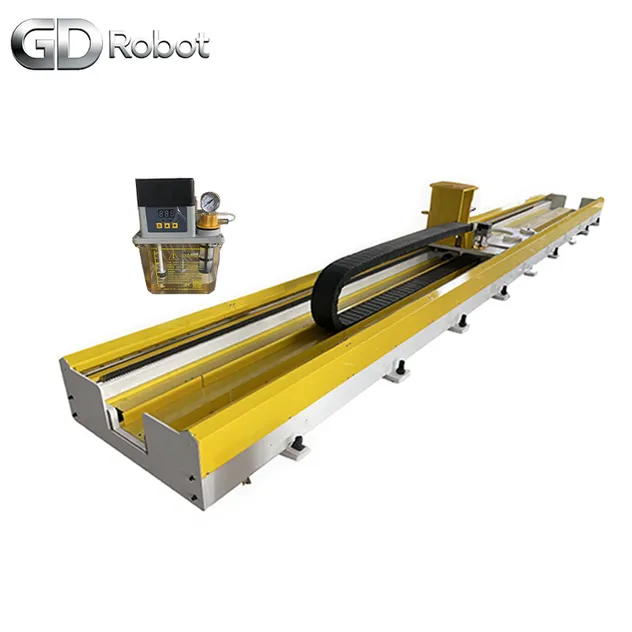

Linear Track

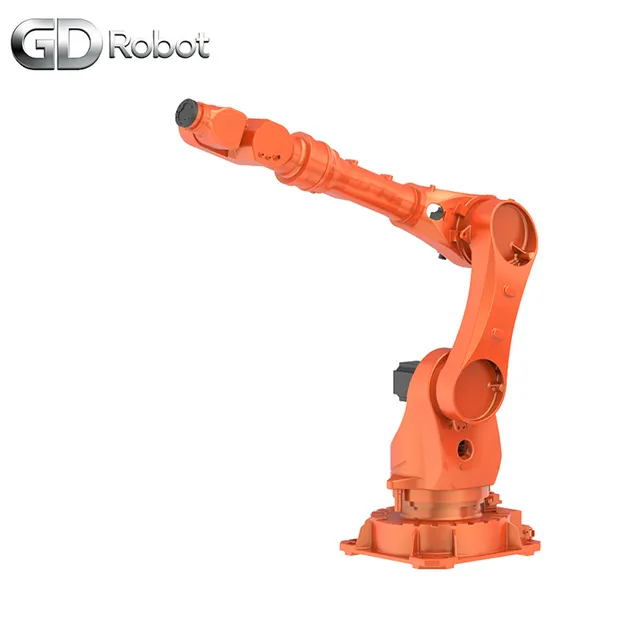

Bending Robot
Company Profile

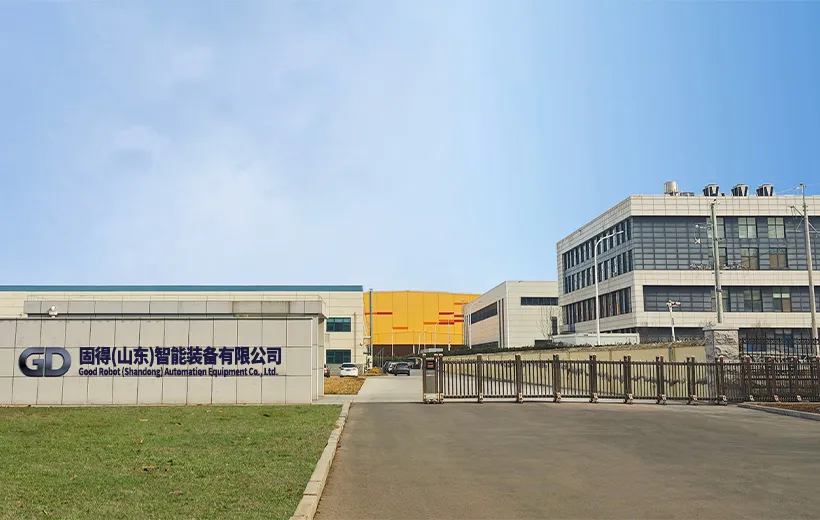

Factory Overview

Established in 2018, the company is a high-tech enterprise specializing in the R&D and production of industrial robots, gantry robots, robot linear guides, and welding positioners. We provide customized automation solutions across various fields including welding, palletizing handling, metal processing, bending, and spraying.

Our products are widely utilized in agricultural machinery, engineering machinery, petroleum machinery, and food processing. With strong production capacity, we produce hundreds of industrial robots and automation systems annually, offering both customized production and OEM/ODM services for global customers.

Certifications
Certificates
Frequently Asked Questions
What is the payload and reach of the GD30 collaborative robot arm?
The GD30 robot arm offers a substantial 30kg payload (max 35kg) and a 1403mm reach, making it ideal for heavy-duty workshop loading and extended-range tasks.
How precise is the GD30 cobot for industrial applications?
It delivers a high pose repeatability of ±0.1mm, ensuring reliable performance for precision-heavy collaborative robot operations.
What environment is the GD30 robot arm suitable for?
With an IP54 standard rating (IP65 optional) and low noise level of <70dB, it is designed for durable use in various industrial production environments.
Can the GD30 arm be mounted in different orientations?
Yes, the GD30 supports mounting in any orientation, providing maximum flexibility for integration into existing production lines.
What control options are available for this robot?
Operators can control the GD30 via a 10.1-inch teach pendant, a mobile terminal, or a convenient Web App interface.
Does the GD30 support OEM customization?
Yes, we provide full OEM services including custom specifications and branding for diverse industrial automation projects.
