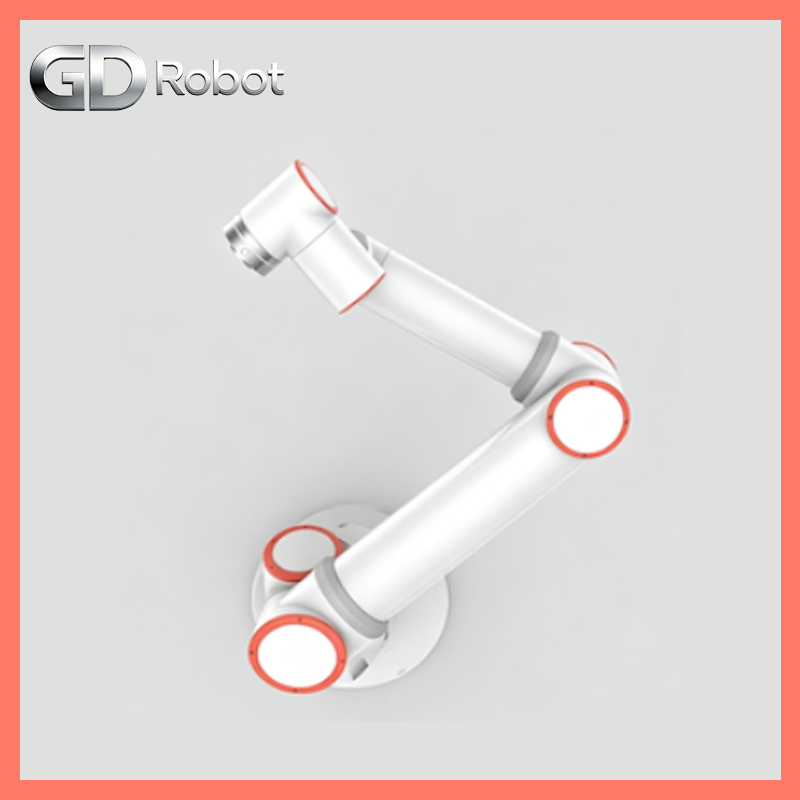

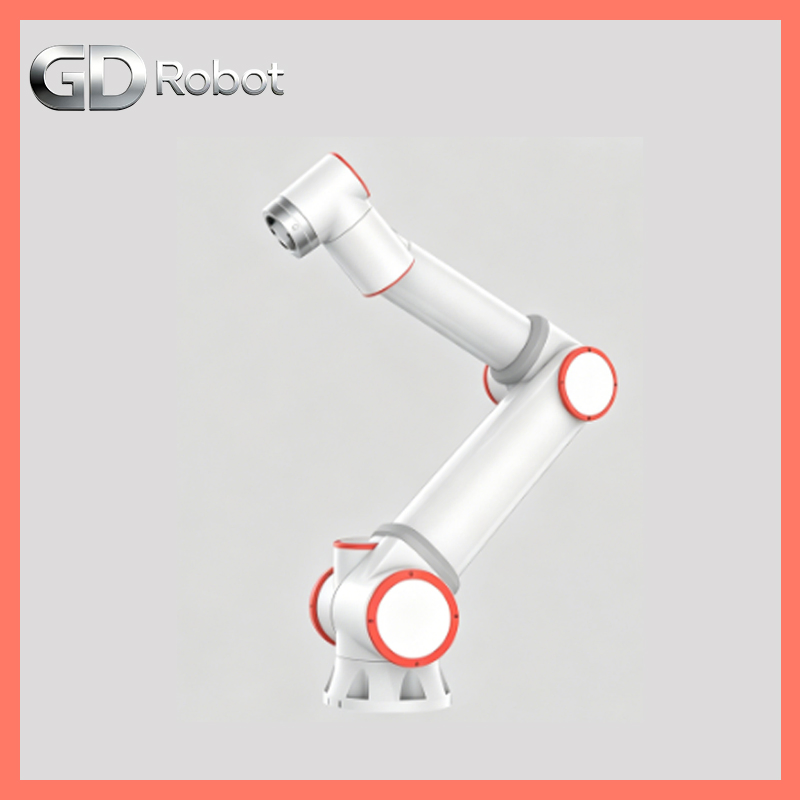

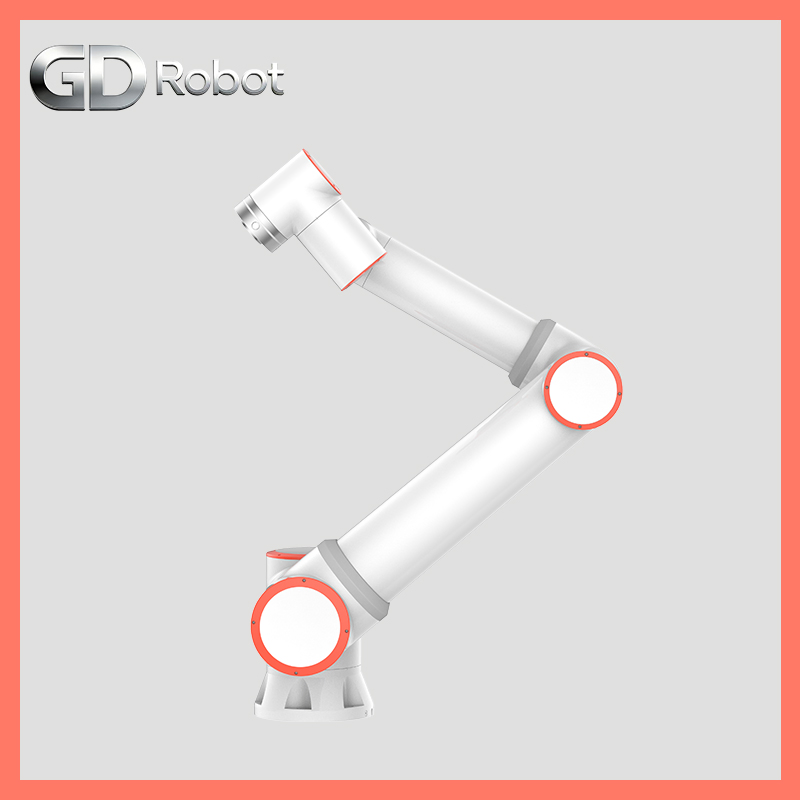

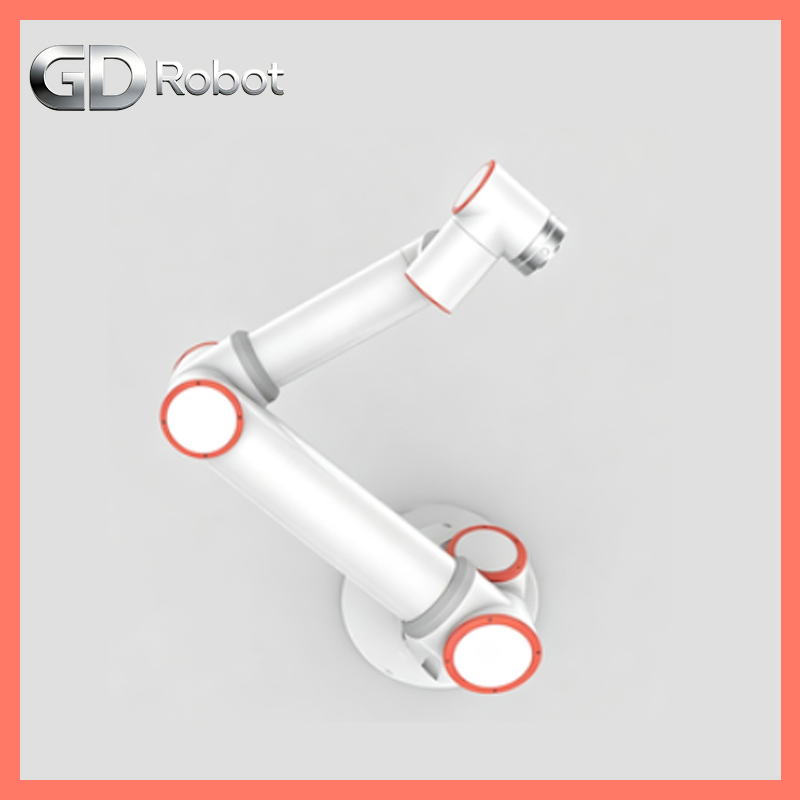

Leading Manufacturer Gd30 6-Axis Collaborative Robot Arm for Heavy Production Line Loading with ±0.1mm Precision & OEM Support
Leading Manufacturer Gd30 6-Axis Collaborative Robot Arm for Heavy Production Line Loading with ±0.1mm Precision & OEM Support
Leading Manufacturer Gd30 6-Axis Collaborative Robot Arm for Heavy Production Line Loading with ±0.1mm Precision & OEM Support
Leading Manufacturer Gd30 6-Axis Collaborative Robot Arm for Heavy Production Line Loading with ±0.1mm Precision & OEM Support
Leading Manufacturer Gd30 6-Axis Collaborative Robot Arm for Heavy Production Line Loading with ±0.1mm Precision & OEM Support
1 / 5
Leading Manufacturer Gd30 6-Axis Collaborative Robot Arm for Heavy Production Line Loading with ±0.1mm Precision & OEM Support
Leading Manufacturer Gd30 6-Axis Collaborative Robot Arm for Heavy Production Line Loading with ±0.1mm Precision & OEM Support
Leading Manufacturer Gd30 6-Axis Collaborative Robot Arm for Heavy Production Line Loading with ±0.1mm Precision & OEM Support
Leading Manufacturer Gd30 6-Axis Collaborative Robot Arm for Heavy Production Line Loading with ±0.1mm Precision & OEM Support
Leading Manufacturer Gd30 6-Axis Collaborative Robot Arm for Heavy Production Line Loading with ±0.1mm Precision & OEM Support

Leading Manufacturer Gd30 6-Axis Collaborative Robot Arm for Heavy Production Line Loading with ±0.1mm Precision & OEM Support

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

📊

Basic Information

Model NO.
GD-30
Drive Mode
Electric
Payload Capacity
30kg (Max: 35kg)
Reach
1403mm
Pose Repeatability
±0.1mm
IP Classification
IP54 (IP65 Optional)
Noise
<70db
Typical TCP Speed
2m/S
I/O Ports
Di: 2 / Do: 2; Ai: 1 / Ao: 1
Origin
China
🤖

Product Description

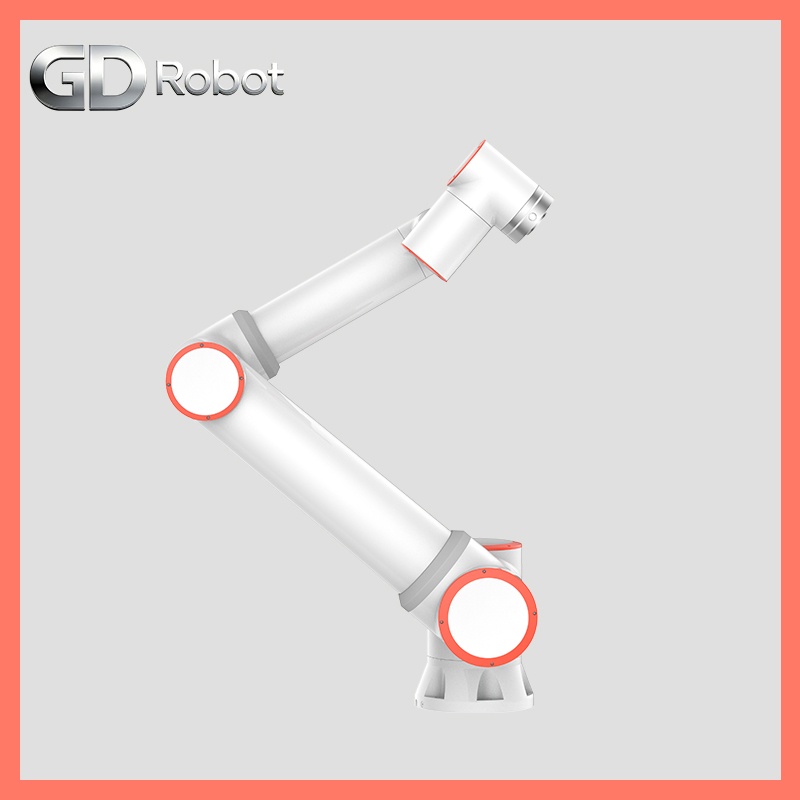

6-Axis Collaborative Robot Arm
Heavy Production Line Loading Robot
  • Payload 30kg collaborative robot arm with 1403mm reach, ideal for heavy-duty workshop loading tasks.
  • High-load cobot with max 35kg capacity, stable for industrial handling and heavy assembly applications.
  • ±0.1mm repeatability ensures reliable precision for high-volume loading and material handling operations.
  • IP54-rated design supports any mounting orientation, flexible for diverse heavy loading robot integration.
  • <70dB low noise operation, suitable for continuous use in high-demand industrial production environments.
  • Multi-control options including teach pendant and Web App.
📋

Technical Specification

Parameter Specification
ModelGD30
Payload30kg (Max: 35kg)
Reach1403mm
Degrees of Freedom6 rotating joints
HMI10.1 inch teach pendant, mobile terminal or Web App
Pose Repeatability±0.1mm
Typical TCP Speed2m/s
Base Movement±175° / ±120°/s
Shoulder Movement+85° / -265° / ±120°/s
Elbow Movement±160° / ±120°/s
IP ClassificationIP54 (IP65 Optional)
Footprint240mm
Weight≈85kg
Operating Temperature0-45°C
Typical Average Power600W
📐

Robot Drawings

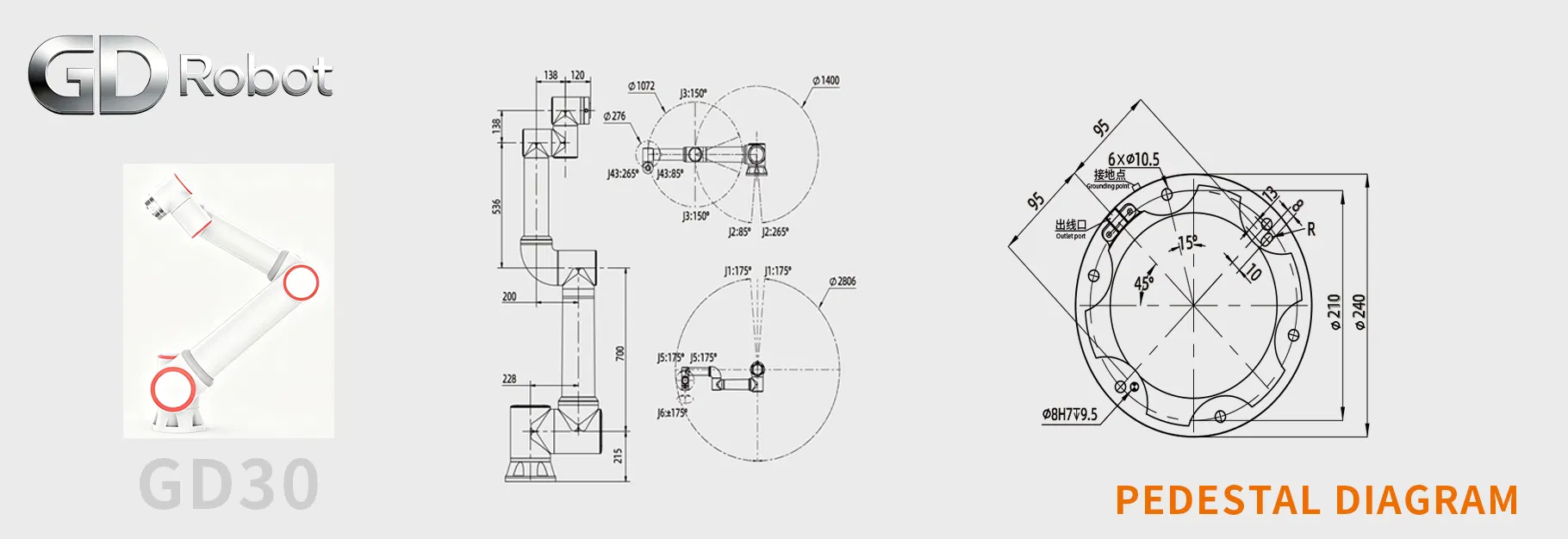

Robot Technical Drawings
📦

Packing & Delivery

Packing and Delivery
Package Size
135.00cm * 60.00cm * 60.00cm
Gross Weight
95.000kg
Lead Time
10 days (1 - 1 Pieces)
🔥

Hot Selling Products

Industrial Articulated Robot

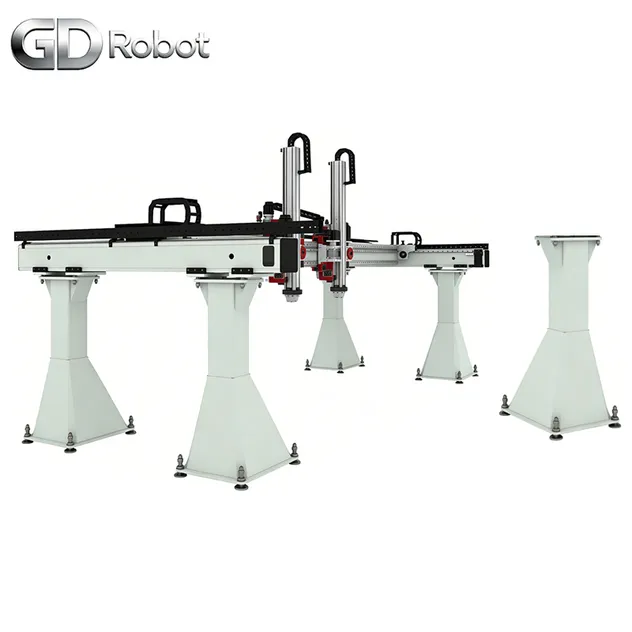

Truss System

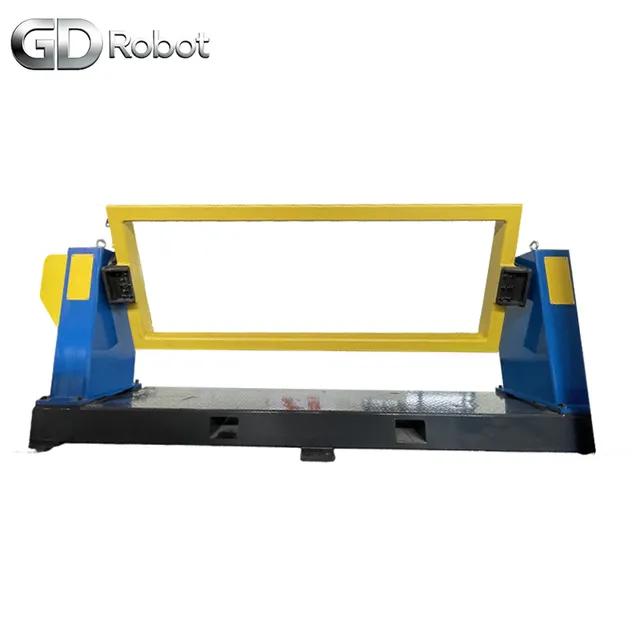

Welding Positioner

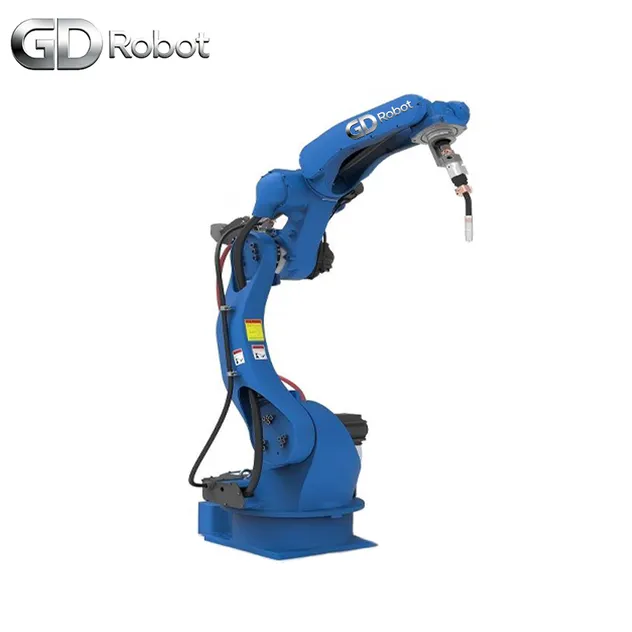

Welding Robot System

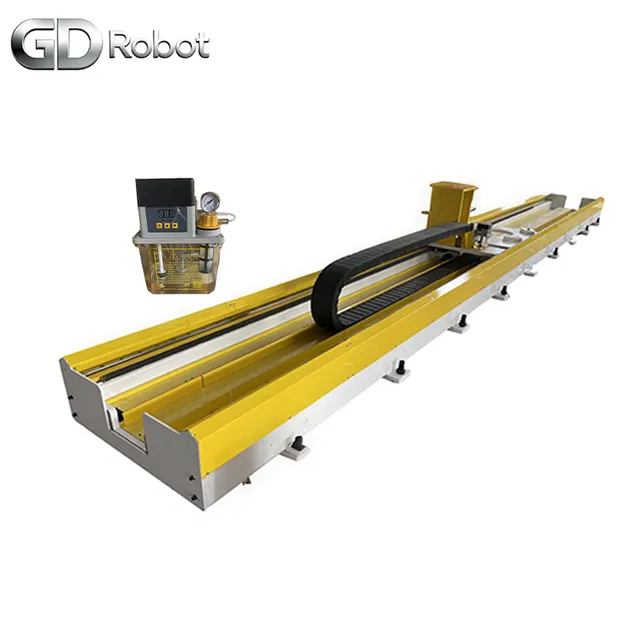

Robot Linear Track

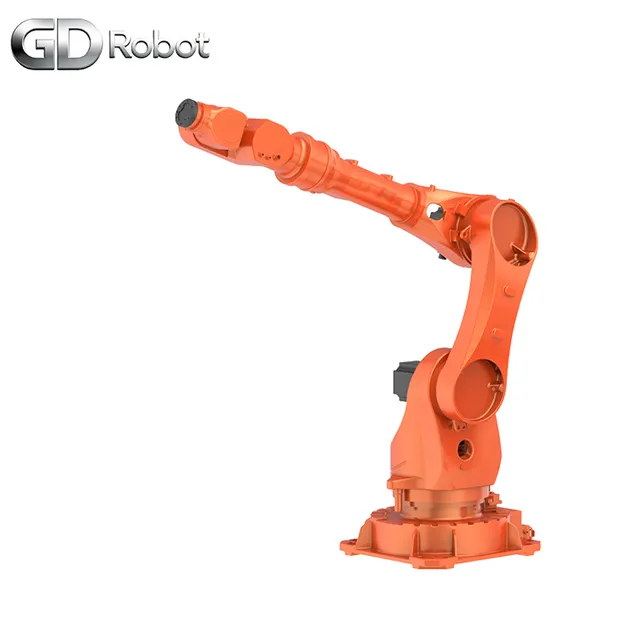

CNC Bending Robot
🏢

Company Profile

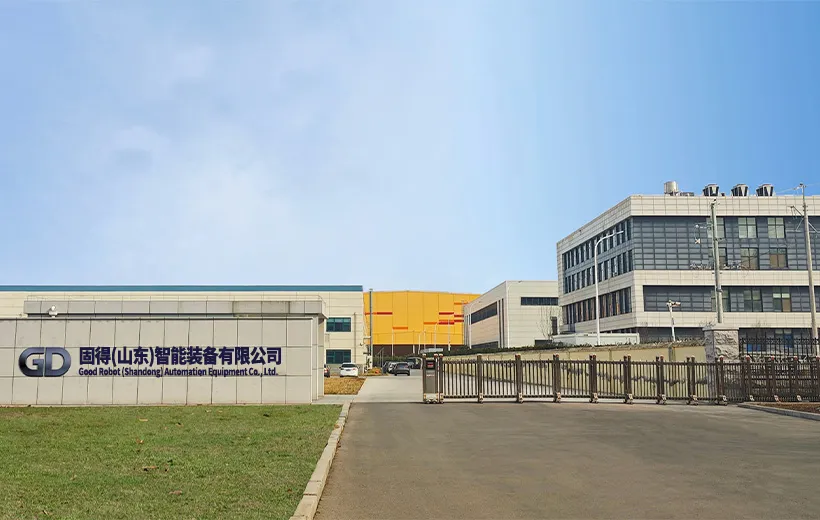

Factory Overview
Established in 2018, the company is a high-tech enterprise specializing in the R&D and production of industrial robots, gantry robots, robot linear guides, and welding positioners, while also providing customers with customized automation solutions. The business covers a wide range of industrial fields, including welding, palletizing handling, metal processing, bending, and spraying.
With strong production capacity, the core manufacturing base can produce more than 60 sets of robot linear guides, over 1,000 welding positioners, and more than 200 sets of gantry robot systems annually. Over 50 types of automation solutions and more than 300 industrial robots are provided each year, offering customized production as well as OEM/ODM services for global customers.
Production Line 1
Production Line 2
📜

Certifications

Quality Certifications
❓

Frequently Asked Questions

Q1: What is the maximum payload of the GD30 robot arm?
A: The GD30 offers a standard 30kg payload with a maximum capacity of 35kg, making it highly effective for heavy industrial loading.
Q2: How far can the GD30 reach during operation?
A: The robot arm has an extensive reach of 1403mm, suitable for large-scale workshop environments.
Q3: What is the precision level of this collaborative robot?
A: It features high precision with a pose repeatability of ±0.1mm, ensuring consistent performance in sensitive tasks.
Q4: Can this robot be integrated into existing environments easily?
A: Yes, it supports mounting in any orientation and comes with multiple control options including a teach pendant and Web App.
Q5: Is the GD30 suitable for noisy factory settings?
A: The GD30 operates at a low noise level of less than 70dB, which is excellent for collaborative environments.
Q6: Do you provide customization for special industrial needs?
A: Yes, full OEM and ODM services are available, including custom technical specifications and branding.
