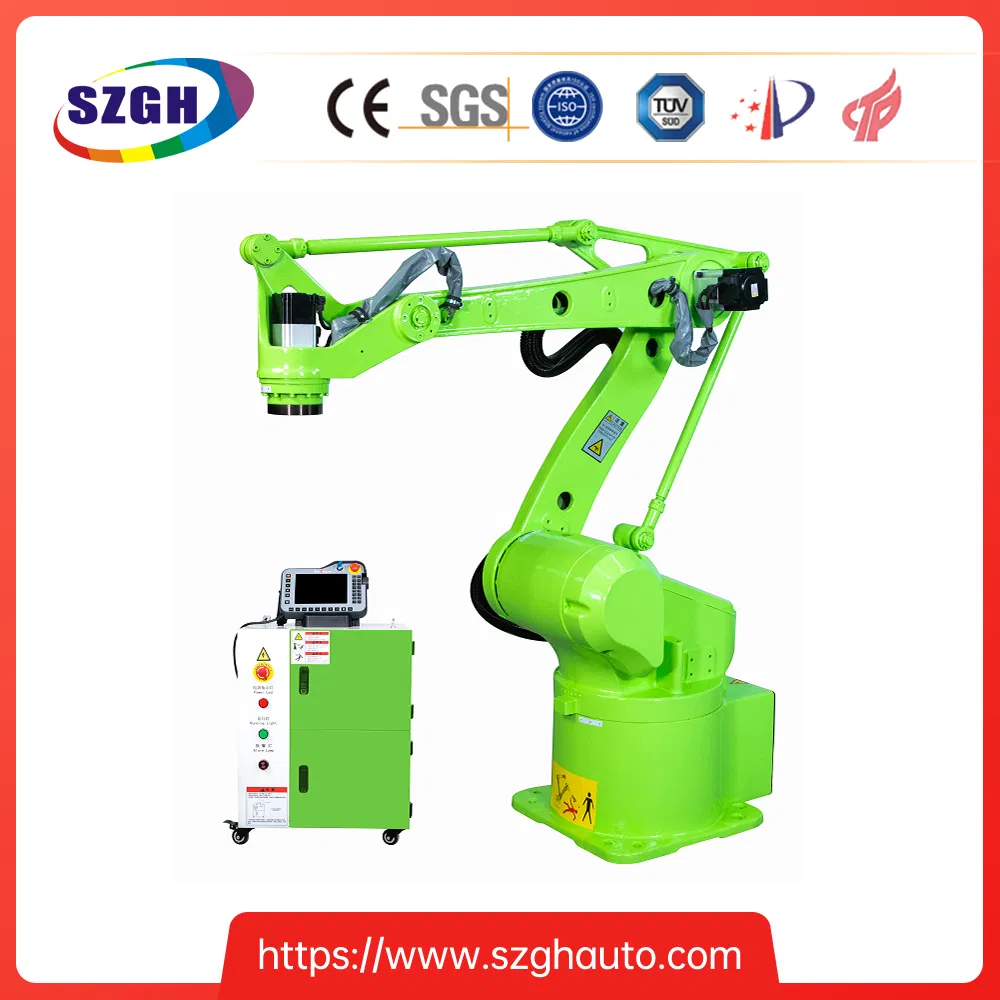

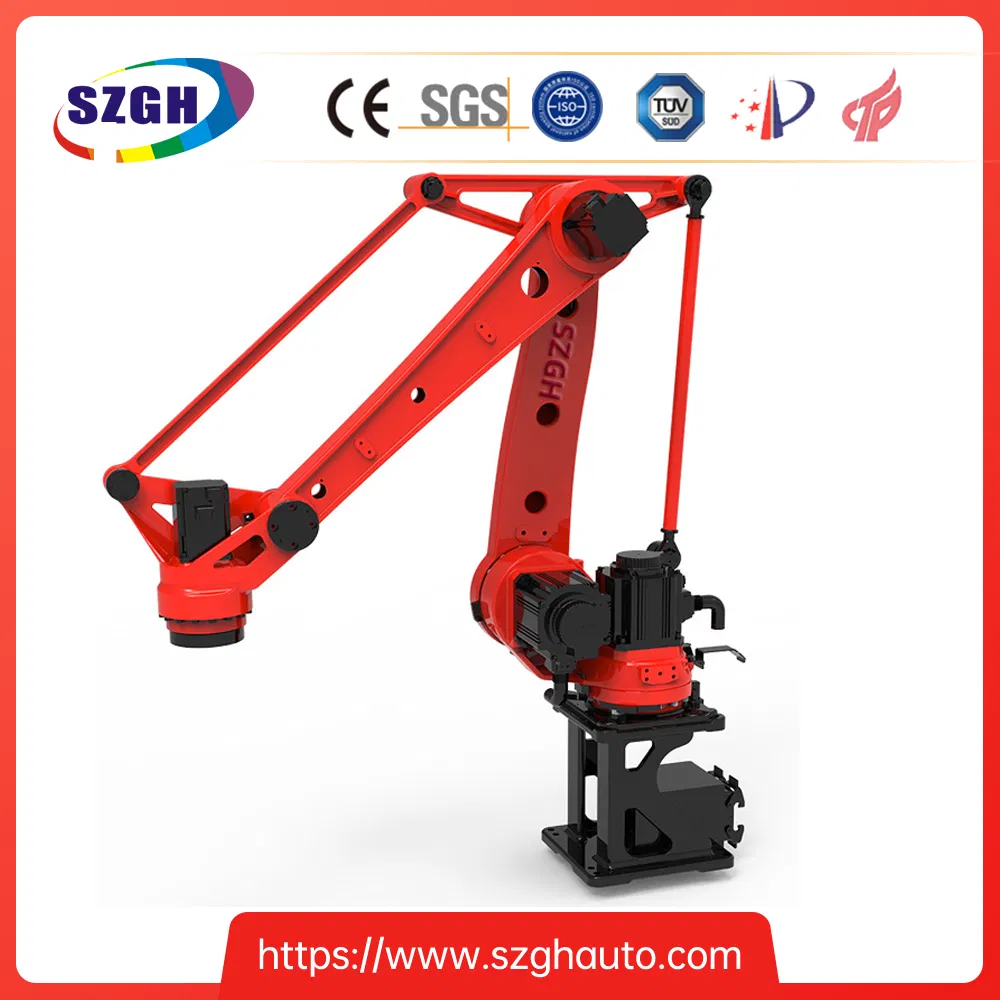

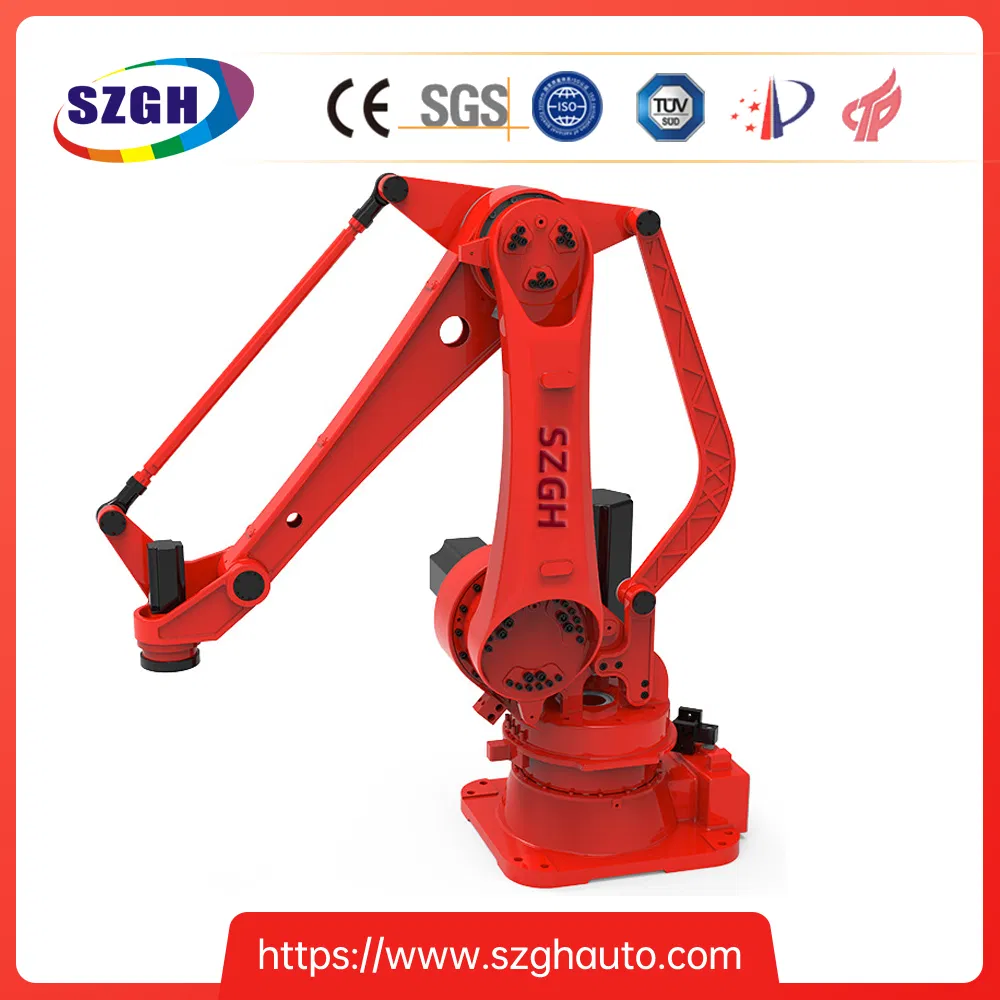

Versatile 4 Axis Robotic Arm for Efficient Heavy Payload Handling

Customization: Available
Application: Welding, Loading, Forging
Control Mode: Point to Point Control

Product Description

Basic Information
Model NO.B3100-G-4
Drive ModeElectric
TypeHandling Robot Arm
Axes4 - 11 axes
Reach3100mm
Payload165kg
StructureArticulated
Repeatability0.02mm
Weight660kg
CertificationISO, CE, RoHS
Product Description
Robotic Arm Feature
Heavy Payload Handling

The B3100-G-4 robot is dedicated to handling tasks, offering easy operation, high efficiency, and enhanced safety. This model features an intelligent robot control system. Customizable robotic solutions are available to meet specific industrial needs, including mass-produced 9-axis linkage robots.

Model Detail
Payload165kg
Reach3100mm
ApplicationHandling
Warranty12 Months
SupportVideo & Online Technical Support

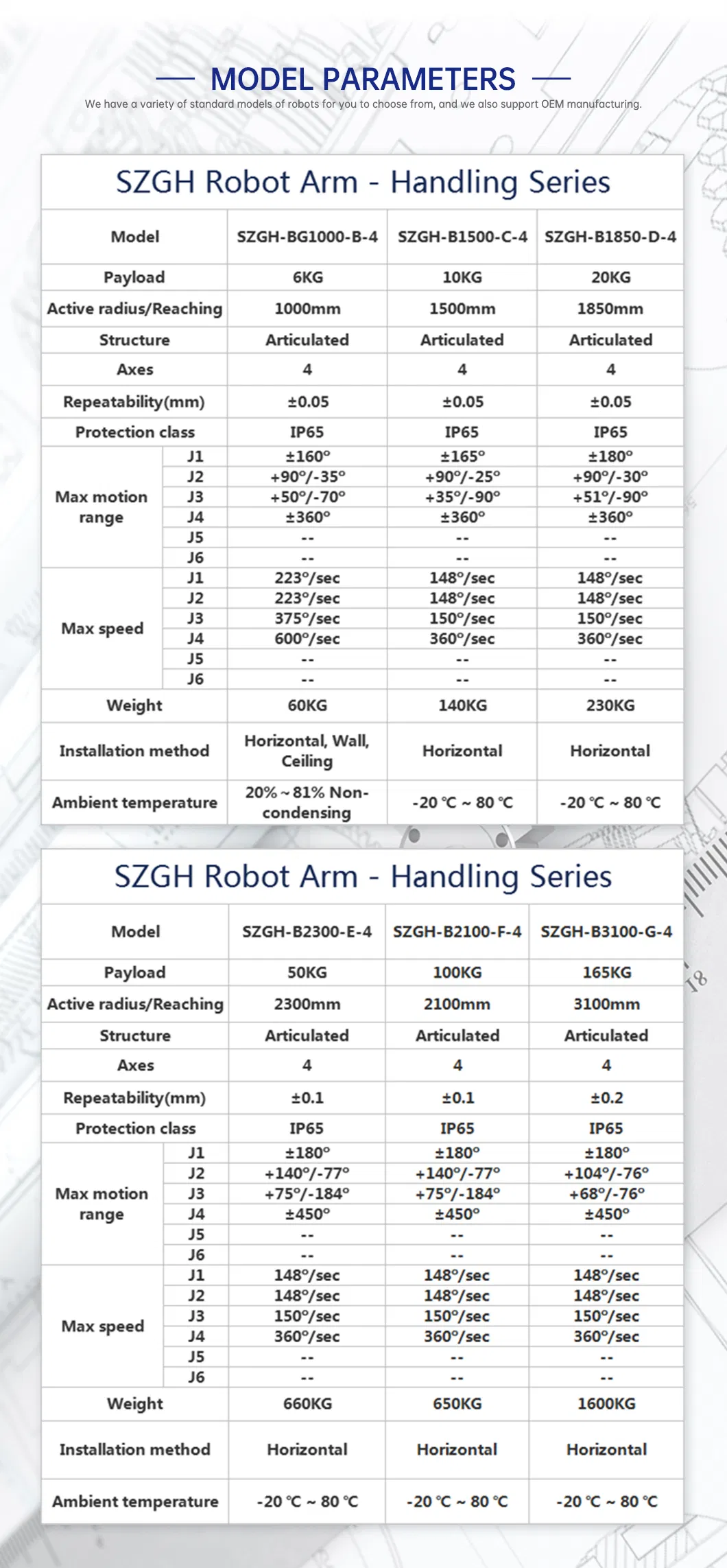

Technical Layout
Component Detail

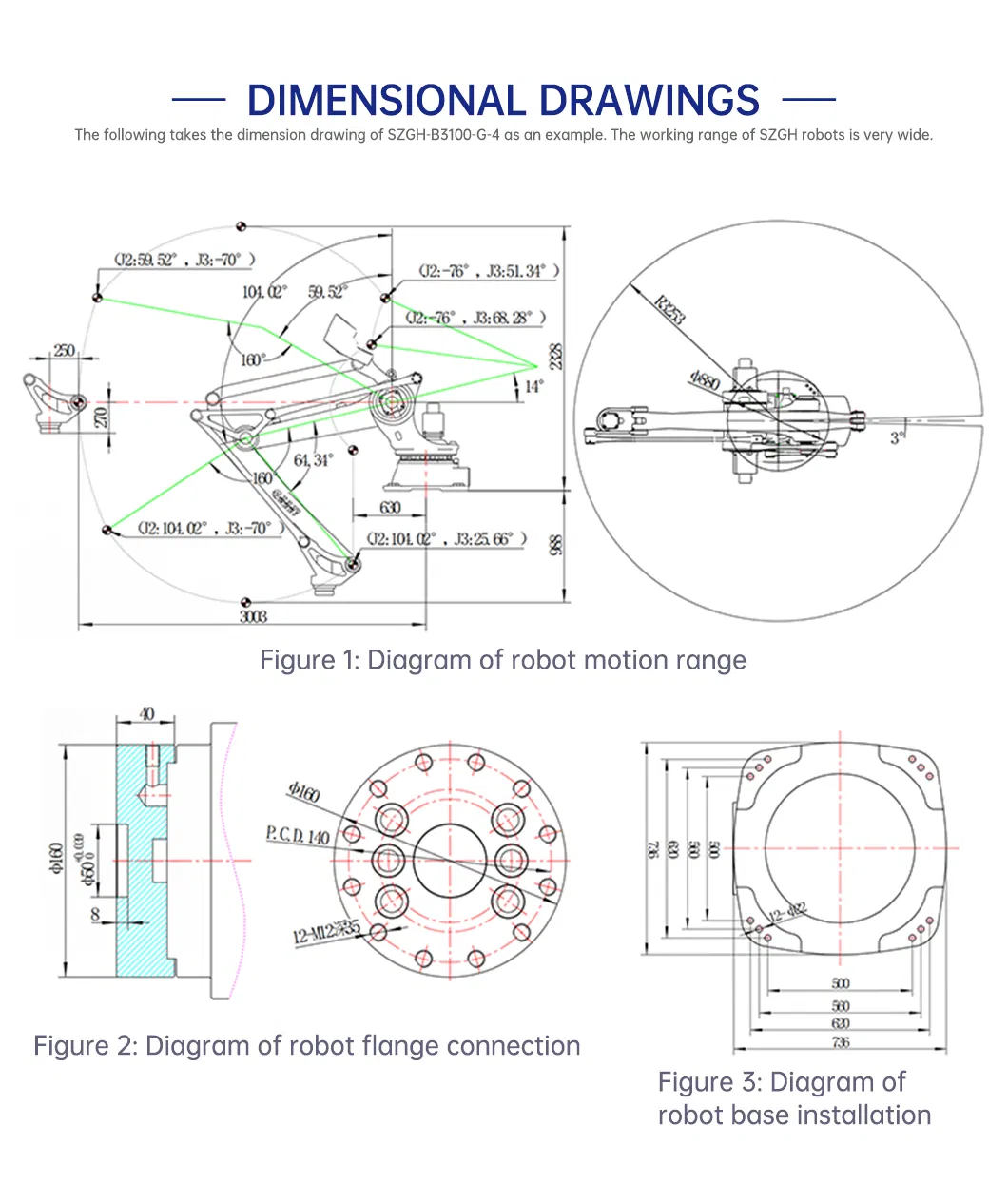

Dimension
Key Features
⚙️
Multi-Axis Control: Supports up to 12 axis control, including external traveling axes and positioners.
📊
Optimized Algorithms: Structural optimization algorithms suitable for various body control structures.
🌐
Open Architecture: Open structure for synchronization with international technology and functional extension.
💻
Software PLC: Integrated PLC functions facilitate logic control and simplify process programming.
🛡️
Safety First: Modular safety settings and anomaly detection ensure safe robot production.
ParameterSpecification
Storage2 GB
Teaching BoxFull keyboard + touch screen, mode select, emergency switch
Controlled Axes6 basic axes + 6 external axes
InterfaceMultiple encoder, Ethernet, Serial communication
Motion FunctionPoint-to-point, linear, circular
Anomaly DetectionEmergency stop, servo anomaly, anti-collision, safety maintenance

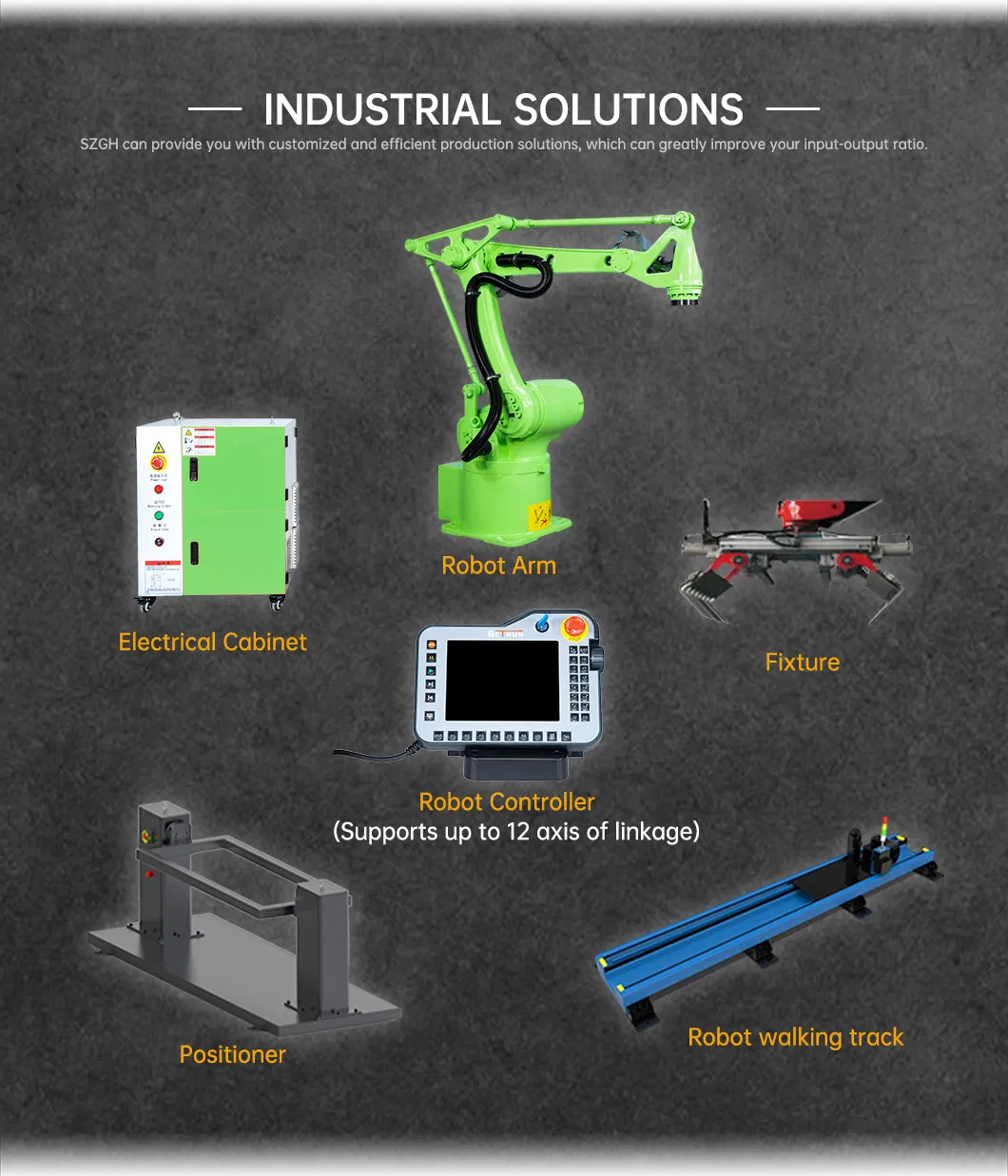

Axis Detail

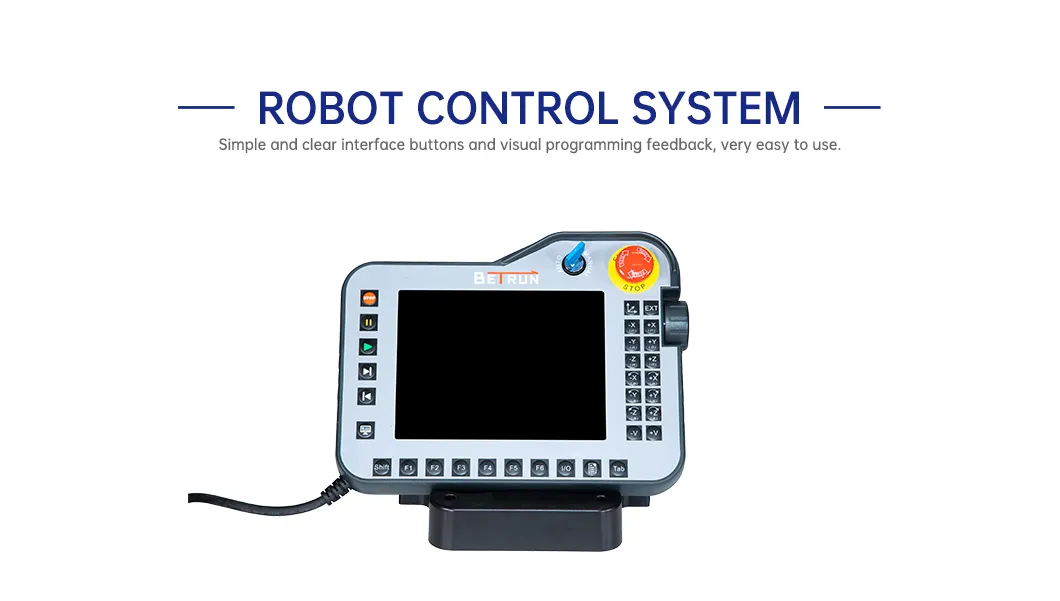

Control System

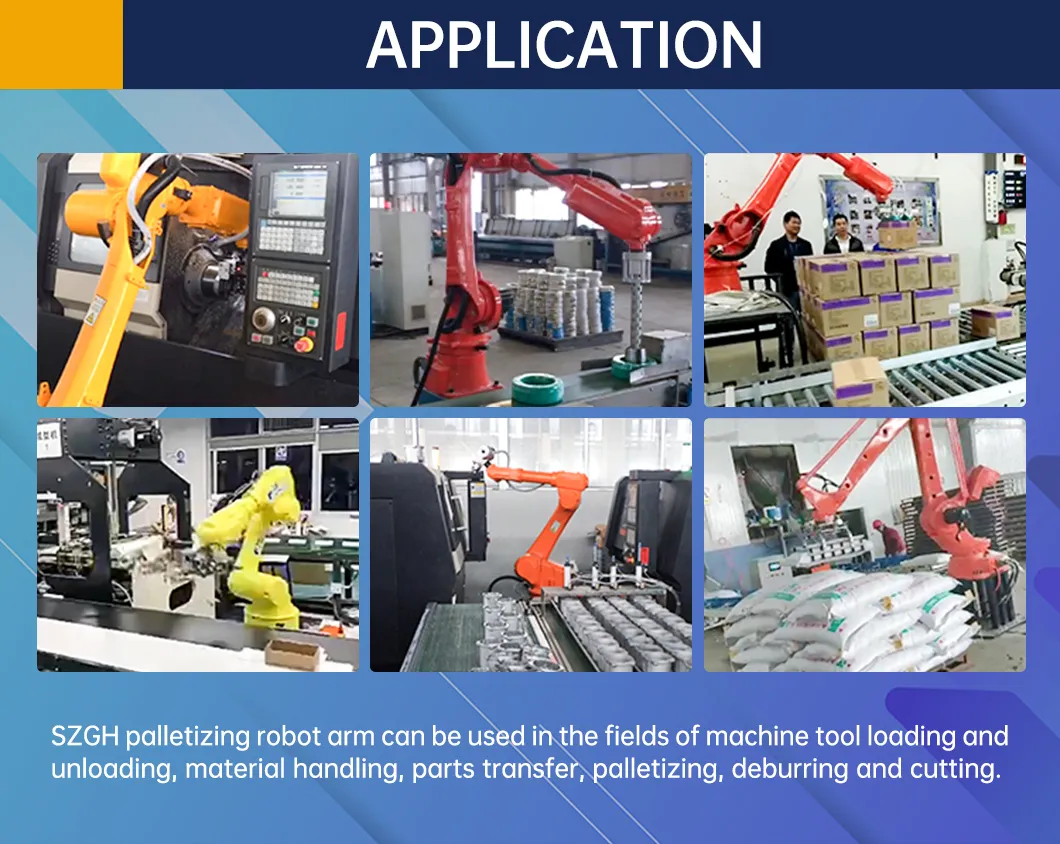

Application Overview

Technical Diagram
Frequently Asked Questions
1. What solutions do you provide?
We provide CNC total solutions and industrial robot arms with over 10 years of technical and international sales experience.
2. How is product quality guaranteed?
Quality is ensured through full pre-testing by professional engineers and a final 100% inspection before every shipment.
3. What types of industrial robots are available?
We offer industrial robot arms for welding, painting, spraying, material handling, pick-and-place, grinding, and other customized solutions.
4. Why choose these robotic solutions over others?
We provide suitable package solutions, professional technical support, customized designs, and a high-quality guarantee with competitive quotations.
5. What delivery and payment terms are accepted?
We accept various delivery terms including FOB, CFR, CIF, EXW, and DDP. Payment can be made via T/T, L/C, Credit Card, or PayPal in multiple currencies such as USD, EUR, and CNY.
6. What programming modes are supported?
The system supports online teaching, process programming, and teaching by dragging for intuitive operation.
