Product Description

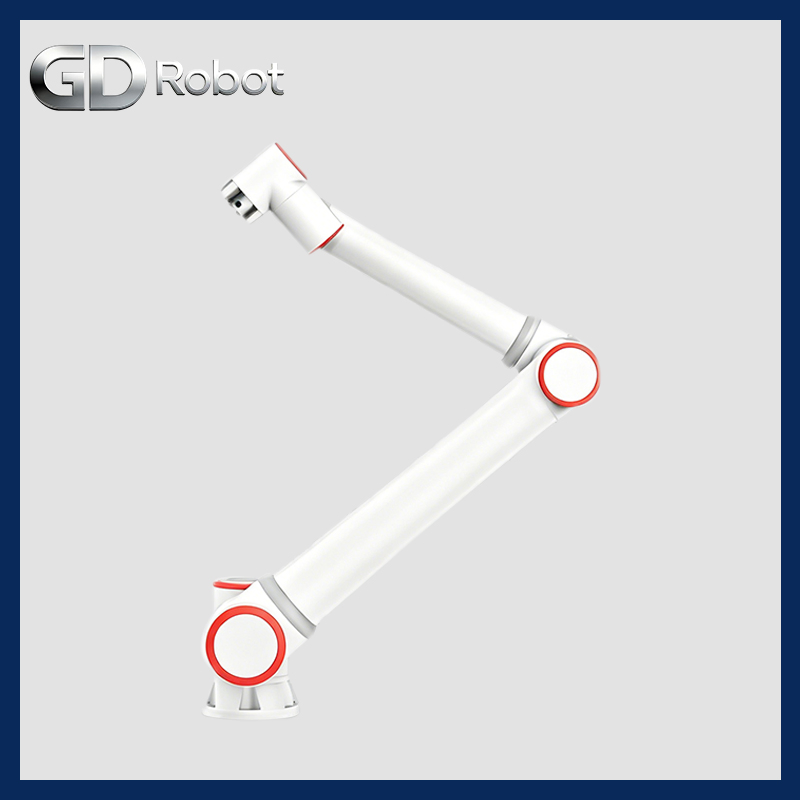

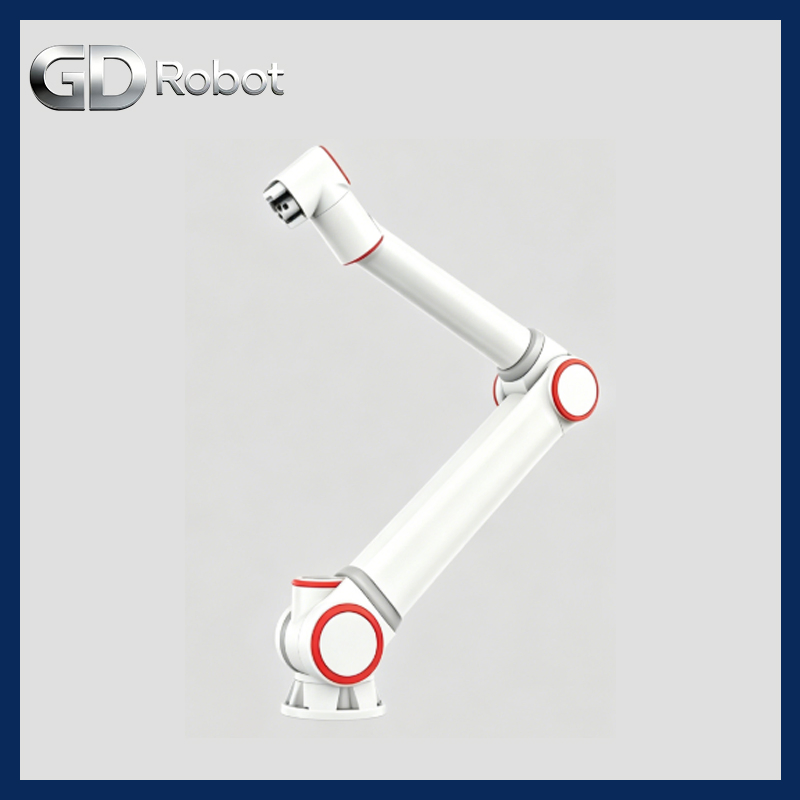

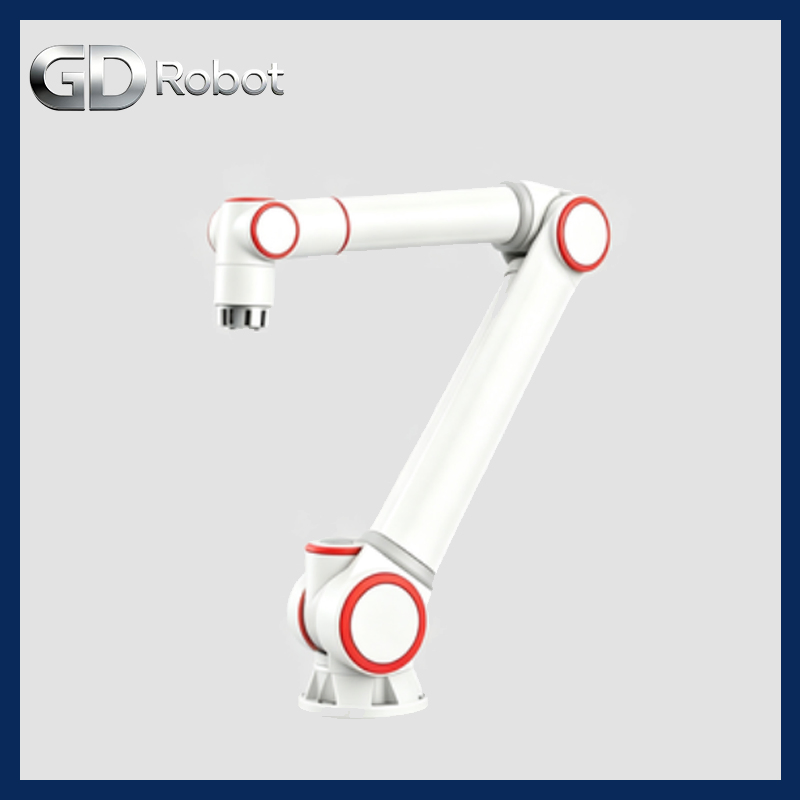

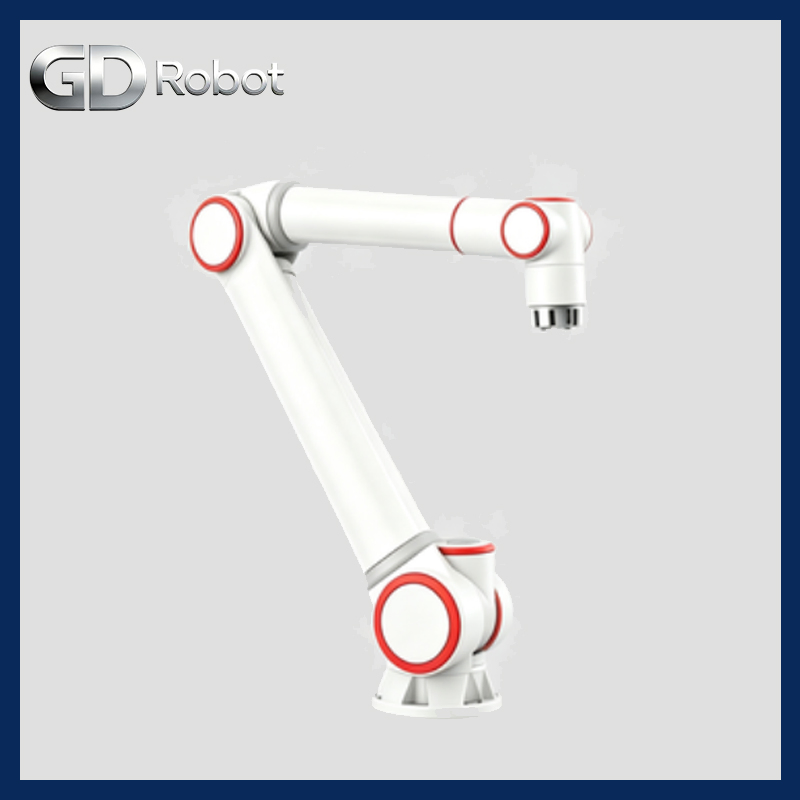

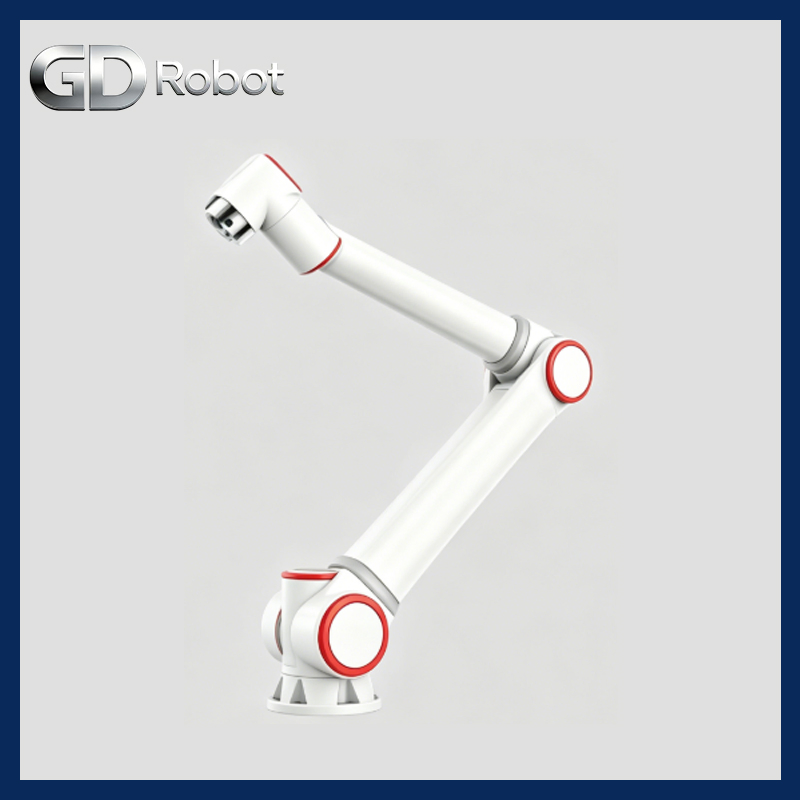

GD20 Collaborative Robot Arm

GD20 Collaborative Robot Arm 1
GD20 Collaborative Robot Arm 2
◈ Payload 20kg collaborative robot arm with 1854mm reach, ideal for heavy workshop loading tasks.
◈ High payload cobot with max 25kg capacity, stable for industrial handling applications.
◈ ±0.1mm repeatability ensures high precision for assembly and loading operations.
◈ IP54-rated design supports any mounting orientation for flexible loading integration.
◈ Low noise operation (<70dB), suitable for continuous use in production environments.
◈ Factory direct OEM customization available for custom loading robot projects.

Technical Specifications

Parameter Specification
ModelGD20
Payload20kg (Max: 25kg)
Reach1854mm
Degrees of Freedom6 rotating joints
HMI10.1 inch teach pendant or mobile terminal
Pose Repeatability±0.1mm
Typical TCP Speed2m/s
IP ClassificationIP54 (IP65 Optional)
Noise<70dB
Robot MountingAny orientation
Weight≈85kg
Operating Temperature0-45°C
MaterialsAluminium, Steel
Average Power620W

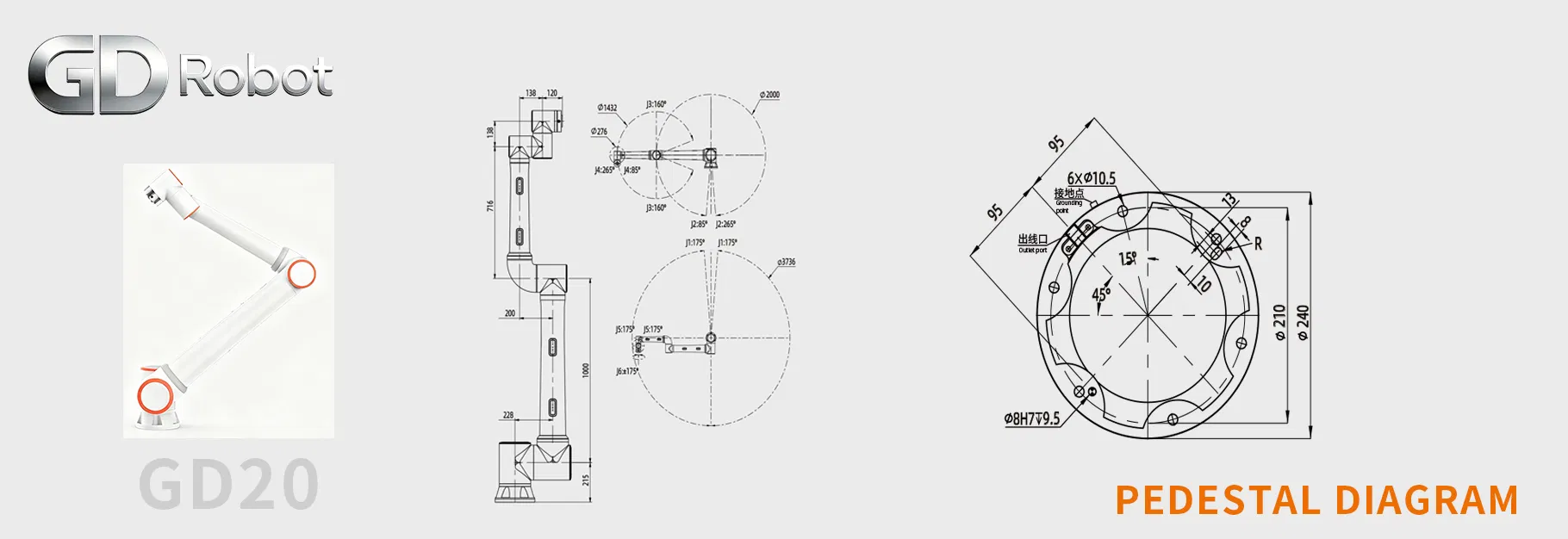

Technical Drawings

Robot Drawings

Packing & Delivery

Packing and Delivery

Related Automation Solutions

Industrial Robot 1

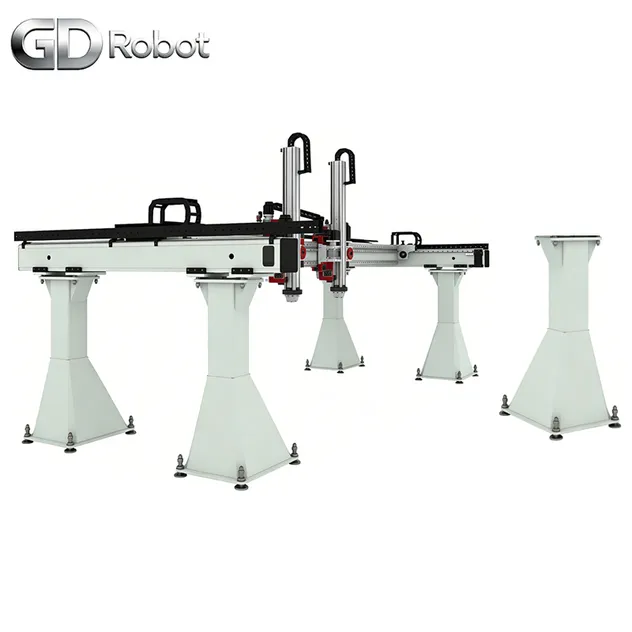

Truss System

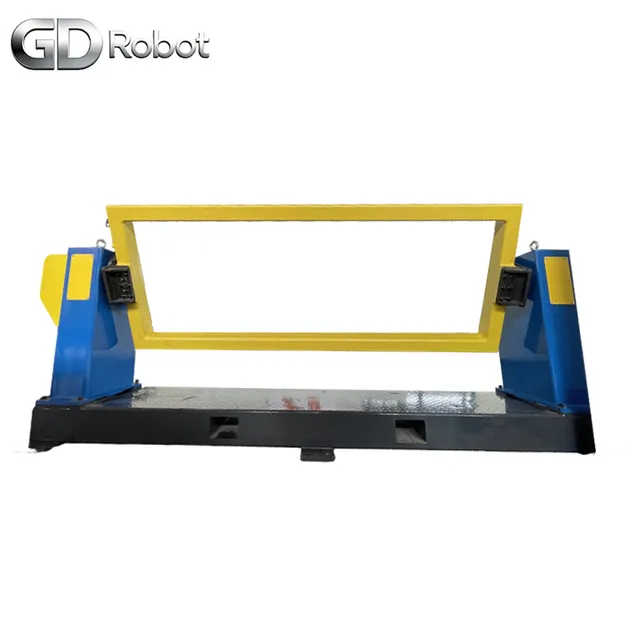

Welding Positioner

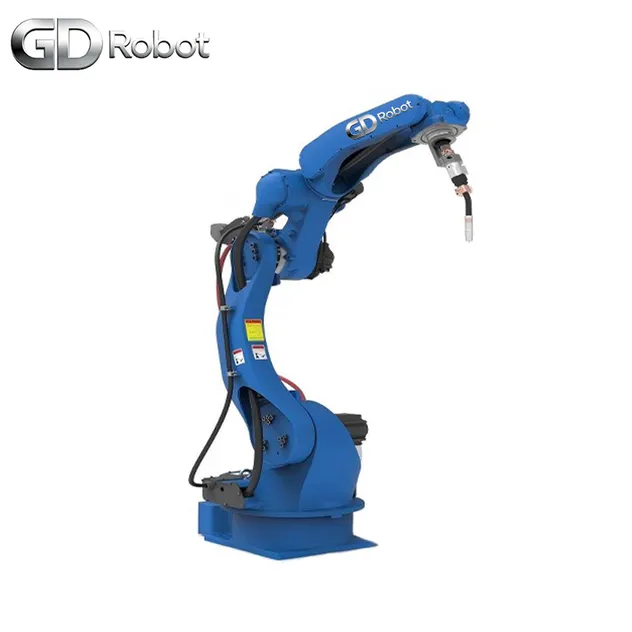

Automatic Welding Robot

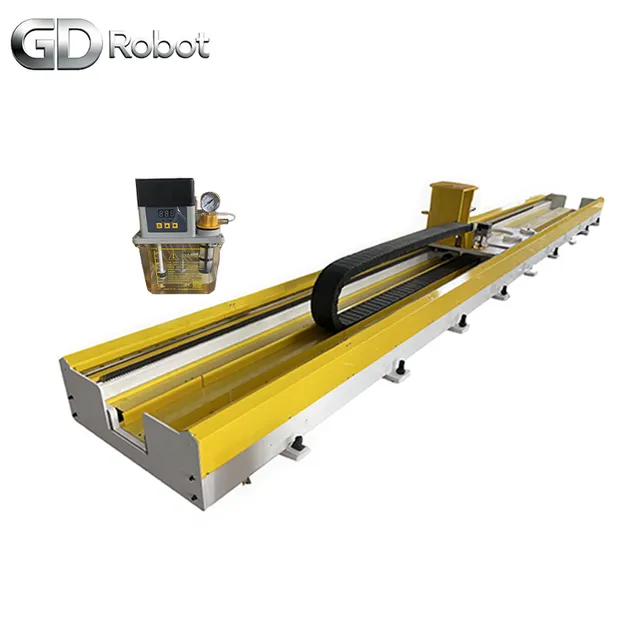

Robot Linear Track

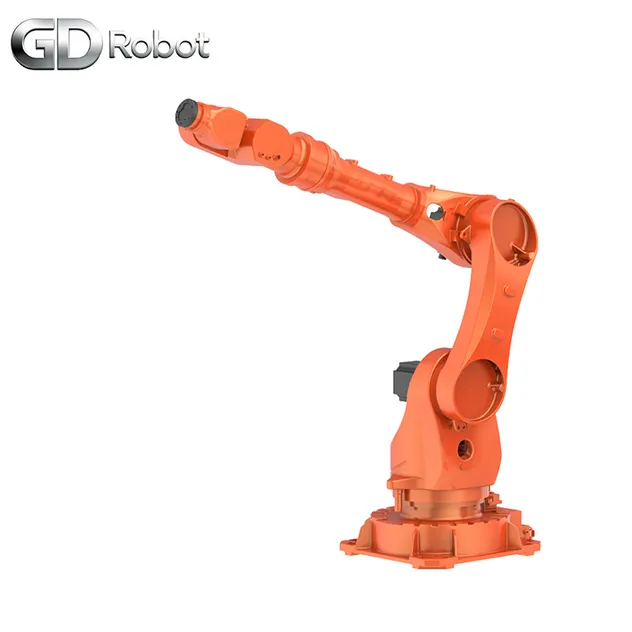

Bending Robot

Automation Expertise

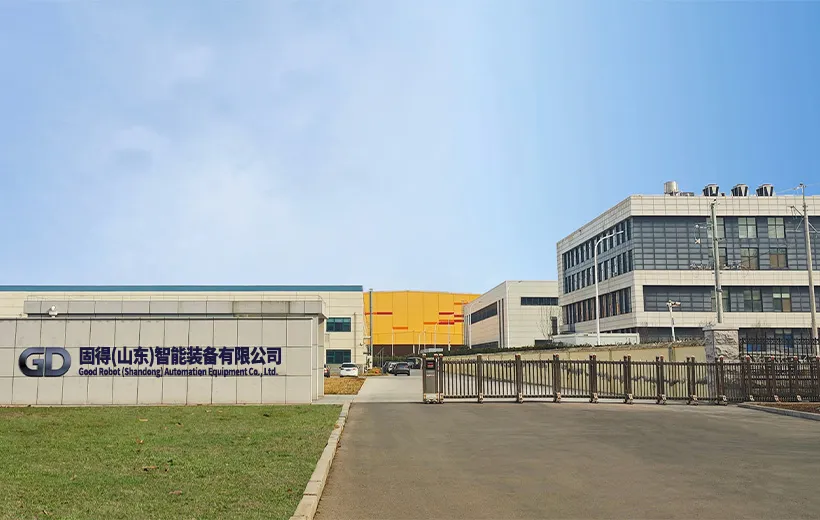

Production Base
This high-tech enterprise specializes in the R&D and production of industrial robots, gantry robots, robot linear guides, and welding positioners. Business covers a wide range of industrial fields, including welding, palletizing handling, metal processing, bending, and spraying. Products are widely used in agricultural machinery, engineering machinery, petroleum machinery, forging processing, warehousing, and food processing industries.
Workshop 1
Workshop 2
Project 1
Project 2
Project 3

Certifications

Product Certifications

Frequently Asked Questions

What is the payload capacity of the GD20 collaborative robot arm?
The GD20 offers a standard 20kg payload with a maximum capacity of 25kg, making it ideal for heavy-duty loading and handling.
What is the maximum working reach?
This model features an impressive 1854mm reach, providing an extended range for complex loading and unloading tasks.
How precise is the GD20 robot?
It delivers high precision with a pose repeatability of ±0.1mm, ensuring consistent quality in assembly and industrial operations.
Does it support flexible mounting?
Yes, the GD20 is designed to be mounted in any orientation, offering maximum flexibility for integration into existing production lines.
What is the protection rating and noise level?
It has a standard IP54 rating (IP65 optional) and operates quietly at less than 70dB, suitable for industrial workshop environments.
Is OEM customization available?
Yes, full OEM and ODM services are provided to meet specific project requirements and branding needs.
