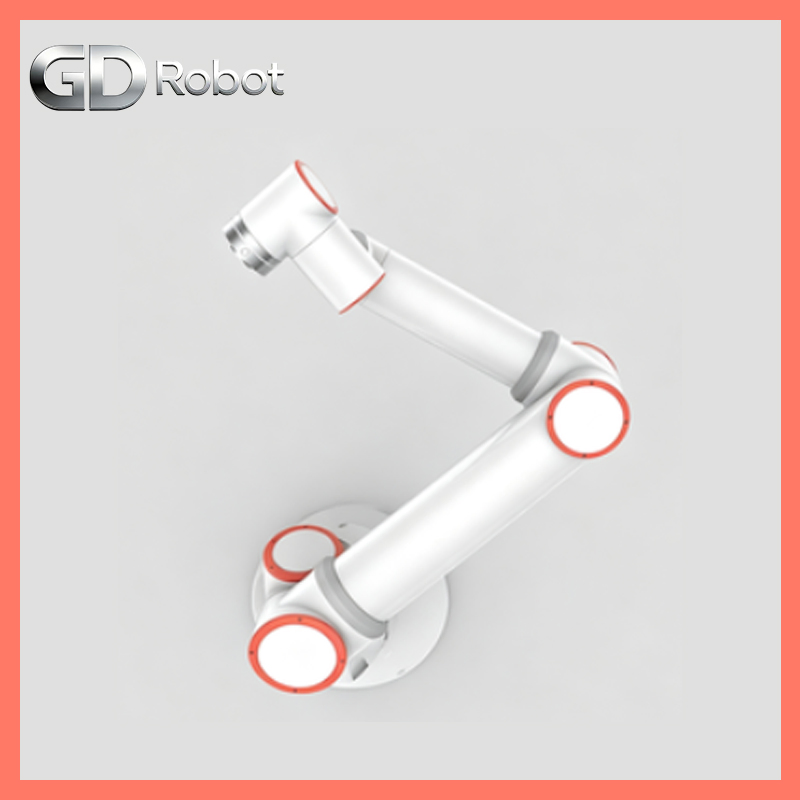

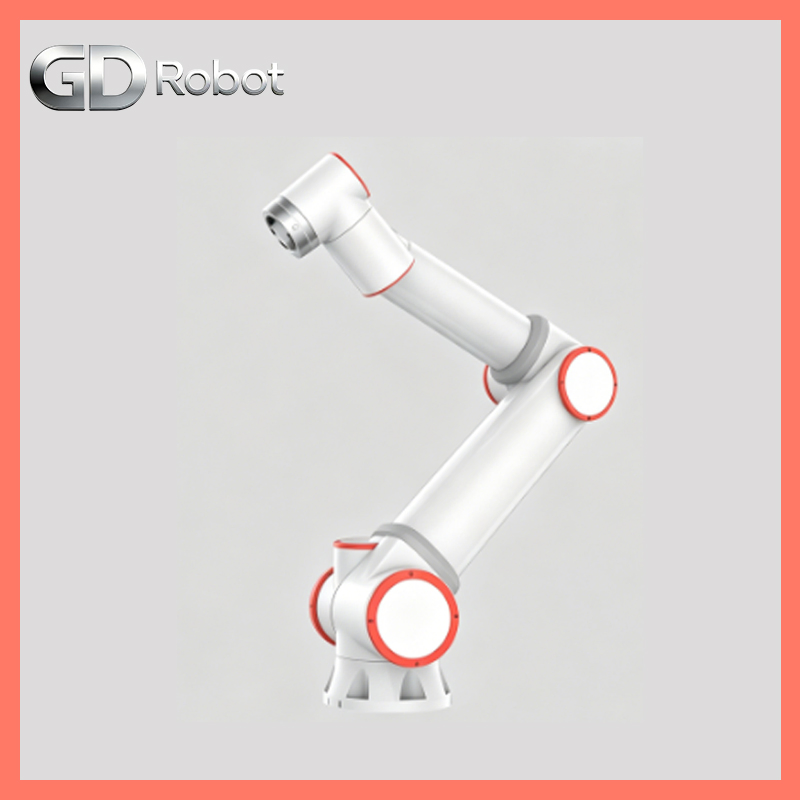

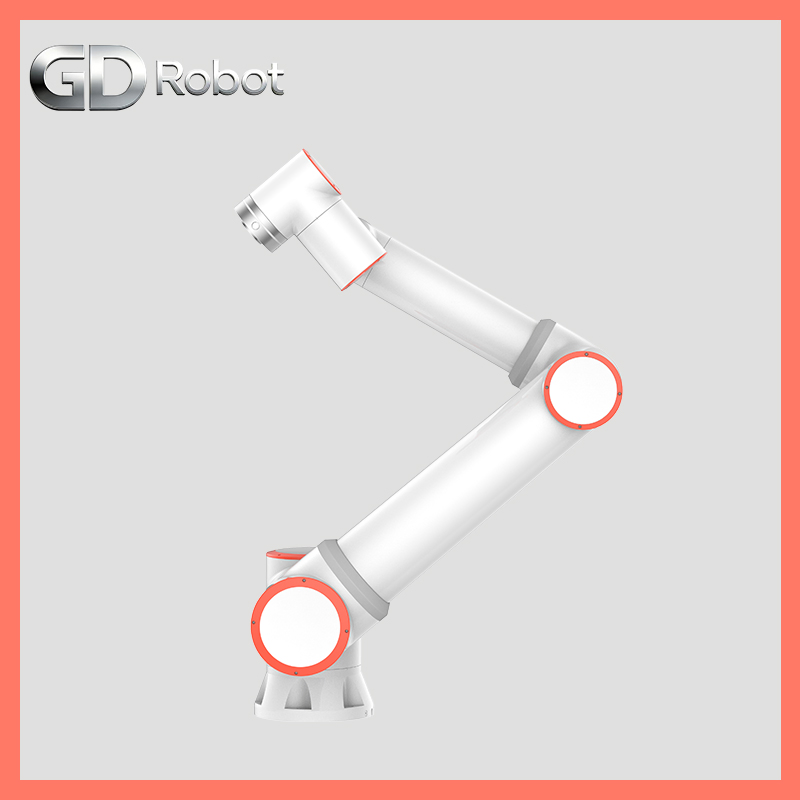

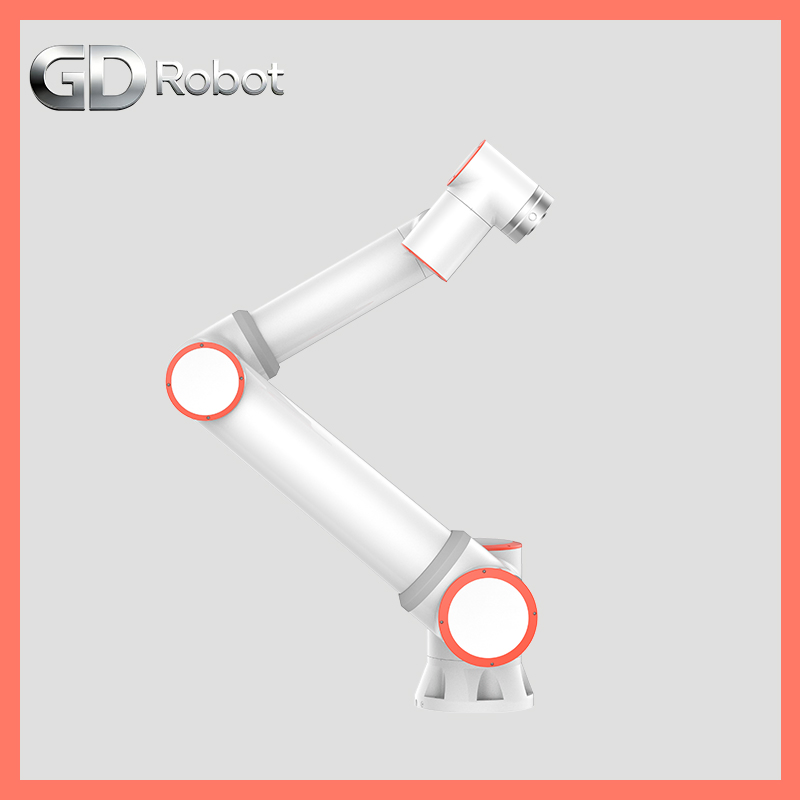

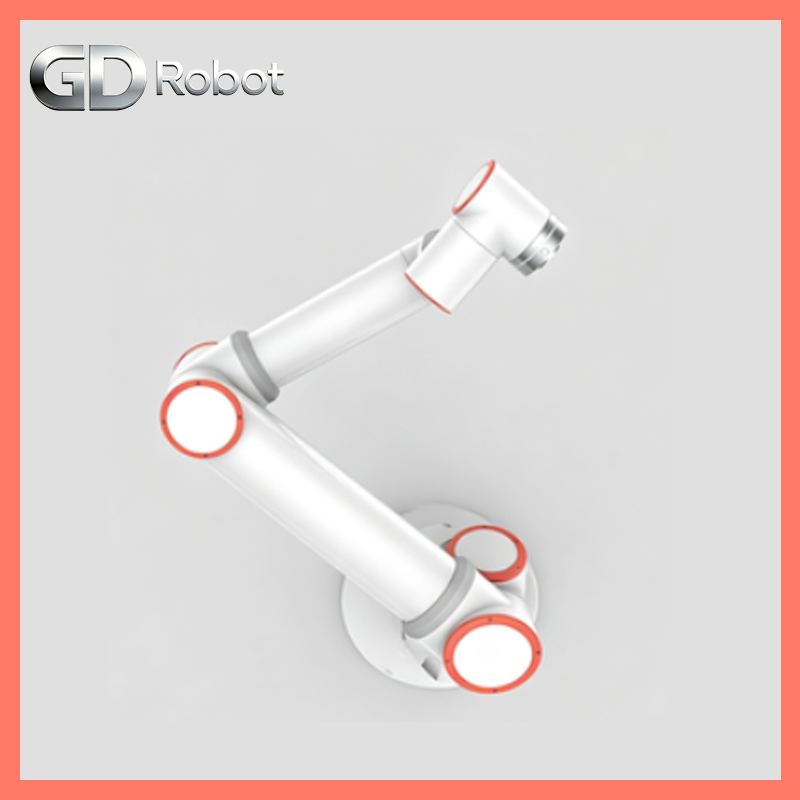

China Top Source Factory Direct Gd30 30kg Collaborative Robot Arm for Heavy-Duty Industrial Loading with Full OEM Customization
China Top Source Factory Direct Gd30 30kg Collaborative Robot Arm for Heavy-Duty Industrial Loading with Full OEM Customization
China Top Source Factory Direct Gd30 30kg Collaborative Robot Arm for Heavy-Duty Industrial Loading with Full OEM Customization
China Top Source Factory Direct Gd30 30kg Collaborative Robot Arm for Heavy-Duty Industrial Loading with Full OEM Customization
China Top Source Factory Direct Gd30 30kg Collaborative Robot Arm for Heavy-Duty Industrial Loading with Full OEM Customization
1 / 5
China Top Source Factory Direct Gd30 30kg Collaborative Robot Arm for Heavy-Duty Industrial Loading with Full OEM Customization
China Top Source Factory Direct Gd30 30kg Collaborative Robot Arm for Heavy-Duty Industrial Loading with Full OEM Customization
China Top Source Factory Direct Gd30 30kg Collaborative Robot Arm for Heavy-Duty Industrial Loading with Full OEM Customization
China Top Source Factory Direct Gd30 30kg Collaborative Robot Arm for Heavy-Duty Industrial Loading with Full OEM Customization
China Top Source Factory Direct Gd30 30kg Collaborative Robot Arm for Heavy-Duty Industrial Loading with Full OEM Customization

China Top Source Factory Direct Gd30 30kg Collaborative Robot Arm for Heavy-Duty Industrial Loading with Full OEM Customization

Send Inquiry

Product Description

Product Description
GD30 Collaborative Robot Arm
GD30 Industrial Loading Robot
  • ✔Payload 30kg collaborative robot arm with 1403mm reach, ideal for heavy-duty workshop loading tasks.
  • ✔High-load cobot with max 35kg capacity, stable for industrial handling and heavy assembly applications.
  • ✔±0.1mm repeatability ensures reliable precision for high-volume loading and material handling operations.
  • 🚀IP54-rated design supports any mounting orientation, flexible for diverse heavy loading robot integration.
  • 🚀Low noise operation (<70dB), suitable for continuous use in high-demand industrial production environments.
  • 🚀Factory direct OEM customization available, with multi-control options including teach pendant and Web App.
Technical Specifications
Parameter Specification
ModelGD30
Payload30kg (Max: 35kg)
Reach1403mm
Degrees of Freedom6 rotating joints
HMI10.1 inch teach pendant, mobile terminal or Web App
Pose Repeatability±0.1mm
Typical TCP Speed2m/s
IP ClassificationIP54 (IP65 Optional)
Noise<70dB
Robot MountingAny orientation
Weight≈85kg
Operating Temperature0-45°C
MaterialsAluminium, Steel
Typical Average Power600W

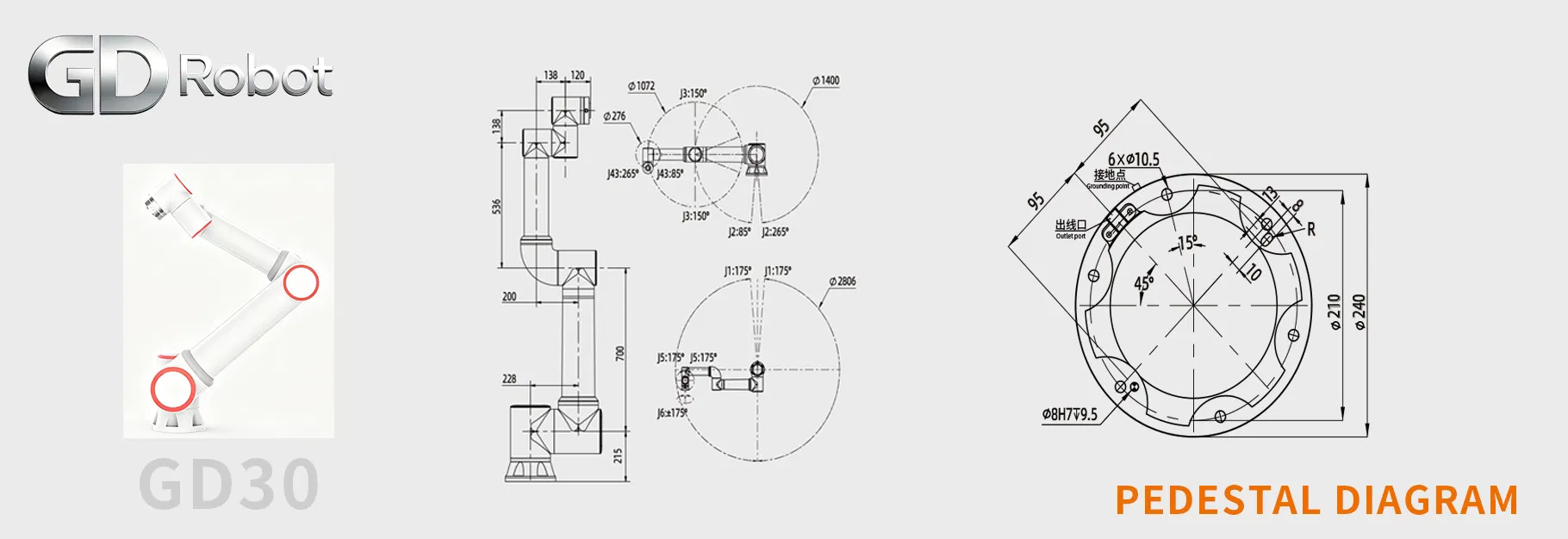

Robot Drawings
GD30 Robot Drawings
Packing & Delivery
Packing and Delivery
Hot Selling Products
Industrial Robot

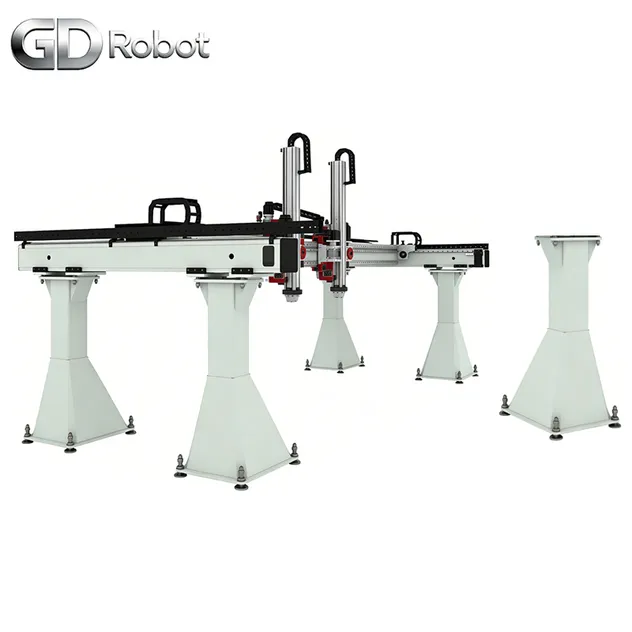

Truss System

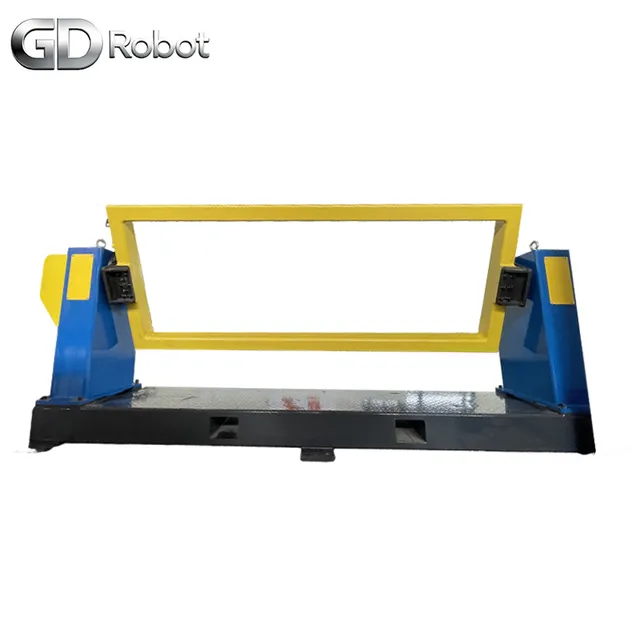

Welding Positioner

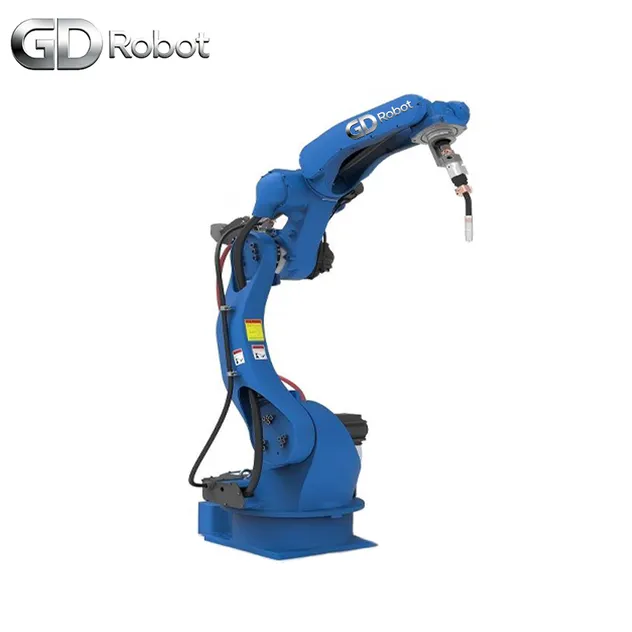

Welding Robot System

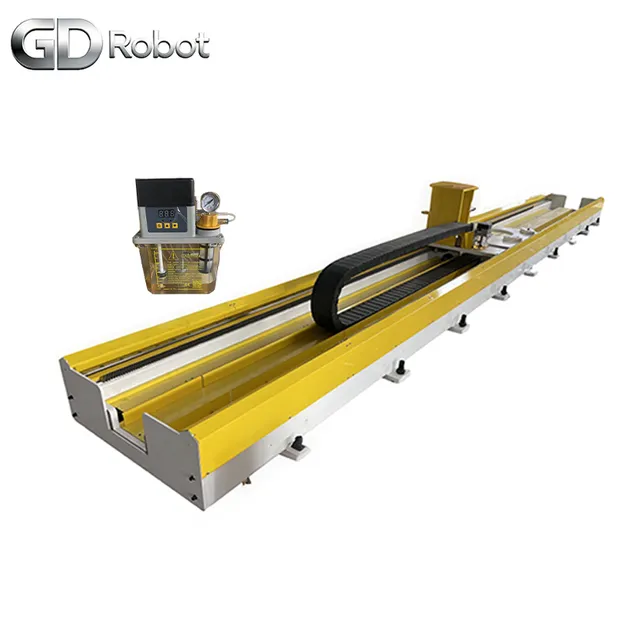

Robot Ground Rail

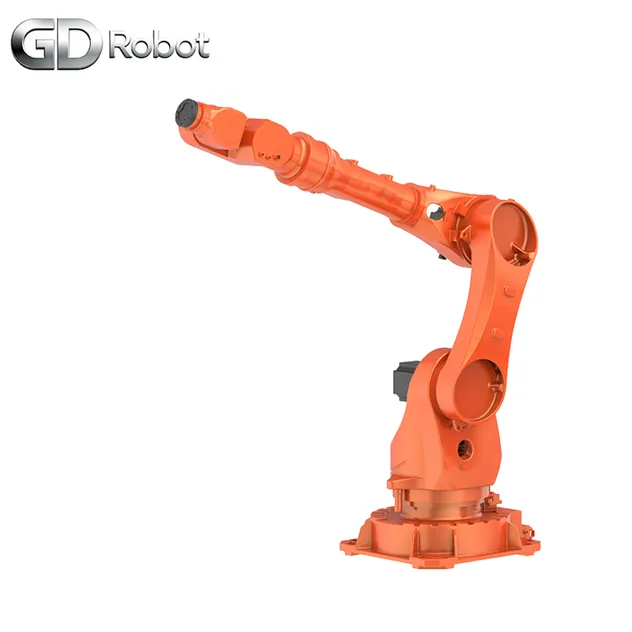

Bending Robot
Industry Solutions

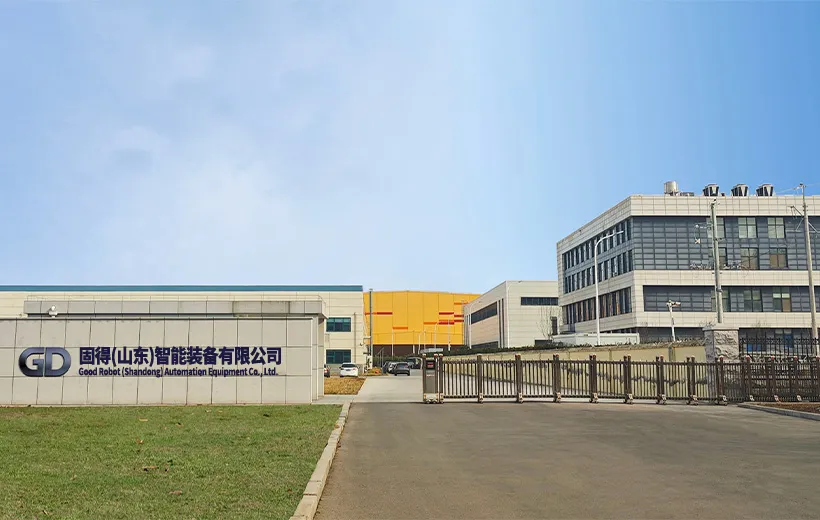

Production Base

Our expertise covers a wide range of industrial fields, including welding, palletizing handling, metal processing, bending, and spraying. Our products are widely used in agricultural machinery, engineering machinery, petroleum machinery, forging processing, warehousing and logistics, food processing, and other industries.

We provide over 50 types of automation solutions and more than 300 industrial robots each year, offering customized production as well as OEM/ODM services for global customers.

Automation Solution 1
Automation Solution 2
Certifications
Certifications
Frequently Asked Questions
Q: What is the payload of the GD30 collaborative robot arm? A: The GD30 robot arm offers a 30kg payload (with a maximum of 35kg), making it ideal as a heavy-duty loading robot with OEM support.
Q: What is the working reach of the GD30 robot arm? A: This collaborative robot arm features a 1403mm reach, perfect for extended-range heavy loading tasks in industrial environments.
Q: How accurate is the GD30 cobot arm? A: The GD30 robot arm delivers ±0.1mm repeatability, ensuring reliable precision for demanding collaborative robot applications.
Q: Can the GD30 robot arm be mounted in different orientations? A: Yes, it supports mounting in any orientation, providing significant flexibility for diverse heavy loading robot integration projects.
Q: What is the protection rating and noise level of the GD30? A: It has a standard IP54 rating (IP65 optional) and operates at a low noise level of <70dB, suitable for industrial workshops.
Q: What control interfaces are available for the GD30? A: The system supports a 10.1-inch teach pendant, mobile terminals, and Web App control for easy and intuitive operation.
