Sandai Robot
1 / 5

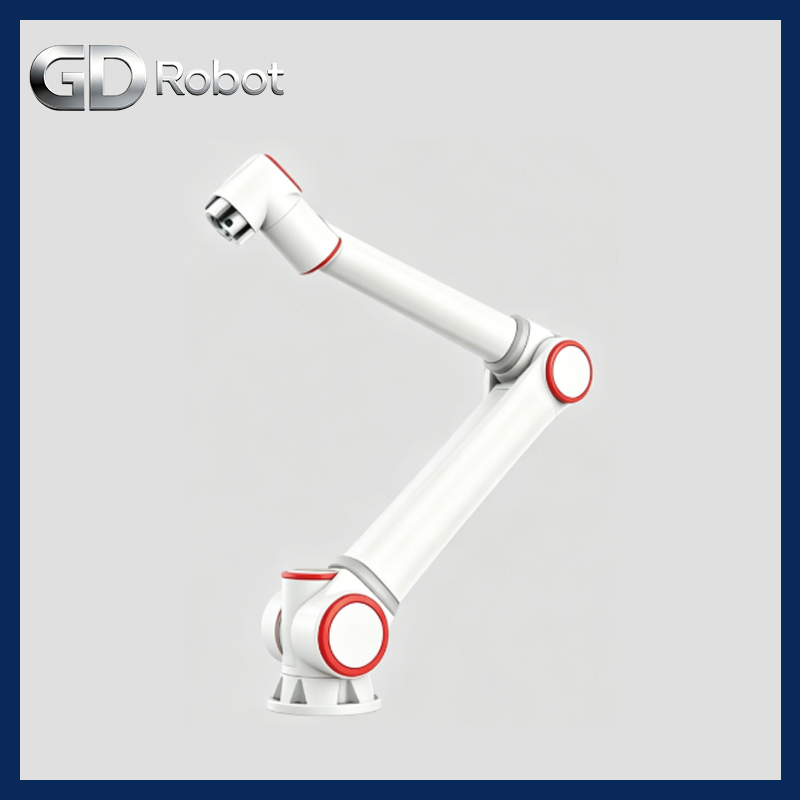

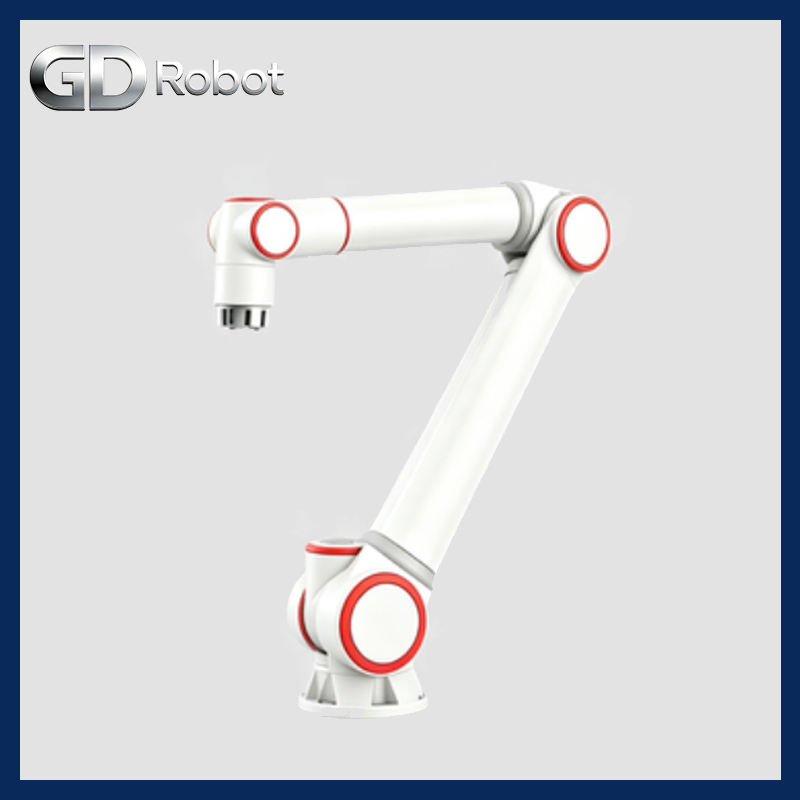

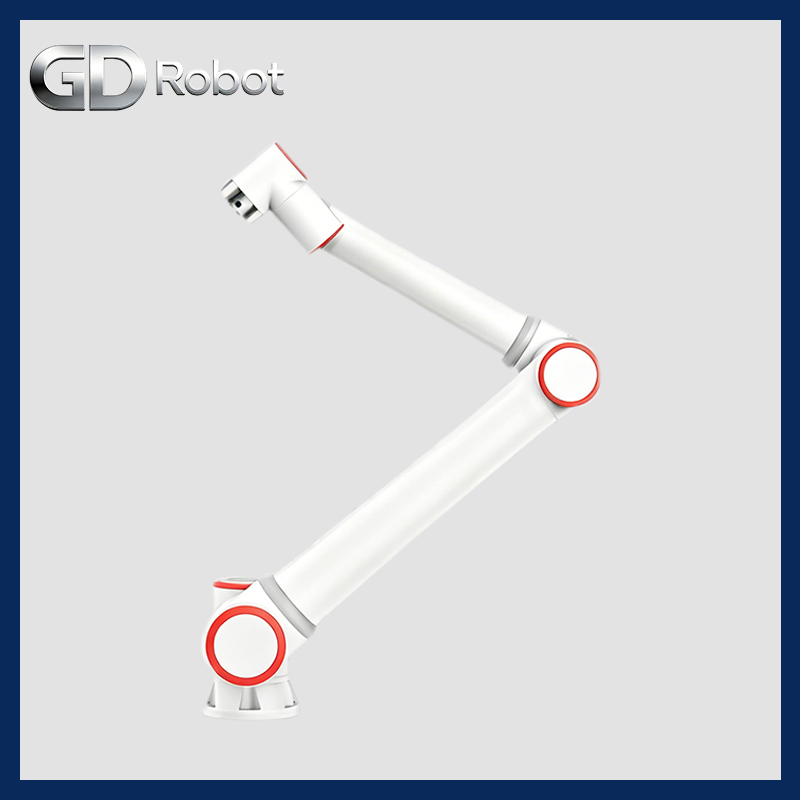

| Parameter | Specification |
|---|---|

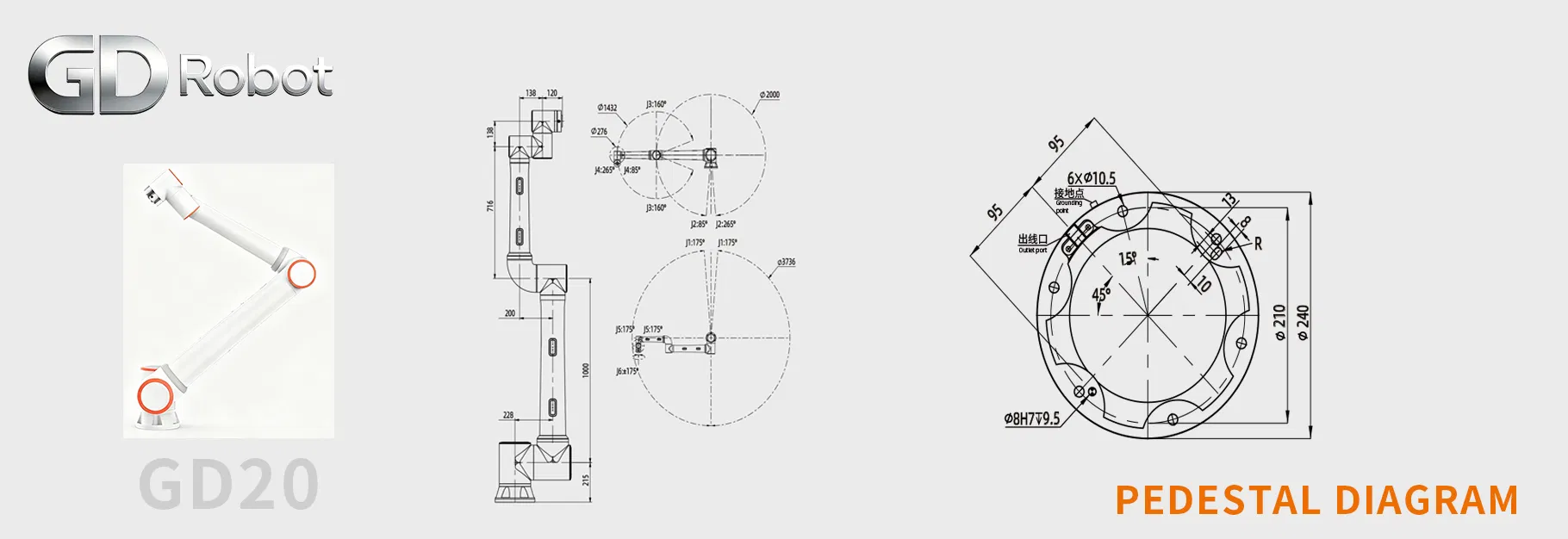

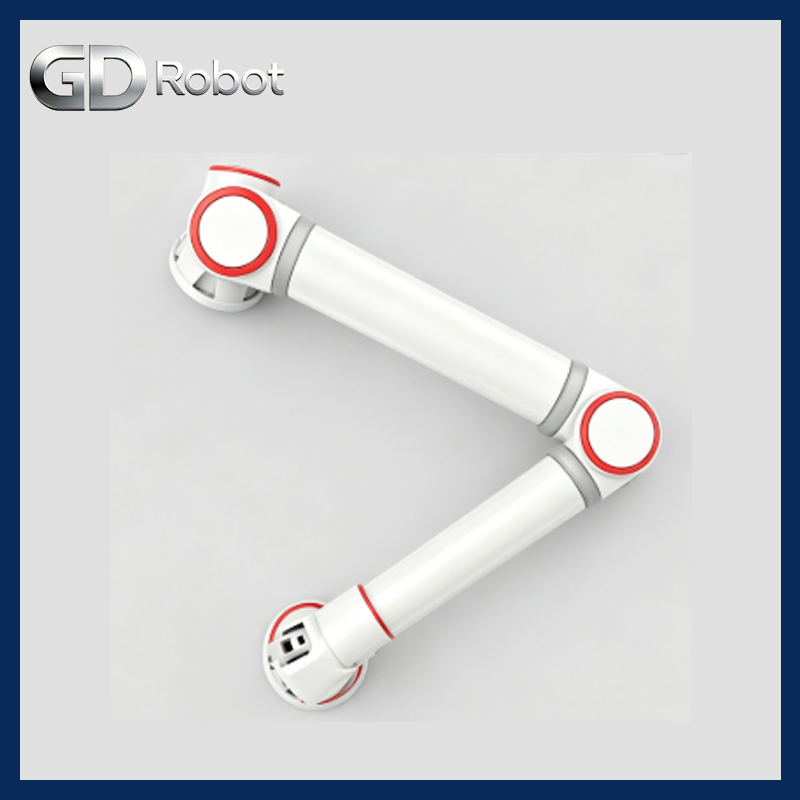

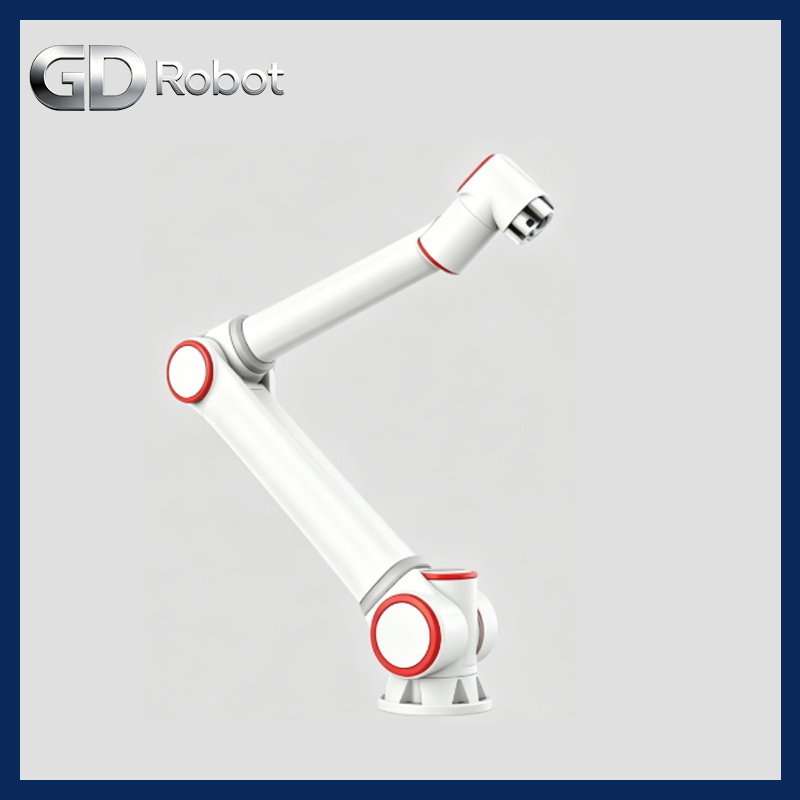

| Model | GD20 |
| Payload | 20kg (Max: 25kg) |
| Reach | 1854mm |
| Degrees of Freedom | 6 rotating joints |
| Pose Repeatability | ±0.1mm |
| Typical TCP Speed | 2m/s |
| Base Movement | ±175° / ±120°/s |
| Shoulder Movement | +85° / -265° / ±120°/s |
| Elbow Movement | ±160° / ±120°/s |
| Wrist 1-3 | Up to ±180°/s |
| IP Classification | IP54 (IP65 Optional) |
| Weight | ≈85kg |
| Operating Temp | 0-45°C |
| Materials | Aluminium, Steel |
| Typical Peak Power | 810W |

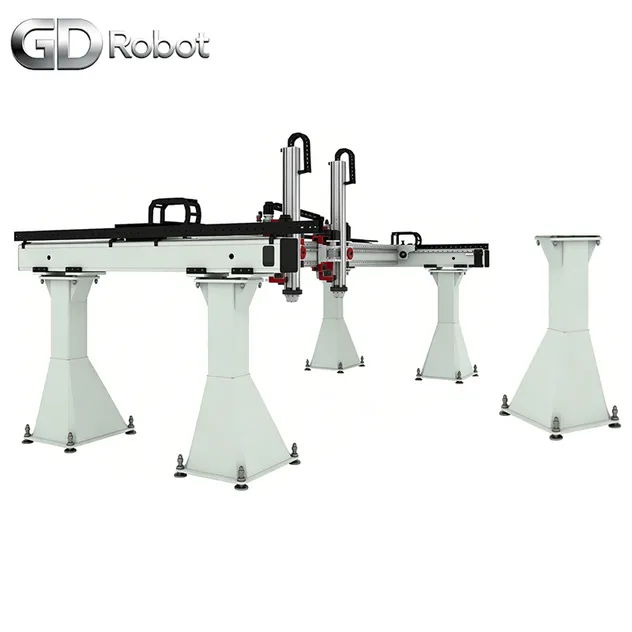

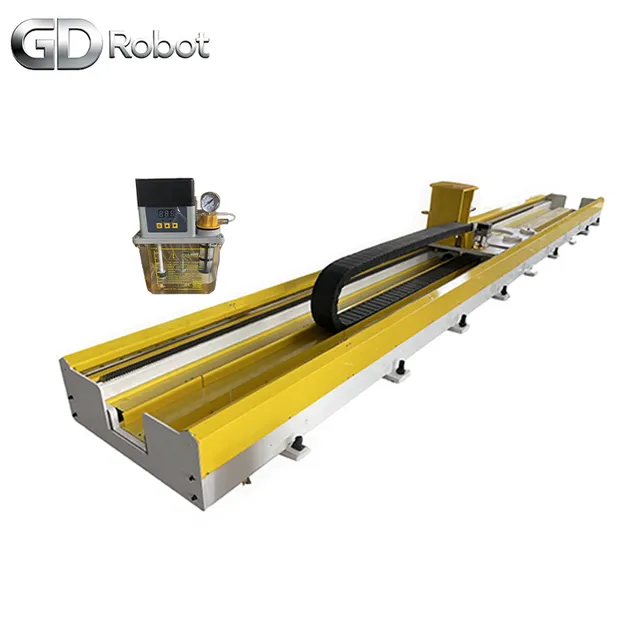

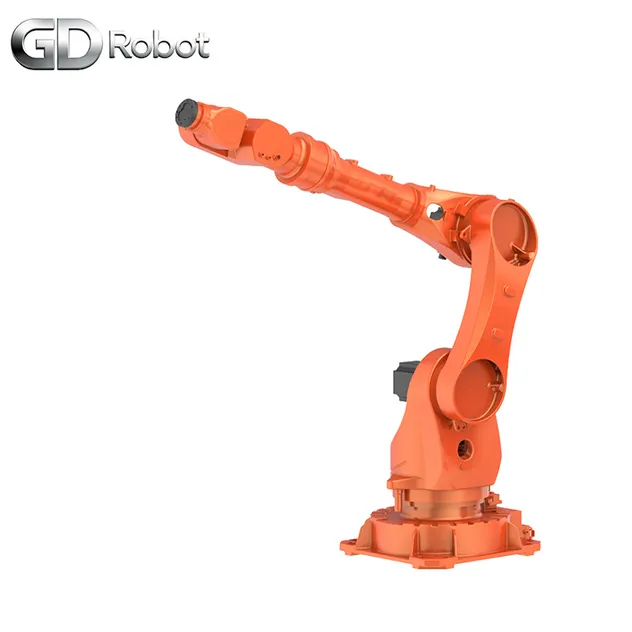

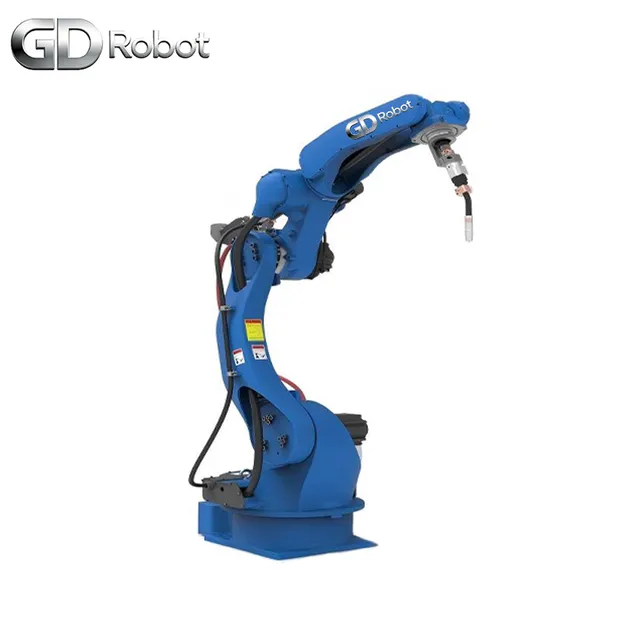

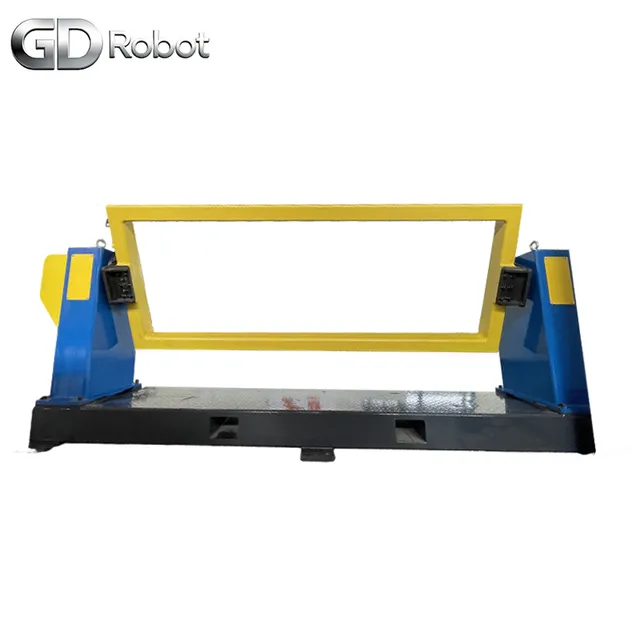

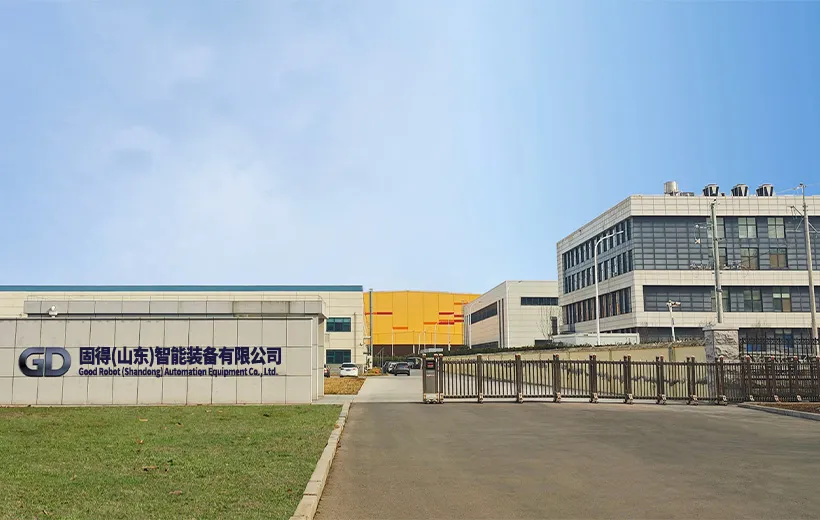

Established in 2018, our high-tech enterprise specializes in the R&D and production of industrial robots, gantry robots, robot linear guides, and welding positioners. We provide customized automation solutions for welding, palletizing handling, metal processing, bending, and spraying.
With strong production capacity, we produce more than 60 sets of robot linear guides, over 1,000 welding positioners, and more than 200 sets of gantry robot systems annually. We offer customized production as well as OEM/ODM services for customers worldwide.
